FWK 16177 - Wine cellar QLIMA - Free user manual and instructions

Product Type	Dual Zone Wine Cellar
Brand	Qlima
Model	FWK 16177
Energy Efficiency Class	B
Annual Energy Consumption	239 kWh/year
Total Net Volume	440 L
Temperature Zones	Upper zone: 5 to 12 °C Lower zone: 12 to 22 °C
Climate Class	N/ST (ambient temperature 16 to 38 °C)
Noise Emission	40 dB(A)
Power Supply	220-240 V ~ 50 Hz, 1,6 A
Dimensions (W × H × D)	598 × 1923 × 690 mm
Net Weight	100 kg
Compressor Type	Rotary
Refrigerant	R600a (58 g)
Insulation Gas	Cyclopentane
Interior Lighting	LED, automatic shut-off after 20 minutes or adjustable permanent lighting
Safety Lock	Yes (with key)
Reversible Door	Yes (door opening reversal possible)
Number of Shelves	Multiple removable shelves (suitable for Bordeaux bottles)
Alarms	Door open (after 5 min), high temperature (HI) or low temperature (LO)
Maintenance	Interior cleaning with warm water and mild detergent; replace charcoal filter every 6 months; clean condenser twice a year

Frequently Asked Questions - FWK 16177 QLIMA

How to set the temperature on the FWK 16177?

Press the UP button to select the upper zone, or DOWN for the lower zone. The indicator flashes. Then use UP or DOWN to adjust the temperature in 1 °C increments. The upper zone can be set from 5 to 12 °C, the lower zone from 12 to 22 °C. After 5 seconds, the display returns to the actual temperature.

What to do if the display shows 'HI' or 'LO'?

The HI display means the interior temperature exceeds 23 °C; the alarm sounds after one hour. LO indicates a temperature below 0 °C. Check the cause (door open, ventilation obstruction, etc.) and correct it. If the problem persists, contact customer service.

How to clean the interior of the wine cellar?

Unplug the appliance, remove all bottles and shelves. Clean the interior with warm water and a neutral detergent solution. Dry all surfaces thoroughly. Do not use abrasive cleaners. Also clean the condenser (rear grille) twice a year.

The wine cellar is very noisy, is this normal?

Some noise is normal: refrigerant clicking, gurgling, wall cracking. If the noise is excessive, check that the appliance is level and that no parts are loose. If the problem persists, contact a technician.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: loosen the hinges, remove the door, move the decorative plugs, and install the supplied hinges (upper left and lower left). Ensure the screws are tight.

How many bottles can I store?

The capacity depends on the bottle size. The total net volume is 440 liters. The shelves are designed for Bordeaux bottles. The actual number varies, but you can store approximately 100 to 150 bottles depending on size.

How to activate the LED lighting permanently?

For models BWK 1607 and BWK 1622, press and hold the LIGHT button for 5 seconds until 'LP' displays. For the FWK 16177, the light turns off automatically after 20 minutes; there is no permanent mode mentioned, but you can turn it back on manually.

What to do if the door does not close properly?

Check that the appliance is level (adjust the adjustable feet). Ensure the door was correctly mounted after reversal. Clean the door seal with soapy water. Check that the shelves are properly in place and not blocking the door.

How to replace the activated charcoal filter?

The charcoal filter is located in the upper ventilation opening. It must be replaced every six months. Order a replacement filter from your dealer. To replace it, remove the old filter and insert the new one respecting the air flow direction.

What to do if the appliance does not start?

Check that the appliance is plugged into a grounded outlet. Ensure the circuit breaker has not tripped and the fuse is good. The appliance may have been turned off; unplug it and plug it back in after 3 to 5 minutes. If the problem persists, contact an authorized technician.

USER MANUAL FWK 16177 QLIMA

guarantee

2

YEARS

D	GEBRAUCHSANWEISUNG	14
DK	BRUGSANVISNING	30
E	INSTRUCCIONES DE USO	44
F	MANUEL D'UTILISATION	58
GB	OPERATING MANUAL	72
I	ISTRUZIONI D'USO	86
N	BRUKSANVISNING	102
NL	GEBRUIKSAANWIJZING	116
S	BRUKSANVISNING	130

S INNEHÅLLSFÖRTECKNING

A

B

C

DK SIKKERHED GENERELT

D

E

F

G

H

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this appliance. We strongly recommend keeping this manual in a safe place for future reference.

A. Do not use a damaged cable. B. Do not clamp or bend the cable. C. Do not place unevenly. D. Do not place in front of an open window. E. Do not bring in contact with chemicals. F. Do not place near a heat source. G. Do not immerse in water. H. Do not spill.

A

B

C

SAFETY

D

E

F

G

H

GENERAL SAFETY

A

B

C

GENERAL SAFETY

D

E

F

G

H

PICTURES

BWK 1607 BWK 1618 BWK 1622 BWK 1651 FWK 16110 FWK 16154 FWK 16177

	DE	DK	ES	FR	GB	NO	NL	SE
1	Wein-schrank-Gehäuse	Kabinet	Estruc-tura	Corps d'armoire	Cabinet body	Kabinett-hovedde-len	Behuizing van de koelkast	Ytter-hölje
2	Tür	Låge	Puerta	Porte	Door	Dør	Deur	Dörr
3	Griff	Håndtag	Mango	Poignée	Handle	Håndtak	Hand-greep	Handtag
4	Oberer Bereich	∅vre zone	Zona superior	Zone su-périeure	Upper zone	∅vre sone	Bovenste zone	Övre zon
5	Bedien-feld	Kontrol-panel	Panel de control	Panneau de com-mande	Control panel	Kontroll-panel	Bedie-ningspa-neel	Kontroll-panel
6	Unterer Bereich	Nedre zone	Zona inferior	Zone in-férieure	Lower zone	Nedre sone	Onderste zone	Undre zon
7	Regal	Hylde	Estante	Étagère	Shelf	Hylle	Plank	Hyllor
8	Kurzes Regal	Kort hylde	Balda pequeña	Petite étagère	Short shelf	Kort hylle	Kort schap	Kort hylla
9	Lüfter	Ventila-tor	Ventila-dor	Ventila-teur	Fan	Vifte	Ventilator	Fläkt
10	Front-klappe	Forreste tremmer	Rendija frontal	Évent frontal	Front louver	Ventilas-jonsåp-ninger foran	Voorste jaloezie	Ventila-tionsgal-ler
11	Einstell-barer Fuß	Juster-bar fod	Pie ajus-table	Pied réglable	Adjusta-ble foot	Justerbar fot	Aanpas-bare voet	Juster-bar fot
12	Verriege-lung	Lås	Cierre	Verrou	Lock	Lås	Slot	Lås
13	Kühluf-teinlass	Indløb til kölig luft	Entrada de refri-geración	Entrée d'air de refroidis-sement	Cooling air inlet	Kjøleluf-tinntak	Inlaat koellucht	Kyllufts-galler

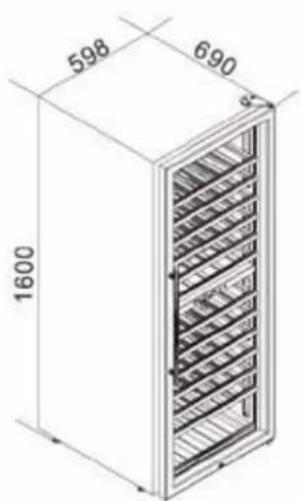

Picture 1

Picture 2

BWK 1607 BWK 1618

BWK 1622

BWK 1651

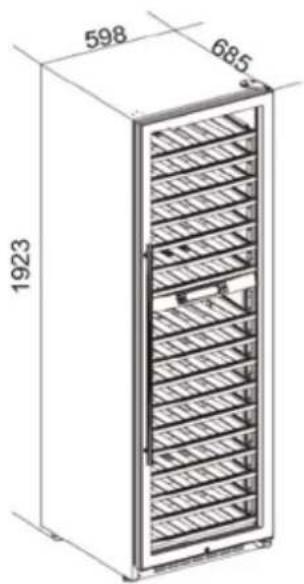

FWK 16110 FWK 16154 FWK 16177

Picture 3

	DE	DK	ES	FR	GB	NO	NL	SE
a	Begren-zungs-block	Begræn-set blok-ering	Bloque limitado	Bloc limité	Limited block	Avgren-set blokk	Fixatie strip	Begrän-sat block
b	Küchen-schrank	Køk-kenskab	Arma-rio de cocina	Armoire de cui-sine	Kitchen cabinet	Kjøk-kenskap	Keuken-kastje	Köksskåp
c	Schrau-be	Skrue	Tornillo	Vis	Screw	Skrue	Schroe-ven	Skruv
d	Schrau-bendre-her	Skru-etræk-ker	Destor-nillador	Tourne-vis	Screw-driver	Skrutrek-ker	Schroe-ven-draaier	Skru-vmejsel
e	Kühler Køler		Refrige-rador	Refroi-disseur	Cooler Kjøler	Koeler	Kylare

Picture 4

Picture 5-1

Figure 5-2

Figure 5-3

Figure 5-4

Figure 6

Figure 7 Figure 8

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a wine cooler in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage. Only use the product for the cooling of wine. Do not use the product for other goals than described in this manual.

IMPORTANT

• The installation must be completely in accordance with local regulations, ordinances and standards.
• The device is suitable exclusively for use in dry places, indoors.
• Check the mains voltage. This device is suitable exclusively for earthed sockets – connection voltage 230 Volt/ 50 Hz.
• The device MUST always have an earthed connection. You may absolutely not connect the device if the power supply is not earthed.
• The plug must always be easily accessible when the device is connected.
• Read these instructions carefully and follow the directions.

Before connecting the device, check that:

• The connection voltage corresponds to that on the type plate.
• The socket and power supply are suitable for the device.
• The plug on the cable fits the socket.
• The device is on a stable and flat surface.

Have the electrical installation checked by a recognised expert if you are not sure that everything is in order.

• The wine cooler is a safe device, manufactured in accordance with CE safety standards. Nevertheless, as with every electrical device, exercise caution when using it.
• Never cover the air inlets and outlets.
• Always take the plug out of the socket before cleaning or replacing the device or a part of the device.
• Always consider the safety of children in the vicinity of this device, as with every electrical device.
• Always have any repairs – beyond regular maintenance – carried out by a recognised service engineer. Failure to do so may lead to invalidation of the guarantee.
• Always take the plug out of the socket when the device is not in use.
• A damaged electricity cable may only be replaced by the supplier or an authorised person/service point.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

WARNING!

• Keep ventilation openings - in the appliance enclosure or in the built-in structure - clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

BEFORE USING YOUR WINE COOLER FOR THE FIRST TIME:

Make sure the wine cooler stays in an upright position during transportation. After removing the appliance from its packaging, make sure it is in good condition. If there are any issues with the wine cooler, please contact an authorized service center immediately.

• Place the appliance on a level floor surface that will be strong enough to support it when it is at full capacity. To level the wine cooler adjust the leveling feet located at the bottom of the appliance.
• Do not use this wine cooler in applications for which it is not intended. Damage that occurs from improper use or from unauthorized repairs will void the warranty.
• For proper air circulation, please maintain a 50mm minimum clearance in between the back of the wine cooler and the wall.
• Do not operate this wine cooler in excessively moist or humid environments.
• Keep the wine cooler away from direct sunlight.
• Keep the wine cooler away from hazardous materials or combustible/flammable substances.

CAUTION:

- DANGER: RISK OF CHILD ENTRAPMENT: An empty wine cooler can be dangerous to children. Remove any latches, lids, locks, and/or doors from unused or discarded appliances to prevent child entrapment and suffocation. Never allow children to operate, play with or crawl inside this appliance.

II COMPONENTS

Pic. 1

III INSTALLATION AND OPERATION

Unpacking and cleaning the wine cooler

- Remove the exterior and interior packing materials.

• Let the appliance stand upright for approximately 12 hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.
• Use a soft cloth to clean the interior surface with lukewarm water. • Install the door handle provided with the appliance by following these steps: pic. 2
• Remove the gasket at the inner side of the door to expose the two screw holes.
• Install the handle tightly with the screws and washers provided
• Tidy and restore the gasket

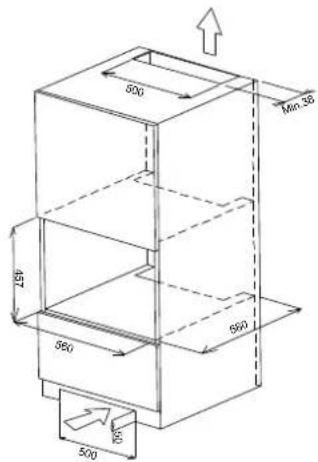

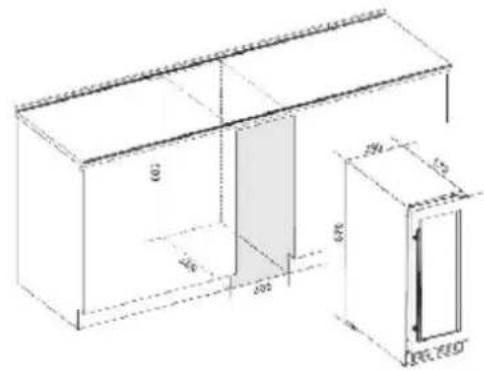

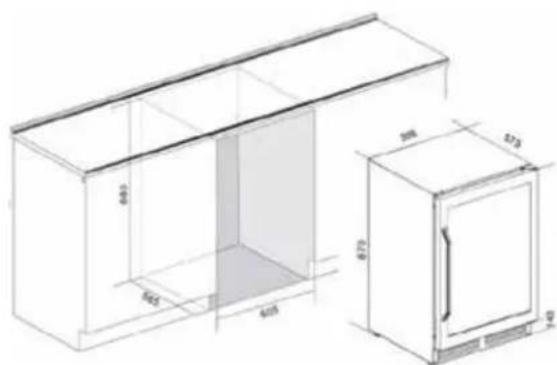

Installation

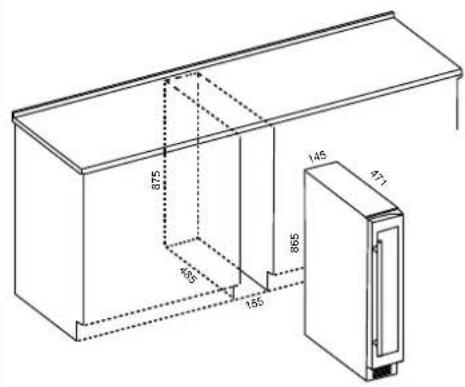

Pic. 3

BWK 1622

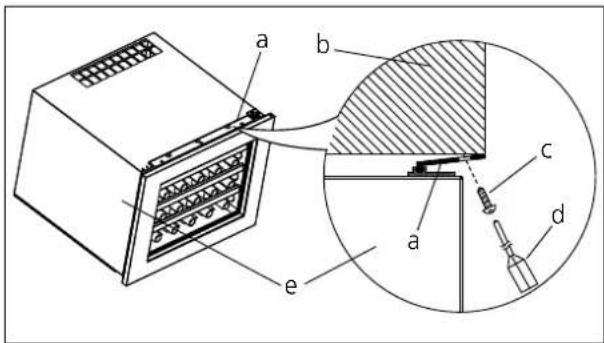

1. After installing the wine cellar into the cooler, please adjust the limited block (a) close to the cooler (e).
2. Please fix the 3 screws through the limited block (a) screw hole into the cooler (e), pic. 4.

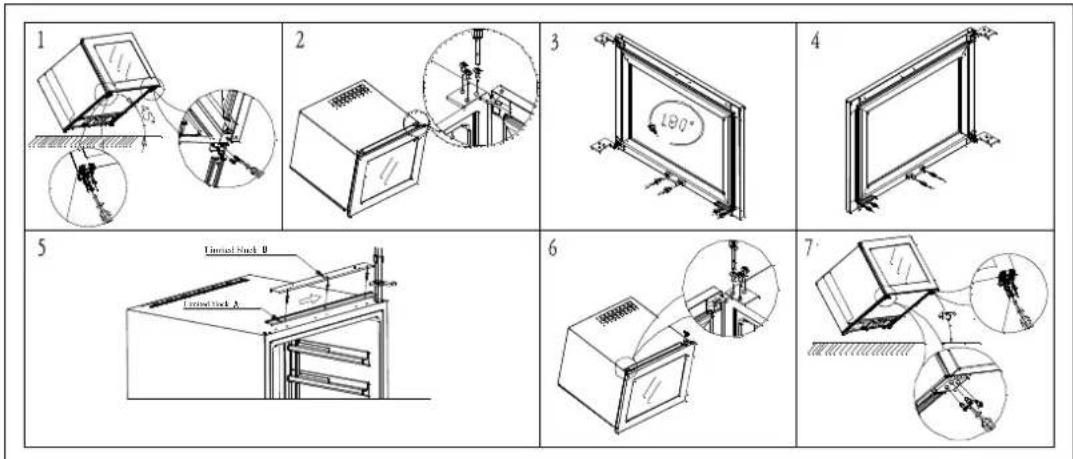

Reverse the door swing (Only BWK 1607, BWK 1618, and BWK 1651) Remarks:

The instruction is based on a unit with the right door hinge already installed.

To reverse the door from right hinge to left hinge, you need to get ready 2 new spare parts: an upper left hinge and a bottom left hinge. Both these left hinges plus accompanying screws are included inside the package with the wine cooler. All removed parts must be saved to do the door reinstallation, except those remarked with "Disused".

1. Open the door, and loosen the 2 screws ① and ②. (pic. 5-1). 2. Carefully remove the door from the upper right hinge ④ and prevent it from scratching. Take out the support rod ③ from the door hinge hole. (pic. 5-2). 3. Pull out the ⑥ decorating plastic plugs covering the reserved hinge screw holes at the front left corner of the cabinet and move them to the right side. 4. Unscrew the upper right hinge ④ (Disused) and bottom left hinge ⑥ (Disused) from the cabinet. (pic. 5-3). Install the upper left hinge ⑦ and bottom left hinge ⑧ to the left side of the cabinet. Make sure that the screws are tightened. (pic. 5-4). 5. Put the door upside down and install it to the left hinges by following the opposite steps of taking down the door as described above. 6. Cover the hinge screw holes on the right side with the ⑥ decorating plastic bolts.

Working climate

- The appliance is designed for operating from SN/N climate (see below climate class chart). It is recommended to maintain the ambient around 22-25°C which helps the appliance working with low power consumption.

Climate Class Ambient Temp.
SN 10 - 32 °C
N 16 - 32 °C
ST 18 - 38 °C
T 18 - 43 °C

- If the ambient temperature is above or below the designed climate range, the performance of the unit may be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior temperatures to fluctuate, and the temperature set 4-22°C may not be reached sometimes.

Wine storage

• The standard shelves are optimized for 750ml Bordeaux bottle storage. The maximum loaded bottles may vary subject to the different size or dimension of the wine bottles you store, as well as the shelves quantity pre-installed in the Wine Cooler. (pic. 7)
• There are two designs for the pull-out shelves:

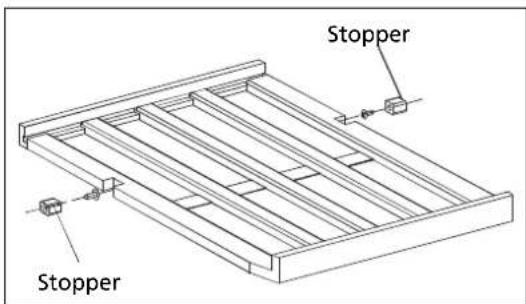

• The shelves are without telescopic rails, but with a plastic stopper on each side of the shelf track to prevent bottles from falling.
• The shelves are with telescopic rails, which have stoppers by themselves.
• To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling the shelves out.
• Should the wine cooler be left empty for long periods, we suggest that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mold, or bad smell forming.

Energy saving tips

• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the door frequently.

Operation

Control Panel

BWK 1607

Single Zone

Lighting

Display Windows °C / °F interchange

BWK 1618

Single Zone

Temp. up Temp. Down Power

Temperature setting

• The temperature setting range is 5-22 °C (BWK 1607, 5-18°C). - Directly touch the mark ⊕ or ⊖ to set the Wine Cooler temperature as you want. - The first touch on mark ⊕ or ⊖ will recall the previous set temperature displayed in the digital window. If the appliance runs after a power failure (or unplugging), the previous set temperature does not exist and is replaced by the default temperature at 12°C. - Touch the mark ⊕ to increase the set temperature by 1°C. On the contrary, touch the mark ⊖ to decrease the set temperature by 1°C. - The digital will change to display the real temperature of the inside cabinet after 10 seconds without being touched.

Operation

Control Panel

BWK 1622

Single Zone

Overtime Open the Door Alarm

- When you forget to close the door or the door is not closed completely, the buzzer alarms after 5 minutes. Please close the door completely and avoid the cold energy being lost.

Temperature Alarm

• If inner temperature is higher than 23°C, the "HI" is shown in the display panel, and the buzzer alarms after one hour continuously. It informs that the inner temperature is too high, please check the reason.
• If inner temperature is lower than 0°C, the "LO" is shown in the display panel, and the buzzer alarms and the malfunction indicator light lights at the same time.

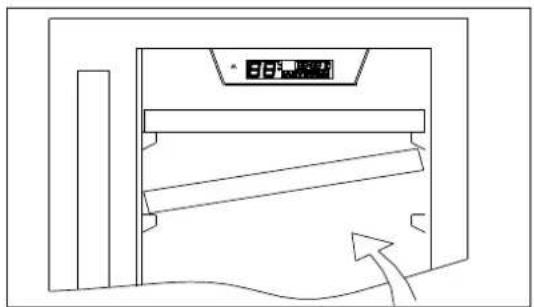

• When removing any of these shelves out of the rail compartment, tilt the shelf as per the pic. 8 and simply pull out.

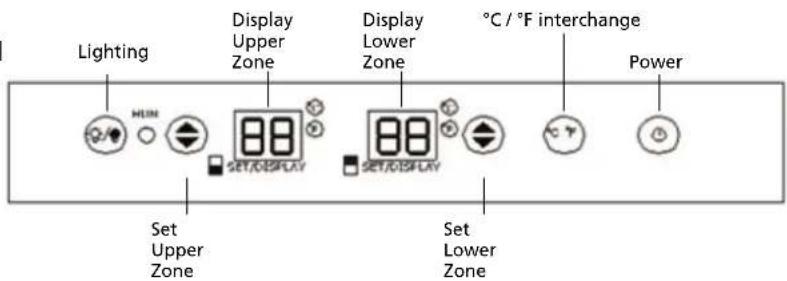

Operation

Control Panel

BWK 1651

FWK 16110

FWK 16154

Dual Zone

Power On/Off

• When the appliance is plugged in to a power outlet, it powers on automatically.
• Touch the power mark ⏻ to turn off (or turn on) the appliance.

Temperature setting

• The temperature setting ranges are 5-12 °C for the upper zone and 12-22 °C for the bottom zone.
• Press ⬇ for desired zone once. The display with digital flashing indicates the zone ready for temperature setting.
• Press ⬆ to set the desired temperature. The temperature will increase 1°C for each time the button is pressed. When the top value for the zone is reached, it will continue from the lowest value of the zone. • After 5 seconds the display will switch back to show actual temperature

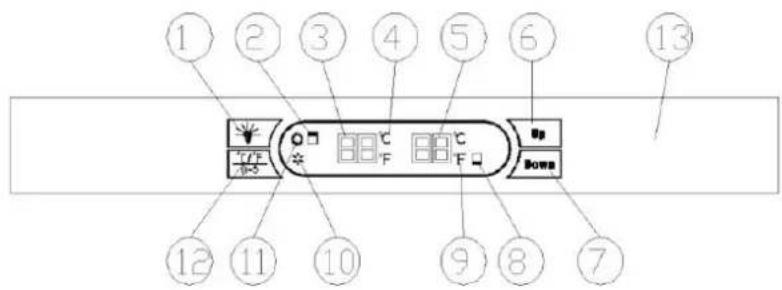

Operation Control Panel

FWK 16177 Dual Zone

1 Lighting 8 Lower zone
2 Upper zone 9 °C / °F
3	Temperature upper zone	10	Light "Compressor working"
4 °C / °F	11 Light "Heating working"
5 Temperature lower zone 12 °C / °F interchange
6 Setting "Up"
7 Setting "Down"

Power On/Off

- When the appliance is plugged into a power outlet, it powers on automatically. To power off, the plug must be unplugged.

Temperature setting

• The temperature setting ranges are 5-12 °C for the upper zone and 12-22 °C for the bottom zone.
• Choose the zone to adjust by pressing once on: "UP" for the upper zone, "DOWN" for the lower zone. The display with digital flashing indicates the zone ready for temperature setting.
• Press "UP" or "DOWN" to set the desired temperature. The temperature will change by 1°C each time the button is pressed. After 5 seconds, the display will switch back to show the actual temperature in the zone.

Warning

• To avoid breaking the compressor, please do not turn on the appliance again within 5 minutes after turning it off.
• If the unit is unplugged, power is lost, or it is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the wine cooler will not start.

Interior lighting On/Off

• Touch the lighting button to turn on (or turn off) the interior cool LED lighting.
• The lighting will be continuously on if it is not turned off, except for FWK 16177 where it will automatically switch off after 20 minutes, and for BWK 1607 & BWK 1622 where it will automatically switch off after 10 minutes.

- For BWK 1607 & BWK 1622, if you want the LED light to remain on continuously, this is possible. Press and hold the "LIGHT" button for 5 seconds; the display will show "LP". After 4 seconds, the display will revert to normal and the light will remain on until manually switched off. If you want to revert back and conserve energy (recommended), press and hold the "LIGHT" button for 5 seconds; the display will show "LF". After 4 seconds, the display will revert to normal, and the light will automatically switch off after 10 minutes.

Note!

The first time you use the appliance, or restart it after it has been shut off for a long time, you may notice a few degrees difference between the set temperature and the displayed temperature. This is normal, and the appliance will operate correctly after a few hours of running.

Temperature display

• The temperature is displayed digitally, which is the easiest way to read it. The digital display shows the set temperature while you are adjusting it, and then changes to show the actual temperature inside the cabinet 5 seconds after you stop touching the controls.
• If the temperature probe malfunctions, the display will show "HH" or "LL" instead of a number, and a continuous buzzer will sound. In this case, the appliance is designed to keep the compressor and fans running periodically to help maintain the cold temperature inside the cabinet and protect your stored wines.

Warning

To avoid damaging your stored wines, it is strongly recommended to have the appliance repaired immediately, as the temporary periodic running cannot guarantee that the appliance will reach the temperature you have set.

Selecting Fahrenheit or Celsius

Touch the °C/F button to switch between Fahrenheit (°F) and Celsius (°C) display.

For BWK1618, the switch is done by pressing "+" and "-" simultaneously for 5 seconds.

Security lock

• The lock is an optional feature. If your wine cooler has this function, a key should be included in the packaging of this manual.
• Insert the key into the lock and turn it counterclockwise to unlock the door. To lock it, follow the reverse procedure. Please keep the key in a safe place.

IV

INTERNAL MAINTENANCE

Your cabinet is easy to operate and has proven its reliability; it will provide long-lasting satisfaction if you follow the simple maintenance and cleaning operations listed below:

• Shut off the power supply before cleaning the unit's cabinet.
• Remove all wines and storage shelves.
• Clean the unit's interior with a warm water and neutral detergent solution. Thoroughly dry all surfaces.

Replace the activated charcoal filter in the upper ventilation hole of the cabinet half a year (your dealer keeps this accessory in stock).

Remove dust from the condenser (metal screen on the back of the cabinet) twice a year.

Make sure the power cord is unplugged before cleaning the back of your cabinet, or before moving it.

Clean the inside of your cabinet thoroughly once a year, after unplugging and unloading it (use wet cloth and a mild cleaning item, then rinse carefully).

Note:

a. Do not use abrasive cleaners to clean the wine cooler. b. Use mild, soapy water to clean the unit's door seal. c. To ensure efficient operation, also thoroughly clean the back and bottom of the wine cooler. Make sure the power supply is turned off prior to cleaning the back and bottom of the wine cooler.

Moving the wine cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Protect also the outside of the appliance with a blanket or similar item.

V TROUBLESHOOTING

Before calling for service, review the chart below yourself.

Problem Possible cause/	Measure
The Wine Cooler does not operate	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or a blown fuse
The Wine Cooler is not cold enough	Check the temperature control setting.
	External environment may require a higher setting. The door is opened too frequently.
	The door is not closed completely.
	The door gasket does not seal properly.
Automatically turn-on and turn-off frequently	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine Cooler.
	The door is opened too frequently. The door is not closed completely.
	The temperature control is not set correctly. The door gasket does not seal properly.
The lighting does not work	Not plugged in.
	The circuit breaker tripped or a blown fuse. The lighting is turned off.
Too much vibration	Check to assure that the appliance is level.
	Check to assure no parts inside the cabinet or in the compressor chamber are loose.
The Wine Cooler seems to make too much noise	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The appliance is not level.
The door will not close properly.	The wine COOLER is not level.
	The door was reversed and not properly installed. The gasket is dirty.
	The shelves are out of position.
The display window is shown with “HH” or “LL” instead of a digital figure, and/or with continuous buzz sound.	The temperature probe is out of order.
Dew on the surface of cabinet	The surface of wine cabinet especially the glass door will appear some frost if the cabinet is installed in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth.

VI GUARANTEE CONDITIONS

The wine cooler is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted, or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the wine cooler or wine cooler components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Qlima filters is not covered by the guarantee.

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge. Do not throw batteries into the fire, where they can explode or release dangerous liquids. If you replace or destroy the remote control, remove the batteries and throw them away in accordance with the applicable regulations because they are harmful to the environment.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

VII TECHNICAL DATA/PRODUCT FICHE

Brand	Qlima	Qlima	Qlima
Type	BWK 1607	BWK 1618	BWK 1622
Category of household refrigeration appliance
Energy efficiency Class	A	A	A
Mains V/Hz/ph
Annual energy consumption (kWh/yr)	135	116	139
Nett storage volume (liters)	20	58.5	54
Design temperature of other compartments
Frost free compartments	no	no	no
Power cut safe (hours)
Freezing capacity (kg/24 hrs)
Climate class	N	N/SN	N
Air borne sound emission (dB (A) re 1 pW)	44	40	43
Usage	Build in	Build in	Build in
Intended use	This appliance
Min.-Max. storage temperature (°C)	5-18	5-22	4-18
Power consumption (kWh/24h)	0.37	0.317	0.38
Power consumption lamp (W)	0.25	0.5	0.7
Current nom. (A)	0.5	1	0.5
Compressor type	Reciprocating	Rotary	Reciprocating
Refrigerant type (gr)	R600a / 16 gr.	R600a / 18 gr.	R600a / 23 gr.
Dimensions (w x h x d) (mm)	145 x 865 x 471	295 x 870 x 575	590 x 455 x 557
Weight (kg)	19	31.5	27
Unit protection
Insulation blowing gass

16177

	B B	C C
220-240/50/1
	200	183 239	252
	135	275 386	440
not applicable
	no	no	no	no
not applicable
not applicable
	ST/T	N/ST	N/ST	N/ST
	43	40	40	40
	Build in	Free Standing	Free Standing	Free Standing

is intended to be used exclusively for the storage of wine

	Up 5-12Low 12-22	Up 5-12Low 12-22	Up 5-12Low 12-22	Up 5-12Low 12-22
	0.55	0.50	0.66	0.69
	0.5	0.8	0.8	0.8
	1.4	1.6	1.6	1.6
	Rotary	Rotary	Rotary	Rotary
	R600a / 43 gr.	R600a / 52 gr.	R600a / 58 gr.	R600a / 58 gr.

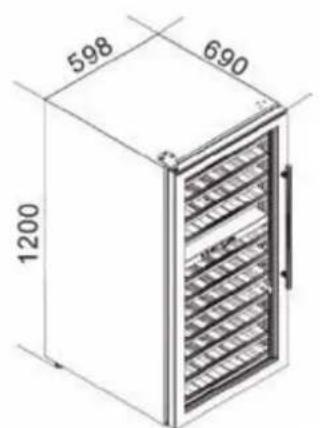

	595 x 870 x 575	598 x 1200 x 690	598 x 1600 x 690	598 x 1923 x 690
	43	69	82	100

IP X0 Cyclopentane

INTERIOR MAINTENANCE

• The temperature setting range is 5-22 °C (BWK 1607, 5-18°C).
• Directly touch the mark ⊕ or ⊗ to set the Wine Cooler temperature as you want.
• The first touch on mark ⊕ or ⏻ will recall the previous set temperature displayed in the digital window. If the appliance runs after a power failure (or unplugging), the previous set temperature does not exist and is replaced by the default temperature at 12°C.
• Touch the mark to increase the set temperature by 1°C. On the contrary, touch the mark — to decrease the set temperature by 1°C.
• The digital will change to display the real temperature of the inside cabinet after 10 seconds without being touched.

Control panel

BWK 1622

1 temperature zone

Noise when the door is open

ON/OFF

This device is intended to be used exclusively for the storage of wine.

	Up 5-12Low 12-22	Up 5-12Low 12-22	Up 5-12Low 12-22	Up 5-12Low 12-22
	0.55	0.50	0.66	0.69
	0.5	0.8	0.8	0.8
	1.4	1.6	1.6	1.6
	Rotary	Rotary	Rotary	Rotary
	R600a / 43 gr.	R600a / 52 gr.	R600a / 58 gr.	R600a / 58 gr.
	595 x 870 x 575	598 x 1200 x 690	598 x 1600 x 690	598 x 1923 x 690
	43	69	82	100
IP X0
Cyclopentane

Distributed in Europe by PVG Holding B.V.

If you need further information or encounter any problems, please visit our website www.qlima.com or contact our customer service (phone number on www.qlima.com). For all further information or in case of any problems with the appliance, refer to www.qlima.com or the local customer service center (phone numbers can be found at www.qlima.com). If you need information or have a problem, please visit our website www.qlima.com or contact our customer service (you will find the phone number on www.qlima.com). If you wish to obtain additional information or if you encounter a problem, please visit our website (www.qlima.com) or contact our customer service (you will find the address and phone number on www.qlima.com). If you need service, more information, or if you have problems with the device, please visit the website at www.qlima.com or ask for advice from the PVG consumer service center (www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, visit the website www.qlima.com or contact the Customer Assistance Center (to find out the phone number, see www.qlima.com). If you need information, or if you have a problem with the product, you can visit the websites www.qlima.com. Alternatively, you can contact PVG's consumer service (phone number at www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact the sales support department (address and phone on www.qlima.com). If you need information or if you have problems, visit the website www.qlima.com or contact the Assistance Center (phone number at www.qlima.com). In case of problems and for detailed information, visit the Qlima website at www.qlima.com or contact the Qlima contact center (www.qlima.com). If you need service or information or have problems with the appliance, you can visit www.qlima.com or contact Qlima customer service (you will find the phone number at www.qlima.com). If you need additional information, visit the company's website at www.qlima.com or call the phone number (www.qlima.com). If you need more information or if you encounter a problem, visit the Qlima website at www.qlima.com or contact the Qlima customer center in your country (phone number: www.qlima.com).
