USER MANUAL HD7980 PHILIPS

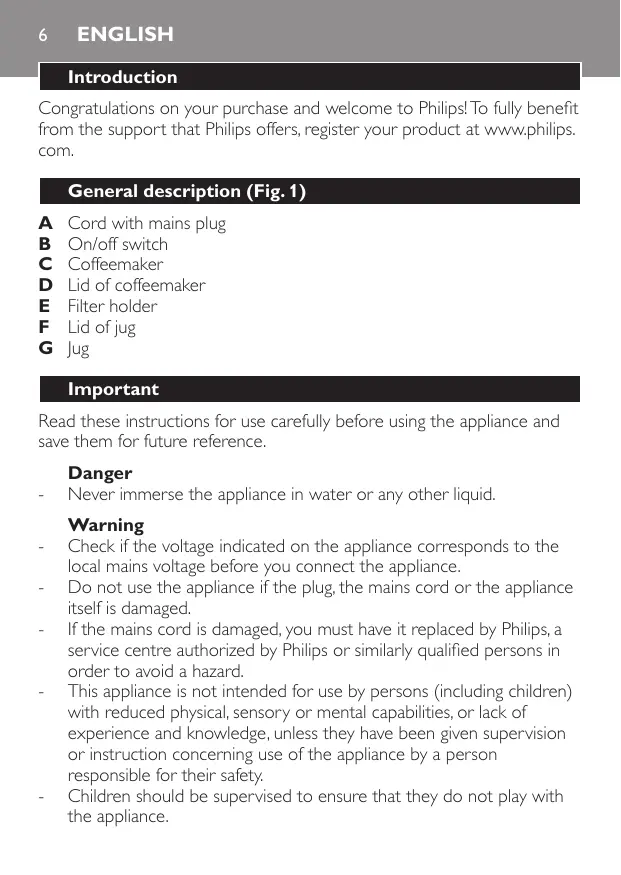

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips. com. General description (Fig. 1)

A B C D E F G Cord with mains plug

On/off switch Coffeemaker Lid of coffeemaker Filter holder Lid of jug Jug Important

Read these instructions for use carefully before using the appliance and save them for future reference.

Danger -- Never immerse the appliance in water or any other liquid. Warning -- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. -- Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. -- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorized by Philips or similarly qualified persons in order to avoid a hazard. -- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -- Children should be supervised to ensure that they do not play with the appliance.

-- Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.

Caution -- This appliance is intended to be used in household and similar applications such as: -- staff kitchen areas in shops, offices and other working environments; -- farm houses; -- by clients in hotels, motels and other residential type environments; -- bed and breakfast type environments. -- Do not place the appliance on a hot surface and prevent the mains cord from coming into contact with hot surfaces. -- Unplug the appliance before you clean it and if problems occur during brewing. Electromagnetic fields (EMF) This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Preparing for use 1 Clean the jug and filter holder (see chapter ‘Cleaning’). 2 Put the appliance on a flat and stable surface. 3 Put the plug in an earthed wall socket. ,, You can store excess cord by pushing it into the opening at the back of the coffeemaker (Fig. 2). Flushing the appliance

1 Open the lid (Fig. 3).

2 Fill the water tank with fresh, cold water to the MAX indication and put the jug in place (Fig. 4). Do not put a filter with ground coffee in the filter holder. 3 Switch the appliance on by pressing the on/off switch (Fig. 5).

Let the appliance run until the water tank is completely empty. 4 Switch the appliance off when all the water is in the jug. 5 Let the appliance cool down for at least 3 minutes before you start brewing coffee. Using the appliance 1 Open the lid (Fig. 3). 2 Fill the water tank with fresh, cold water (Fig. 4). The water level indicator shows the amount of water in the water tank. The graduations correspond to large cups (125 ml). Make sure that the water level does not exceed the MAX indication. 3 Close the lid. 4 Place the jug on the hotplate. 5 Open the filter holder (Fig. 6). 6 Take a paper filter (type 1x2 or no. 2) and fold the sealed edges to prevent tearing and folding. In some countries this coffeemaker comes with a permanent filter. In that case you should not use paper filters. 7 Put the filter in the filter holder. 8 Put pre-ground coffee (filter-fine grind) in the filter (Fig. 7). For large cups: use one heaped measuring spoon of ground coffee for each cup. For small cups: use one level measuring spoon of ground coffee for each cup. 9 Close the filter holder. 10 Switch the appliance on by pressing the on/off switch (Fig. 5). Note:The light goes on.

11 When all the water has passed through the filter, you can remove the jug from the appliance.

12 Switch the appliance off after use. 13 Remove the filter holder and throw the paper filter away (Fig. 8). 14 Clean the jug and the removable filter holder in hot water with some washing-up liquid or in the dishwasher. 15 If you have used the permanent filter, empty and rinse it. 16 If you want to brew another jug of coffee, let the appliance cool down for at least 3 minutes before you start brewing coffee again. Cleaning Always unplug the appliance before you start cleaning it. Never immerse the appliance in water. 1 Clean the outside of the appliance with a moist cloth. 2 Clean the jug and the removable filter holder in hot water with some washing-up liquid or in the dishwasher. Descaling Regular descaling will prolong the life of the appliance and will guarantee optimal brewing results for a long time. In case of normal use (two full jugs of coffee every day), descale the coffeemaker: - 2 or 3 times a year if your using soft water (less than 18 DH); - 4 or 5 times a year if you are using hard water (more than 18 DH). Turn to your local water board for information about the water hardness in your area. 1 Fill the water tank with white vinegar (4% acetic acid). Do not put a filter and ground coffee in the filter holder. 2 Let the appliance complete two brewing cycles.

See chapter ‘Using the appliance’. Let the appliance cool down before you start the second run.

3 Let the appliance complete two more brewing cycles with fresh, cold water to remove all vinegar residues. ,, You can also use an appropriate liquid descaler. In this case, follow the instructions on the package of the descaler. Do not use a descaling powder.

4 Clean the separate parts (see chapter ‘Cleaning’).

Accessories -- You can order a new jug from your Philips dealer or a Philips service centre under type number HD7980. -- You can order a permanent filter from your Philips dealer or a Philips service centre under reference number 9965 00013 387 (permanent nylon coffee filter). Environment -- Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you help to preserve the environment (Fig. 9). Guarantee & service If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer. Troubleshooting Problem

The appliance doesn’t work.

Make sure that the appliance is plugged in.

Make sure that the voltage indicated on the appliance corresponds to the local mains voltage. Make sure that the appliance is switched on. In all other cases, contact the Philips Customer Care Centre.

Water leaks out of the appliance.

Make sure that the water tank has not been filled beyond the MAX level.

In all other cases, contact the Philips Customer Care Centre.

The appliance takes a long time to brew coffee.

Descale the appliance (see chapter ‘Descaling’).

The appliance produces a lot of noise and steam during the brewing process.

Make sure that the water tank has been filled with COLD water.

Descale the appliance (see chapter ‘Descaling’).

Coffee grounds end up in the jug.

Make sure that the coffee filter contains the right amount of ground coffee. If there is too much ground coffee in the filter, the filter holder may overflow.

Make sure that the jug has been placed correctly under the filter holder. If this isn’t the case, the filter holder may overflow. Make sure that the opening in the bottom of the filter holder isn’t clogged. Make sure that the right size of paper filter has been used.

Make sure that the paper filter isn’t torn.

The coffee is too weak.

Make sure that the right proportion of coffee to water has been used.

Make sure that the paper filter hasn’t collapsed. Make sure that the right size of paper filter has been used.

The coffee doesn’t taste good.

Don’t leave the jug with coffee on the hotplate too long, especially not if it only contains a small amount of coffee.

The coffee isn’t hot Make sure that the jug has been properly placed enough. on the hotplate.

Make sure that the hotplate and the jug are clean (see chapter ‘Cleaning’). We advise you to brew more than three cups of coffee to ensure that the coffee has the right temperature. We advise you to use thin-walled cups, because they will absorb less heat from the coffee than thick-walled cups. We advise you to use hot milk or milk at room temperature instead of cold milk from the fridge. There is less coffee in the jug than expected.

Make sure that the jug has been properly placed on the hotplate. If this isn’t the case, the drip stop will prevent the coffee from flowing out of the filter.
