USER MANUAL Flavour 28025 UNOLD

Product photo of a coffee maker with clear glass, coffee cups, and a slice of cake on a table (no visible text or symbols)

KAFFEEAUTOMAT EASY

Bedienungsanleitung

Instructions for use I Notice d'utilisation Gebruiksaanwijzing I Istruzioni per l'uso Instrucciones de uso I Návod k obsluze Instrukcja obsługi

Modell 28020/28025

INHALTSVERZEICHNIS

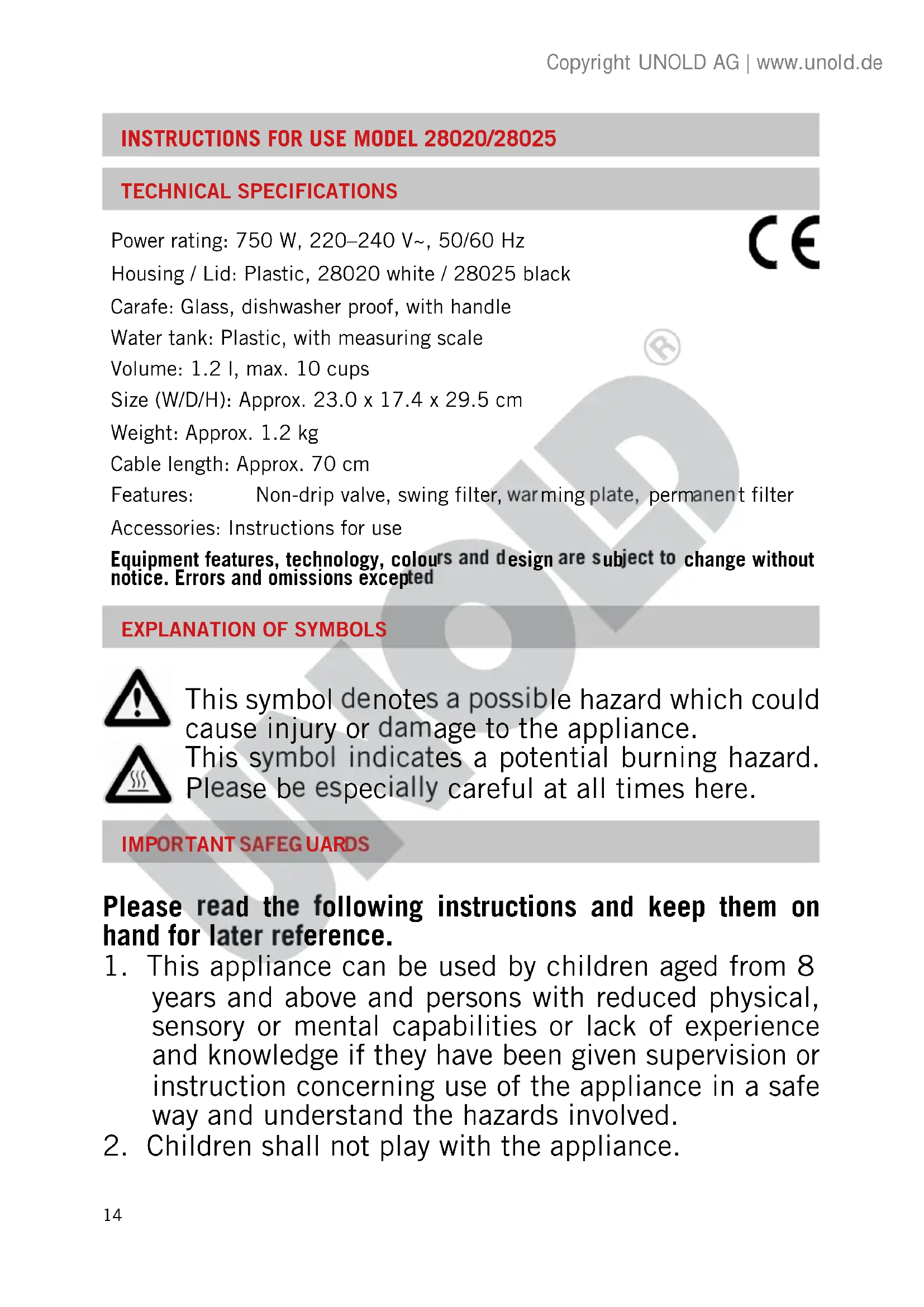

Instructions for use Model 28020/28025

Technical Specifications.... 14

Explanation of symbols.... 14

Important Safeguards....14

Tips for perfect coffee enjoyment 17

Before using the coffeemaker for

the first time 18

Preparation of coffee 18

Cleaning and Care 19

Descaling....20

Guarantee Conditions.... 20

Waste Disposal / Environmental Protection .. 20

Service 13

Close-up of a kitchen mixer blending food into a pan on a stovetop (no text or symbols visible)

Power rating: 750 W, 220–240 V\~, 50/60 Hz

Housing / Lid: Plastic, 28020 white / 28025 black

Carafe: Glass, dishwasher proof, with handle

Water tank: Plastic, with measuring scale

Volume: 1.2 l, max. 10 cups

Size (W/D/H): Approx. 23.0 x 17.4 x 29.5 cm

Weight: Approx. 1.2 kg

Cable length: Approx. 70 cm

Features: Non-drip valve, swing filter, warming plate, permanent filter

Accessories: Instructions for use

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard.

Please be especially careful at all times here.

IMPORTANT SAFEG UARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. For reasons of electrical safety, never immerse the appliance or the power cord in water or other liquids.
8. For reasons of electrical safety, do not clean the appliance in the dishwasher.
9. The switch and power cord should never come into contact with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.
10. Never touch the appliance or power cord with wet hands.
11. This appliance is intended to be used in household and similar applications such as:
    ■ staff kitchen areas in shops, offices and other working environments;
    ■ farm houses;
    ■ by client in hotels, motels and other working environments;
    ■ bed rad bre akfast type environments.
12. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
13. Do not place the appliance or power cord near open flames during operation.

14. Always use the coffeemaker on a level, uncluttered and heat-resistant surface.

15. The appliance is approved for household use only and may be used only for brewing coffee, never for heating milk or other liquids or keeping them warm.

16. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.
17. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
18. Do not wrap the power cord around the appliance and avoid kinking of the power cord to prevent damage.
19. Use the coffeemaker only indoors.
20. When in use, never cover the coffeemaker, since this could cause the appliance to overheat.
21. Only use fresh, cold water to brew coffee. Fill the water container at least up to the lowest marking (4 cups) and do not overfill.
22. Do not switch on the appliance until after you have filled the water tank with water.
23. In case of repeated use, allow the appliance to cool off at least 5 minutes between use.
24. Never use the coffee pot in the microwave; it is not suitable for such use.
25. Do not move the appliance as long as it is in operation, to prevent injuries.
26. Make sure that all users, especially children, are aware of the danger of injury from emerging steam and hot splashing water – danger of burns!
27. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
28. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.
29. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appli-

ance or the power cord for inspection and repair to our after sales service.

1. Unauthorized repairs can result in serious risks to the user and void the warranty.

CAUTION:

The appliance becomes very hot during operation and maintains the heat during some time after disconnection.

Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR PERFECT COFFEE ENJOYMENT

1. Make sure that your coffeemaker is clean and descaled at all times.
2. Keep coffee beans and ground coffee in a tightly closed can and store in a cool, dark place, but not in the refrigerator.
3. For optimal coffee taste we recommend grinding the coffee beans right before use.
4. Use only fre sh water.
5. Coffee tastes best when it's freshly brewed. If coffee is kept warm too long, it can become bitter.
6. The lid can remain closed when pouring coffee from the pot.

BEFORE USING THE COFFEEMAKER FOR THE FIRST TIME

1. Carefully unpack your coffee maker. Keep packaging materials away from children - danger of suffocation!
2. Clean the glass carafe, the lid, and the permanent filter in warm soapy water, rinse them with clear water and dry them thoroughly.
3. Wipe the surface of the appliance with a damp cloth and dry it.
4. Before using the appliance for the first time or after a longer period, fill the water container up to the maximum with clear cold water and run it two or three times with water only.

PREPARATION OF COFFEE

1. Make sure that the plug is connected with a receptacle and that the appliance is switched off.
2. To open the water tank tilt up the lid. Pour the desired volume of cold water into the water reservoir and close the lid.
3. Please note that the water tank has a small hole at the top, for safety reasons. The water tank cannot be filled with more than the maximum capacity of the coffee pot, so it cannot overflow during the brewing process.
4. Please observe the markings and do not overfill. The labelling on the water container corresponds to the number of cups (cup volume approx. 125 ml). Please keep in mind that a certain portion of the water may evaporate during brewing.
5. To open the filter holder, press the button on upper right side, then filter holder will pop-up, pull out the filter holder and rotate to left side.

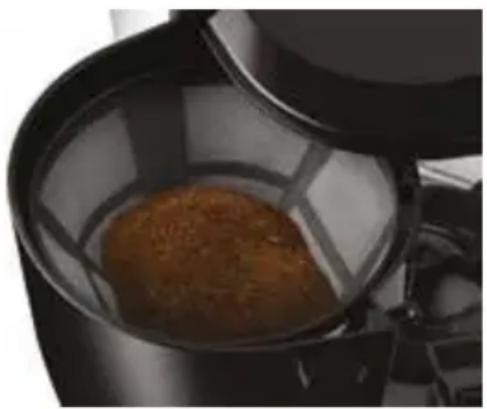

6. Fill the desired amount of ground coffee into the permanent filter, depend-

ing on your taste 5-7 g (approx. 1 measuring spoon) of medium ground coffee. If the coffee is ground too fine, the filter may be clogged up and the coffee may overflow.

1. Turn the swing filter back until it clicks into place.

2. Place the carafe with the lid on the hotplate.

Close-up of a cooking pan with brown sauce being filled, placed on a black stove (no text or symbols visible)

1. Plug the power cord into an electrical outlet (220–240 V\~, 50/60 Hz).
2. To start, press the ON/OFF-switch (I/O). The red pilot light will turn on to indicate that the coffeemaker is switched on and that brewing has started.
3. When the brewing process is finished and the filter is empty you can remove the carafe.
4. You can also remove the carafe during brewing. The drip stop valve prevents the coffee from dripping out of the filter. In this case you should place the carafe on the hotplate again after having poured out your coffee to continue brewing and to prevent the filter from overflowing.
5. If the appliance is not switched off, the warming plate keeps warm. 40 minutes after ending of the brewing, the appliance will switch off automatically.
6. Do not leave the empty glass carafe on the hot warming plate.
7. To switch off the coffee machine, press ON/OFF-switch to O. The red pilot light will go off.

CAUTION:

The appliance is very hot during and after operation!

CLEANING AND CARE

Before cleaning, always turn off the appliance and unplug it from the electrical outlet. Allow the appliance to cool before cleaning it.

1. Turn out the swing filter and remove the permanent filter. Empty the permanent filter.
2. N ever immerse the appliance in water or any other liquid.
3. The removable parts such as carafe, lid and permanent filter can be cleaned in warm soapy water or in the dishwasher (this may cause some discoloration, which will, however, not affect the performance of the coffee maker). We recommend cleaning by hand.
4. For easier cleaning the lid of the carafe can be removed. Hold the lid vertically and then tilt it towards one side, until the holding notch releases from the handle. To reinstall the lid, proceed in reverse order.
5. Clean the surface of the appliance with a damp cloth.
6. Do not use strong detergents or abrasive cloths/liquid, as this will damage the surface.

DESCALING

1. Decalcifying the coffee machine prolongs its life span and reduces power consumption. For decalcification only use products especially made for decalcification of coffee makers. Always follow the instructions on the packet. Repeat this procedure if necessary.
2. Let the appliance cool down after decalcification. Then run it at least two times with the maximum quantity of fresh cold water to remove any residues of the decalcifying agent which might affect the coffee taste.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 28020/28025

SPÉCIFICATION TECHNIQUE

Capacité: 750 W, 220–240 V\~, 50/60 Hz

Close-up of a brown sauce being poured into a black baking pan on a stovetop (no text or symbols visible)

CONDITIONS DE GARANTIE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Close-up of a black baking pan containing a brown food item, with no visible text or symbols.

Close-up of a brown food item being poured into a black kitchen mixer (no visible text or symbols)

Close-up of a cooking pan containing a brown sauce, with visible steam rising (no text or symbols)

Close-up of a cooking pot with brown sauce being poured into a black pan on a stovetop (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

INSTRUKCJA OBSŁUGI MODEL 28020/28025

DANE TECHNICZNE

Moc: 750 W, 220–240 V\~, 50/60 Hz

Close-up of a cooking pan containing brown sauce, with a lid partially visible above (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)
