Product type	Fan heater (fan radiator)
Brand	Steba
Model	KH 7
Power supply	230 V AC, 50 Hz
Heating power	Low: 1300 W, High: 2500 W
Adjustable thermostat	Yes, in 1 °C increments
Timer	From 1 to 12 hours, in 1-hour steps
Oscillation	Yes, can be activated by button
Remote control	Yes, range up to 7 meters
Anti-tilt safety	Yes, pendulum switch (normal clicking sound)
Overheat protection	Automatic shut-off, cooling down 15-20 min
Safety distance	1 m from flammable objects, 50 cm at the rear
Outlet air temperature	Can exceed 80 °C (175 °F)
Filter cleaning	Sponge filter washable with lukewarm water
General maintenance	Every 6 months: vacuum grilles and heating element
Replaceable power cord	By after-sales service, type H05RR-F 2×1.5 mm²
Use	Private use, auxiliary heat source

Frequently Asked Questions - KH 7 STEBA

Why is there light smoke during first use?

During the first use, production residues (oil) may cause temporary and harmless smoke. This is normal and disappears after a few minutes.

What safety distances should be observed?

Place the device at least 1 meter away from flammable objects and furniture. Leave the air outlet grille free for 1 meter and the rear grille for 50 cm. Do not place under a power outlet.

How to clean the device filter?

Unplug the device, press the button on the back and remove the filter cover. Wash the sponge filter with lukewarm water, dry it well and put it back.

Oscillation does not work, what to do?

Press the oscillation button (rotation symbol) after turning on the device. If the problem persists, check that the device is on a flat surface and that no obstacle blocks the movement.

How to set the timer?

Press SET once, the display flashes 'OH'. Use the + buttons to increase the duration in increments of one hour, up to a maximum of 12h. Press SET again to confirm.

The remote control does not respond, what to check?

Make sure the remote control is within a range of 7 meters and pointed at the device. Replace the batteries if necessary. Avoid obstacles between the remote control and the device.

What to do in case of overheating and automatic shutdown?

Turn off the device, unplug it and eliminate the causes of overheating (obstacles, dirt). Let it cool down for 15 to 20 minutes before turning it back on.

The device emits a clicking sound, is this normal?

Yes, this noise is normal. It comes from the anti-tilt system (pendulum) which interrupts the circuit in case of a fall. This is not a defect.

Can children use the device?

Children over 8 years old can use it under supervision. Children aged 3 to 8 can only turn the device on/off if it is properly installed and under continuous supervision. Children under 3 should be kept away.

Can I use the device unattended?

It is not recommended to leave the device unattended, especially in the presence of children or pets. Always turn off the device before leaving the room.

USER MANUAL KH 7 STEBA

Instructions for use 7

Mode d'emploi 12

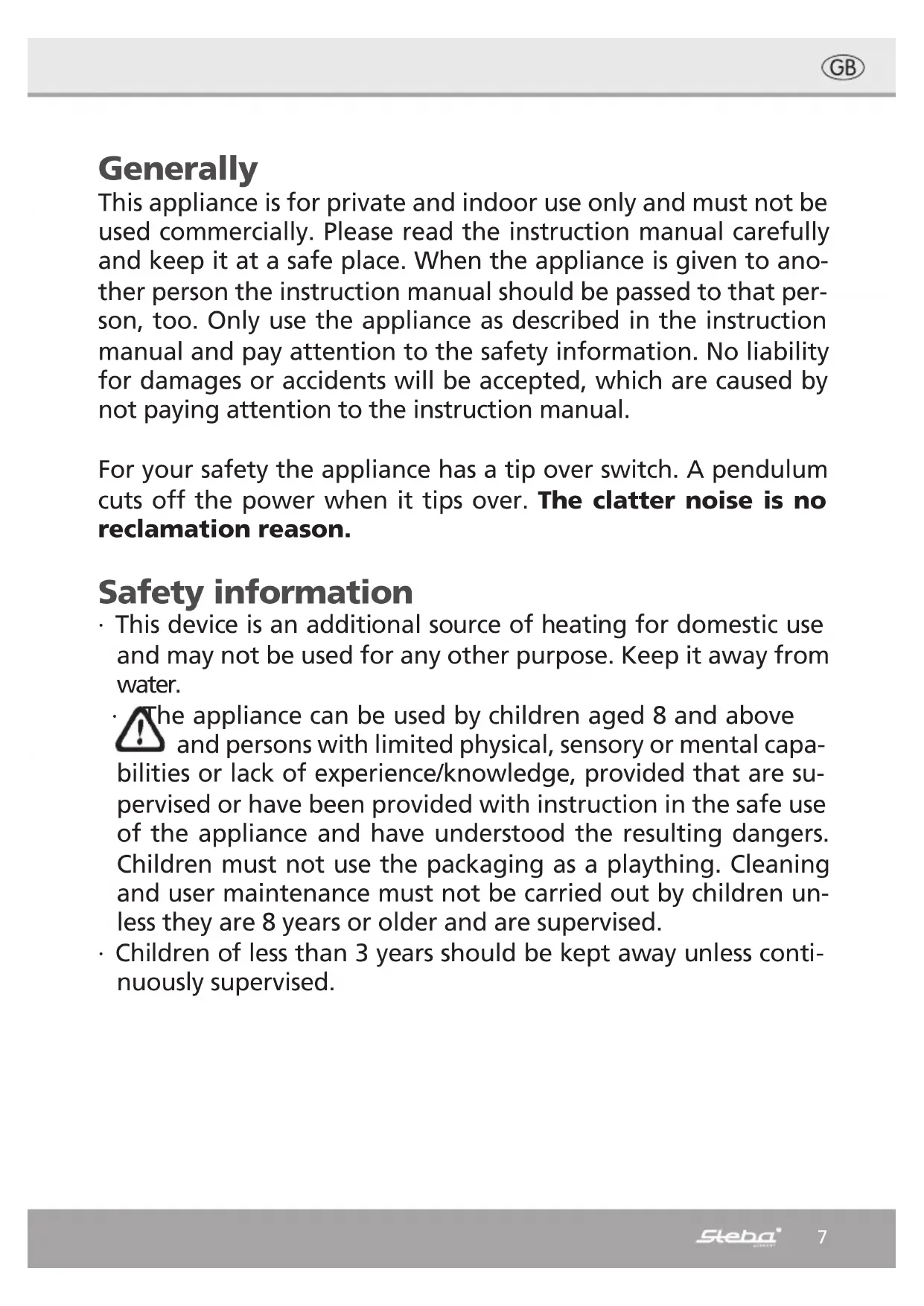

Allgemein

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

For your safety the appliance has a tip over switch. A pendulum cuts off the power when it tips over. The clatter noise is no reclamation reason.

Safety information

• This device is an additional source of heating for domestic use and may not be used for any other purpose. Keep it away from water.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• The appliance must not be operated using a timer or a separate remote system!

For your own safety

• This fan heater is an extra-heating in the house. It must be used according to this concept.
• Make sure that your supply rating corresponds to what specified on the rating plate i.e. 230VAC, 50Hz .
• Don't leave your home while the appliance is in function: ensure in this case that the switch on the back is in OFF position.

During function, place the heater in a safe position :

• far (1 mt.) from inflammable objects or furnitures;

• leaving the air outlet space free : 1 mt. of free space in front of the heater and 50~cm of free space behind it;
  not located immediately below a socket-outlet.

• Do not leave animals or children touch or play with the appliance.

Pay attention!

The air outlet grille gets hot during operation (more than 80^ i.e. 17 5^ ). Special attention is needed

when children or vulnerable persons are present.

• Take care, that children are not playing with packaging material (e.g. Plastic Bags)

WARNING: In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working. This is clearly written on the cover of the product or shown by the symbol

• Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.
• If the cordset is damaged and you have to change it, do not do the job yourselves! Take the product to an after sales authorized repair centre or to a person with similar skill and knowledge, in order to avoid any risk of danger.
• Do not use this heater close to showers, baths, swimming pools.
• The appliance must be positioned so that the plug is always accessible.

Mounting

Take the electrical part und the bottom plate out of the packaging. Remove the large plastic nut on the lower part of the electrical part. Insert the round plate, with feet down, on the device and screw it with the nut.

Safe positioning

• The appliance must be used only on a flat, stable surface.
• The appliance must be not accessible for persons who are taking a bath or in the shower.
• Do not place the cable under a carpet.
• Mind that during function the cordset must be always completely pulled out.
• Do not use the device in small spaces when there are people in the room who are not able to leave the room independently, unless constant supervision is provided.

Use of the heater

• Set the main switch on the rear panel
• Press the button. The display shows the current room temperature.
• Press the SET button 1 time. OH flashes in the display. Adjust the time by using the +/- button in steps of one hour up to 12 hours. Press the SET button again.
• 25^ C flashes in the display. Adjust the time by using the buttons +/- in steps of 1^ C .
• By pressing the power button you adjust the power level from low (1300W) to high (2500W).
• Press the SET button, the device works.
• If you want to heat without a time-setting, press the SET button twice after setting the ON/OFF button, regulate the desired temperature and press SET again.
• By pressing the button the oscillation starts.
• Once the set time has passed the device shuts off or can be shut off by pressing the button. For cooling, the fan runs for about 15 seconds after the device has been shut off. Set the main switch.
• If the device is used the first time very slight smoke might appear briefly due to production residues.
• If the appliance is used for the first time there can be a little smoke due to some production oil residues.

Remote control

You can operate the device, as described above, up to a distance of 7 meters.

Cleaning of the filter

• Pull out the power plug;
• Press the filter button at the back of the product and pull it backwards;
• Remove the sponge filter from its holder;
• Clean the filter by water with wash powder under the temperature of 30^ .

Safety in case of abnormal operation

• In case of overheating the safety cut out protecting the heating element will automatically switch off the appliance.

• In this case the appliance stops working and the pilot light will remain switched on even if the appliance is not working.
  If this happens:

• switch off the fan heater;

• remove the causes of abnormal operation or overheating (i.e. obstacles in front of air inlet or air outlet grille);
  leave the heater cool down for 15/20 minutes;

• switch on again the fan heater.

Maintenance

• This fan heater does not require any particular maintenance.
• We only recommend to clean at least twice a year the air inlet and air outlet grille with a vacuum cleaner to remove dust from motor and heating element.
  In case you need to repair it, please contact an authorized repairing center.
• If the cordset is to be changed, please mind that a 2 × 1,5 ~mm^2 , H05RR-F cordset is to be used.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

F5

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
