USER MANUAL IK 65 Slim STEBA

Instructions for use 9

Mode d'emploi 15

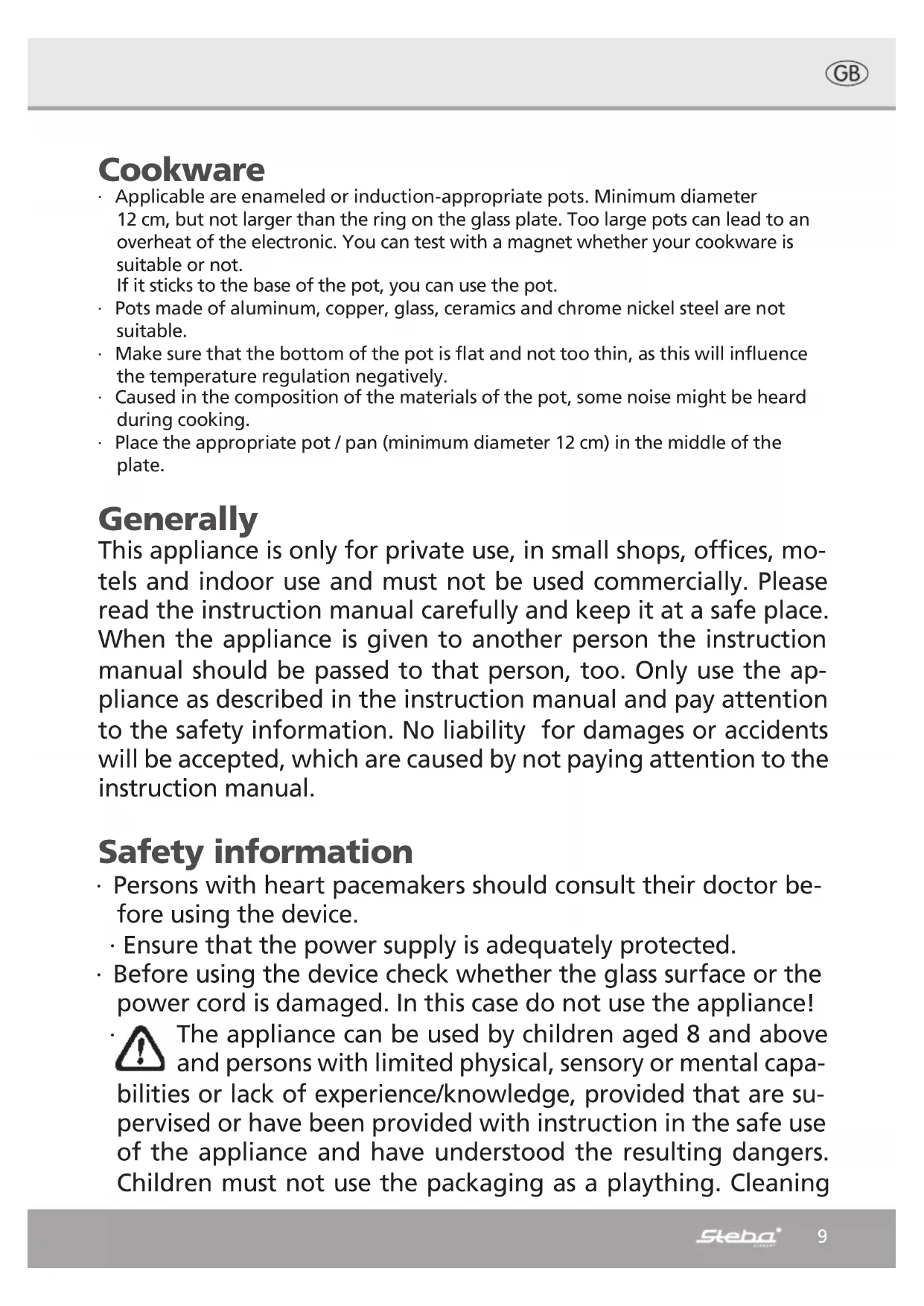

• Applicable are enameled or induction-appropriate pots. Minimum diameter 12cm , but not larger than the ring on the glass plate. Too large pots can lead to an overheat of the electronic. You can test with a magnet whether your cookware is suitable or not.

If it sticks to the base of the pot, you can use the pot.

• Pots made of aluminum, copper, glass, ceramics and chrome nickel steel are not suitable.
• Make sure that the bottom of the pot is flat and not too thin, as this will influence the temperature regulation negatively.
• Caused in the composition of the materials of the pot, some noise might be heard during cooking.
• Place the appropriate pot / pan (minimum diameter 12cm ) in the middle of the plate.

Generally

This appliance is only for private use, in small shops, offices, motels and indoor use and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Persons with heart pacemakers should consult their doctor before using the device.

• Ensure that the power supply is adequately protected.

• Before using the device check whether the glass surface or the power cord is damaged. In this case do not use the appliance!

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning

and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• The appliance must not be operated using a timer or a separate remote system!
• Only plug in the device as described on the rating label.
• Place the device on a stable, flat, temperature resistant and nonmetallic surface. Do not touch the top plate shortly after removing the pot or the pan, as the top plate will still be very hot.
• Do not block air intake or exhaust vent.
• Never immerse the appliance or the power cord into water or other liquids (risk of electronic shock). Protect the device from moisture!
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service.
• If an extension cord is necessary, pay attention that it is suitable for the device. If a cable drum is used, always unwind it.
• Do not plug with wet hands.
• Always pull the plug, not the cord.
• Pay attention that the power cord does not get in touch with hot parts.
• Do not put any pointed objects into the air intake. Risk of electronic shock!)
• Never place empty pots, cutlery or other metallic objects onto the device. Those objects will get hot! Do not heat cans, they can explode. Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt.
  In order to protect the electronic parts, the ventilation runs for a couple of minutes after the device has been turned off.

The glass surface can have a residual heat after cooking.

• Attention! Do not place hot pots or pans onto the control panel! Not warranty payments!

• Do not carry the unit when the pot or the pan is on it.

• Do not use the device if unsupervised. Oil and fat can catch fire if they get too hot.

• Do not place near objects which are affected by magnet. (e.g. automatic-banking cards).

• Unplug the device after every use (not if built-in!)

• While using the device, the surface can get very hot. Don't place the device on a sensitive surface (c.g. painted furniture) and keep distance of at least 70~cm to burnable materials (e.g. curtains).

Cleaning

Clean after every use

• Unplug the device and wait until cooled down.

Never immerse the device into water and never run water over the unit. Pay attention that no liquids can get into the device through the air inlets.

• A discoloration or storing can be caused if pots are used which are not clean at the bottom.

• Use a damp cloth and some detergent for cleaning.

• Do not use any abrasive milk, polishing wool or solvent for cleaning.

• Use vacuum cleaner to suck up dirt from the air intake and exhaust vent.

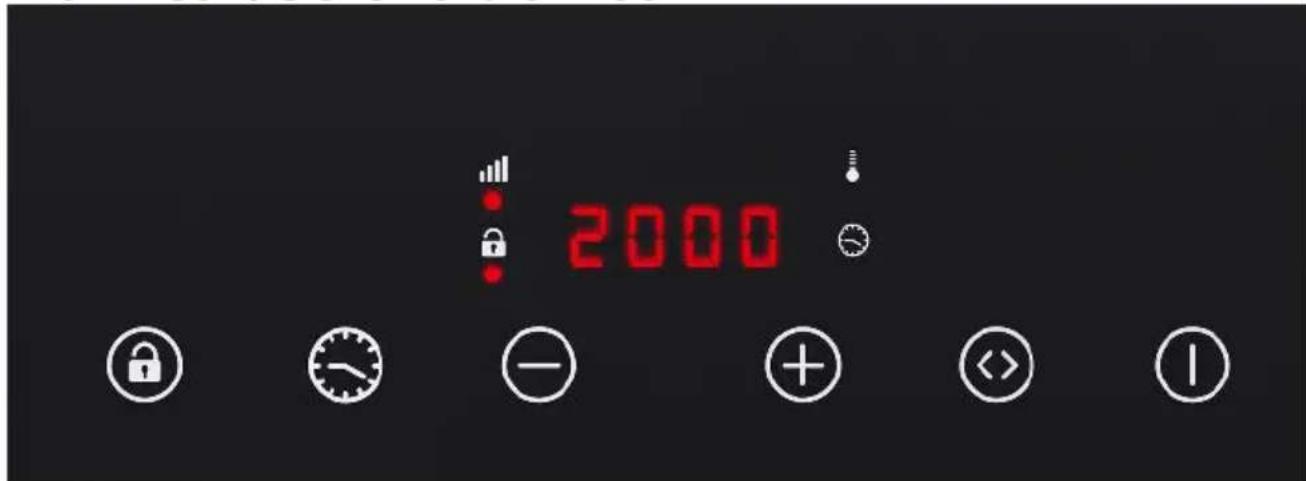

How to use the device

• Plug the device into an earthed socket.
• A signal tone sounds, the display is illuminated. The device is in stand-by mode.
• Place the induction suited cookware with a min. diameter of 12cm on the plate.
• Press the on/off button. The display shows "ON".
• Chose temperature or power with the select button
• The temperature can be adjusted with the +/- button in steps of 60 - 80 - 120 - 150 - 180 - 200 - 220 - 240°C. The power in steps of 300 - 700 - 1000 - 1200 - 1400 - 1600 - 1800 - 2000 watts.
  The device starts.
• During operation, the temperature or power can be changed.

Timer

• If the temperature or power is set and no amendments are made, the device turns off automatically after 2:59 hours.
• Press the timer button. The display shows "0000", after 5 seconds the device gets back to normal operation.
  Max timer setting is 2 hours 59 minutes
• Set the hours with the button.
  : Set the minutes with the button.
  The time is accepted within 5 seconds and the time begins to count down.
  The display shows time and temperature in change.
  The time can be changed by pressing the timer button and the +/- buttons.
  After the time run out a signal tone sounds and the device switches automatically into the stand-by mode.

Residual heat

After turning off the device the display shows:

H the temperature of the plate is above 60^

• The ventilation of the device runs for a couple of minutes after the device has been turn off. Unplug after the ventilation shuts off.

Child lock

• Press the button. All buttons, except on/off are locked.

In order to unlock, press the button for some seconds.

Troubleshooting

Dear Client,

Thank you for buying this high-quality STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before sending the complete device to the customer service for inspection.

Problem Reason Solution
No light after plug-in of the device	·No power ·To many devices at one power cord	·Check is plug is plugged-in correctly ·Check the fuse
A signal tone sounds and no heat occurs	·Pot is not in the middle of the plate ·Pot not suitable for induction	·Min. diameter of 12cm ·Use suitable cookware
Plate does not heat any-more	·Timer run out	·Set a new time
Error code „E0“	·Internal electronic error	·Contact service
Error code „E1“	·No or unappropriate cookware	·Check cookware ·Let device cool down and restart
Error code „E2“	·Internal overheat	·Check cookware ·Let device cool down and restart
Error code „E3“	·Over-voltage	·Contact service
Error code „E4“	·Under-voltage	·Contact service
Error code „E5“	·Error in the temperature sensor	·Contact service
Error code „E6“	·Error in the IGBT sensor	·Contact service
Error code „E7“	·Top plate overheat	·Check cookware ·Let device cool down and restart

Guarantee

The guarantee conditions for this appliance are as defined in our „Instructions for use" in German.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
