Product type	Induction hob
Brand	Steba
Model	IK 70
Power supply	Mains (standard socket)
Maximum power	2000 W (levels: 500, 1100, 1300, 1700, 2000 W)
Temperature range	60 °C to 220 °C (levels: 60, 80, 100, 140, 180, 220 °C)
Timer	From 5 minutes to 3 hours 55 minutes (in 5-minute steps)
Child safety	Yes (touch key lock)
Overheat protection	Yes (automatic shut-off, error code E7)
Pan detection	Yes (error code E1 if pan incompatible)
Control type	Touch controls (Touch Control Display)
Surface material	Glass
Maximum load on surface	5 kg
Pan compatibility	Enameled steel or induction-compatible, minimum diameter 12 cm
Cooling fan	Yes (continues after use)
Automatic shutdown	After 30 seconds of inactivity (return to standby)
Cleaning	Damp cloth with dishwashing liquid, do not immerse

Frequently Asked Questions - IK 70 STEBA

How to turn on the Steba IK 70 induction hob?

Plug in the appliance. A red LED lights up on the ON/OFF key. Place a compatible pan in the center. Touch the ON/OFF key: the appliance beeps and the LEDs light up. You have 30 seconds to select a mode (power or temperature) before returning to standby.

What types of pans can I use with this hob?

Use pans made of enameled steel or induction-compatible (magnetic base). The minimum diameter is 12 cm. Test with a magnet: if it sticks, the pan is suitable. Avoid aluminum, copper, glass, ceramic, and nickel-chrome steel.

How to adjust the cooking power?

After turning on the appliance, touch the power function key (symbol ②). The power mode activates and the display shows 2000 W. Use the +/– keys to select in steps: 500, 1100, 1300, 1700, or 2000 W. You can change at any time.

How to adjust the temperature?

Turn on the appliance, then touch the temperature function key (symbol ③). The display shows 140 °C by default. Use the +/– keys to choose from 60, 80, 100, 140, 180, or 220 °C. The sensor maintains the set temperature and the LED flashes when the temperature is reached.

How to use the timer?

First set the power or temperature, then touch the timer key (symbol ⑤). The display flashes 00:00. Within 5 seconds, use the +/– keys: the left key sets hours (in 1-hour steps), the right key sets minutes (in 5-minute steps). The maximum time is 3h55. Once set, the timer activates; at the end, the appliance returns to standby.

What to do if error code E1 appears?

Error code E1 means the pan used is not compatible with induction or its diameter is less than 12 cm. The appliance beeps and returns to standby after 30 seconds. Replace the pan with a compatible model.

What to do if error code E7 appears?

Error code E7 indicates pan overheating. The appliance turns off automatically. Press the ON/OFF key, let it cool for a few minutes, then the appliance can be used again normally.

How to activate child safety?

Touch the child safety key (symbol ④). A red LED lights up on symbol ⑧. All controls are then locked. To deactivate, touch the same key for 4 seconds until the LED turns off.

How to clean the hob?

Unplug the appliance and let it cool down. Clean the glass surface with a damp cloth and a little dishwashing liquid. Do not use abrasive products or gasoline. Never immerse the appliance in water. Clean the ventilation openings with a vacuum cleaner.

What to do if the appliance does not turn on or does not heat?

Check the power socket and the power cord. Make sure you are using a compatible pan. If the problem persists, unplug and wait a few minutes before trying again. If the error persists, contact after-sales service.

USER MANUAL IK 70 STEBA

Instructions for use 10

Mode d'emploi 15

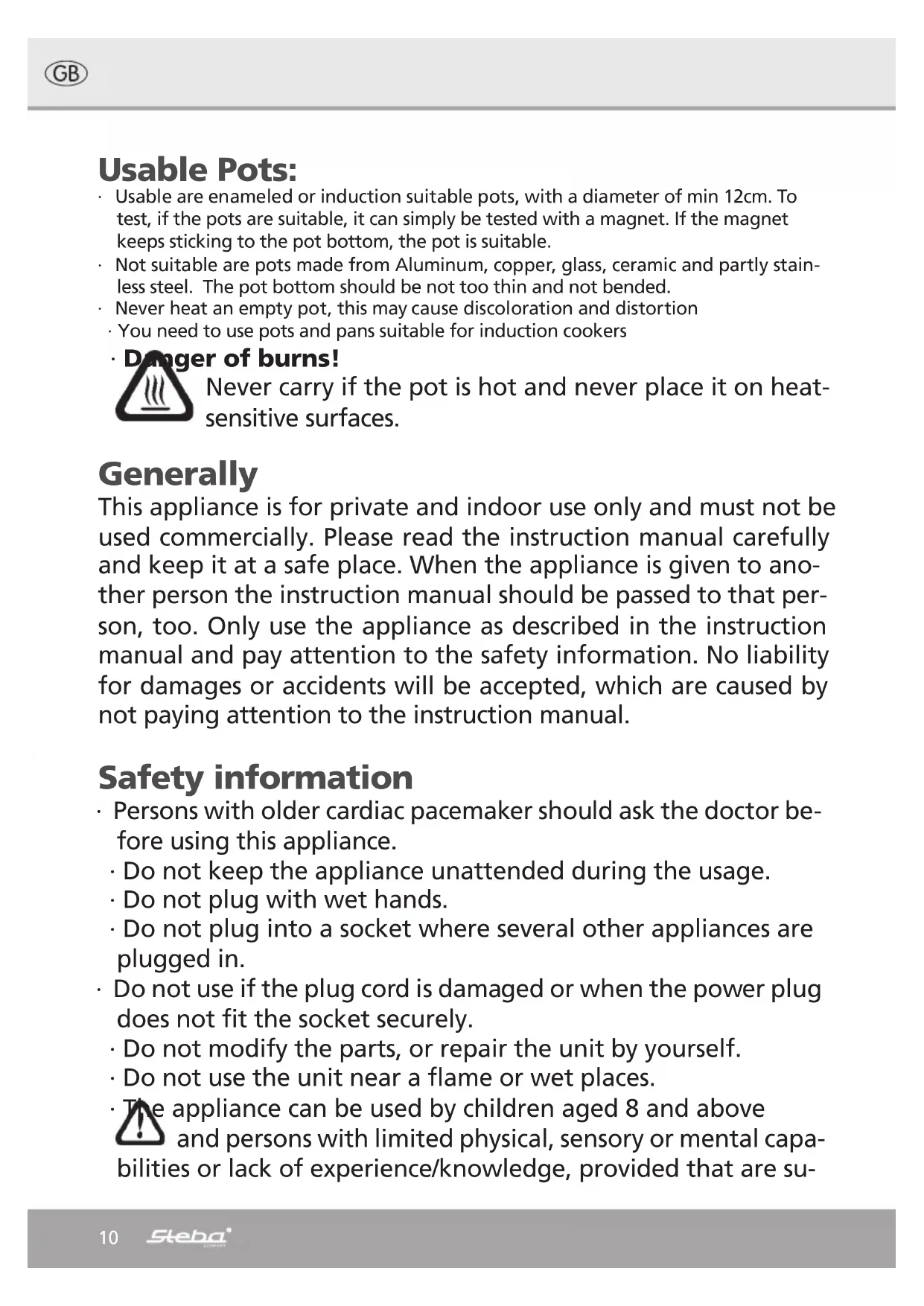

• Usable are enameled or induction suitable pots, with a diameter of min 12cm. To test, if the pots are suitable, it can simply be tested with a magnet. If the magnet keeps sticking to the pot bottom, the pot is suitable.
• Not suitable are pots made from Aluminum, copper, glass, ceramic and partly stainless steel. The pot bottom should be not too thin and not bended.
• Never heat an empty pot, this may cause discoloration and distortion
  · You need to use pots and pans suitable for induction cookers

Never carry if the pot is hot and never place it on heat-sensitive surfaces.

Generally

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Persons with older cardiac pacemaker should ask the doctor before using this appliance.
• Do not keep the appliance unattended during the usage.
• Do not plug with wet hands.
• Do not plug into a socket where several other appliances are plugged in.
• Do not use if the plug cord is damaged or when the power plug does not fit the socket securely.
• Do not modify the parts, or repair the unit by yourself.
• Do not use the unit near a flame or wet places.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are su

pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• The appliance must not be operated using a timer or a separate remote system!

• Do not place on unstable surfaces.

• Do not heat the pot empty or overheat it.
• Attention:

The glass surface could show residual heat from heated pots.

• Never use the appliance, if the cable or the glass plate is damaged, cracked or dropped down.

• Never put pots, set of cutlery or any other metallic parts on the appliance. These parts could get very hot, when the cooker is turned on.

• To avoid any dangers, never change anything at the appliance or conduct any repair. Repairs and exchange of the power cord must only be done by an authorized dealer.

• Do not immerse the appliance in water or any other liquid (Danger of electric shock!). Protect the appliance from getting wet.
• If an extension cord is needed, makes sure it is suitable for the appliance. Unwind cable drums completely.
• Never carry, when there are still pots or pans on it.
• Never put more than 5kg on the top of the plate. The glass surface could show residual heat from the heated pots.
• Use the unit with sufficient space around it. Keep the front side and either right or left side of the unit clear.
• Never use the unit on carpet or tablecloth (viny1) or any other low-heat-resistant article.

• Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt.

• If the surface is cracked, switch off and take to the service center immediately.

• Do not block air intake or exhaust vent.

Do not touch the top plate shortly after removing the pot or the pan, as the top plate will still be very hot.

• Do not place near objects which are affected by magnet, such as: radios, televisions, automatic-banking cards and cassette tapes.

• The supply cord must be replaced by qualified technicians.

How to Clean

• Disconnect plug and wait until it is cooled down. Clean after each use.
• Never immerse the device in Water.
• If the pots/pans are used without being cleaned, discoloration or cooked on stains may be caused.
• Do not use petrol, thinner, scrubbing brush or polishing power to clean the induction cooker.
• Wipe using dish washing agent and damp cloth.
• Use vacuum cleaner to suck up dirt from the air intake and exhaust vent.
• Never run water over the unit. (water gets inside may cause malfunction).

Operation:

The appliance is equipped with a touch control display- All functions will be activated by touching the surface.

Plug the appliance into the socket. A sound can be heard, all LED and the display are illuminated for one second. Now the appliance is in stand-by modus. A red LED shines above ON/OFF ①. Place a suitable pot in the middle of the cooking area (min. diameter 12cm). By touching the ON/OFF ① once 4 stripes and a LED above the ON/OFF ① shines. Attention!!! After 30 seconds the appliance will switch back into the stand-by modus, when no function dr by touching was chosen. The fan runs for about 2 minutes.

Power mode .ll

This function is suitable for boiling water and soups.

Place the pot in the middle of the cooking area.

Touch ON/OFF once and after that the power function, title red LED above shines and the display shows 2000, the slide control is visible. The cooling fan starts working. With the slide control the power be adjusted in steps of 500W/1100 Watt/1300 Watt/1700 Watt/2000 Watt. During cooking, the Wattage can be changed at any time.

The unit is equipped with an overheat protection. When the pot gets too hot, the appliance will stop working, a sound can be heard and the display shows E7. In that case, press the ON/OFF ① and cool the appliance down for some minutes. The appliance will work after that without any problems.

Attention! If the failure code E1 is shown in the display, the used pot or pan is not suitable for induction cookers. The appliance beeps and after ca 30 seconds it switches back into the stand-by mode.

Temperature mode

This function is suitable for roasting meat and vegetables.

Place the pot in the middle of the cooking area.

Touch ON/OFF once and after that the temperature button. A red LED above the temperature symbol shines and the display shows 140^ . With the slide control the power be adjusted in steps of 60^ / 80^ / 100^ / 140^ / 180^ / 220^ . During the cooking the temperature can be adjusted at any time. The build in sensor keeps the temperature at about the adjusted temperature. If the set temperature is reached, a red LED shine above the temperature symbol.

Attention! If the failure code E1 is shown in the display, the used pot or pan is not suitable for induction cookers. The appliance beeps and after ca 30 seconds it switches back into the stand-by mode.

Timer

Set the temperature or power as described above. Touch the timer button 00:00 is blinking in the display. Now you have a slot f 5 seconds to adjust the time by pressing the slide control in steps of 5 minutes up to 3:55 hours. An changes will be confirmed with a beep sound. If nothing is pressed within 5 seconds, the timer will be deactivated again. By setting the time keep the following in mind: touch the slide control on the right side for minutes and the left side for hours. With any contact the time increases by 5 minutes or 1 hour and will be confirmed with a beep. If you wish to set the time faster, keep touching the slide control.

If you have set temperature and time and want to change the power during the cooking, then the set time will be deleted. The time can be changed at any time.

By touching the ON/OFF during the cooking, the set program will be deleted and the device switches into the stand-by-mode. The fan runs for some minutes. If the set time runs out, the device switches into the stand-by-mode as well.

Child lock

By touching the button the child lockwill be activated. A red LED shines above ⑥. No changes on the program can be made anymore. To unlock the device, keep pressing the button for 4 seconds.

Attention! In order to avoid overheating and damage of the electronics, the cooling fan continues to run for a few minutes. Please only unplug when the fan is off.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

STEBA Elektrogeräte GmbH & Co KG
Pointstr. 2, 96129 Strullendorf / Germany
Distribution-Tel.: 09543 / 449-17 / -18,
Service-Tel.: 09543 / 449-44, Fax: 09543 / 449-19
e-Mail: [e-mail] Internet: http://www.steba.com
