Product type	Fan heater (radiant fan heater)
Brand	Steba
Model	KH5
Power supply	230 V, 50 Hz, alternating current
Rated thermal power	1.8 kW
Minimum thermal power	0.9 kW
Standby power consumption	0 kW
Temperature control type	Mechanical thermostat
Oscillation function	Yes, pivoting for better heat distribution
Filter	Removable foam filter, washable in lukewarm water
Overheat protection	Automatic shutdown in case of overheating
Power cable type	2 x 1 mm² H05VV-F
Approximate dimensions	30 x 20 x 20 cm (estimated)
Approximate weight	2 kg (estimated)
Maintenance	Cleaning every 6 months; vacuum the grilles and wash the filter in lukewarm water
Safety instructions	Do not cover; maintain a distance of at least 1 m from flammable objects; do not use near water
Installation	Flat and sturdy surface; accessible power outlet
Usage	Auxiliary heat source for domestic use
Repairability	Repairs by authorized service only; do not replace the cable yourself
Disposal	Do not dispose of with household waste; recycle via a collection center

Frequently Asked Questions - KH5 STEBA

How do I use the thermostat on my Steba KH5 fan heater?

Set the thermostat to maximum until you reach a comfortable temperature, then slowly turn the knob counterclockwise until you hear a click. Then turn it very slightly clockwise so that the indicator light goes out. The thermostat will then maintain the chosen temperature.

Why does my device emit a slight smoke on first use?

This is normal: production oil can cause momentary smoke. Ensure good ventilation and let the unit run for a few minutes until it dissipates.

How do I clean the filter of the Steba KH5?

Unplug the device, remove the screw at the back and take off the filter cover. Remove the foam filter, wash it in lukewarm water, dry it thoroughly and replace it.

What safety distances must be respected?

Place the device at least 1 meter away from flammable objects and furniture. Leave a radius of at least 1 meter in front of the air outlet grille and 50 cm behind.

Can I let my child use the fan heater?

Children aged 8 and above can use it under supervision. Children aged 3 to 8 can turn it on/off if installed correctly, but must not clean or maintain it.

What to do in case of overheating?

The device shuts off automatically. Turn it off, remove the cause (obstacle, dirt), let it cool for 15-20 minutes, then turn it back on.

Can I use the fan heater in a bathroom?

No, do not use it near a shower, bathtub or sink to avoid any risk of electrocution.

How does the oscillation work?

The oscillation (pivoting) allows a more even distribution of heat. Never block the oscillation movement.

How do I properly dispose of my device at the end of its life?

Do not throw it with household waste. Take it to a collection center for recycling of electrical equipment.

The power cable is damaged, what should I do?

Do not attempt to replace it yourself. Take the device to an authorized service center. The replacement cable must be of type 2 x 1 mm² H05VV-F.

USER MANUAL KH5 STEBA

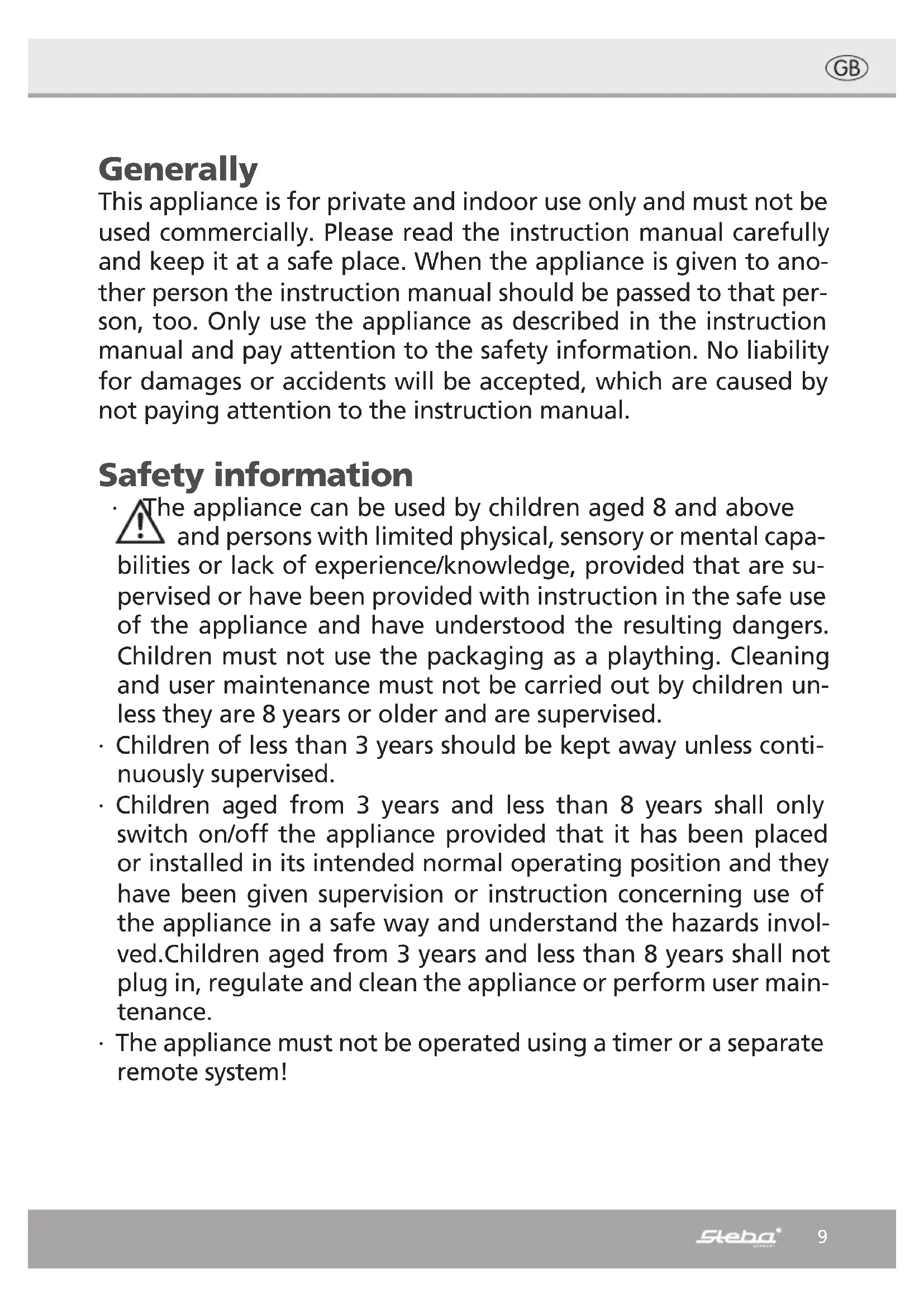

Instructions for use 9

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- The appliance must not be operated using a timer or a separate remote system!

For your own safety

• This fan heater is an extra-heating in the house. It must be used according to this concept.
• Make sure that your supply rating corresponds to what specified on the rating plate i.e. 230VAC, 50Hz .
• Don't leave your home while the appliance is in function: ensure in this case that the switch is in OFF (0) position.

During function, place the heater in a safe position :

• far (1 mt.) from inflammable objects or furnitures; if wall mounted, not fixed to wooden or synthetic plastic surfaces;
• leaving the air outlet space free : 1 mt. of free space in front of the heater and 50~cm of free space behind it;

not located immediately below a socket-outlet.

• Do not leave animals or children touch or play with the appliance.

- Ray attention!

The air outlet grille gets hot during operation (more than 80^ i.e. 17 5^ ). Parts of this product may be very

hot and cause burns. Special attention is needed when children or vulnerable persons are present.

• Take care, that children are not playing with packaging material (e.g. Plastic Bags)

WARNING: In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working. This is clearly written on the cover of the product or shown by the symbol

• Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.
• If the cordset is damaged and you have to change it, do not do the job yourselves! Take the product to an after sales authorised repair centre or to a person with similar skill and knowledge, in order to avoid any risk of danger.
• Do not use this heater close to showers, baths, swimming pools.
• The appliance must be positioned so that the plug is always accessible and not to be hot blown on.

Safe positioning

• The appliance must be used only on a flat, stable surface.
• The fan heater only operates when the safety switch on the bottom of the unit is pressed.
• The appliance must be not accessible for persons who are taking a bath or in the shower.
• Do not place the cable under a carpet.
• Mind that during function the cordset must be always completely pulled out.

Use of the heater

-1800 W (Oszillation)
900 W (Oszillation)
OFF
·900W
·1800W

Oscillation

• Due to the oscillation (turning) a more equal temperature in the surrounding is achieved.

• Never block the oscillation movement.

Use of the thermostat

• In a room where the temperature is too high (more than 30^ ), it is normal that the thermostat will not switch on the heater.

• In a room where the temperature is too low (around 5^ or even less) it is also normal that the thermostat will keep the appliance working until the temperature gets higher.
  To select the right thermostat position we suggest you to

• turn the thermostat in maximum position (clockwise);

• leave the appliance working until the comfortable temperature is reached;

• turn the knob anti clockwise until you hear a „click“ and the red indication light turns off;
• turn clockwise again the knob (just a little): in this position the thermostat will maintain the comfortable temperature you have selected. The red indication light shines if the heater turns on again.

If the appliance is used for the first time there can be a little smoke due to some production oil residues.

To clean the filter proceed as following (picture)

• Pull out the power plug;

Loosen the filter-screw at the back of the product and pull it backwards;
- Remove the sponge filter from its holder;
- Clean the filter by water with wash power under the temperature of 30^ .

Safety in case of abnormal operation

• In case of overheating the safety cut out protecting the heating element will automatically switch off the appliance.

• In this case the appliance stops working and the pilot light will remain switched on even if the appliance is not working.

If this happens:

• switch off the fan heater;

• remove the causes of abnormal operation or overheating (i.e. obstacles in front of air inlet or air outlet grille);

leave the heater cool down for 15/20 minutes;

• switch on again the fan heater.

Maintenance

• This fan heater does not require any particular maintenance.
• We only recommend to clean at least twice a year the air inlet and air outlet grille with a vacuum cleaner to remove dust from motor and heating element.
  In case you need to repair it, please contact an authorised repairing center.
• If the cordset is to be changed, please mind that a 2x1mm2 H05VVF cordset is to be used.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Information requirements for electric local space heaters

Model identifier: KH 5
Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Heat output				Auxiliary electricity consumption
Nominal heat output	Pnom	1,8	kW	At nominal heat output	elmax	0 kW
Minimum heat output (indicative)	Pmin	0,9	kW	At minimum heat output	elmin	0 kW
Maximum continuous heat output	Pmax,c	1,8	kW	In standby mode	elsb	0 kW
Item Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat							NO
manual heat charge control with room and/or outdoor temperature feedback							NO
electronic heat charge control with room and/or outdoor temperature feedback							NO
fan assisted heat output							NO
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control							NO
Two or more manual stages, no room temperature control							NO
with mechanic thermostat room temperature control							YES
with electronic room temperature control							NO
electronic room temperature control plus day timer							NO
electronic room temperature control plus week timer							NO
Other control options (multiple selections possible)
room temperature control, with presence detection							NO
room temperature control, with open window detection							NO
with distance control option							NO
with adaptive start control							NO
with working time limitation							NO
with black bulb sensor							NO
Contact details	Steba Elektrogeräte GmbH & Co.KG Pointstr. 2 96129 Strullendorf
