USER MANUAL BN3501 Impero Isofix Baninni

Group 0+1 Suitable from 0kg up to 18kg

Please read this instruction manual carefully before use. If you have any questions concerning the use of this child seat, please do not hesitate to contact us.

1. This is a "Semi-universal" ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No.44,04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.(see vehicle type list)

2.It will fit vehicles with positions approved as ISOFIX positions

3.The mass group and the ISOFIX size class for which this device is intended is : Group 0+ (0-13kg),Group 1 (9-18kg); B+D.

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE WEIGHT EXCEEDS 9KG.

EXTREME HAZARD: Do not use in passenger seats equipped with airbags (SRS)

1. This product is called Restraining devices for child occupants of powerdriven vehicles, commonly known as the child seat. Product appearance streamlined bionic design, elegant appearance.

2. This product equips with advanced automatic-telescopic ISOFIX system, installed on the car seat using ISOFIX anchorage which is more convenience, more steady and safer. This product also equips with an anti-rotation device consists of support leg which intended to limit the rotation of the restraint during a frontal impact..

3. The backrest of this product can be adjusted to 3 different incline positions, that is the child can sit or recline during the travel. The headrest also can be adjusted to 7-8 positions. Seat belts integrated operating system in side the headrest. direct adjust headrest the straps also change height, change the traditional disassembly type regulating mode, the strap adjustment is more easy and convenient.

4. With side impact protection system to protect child's head, enhance damping flanking ASIS advanced anti side impact, the system safety have soft and antiskid pad in the hasp and chest, children's ride comfort. Seat selection can be washed, flame retardant, environmental protection, fashion fabrics, and a variety of colors can be chosen.

5. This child seat can only be used for children 0-4 years old, installed rearward-facing or forward-facing.

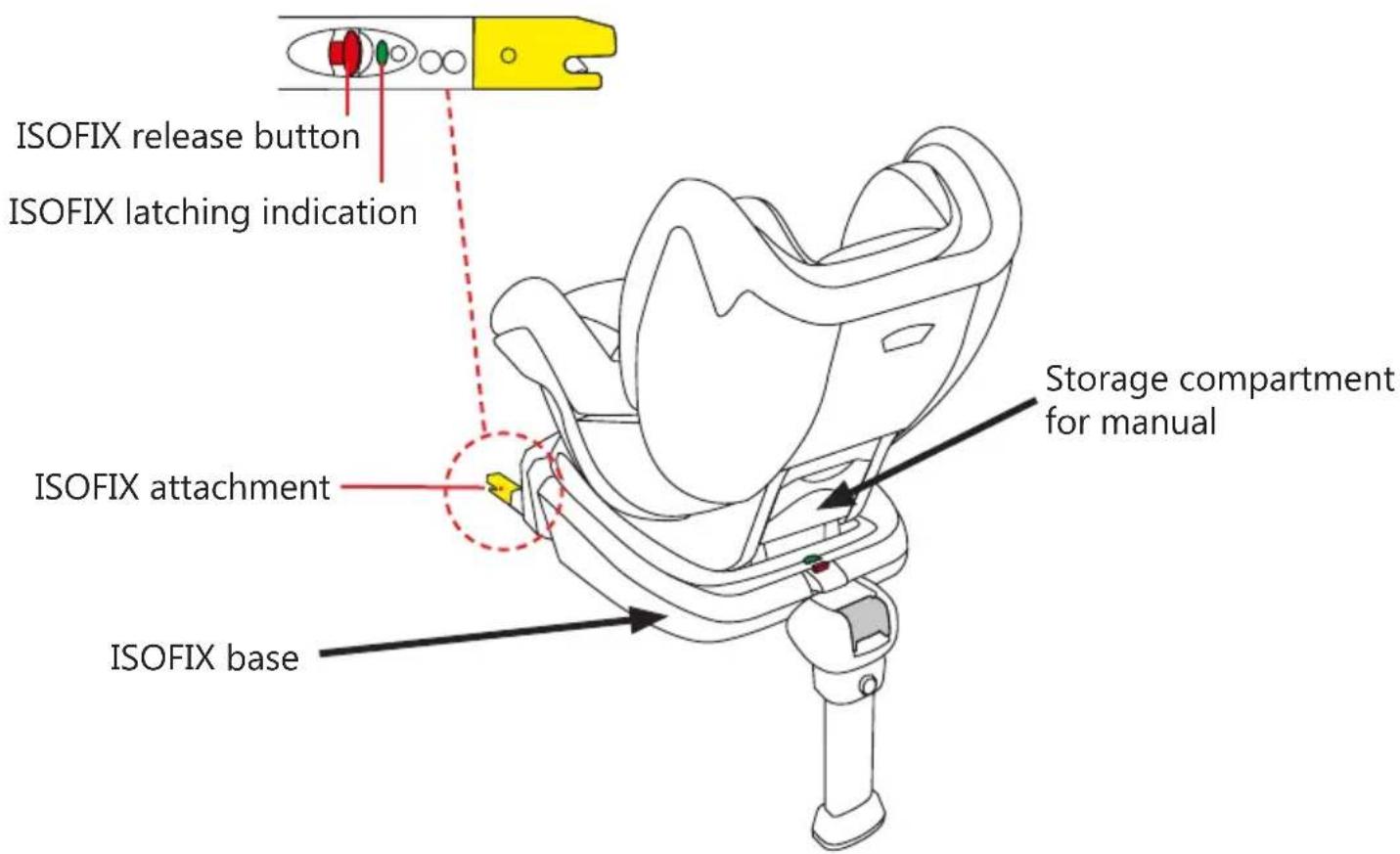

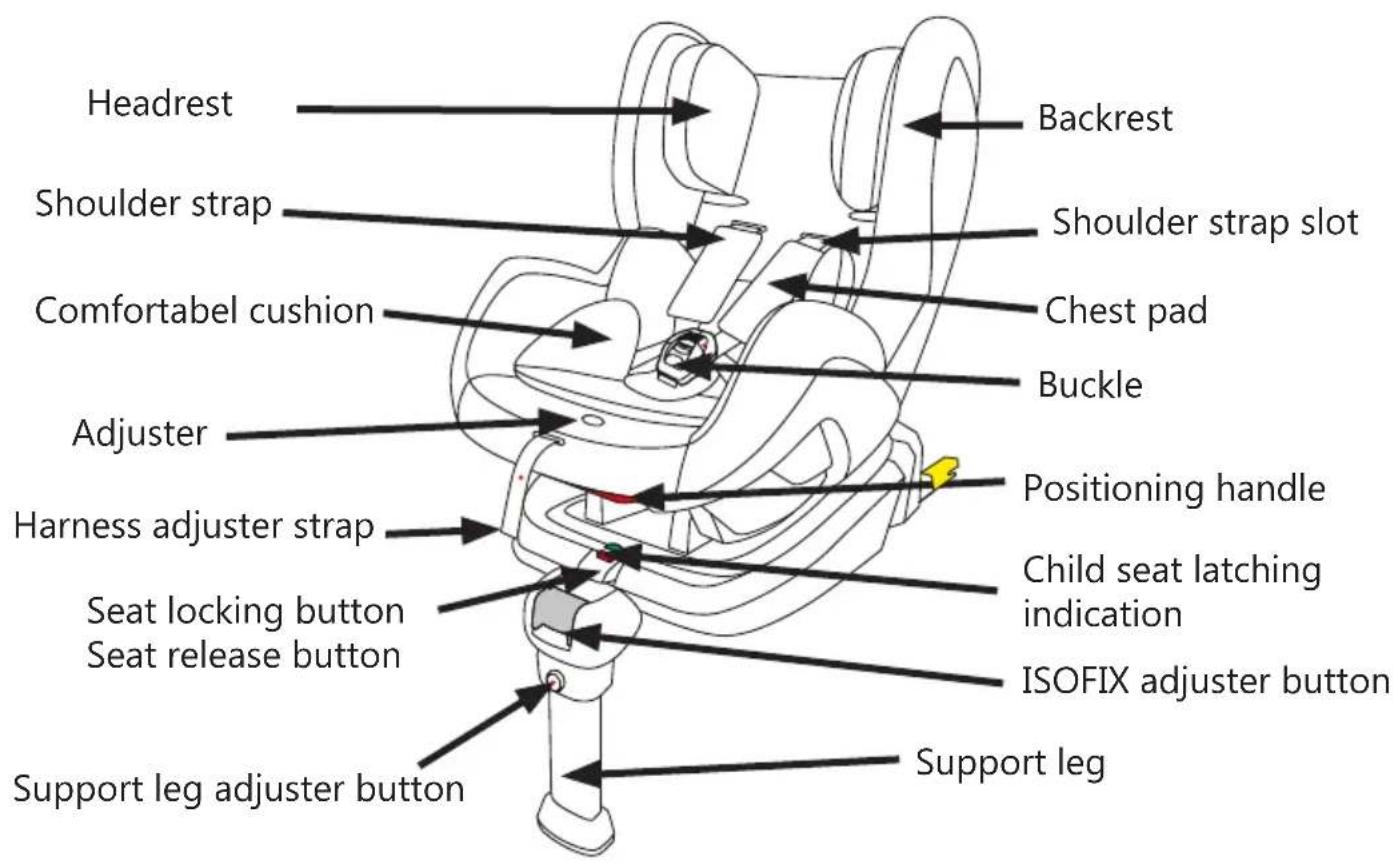

PARTS

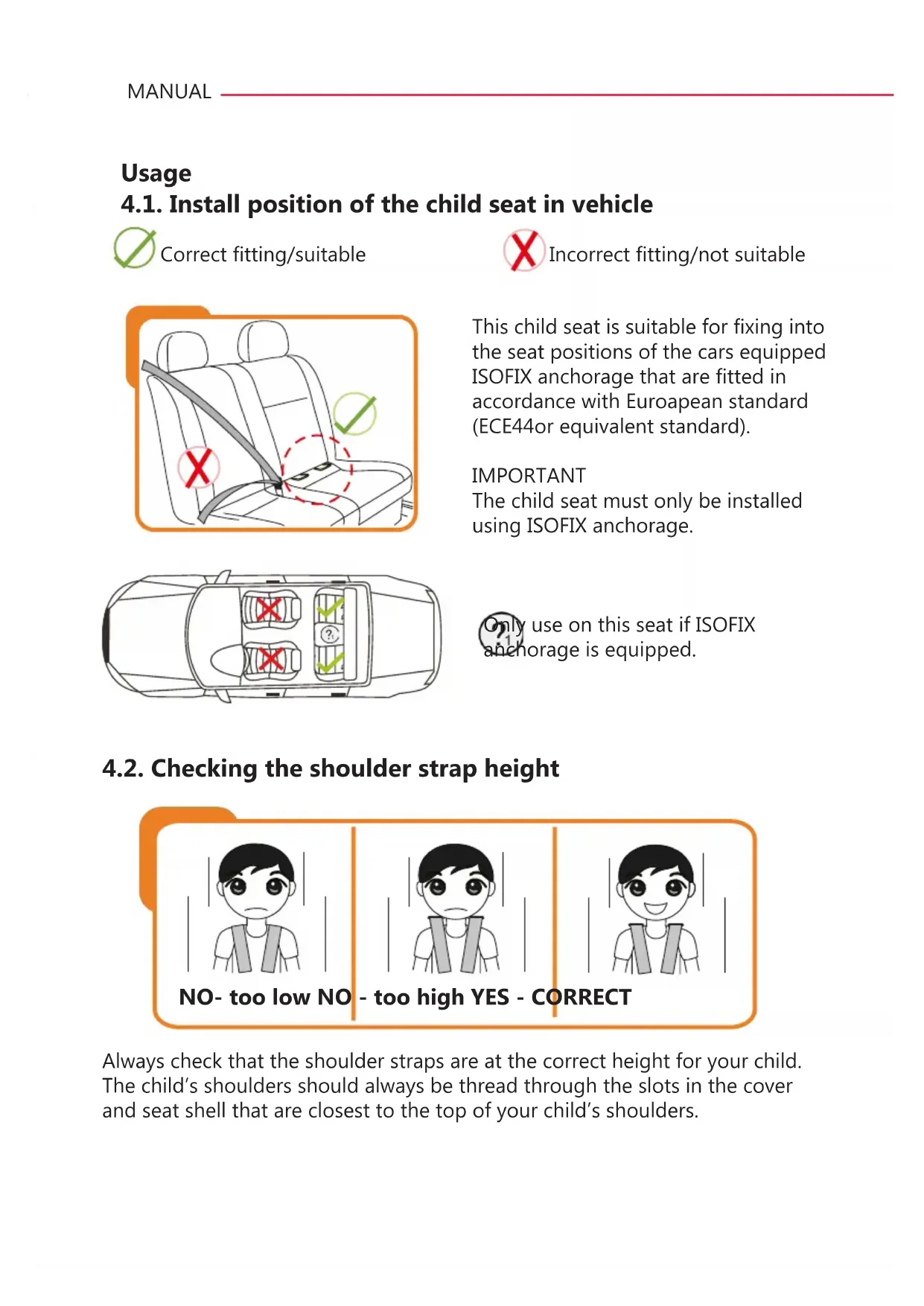

Usage

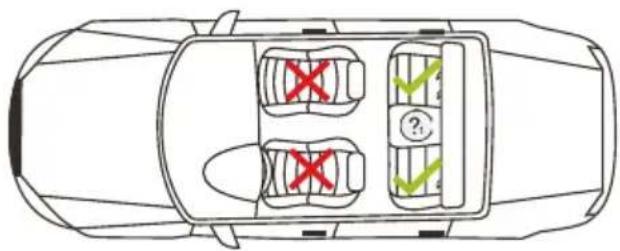

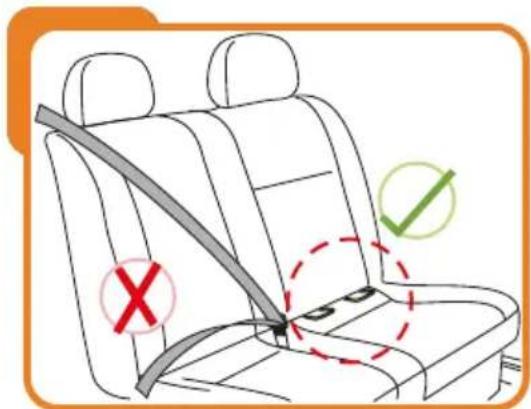

4.1. Install position of the child seat in vehicle

Correct fitting/suitable

Incorrect fitting/not suitable

This child seat is suitable for fixing into the seat positions of the cars equipped ISOFIX anchorage that are fitted in accordance with European standard (ECE44or equivalent standard).

IMPORTANT

The child seat must only be installed using ISOFIX anchorage.

use on this seat if ISOFIX storage is equipped.

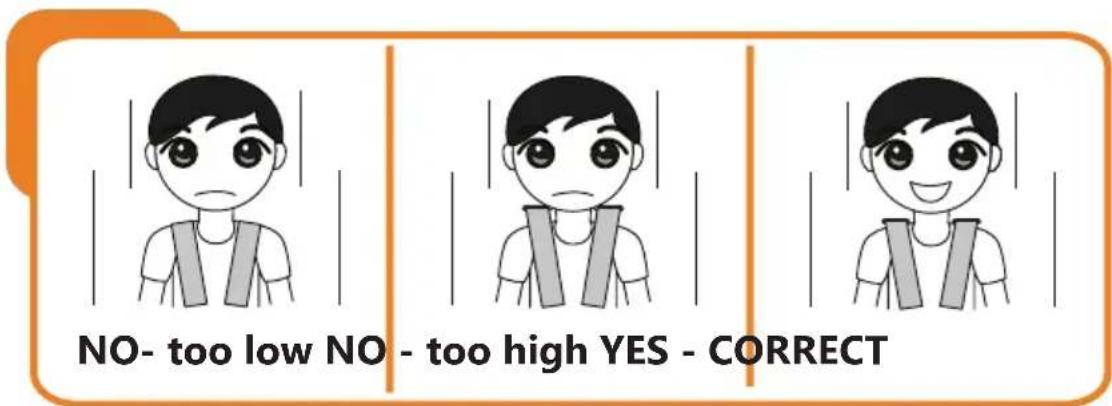

4.2. Checking the shoulder strap height

Always check that the shoulder straps are at the correct height for your child. The child's shoulders should always be thread through the slots in the cover and seat shell that are closest to the top of your child's shoulders.

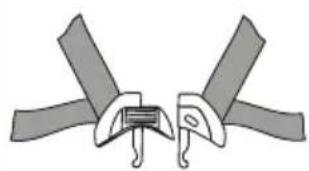

4.3. Usage of buckle.

Step 1 Step 3 Step 2

To use the buckle accurately, please proceed as follows:

Step1. Put the two metal sections of the buckle connector together.

Step2. Slot the two buckle connectors into the slot in the buckle until they"click"place.

Step3. Check the harness is correctly locked by pulling the shoulder straps upwards.

To release the harness, you can press the red button of the buckle downwards, the two metal sections will be pop up.

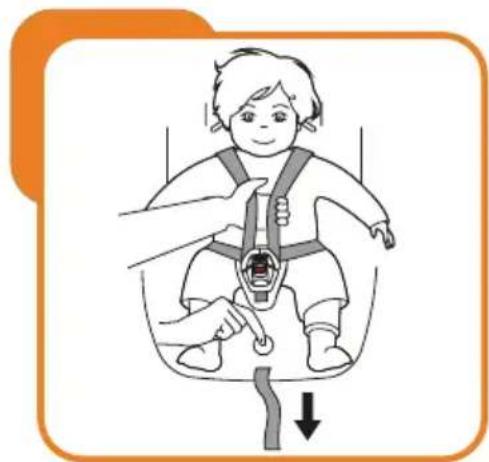

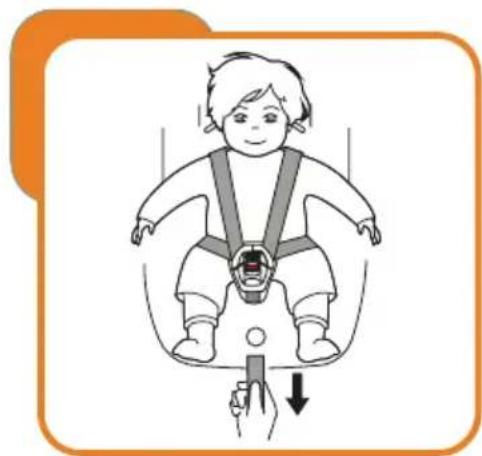

4.4. Adjust and use the harness

Loosen the harness Tighten the harness

The harness is slackened by pressing the adjuster (under the seat cover) on the front of the seat. Press down the adjuster as you grip the two shoulder straps with your another hand. Pull the shoulder straps towards you to loosen the harness.

Pull the shoulder straps upwards to remove the slack from the lap sections of the harness then pull the adjuster strap until the harness is fully tightened. The harness should be adjusted as tightly as possible without causing discomfort to your child. A loose harness can be dangerous. Check the harness adjuster and tighten each time the child is placed in the seat.

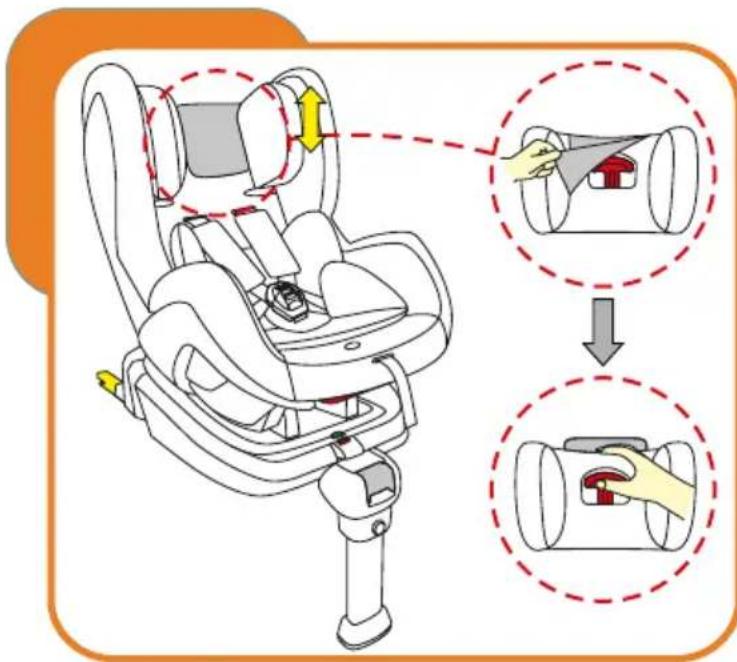

4.5. Adjust the headrest and shoulder strap height

The headrest can be adjusted for 7-8 positions to fit for different height of children. As the picture shows, turn over the fabric cover, lift the red handle up, meanwhile adjust the headrest up and down to change the height, the height of the shoulder harness will change as well.

IMPORTANT:

Check to make sure the headrest is securely locked in the desired position by pulling or pressing it.

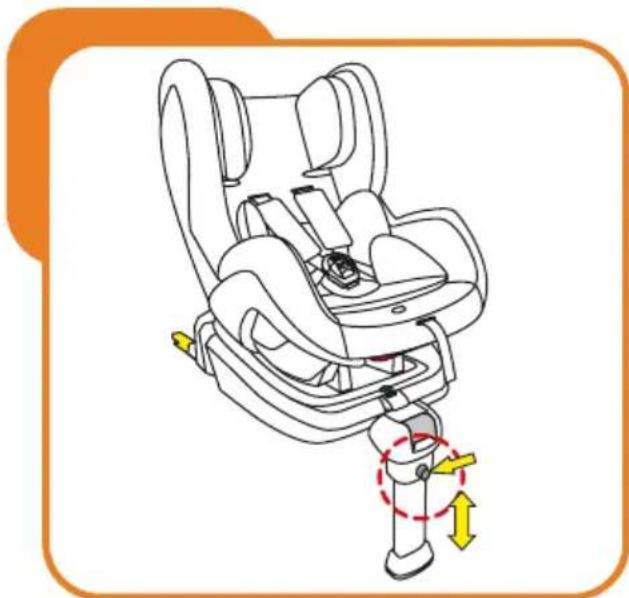

4.6. Adjust the length of support leg

Press the button and adjust the length of support leg to suitable for different height of car seat.

IMPORTANT:

Make sure the bottom of the support leg touches the ground completely.

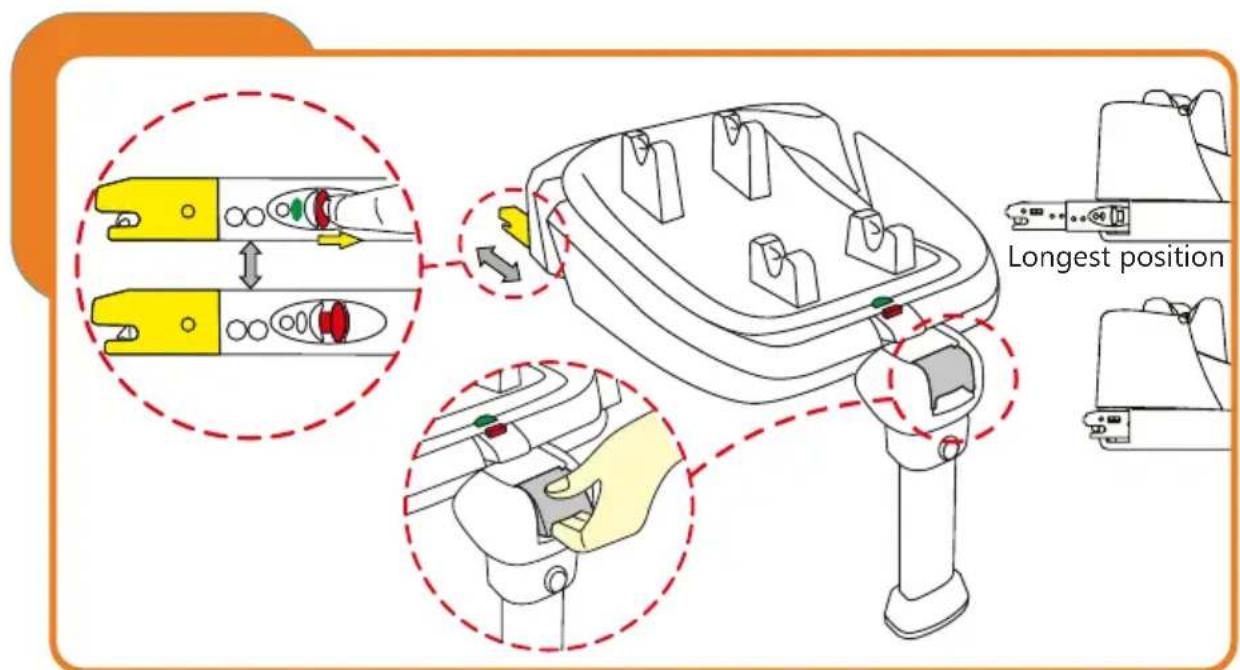

4.7. Adjust the ISOFIX attachments

The ISOFIX attachments can be adjusted for many positions to fit the different positions of ISOFIX low anchorages expending from car seat.

As the picture shows, lift the ISOFIX adjuster button in front of the child seat up, the ISOFIX attachment of both sides will eject to the longest position. latch both of the ISOFIX attachments with the corresponding ISOFIX lower anchorages. When you hear a "click" means that the ISOFIX attachments and the ISOFIX lower anchorages are all latched completely. Meanwhile the ISOFIX latching indication shows GREEN (see picture). If you want to

release the ISOFIX attachments, just need to push the ISOFIX release button(see picture). So the installation of the ISOFIX attachments is finished. Next, you can lift the ISOFIX adjuster button up again and push the child seat towards the car seat backrest until it is firmly pressed against the car seat backrest. Now the installation of the ISOFIX base is finished.

IMPORTANT:

Except the first position (the longest position) has the locking system, need to be adjusted by lifting the ISOFIX adjuster button, other positions can be adjusted just by pushing the ISOFIX base directly

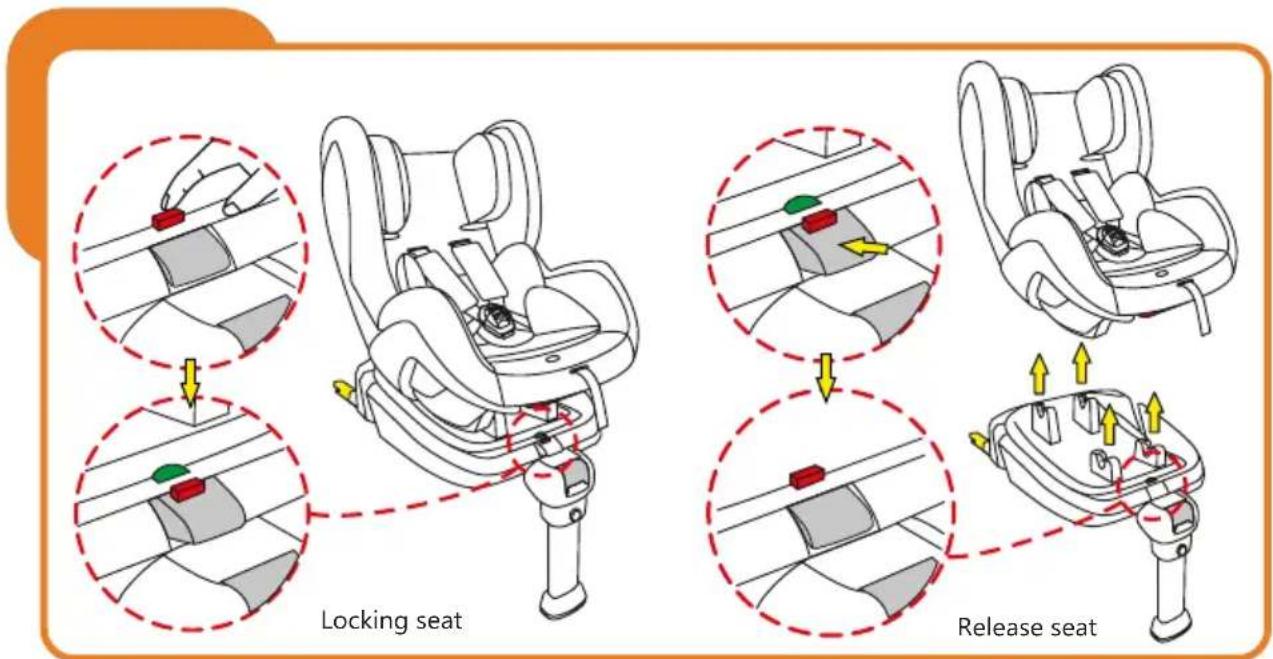

4.8. Assemble and separate the IOSFIX base and backrest

This child seat can be installed rearward-facing and forward-facing. If you want to separate the ISOFIX base and backrest, push the seat release button, then the seat locking button locked into the top cover of the base and the backrest can be separated from the base. If assemble the ISOFIX base and backrest, latch two shafts with the corresponding anchor points. Then press the seat locking button and it can eject from the locked position of the top cover. Now the child seat latching indication shows GREEN.

IMPORTANT:

Make sure the child seat latching indication shows GREEN by shaking the backrest.

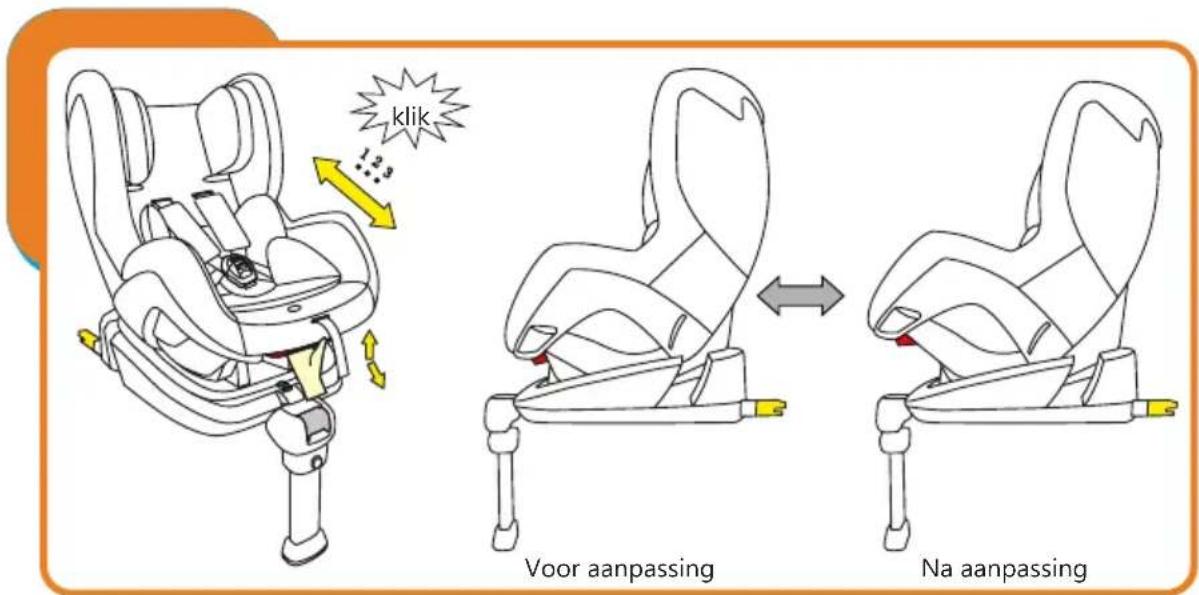

4.9. Adjust the child seat to different incline positions

The child seat can be adjusted 3 different positions - position 1, position 2 and position 3. If installed rearward-facing(group 0+ ), only the position 3 can be used. Pull the positioning handle under the front of the seat upwards, and then pull or push the seat forwards or backwards. Release the positioning handle in the desired position and push until you hear a "click".

IMPORTANT: Check to make sure the child seat is securely locked in the desired position by pulling the positioning handle.

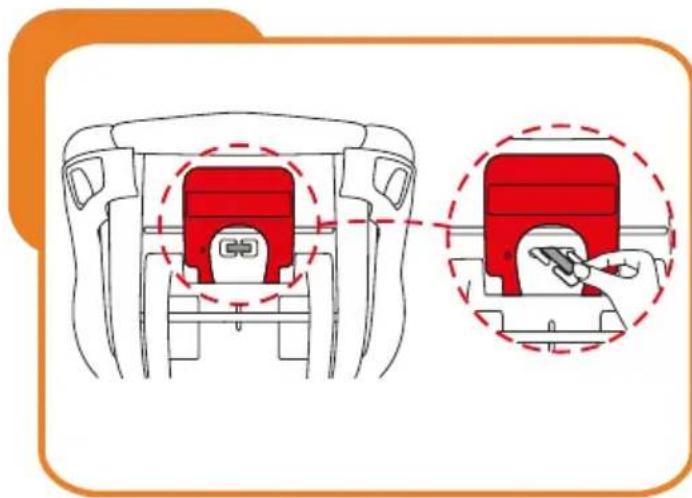

4.10. Remove the crotch pad and buckle

Turn the harness locking clip on their narrowest end and thread it through the slot under the bottom of the seat and then through the slot in the fabric cover. So the crotch pad and buckle as well as harness straps can be removed.

5. Installation of the child seat

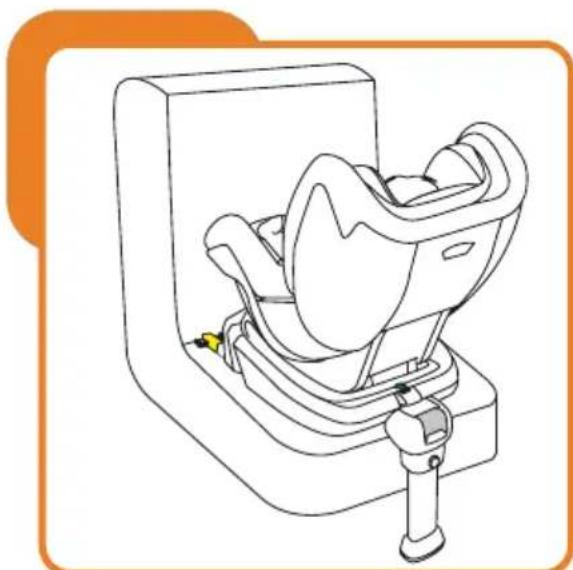

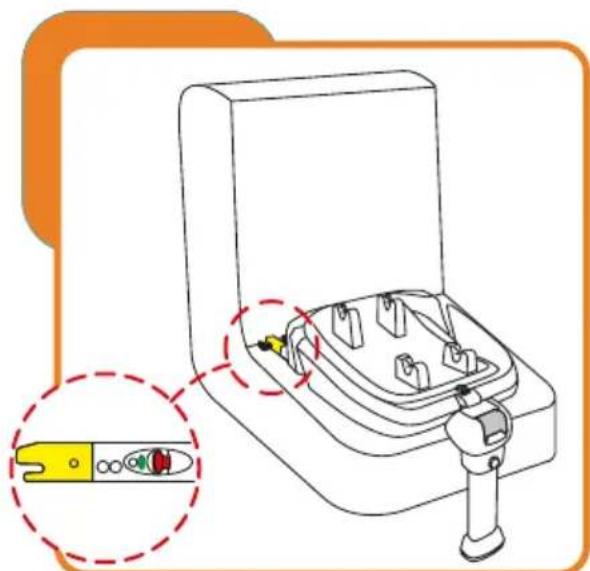

5.1. This child seat can be used with the harness for children less than 13kg in weight (group 0+ ), installed rearward-facing using ISOFIX anchorage.

Step 1: Place the ISOFIX base in car seat. Lift the ISOFIX adjuster button up, the ISOFIX attachment of both sides will stretch out. Latch both of the ISOFIX attachments with the corresponding ISOFIX lower anchorages completely. Make sure the ISOFIX latching indication shows GREEN. Then push the ISOFIX base towards the car seat backrest until it is firmly pressed against the car seat backrest. Adjust the support leg to touch the ground completely.

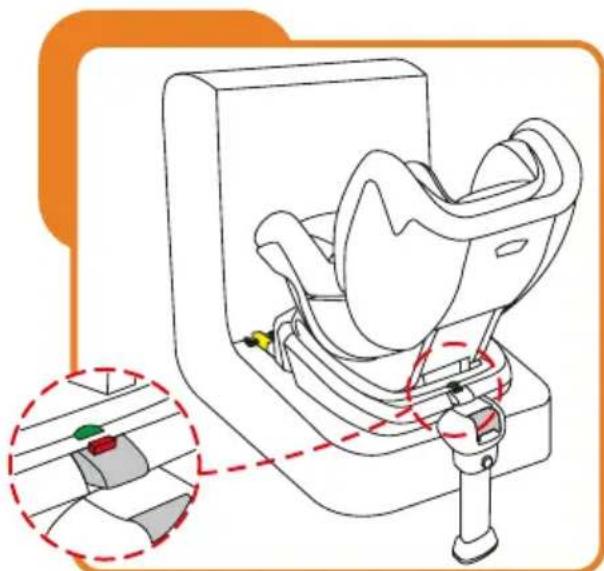

Step 2: Secure the backrest on the ISOFIX base rearward-facing and adjust the child seat to position 3.Meanwhile check to make sure the the backrest is securely latched with the ISOFIX base and the child seat latching indication shows GREEN.

Step 3: Place your child into the child seat. Check the height of the shoulder straps on the correct position and fasten the buckle. Check that the harness has not become twisted and also check that the cover is not impeding the movement or fit of the harness in any way. To disassemble the child seat, repeat the above prescribed procedures in reverse order.

IMPORTANT: Always adjust the child seat to position 3 when using group 0+ .

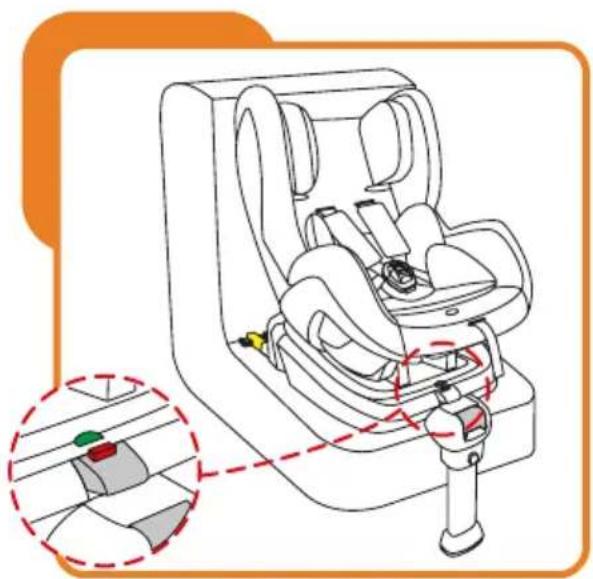

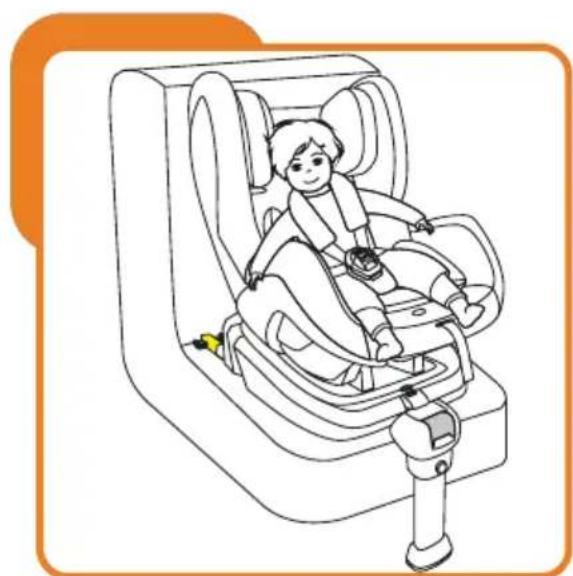

5.2 This child seat can be used with the harness for children 9kg to18kg in weight (group 1), installed forward-facing using ISOFIX anchorage.

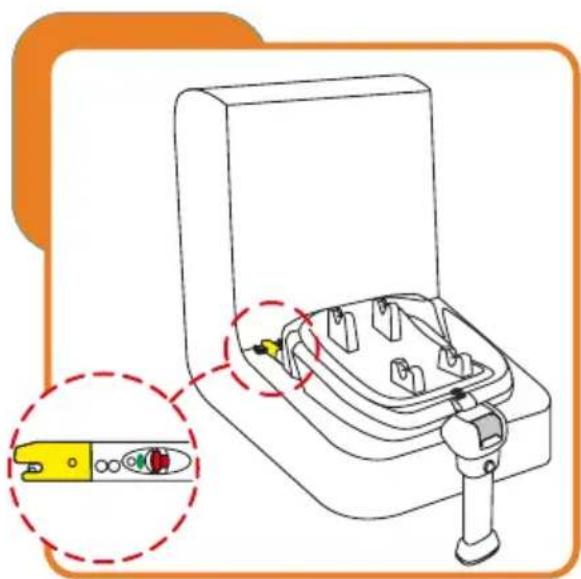

Step 1: Place the ISOFIX base in car seat. Lift the ISOFIX adjuster button up, the ISOFIX attachment of both sides will stretch out. Latch both of the ISOFIX attachments with the corresponding ISOFIX lower anchorages completely. Make sure the ISOFIX latching indication shows GREEN. Then push the ISOFIX base towards the car seat backrest until it is firmly pressed against the car seat backrest. Adjust the support leg to touch the ground completely.

Step 2: Secure the backrest on the ISOFIX base forward-facing and adjust the child seat to desired position. Meanwhile check to make sure the backrest is securely latched with the ISOFIX base and the child seat latching indication shows GREEN.

Step 3: Place your child into the child seat. Check the height of the shoulder straps on the correct position and fasten the buckle. Check that the harness has not become twisted and also check that the cover is not impeding the movement or fit of the harness in any way. To disassemble the child seat, repeat the above prescribed procedures in reverse order.

MAINTENANCE AND CLEANING

6.1 Daily maintenance

1. In daily use, check periodically the child seat. The child seat should be replaced after an accident.
2. Please keep this child seat in dry and ventilated place to avoid damp mold
3. If the child seat becomes dusty, clean the seat belt and the plastic pieces by swiping them with a damp sponge and let it dry in open air.
4. If food or drink drop accidentally on the buckle, disassemble the seat belt from the child seat and rinse it gently by warm water. Leave it dry under ambiance.
5. For cleaning the entire child seat fabric cover, please refer to the 6.2 washing instruction.

6.2 Washing instruction

Never use any solvent, chemical detergent or lubricant on any part of your child seat.

Handwash, watertemperature below 30^

Do not bleach Dryclean, any, solvent except trichioroethylene

Do not tumble dry

Do not iron

6.3 Remove and assemble the fabric cover

1. Firstly, remove the crotch pad and buckle of the child seat (see chapter 4.5).
2. Open the zip on the headrest and remove the headrest cover. Tear the velcros of the backrest cover open and then remove the shoulder straps and comfortable cushion as well as the backrest cover. To assemble the fabric cover of the child seat, repeat the above prescribed procedures in reverse order.

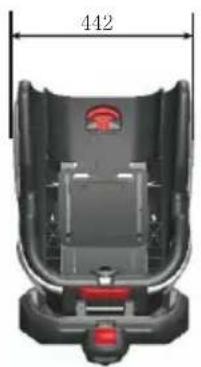

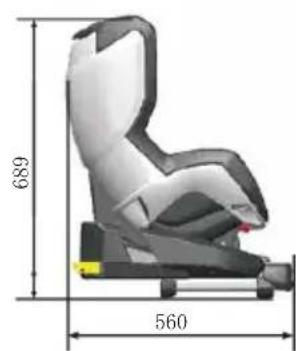

7. The main technical parameters

Distance from front to back of the seat: 560mm
Distance from left to right of the seat: 442mm
Height of the seat: 689mm
Weight of the seat: 14kg

Name	Child seat Instruction manual Warranty card Certificate of Quality Car sticker
Quantity	1	1 1 1 1

WARNING

FOR YOUR CHILD'S SAFETY, PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THIS MANUAL COULD RESULT IN SERIOUS INJURY TO YOUR CHILD.

WARNING: Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur.

1. This child seat can only be used with the harness for children less than 18kg in weight (group 0+, 0-13kg; group1, 9-18kg).
2. This child seat can be installed rearward-facing and forward-facing using ISOFIX anchorage. Important - Do not using forward-facing before the child's weight exceeds 9kg
3. For ISOFIX installation: Make sure you read the car manufacturer's handbook.
4. This instruction manual can be retained in the special space of the child seat for its life period.
5. Do not use this child seat in the home. It has not been designed for home use and should only be used in your car
6. Do not leave your child unattended in the seat at any time.
7. Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur.
8. The child seat should be changed when it has been subject to violent stresses in an accident.
9. For the reason of safety, the child seat must be fixed inside the vehicle using ISOFIX anchorage even if you do not put your child inside the child seat.
10. Always make sure that any straps holding the seat restraint to the vehicle shall be tight, any straps restraining the child should be adjusted to the child's body, and check that the straps shall not be twisted.
11. Ensuring that any straps is worn low down, so that the pelvis is firmly engaged, shall be stressed.
12. Do not use any load bearing contact points other than those described in the instructions and marked in the child restraint.
13. Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
14. The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by a moveable seat or in a door of the vehicle.
15. To prevent from the risk of fall, your child should always be fastened.
16. It is dangerous to make any alteration or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the child restraint manufacturer.
17. This child seat is designed for children from birth up to 18kg .Never overload the child seat more than one child or with other loads.
18. The child restraint must not be used without the cover.
19. The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
    Before you adjust any movable or adjustable parts of your child seat, you must remove your baby from the child seat.
20. The child seat should be kept away from sunlight if the seat is not provided with a textile, otherwise it may be too hot for the child's skin.
    22.Never use a second-hand product, as you can never be certain what was happened to it.
