Features	Details
Product type	Child car seat
Safety standards	Compliant with European safety standards (ECE R44/04)
Weight groups	Group 0+/1 (from birth up to 18 kg)
Installation system	Secured with seat belt or ISOFIX system
Recline	Reclinable position for optimal comfort
Materials	Padded and washable fabric, side impact protection
Product weight	Approximately 8 kg
Dimensions	Compact dimensions suitable for vehicles
Maintenance	Removable and machine washable cover
Warranty	2-year warranty
Included accessories	User guide and installation manual

Frequently Asked Questions - Vega Baninni

How do I correctly install the Baninni Vega car seat?

To install the Baninni Vega, follow the instructions provided in the user manual. Ensure the seat is securely fastened using the seat belt or the ISOFIX system, depending on the model.

What is the maximum weight supported by the Baninni Vega seat?

The Baninni Vega is designed for children weighing up to 36 kg, according to the safety groups for which it is certified.

How do I clean the Baninni Vega car seat?

The Baninni Vega cover is removable and machine washable at 30C. Avoid using bleach and let it air dry.

Is the Baninni Vega seat compliant with safety standards?

Yes, the Baninni Vega complies with the current European safety standards for child car seats.

From what age can I use the Baninni Vega seat?

The Baninni Vega is designed to be used from birth up to about 12 years old, depending on the childs weight and height.

How do I adjust the safety harness on the Baninni Vega?

To adjust the harness, pull the strap located at the back of the seat until it fits snugly without being too tight. Make sure the childs shoulders are level with the straps.

Is the Baninni Vega seat compatible with all types of vehicles?

The Baninni Vega is compatible with most vehicles equipped with standard seat belts and ISOFIX systems. Check compatibility in the user manual.

What should I do if the Baninni Vega seat has a defect?

If you notice a defect, please contact Baninni customer service with your proof of purchase to discuss return or replacement options.

USER MANUAL Vega Baninni

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

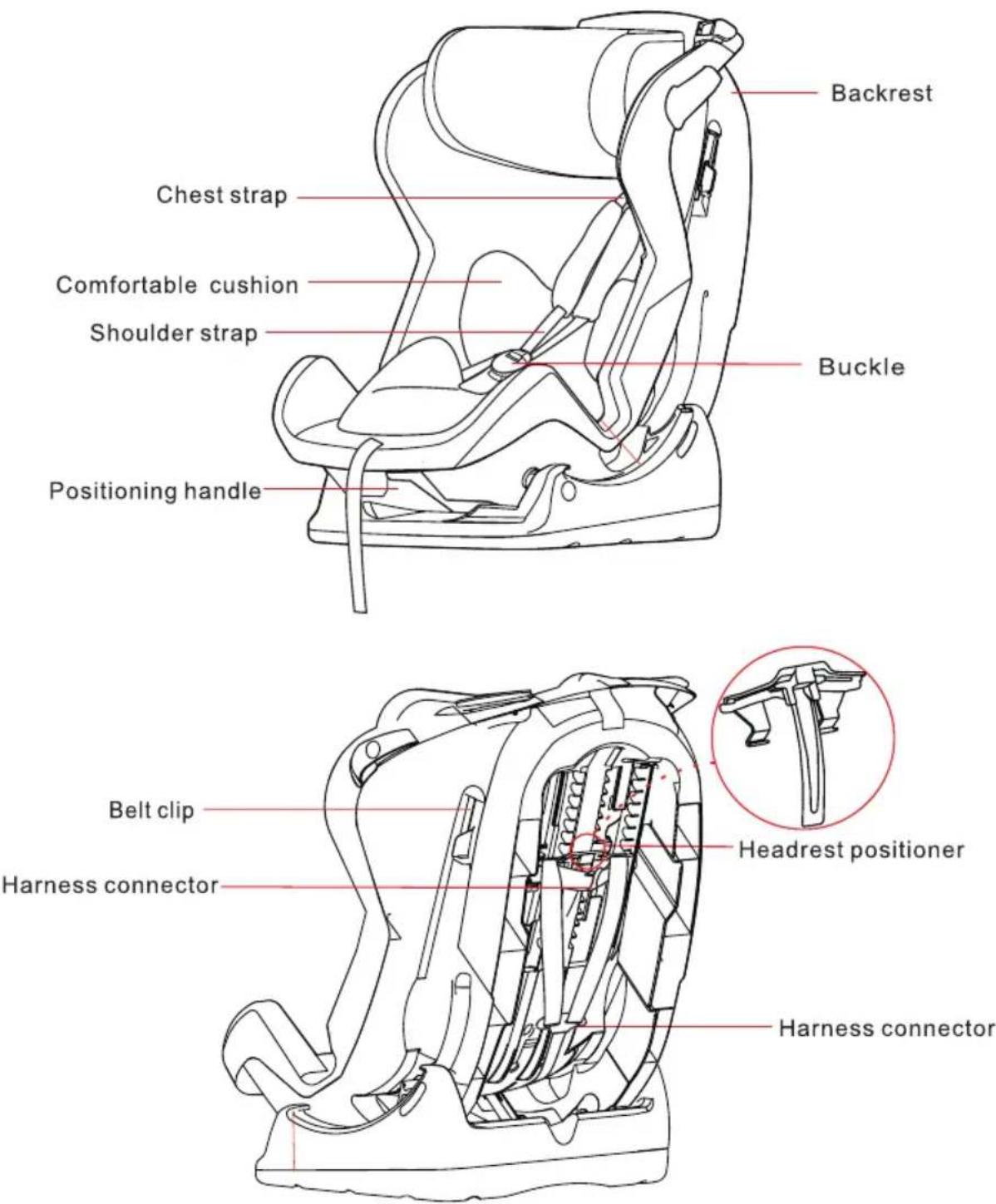

CARSEAT VEGA BNCS020

MANUAL

Group 0 + 1 + 2

Maximum 25kg

$$ (0 + 0 - 1 3 \mathrm {k g}) (1 - 9 - 1 8 \mathrm {k g}) (2 - 1 5 - 2 5 \mathrm {k g}) $$

ECE R44/04 with certificate NO: 04301347

For the safety of your child, please read these instructions carefully before use.

WARNING: Do not use in positions where there is an active airbag installed. Suitable only if the approved vehicles are fitted with three-point safety-belts, approved to UN / ECE Regulation No.16 or other equivalent standards.

For the safety of your child, please read these instructions before use. Not following these instructions can result in serious injury. This car seat can be used only with harness for children less than 18 kg (group 0+ 0-13kg / 9-18kg Group I / Group II 15-25kg). This car seat can be installed in rear-facing and forward-facing use with the diagonal seatbelt. Do not use a forward-facing option if your child's weight exceeds 9 kg. The seat is not designed for home use and should only be used in your vehicle. Never leave your child for safety unattended in the car seat.

Place the seat rearward facing never in the front seat with airbags in the area, there is a serious injury can occur and it is dangerous for the child. Always ensure that the tires of the car seat are fastened tightly and adapted to the body of the child.

To avoid the risks of falling, your child should always be placed in the car seat. The seat is suitable for children from birth up to 25kg . The car seat should never be overloaded with more than one child or with other weights or objects. The child restraint must not be used without the cover.

Before the fastening of movable parts or mountings, your baby must be removed from the child seat. The child should be kept away from sunlight. If the seat is not blocked, it may be too hot for the child's skin.

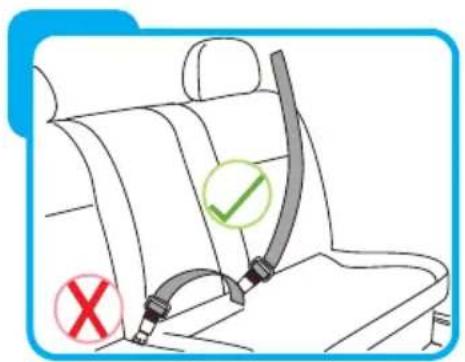

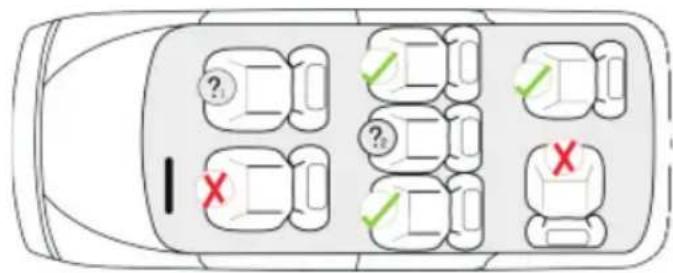

Step 1 Installation of the position of the car seat in the car

CORRECT

NOT CORRECT

This car seat is suitable for conventional use in all cars equipped with three-point safety belts conforming to the European standard (ECE R16 or equivalent standard).

The car seat must be installed using a lap and diagonal seat belt. Do not use it on seats where an active frontal airbag is installed. Can only be used on this chair as a lap and diagonal seat belts are fitted.

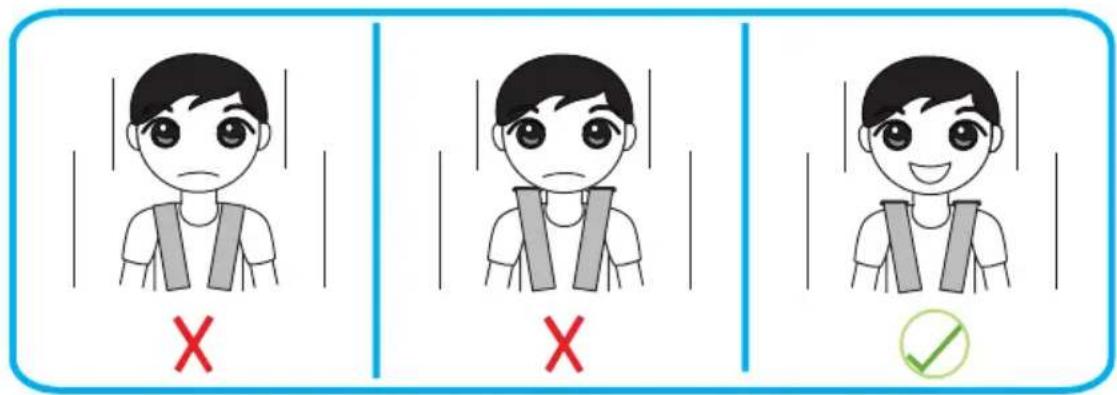

Step 2 Checking the height of shoulder straps

Always check that the shoulder straps to the correct height for your child. Your child's shoulders should always comfortable coming through the openings in the lid. On the right image the tires are properly and firmly on shoulders of the child.

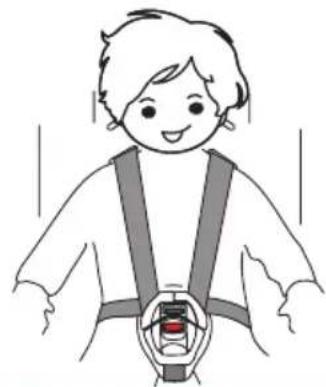

Step 3 The use of the belts

Firstly, the height of the shoulder straps in set. Connect the two metal parts of the closure together. Connect the two buckle connectors into the slot in the belt until you hear a 'click'. Make sure the harness is correctly locked by pulling the straps down.

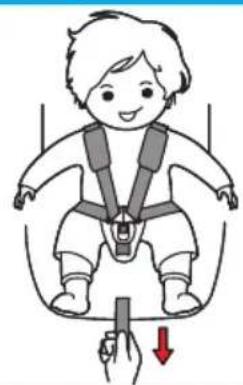

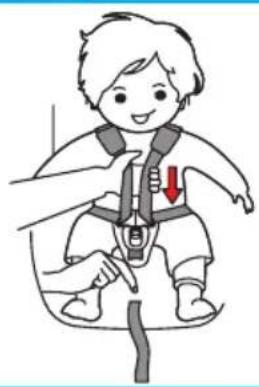

Step 4 Adjusting the seat belts

Pressure on the controller while the two bands hold with the other hand. Pull the shoulder straps towards you to loosen the belt.

The belts should be adjusted as tightly as possible without causing your child feel uncomfortable.

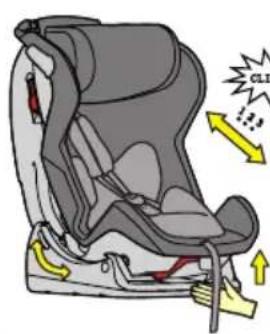

Step 5 Adjusting the seat in different positions

Before adjusting
After adjusting

The car seat can be adjusted to four different positions: position 1, position 2, position 3, position 4 position to the rear (group 0+ ) corresponds to the position 4. Pull the lever under the front of the seat up, then pull or push the seat forwards or backwards. Release the lever to the desired position and push until you hear a click.

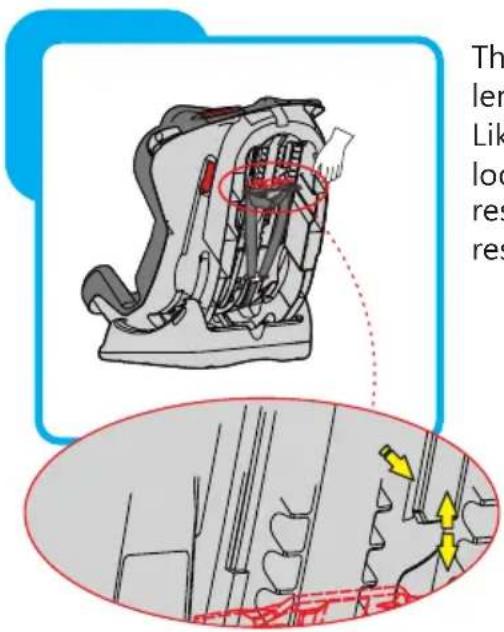

Step 6 Setting the headrest

The headrest may be set at any position adapted to the length of the child.

Like the picture, pull the adjustable headrest knob after loosening the belt. Keep it up and down to adjust the head restraint to the appropriate position. Make sure the head restraint into the correct position has been set for the child.

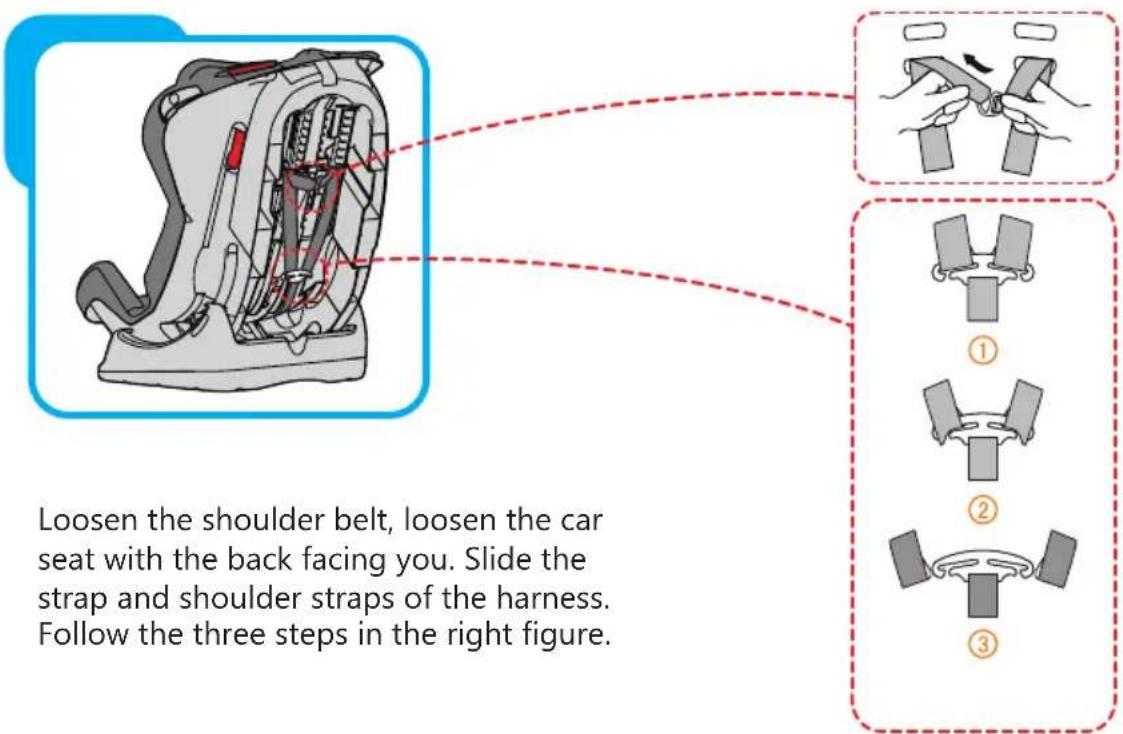

Step 7 Removing the shoulder straps

Loosen the shoulder belt, loosen the car seat with the back facing you. Slide the strap and shoulder straps of the harness. Follow the three steps in the right figure.

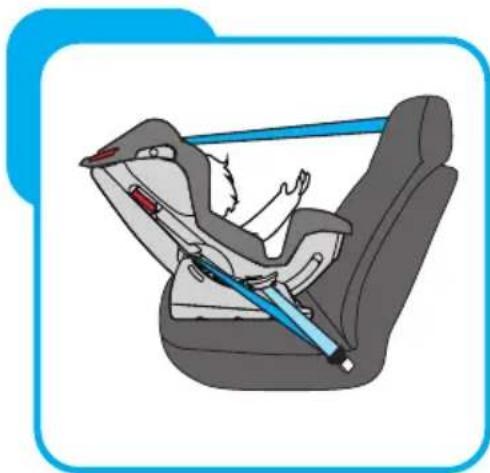

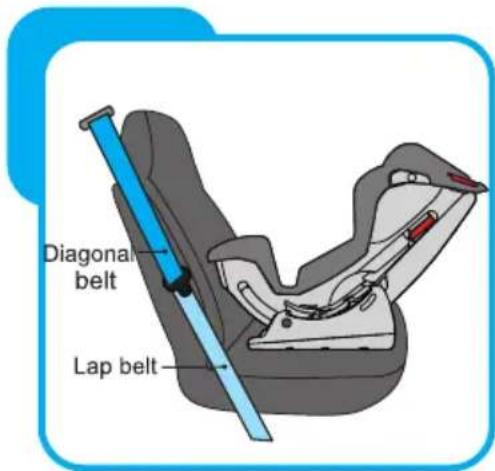

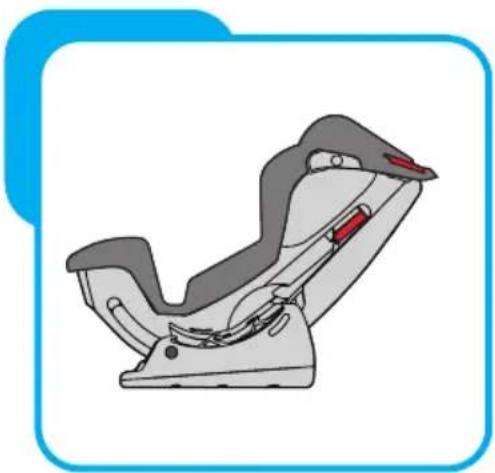

Step 8 The installation of the car seat 8.1 Installation for Group 0+ (0-13kg)

Set in the car seat, in position 4. Place the car seat in the position as shown, rear-facing. Make sure the front of the child seat firmly against the back of the car.

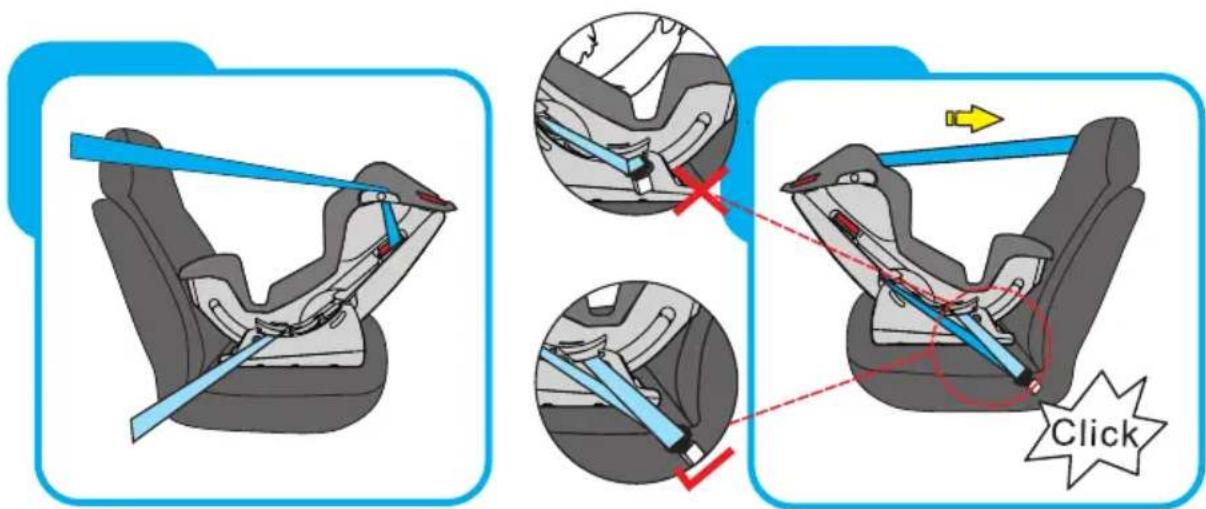

Clamp the diagonal belt in the same side of the belt clip and belt hook on the car seat. Tighten the belt by two hooks on the car seat base. Make the diagonal strap with hip belt buckle until you hear a click. Make sure the buckle is correctly locked by pulling up the belt.

Place your child in the car seat. Make sure the height of the shoulder straps in the correct position and fasten the seat belts. Make sure the straps have not become twisted and also check that the lid of the fit of the belt is not stuck.

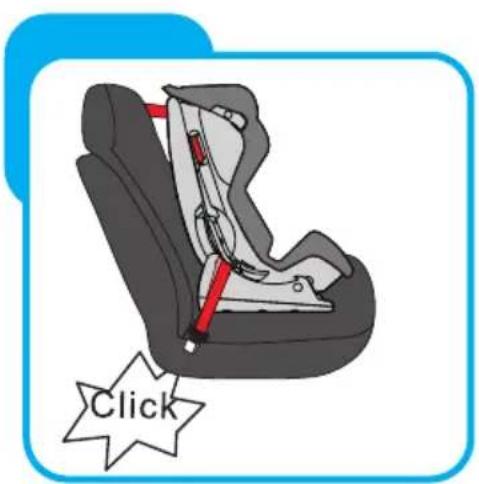

Step 8 The installation of the car seat 8.2 Installation for group I (9-18kg)

IMPORTANT Use this position not (forward position) if your child weighs less as 9kg.

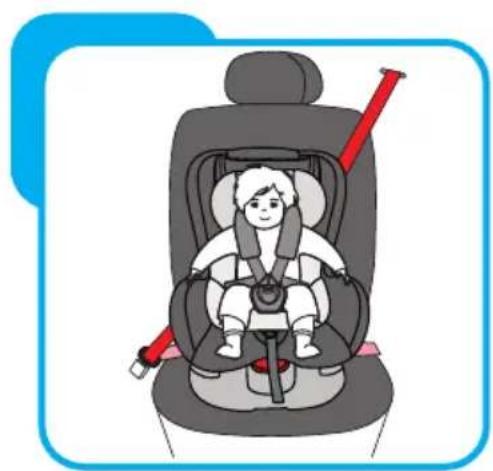

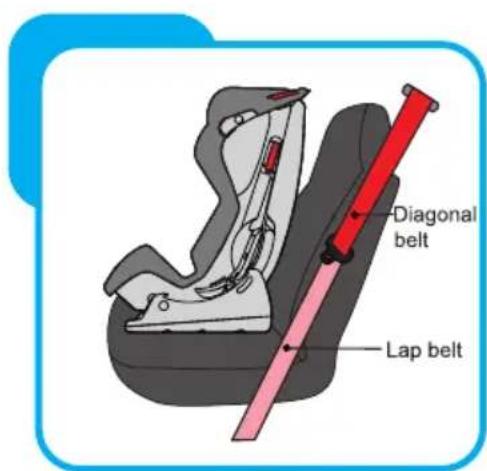

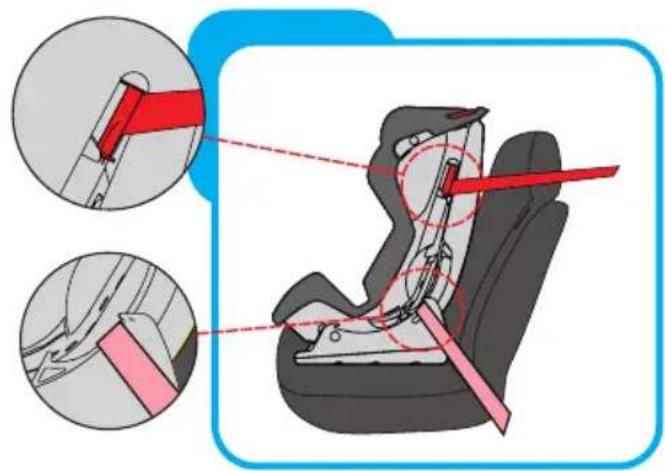

Adjust the height of the headrest to the desired position which is suitable for the height of the child. Place the car seat in the car facing forward and make sure that the backrest of the seat against the back is pushed into the car. Take the diagonal belt into the belt clip on the back of the car seat.

Place diagonal belt in the belt clip until you hear a click. Make sure it is correctly locked by pulling up the belt. Place your child in the car seat and check the height of the shoulder belts is correct. Also check that the seat belt has

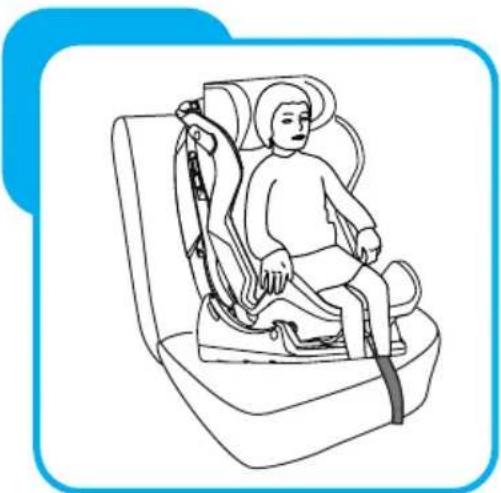

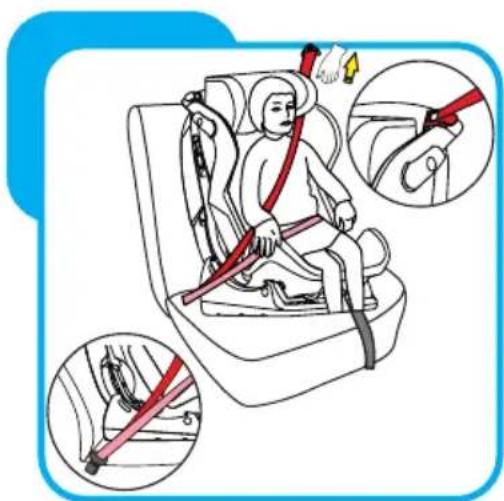

Step 8 The installation of the car seat 8.3 Installation for Group II (15-25kg)

IMPORTANT: Before attaching the car seat, remove the shoulder straps and crotch strap.

Place the car seat in the car and make sure it is firmly pressed against the back of the car.

Place your child in the car seat.

Take the seat belt, make sure the belt passes through both hooks. Check that the seat belt has not become twisted and secure it firmly.

WARNING

THESE INSTRUCTIONS ARE INIMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.

DO NOT USE THE CHILD SEAT IN PASSENGER SEATS EQUIPPED WITH AIRBAGS.

• Please be careful of that the plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become rapped by a movable seat or in a door of a vehicle. Do not use any load bearing contact points other than those described in the instructions and marked in the chid restraint.

• This child seat be used with the harness for children of 9 to 18 kg in weight: ca. 9 months to 4 years.

• This child seat be used without the harness for children of 15 to 36kg in weight: ca. 3 years to 11 years.

• This child seat can be only installed forward facing using a three point lap and diagonal seat belt.

• Do not use this child seat in home. It has not been designed for home use and should only be used in your car.

• This safest seating position for this child car seat is on the rear seat of a vehicle..

• Never use the child seat without fastening the child's harness correctly and never attempt to use it without fastening it into the car.

• Do not add or modify the seat in any way.

• Never leave your child unattended in the seat at any time.

• Car interiors can become very hot when in direct sunlight, it is therefore recommend that the child seat should be covered when not in use. This prevents components, particularly those attached to the child seat, becoming hot.

• It is important that the child can be released quickly. This means that the buckle is not fully tamper proof and so your child must be taught never to play with the buckle.

• Luggage and other heavy or sharp objects should be secured in the car; Loose objects are liable to cause injury in the event of an accident.

• Regularly check the harness for wear, paying attention to the attachment points, stitching and adjusting devices.

• Store this child seat in a safe place when it's not being used. avoid placing heavy objects on top of it.

Hand wash, water temperature below 30^

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

FR

CARSEAT VEGA BNCS020

MODE D'EMPLOI

Groupe 0 + 1 + 2

Maximum 25kg

(0 + 0 - 13kg)(1 - 9 - 18kg)(2 - 15 - 25kg)

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

CARSEAT VEGA BNCS020

GEBRAUCHSANLEITUNG

Gruppe 0 + 1 + 2

Maximum 25 kg

(0 + 0 - 13kg)(1 - 9 - 18kg)(2 - 15bis25kg)
