Product type	Car seat with ISOFIX system and 360° rotation
Brand	Baninni
Model	Twirl 360 Isofix
Weight groups	Group 0+ (0-13 kg) and Group 1 (9-18 kg)
Maximum child weight	18 kg (depending on group)
Seat weight	9.5 kg
Dimensions (W x H)	425 mm (width) x 619 mm (height)
Rotation	360° with 3 locking positions (forward, rear, side)
Attachment	ISOFIX + anti-rotation support leg
Restraint system	5-point harness adjustable in height
Headrest	Height adjustable to fit the child's morphology
Side protection	Advanced side protection system for head and body
Compliance	ECE R44/04, semi-universal
Cover	Machine washable at 30°C, flame retardant, eco-friendly
Care	Hand wash or machine wash at low temperature (<30°C), do not bleach
Repairability	Spare parts (harness, buckle, foam) must be replaced with Baninni original parts
Safety instructions	Do not use with an active airbag, always fasten the child, replace after a severe accident
Storage	Store in a dry and ventilated place

Frequently Asked Questions - Twirl 360 Isofix Baninni

How to install the Twirl 360 Isofix seat in my car?

First install the ISOFIX guide sleeves on the lower anchors of your vehicle. Then press the red button to deploy the ISOFIX connectors on both sides, insert them into the sleeves until you hear a click and check that the locking indicator turns green. Finally, deploy the support leg on the floor, adjusting its length with the button until the status window is green.

How to rotate the seat 360 degrees?

To rotate the seat, press the rotation adjustment button located under the base while holding the upper part of the seat. Gently turn to the desired position (facing the road, rear-facing, or side). You will hear a click when it is properly locked. Never rotate the seat while the car is moving.

What is the maximum child weight for using the seat forward-facing?

The seat can be used forward-facing only when the child weighs at least 9 kg (Group 1). For children under 9 kg, it is mandatory to use the seat in rear-facing position (Group 0+ up to 13 kg).

How to adjust the harness and headrest?

To adjust the headrest, pull it upwards or push it downwards after loosening the harness. The shoulder strap height adjusts automatically with the headrest. To tighten the harness, pull the front adjustment strap until it fits the child's body without being uncomfortable. To loosen, press the selection button under the seat and pull the straps towards you.

Can I use this seat with an active front airbag?

No, it is strictly forbidden to use this seat on a seat equipped with an active front airbag, especially in rear-facing position. This could cause serious or even fatal injuries. Always place the seat on a rear seat or, if in front, disable the airbag.

How to care for the seat cover?

The fabric cover is machine washable at a temperature below 30°C. Use a gentle cycle and do not bleach. For drying, air dry. Plastic parts and straps can be cleaned with a damp sponge and air dried. Never use solvents or harsh detergents.

What to do if the harness buckle is sticky or difficult to close?

If food or drink has spilled on the buckle, remove the harness from the seat and gently rinse the buckle with warm water. Allow it to air dry completely before reassembling. Never use lubricants or chemicals.

Is this seat compatible with all vehicles?

This seat is semi-universal, compatible with vehicles equipped with ISOFIX anchors conforming to ECE R14 standard. Check the list of compatible vehicles provided in the appendix of the manual. If in doubt, contact the manufacturer or your dealer.

Should I replace the seat after an accident?

Yes, the seat must be replaced after any accident, even minor, because severe stresses may have damaged its structure. Also check the ISOFIX connectors and support leg. Never reuse a seat that has been in a major impact.

Can I use the seat in a reclined position for my child to sleep?

The Twirl 360 Isofix seat does not have a specific recline function. However, in rear-facing position, the seat offers a more reclined angle for infant comfort. For an older child, adjust the headrest and harness correctly. Never place the seat in a side position while driving.

USER MANUAL Twirl 360 Isofix Baninni

CARSEAT TWIRL 360^ BNCS021 HANDLEIDING

Groep 0 + 1 Geschikt tot 18kg (0 + 0 - 13kg) (1-9-18 kg)

ECE R44/04

VEILIGHEIDSWAARSCHUWING:

Forward-facing (red)
picture 2

INSTALLATIE VAN HET KINDERBEVEILIGINGSSYSTEM:

Never use any solvent, chemical detergent or lubricant on any part of your child seat.

Hand wash, water temperature below 30^

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

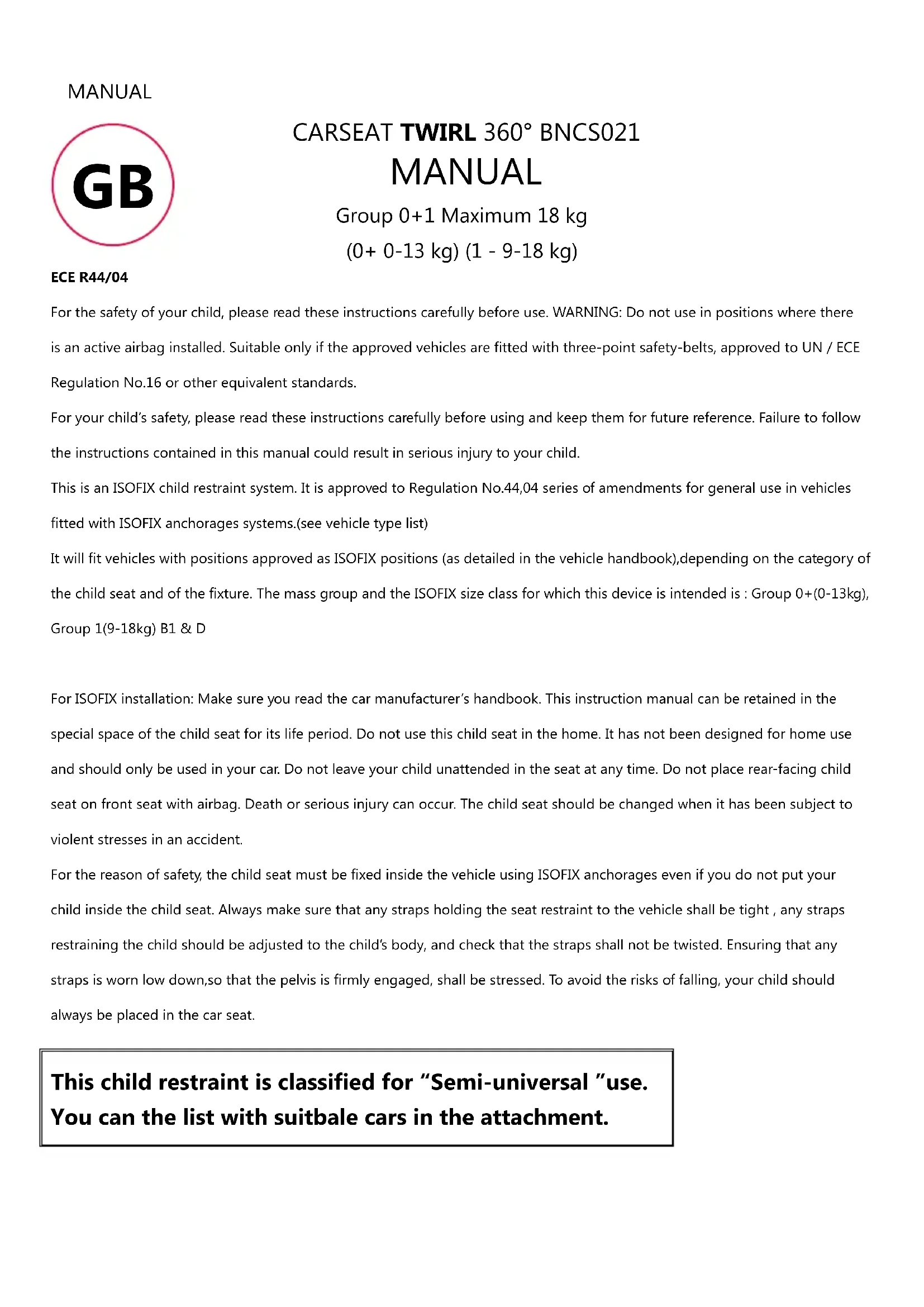

CARSEAT TWIRL 360^ BNCS021 MANUAL

Group 0+1 Maximum 18 kg (0 + 0-13 kg) (1 - 9-18 kg)

ECE R44/04

For the safety of your child, please read these instructions carefully before use. WARNING: Do not use in positions where there is an active airbag installed. Suitable only if the approved vehicles are fitted with three-point safety-belts, approved to UN / ECE Regulation No.16 or other equivalent standards.

For your child's safety, please read these instructions carefully before using and keep them for future reference. Failure to follow the instructions contained in this manual could result in serious injury to your child.

This is an ISOFIX child restraint system. It is approved to Regulation No.44,04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.(see vehicle type list)

It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook),depending on the category of the child seat and of the fixture. The mass group and the ISOFIX size class for which this device is intended is : Group 0+ (0-13kg), Group 1(9-18kg) B1 & D

For ISOFIX installation: Make sure you read the car manufacturer's handbook. This instruction manual can be retained in the special space of the child seat for its life period. Do not use this child seat in the home. It has not been designed for home use and should only be used in your car. Do not leave your child unattended in the seat at any time. Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur. The child seat should be changed when it has been subject to violent stresses in an accident.

For the reason of safety, the child seat must be fixed inside the vehicle using ISOFIX anchorages even if you do not put your child inside the child seat. Always make sure that any straps holding the seat restraint to the vehicle shall be tight, any straps restraining the child should be adjusted to the child's body, and check that the straps shall not be twisted. Ensuring that any straps is worn low down, so that the pelvis is firmly engaged, shall be stressed. To avoid the risks of falling, your child should always be placed in the car seat.

This child restraint is classified for "Semi-universal "use. You can the list with suitbale cars in the attachment.

CARSEAT TWIRL 360^

The biggest feature of this product is a 360-degree rotation of the child restraint system, which greatly reduces the difficulty of installing child.

The ultra-light weight of the product makes it more convenient for parents to install and carry.

This product equips with advanced ISOFIX installed on the car seat using ISOFIX anchorage which is more convenience, more steady and safer. This product also

equips with an anti-rotation device. The device consists of support leg which intended to limit the rotation of the restraint during a frontal impact.

With side impact protection system to protect child's head, enhance damping flanking advanced anti side impact, and it meets the latest I-SIZE side impact requirements. The system have soft and antiskid pad in the hasp and chest which makes child feel more comfort. The fabric of cover can be washed, flame retardant, environmental protection and fashion.

Rotating 360

Group 1(9-18kg)

Group 0 + (0 - 13kg)

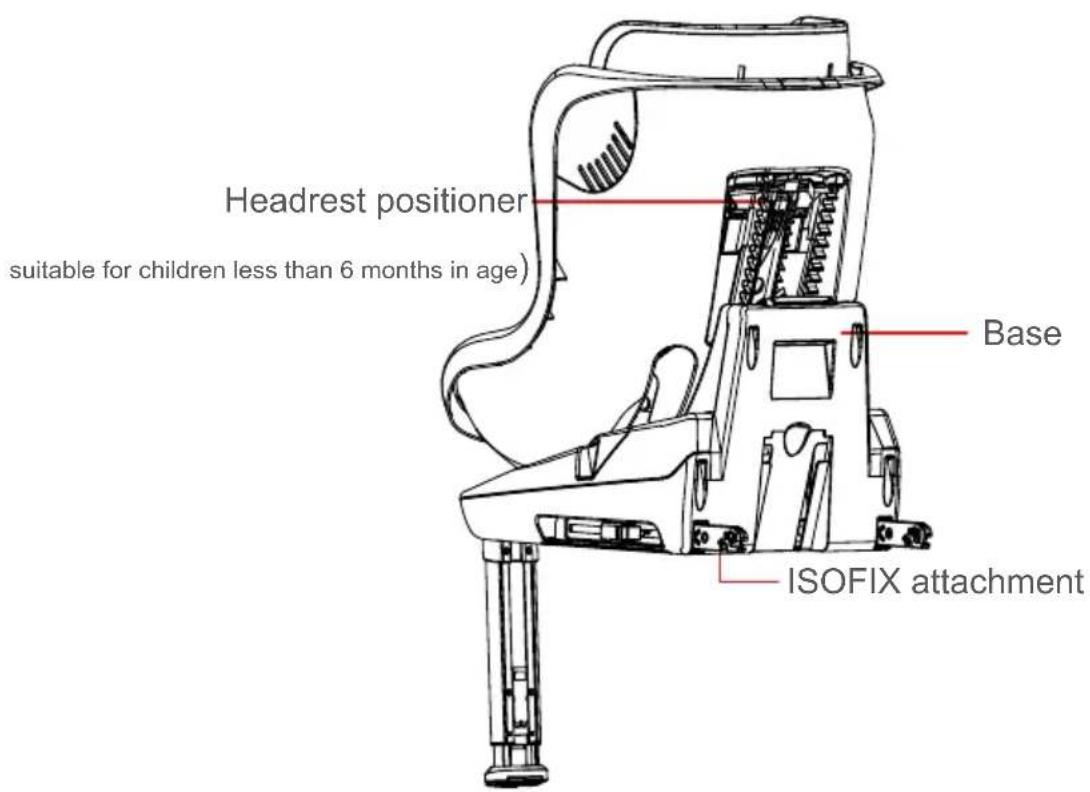

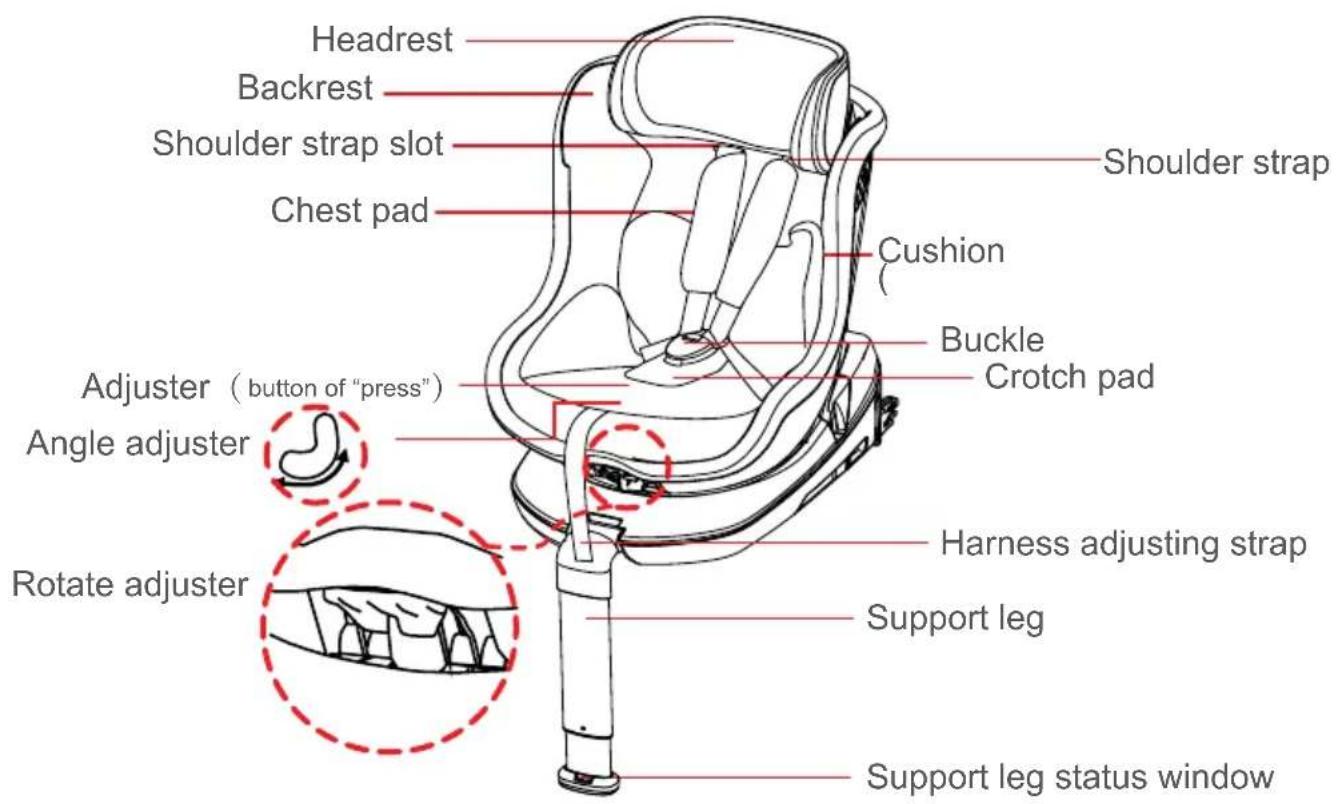

SAFETY WARNING

For your child's safety, please read these instructions carefully before using and keep them for future reference. Failure to follow the instructions contained in this manual could result in serious injury to your child.

This child seat can only be used with the harness for children less than 18kg in weight (group 0+ , 0-13kg; group1, 9-18kg).

Never overload the child seat more than one child or with other loads.

For ISOFIX installation: Make sure you read the car manufacturer's handbook.

This instruction manual can be retained in the special space of the child seat for its life period.

Do not use this child seat in the home. It has not been designed for home use and should only be used in your car.

Do not leave your child unattended in the seat at any time.

Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur.

The child seat should be changed when it has been subject to violent stresses in an accident.

For the reason of safety, the child seat must be fixed inside the vehicle using ISOFIX anchorages even if you do not put your child inside the child seat.

Always make sure that any straps holding the seat restraint to the vehicle shall be tight, any straps restraining the child should be adjusted to the child's body, and check that the straps shall not be twisted.

Ensuring that any straps is worn low down, so that the pelvis is firmly engaged, shall be stressed.

Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.

The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by a moveable seat or in a door of the vehicle.

It is dangerous to make any alteration or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the child restraint manufacturer.

This child seat is designed for children from birth up to 18kg .Never overload the child seat more than one child or with other loads.

The child restraint must not be used without the cover. The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

The child seat should be kept away from sunlight if the seat is not provided with a textile, otherwise it may be too hot for the child's skin. Never use a second-hand product, as you can never be certain what was happened to it.

MANUAL

USAGE OF TWIRL CAR SEAT

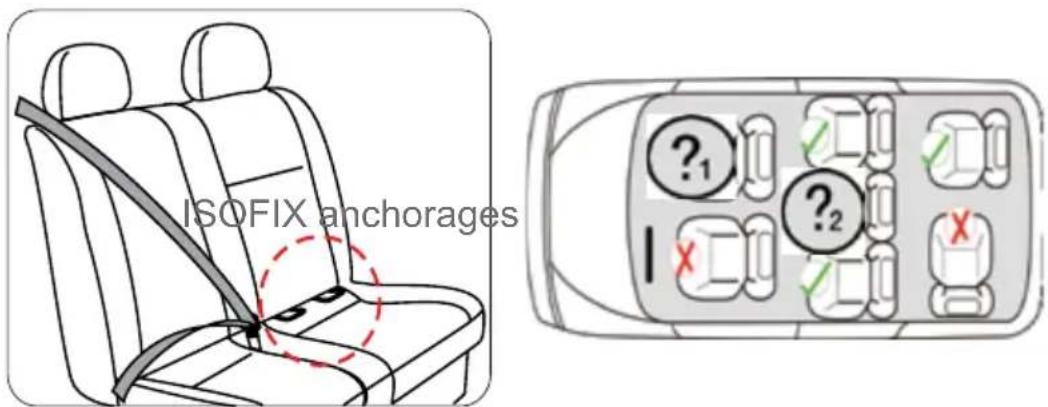

Installing position of the child seat in vehicle

When installed with ISOFIX anchorages and support leg, this type of child safety seat is suitable for fixing into the seat positions of the cars equipped with ISOFIX system that are fitted in accordance with ECE R14.

Not to use rearward-facing in seating positions where an active frontal airbag is installed. Only use on this seat if ISOFIX anchorages are fitted.

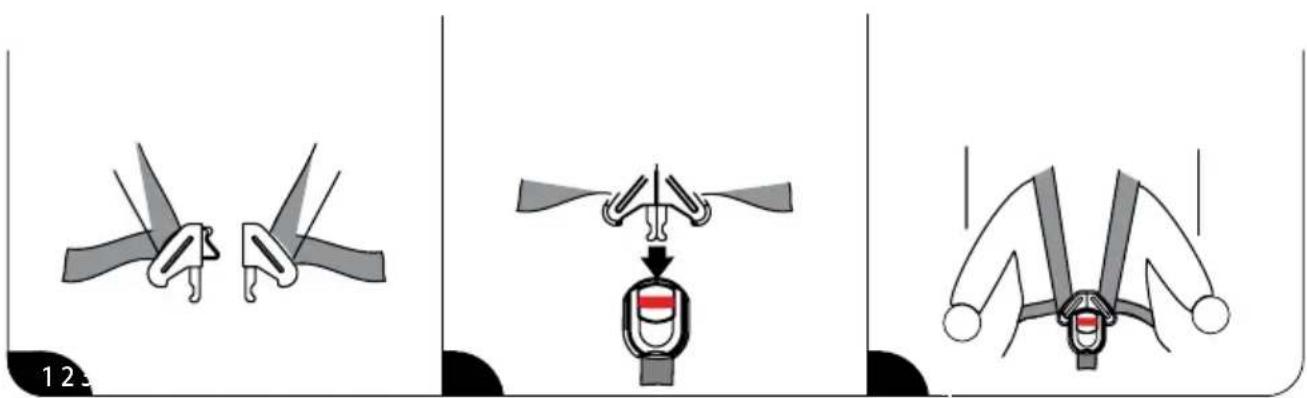

USAGE OF BUCKLE

Step1:Insert the left and the right pieces of buckle together.

Step2:Insert the two pieces into the slot of the buckle at the same time. hearing "click"means the buckle gets stuck, pull the pieces of the buckle and check whether the buckle is locked correctly. Step 3: If you want to release the safety belts, it need to press the red button, then the pieces pops up.

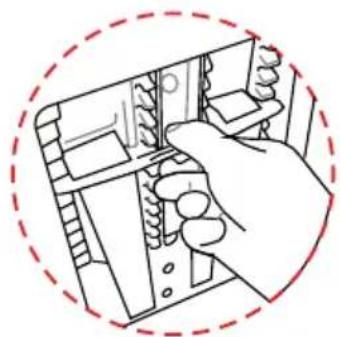

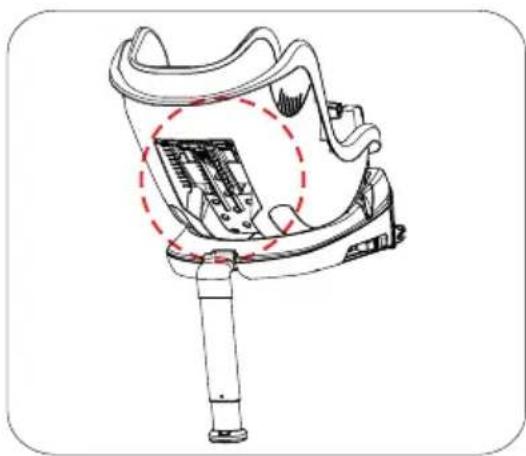

ADJUST THE LENGTH OF HARNES

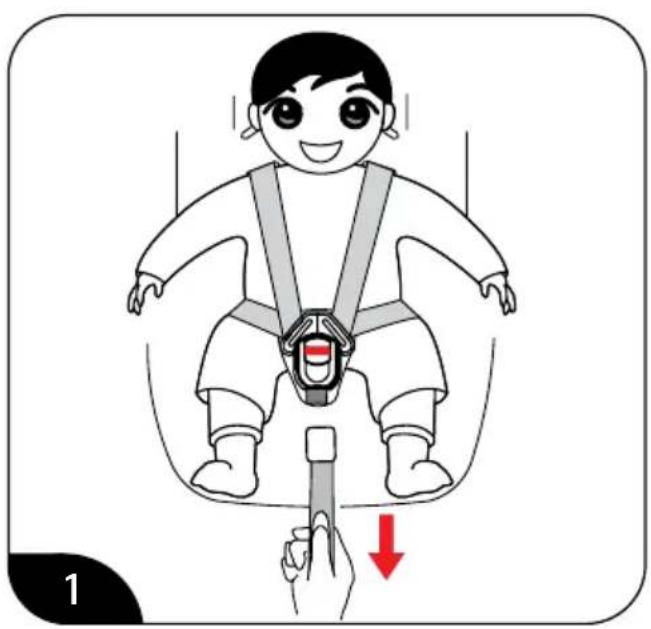

Picture1: Tighten the harness.

Pull the harness upwards to remove the slack from the lap sections of the harness then pull the front stretch belt until the harness is fully tightened. The harness should be adjusted as tightly as possible without causing discomfort to your child. A loose harness can be dangerous. Check the harness adjuster and tighten each time when the child is placed in the seat.

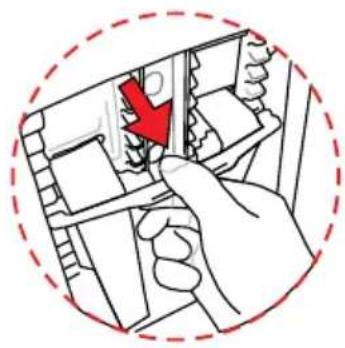

Picture 2: Loosen the harness.

The harness can be slackened by pressing the adjuster(under the seat cover)on the front of the seat. Press down the adjuster as you grip the two harness with your another hand.Pull the harness towards you to loosen the harness.

MANUAL

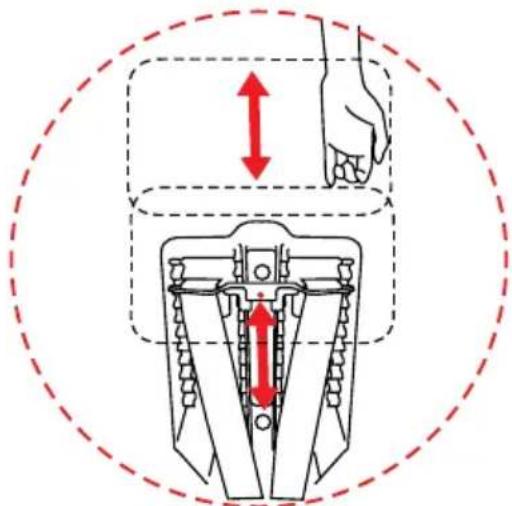

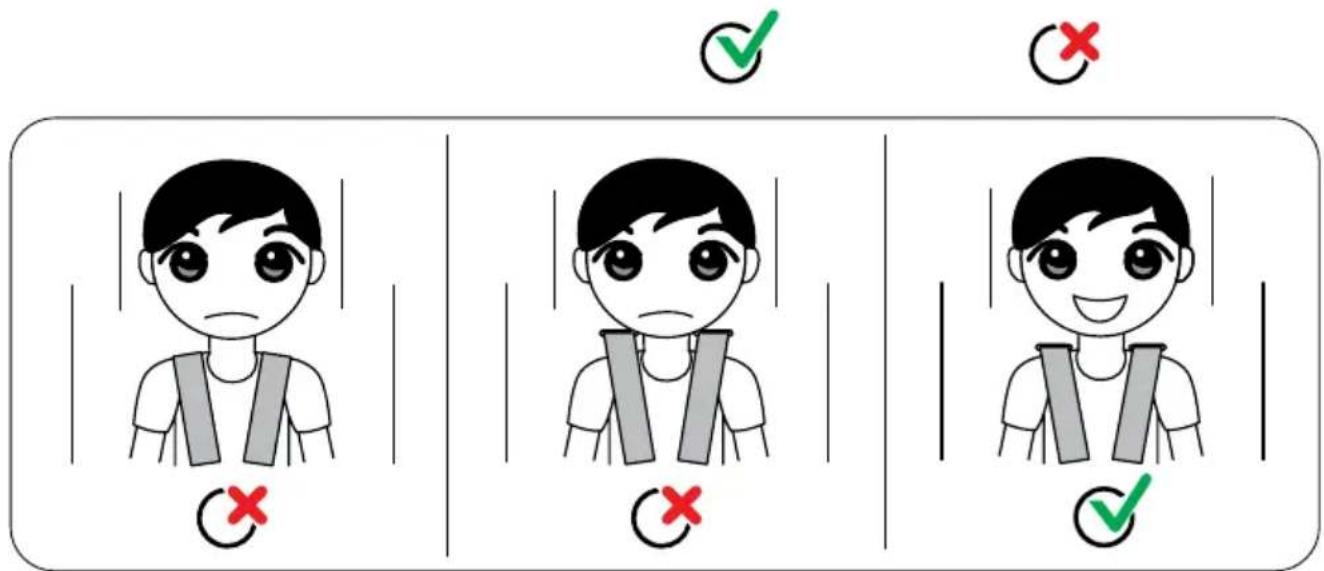

ADJUST THE HEIGHT OF HEADREST AND SHOULDER STRAP

The headrest can be adjusted to any position in order to adapt to the height of shoulder. As is shown in the picture, pull the headrest positioner out after loosening the harness (see 4.3) and then hold it up and down to adjust the headrest. Ensure that the headrest is located in the position that is suitable for the child's height. The height of shoulder strap is also adjusted with the headrest simultaneously.

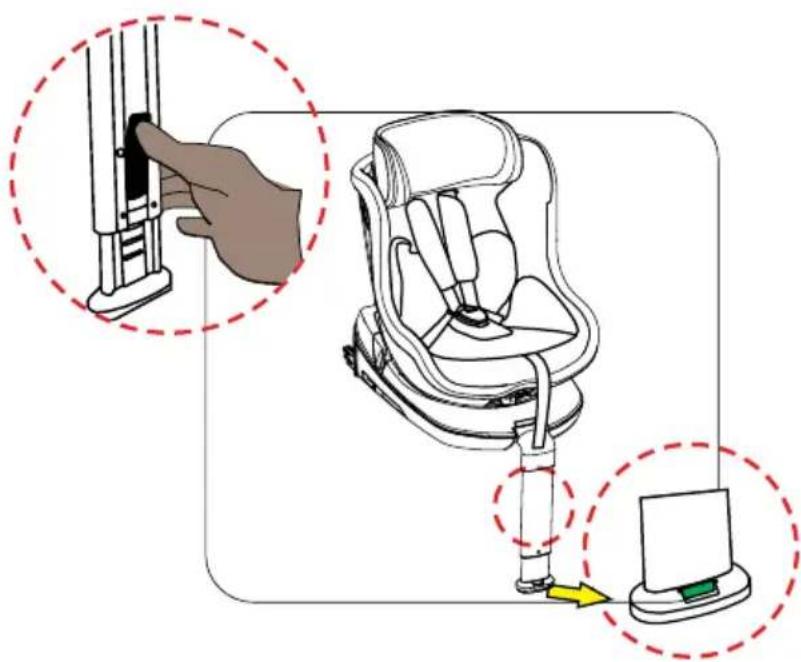

ADJUST THE LENGTH OF SUPPORT LEG

Press the button and adjust the length of support leg to suitable for different height of car seat. Make sure the bottom of the support leg touch the ground completely and the support leg status window shows green.

IMPORTANT:

Push the support leg counterclockwise before adjusting the length of support leg. when you hear a "click" means you have got the right angle of support leg. Then you can adjust the length of support leg.

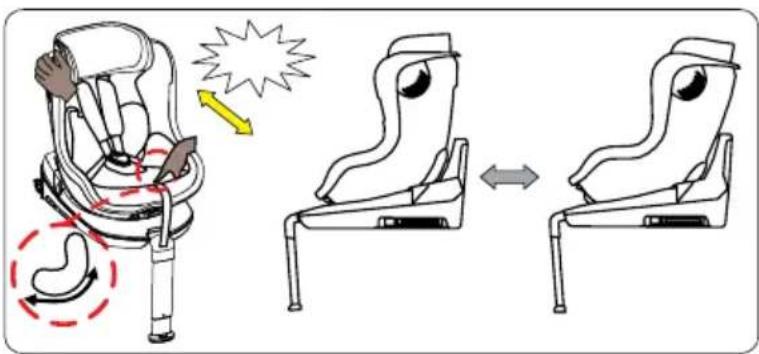

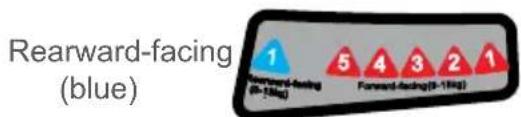

ADJUST THE CHILD SEAT TO DIFFERENT ROTATING POSITIONS

This child seat can be free to rotate 360 degrees. Clench the rotate adjuster until it press into the body of seat, then hold on the base in another hand. Now you can rotate the child seat. Be sure to hear a "click" when turning to the forward-facing or rearward-facing.

Rearward-facing (blue)

Forward-facing (red)

picture 2

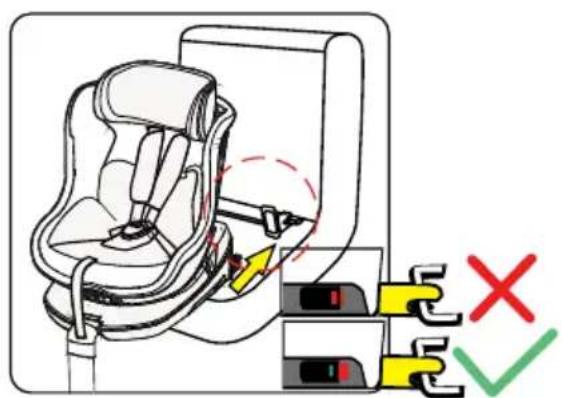

INSTALLATION OF THE CHILD RESTRAINT SYSTEM:

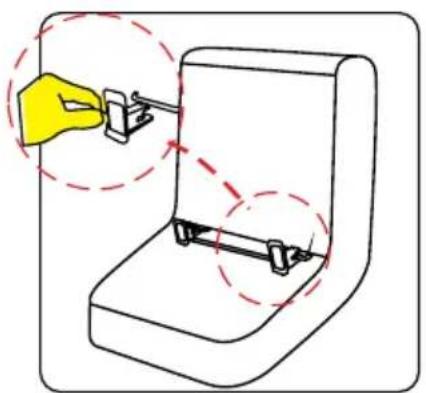

Step 1: Install ISOFIX guide sleeves to ISOFIX lower anchorages.

Step 2: Press down the red button to adjust ISOFIX attachment of both sides to the longest. Then put the ISOFIX attachments into guide sleeves, and insert them into ISOFIX anchorages. Make sure that you have heared a "click" and the ISOFIX latching indication shows GREEN .Next, you can push the child seat towards the car seat backrest until it is firmly pressed against the car seat backrest. If you want to release the ISOFIX attachments, just need to press the ISOFIX red button. Then adjust the support leg to touch the ground completely (see 4.5)

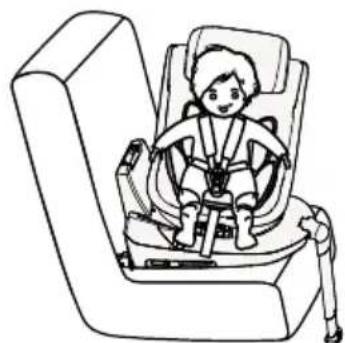

INSTALLATION OF THE CHILD

1. Loosen the harness (see 4.3), and place the child on the child seat.
   2. Adjust the height of headrest(see 4.4).
   3.Tighten the harness(see 4.3).

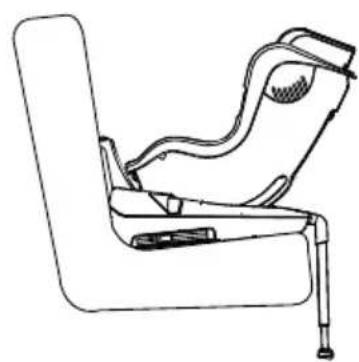

Installation status

IMPORTANT:

1. It will be stuck slightly when the seat adjusted to this position, and there is no locking effect in this position.
   2.Do not place the child seat in this position when the car is moving.
   3.You should turn it to the driving status after installation of child.

Group 1(9-18kg)

Group 0+(0-13kg)

Driving status

IMPORTANT:

• Not to use forward-facing before the child's weight exceeds 9kg.

MAINTENANCE AND CLEANING

In daily use, check periodically the child seat. The child seat should be replaced after an accident.

Please keep this child seat in dry and ventilated place to avoid damp moldy.

If the child seat becomes dusty, clean the seat belt and the plastic pieces

by swiping them with a damp sponge and let it dry under ambiance.

If food or drink drop accidentally on the buckle, disassemble the seat belt from the child seat and rinse it gently by warm water. Leave it dry under ambiance.

For cleaning the entire child seat fabric cover, please refer to the 6.2 washing instruction.

6.3 Remove and assemble the fabric cover. Tear the velcro of the shoulder straps and the backrest cover. Unlock the buckle, and set it out of the cover hole. Remove the fabric cover of the child seat. To install the fabric cover, please operate follow the above instructions in a reverse order.

WASHING INSTRUCTION

Never use any solvent, chemical detergent or lubricant on any part of your child seat.

Hand wash, water temperature below 30^

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

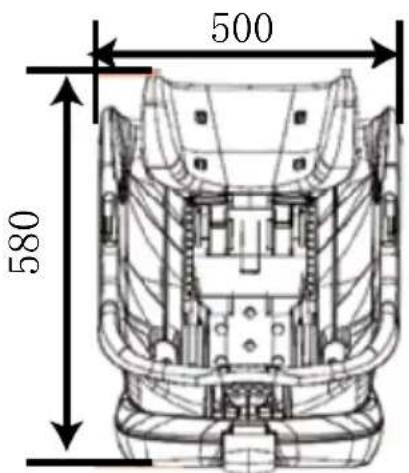

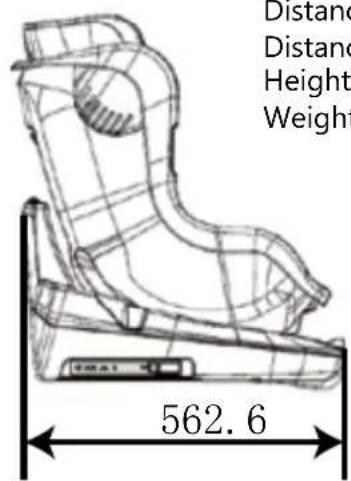

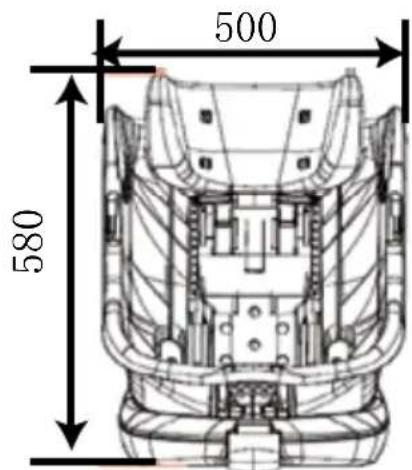

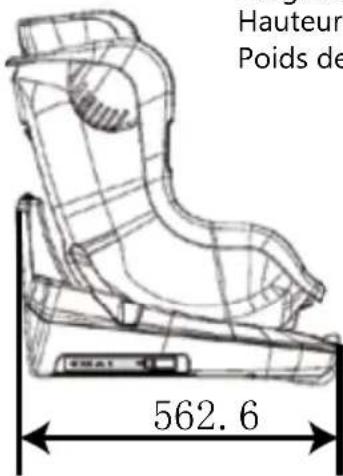

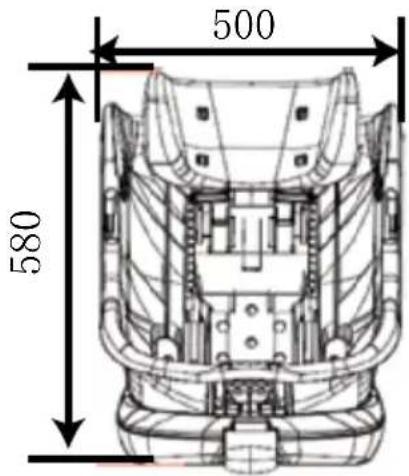

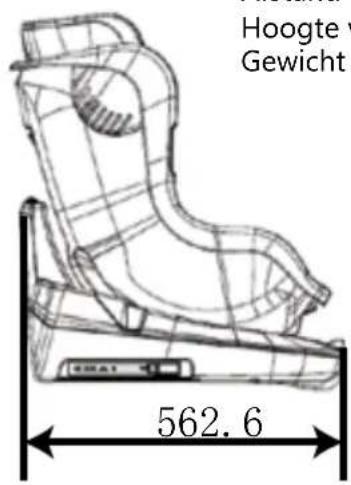

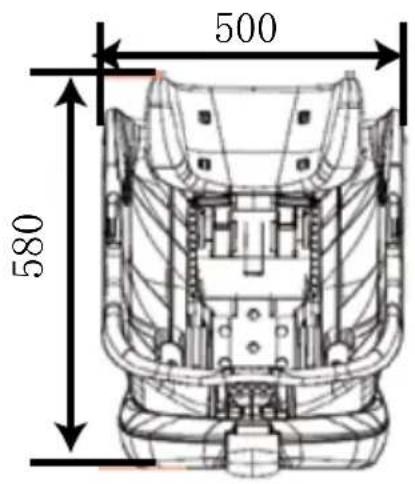

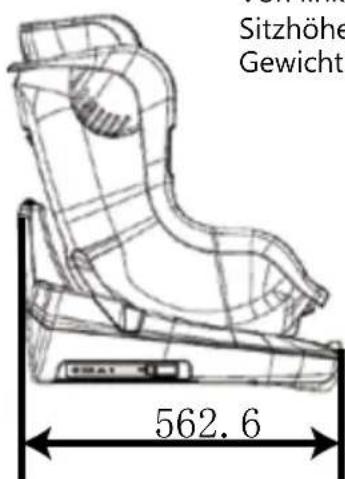

Distance from front to back of the seat: 571mm

Distance from left to right of the seat: 425mm Height of the seat: 619mm

Weight of the seat: 9.5kg

ECE R44 / 04

CARSEAT TWIRL 360^ BNCS021

MODE D'EMPLOI

Rearward-facing (blue) 1 5 4 3 2 1 Forward-facing (red)

INSTALLATION DE RETENUE POUR ENFANTS SYSTEM-:

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

D'avant en arriere du siege: 571 mm

CAR SEAT TWIRL 360^

Rearward-facing (blue)
Forward-facing (red)
picture 2

INSTALLATION RÜCKHALTESYSTEM FÜR KINDER:

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

Find us on Facebook & Instagram

Conform all security regulations

ECE NO.44.04

VEHICLE LIST - VOERTUIGLIJST - LISTE DU VÉHICULE - FAHRZEUGLISTE

This child restraint is classified for Semi-universal use and is suitable for fixing into the seat positions of the following cars:

Seat positions in other cars may also be suitable to accept this child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.
