Brand	Baninni
Model	Ventura
Category	Car seat
Product type	Car seat group 1+2+3
Weight group	9-36 kg (approx. 9 months to 11 years)
Safety standard	ECE R44/04, universal
Usage	Forward-facing only
Fixation	Vehicle's 3-point seat belt
Harness	Integrated for group I (9-18 kg)
Adjustable headrest	Yes, height adjustable
Removable cover	Yes, hand washable at 30°C
Cleaning	Hand wash, natural drying. Do not use bleach, chlorine, or tumble dryer
Approximate weight	5-6 kg (estimate)
Dimensions (estimate)	Height 60-80 cm, Width 44 cm, Depth 50 cm

Frequently Asked Questions - Ventura Baninni

From what age can my child use this seat?

The Baninni Ventura seat is suitable for children from 9 kg to 36 kg, approximately from 9 months to 11 years. Use the integrated harness for children from 9 to 18 kg (group I), then without harness with the vehicle seat belt for groups II and III (15-36 kg).

Can I install this seat on a front seat equipped with an airbag?

No, never use this car seat on a passenger seat equipped with an airbag (SRS). The safest location is in the rear of the vehicle.

How to install the seat for a child from 9 to 18 kg (group I)?

Open the belt clamp on the seat, place the seat forward-facing, route the vehicle's 3-point belt through the guides as shown in the manual, buckle and tighten firmly. Then, secure the child with the integrated harness: place the child, put arms through straps, buckle the buckle, and adjust the straps by pulling the central strap.

How to install the seat for a child from 15 to 36 kg (groups II and III)?

Remove the integrated harness. Place the child on the seat, pull the vehicle seat belt and pass it under the headrest for the diagonal section and through the armrests for the lap section. Buckle the belt and ensure the diagonal passes under the headrest without being caught at the top. The belt clamp must not be used.

How to adjust the height of the shoulder straps and headrest?

Pull the red locking lever forward to unlock the headrest, then adjust it to the desired height (2.7). The shoulder straps must be adjusted to the child's size: the shoulder should not exceed the belt suspension. To lengthen the shoulder straps, press the adjustment lever down and pull the shoulder belt.

How to remove and wash the cover?

Unbutton the cover, remove the elastics at the bottom of the backrest and remove the front and back parts. Hand wash the cover with mild soap and warm water (30°C). Do not use bleach, chlorine, iron, or tumble dry. Natural drying. Never use the seat without the cover.

What to do if the seat has been involved in an accident?

Do not use the car seat after a collision or accident. It must be replaced immediately, as invisible damage may compromise safety.

Can I use the seat without the integrated harness?

Yes, for children from 15 to 36 kg (groups II and III), the harness must be removed and the child is restrained by the vehicle's 3-point seat belt. Follow the instructions in the manual for removing the harness and the reduction cushion.

How to secure the vehicle belt for groups II and III?

Pull the belt forward, pass the diagonal section under the headrest and the lap section through the armrests on both sides. Buckle the belt. The diagonal must pass under the headrest without being caught at the top. Do not use the belt clamp in this configuration.

Where to find the complete user manual?

The manual is available on the back of the seat, under the cover. You can also download it for free in PDF format on notice-facile.com for available languages.

USER MANUAL Ventura Baninni

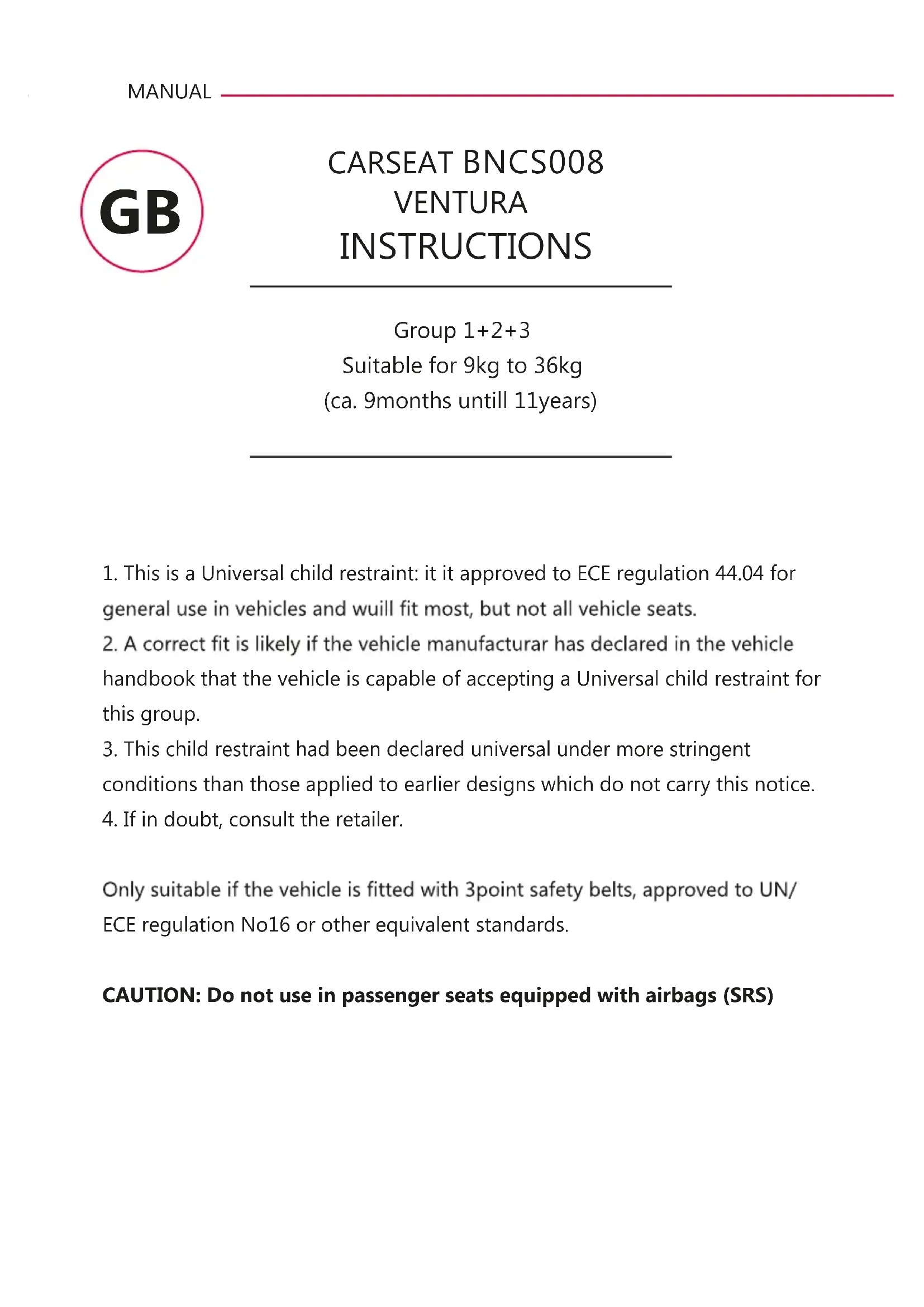

CARSEAT BNCS008 VENTURA INSTRUCTIONS

Group 1 + 2 + 3 Suitable for 9kg to 36kg (ca. 9months until 11years)

1. This is a Universal child restraint: it it approved to ECE regulation 44.04 for general use in vehicles and wuill fit most, but not all vehicle seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a Universal child restraint for this group.
3. This child restraint had been declared universal under more stringent conditions than those applied to earlier designs which do not carry this notice.
4. If in doubt, consult the retailer.

Only suitable if the vehicle is fitted with 3point safety belts, approved to UN/ECE regulation No16 or other equivalent standards.

CAUTION: Do not use in passenger seats equipped with airbags (SRS)

Dear parents,

We only want the best for your child!

You have chosen a high-quality product from Baninni.

Raising a child is one of the most fulfilling tasks in life and a huge responsibility. It's good to know that you are supported by an expert partner that ensures the safety of your child in the car.

Baninni wishes you a safe journey!

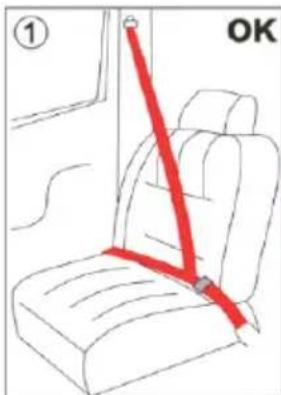

WARNING:

Only suitable for use in the said vehicles with 3-point safety belts, approved to ECE Regulation No.16 or other equivalent standards.

1.1 Fitting the seat with a 3-point seat belt.(Group I) Open the seat clip

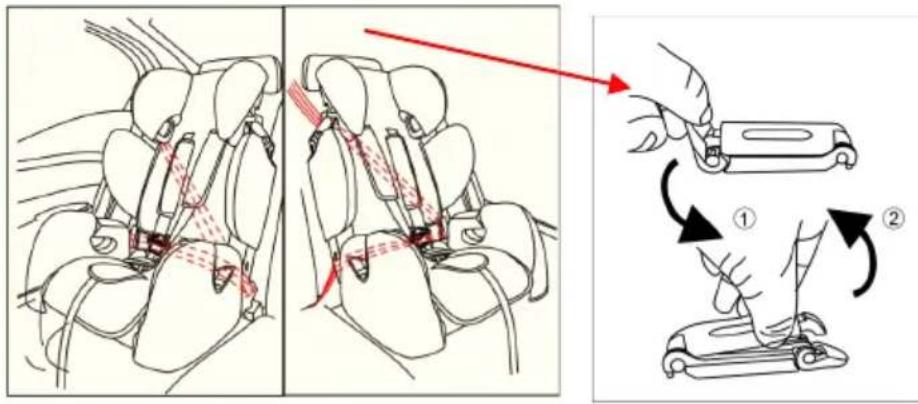

1.2 Fit the safety seat to the vehicle seat with 3 point safety belt as show on the diagram.

Warning:

1. Please use the lock-off device.
   2.The should belt pass under the headrest, but not through the hook.

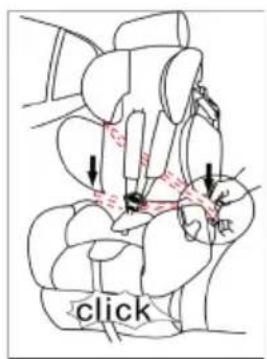

1.3 Fasten the seat belt buckle with an audible click.
1.4 Tighten the lap and diagonal seat belt.

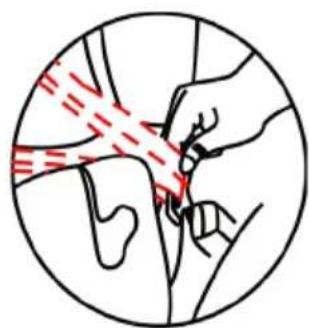

1.5 Place the diagonal seat belt in the lock-off device and fasten it.

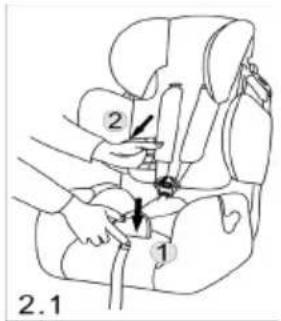

2.1 -2.6 Using the Harness To increase the length of the harness press and hold down the central adjusting button (1) and pull the shoulder straps (2) at the bottom

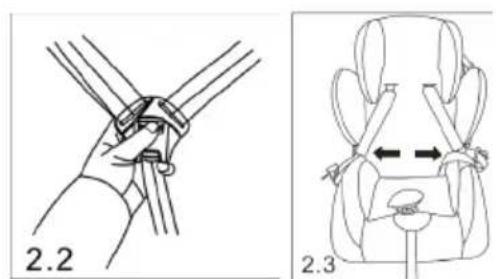

2.2 Unfasten the buckle by pressing the red button in the direction of the arrow

2.3 Lay the shoulder straps to the side.

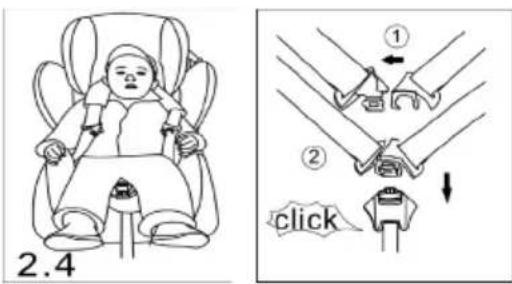

2.4 Place your child in the seat and put the child's arms through the shoulder straps.

2.5 Fasten the buckle by placing the two tongues over each other (1) and pushing them in with an audible click

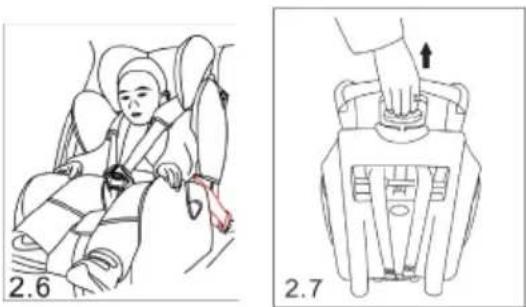

2.6 Tighten the straps by pulling the central belt in the direction of the arrow. The straps should be pulled tight.

2.7-2.8 Adjusting the height of the harness 2.7 Pull the red locking button and adjust the head support in the next position.

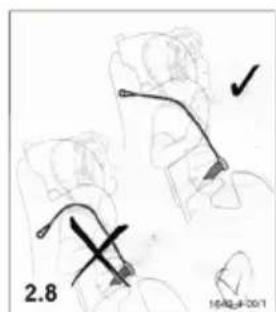

2.8 Use one hand to press down the central adjusting button, and the other hand pull the belt to adjust it to be suitable length.(2.6&2.8A). The shoulder straps should be positioned as shown in this diagram 2.8A

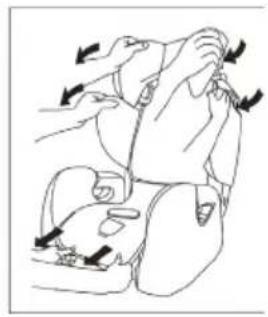

3.1 Removing the cover The support cushion should be removed depending on the size of the child, and not later than when the harness is removed. If the harness is still attached unhook the shoulder straps as shown in diagram 3.3. Unbutton the cover and remove the two parts of the cover by lifting them forwards

3.2-3.6 Removing the harness:

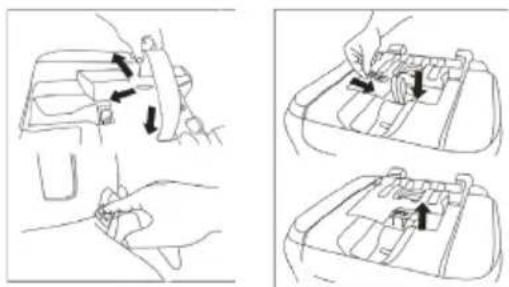

3.2 Remove the end piece (1):
Push the central adjuster (2) down, keep it down and remove the belt from the rear.
3.3 Pull the shoulder straps out through the front.
3.4 Remove the guiding tube by pushing it upwards. Then remove the shoulder belts.
3.5 Partly remove the seat cover and unloop the lap belt from the seat body.
3.2-3.6 Removing the harness:
3.2 Remove the end piece (1):
3.3 Pull the shoulder straps out through the front.
3.4 Remove the guiding tube by pushing it upwards. Then remove the shoulder belts.
3.5 Partly remove the seat cover and unloop the lap belt from the seat body.
3.6 Unloop the metal plate from the button strap and pull the buckle up and out
4.1-4.3 Restrain the seat and child with the 3-point seat belt.(Group II III - with backrest)

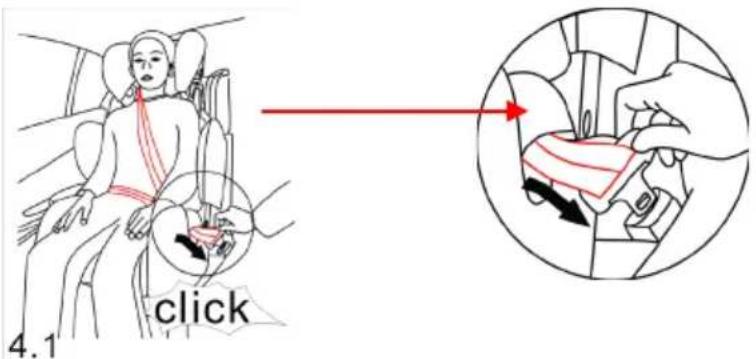

4.1 Pull out the car belt, pass the shoulder belt under the headrest at one side. And the lap belt pass through the hole of both armrests. Then pushing the buckle in with an audible click.

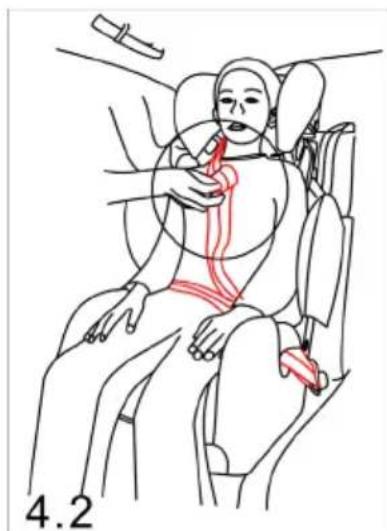

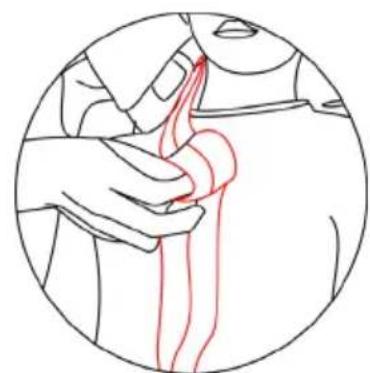

4.2 Place the diagonal belt under the headrest.

Warning:

1.Not use the lock-off the device.
2.The should belt pass under the

headrest,but not through the hook.

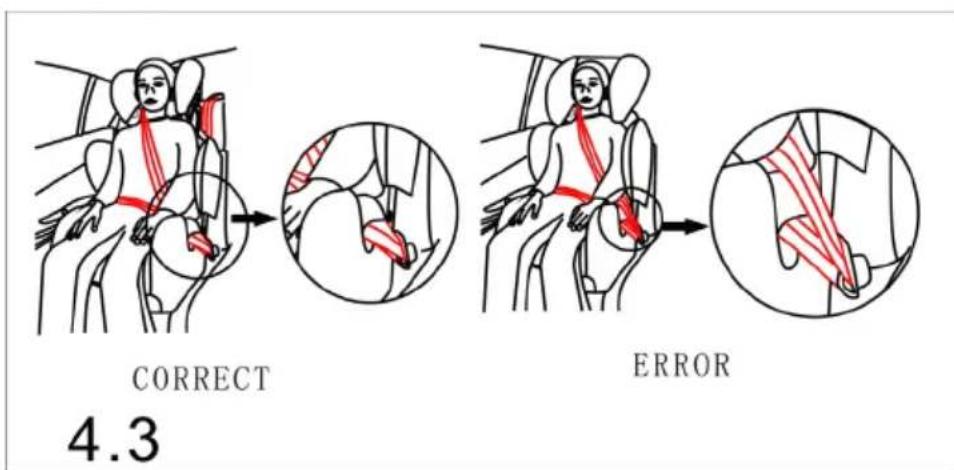

4.3 Adjust the position of headrest according to the height of kids. As show in diagram 2.7. It is important that the height of child's shoulder do not higher than the position of belt. As show in diagram 2.8. The path of car belt.both the shoulder belt and lap belt finally must be fixed under the armrest or the other way will be not safe. As shown in the diagram 4.3.

CARE AND MAINTENANCE

• backrest cover removal

First, release the elastic strap at the bottom of the backrest cover. Slide the cover off. The cover can now be cleaned.

• headrest, booster seat cover removal
  Slide the cover off. The covers can now be cleaned.
• The cover should be hand wash. Use only a mild hand soap and warm water. Do not use chemical cleaners and never attempt to bleach or dye the webbing. Allow to dry naturally.

IMPORTANT

The child restraint must not be used without the cover

The seat cover should not be replaced without one recommended by the manufacturer. Because the cover constitutes an integral part of the restraint performance. Don't us any car seat again after impact or accident.

Please remove the carseat out of vehicle when it is not used and keep out of reach of children.

Please always fasten the car seat when it is inside the vehicle.

Please always read the manual before it' use.

WARNING

THESE INSTRUCTIONS ARE INIMPORTANT. PLEASE READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.

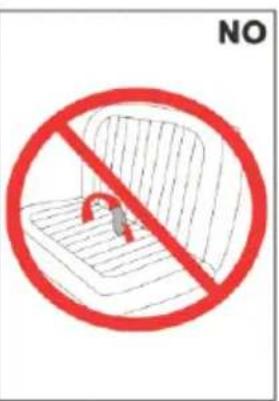

DO NOT USE THE CHILD SEAT IN PASSENGER SEATS EQUIPPED WITH AIRBAGS.

• Please be careful of that the plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become rapped by a movable seat or in a door of a vehicle. Do not use any load bearing contact points other than those described in the instructions and marked in the chid restraint.

• This Child seat can be used with the harness for children of 9 to 18kg in weight: ca 9 months to 4 years.

• This child seat be used without the harness for children of 15 to 36kg in weight: ca. 3 years to 11 years.

• This child seat can be only installed forward facing using a three point lap and diagonal seat belt.

• Do not use this child seat in home. It has not been designed for home use and should only be used in your car.

• This safest seating position for this child car seat is on the rear seat of a vehicle..

• Never use the child seat without fastening the child's harness correctly and never attempt to use it without fastening it into the car.

• Do not add or modify the seat in any way.

• Never leave your child unattended in the seat at any time.

• Car interiors can become very hot when in direct sunlight, it is therefore recommend that the child seat should be covered when not in use. This prevents components, particularly those attached to the child seat, becoming hot.

• It is important that the child can be released quickly. This means that the buckle is not fully tamper proof and so your child must be taught never to play with the buckle.

• Luggage and other heavy or sharp objects should be secured in the car; Loose objects are liable to cause injury in the event of an accident.

• Regularly check the harness for wear, paying attention to the attachment points, stitching and adjusting devices.

• Store this child seat in a safe place when it's not being used. avoid placing heavy objects on top of it.

Washing instructions:

Do not tumble dry - Do not iron - Do not chlorine bleaching

Washing temperature 30^

FR

SIÈGE VOITURE BNCS008

VENTURA INSTRUCTIONS

Groupe 1 + 2 + 3
