Product type	Child car seat
Brand	Baninni
Model	Twirl 360 BNCS021
Weight group	Group 0+ (0-13 kg) and Group 1 (9-18 kg)
Seat weight	9.5 kg
Dimensions (L x W x H)	571 x 425 x 562 mm
Seat height	619 mm
Rotation	360° with audible locking
Mounting system	ISOFIX with green locking indicators
Support leg	Height-adjustable anti-rotation support leg with green status window
Side protection	Advanced side impact protection system compliant with i-Size
Harness	5-point height-adjustable harness with chest pads
Headrest	Height-adjustable
Safety standards	ECE R44/04 and i-Size
Usage	Only in a vehicle, never at home
Maintenance	Clean with damp sponge; cover machine washable (follow washing instructions)
Washing instructions	Do not use solvents, chemical detergents or lubricants
Important note	Do not use on a seat with active airbag; replace after an accident

Frequently Asked Questions - Twirl 360 BNCS021 Baninni

What is the weight group of this seat?

The Twirl 360 BNCS021 seat is designed for groups 0+ (0-13 kg) and 1 (9-18 kg).

How to install the seat with the ISOFIX system?

Install the guide sleeves on the vehicle's ISOFIX anchorages. Press the red button to extend the connectors on both sides, insert them into the sleeves until they click. The locking indicator must turn green. Then, push the seat against the car seat back and adjust the support leg to the floor.

How to rotate the seat 360°?

Pull the rotation adjustment button upwards while holding the base. Turn the seat until you hear a click indicating locking in the forward or rearward position. Do not rotate while driving.

How to adjust the support leg?

Press the button to unlock the support leg, then adjust the length so that the foot firmly touches the floor. The status window must turn green. Make sure to insert the left support leg before adjusting the length.

How to adjust the harness and headrest?

To tighten the harness, pull the front strap until it is snug but not uncomfortable. To loosen, press the button under the seat and pull the straps. The headrest is adjusted by pulling it up or pushing it down after loosening the harness.

Can I use this seat in forward-facing position?

Yes, but only for children over 9 kg (group 1). For babies under 9 kg, use exclusively in rear-facing position.

How to clean the seat cover?

The fabric cover is washable. Follow the washing instructions: use warm water, no solvents or fabric softener. Remove the cover by tearing the velcro and unlocking the buckle, then machine wash at 30°C.

Is the seat compatible with all vehicles?

The seat is approved for semi-universal use. It is suitable for approved ISOFIX positions according to the vehicle's manual. Consult the compatibility list in the appendix or contact the manufacturer if in doubt.

What to do in case of an accident?

After an accident, the seat must be replaced even if it appears intact, as it may have suffered invisible stress. Never reuse a seat that has been in an accident.

Can I use the seat with an active airbag?

No, never use this seat on a seat equipped with an active front airbag, especially in rear-facing position. Airbag deployment can cause serious or fatal injuries.

USER MANUAL Twirl 360 BNCS021 Baninni

Line drawing of a car seat assembly (no text or symbols)

"FOR A SAFE RIDE"

ECE R44 / 04

Rotating 360 Group 1(9-18kg)

Group 0+(0-13kg)

HANDLEIDING

VEILIGHEIDSWAARSCHUWING:

Illustration of a child wearing a full-body safety harness, with hands adjusting the seat (no text or symbols)

Technical line drawing of a mechanical device with a highlighted internal component (no text or symbols)

Illustration of a hand inserting a device into a computer case (no text or symbols)

Illustration of a hand inserting a component into a device, with a red arrow indicating the direction (no text or symbols present)

Diagram illustrating a mechanical device with red directional arrows indicating movement or force, enclosed in a dashed circular boundary.

Illustration showing three identical faces with checkmarks and red X marks, likely for a rating or assessment question.

Diagram illustrating a hand operating a seatbelt switch with a computer monitor, showing step-by-step installation and connection.

DRIE VERSCHILLENDE ROTATIEPOSITIES VAN DE AUTOSTOEL

Diagram illustrating the use of a seatbelt device, showing how to change from seatbelt to seatbelt via rotation and compression.

Rearward-facing (blue)

Forward-facing (red)
picture 2

INSTALLATIE VAN HET KINDERBEVEILIGINGSSYSTEEM:

Diagram of a hand holding a small object above a chair, with no text or symbols present.

Diagram showing car seatbelting with a yellow arrow indicating the angle and a red 'X' symbol pointing to a switch.

DE PLAATSING VAN HET KIND

Line drawing of a child seated in a car seat, no text or symbols present

Line drawing of a car seat with adjustable armrest and seatbelt (no text or symbols)

Group 1(9-18kg)

Line drawing of a car seat with adjustable armrest and seatbelt (no text or symbols)

Group 0+(0-13kg)

Never use any solvent, chemical detergent or lubricant on any part of your child seat.

Hand wash, water temperature below 30°C

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

500 580

Hoogte Gewicht 562.6

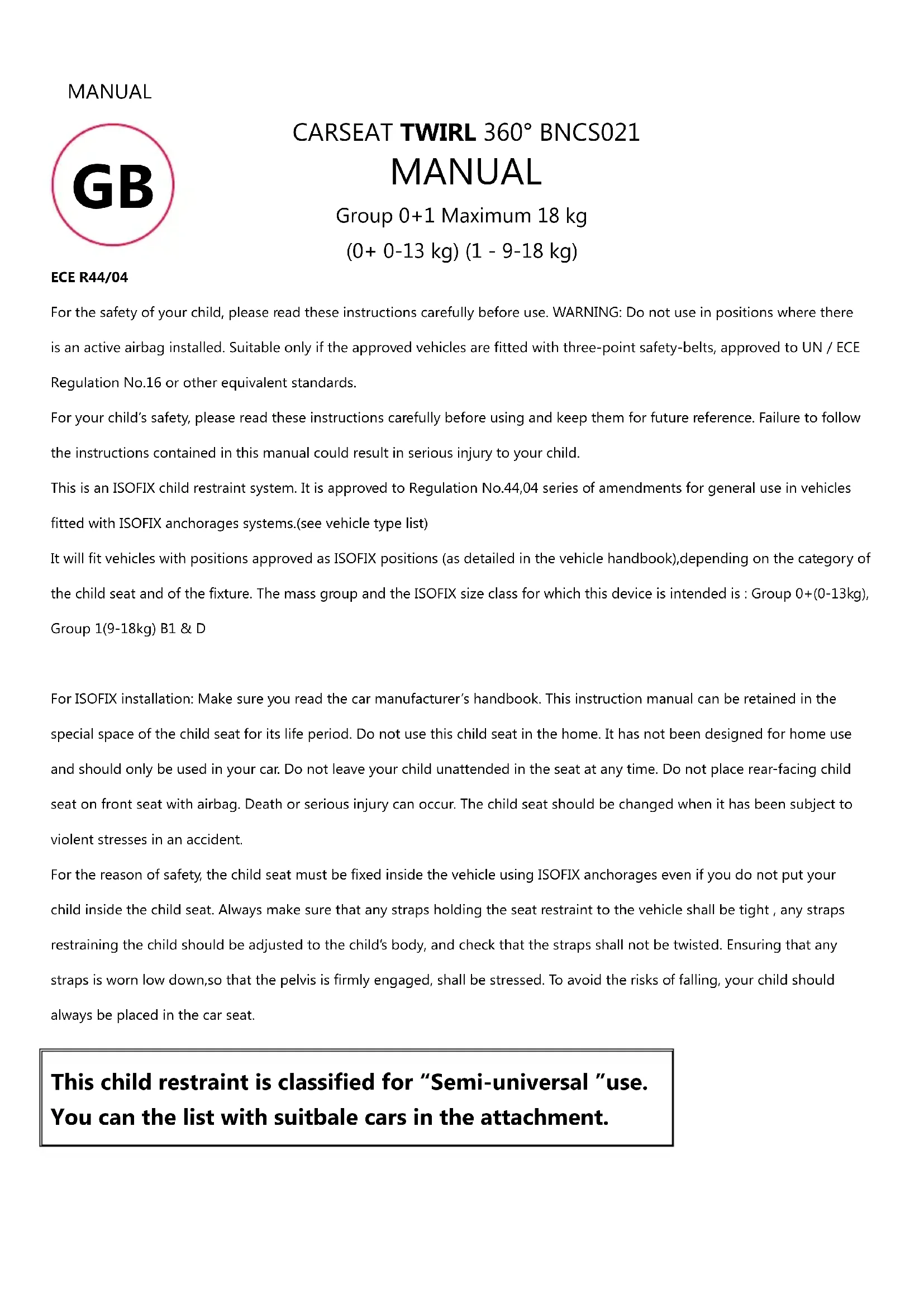

CARSEAT TWIRL 360° BNCS021 MANUAL

Group 0+1 Maximum 18 kg

(0+ 0-13 kg) (1 - 9-18 kg)

ECE R44/04

For the safety of your child, please read these instructions carefully before use. WARNING: Do not use in positions where there is an active airbag installed. Suitable only if the approved vehicles are fitted with three-point safety-belts, approved to UN / ECE Regulation No.16 or other equivalent standards.

For your child's safety, please read these instructions carefully before using and keep them for future reference. Failure to follow the instructions contained in this manual could result in serious injury to your child.

This is an ISOFIX child restraint system. It is approved to Regulation No.44,04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.(see vehicle type list)

It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook),depending on the category of the child seat and of the fixture. The mass group and the ISOFIX size class for which this device is intended is : Group 0+(0-13kg), Group 1(9-18kg) B1 & D

For ISOFIX installation: Make sure you read the car manufacturer's handbook. This instruction manual can be retained in the special space of the child seat for its life period. Do not use this child seat in the home. It has not been designed for home use and should only be used in your car. Do not leave your child unattended in the seat at any time. Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur. The child seat should be changed when it has been subject to violent stresses in an accident.

For the reason of safety, the child seat must be fixed inside the vehicle using ISOFIX anchorages even if you do not put your child inside the child seat. Always make sure that any straps holding the seat restraint to the vehicle shall be tight , any straps restraining the child should be adjusted to the child's body, and check that the straps shall not be twisted. Ensuring that any straps is worn low down,so that the pelvis is firmly engaged, shall be stressed. To avoid the risks of falling, your child should always be placed in the car seat.

This child restraint is classified for "Semi-universal" use. You can the list with suitbale cars in the attachment.

CARSEAT TWIRL 360°

The biggest feature of this product is a 360-degree rotation of the child restraint system, which greatly reduces the difficulty of installing child.

The ultra-light weight of the product makes it more convenient for parents to install and carry.

This product equips with advanced ISOFIX installed on the car seat using ISOFIX anchorage which is more convenience, more steady and safer. This product also

equips with an anti-rotation device. The device consists of support leg which intended to limit the rotation of the restraint during a frontal impact.

With side impact protection system to protect child's head, enhance damping flanking advanced anti side impact, and it meets the latest I-SIZE side impact requirements. The system have soft and antiskid pad in the hasp and chest which makes child feel more comfort. The fabric of cover can be washed, flame retardant, environmental protection and fashion.

GROUP 0 + 1 0~18hg

Illustration of a baby car seat with a curved arrow indicating rotation (no text or symbols)

Rotating 360

Group 1(9-18kg)

Group 0+(0-13kg)

SAFETY WARNING

For your child's safety, please read these instructions carefully before using and keep them for future reference. Failure to follow the instructions contained in this manual could result in serious injury to your child.

This child seat can only be used with the harness for children less than 18kg in weight (group 0+,0-13kg; group1, 9-18kg).

Never overload the child seat more than one child or with other loads.

For ISOFIX installation: Make sure you read the car manufacturer's handbook.

This instruction manual can be retained in the special space of the child seat for its life period.

Do not use this child seat in the home. It has not been designed for home use and should only be used in your car.

Do not leave your child unattended in the seat at any time.

Do not place rear-facing child seat on front seat with airbag. Death or serious injury can occur.

The child seat should be changed when it has been subject to violent stresses in an accident.

For the reason of safety, the child seat must be fixed inside the vehicle using ISOFIX anchorages even if you do not put your child inside the child seat.

Always make sure that any straps holding the seat restraint to the vehicle shall be tight, any straps restraining the child should be adjusted to the child's body, and check that the straps shall not be twisted.

Ensuring that any straps is worn low down, so that the pelvis is firmly engaged, shall be stressed.

Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.

The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by a moveable seat or in a door of the vehicle.

It is dangerous to make any alteration or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the child restraint manufacturer.

This child seat is designed for children from birth up to 18kg .Never overload the child seat more than one child or with other loads.

The child restraint must not be used without the cover. The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

The child seat should be kept away from sunlight if the seat is not provided with a textile, otherwise it may be too hot for the child's skin. Never use a second-hand product, as you can never be certain what was happened to it.

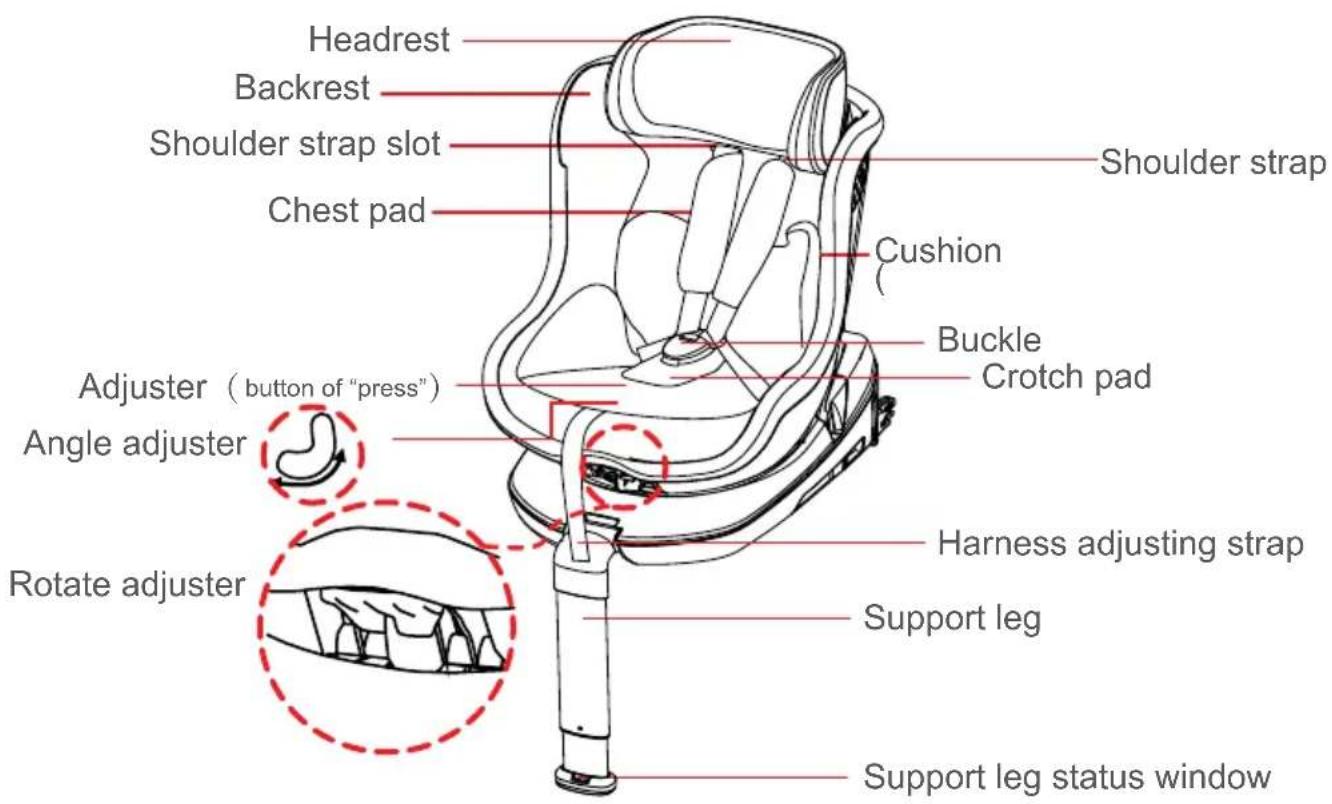

Headrest Backrest Shoulder strap slot Chest pad Shoulder strap Cushion Buckle Crotch pad Adjuster (button of "press") Angle adjuster Rotate adjuster Harness adjusting strap Support leg Support leg status window

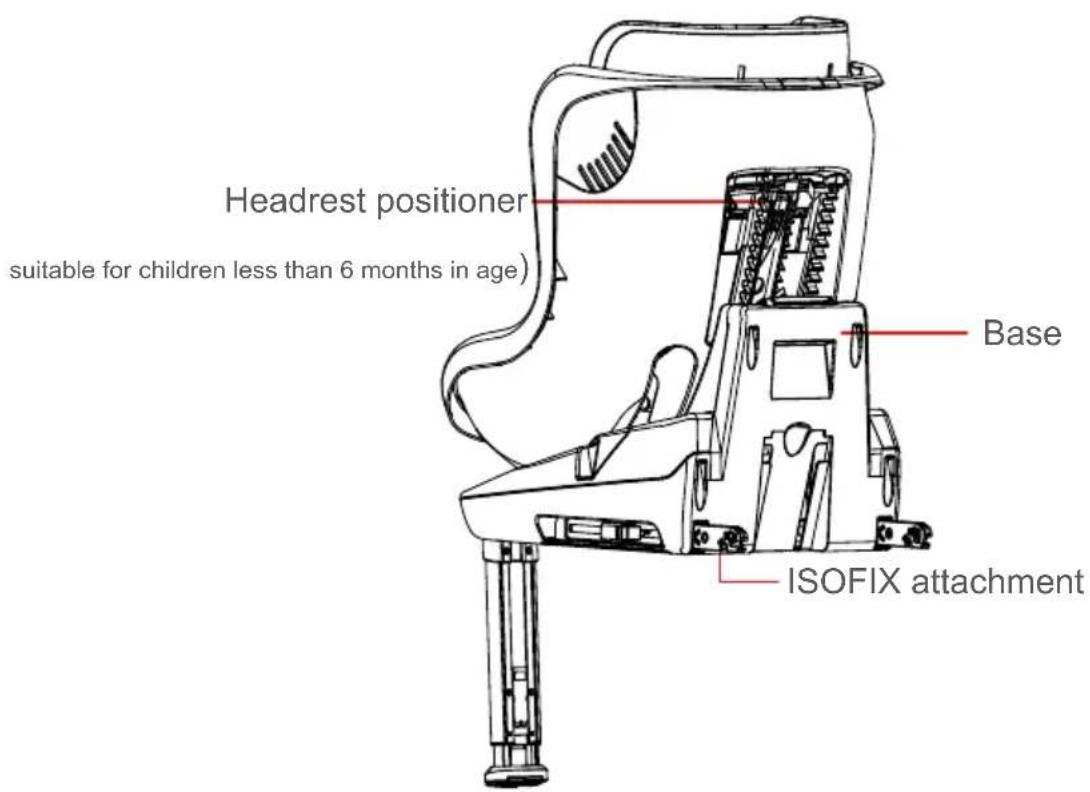

Headrest positioner suitable for children less than 6 months in age) Base ISOFIX attachment

MANUAL

USAGE OF TWIRL CAR SEAT

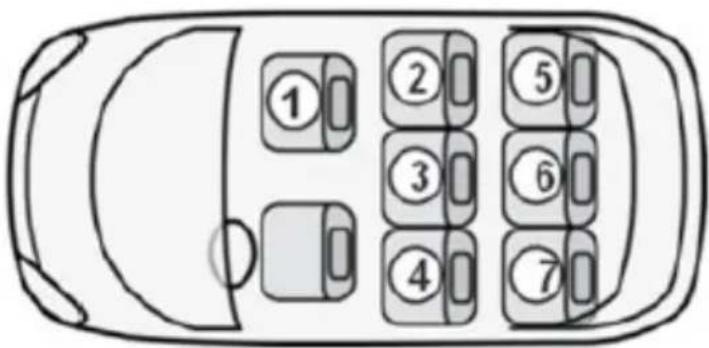

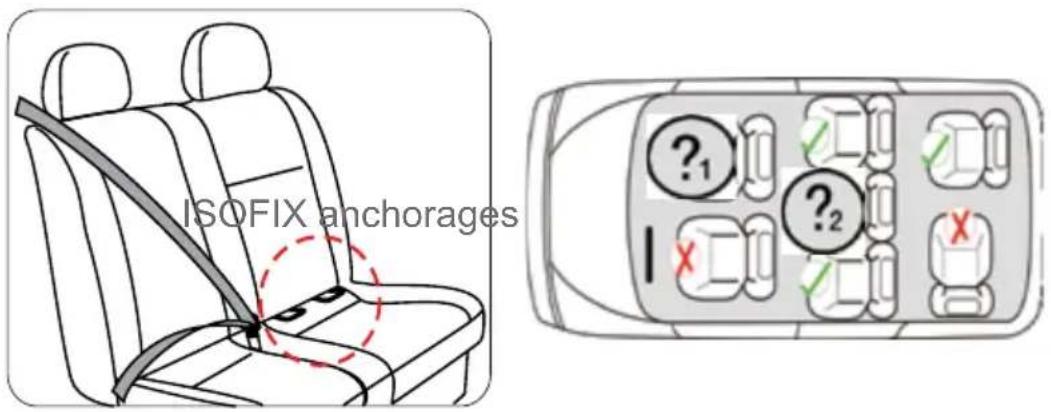

Installing position of the child seat in vehicle

When installed with ISOFIX anchorages and support leg, this type of child safety seat is suitable for fixing into the seat positions of the cars equipped with ISOFIX system that are fitted in accordance with ECE R14.

Not to use rearward-facing in seating positions where an active frontal airbag is installed. Only use on this seat if ISOFIX anchorages are fitted.

ISOFIX anchorages

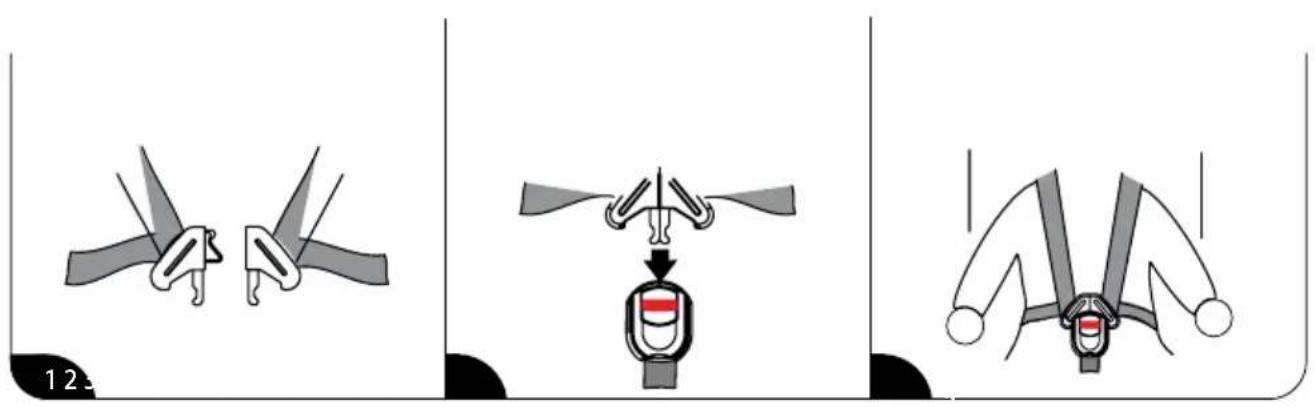

USAGE OF BUCKLE

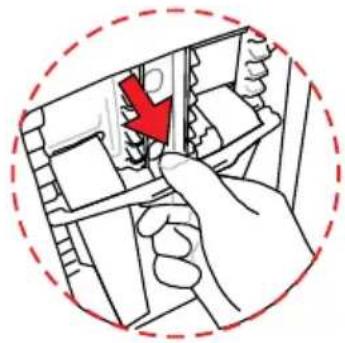

Step1: Insert the left and the right pieces of buckle together.

Step2:Insert the two pieces into the slot of the buckle at the same time. hearing "click" means the buckle gets stuck, pull the pieces of the buckle and check whether the buckle is locked correctly. Step 3: If you want to release the safety belts, it need to press the red button, then the pieces pops up.

1 2 3

ADJUST THE LENGTH OF HARNESS

Picture1: Tighten the harness.

Pull the harness upwards to remove the slack from the lap sections of the harness then pull the front stretch belt until the harness is fully tightened. The harness should be adjusted as tightly as possible without causing discomfort to your child. A loose harness can be dangerous. Check the harness adjuster and tighten each time when the child is placed in the seat.

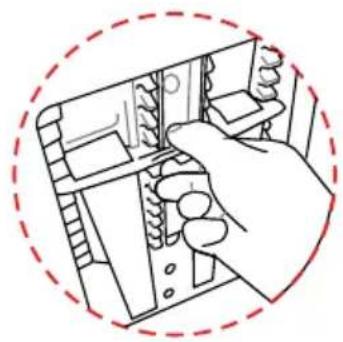

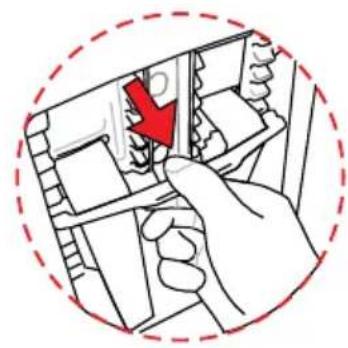

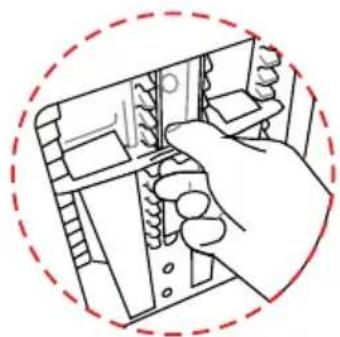

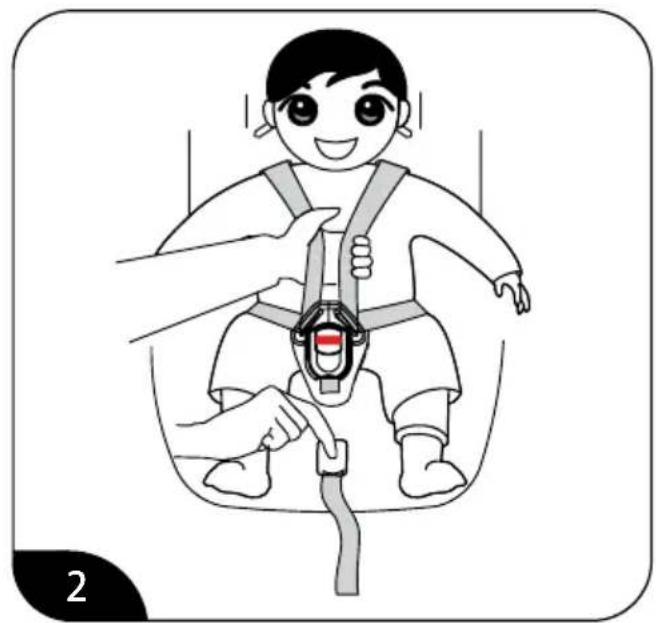

Picture 2: Loosen the harness.

The harness can be slackened by pressing the adjuster(under the seat cover)on the front of the seat. Press down the adjuster as you grip the two harness with your another hand.Pull the harness towards you to loosen the harness.

1

Illustration of a child wearing a full-body safety harness, with hands adjusting the seatbelt (no text or symbols)

MANUAL

Technical line drawing of a mechanical device with internal components and a red dashed circle highlighting a specific area (no text or symbols present)

Illustration of a hand inserting a component into a computer case (no text or symbols)

Illustration of a hand inserting a component into a device, with a red arrow indicating the process (no text or symbols present)

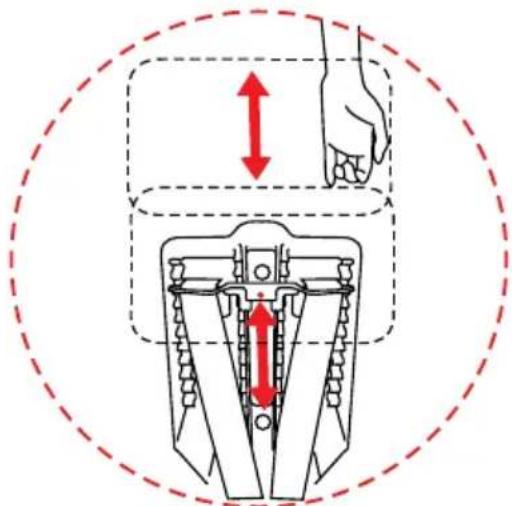

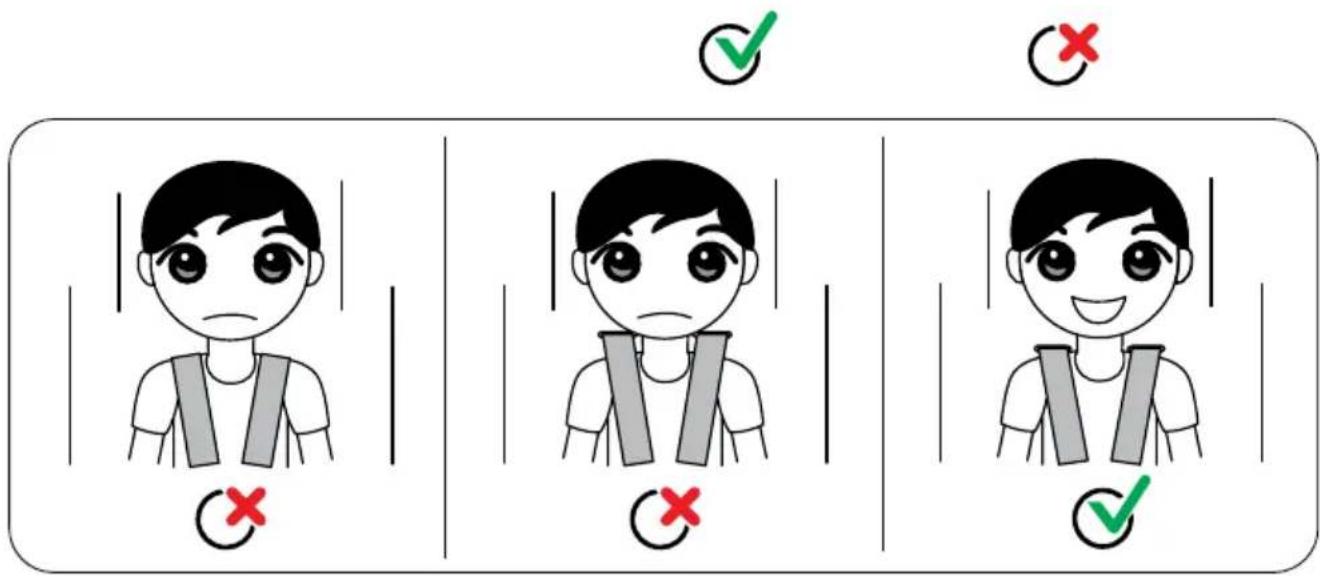

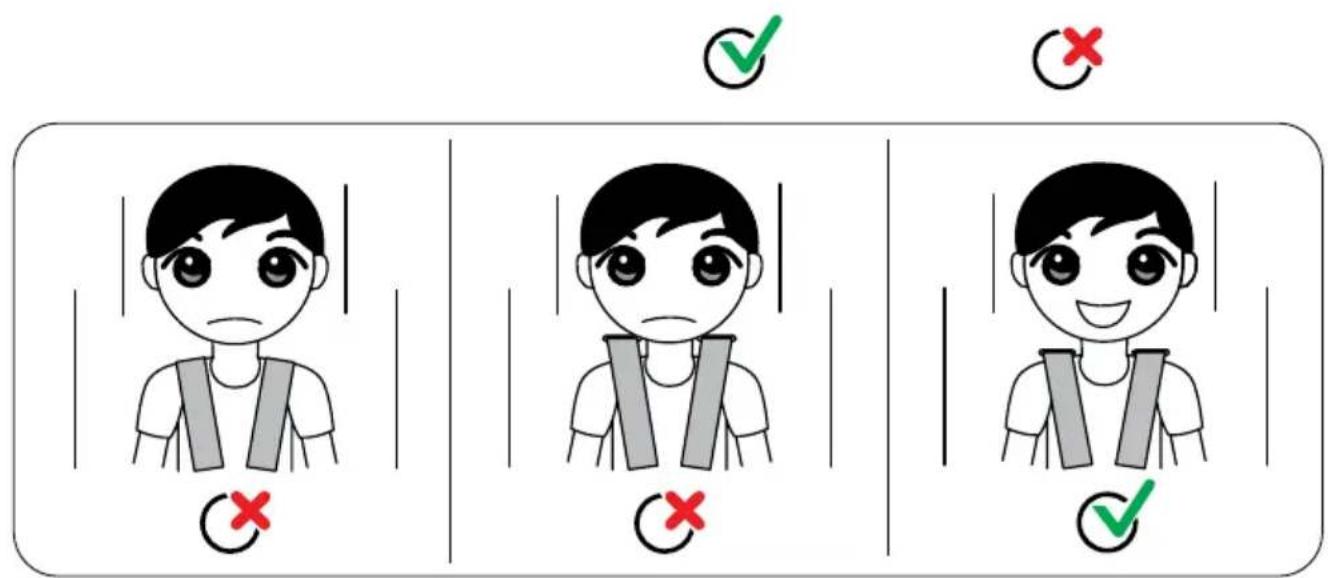

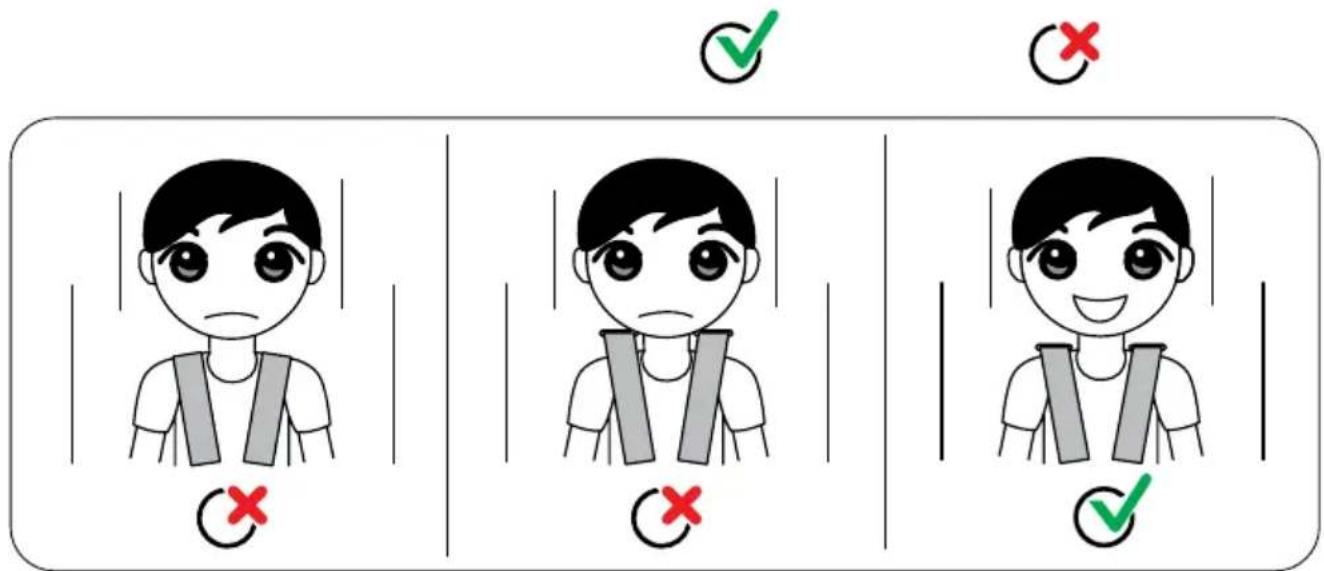

ADJUST THE HEIGHT OF HEADREST AND SHOULDER STRAP

The headrest can be adjusted to any position in order to adapt to the height of shoulder. As is shown in the picture, pull the headrest positioner out after loosening the harness (see 4.3) and then hold it up and down to adjust the headrest. Ensure that the headrest is located in the position that is suitable for the child's height. The height of shoulder strap is also adjusted with the headrest simultaneously.

Diagram illustrating mechanical assembly with red arrows indicating upward and downward motion, enclosed in a dashed circle.

Illustration showing three identical cartoon figures with checkmarks and red X marks, likely indicating correct or incorrect responses.

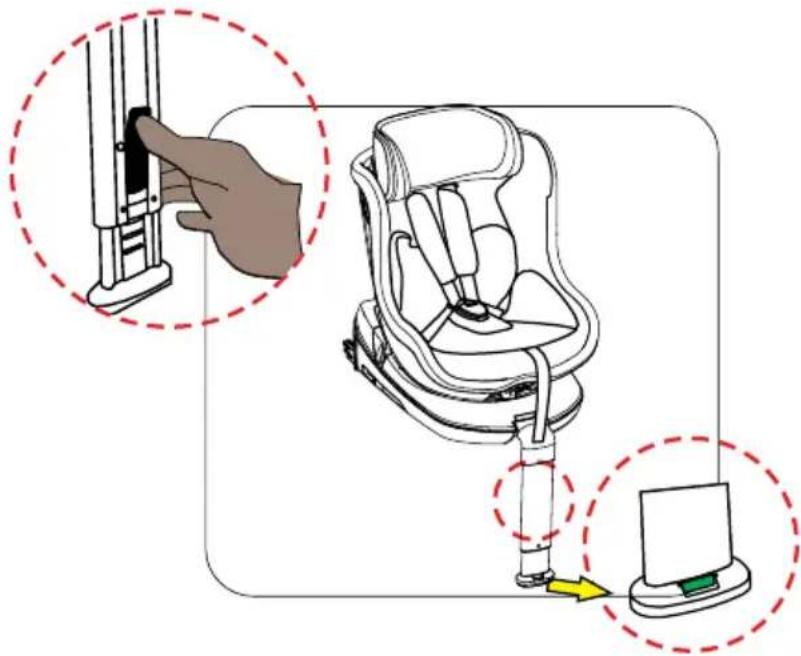

ADJUST THE LENGTH OF SUPPORT LEG

Press the button and adjust the length of support leg to suitable for different height of car seat. Make sure the bottom of the support leg touch the ground completely and the support leg status window shows green.

IMPORTANT:

Push the support leg counterclockwise before adjusting the length of support leg.when you hear a "click" means you have got the right angle of support leg.Then you can adjust the length of support leg.

Diagram illustrating car seat mounting and mounting mechanism with labeled parts and directional arrows

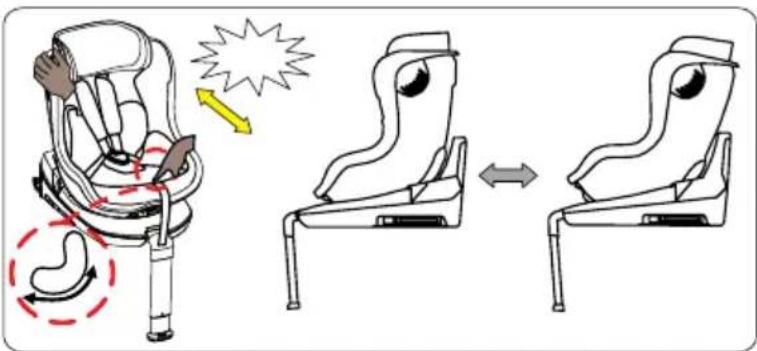

ADJUST THE CHILD SEAT TO DIFFERENT ROTATING POSITIONS

This child seat can be free to rotate 360 degrees. Clench the rotate adjuster until it press into the body of seat ,then hold on the base in another hand .Now you can rotate the child seat.Be sure to hear a "click" when turning to the forward-facing or rearward-facing.

Diagram illustrating the use of a car seatbelt device, showing how to change from seatbelt to seatbelt with motion arrows and color-coded zones.

Rearward-facing (blue)

Forward-facing (red)
picture 2

MANUAL

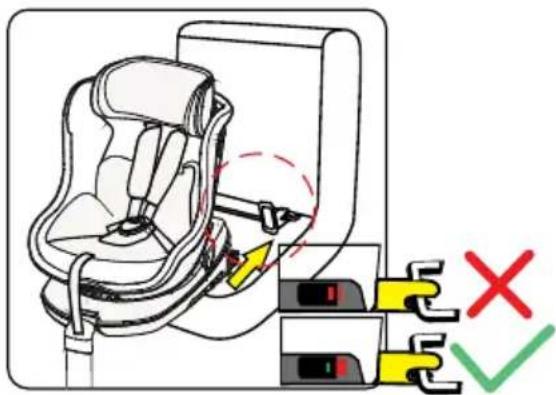

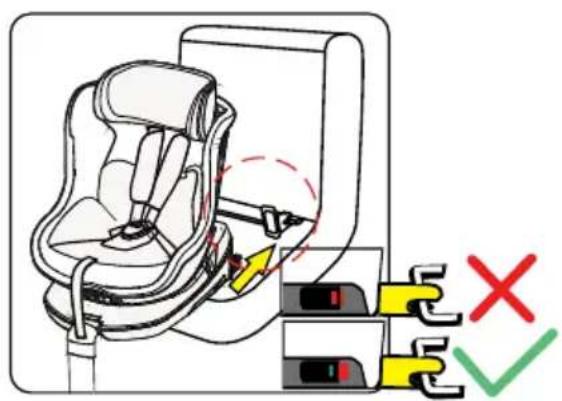

INSTALLATION OF THE CHILD RESTRAINT SYSTEM:

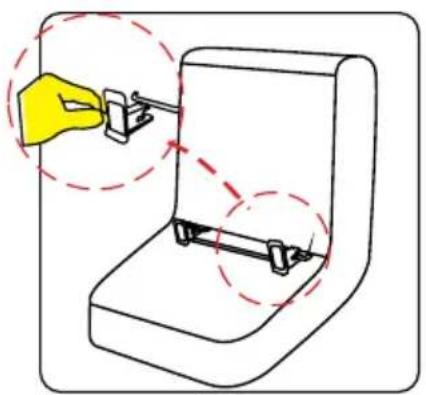

Step 1: Install ISOFIX guide sleeves to ISOFIX lower anchorages.

Step 2: Press down the red button to adjust ISOFIX attachment of both sides to the longest Then put the ISOFIX attachments into guide sleeves ,and insert them into ISOFIX anchorages. Make sure that you have heared a "click" and the ISOFIX latching indication shows GREEN .Next,you can push the child seat towards the car seat backrest until it is firmly pressed against the car seat backrest.If you want to release the ISOFIX attachments,just need to press the ISOFIX red button. Then adjust the support leg to touch the ground completely (see 4.5)

Illustration of a hand using a tool to lift a small object into a chair (no text or symbols present)

Diagram showing car seat assembly with labeled connectors and a checkmark indicating disassembly or repair.

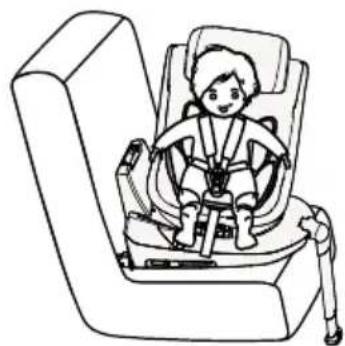

INSTALLATION OF THE CHILD

Line drawing of a child seated in a car seat, no text or symbols present

• 1. Loosen the harness(see 4.3), and place the child on the child seat.
• 2. Adjust the height of headrest(see 4.4).
• 3. Tighten the harness(see 4.3).

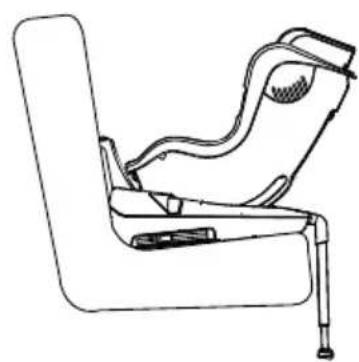

Installation status

IMPORTANT:

• 1. It will be stuck slightly when the seat adjusted to this position, and there is no locking effect in this position.
• 2. Do not place the child seat in this position when the car ismoving.
• 3. You should turn it to the driving status after installation of child.

Line drawing of a chair seat with armrest and legs (no text or symbols)

Group 1(9-18kg)

Line drawing of a car seat with adjustable armrest and seatbelt (no text or symbols)

Group 0+(0-13kg)

Driving status

IMPORTANT:

- Not to use forward-facing before the child's weight exceeds 9kg.

MAINTENANCE AND CLEANING

In daily use, check periodically the child seat. The child seat should be replaced after an accident.

Please keep this child seat in dry and ventilated place to avoid damp moldy.

If the child seat becomes dusty, clean the seat belt and the plastic pieces by swiping them with a damp sponge and let it dry under ambiance.

If food or drink drop accidentally on the buckle, disassemble the seat belt from the child seat and rinse it gently by warm water. Leave it dry under ambiance.

For cleaning the entire child seat fabric cover, please refer to the 6.2 washing instruction.

6.3 Remove and assemble the fabric cover. Tear the velcro of the shoulder straps and the backrest cover. Unlock the buckle, and set it out of the cover hole. Remove the fabric cover of the child seat. To install the fabric cover, please operate follow the above instructions in a reverse order.

WASHING INSTRUCTION

Never use any solvent, chemical detergent or lubricant on any part of your child seat.

Hand wash, water temperature below 30°C

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

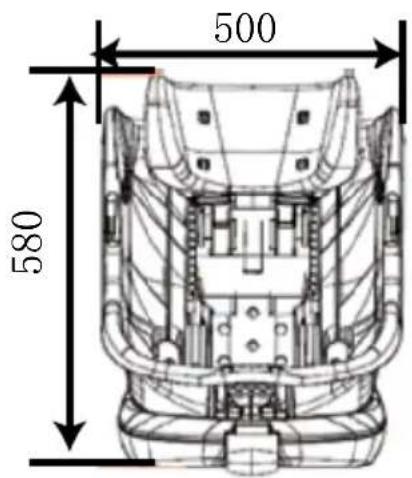

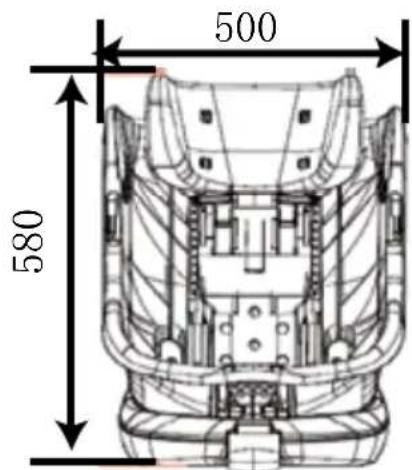

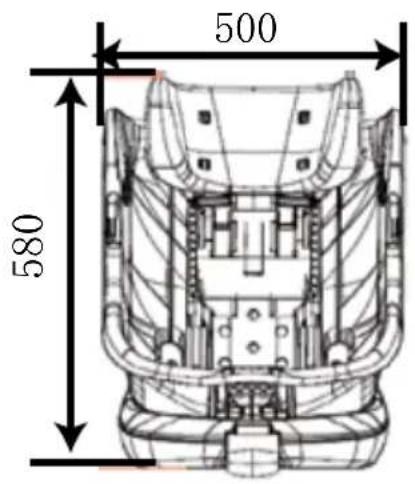

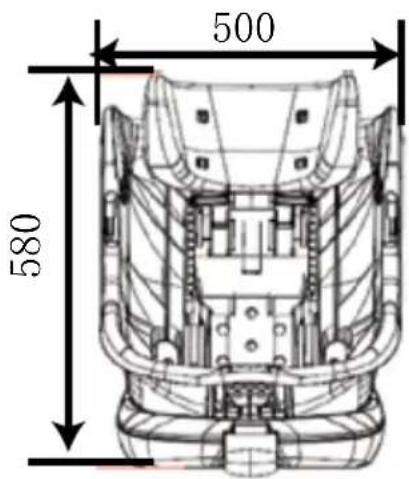

500 580

Distance Distance Height Weight 562.6

Distance from front to back of the seat: 571mm

Distance from left to right of the seat: 425mm

Height of the seat: 619mm

Weight of the seat: 9.5kg

FR

ECE R44 / 04

CARSEAT TWIRL 360° BNCS021

MODE D'EMPLOI

GROUP 0 + 1 0-18%

Illustration of a baby car seat with a rotation arrow indicating clockwise motion (no text or symbols)

Rotating 360

Group 1(9-18kg)

Group 0+(0-13kg)

AVERTISSEMENT DE SÉCURITÉ:

Illustration of a child wearing a full-body safety harness, with hands adjusting the seatbelt (no text or symbols)

MODE D'EMPLOI

Technical line drawing of a mechanical device with a highlighted internal component (no text or symbols)

Illustration of a hand inserting into a computer drive (no text or symbols visible)

Illustration of a hand inserting a device into a panel, with a red arrow indicating the process (no text or symbols present)

AJUSTEMENT DE LA TÊTE ET BANDOULIERE

Diagram illustrating mechanical assembly with labeled components and directional arrows indicating movement or force

Illustration showing three identical cartoon figures with checkmarks and red X marks, likely indicating correct or incorrect responses.

LONGUEUR DE SUPPORT DE ROUE DE RÉGLAGE

Diagram illustrating a hand operating a car seatbelt device, showing step-by-step installation and connection to a computer.

TROIS POSITIONS DE ROTATION

Diagram illustrating the step-by-step instructions for using a car seatbelt, showing how to change from seatbelt to seatbelt via rotation and compression.

Rearward-facing (blue)

Forward-facing (red)
picture 2

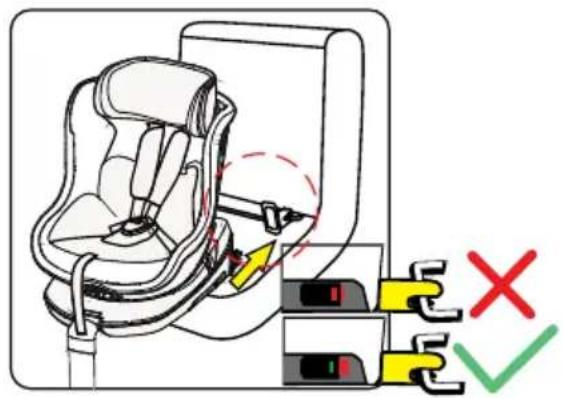

INSTALLATION DE RETENUE POUR ENFANTS SYSTEM-:

Illustration of a hand using a tool to adjust or install a small component on a chair (no text or symbols present)

Diagram showing car seatbelting with a red X mark indicating disconnection or repair, and a green checkmark indicating disconnection.

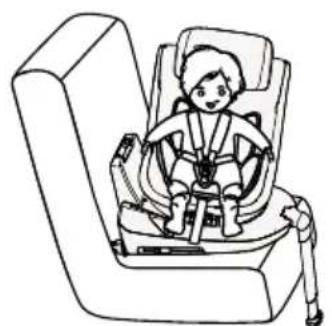

LE PLACEMENT DE L'ENFANT

Line drawing of a child seated in a car seat, no text or symbols present

Line drawing of a car seat with adjustable arm and seatbelt (no text or symbols)

Line drawing of a car seat assembly with adjustable arm and seat (no text or symbols)

Hand wash, water temperature below 30°C

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

500 580

CARSEAT TWIRL 360° BNCS021

GEBRAUCHSANLEITUNG

Gruppe 0 + 1

Maximum 25 kg (0+ 0-13 kg) (1 - 9-18 kg)

ECE R44 / 04

Illustration of a baby car seat with a curved arrow indicating rotation (no text or symbols)

Rotating 360

Group 1(9-18kg)

Group 0+(0-13kg)

GEBRAUCHSANLEITUNG

SICHERHEITSHINWEIS:

Illustration of a child wearing a full-body safety harness, with hands adjusting the seatbelt (no text or symbols)

GEBRAUCHSANLEITUNG

Technical line drawing of a mechanical device with internal components and a red dashed circle highlighting a specific area (no text or symbols present)

Illustration of a hand inserting a component into a computer case (no text or symbols)

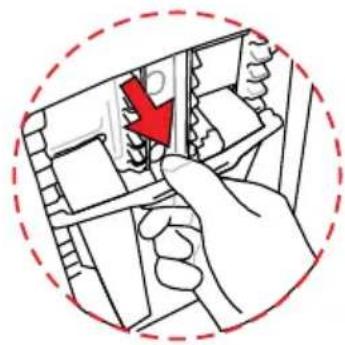

Illustration of a hand inserting a device into a device with a red arrow indicating the insertion (no text or symbols present)

Diagram illustrating mechanical assembly with force arrows and a hand gesture, enclosed in a dashed circle.

Illustration showing three identical faces with checkmarks and red X marks, likely indicating correct or incorrect responses.

Diagram illustrating car seat mounting process with hand and computer setup, showing step-by-step installation of seat structure.

Diagram illustrating the use of a car seatbelt device, showing how to change from left to right with directional arrows and motion indicators.

Rearward-facing (blue)

Forward-facing (red)
picture 2

INSTALLATION RÜCKHALTESYSTEM FÜR KINDER:

Illustration of a hand using a tool to lift a small object into a chair (no text or symbols present)

Diagram showing car seat assembly with labeled connectors and safety check indicators

Line drawing of a child seated in a car seat, no text or symbols present

Line drawing of a car seat with adjustable armrest and seatbelt (no text or symbols)

Line drawing of a car seat with adjustable arm and seatbelt (no text or symbols)

Hand wash, water temperature below 30°C

Do not bleach

Dryclean, any solvent except trichloroethylene.

Do not tumble dry

Do not iron

500 580

Line drawing of a car seatbelt with no text or symbols

Voortstraat 12 2490 Balen - Belgium www.baninni.com

Find us on Facebook & Instagram

ECE R44/04Conform aux exigences de sécurité. Conform all security regulations

ECE NO. 44.04

VEHICLE LIST - VOERTUIGLIJST - LISTE DU VÉHICULE - FAHRZEUGLISTE

This child restraint is classified for Semi-universal use and is suitable for fixing into the seat positions of the following cars:

Diagram of a car interior layout with numbered compartments or seating arrangement

Manufacturer	Model	Year of construction	Position	Manufacturer	Model	Year of construction	Position
Alfa Romeo	147	2000+	2, 4	Audi	A1	2010+	2, 4
	156	2008+	2, 4		A2	1999+	2, 4
	GT	2004+	2, 4		A3	2004+	1, 2, 4
BMW	3er	2005+	2, 4		A3	1999+	2, 4
	5er	1995+	2, 4		A4, S4, RS4	2004+	2, 4
	6er	2003+	2, 4		A4, S4, RS4	2000+	1, 2, 4
	7er	2001+	2, 4		A4, S4, RS4	1994-2001	2, 4
	X3	2003+	2, 4		A5	2007+	1, 2, 4
	X5	2000+	2, 4		A6, S6, RS6	2004+	1, 2, 4
	X6	2008+	2, 4		A6, S6, RS6	1997+	2, 4
	Z4	2002-2008	1		A7	2010+	2, 4
Cadillac	No approved Model found for this manufacturer				A8, S8	2002+	2, 4
					Q3	2011+	2, 4
Chevrolet	Aveo	2006+	2, 4		Q5	2008+	1, 2, 4
	Captiva	2006+	2, 4		Q7	2005+	2, 4
	Epica	2006+	2, 4		RS3	2010+	2, 4
	HHR	2007+	2, 4	Chrysler	S00C	2004+	2, 4
	Kalos	2002+	2, 4		Sebring	2003+	2, 4
	Lacetti	2004+	2, 4		Voyager	2008+	2, 4, 5, 7
	Malibu	2011+	2, 4		Voyager	2001-2007	2, 4
	Nubira	2003+	2, 4	Dacia	Duster	2010+	2, 4
	Spark	2010+	2, 4		Lodgy	2012+	2, 4
	Tacuma	2000+	2, 4		Logan	2004+	2, 4
Citroën	Berlingo	1999+	2, 4		Sandero	2008+	2, 4
	C-Crosser	2007+	2, 4	Daihatsu	Copen	2002+	1
	C2	2003+	2, 4		Cuore	2005+	2, 4
	C3	2002+	2, 4		Materia	2006+	2, 4
	C4	2004+	2, 4		Sirion	2005+	2, 4
	CACrandPicasso	2006+	2, 4		Terioz	2006+	2, 4
	C5	2001+	2, 4		Trevis	2006+	2, 4
	C6	2006+	2, 4	Daiwoo	No approved Model found for this manufacturer
	C8	2002+	2, 4, 5, 7
	Jumper	2007+	2, 4, 5, 7	Dodge	Avenger	2007+	2, 4
	Jumpy	2006+	2, 4, 5, 7		Caliber	2006+	2, 4
	Xsara	1999+	2, 4		Durango	2004+	2, 4
					Nitro	2007+	2, 4
Ferrari	No approved Model found for this manufacturer			Fiat	Bravo	2007+	2, 4
					Croma	2005+	2, 4
Ford	C-MAX	2003+	2, 4		Doblò	2010+	2, 4
	Fiesta	2008+	2, 4		Idea	2003+	2, 4
	Galaxy	2006+	2, 4		Multipla	2004+	2, 4
	Grand C-MAX	2010+	2, 4		Panda	2003+	2, 4
	Ka	2009+	2, 4		Scudo	2007+	2, 4, 5, 7
	Maverick	2001+	2, 4		Sedici	2006+	2, 4
	Mondeo	2000+	2, 4		Stilo	2001+	2, 4
	Ranger	2012+	2, 4		Ulysse	2002+	2, 4, 5, 7
	S-MAX	2010+	2, 4	Hummer	No approved Model found for this manufacturer
	Transit	2006+	3, 4
Honda	Accord Tourer	2008+	2, 4	Hyundai	Accent	2006+	2, 4
	Civic	2001+	2, 4		Grandeur	2005+	2, 4
	FR-V	2005+	2, 4		i10	2008+	2, 4
	Insight	2009+	2, 4		i30	2011+	2, 4
	Jazz	2002+	2, 4		i40	2011+	2, 4
	Legend	2006+	2, 4		ix20	2010+	2, 4
	Stream	2000+	2, 4		ix35	2010+	2, 4
Jaguar	X-Type	2001+	2, 4		Matrix	2002+	2, 4
	XF	2008+	2, 4		Santa Fe	2002+	2, 4
	XJ	2003+	2, 4		Sonata	2001+	2, 4
Jeep	Cherokee	2003+	2, 4		Terracan	2002+	2, 4
	Compass	2006+	2, 4		Tucson	2004+	2, 4, 5, 7
	Patriot	2007+	2, 4	Lancia	Delta	2008+	2, 4
	Wrangler	2007+	2, 4		Lancia	2011+	2, 4, 7
KIA	Carens	2002-2005	2, 4		Musa	2006+	2, 4
	cee'd	2005+	2, 4		Phedra	2002+	2, 4, 5, 7
	Cerato	2004+	2, 4		Thesis	2002+	2, 4
	Magentis	2002+	2, 4		Ypsilon	2003+	2, 4
	Opirus	2003+	2, 4	Land Rover	Defender	2007+	2, 4
	pro cee'd	2007+	2, 4		Discovery 3	2004+	2, 4
	Rio	2005+	2, 4		Freelander	2006+	2, 4
	Sedona	2002+	2, 4	Lexus	GS	2000+	2, 4
	Sorento	2002+	2, 4		IS	2001+	2, 4
	Soul	2008+	2, 4		LS	2007+	2, 4
	Sportage	2005+	2, 4		RX	2003+	2, 4
	Venga	2009	2, 4	Mazda	323	1994+	2, 4
Maserati	No approved Model found for this manufacturer				323F	2001+	2, 4
					CX-5	2011+	2, 4
Mercedes-Benz	A-Klasse	2001+	2, 4		CX-7	2007+	2, 4
	B-Klasse	2005+	2, 4		Mazda3	2003+	2, 4
	C-Klasse	2001+	2, 4		Mazda5	2005+	2, 4
	CLDSportcoupe	2008+	2, 4		Mazda6	2002+	2, 4
	CLK	2002+	2, 4		MPV	1999+	2, 4
	CLS	2004+	2, 4		MX-5	2002+	1
	E-Klasse	2002+	2, 4	Mini	Cooper	2006-2009	2, 4
	GL-Klasse	2006+	2, 4		MINI Clubman	2007+	2, 4
	GLK	2008+	2, 4		One	2001+	2, 4
	M-Klasse	2001+	2, 4	Mitsubishi	ASX	2010+	2, 4
	R-Klasse	2005+	2, 4		Colt	2005+	2, 4
	S-Klasse	2002+	2, 4		Grandis	2004+	2, 4
	Sprinter	2006+	2, 4, 5, 7		L200	2006+	2, 4
	Vaneo	2002+	2, 3, 4		Lancer	2003+	2, 4
	Viano	2003+	2, 4, 5, 6, 7		Outlander	2003+	2, 4
	Vito	2006+	2, 3, 5, 6		Pajero	2003+	2, 4
Nissan	Almera	2000+	2, 4		Shogun	2006+	2, 4
	Murano	2005+	2, 4	Opel	Antara	2006+	2, 4
	Navara	2005+	2, 4		Astra	2004+	2, 4
	Note	2006+	2, 4		Astra Caravan	1998+	2, 4
	Pathfinder	2005+	2, 4		stra Sports Tour	2009+	2, 4
	Pixo	2009+	2, 4		Astra Twin Top	2007+	2, 4
	Primastar	2001+	2, 4		Combo	2007+	2, 4
	Primera	2002+	2, 4		Corsa	200+	2, 4
	Tiida	2008+	2, 4		Insignia	2008+	2, 4
	X-TRAIL	2001+	2, 4		Meriva	2002+	1, 2, 4
Peugeot	107	2005+	2, 4		Signum	2003+	1, 2, 4
	206 CC	2001+	1		Vectra	1995-2001	1, 2, 4
	207	2006+	2, 4		Vivaro	2006+	3, 4
	208	2012+	2, 4		Zafira	1999-2011	2, 4
	3008	2009+	2, 4	Pontiac	No approved Model found for this manufacturer
	307	2001+	2, 4
	307 CC	2003+	2, 4	Porsche	Cayenne	2003+	1, 2, 4
	308	2007+	2, 4		Panamera	2009+	1, 2, 4
	308 SW	2008+	2, 3, 4	Saab	9-3	2002+	2, 4
	4007	2007+	2, 4		9-5	2001+	2, 4
	407	2004+	2, 4	Seat	Alhambra	1998+	2, 4, 5, 7
	5008	2009+	2, 3, 4		Altea	2004+	2, 4
	508	2010+	2, 4		Arosa	1998+	2, 4
	607	2001+	2, 4		Exeo	2009+	2, 4
	807	2008+	2, 4		Leon	2005+	2, 4
	807	2002+	2, 4, 5, 7		Mii	2011+	2, 4
Renault	Clio	1999+	2, 4		Toledo	1999+	2, 4
	Espace	1999+	2, 3, 4, 5, 7	Skoda	Citigo	2011+	2, 4
	Fluence	2009+	2, 4		Fabia	1999+	2, 4
	Grand Scénic	2009+	2, 3, 4		Octavia	2004+	1, 2, 4
	Grand Scénic	2004+	1, 2, 4		Octavia	1998+	2, 4
	Kangoo	1999+	2, 4		Roomster	2006+	2, 4
	Laguna	2001+	2, 4		Superb	2008+	1, 2, 4
	Mégane	1999+	2, 4		Superb	2001+	2, 4
	Mégane CC	2003+	2, 4		Yeti	2009+	2, 4
	Modus	2004+	2, 4	Smart	ForFour	2005+	2, 4
	Scénic	2003+	1, 2, 4		ForFour	2003-2005	1
	Trafic	2001+	2, 3, 4, 6	Suzuki	Alto	2009+	2, 4
	Vel Satis	2002+	2, 4		Jimny	1998+	2, 4
Subaru	Forester III	2008+	2, 4		Splash	2008+	2, 4
	Impreza	2000+	2, 4		Swift	2004+	2, 4
	Justy	2003+	2, 4		SX4	2006+	2, 4
	Legacy	2002+	2, 4		Vitara	2002+	2, 4
	Tribeca	2006+	2, 4		Wagon R	2002+	2, 4
Toyota	Auris	2007+	2, 4	Volvo	C30	2006+	2, 4
	Avensis	1998-2002	2, 4		C70	2006+	2, 4
	Aygo	2005+	2, 4		S40	2001-2003	2, 4
	Corolla	2002+	2, 4		S60	2000+	2, 4
	Corolla Verso	2001+	2, 4		S80	200+	2, 4
	iQ	2009+	2, 4		V40	2000+	2, 4
	Land Cruiser	2002+	2, 4		V50	2004+	2, 4
	Previa	1998+	2, 4		V60	2010+	2, 4
	Prius	2001+	2, 4		V70	2000-2006	2, 4
	PAV4	2000+	2, 4		XC70	2002+	2, 4
	Urban Cruiser	2009+	2, 4		XC90	2003+	2, 4
	Verso	2009+	2, 4
	Yaris	1999+	2, 4
	Bora	1998+	2, 4
	Caddy	2000+	2, 4
VW	Fox	2005+	2,4
	Golf	2007+	2,4
	Jetta	2005+	2,4
	Lupo	1998+	2,4
	New Beetle	1998+	2,4
	Passat	2000+	2,4
	Phaeton	2002+	2,4
	Polo	1999+	2,4
	Scirocco	2008+	2,4
	Sharan	2010+	2,3,4
	Sharan	1998+	2,4,5,7
	T5	2009+	3,4
	T5	2003-2009	2,4,5,7
	Tiguan	2007+	2,4
	Touares	2010+	2,4
	Touares	2002+	1,2,4
	Touran	2003+	2,4
	up!	2011+	2,4

Diagram of a car interior layout with numbered compartments and directional indicators

Seat positions in other cars may also be suitable to accept this child restraint. If in doubt, consult either the child restraint manufacturer or the retailer.
