USER MANUAL Aire Twin Joie

IMPORTANT - KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Stroller Assembly

1 2 ↑ 1 ↑ CLICK

2 CLICK

3 1 2

4 CLICK

Illustration of a person using a stroller with motion arrows indicating direction (no text or symbols)

6 1 2

Line drawing of a stroller with buckets and wheels, no text or symbols present

Diagram of a car seatbelt mechanism with no visible text or symbols

9 10.000

10 CLICK

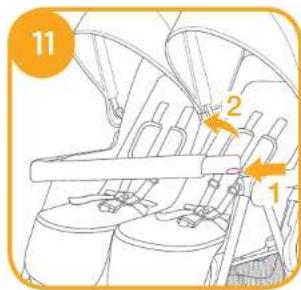

11 2 1

12 CLICK

Stroller Operation

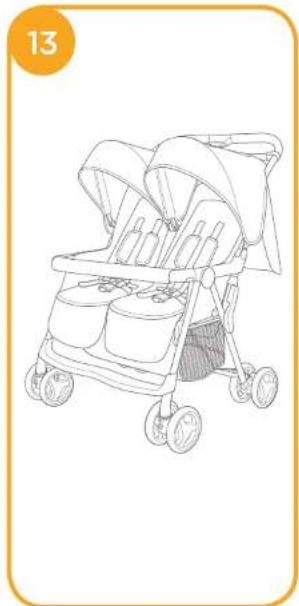

Line drawing of a two-tier baby stroller with wheels and compartments (no text or symbols)

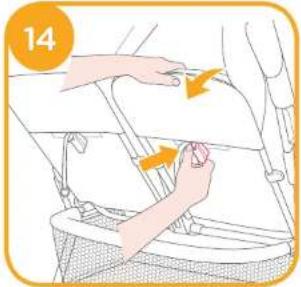

14

15

Illustration of a hand holding a small object on a vertical line, with no visible text or symbols

17 1 2 3 CLICK

18 A 1 B 2 3 19

20 21 1 2 3

Illustration of a stroller with a highlighted interior area and an arrow indicating motion (no text or symbols)

Diagram showing a hand pressing down on a device with labeled parts 1 and 2, likely illustrating a mechanical or electrical component.

24

Illustration of a hand holding a stroller with a highlighted handle (no text or symbols)

Illustration of a person using a stroller to lift a large bucket (no text or symbols)

Line drawing of a chair seat with a handle and seatbelt, no text or symbols present

Illustration of a baby bottle seat with a handle and seatbelt, no text or symbols present

29 1 2 ↑ ↑

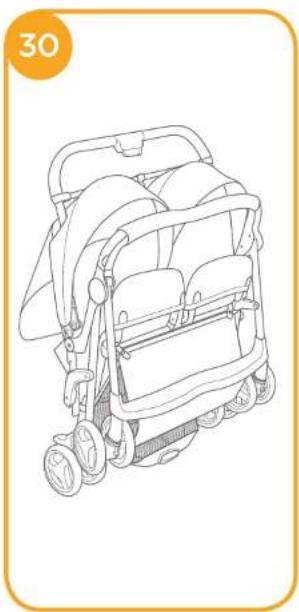

Line drawing of a children's stroller with multiple compartments and wheels (no text or symbols)

Care and Maintenance 31

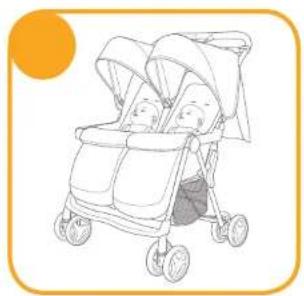

Use Accessories (may not be included in purchase)

Line drawing of a baby stroller with wheels and compartments (no text or symbols)

Line drawing of a baby stroller with wheels and seat, no text or symbols present

Line drawing of a baby stroller with wheels and compartments (no text or symbols)

Line drawing of a stroller with wheels and seat, no text or symbols present

36

Line drawing of a baby stroller with two children in front, no text or symbols present

Note

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie AIRE™ TWIN, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2012. This product is suitable for use with children weighing under 15kg in each seat. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - Keep these instructions for future reference.

Visit us at joiebaby.com to download manuals and see more exciting Joie products!

Contents

Figures 1-7

WARNING 11

Stroller Assembly 12

Open Stroller 12

Assemble Front Wheels 12

Assemble Rear Wheels 12

Secure Footrest 13

Assemble Hood 13

Assemble Armbar 13

Assemble Storage Basket 13

Stroller Operation 13

Adjust Recline 13

Use Buckle 19

Use Shoulder & Waist Harnesses 13

Adjust Calf Support 14

Use Front Swivel Lock 14

Use Brake 14

Use Hood 14

Fold Stroller 14

Use Accessories 14

Care and Maintenance 15

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

Product Information

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.

Product Aire Twin Stroller

Suitable for Child weighing under 15kg (birth - 36 months)

Materials Plastics, metal, fabrics

Patent No. Patents pending

Made in China Brand Name Joie

Website www.joiebaby.com

Manufacturer Allison Baby UK Ltd

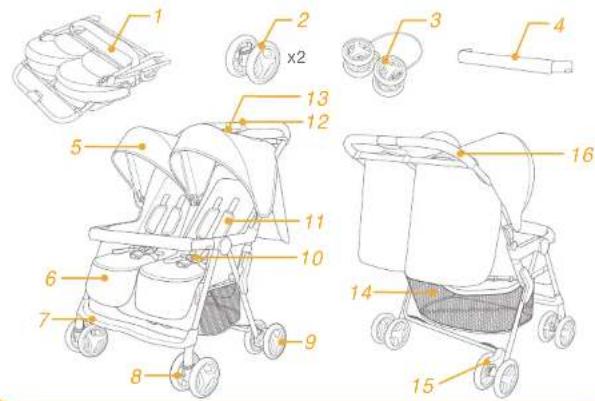

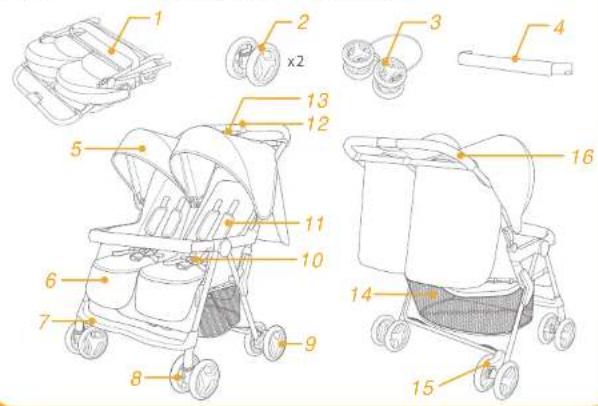

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame 6 Seat Pad 11 Shoulder Harness 14 Storage Basket
2 Front Wheel (X2) 7 Footrest Cover 15 Brake Lever
3 Rear Wheel 8 Front Swivel Lock 12 Secondary Lock 16 Handle
4 Ambal 5 Rear Wheel 15 One-He 5 Hood 10 3/5 Point Buckle Handle

Technical diagram of a stroller with numbered parts and labeled parts, including front, side, and top views.

Accessories

(may not be included)

1 Rain Cover (on certain models)
2 Reversible Seat Pad (on certain models)
3 Footmuff (on certain models)

1 2 3

WARNING

! WARNING Always use the crotch combination with the waist belt. It is suggested that the shoulder harnesses be used as well.
! WARNING Ensure that all the locking devices are engaged before use.
! WARNING Do not let your child play with this product.
! WARNING Check that the pram body or seat unit attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15kg in each seat. This product is designed to carry a one or two children in an upright or reclined position. It will cause damage to the stroller with an unfitted child.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave your child unattended. Always keep child in view while in stroller.
! Use the stroller with two children at a time. Never place purses, shoppingbags, parcels or accessory items on the handle or hood.
! Overloading, folding incorrectly, or using component parts from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Never use it along with component parts from other manufacturers.
! Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, do not place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! To prevent tipping do not put anything on the handle.
! DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
! To avoid injury ensure that your child is kept away when unfolding and folding this product.
! Be sure the stroller is fully open or folded before allowing child near the stroller.

! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or broken.
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing children.
! A statement that accessories which are not approved by the manufacturer shall not be used.
! Always use the restraint system.
! Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
! Do not attach items to the handle, seat back or sides of the stroller. Any additional load will affect the stability of the stroller and could cause the stroller to tip.
! Never use accessories, parts or components not produced or approved by the manufacturer.
! Extra Care is needed if used on moving vehicles and child should not be left unattended, even with brakes engaged.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

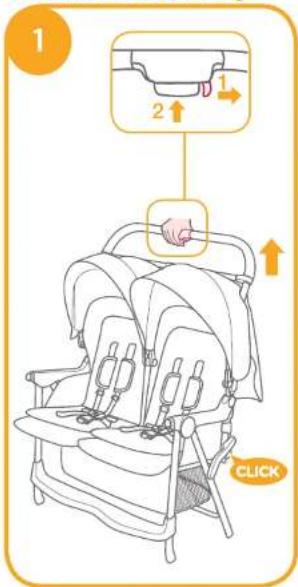

Open Stroller

see images 1

Push secondary lock ^1 - 1 and squeeze one-hand-fold handle ^1 - 2. Meanwhile, pull the stroller backward to open. Latches should click into place.

! Check that the stroller is completely latched before continuing to use.

Assemble Front Wheels

see images 2 - 3

Assemble Rear Wheels

see images 4 - 6

Snap the brake cable into the fixing tabs under the tube.

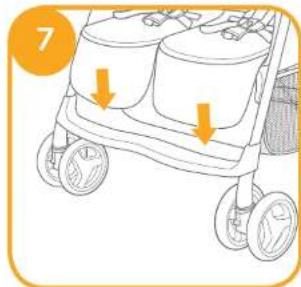

Secure Footrest

see images?

Push the footrest down to secure it.

Assemble Hood

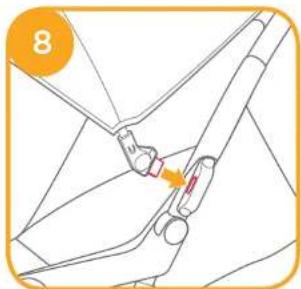

see images 8 - 9

Snap the 4 hook and keep fasteners on canopy rear retention.

Assemble Armbar

see images -

Assemble Storage Basket

see images

Stroller Operation

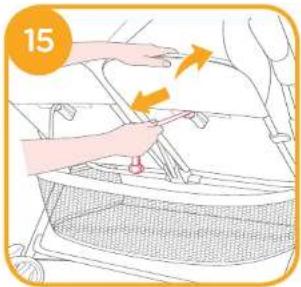

Adjust Recline

see images -

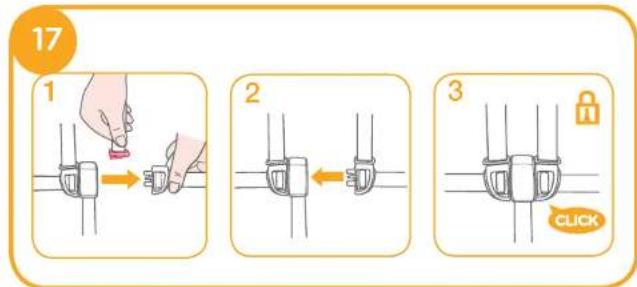

Use Buckle

see images 16-17

To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on a child's neck.

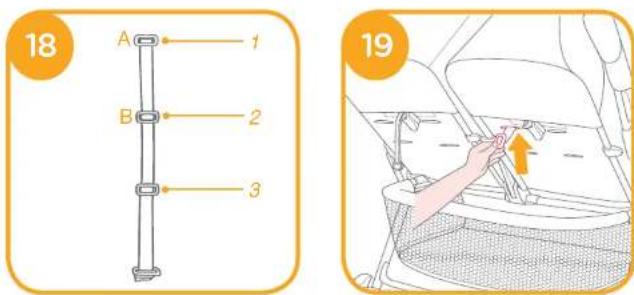

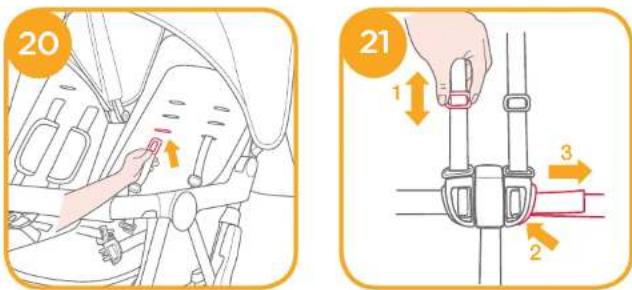

Use Shoulder & Waist Harnesses

see images 18 - 2

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist namesses are at proper height and length.

In - 1 Shoulder harness anchor A

16.2 Shoulder harness anchor B

13 - 8 Slide adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots.

For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. ① Retread it through the slot that is closest to child's shoulder height. ②

Use slide adjuster to change the harness length. ^20 -1

Press the button ① - 2. while pulling the waist harness to proper length ② - 3

Adjust Calf Support

see images ② - ②

The calf support has 2 positions,

To raise the calf support, push it upwards.

To lower calf support, press the adjustment buttons on both sides of the calf support -1, and rotate the calf support downwards.

Use Front Swivel Lock

see images

Pull up the front swivel locks to maintain the moving direction.

Tip It is recommended to use swivel locks on uneven surfaces.

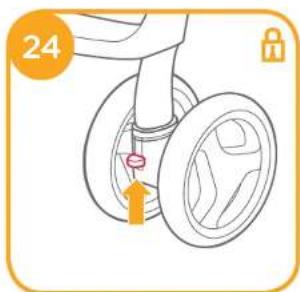

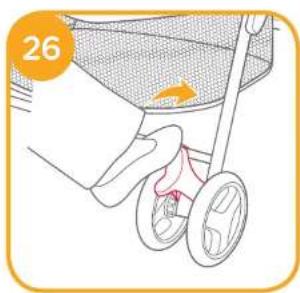

Use Brake

see images Ⓞ - Ⓝ

To lock wheels, step the brake lever downwards.

To release wheels, step the brake lever forwards.

Tip Always set the parking brake when stroller is not moving.

Tip Clean brake system regularly to ensure fully functional. See care and maintenance section.

Tip To ensure brake is fully on, gently rock the stroller backwards and forwards before releasing the handle.

Use Hood

see images 2 - 4

Roll up the hood's rear panel and then attach the hook and loop fastener, to check on your baby.

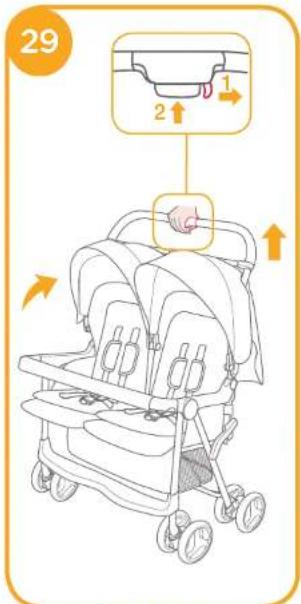

Fold Stroller

see images © - ©

Please fold the hood before folding the stroller.

Push secondary lock ⚙ -1 and squeeze one-hand-fold handle ⚙ -2. Pull the armrest rearwards to fold stroller, then the stroller can stand when folded. ⚙

Use Accessories

Accessories may be sold separately or may not be available depending on region.

Use Rain Cover

see images

To assemble the rain cover, place it over the stroller, and then attach the 8 pairs of hook and loop fasteners on the rain cover.

When using the rain cover, please always check its ventilation.
When not in use, please check that the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.

Use Reversible Seat Pad

see images 33 - 34

Note

Use Footmuff

The soft footmuff can provide your child with a warm and comfortable environment.

Assemble the footmuff by following these steps.

1. Place the footmuff over the seat after unziping it, thread the shoulder harnesses, waist harnesses and crotch harness through respective slots.
2. Thread loop fastener on the top of the footmuff through the backrest, and then stick it to the hook fastener.
3. Place baby into the footmuff, lock the safety buckle, and then rezip the footmuff.

The assembled footmuff is shown as 37

Care and Maintenance

! Removable seat pad may be washed in cold water and drip-dried. No bleach.
! To clean stroller frame, use only household soap and warm water. No bleach or detergent.
! From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open hood and allow to dry thoroughly before storing.
! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly. 31
If brake pedal stiff/hard to fully engage, flush any debris from brake system with clean water first before lubricating.
When using your stroller at the beach or areas of high dust/sand, completely clean your stroller after use to remove sand and salt from brake mechanisms and wheel assemblies.

Welkom bij Joie™

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Toebehoren

Diagram showing three labeled views of a mobile phone device with numbered annotations

WAARSCHUWING

Diagram showing three labeled views of a device with numbered annotations pointing to different parts.

WARNHINWEISE

Montar as Rodas Dianteiras 37

Montar as Rodas Traseiras 37

Prender o Descanso dos Pés 37

Montar o Capó 37

Fabricante Allison Baby UK Ltd

Lista de peças

Technical diagram of a stroller with numbered parts and labeled parts, including front, side, and top views.

Fabricant Allison Baby UK Ltd

Liste des pièces

Technical diagram of a stroller with numbered parts and labeled parts, including front, side, and top views.

Accessoires (non compris)

Diagram showing three labeled views of a device with numbered annotations pointing to different parts.

AVERTISSEMENTS

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Accessori

(non in dotazione)

Diagram showing three labeled views of a remote device with numbered annotations

AVVERTENZE

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

Technical diagram of a stroller with numbered parts and labeled parts, including front, side, and top views.

Aksesuarlar

Technical diagram showing three labeled views of a device with numbered annotations

UYARI

USCHOVEJTE TENTO MANUAL PRO BUDOUCÍ POUŽITÍ!

OBSAH

Obrázky 1-7

VAROVÁNÍ 75

Technical diagram showing three labeled views of a device with numbered annotations

VAROVÁNÍ

USCHOVAJTE TENTO MANUÁL PRE BUDÚCE POUŽITIE!

OBSAH

Obrázky 1-7

Varovanie 83

Zostavenie kočika 84

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

DopInky

Technical diagram showing three views of a device with numbered annotations indicating components.

VAROVANIE

Technical diagram of a stroller with numbered parts and labeled parts in Chinese

АКСЕССУАРЫ

Technical diagram showing three views of a device with numbered annotations indicating different components or features.

ПРЕДОСТЕРЕЖЕНИЯ

13 En-hands foldbart

4 Armstette

9 Baghju

handtag

5 Kaleche

10 3/5-punkts spaende

14 Opbevaringskurv

Tilbehør

Technical diagram showing three labeled views of a device with numbered annotations

ADVARSEL

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ
