USER MANUAL 762 SECA

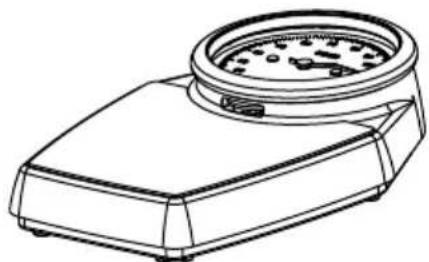

Line drawing of a balance scale with a circular dial and handle (no text or symbols)

Line drawing of a mechanical scale with a circular dial and base plate (no text or symbols)

D Gebrauchsanleitung und Garantieerklärung ..... 3
GB Instruction manual and guarantee 23
FR Mode d'emploi et garantie. 43
IT Manuale di istruzioni e garanzia 63
ES Manual de instrucciones y garantia 83
PT Instruções de utilização e declaração de garantia ..... 105
PL Instrukcja obsługi i gwarancja 125

INHALTSVERZEICHNIS

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Technical diagram of a balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

Line drawing of a pressure gauge with a hand pointing to it (no text or symbols)

Diagram of a pressure gauge with scale markings and directional arrow indicating clockwise rotation

Side-view line drawing of a human figure standing on a scale, no text or symbols present

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

11.ENTSORGUNG

2.1 Safety information in this manual 25
2.2 Basic safety precautions ..... 25 Handling the instrument ..... 25
Avoiding infections ..... 26
Avoiding injury 26
Avoiding damage to the device 27
Handling the measurement results 27
Handling the packaging material 28

3. Overview 29

3.1 Controls/Features ..... 29
3.2 Information on device and on rating plate ..... 29
3.3 Information on the packaging . 30

4. Before you get started ... ..... 31

4.1 Removing the locking pin .... 31
4.2 Removing the transport lock .. 31
4.3 Fitting the wall spacer ..... 32
4.4 Aligning the scale ..... 32

5. Weighing ..... 32

5.1 Adjusting the display ..... 33
5.2 Performing weighing ..... 33

6. Hygienic reprocessing ..... 34

6.1 Cleaning 34
Cleaning housing ..... 34
Cleaning scale ring and scale 34
6.2 Desinfection 36
6.3 Sterilisation 36

7. Function check ..... 36

8. What do I do if ...? ..... 37

9. Maintenance/verification ..... 37

9.1 Information on servicing (seca 750/760/762) .....37
9.2 Information on verification (seca 761) 38

10. Technical data ..... 38

10.1 General technical data ..... 38
10.2 Technical data, weighing ... 39

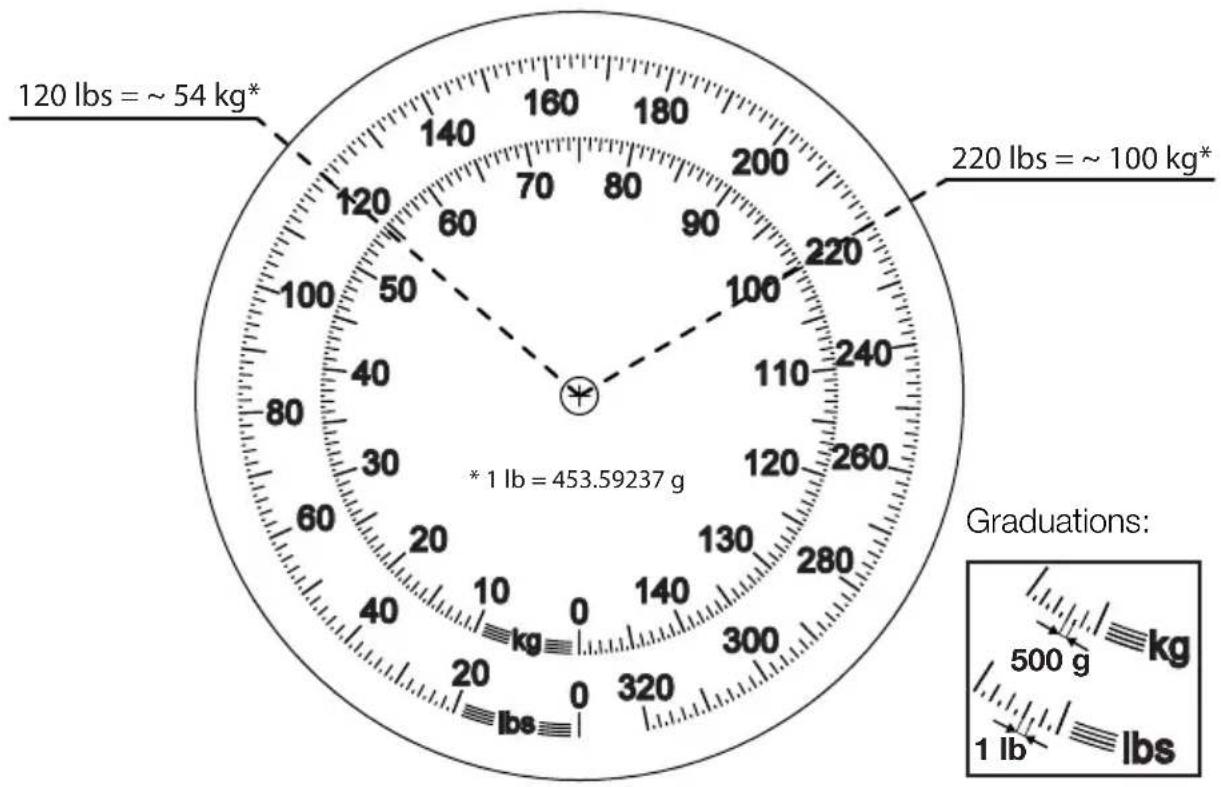

10.3 Conversion tool ..... 40

11. Disposal 40

12. Warranty 41

13. Declaration of conformity .... 41

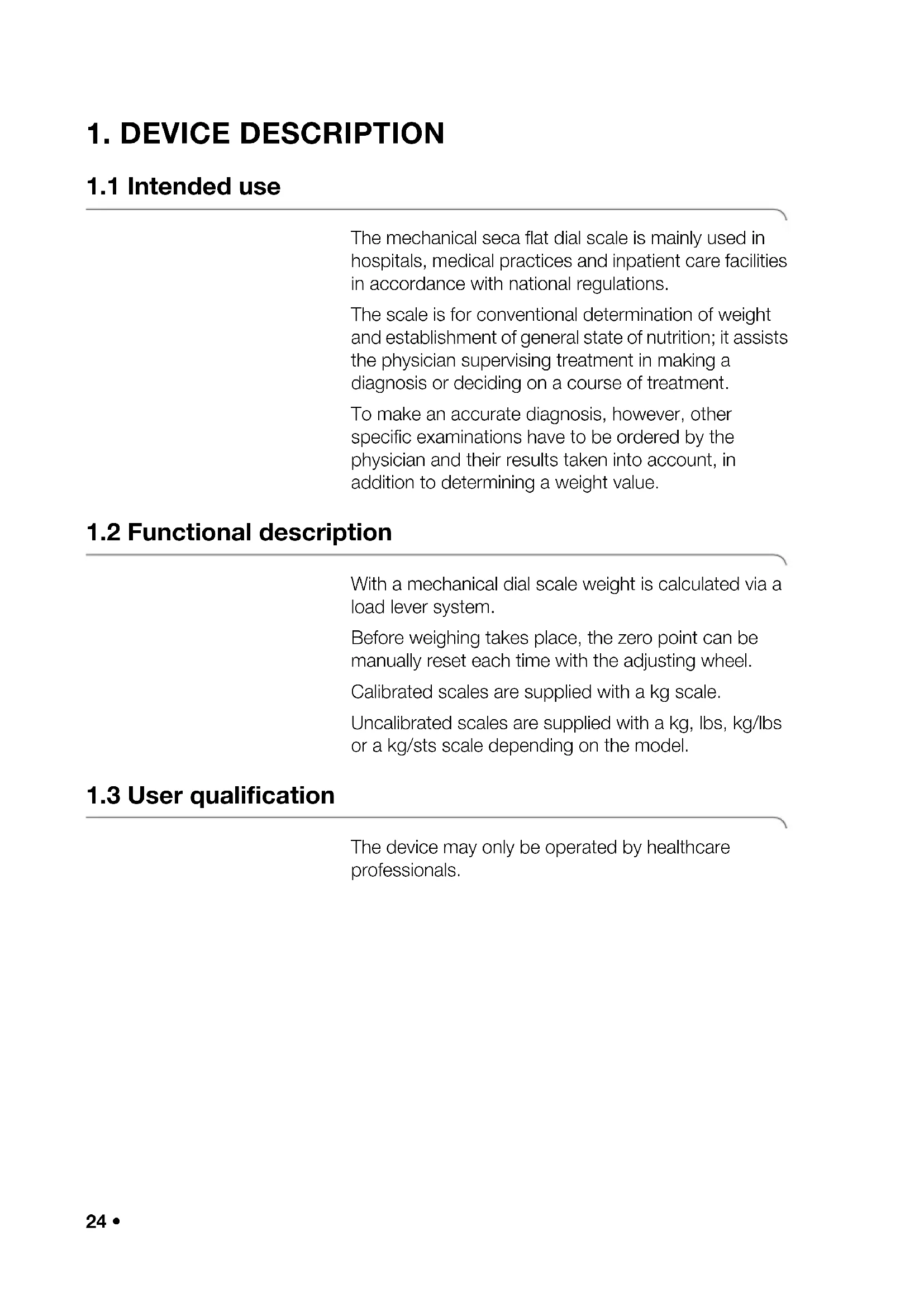

1. DEVICE DESCRIPTION

1.1 Intended use

The mechanical seca flat dial scale is mainly used in hospitals, medical practices and inpatient care facilities in accordance with national regulations.

The scale is for conventional determination of weight and establishment of general state of nutrition; it assists the physician supervising treatment in making a diagnosis or deciding on a course of treatment.

To make an accurate diagnosis, however, other specific examinations have to be ordered by the physician and their results taken into account, in addition to determining a weight value.

1.2 Functional description

With a mechanical dial scale weight is calculated via a load lever system.

Before weighing takes place, the zero point can be manually reset each time with the adjusting wheel.

Calibrated scales are supplied with a kg scale.

Uncalibrated scales are supplied with a kg, lbs, kg/lbs or a kg/sts scale depending on the model.

1.3 User qualification

The device may only be operated by healthcare professionals.

2. SAFETY INFORMATION

2.1 Safety information in this manual

DANGER!

Used to identify an extremely hazardous situation. If you fail to take note of this information, serious irreversible or fatal injuries will occur.

WARNING!

Used to identify an extremely hazardous situation. If you fail to take note of this information, serious irreversible or fatal injuries may result.

CAUTION!

Used to identify a hazardous situation. If you fail to take note of this information, minor to moderate injuries may result.

NOTICE!

Used to identify possible incorrect usage of the device. If you fail to take note of this information, you may damage the device, or the measured results may be incorrect.

NOTE

Includes additional information about use of the device.

2.2 Basic safety precautions

Handling the instrument • Please take note of the information in these instructions for use.

- Keep the instructions for use in a safe place. The instructions for use are a component of the device and must be available at all times.

CAUTION!

Patient hazard, damage to device

▶ Have servicing and subsequent verification carried out regularly as described in the relevant section of this document.
▶ Technical modifications may not be made to the device. The device does not contain any parts for servicing by the user. Only have servicing and repairs performed by an authorized

seca service partner. You can find service partners in your area at www.seca.com or by sending an e-mail to [e-mail].

▶ Only use original seca accessories and spare parts, otherwise seca will not grant any warranty.

Avoiding infections WARNING!

Risk of infection

▶ Before and after every measurement, wash your hands to reduce the risk of cross-contamination and nosocomial infections.
▶ Hygienically reprocess the scale regularly as described in the respective section in this document.
▶ Make sure that the patient has no infectious diseases.
▶ Make sure that the patient has no open wounds or infectious skin alterations, which may come into contact with the device.

Avoiding injury WARNING!

Injury from falls

▶Ensure that the device is positioned firmly and level.
▶ Support people with restricted mobility when they step onto and off the scale.
▶ Only use this scale for patients who are able to stand on their own when being weighed.
▶ Make sure that the patient does not step onto and off the weighing platform right at the edges.
▶ Make sure that the patient steps onto and off the weighing platform slowly and safely.

WARNING!

Danger of slipping

▶Ensure that the weighing platform is dry before the patient steps onto it.
▶ Ensure that the patients feet are dry before he or she steps onto the weighing platform.
▶ Make sure that the patient steps onto and off the weighing platform slowly and safely.

Avoiding damage to the device

NOTICE!

Damage to device

▶ Make sure not to drop the device.
▶ Do not expose the device to any impact or vibration.
▶ Perform function controls regularly as described in the relevant section in this document. Do not operate the device if it is damaged or not working properly.
▶ Caustic detergents may damage the surfaces. Only use a soft cloth dampened with mild soapsuds to clean the surfaces of the device.
▶ Only use disinfectants suitable for sensitive surfaces. Suitable disinfectants are available from specialist dealers.

Handling the measurement results

WARNING!

Patient hazard

This device is no diagnostic device. It simply assists the treating physician in establishing a diagnosis.

In order to make a precise diagnosis and initiate therapeutic measures, besides determination of the weight, further targeted examinations must be set up by the physician, and their results must be considered.
The responsibility for diagnosis and treatment lies with the treating physician.

CAUTION!

Patient hazard

In order to avoid misinterpretations, test results for medical use must be displayed and used in SI units (weight: kilograms, length: metres) only.

▶ Use the results exclusively in SI units.
The use of measurement results in non-SI units is the sole responsibility of the user.
▶ If your scale is unable to display SI units, you can use the conversion tool in this document.

NOTICE!

Inconsistent measuring results

▶ Before you save measurement values determined using this device and use them further (e.g. in seca PC software or in a hospital information system), make sure that the measurement values are plausible.
▶ If measurement values are transmitted to seca PC software or a hospital information system, make sure prior to further use that the measurement values are plausible and are assigned to the correct patient.

Handling the packaging material

WARNING!

Risk of suffocation

Packaging material made of plastic foil (bags) is a choking hazard.

▶ Keep packaging material out of reach of children.
In the event that the original packing material may not be available anymore, only use plastic bags with security holes in order to reduce the risk of suffocation. Use recyclable materials if possible.

NOTE

Keep the original packing material for future use (e.g. returning for servicing).

3. OVERVIEW

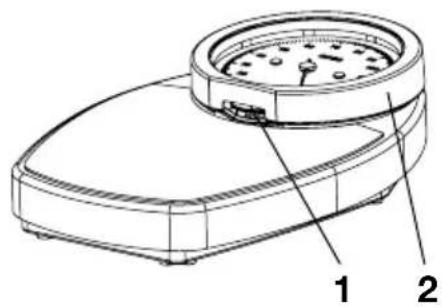

3.1 Controls/Features

seca 750:

Technical diagram of a balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

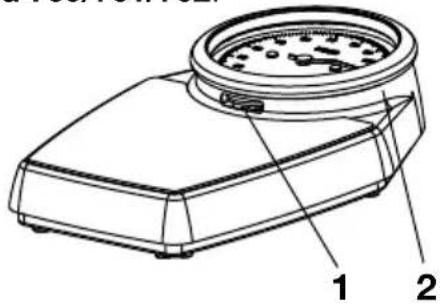

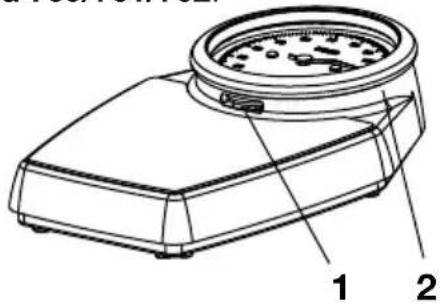

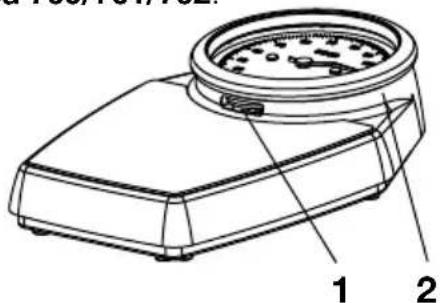

seca 760/761/762:

Line drawing of a mechanical scale with labeled parts (1 and 2), no text or symbols present.

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

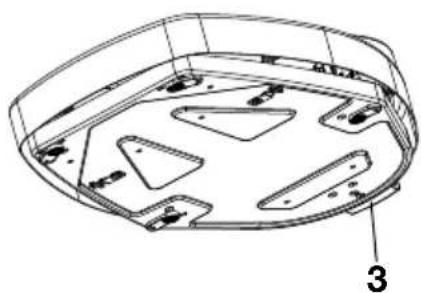

No.	Control/Feature Function
1	Adjusting wheel	For adjusting the display.
2	Scale ring	Protects the pointer and dialCan be removed for cleaning (not seca 750)

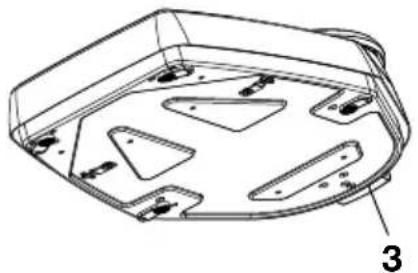

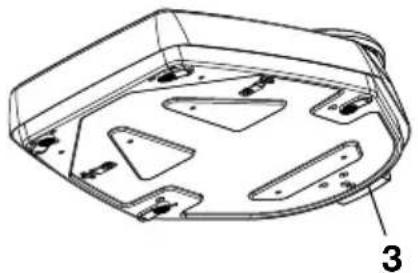

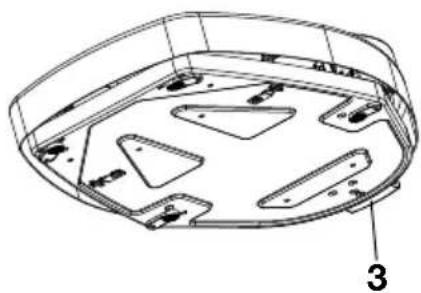

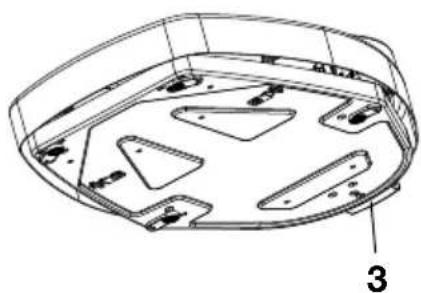

3	Transport lock	Prevents any relative movement between the weighing platform and lower section of the housing during transportCan be used as a wall spacer.

3.2 Information on device and on rating plate

Text/Symbol Meaning
	Name and address of manufacturer, date of manufacture
	Model number
	Serial number, consecutive
GAL	Value in m/s2 (verified models)• Gravitational acceleration on earth• Depends on the intended location
ProdID	Product identification number, consecutive
Approval Type	Type designation of design approvalFollow instructions for use
e	Value in units of measurement used to classify and calibrate a scale (calibrated models)
d	Value in units of measurement which gives the difference between two consecutive display values
	Class III scale in compliance with directive 2014/31/EU
	Unit used for scale (here: kg)Part of scale below the minimum load: For technical reasons no meaningful measured results possible in this range
	Device complies with EU directives.M: Conformity label in compliance with directive 2014/31/EU for non-automatic weighing instruments (verified models)18: (Example: 2018) Year in which conformity verification was performed and the CE label was applied (verified models)0102: Appointed office for metrology (verified models)0123: Appointed office for medical devices

3.3 Information on the packaging

	Protect from moisture
	Arrows indicate top of productTransport and store in an upright position
	FragileDo not throw or drop
	Permitted min. and max. temperature for transport and storage
	Permitted min. and max. moisture for transport and storage
	Not sterile
[9HZ0]↑↑	Do not reuseOpen packaging here
	Packaging material can be disposed of through recycling programs

4. BEFORE YOU GET STARTED ...

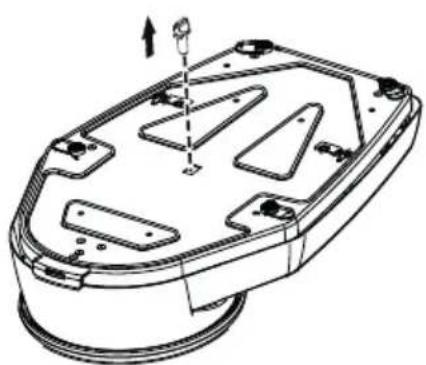

4.1 Removing the locking pin

Click!

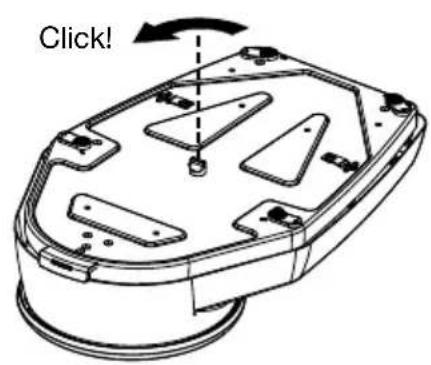

1. Turn the locking pin on the base of the housing a quarter-turn anticlockwise.

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

1. Take out the locking pin.

NOTE

Keep the locking pin for transporting the scale at a later date.

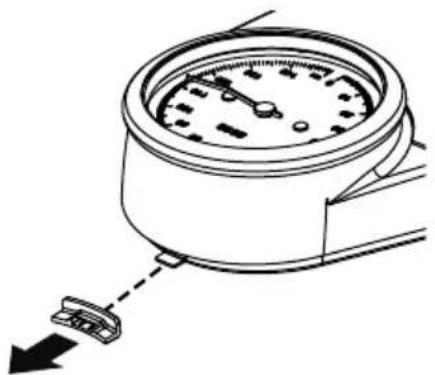

4.2 Removing the transport lock

Line drawing of a pressure gauge with a small connector attached, showing no text or symbols.

▶ Remove the transport lock from the lower section of the housing.

NOTE:

▶ Put the transport lock in a safe place for subsequent transport of the scale.

▶ You can use the transport lock as a wall spacer (see section "Fitting the wall spacer").

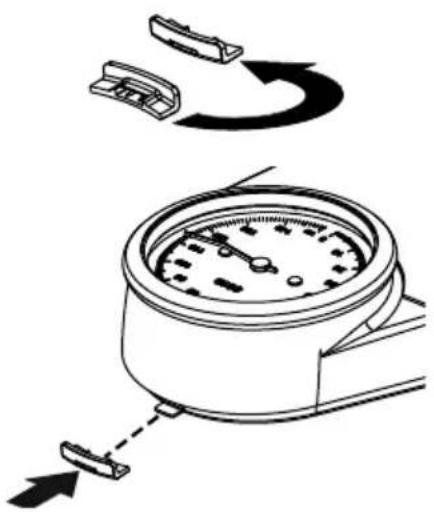

4.3 Fitting the wall spacer

Diagram of a pressure gauge with arrows indicating clockwise motion (no text or symbols)

If you wish to position the scale close to a wall, we recommend using the transport lock (see section "Removing the transport lock") as a wall spacer. This stops the weighing platform from touching the wall and the measured result from being incorrect.

1. Position the transport lock as shown in the adjacent drawing.
2. Attach the transport lock to the lower section of the housing.

4.4 Aligning the scale

ATTENTION!

Incorrect measurement due to force shunts

Soft floor coverings such as carpets may cause weights to be measured incorrectly.

▶ Set the scale up so that only its feet are in contact with the floor.

▶ Place the scale on a firm, flat surface.

5. WEIGHING

CAUTION!

Bodily injury

Perform a function check before every use as described in the section "Function check" on page 36.

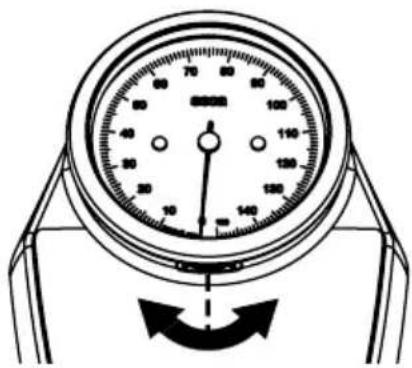

5.1 Adjusting the display

Diagram of a pressure gauge with scale markings and directional arrow indicating clockwise rotation

To obtain meaningful measured values you must check before every use that the pointer of the scale reads "0".

1. Ensure that the scale has no load.
2. Check the current position of the pointer.
3. Move the adjusting wheel so that the pointer reads "0".

- Turn clockwise: Pointer moves counterclockwise

- Turn counter-clockwise: Pointer moves clockwise

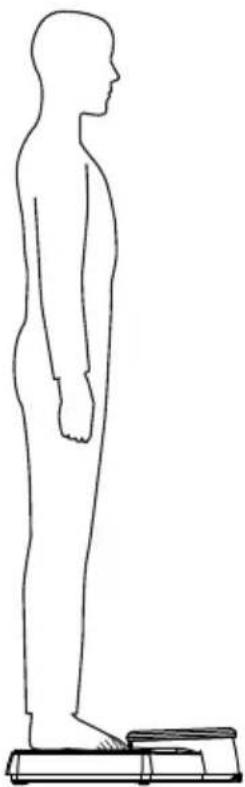

5.2 Performing weighing

Side-view line drawing of a human figure standing on a scale, no text or symbols present

CAUTION!

Patients can be injured if they fall

People with restricted mobility may fall when trying to step on or off the scales.

▶ Support people with restricted mobility when they step on and off the scales.
▶ Only use this scale for patients who are able to stand on their own when being weighed.

1. Make sure that the pointer reads "0".
2. Ask the patient to step onto the scale and keep still.
3. Read off the measured result.

NOTE:

If your scales only display measurement values in "lbs", you can use the conversion tool on page 40 to convert measurement values to kg values.

1. Ask the patient to step off the scale.

6. HYGIENIC REPROCESSING

NOTICE!

Damage to device

Inappropriate detergents and disinfectants may damage the sensitive surfaces of the device.

▶ Use only disinfectants free of chlorine and alcohol which are explicitly suitable for acrylic sheet and other sensitive surfaces (active ingredient: quaternary ammonium compounds, for example).
▶ Do not use white spirit or petroleum spirit.
▶ Only use disinfectants suitable for sensitive surfaces. Suitable disinfectants are available from specialist dealers.

6.1 Cleaning

Cleaning housing

▶ Use a soft cloth dampened with mild soapsuds to clean the surfaces of the device.

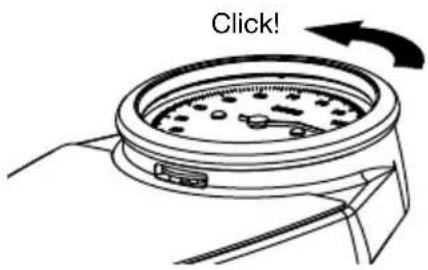

Cleaning scale ring and scale

You can take the scale ring off the weighing platform (not seca 750) to clean the inside of the scale ring and the scale.

Click!

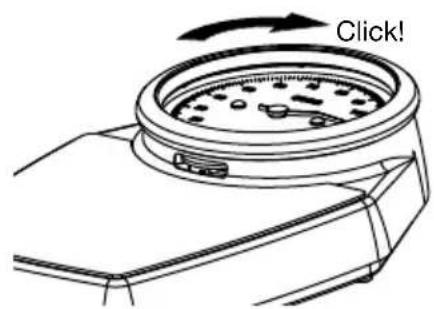

1. Turn the scale ring counter-clockwise.

Technical line drawing of a mechanical device with circular top and central dial (no text or symbols)

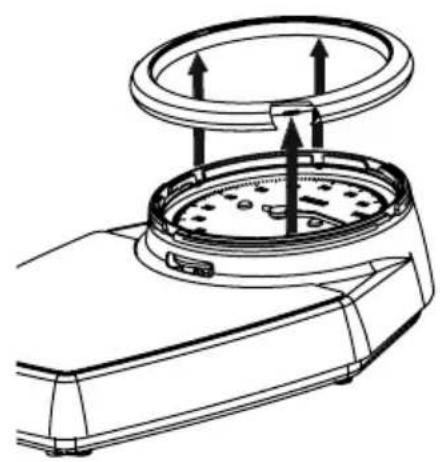

1. Take the scale ring off.

ATTENTION!

Damage to device

When the scale ring has been taken off, the pointer and scale on the device are freely accessible. If these parts are damaged, it will not be possible to obtain meaningful measured results.

▶ Check that the pointer and scale have not been damaged during cleaning.

1. Clean the following parts with a soft cloth dampened with a mild soapy solution:

- Scale

- Inside of scale ring

1. Put the scale ring back on the housing.

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

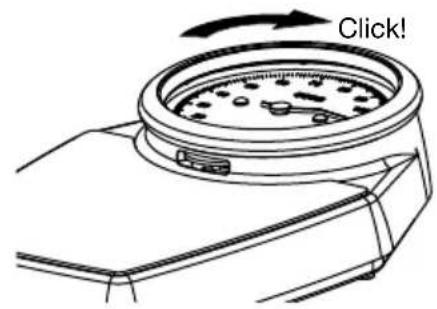

1. Turn the scale ring clockwise to resecure.

Click!

6.2 Desinfection

1. Check that your disinfectant is suitable for sensitive surfaces and acrylic sheet.
2. Follow the instructions on the disinfectant.
3. Disinfect the device at regular intervals using a soft cloth dampened with a suitable disinfectant.

Interval Component
Prior to every measurement with direct skin contact	Weighing platform
After every measurement with direct skin contact	Weighing platform
If required	Scale ring and viewing window

6.3 Sterilisation

This device may not be sterilised.

7. FUNCTION CHECK

▶ Perform functional check prior to each operation.

A complete functional check includes:

• Visual inspection for mechanical damage
• Visual inspection and function check of the display elements
• Function check of all controls shown in the section "Overview"

If you find faults or deviations during the function check, first try to remedy the fault with the aid of the section "What do I do if ...?".

CAUTION!

Bodily injury

If you find faults or deviations during the function check which you are unable to remedy with the aid of the section “What do I do if …?”, you may not use the device.

▶ Have the device repaired by seca service or an authorized service partner.
▶ You should also follow the instructions in the section “Maintenance/verification” on page 37.

8. WHAT DO I DO IF ...?

Malfunction Cause/Remedy
... the scale does not show any weight?	The device is not ready for use- Remove transport lock
... the scale does not show any plausible weight?	• Before weighing pointer does not read “0”- Adjust display• Force shunt: scale is e.g. touching a wall or patient is supporting his/her weight against the wall.- Move scale away from wall- Use transport lock as wall spacer- Ask patient to stand on the scale unaided

9. MAINTENANCE/VERIFICATION

9.1 Information on servicing (seca 750/760/762)

The product must be set up carefully and serviced regularly. Depending on how frequently the scale is used, we recommended servicing at intervals of 3 to 5 years.

ATTENTION!

Incorrect measurements as a result of poor servicing

▶ Please only have servicing and repairs performed by an authorized service partner.
▶ You can find service partners in your area at www.seca.com or by sending an e-mail to [e-mail].

9.2 Information on verification (seca 761)

We recommend having your device serviced prior to verification.

NOTICE!

Incorrect measurements as a result of poor servicing

▶ Please only have servicing and repairs performed by an authorized service partner.
▶ You can find service partners in your area at www.seca.com or by sending an e-mail to [e-mail].

Have an authorized technician perform verification according to national legal regulations.

Verification is necessary whenever one or more verification seals are damaged.

10.TECHNICAL DATA

10.1 General technical data

General technical data
Dimensions seca 750
• Depth	477 mm
• Width	317 mm
• Height	117 mm
Net weight seca 750 approx. 3.5 kg
Dimensions seca 760/761
• Depth	470 mm
• Width	303 mm
• Height	118 mm
Dimensions seca 762
• Depth	470 mm
• Width	303 mm
• Height	118 mm
Net weight seca 760/761/762 approx. 3.5 kg
Temperature range
• Operation	+10 °C to +40 °C (50 °F to 104 °F)
• Storage	-10 °C to +65 °C (14 °F to 149 °F)
• Transport	-10 °C to +65 °C (14 °F to 149 °F)
Air pressure• Operation• Storage• Transport	700 - 1060 hPa700 - 1060 hPa700 - 1060 hPa
Humidity• Operation• Storage• Transport	30 % - 80 % no condensation0 % - 95 % no condensation0 % - 95 % no condensation
Medical device in accordance with Directive 93/42/EEC	Class I with measuring function

10.2 Technical data, weighing

Technical data, weighing seca 761
Calibration in accordance with Directive 2014/31/EU	Class IIII
Maximum load 150 kg
Minimum load 10 kg
Graduations 1 kg
Zero adjustment range 20 kg
Accuracy on initial calibration:• 10 kg to 50 kg• 50 kg to 150 kg	±0.5 kg±1 kg

Technical data, weighing seca 750/760/762
Maximum load 150 kg / 320 lbs / 23 sts
Minimum load 10 kg / 20 lbs / 1 sts
Graduations seca 750/760 1 kg / 1 lbs / 1 lbs
Graduations seca 762 0,5 kg / 1 lbs / 1 lbs
Zero adjustment range 20 kg / 45 lbs / 3 sts
Accuracy:• 10 kg to 80 kg• 80 kg to 150 kg• 20 lbs to 180 lbs• 180 lbs to 320 lbs• 1 sts to 12 sts• 12 sts to 23 sts	±1 kg±1.25 %±2.2 lbs±1.25 %±0.2 sts±1.25 %

10.3 Conversion tool

Some models display measurement values only in "lbs". For these models, use the conversion tool below to convert measurement values to kg values.

11.DISPOSAL

This device consists of high-quality raw materials which can be recycled. Dispose of the device in accordance with the local laws and regulations applicable in your country.

12.WARRANTY

We offer a two-year warranty from the date of delivery for defects attributable to faulty material or poor workmanship. This excludes all moveable parts such as (rechargeable) batteries, cables, power supply units, etc. Defects which are covered by the warranty shall be rectified free of charge for customers on production of the sales receipt. No further claims can be accepted. The costs of shipment in both directions shall be borne by the customer where the device is not located at the customer's premises. In the event of any damage during shipment warranty claims can only be asserted where the complete original packaging was used for shipment and the scales were secured inside in the same manner as in the original packaging. You should therefore keep all packaging.

The warranty shall become null and void where the device is opened by persons not expressly authorised to do so by seca.

In the event of a warranty issue, please contact your local seca office or the dealer from whom you ordered the product.

13. DECLARATION OF CONFORMITY

seca gmbh & co. kg hereby declares that the product meets the terms of the applicable European directives. The unabridged declaration of conformity can be found at: www.seca.com.

TABLE DES MATIÈRES

Technical diagram of a balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Technical diagram of a mechanical scale with labeled parts 1 and 2

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

1. Retirez la tige de fixation.

REMARQUE :

Line drawing of a pressure gauge with a small connector attached, showing no text or symbols.

▶ Retirez la protection de transport du socle de la balance.

REMARQUE :

Diagram of a pressure gauge with arrows indicating clockwise rotation (no text or symbols)

Diagram of a pressure gauge with scale markings and directional arrow indicating clockwise motion

Line drawing of a human standing body with a balance scale on the lower side (no text or symbols)

PRUDENCE!

Technical line drawing of a mechanical device with circular top and central dial (no text or symbols)

Technical line drawing of a mechanical device with a circular component and directional arrows indicating motion (no text or symbols)

11.MISE AU REBUT

Technical diagram of a digital balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Line drawing of a mechanical scale with labeled parts (1 and 2), no text or symbols present.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Line drawing of a pressure gauge with a connector inserted, showing no text or symbols

Diagram of a pressure gauge with arrows indicating clockwise rotation (no text or symbols)

Diagram of a pressure gauge with scale and pointer, showing mechanical advantage (no text or symbols)

Side-view line drawing of a human figure standing on a scale, no text or symbols present

CAUTELA!

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular component and directional arrows indicating assembly (no text or symbols)

8. COSA FARE, SE ...?

Technical diagram of a digital balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Line drawing of a mechanical scale with labeled parts (1 and 2), no text or symbols present.

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

Line drawing of a pressure gauge with a dial and attached sensor (no text or symbols)

Diagram of a pressure gauge with arrows indicating clockwise motion (no text or symbols)

Diagram of a pressure gauge with scale and pointer, showing mechanical advantage (no text or symbols)

Side-view line drawing of a human figure standing on a scale, no text or symbols present

¡PRECAUCIÓN!

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Click!

11.APARATO

Technical diagram of a digital balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Technical diagram of a mechanical scale with labeled parts 1 and 2

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a cylindrical base (no text or symbols)

Line drawing of a pressure gauge with a small connector attached (no text or symbols)

Diagram of a pressure gauge with arrows indicating clockwise rotation (no text or symbols)

Diagram of a pressure gauge with scale and pointer, showing mechanical advantage (no text or symbols)

Side-view line drawing of a human figure standing on a scale, no text or symbols present

CUIDADO!

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular component and directional arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical device with labeled parts 1 and 2

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

seca 760/761/762:

Technical diagram of a balance scale with labeled parts 1 and 2

Technical line drawing of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Line drawing of a pressure gauge with a connector inserted, showing no text or symbols

Diagram of a pressure gauge with arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a pressure gauge with adjustable dial and support brackets (no text or symbols)

Side-view line drawing of a human figure standing on a scale, no text or symbols present

ZACHOWAJ OSTROŻNOŚĆ!

Technical line drawing of a mechanical device with a circular top and central dial (no text or symbols)

Technical line drawing of a mechanical device with a circular top component and internal components (no text or symbols)

Medical Measuring Systems and Scales since 1840

seca gmbh & co. kg

Hammer Steindamm 3–25

22089 Hamburg · Germany

Telephone [phone]

Fax [phone]

[e-mail]

seca operates worldwide with headquarters in Germany and branches in:

seca france

seca united kingdom

seca north america

seca schweiz

seca zhong guo

seca nihon

seca mexico

seca austria

seca polska

seca middle east

seca brasil

seca suomi

seca américa latina

seca asia pacific

and with exclusive partners in more than 110 countries.
