USER MANUAL WX679 WORX

A Sunflower

B 1 2 Sonicator Mloryx

Diagram illustrating safety hazard with hand icons and warning signs, showing a device with plug and plug assembly.

D

Diagram showing a mechanical component being processed into a cylindrical structure, with an arrow indicating process direction (no text or symbols)

Technical illustration of a mechanical device with a downward arrow indicating assembly or transformation (no text or symbols present)

Exploded view diagram of a camera module showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a tool handle and internal components (no text or symbols)

Diagram of a robotic device with a cylindrical component connected to a motor, showing motion direction (no text or symbols)

F OFF ON PERLOCK Sonicafter

G 2 1 3 4 5 6 7 8 9

1. HYPERLOCK™ ACCESSORY CLAMPING LEVER
2. ON/OFF SWITCH
3. VARIABLE SPEED DIAL
4. CONSTANT SPEED ELECTRONICS
5. VENTING SLOTS
6. UNIVERSAL-FIT ACCESSORY INTERFACE*
7. SMALLER FLANGE (FOR OTHER BRANDS' SANDING PADS)
8. FLANGE

Not all the accessories illustrated or described are included in standard delivery. *Works with other oscillating tool brands' accessories.

The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Black & Decker ^® , Bosch ^® , Chicago Electric ^® , Craftsman ^® , Dremel ^® , Fein ^® , Genesis ^® , Makita ^® , Mastercraft ^® , Milwaukee ^® , Performax ^® , Porter Cable ^® , Ridgid ^® , Ryobi ^® , Skil ^® , and Tool Shop ^® .

TECHNICAL DATA
Type Designation WX680 (6-designation of machinery, representative of sonicrafter)

Rated voltage	230-240V~50Hz
Rated power 350W
Oscillations speed 11000-20000/min
Oscillations angle 4.0°
Protection class	☐/II
Tool weight (without power cable)	1.3kg

NOISE INFORMATION

A weighted sound pressure 87dB(A)

A weighted sound power 98dB(A)

K_pA & K_wA 3.0dB(A)

Wear ear protection when sound pressure is over 80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibration	Vibration emission value a_h = 3,68m/s^2
	Uncertainty K = 1.5m/s2

• The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
  – The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the

following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or sanded.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly

reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ C or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

SAFETY INSTRUCTION FOR CUTTING

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Always wear a dust mask.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Double insulation
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Before working with your tool make sure that no power cords will be damaged.
	Avoid danger of injury from the sharp edges of the accessories.
	Accessories can become very hot while working, presenting danger of burns!
	Make sure the tool is unplugged prior to changing accessories.
	Wear protective gloves
	High oscillation frequency.
	Low oscillation frequency:
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The power tool is intended for sawing and remodelling wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.

ASSEMBLY AND OPERATION

Action Figure

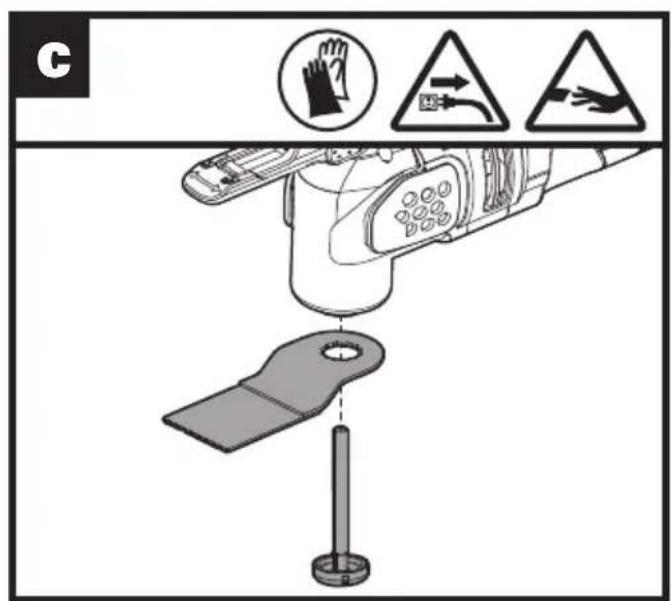

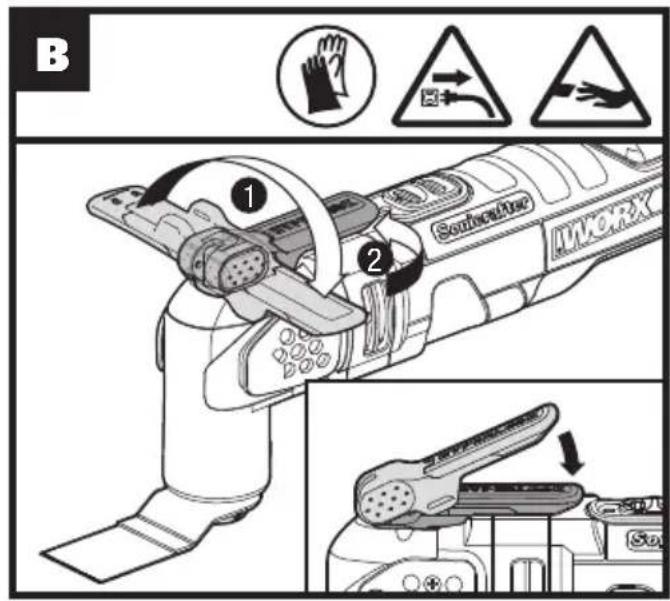

Mounting accessories See	Fig. A-C

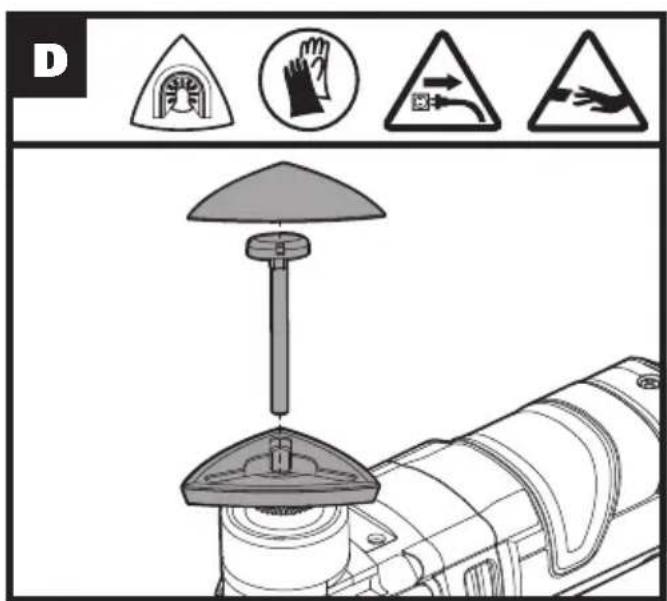

Mounting the sanding sheet	See Fig. D

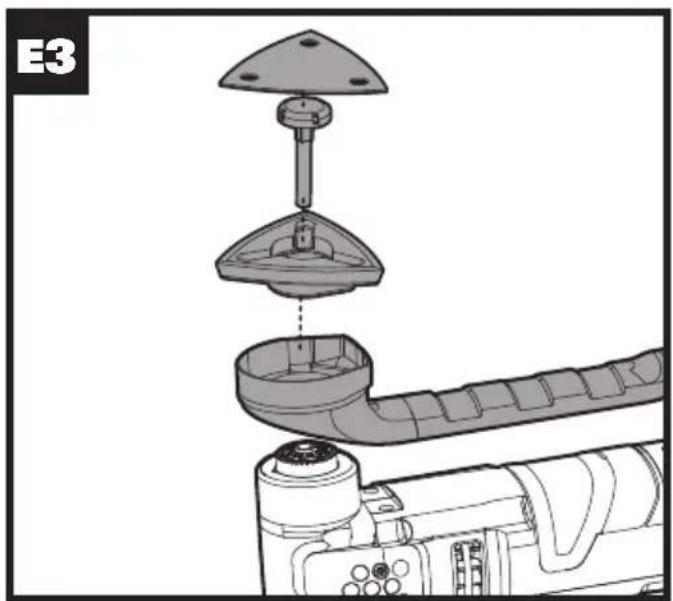

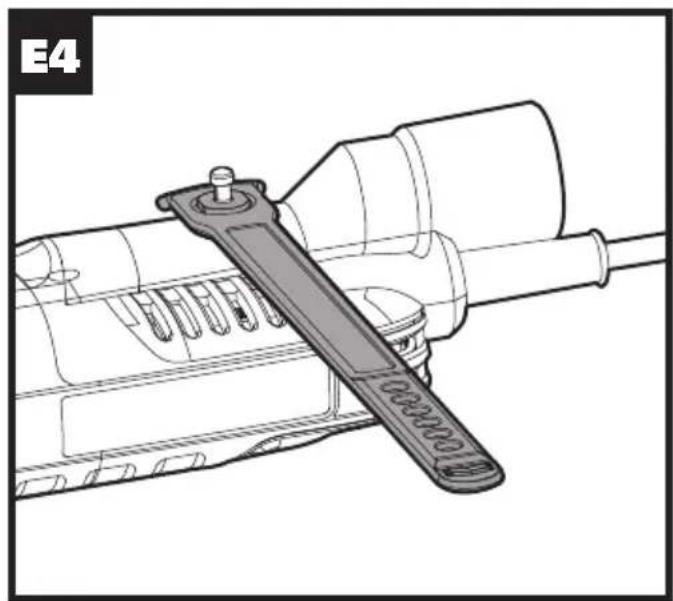

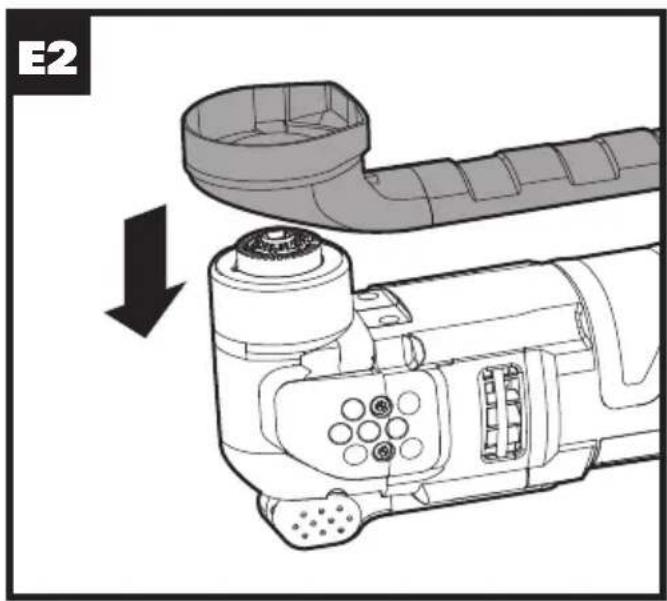

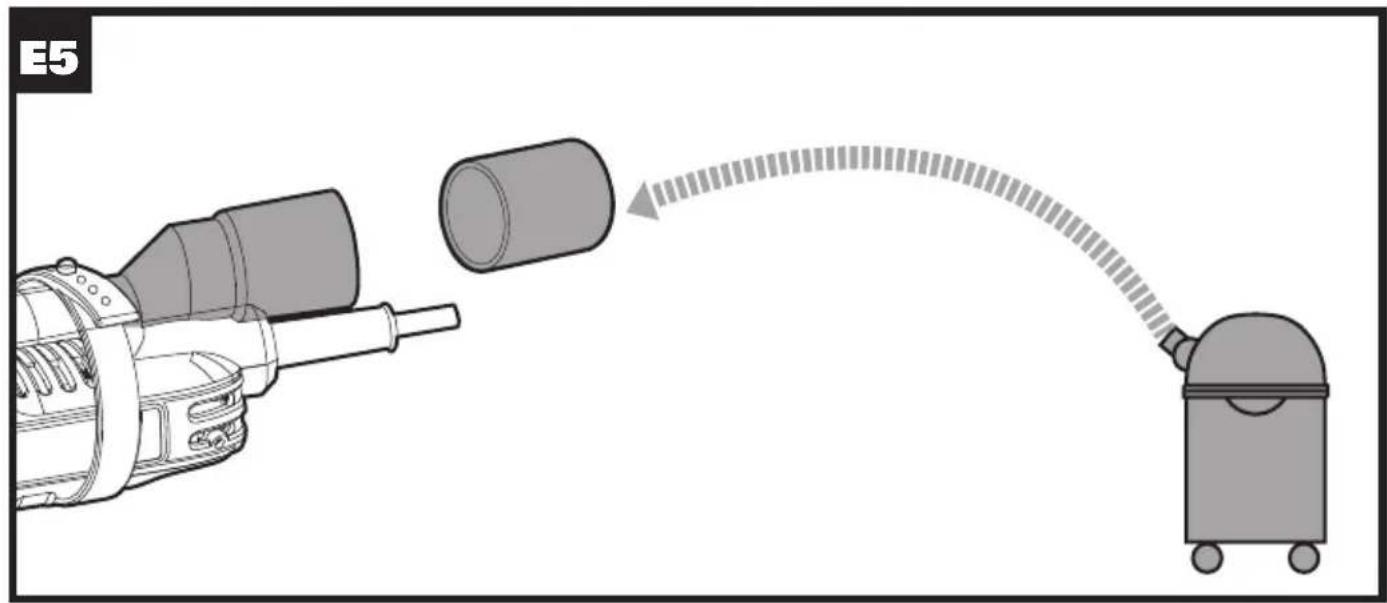

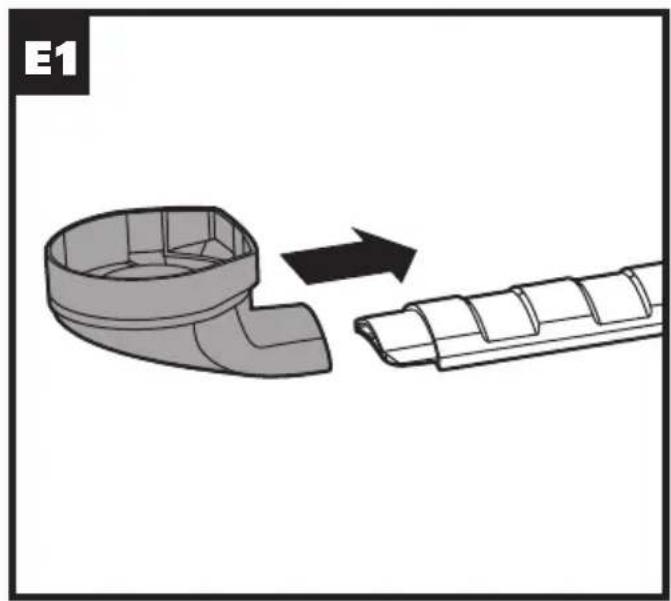

Mounting the suction device (not supplied)	See Fig. E1-E5

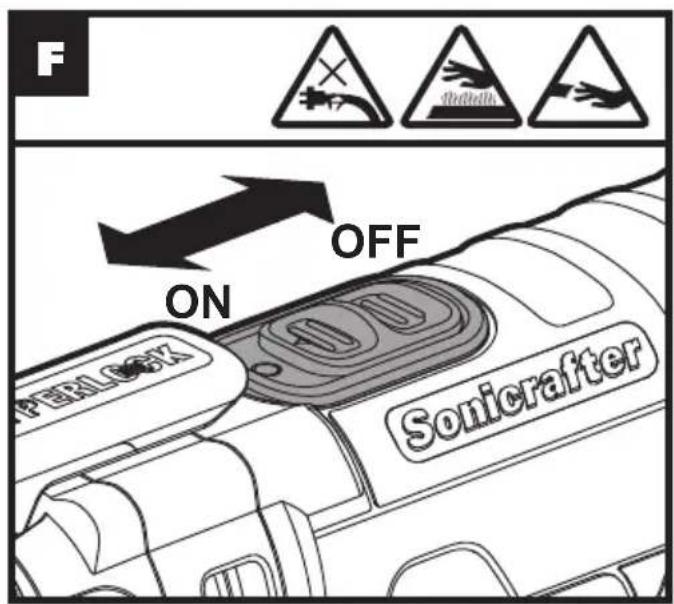

Operating the on/off switch	See Fig. F

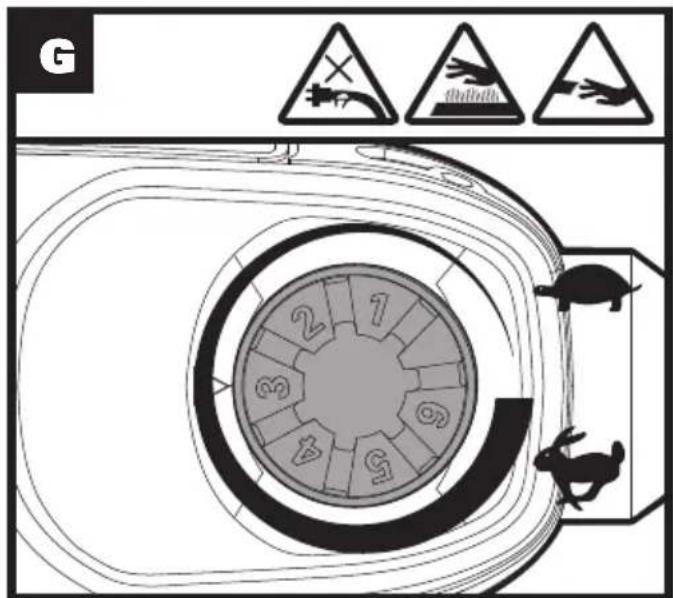

Using the variable speed dial	See Fig.G

The Variable Speed Dial can be used to set the optimum oscillating frequency according to the accessories used and the respective application.

Oscillation Frequency	Application
High oscillation frequency	Sanding, sawing, rasping and polishing stone and metal.
Low oscillation frequency	Scraping, polishing varnishes.

WORKING HINTS FOR YOUR TOOL

If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.

Always ensure the workpiece is firmly held or clamped to prevent movement.

Any movement of the material may affect the quality of the cutting or sanding finish.

Start your tool before working and turn it off only after you stop working.

Do not start sanding without having the sandpaper fitted.

Do not allow the sandpaper to wear away, it will damage the sanding pad. The guarantee does not cover sanding pad wear and tear.

Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for finishing surfaces. If necessary, first make a test run on scrap material.

Excessive force will reduce the working efficiency and cause motor overload.

Replacing the accessory regularly will maintain optimum working efficiency.

MAINTAIN TOOLS WITH CARE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool.

Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.

Always store your power tool in a dry place.

Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

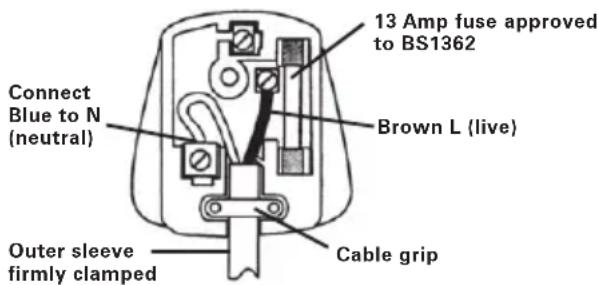

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then followthe instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

blue - neutral

brown - live

As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or neutral wires to the earth terminal of the Only fit an approved 13A BS1363/A and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

13 Amp fuse approved to BS1362 Brown L (live) Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip

APPLICATION

WARNING: The sawing teeth are very sharp. Do not touch during mounting and application.

The workpiece must be clamped tightly before it is cut.

	Pic Description	Application
Sawing		Bi-MetalMetal/Wood End Cut Blade	Wood, plastic, fiberglass,nails, non-ferrous metals,thin sheet metal, hardenedfillers.
		Standard Wood EndCut Blade	Wood, plastic, drywall.
		Precision Wood CutBlade	Wood, soft plastics.
		HSS Semicircle SawBlade	Thin wood, plastic,fiberglass,non-ferrous metals, thinsheet metal, hardened fillers,window glazing.
Sanding		Sanding Pad(Perforated)	Wood, plastic, hardenedfillers.
		Sanding Finger Pad	Wood, plastic, hardenedfillers.
Rasping		Triangular Carbide GritRasp	Wood, hardened adhesives,thin set, masonry.
		Carbide Rasp (FingerShaped)	Wood, hardened adhesives,thin set, masonry.
Removinggrout		Carbide Grit SemicircleSaw Blade	Grout, porous concrete,masonry.
		Diamond-CoatedSemicircle Saw Blade	Ceramic and stone tile,backerboard.
Scraping		Rigid Scraper Blade	Old paint, hardenedadhesives, caulk, carpet.
		Flexible Scraper Blade	Elastic sealants, paint,adhesive residues, carpet.

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal.

The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly.

Cut/Sand with a constant movement and light pressure.

Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product, Description

WORX Oscillating Tool

Type WX680 (6-designation of machinery, representative of high frequency oscillation tool)

Function Sanding, sawing, rasping, scraping, polishing

Complies with the following directives,

2006/42/EC

2004/108/EC

2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-4

EN 61000-3-2

EN 61000-3-3

The person authorized to compile the technical file, Name: Russell Nicholson

Address: Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

Yu jiu Tang

CE

2014/08/19

Yujin Tang

POSITEC Quality Manager
