USER MANUAL Harmony Classic TIGEX

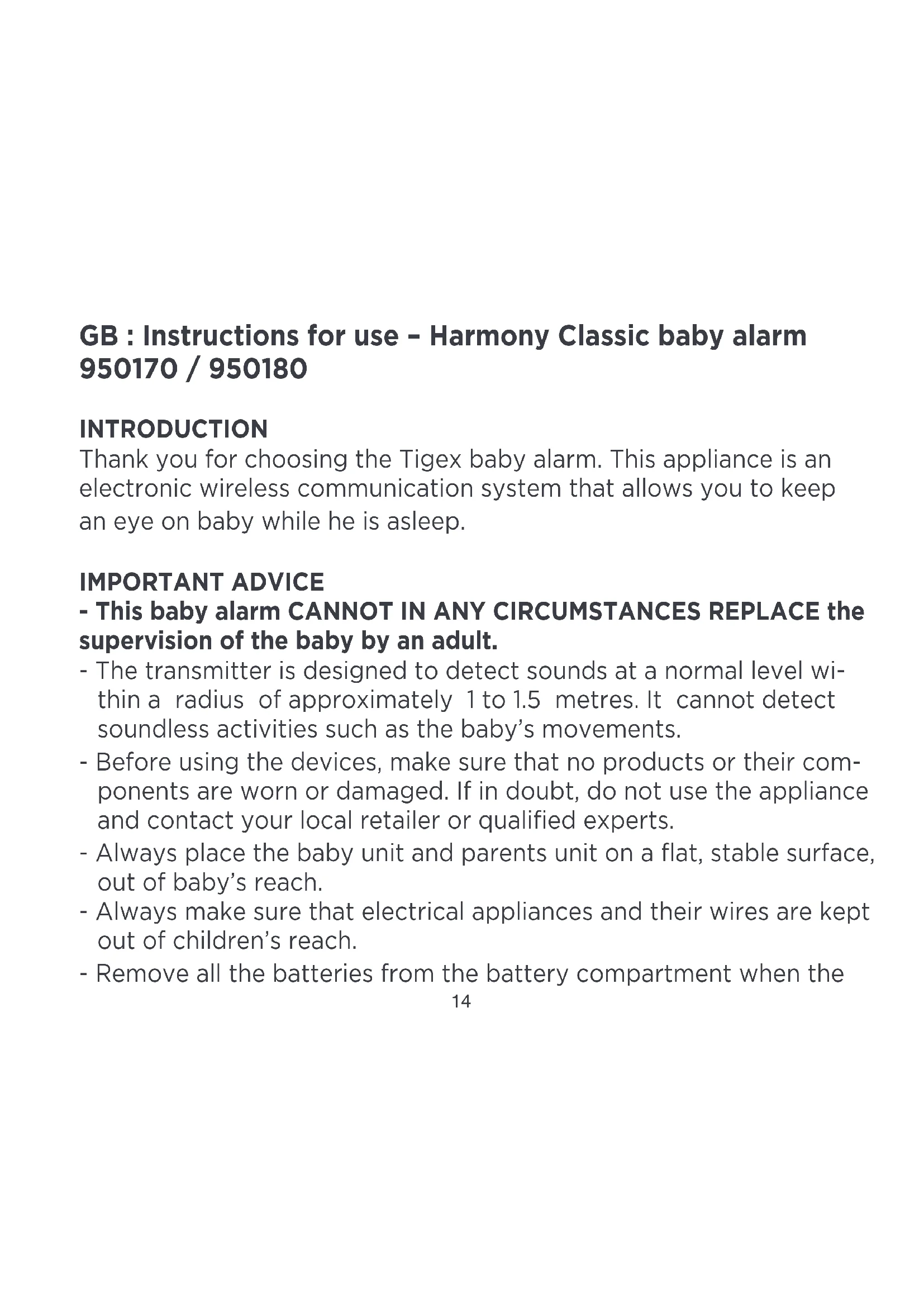

GB : Instructions for use – Harmony Classic baby alarm 950170 / 950180 INTRODUCTION Thank you for choosing the Tigex baby alarm. This appliance is an electronic wireless communication system that allows you to keep an eye on baby while he is asleep. IMPORTANT ADVICE - This baby alarm CANNOT IN ANY CIRCUMSTANCES REPLACE the supervision of the baby by an adult. - The transmitter is designed to detect sounds at a normal level wi- thin a radius of approximately 1 to 1.5 metres. It cannot detect soundless activities such as the baby’s movements. - Before using the devices, make sure that no products or their com- ponents are worn or damaged. If in doubt, do not use the appliance and contact your local retailer or qualified experts. - Always place the baby unit and parents unit on a flat, stable surface, out of baby’s reach. - Always make sure that electrical appliances and their wires are kept out of children’s reach. - Remove all the batteries from the battery compartment when the15 unit is not going to be used for long periods. - To enjoy maximum range, we suggest that you plug the transmit- ter into the mains supply. The transmitter’s range is reduced (less than 300 metres on open ground) when it runs on batteries. - If there is too short a distance between the receiver and the trans- mitter, you may obtain a Larsen effect (very shrill sound). To avoid this, simply increase the distance between the receiver and the transmitter or lower the volume on the receiver. - If there is too great a distance between the receiver and the trans- mitter, you may hear interference. This shows that you have rea- ched the maximum range for your appliance. To solve this problem, simply reduce the distance between the receiver and the transmit- ter. - The maximum range is approximately 300 m in an open space with no obstacles. The appliance’s range varies according to the obsta- cles it meets (lie of the land, number of partition walls between the transmitter and the receiver, the presence of metal structures, level of charge of the batteries, etc.). - Never use this product near neon lights or other electrical/electro- nic devices such as TVs, motors, PCs, cordless DECT phones etc. These could interfere with its functions. - It is vital to regularly check that the baby unit and the parents unit16 are both working properly ; in particular check that the signal is re- ceiving clearly and that you have not exceeded the maximum fo- reseen distance. - The system should not be used to eavesdrop on private conversa- tions. This type of use is strictly illegal. - Please read all the instructions carefully before you use this baby alarm. Keep this booklet as it acts as a permanent proof of pur- chase and may be used for identification purposes in the event of theft. - Never try to take your baby alarm apart yourself. - Keep the appliances well away for all sources of heat (maximum 40°C) and humidity. - Clean the appliance with a soft, dry cloth. Do not immerse it in wa- ter or expose it to water drops or splashes. - The adapters may become warm when the appliance is in use ; when you use them, make sure that the heat can disperse and do not cover them. - The appliance should not be dropped or subjected to violent im- pacts. - Use this product only with the electrical connection included or supplied as an accessory. - Do not place sources of naked flames, such as lit candles, on the appliance.17 - Please care for the environment: do not throw used batteries out with the household rubbish, dispose of them in the collection points provided. - N.B. to avoid all risk of electrocution; do not expose the appliance to rain or damp conditions. - Batteries should not be exposed to excessive heat (sun, fire, etc.) - The power supply adapter acts as an insulation device and should be easily accessible. - Always disconnect the mains adaptors from the power sockets when not in use. - The electricity supply switch should be easily accessible. PACK CONTENTS 1 baby unit (transmitter) 1 parents unit (receiver) 1 main supply adapters 2 rechargeable NiMH, 2 x1.2V, 550mAh type AAA batteries (for the receiver). 1 set of instructions for use18

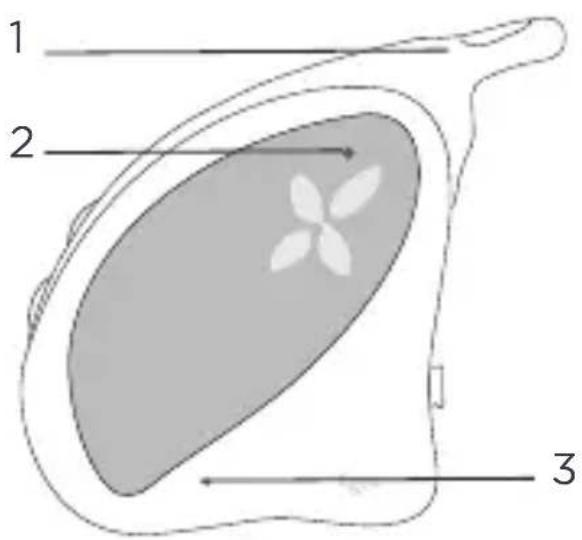

2. LED (green / red): power and battery status indicator

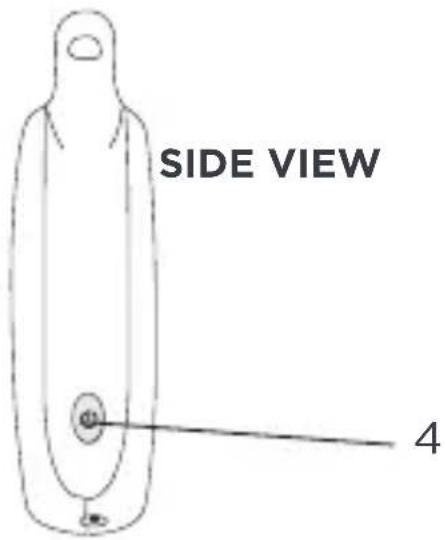

Press and hold down for 2 seconds to switch the appliance ON or OFF

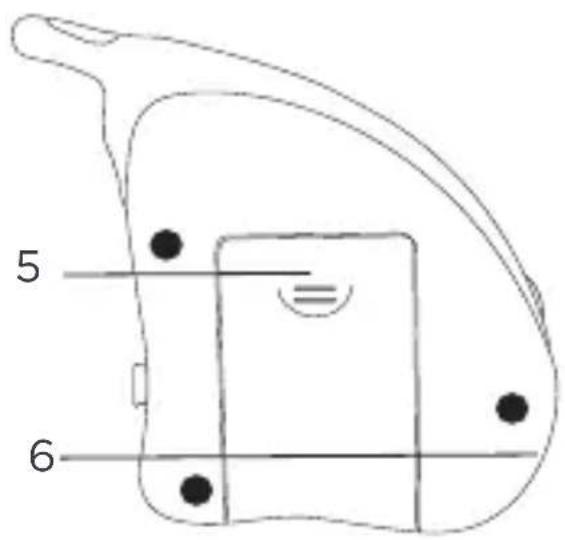

5. Battery flap (2 rechargeable type AAA batteries)

2. 4 LED (2 green and 2 red): baby cries indicator

3. 1 LED (green / red): power, link and battery status indicator

4. 1 LED (green) : VOX indicator

5. Integrate speaker

7. Power and Volume wheel

8. Rotative belt clip

9. Battery flap (2 rechargeable type AAA batteries supplied)

Baby unit The transmitter can operate either with two AAA batteries or with a mains adapter. To operate on the batteries, open the battery compartment, insert the 2 AAA batteries taking care about the polarities and then close the com- partment. Close the compartment properly to ensure that the children do not swallow the batteries.

Warning: Non-rechargeable batteries should not be recharged. Use bat-

teries of the same type. Never mix used batteries and new batteries. To use with the adapter, insert the output jack from the mains adapter into the DC socket on the baby unit. Plug the adapter into a standard wall socket. Parents unit The receiver can either work with two rechargeable AAA batteries (2 x 550mAh AAA NiMH batteries supplied) or with a mains adapter. To operate on the batteries, open the battery compartment, insert the 2 AAA batteries taking care about the polarities and then close the com- partment. Close the compartment properly to ensure that the children do not swallow the batteries.

Warning: Non-rechargeable batteries should not be recharged. Use bat-

teries of the same type. Never mix used batteries and new batteries. NB: THERE IS A RISK OF EXPLOSION IF THE BATTERIES ARE REPLA- CED BY THE WRONG TYPE. DISPOSE OF BATTERIES ACCORDING TO THE INSTRUCTIONS. To use with the adapter, insert the output jack from the mains adapter23 into the DC socket on the charging base, place the parents unit on the charging base. Plug the adapter into a standard wall socket.

2- Switching on and connection between the 2 units

Baby unit Press the button for two seconds to switch on the appliance. The LED indicator will become green and then flash every 0.5 seconds during connection. The indicator light stops flashing once the connec- tion is established. Parents unit Turn the wheel up on the parents unit. The LED indicator will become green and then flash every 0.5 seconds during connection. The indicator light stops flashing once the connec- tion is established.

3- Adjusting the volume

Parents unit Turn the wheel up to increase the volume and down to decrease the volume.

4- Parents unit functionalities

Press the VOX key to switch this function on and off. - VOX off, VOX indicator off: this option enables you to hear your baby's voice at any time, without worrying about the sound level in the bedroom. - VOX on, VOX indicator on: this option enables you to only hear your baby when it cries or makes a noise. This saves you having to listen to a permanent background noise while your baby is sleeping peacefully.

When the parents unit comes closer to the baby unit, transmission strength is dynamically reduced to save energy. This has no effect on sound quality or the effectiveness of the connection.

Baby unit When the batteries are low: the LED switches to red. Parents unit -When the batteries are low: the LED switches to red, the beep alert trig- gers. -When the batteries are on charge: the red LED flashes.-When the batteries are almost or fully charged: the LED switches to green.

5.2 Out of range alert

Baby unit -When the units are out of range: the green LED flashes. -When the units are well connected, the LED switched to green. Parents units -When the units are out of range: the green LED flashes, the bip alert trig- gers. -When the units are well connected, the LED switched to green.
