Thank you for choosing the Tigex baby monitor Easy Protect. This device allows you to monitor your baby or small children in the nursery. This device is only attended to assist you; it is not a substitute and can never replace the supervision of an adult, a baby-sitter or a care professional.

1 baby unit 1 parent unit 2 mains adapters, one for each unit 1 operating instructions

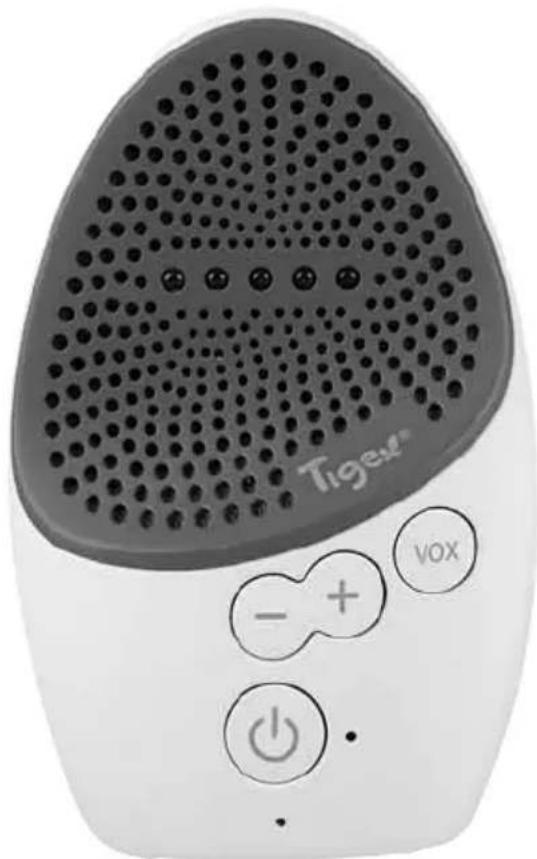

3. Components of the baby monitor

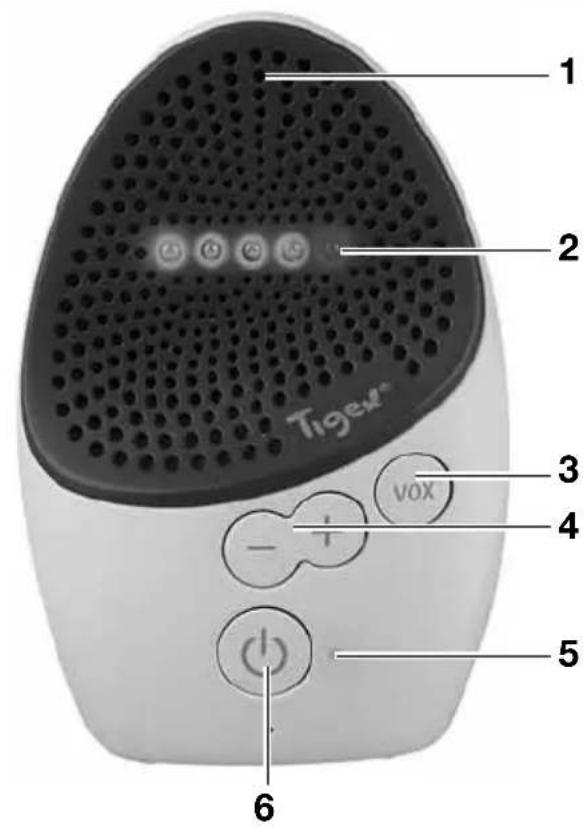

LED indicators for: Noise, Volume and VOX-Level as well as lost link 3 VOX button: setting of microphone sensitivity

Volume and VOX level adjustment buttons

Power, Eco-Mode as well as low battery indicator

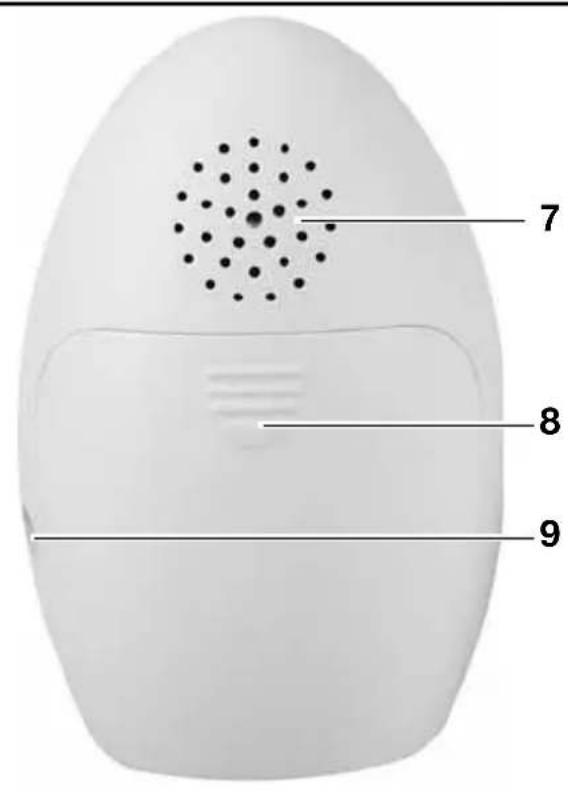

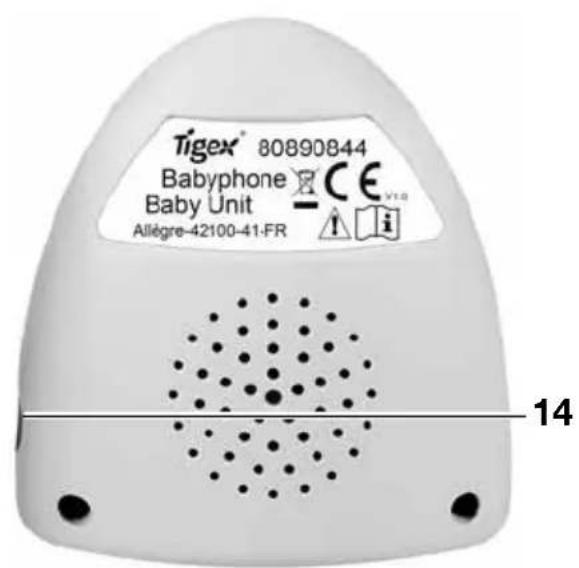

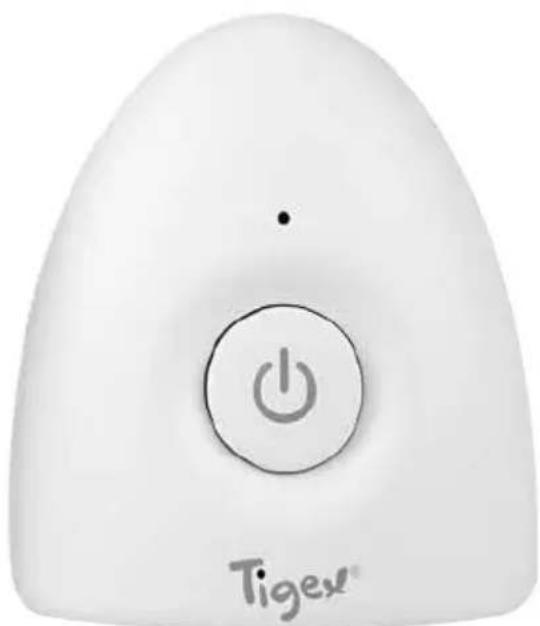

Mains adapter socket Baby Unit

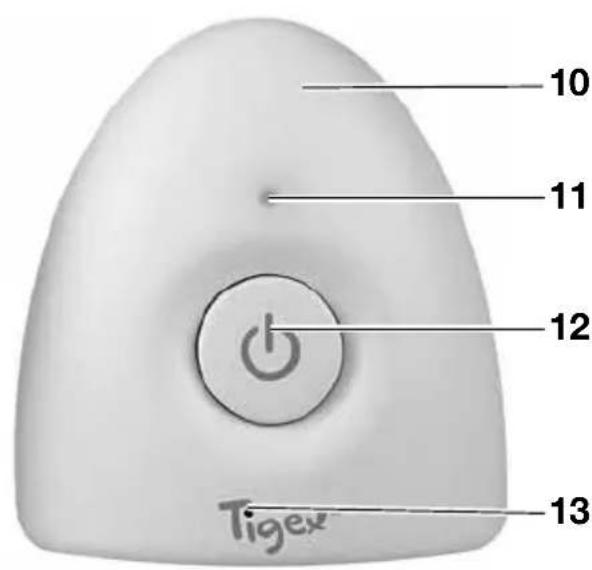

Power, Eco-Mode and Link indication

4. Description of device

This baby monitor Easy Protect allows you to listen in to your baby or small children in the nursery. It can also be used for sound-only monitoring of the elderly. This device is intended only for dry environments. It is not suitable for use in wetrooms or outdoors in wet weather. This device is intended for use in private households. It is not intended for commercial use. This device is intended as a supplementary aid. It is in no way a substitute for the physical presence and attention of parents, babysitters or caregivers.

is set up in the room that is to be monitored. It registers the sounds in the room and sends it wirelessly to the parent unit

For wireless operation the parent unit

needs 3x 1,5V AAA battery cells. They are not included in the package and can not be recharged. However the parent unit also works when the main adapter is connected. The limiting distance between baby and parent unit is about 50 m indoors and up to 300 m outdoors (in open country). The babyphone’s reception will vary depending39 on its surroundings. Thick walls or metal can reduce the range. The baby monitor has an Eco-Mode, in which the transmitter (baby unit) automatically switches to standby as soon as your baby is sleeping peacefully. Depending on the sensitivity setting, it will not switch back on until your baby begins making a noise or starts to cry. If you want to be sure of hearing every single sound from the nursery you can use the VOX button

to set the transmission sensitivity to its maximum (=level 5). On this setting the baby unit is continually switched on (see "9.2 Using the VOX function to adjust the transmission sensitivity" on page 42). If you do not want to hear any sounds at all you can use the Vol

to set the volume to mute. In this case only the LEDs for sound indication

will show you if your baby is making noise. Activating Eco-Mode minimises the high-frequency radiation in the children’s room. In this mode the baby unit merely sends a brief signal to the parent unit every 30 seconds to test the connection. If the parent unit is out of range, the parents will be alerted by a beep. You will find more information about Eco-Mode in "5.Eco- Mode and Full-Eco-Control" on page 39.

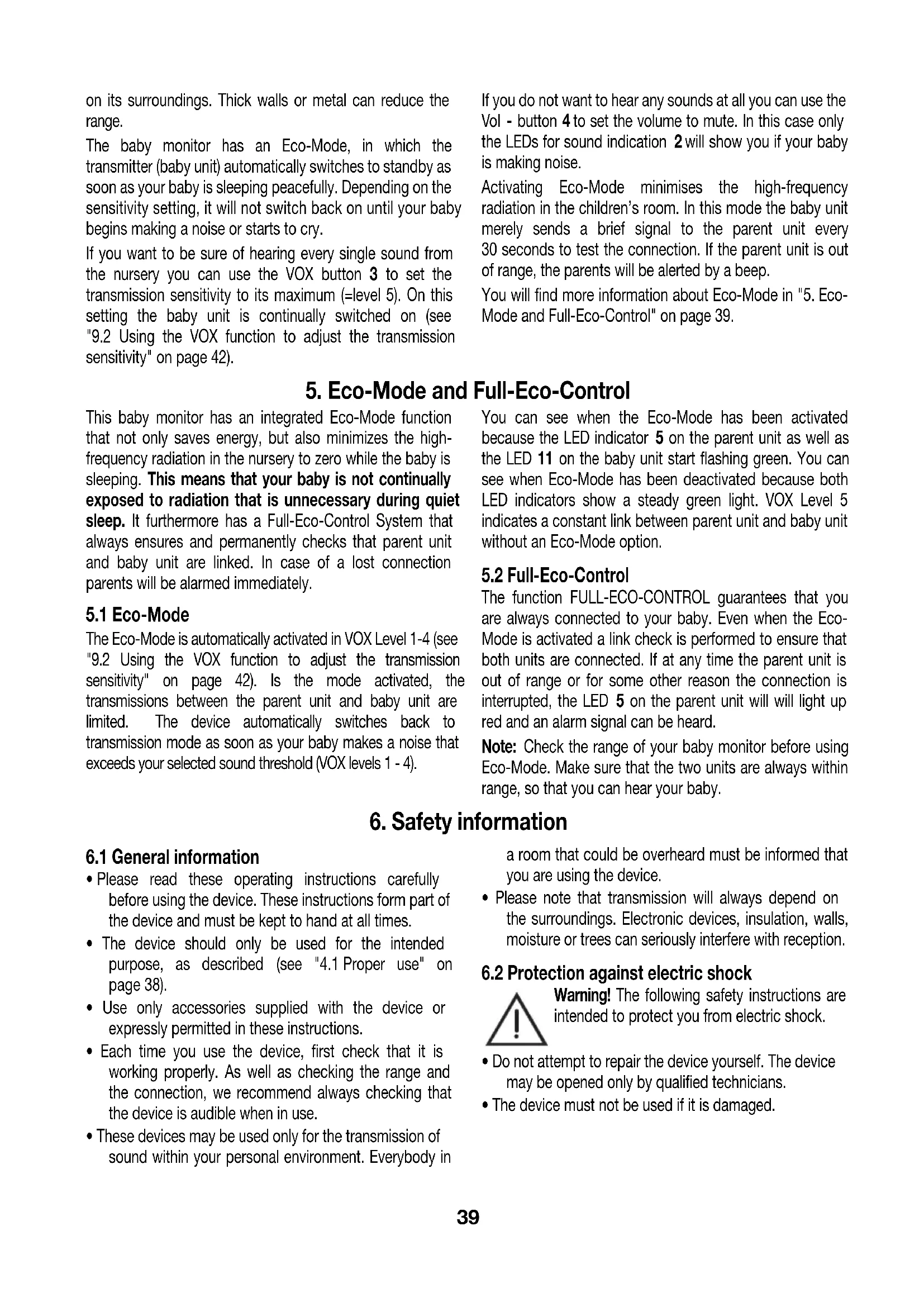

5. Eco-Mode and Full-Eco-Control

This baby monitor has an integrated Eco-Mode function that not only saves energy, but also minimizes the high- frequency radiation in the nursery to zero while the baby is sleeping. This means that your baby is not continually exposed to radiation that is unnecessary during quiet sleep. It furthermore has a Full-Eco-Control System that always ensures and permanently checks that parent unit and baby unit are linked. In case of a lost connection parents will be alarmed immediately.

The Eco-Mode is automatically activated in VOX Level 1-4 (see "9.2 Using the VOX function to adjust the transmission sensitivity" on page 42). Is the mode activated, the transmissions between the parent unit and baby unit are limited. The device automatically switches back to transmission mode as soon as your baby makes a noise that exceeds your selected sound threshold (VOX levels 1 - 4). You can see when the Eco-Mode has been activated because the LED indicator

on the parent unit as well as the LED

on the baby unit start flashing green. You can see when Eco-Mode has been deactivated because both LED indicators show a steady green light. VOX Level 5 indicates a constant link between parent unit and baby unit without an Eco-Mode option.

5.2 Full-Eco-Control

The function FULL-ECO-CONTROL guarantees that you are always connected to your baby. Even when the Eco- Mode is activated a link check is performed to ensure that both units are connected. If at any time the parent unit is out of range or for some other reason the connection is interrupted, the LED

on the parent unit will will light up red and an alarm signal can be heard. Note: Check the range of your baby monitor before using Eco-Mode. Make sure that the two units are always within range, so that you can hear your baby.

• Please read these operating instructions carefully before using the device. These instructions form part of the device and must be kept to hand at all times.

• The device should only be used for the intended purpose, as described (see "4.1 Proper use" on page 38).

• Use only accessories supplied with the device or expressly permitted in these instructions.

• Each time you use the device, first check that it is working properly. As well as checking the range and the connection, we recommend always checking that the device is audible when in use.

• These devices may be used only for the transmission of sound within your personal environment. Everybody in a room that could be overheard must be informed that you are using the device.

• Please note that transmission will always depend on the surroundings. Electronic devices, insulation, walls, moisture or trees can seriously interfere with reception.

6.2 Protection against electric shock

Warning! The following safety instructions are intended to protect you from electric shock.

• Do not attempt to repair the device yourself. The device may be opened only by qualified technicians.

• The device must not be used if it is damaged.40

• If you are travelling, please always make sure that the available voltage matches that given in the technical data.

6.3 For your child’s safety

Warning! Children cannot recognise the dangers associated with using such devices. They should therefore be kept away from them.

• Make sure that the unit and its accessories are always kept out of baby’s reach. The unit and its accessories should always be at least 1 m away.

• Children are often poor judges of hazard and are liable to injure themselves. You should therefore note: – This device is not designed to be used by people (including children) with physical, sensory or mental disabilities or with insufficient experience and/or knowledge, unless a person responsible for their safety is supervising them or instructing them on how to use the device. – Children should be supervised to ensure that they cannot play with the device. – Make sure that the plastic packaging does not become a lethal trap for children. There is a risk of suffocation. Plastic packaging is not a toy. – To avoid the possibility of strangulation, the power cable must always be out of baby’s reach.

• Use the unit only to give you additional safety. It can never serve as a substitute for a human carer.

6.4 Protection from injury

Warning! Follow the instructions below to prevent injuries.

• Make sure the power supply cable is tucked away neatly to prevent anyone from tripping over it.

6.5 Damage to the product

Caution! To prevent damaging the product, follow the instructions below.

• Do not expose the device to direct sunlight or extreme heat as UV rays and overheating may make the plastic brittle and the electronics could be damaged.

• The baby monitor should not be placed near to a source of heat and the device should also not be covered, to prevent it overheating.

• Never use the baby monitor in damp or wet surroundings.

• Never use the baby monitor in dusty surroundings. This could shorten the life of the device.

• Never use sharp or abrasive cleaning agents as these could damage your device.

• While the devices are not in use, always switch them off with the On/Off button

and the On/Off button

7. Starting and connecting the devices

Mains operation Only use the mains adapter supplied.

1. Insert the small plug of the mains adapter into the

2. Insert the plug into a power socket standard that

matches the rating given in the technical data (see "11. Technical data" on page 42).

Battery operation For battery operation you need 3 batteries of the AAA 1.5 V type. Any rechargeable batteries inserted will not be recharged. Attention! The batteries should be removed if the device is not going to be used for an extended period to prevent leaking batteries causing damage to the device.

1. Remove the battery cover

on the back of the parent unit

, by sliding it downwards.

2. Insert the batteries, ensuring that they are correctly

positioned in the battery compartment according to the + and – symbols.

3. Slide the battery cover

Is the battery level low the LED indicator

will flashing red. The parent unit needs to be connected with the mains adapter before the unit turns itself off automatcally. In addiction a signal will also inform you about a low battery status. Note: If the mains adapter ist connected the device gets its power from the mains adapter and not from the inserted batteries.

The baby unit only works with the included mains adapter. Warning! Ensure that the baby is not able to touch the power cable. Also ensure that the unit cannot fall into the cot.41

1. Put the baby unit somewhere in the nursery where your

baby will not be able to reach it. An optimal distance between baby and the baby unit is from 1 to 2 m.

2. Insert the mains adapter plug into the socket

3. Insert the plug into a power socket standard that

matches the rating given in the technical data (see "11. Technical data" on page 42). The baby unit is unlike the parent unit ready to be used once it is plugged in for the first time. This function is a safety programming which ensures that baby unit will start automatically again after a power outage. However, if you turn the baby unit off manually by pressing the power ON/OFF button

the unit will stay off during a power outage.

7.3 Connecting baby unit and parent unit

Once both units are supplied with electricity and are turned on, they start connecting automatically. During the pairing process the red of the five LED indicators

and the link indicator

light up red. When the link is established both indicators will turn green. Always ensure that the parent unit remains within the range for the pairing process. In the event that the connection between the parent unit and the baby unit breaks down, the devices will automatically attempt to establish a new one. If a new connection is not established within 30 seconds, the parent unit

will emit a regular beep and the link indicator

will light up red. You may need to move the parent unit to a different location before a new connection can be established.

8. Alerts, warnings and indicators

This baby monitor has several ways to warn or alert you. If you hear an alert pay close attention to the parent unit. Note: Red LEDs need your attention and reaction immediately. On the parent unit

(4 green, 1red). These LEDs have multiple purposes.

9. Activation of features

9.1 Volume adjustment

To adjust the volume of the parent unit you can use the volume adjustment buttons

. All together there are 5 levels of volume and the option to mute the parent unit (see "Mute Setting“ on page42). Each time you press one of the buttons you will hear a beep at the volume that is currently set and the Sound alert Indicator Meaning What to do Alarm every 30 s Link indicators

are red Parent unit is either out of range or you lost the link to the baby unit for another reason Move the parent unit to a different location so a new connection can be established Alarm every 60 s LED indicator

is flashing red Battery is low Connect the mains adapter Activated function Meaning No function is activated (frequently illuminated LEDs) Indicating the noise level in the nursery. The more LEDs are lit, the louder are the noises. Adjusting volume (steady illuminated LEDs) The more LEDs are lit, the higher the volume level on the parent unit. Adjusting VOX sensitivity (flashing LEDs) The more flashing LEDs the higher is the VOX Level and the more the microfon on the baby unit is reacting to small noises. Level 5 will continuesly transmitt all noises without activating the Eco-Mode Eco-Mode (no illuminated LEDs) Indication that maybe the Eco-Mode is activated and your baby is sleeping. Only the red LED lights up Lost link/no connection between parent unit and baby unit or indication for low battery status.42 corresponding volume indicators

will be illuminated. The louder your chosen setting, the louder will be any beeps and the more volume indicators

will light up. Note: When the VOX function is set to low sensitivity (see "9.2 Using the VOX function to adjust the transmission sensitivity" on page 42), then quiet sounds will not be transmitted regardless of the volume setting. This means that turning up the volume will not enable you to hear anything more. If you want to hear more of the sounds from the nursery you will need to increase the transmission sensitivity by selecting a higher VOX level. Mute Setting The parent unit

can be “MUTED”. Sounds from the nursery will be transmitted but no longer heard. The noise level indicators

will continue to indicate the noise level in the nursery. The more LEDs are lit the louder are the noises in the nursery. When reducing the volume to mute at the end you will hear a double beep.

9.2 Using the VOX function to adjust the

transmission sensitivity Babies make a lot of different noises. These can range from loud breathing through babbling to calling or loud crying. The VOX function can be set up in such a way that only loud sounds such as crying or calling are transmitted while quieter sounds are not registered. The VOX function sets up the transmission sensitivity of the microphone. The higher the VOX level the more sensitive the device is to noises. Activate the VOX function by briefly pressing the VOX button

start flashing and are indicating the current set level. By pressing the VOX adjustment buttons

the sensitivity can be increased (+) or decreased (-). VOX level 1 = extremely low sensitivity, reacts only if baby screams very loudly; VOX level 2 = low sensitivity, reacts if baby screams loudly; VOX level 3 = normal sensitivity, reacts if baby cries normally; VOX level 4 = high sensitivity, reacts even to slight sounds; VOX level 5 = Eco-Mode is switched off. The unit is set to transmit continuously. Note: After activating the VOX function, you have about two seconds to alter the transmission sensitivity. The device will then automatically switch back to transmitting sounds. You can see this has happened because the level indicators

will no longer be flashing, and the volume and VOX adjustment buttons

Warning! To avoid the risk of electric shocks, injuries and damage: – Always disconnect the mains adapter from the power socket before cleaning the device. – Never immerse the individual parts in water. Caution! Under no circumstances use abrasive, corrosive or scratching cleaning agents, as these could damage the device.

1. If necessary, wipe the individual parts with a damp

have fully dried out.

Wireless connection 2.4 GHz FHSS Transmission frequency 2400-2483.5 MHz, < 20 dBm Number of channels 36 / automatic channel selection Outdoor range app. 300 m (free field without interferences) Indoor range app. 50 m Successful transmission depends on the environment. Walls or trees can seriously interfere with reception. Baby unit Operating temperature 0 °C to 40 °C ambient temperature Parent unit Operating temperature 0 °C to 40 °C ambient temperature Batteries 3x AAA 1,5 V (not included)43

11.1 FHSS Technology

The wireless transmissions of this baby monitor use modern FHSS technology. Frequency Hopping Spread Spectrum (FHSS) is a digital frequency spreading method for wireless data transmissions. Unlike earlier methods, the whole of the transmission power is not concentrated on a single frequency. Instead, the carrier frequency is changed at random. The individual data packets transmitted via the different carrier frequencies are then reassembled in the receiver. This method has several advantages over conventional radio transmission:

• It is much more difficult to intercept the radio signal, because the listener does not know how the signal is distributed among the different frequencies and how to correctly reassemble it. For this reason the same method is used by Bluetooth and by the military.

• Radio transmissions that use this method are also much less susceptible to interference. This is because a given carrier frequency is always used only very briefly before switching to another. If there is interference on one frequency it will affect only small data packets, and appropriate correction algorithms can compensate for such errors.

The symbol of the crossed-through wheelie bin means, within the European Union, that the product is subject to a separate waste collection. This applies to the product and all accessories marked with this symbol. Products labelled as such must not be disposed of with the normal household waste collections; they must be taken to a recycling bank for electrical and electronic equipment. Recycling helps to reduce the use of raw materials and is eco-friendly.

When you wish to dispose of the packaging, please observe the relevant environmental regulations for your country.

In addition to the seller's warranty obligations arising from the contract to purchase, we as the manufacturers provide a warranty of 10 Years from purchase of the appliance as long as the appliance is used properly and the operating instructions are followed. Evidence of the date of purchase and the type of appliance should be provided by means of a receipt. Without a receipt, we will not be able to take your request into account. The purchaser's statutory rights are unaffected by this manufacturer warranty. During the warranty period, we undertake to remedy any defects attributable to poor materials or workmanship. Wear parts are excluded from the warranty. Minor deviations from specified quality which do not affect the value or usability of the appliance are not covered by the warranty. We are likewise unable to accept the warranty if the defects on the appliance are due to transport damage for which we are not responsible, if they are attributable to misuse or lack of care or if the appliance has been interfered with by persons not authorized by us to do so. The warranty service will involve replacement of the plug adaptors or replacement of the appliance at our discretion by the same model or a model of a similar range. The warranty period will be neither extended nor restarted by the performance of warranty services. The warranty for any spare parts fitted will expire with the warranty for the appliance as a whole. Extended or different claims, especially those relating to the making good of damage sustained outside the appliance, are excluded unless liability is compulsory in law. We will not accept the costs or risks of transport. Please do contact our after sales service by phone, email or regular Postmail to expose the issues faced on your product before returning any good to our adresse. A return form will be sent to you to activate the 10 Year guarantee & the replacement of the product as per above conditions. The original of the Purchase Receipt will need to be sent at the same time. Please keep this address and article number in case of any queries. Mains adapters (Model No. TGE050P055) Input 100–240 V AC; 50/60 Hz; 100 mA Output 5 V ; 2.75 W;ALLEGRE PUERICULTURE Service Après Vente 41, rue Edouard Martel – BP 197 42013 Saint-Etienne Cedex 2 France www.tigex.com REV 400/07-2018 Article n
