USER MANUAL Feeling RF Grässlin

Safety instructions Danger from electric shock! The connection and installation of electrical devices may only be carried out by a qualied electrician. DANGER It is imperative to observe the generally applicable safety measures, e.g. before starting any work on the appliance, switch off power supply and secure against switching on. Interventions in and changes to the device result in the voiding of the warranty claim. Observe your national regulations and the respective safety provisions.44 feeling rf A B

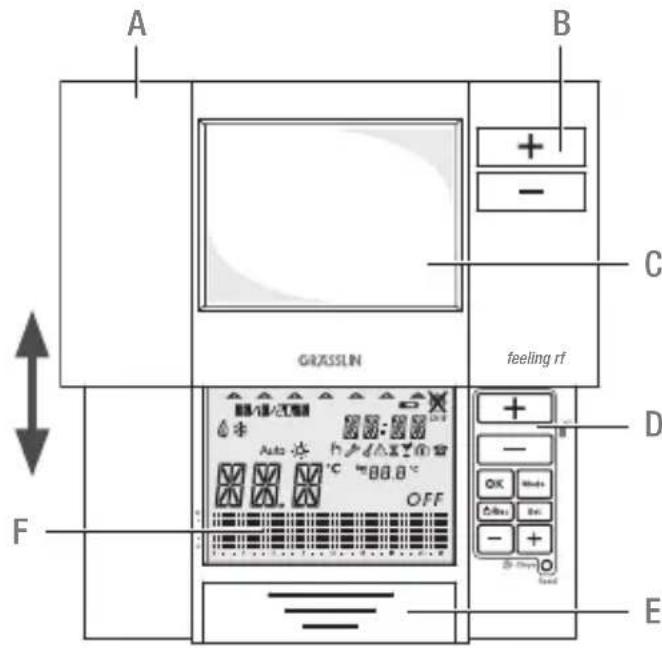

Proper use feeling/feeling rf are a new generation of chrono- thermostats with new modern design. The large LCD display enables the display of information and control of all integrated functions. The device may only be used in combination with your heating system. Assembly description A Moveable sliding cover B Keys for manual override function C Window D Keyboard E Battery compartment F Display Product details45

Technical data – Relay version Power supply: 2 x 1.5 V AA LR6 alkaline batteries Battery service life: 2 years (depending on switching frequency) Switching output: SPDT (potential-free) Switching capacity: 6(2) A 250V AC Wire cross-section to relay terminals: 0.5 mm

Room temperature display resolution: 0.1ºC Temperature setting display: Program: +5ºC…+32ºC (0.5ºC steps) Frost protection: 5ºC (adjustable 3ºC…7ºC) Time setting resolution: Time of day: 1 minute Program: 30 minutes Temperature measurement (heating system): 3 K/hour Programming: weekly program with up to 48 time and temperature programs changes Pre-programmed programs: 4 + 1 user-dened Protection class/type: II/IP40 Operating temperature range: Max. 45ºC Operating humidity range: 10% to 90% RH non-condensing Dimensions H x W x D (mm): 87 x 154 x 2746 Technical data – RF Set, Transmitter Power supply: 2 x 1.5 V AA LR6 alkaline batteries Battery service life: 2 years (depending on switching frequency) Room temperature display resolution: 0.1ºC Temperature setting display: Program: +5ºC…+32ºC (0.5ºC steps) Frost protection: 5ºC (adjustable 3ºC…7ºC) Time setting resolution: Time of day: 1 minute Program: 30 minutes Temperature measurement (heating system): 3 K/hour Programming: weekly program with up to 48 time and temperature programs changes Pre-programmed programs: 4 + 1 user-dened RF signal: 868.3 MHz RF signal range: Indoor 30 m (2 walls + 1 ceiling) Protection class/type: II/IP40 Operating temperature range: Max. 45ºC Operating humidity range: 10% to 90% RH non-condensing Dimensions H x W x D (mm): 87 x 154 x 2747

Technical data – RF Set, Receiver Power supply: 230 V +/-10% 50-60 Hz Switching output: SPDT (potential-free) Switching capacity: 5 (1) A 250 V AC Wire section to relay terminals: 0.5 mm

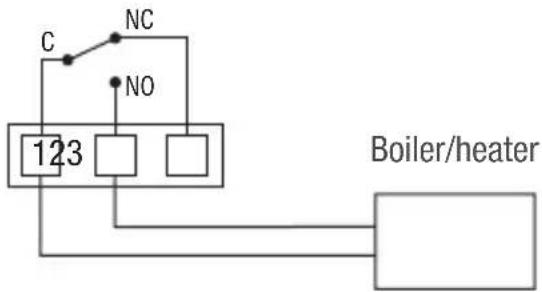

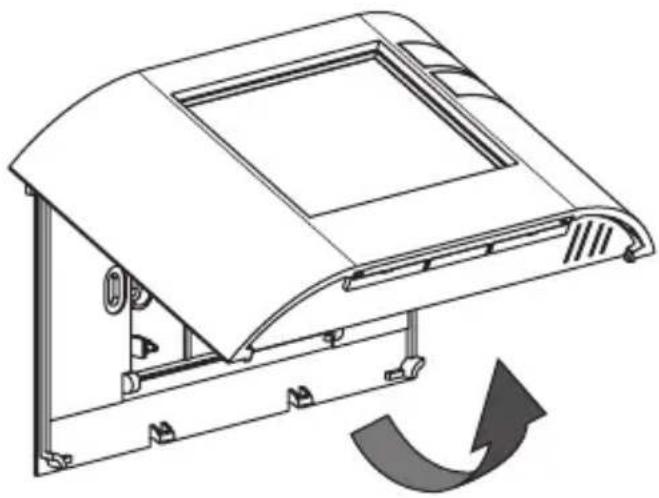

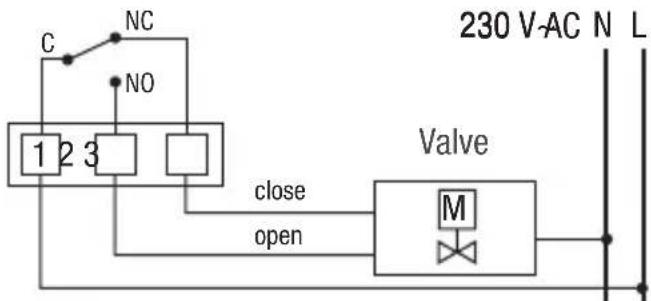

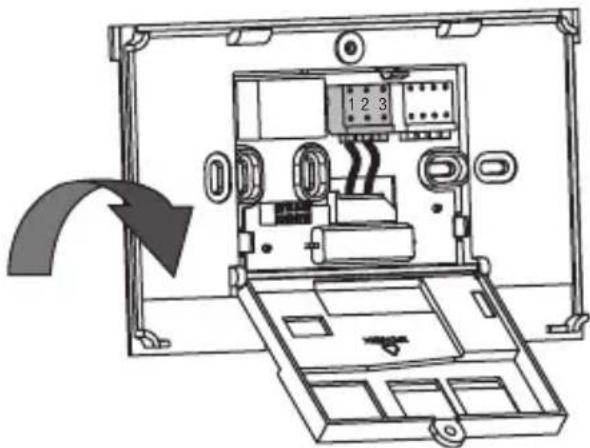

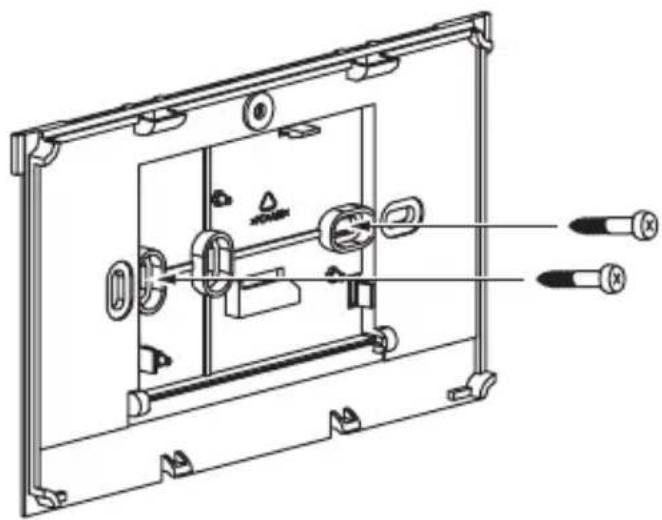

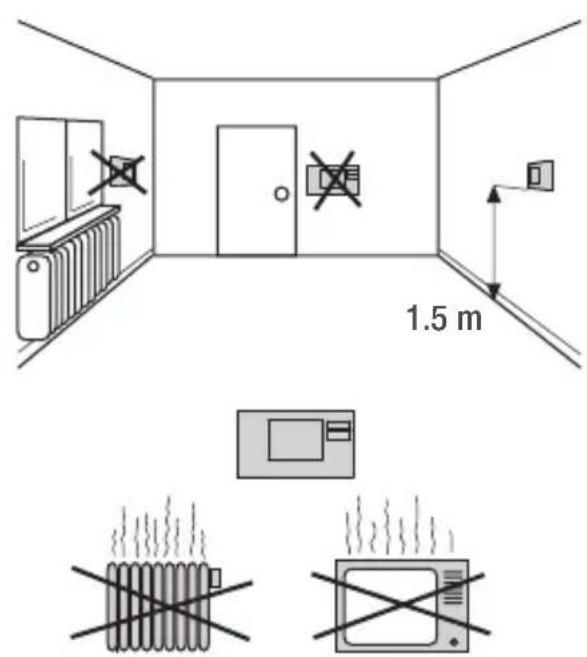

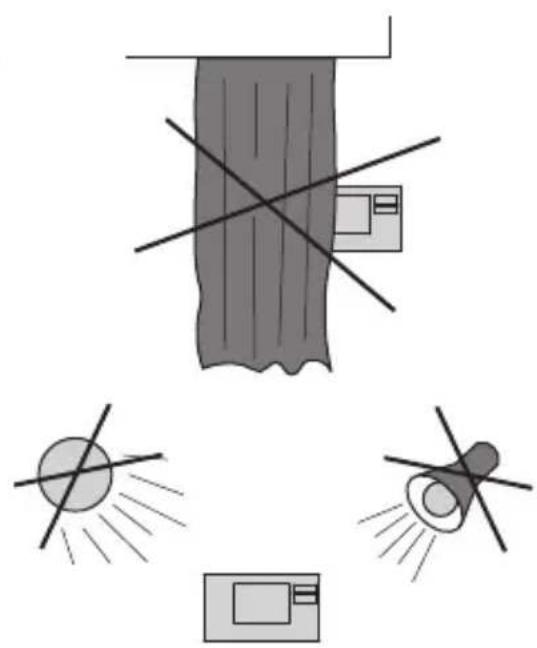

Open housing Wall mounting For wired and wireless version.50 Connection For wireless connection, please refer to chapter RF commissioning.

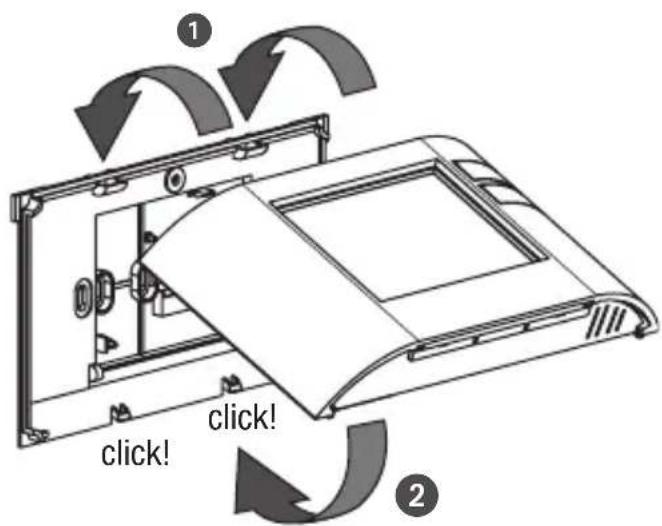

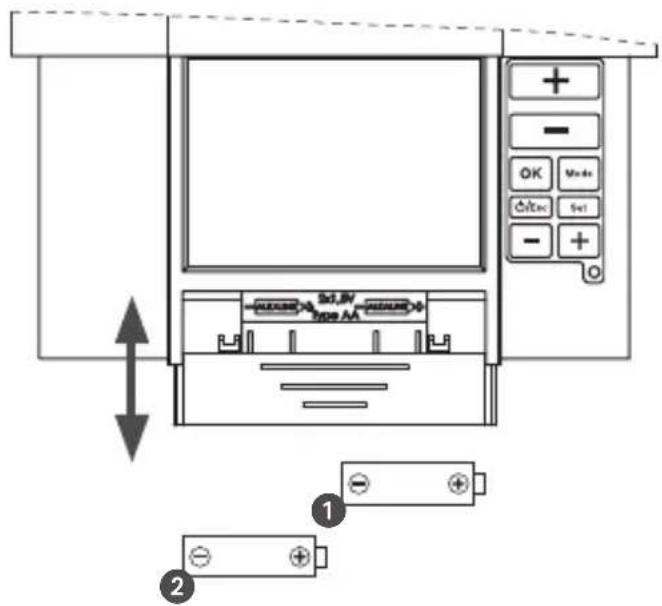

Close housing Insert batteries For wired and wireless version.52 Operating and adjustment Operating information Flashing texts signal the need for an entry. If no button is pressed for 2 minutes, the device reverts to the Automatic mode. All settings need to be conrmed with OK. All settings saved will remain in the memory. The histogram shows the programmed temperature prole 7 – 14°C = displayed as one segment 15 – 24°C = one segment displays 1°C over 24°C = one segment displays 2°C53

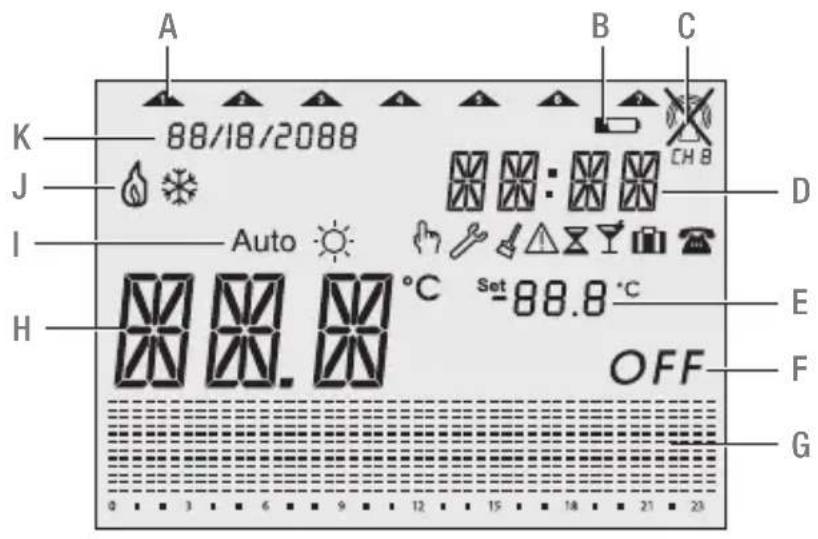

A Current week day B Battery C RF signal D Current time E Set temperature F Off mode G Histogram over 24 hours H Current temperature I Operating mode J Status indication K Current date Display A C

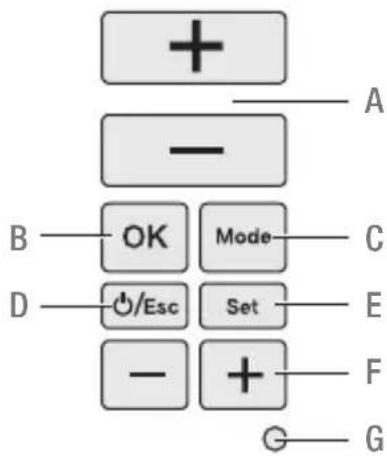

B54 Function keys A +/– buttons used to increase/decrease tem- peratures. B OK-button to conrm settings and go to the next step. C MODE-button to select from the available operating modes. D ESC-button used for ON/OFF, go one step back in menu or return to main menu by pressing the button more than 3 seconds. E SET-button for settings following commissioning. F +/– buttons used to increase/decrease hours, days and events. G RESET-button to return to factory settings. The programs are retained in the case of a reset. The date and time must be set again. Press reset button with a blunt object (pen).

Conguration General information For the use of this manual you must observe the following informations:

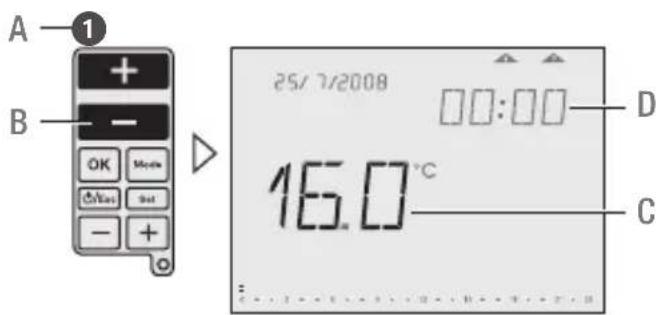

A Sequence of operation B Pressed buttons are shown in black. C Flashing elements are shown in black D Fixed elements are shown in grey Buttons which can be pressed during an action are shown in black. The related display is also shown in black. Follow exactly the numbers of the sequence of operation. The conguration of the device is described based on conguration. After starting the device for the rst time, follow the menu for a correct conguration of the device. Following commissioning, you can also change the conguration by pressing the SET-button.56 Initial start-up Set date and time Sequence for setting the date and time during initial start-up. 15/6/2008 appears as factory default. To set the date and time after initial start-up press the SET-button, then choose Date or Time Menu with the upper +/– buttons and conrm with OK.57

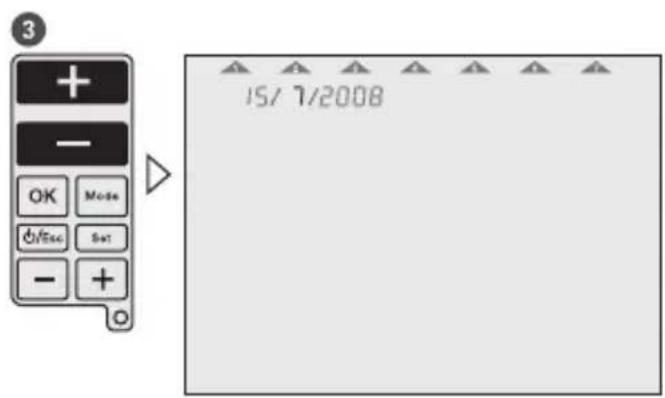

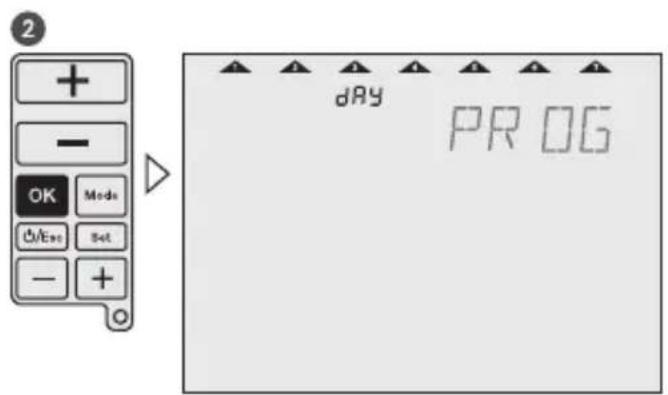

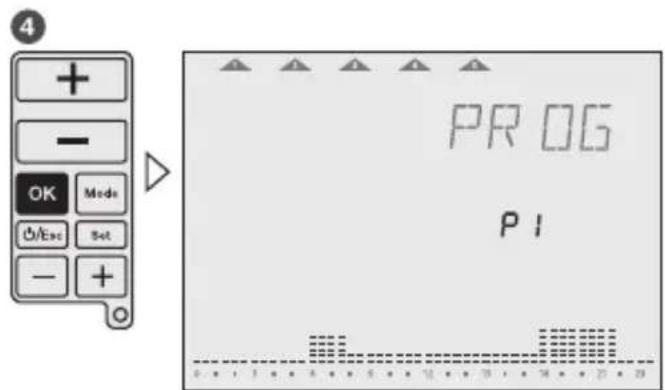

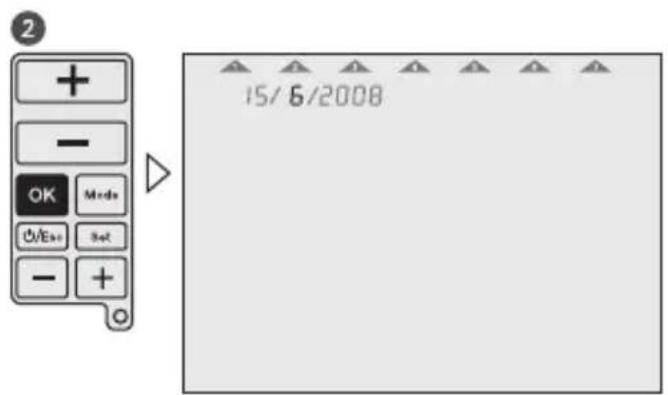

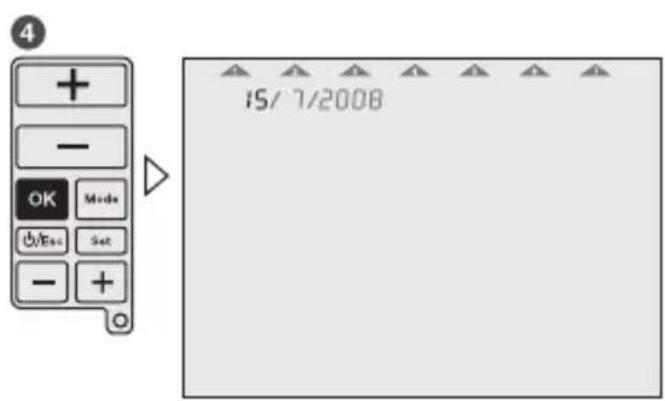

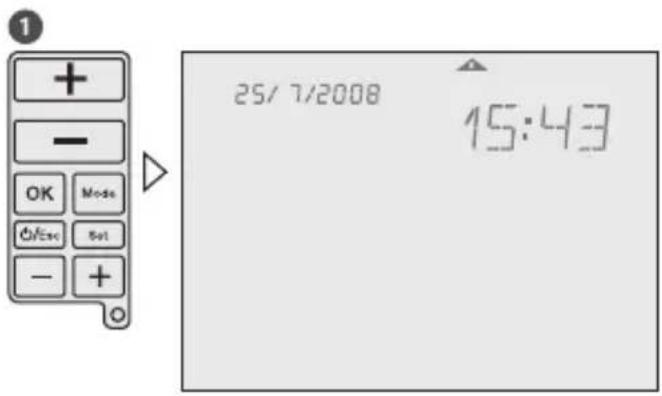

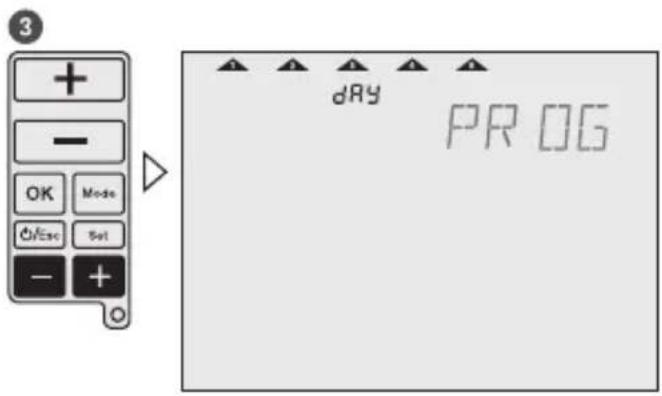

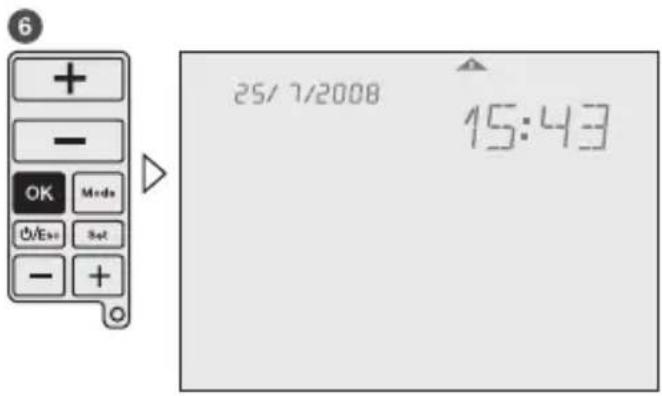

The time is set in the same way as the date.58 Programming Sequence for specifying programs during initial start-up To specify programs after initial start-up press the SET-button, then choose the Prog menu with the upper +/– buttons and conrm with OK.59

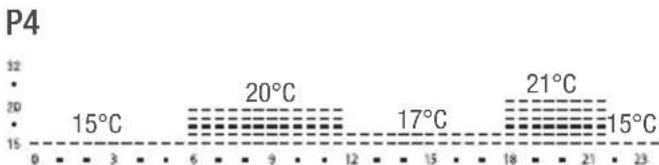

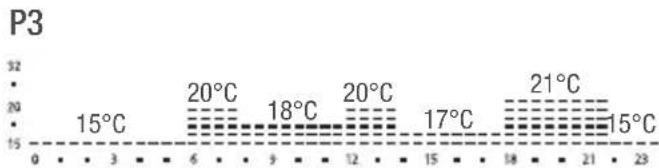

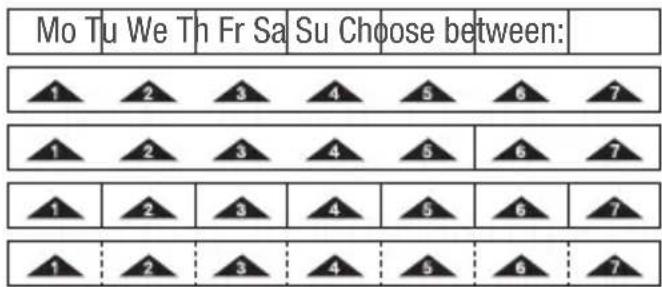

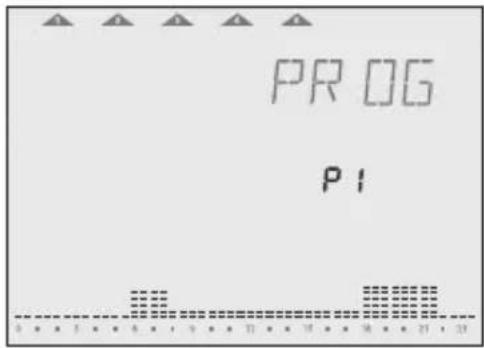

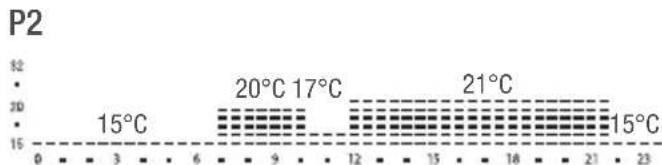

Mo Tu We Th Fr Sa Su Choose between: 7 days – one programm 5-2 days – one program per day block 1-7 days – each day an individual program free block formation – one program per day block60 Select program Each weekday or day block must be allocated a program P1, P2, P3, P4 (pre-dened) or Pd (user- dened).

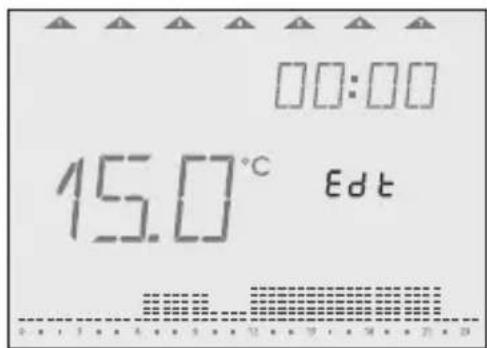

User-dened program. During initial start-up, program will be shown with 15ºC from 00:00 to 23:59 PM.

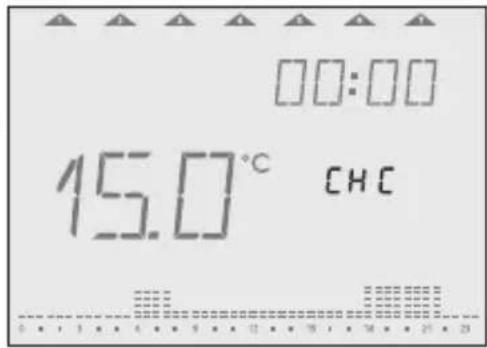

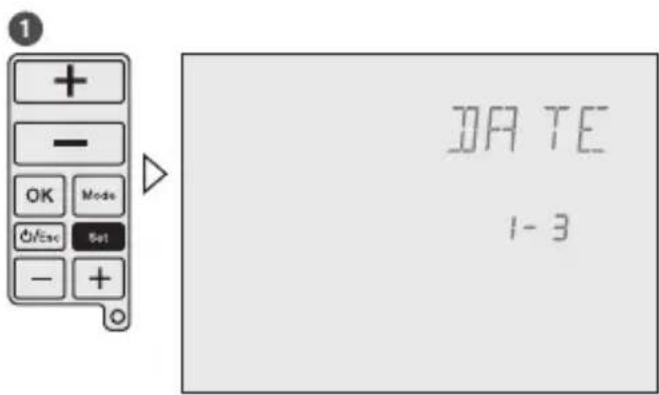

If you wish you can modify the pre-dened programs. Use the upper +/– buttons to increase/decrease the temperature of each segment by 0.5°C. Use the lower +/– buttons to go forward/backward 30 minutes each time and copy the selected temperature value.62 Settings After commissioning you can change the date, time, temperature and time programming. By pressing the upper +/– buttons you jump to the different menus. 1-3 = adjustment of date 2-3 = adjustment of time 3-3 = adjustment of time and temperature programming63

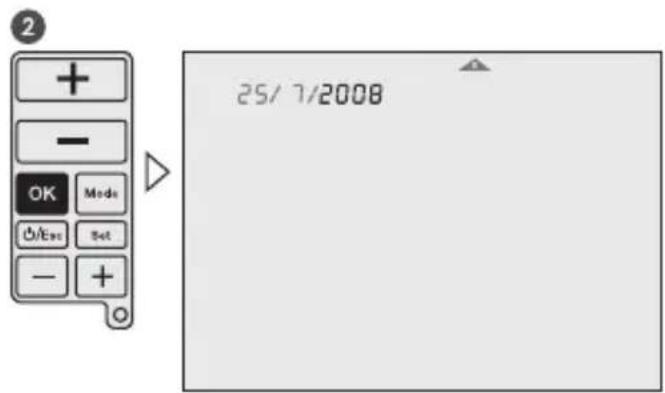

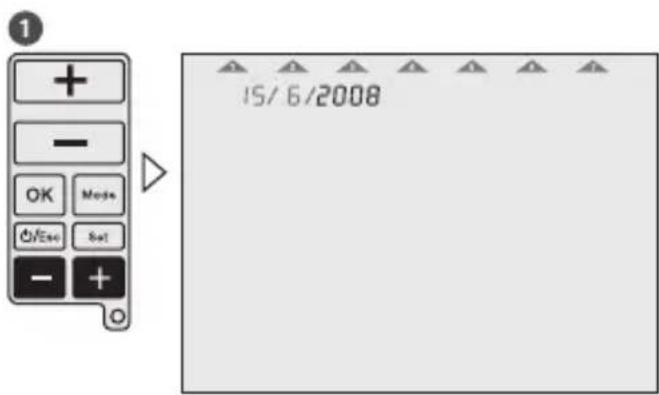

You are now able to adjust the date as described in the initial start-up. The sequence of setting the time is similar to the method for settingthe date. With the lower +/– buttons you can choose days or day blocks for programming and conrm with OK. Go to operation number

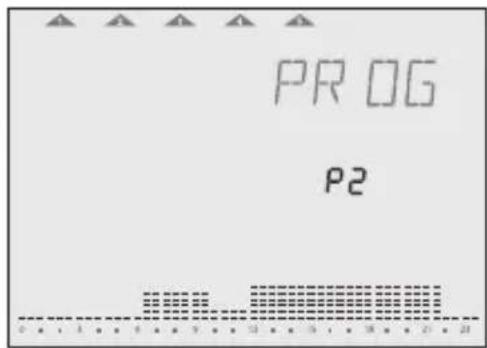

By pressing the OK-button you can choose between the pre-dened programs P1 – P4 or the user-dened program Pd. Go to operation number

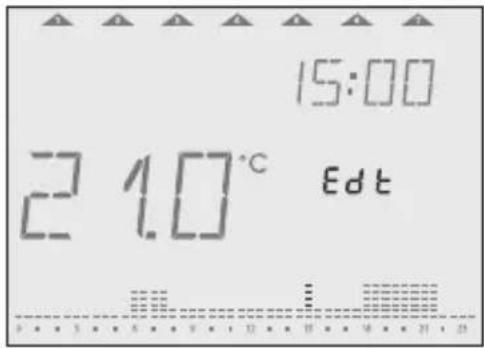

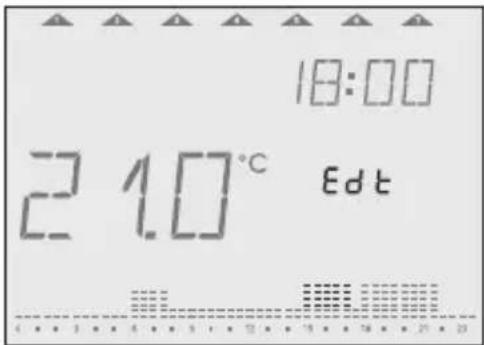

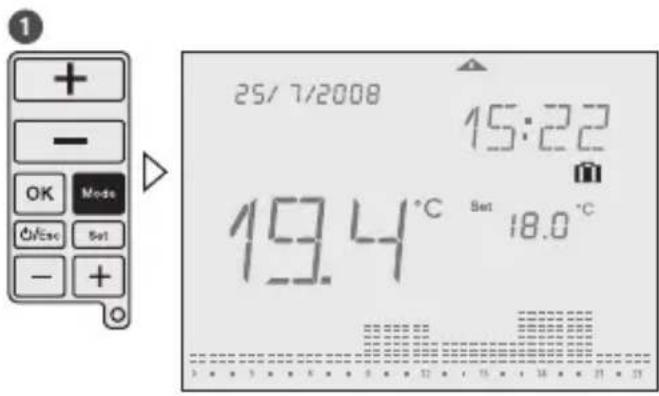

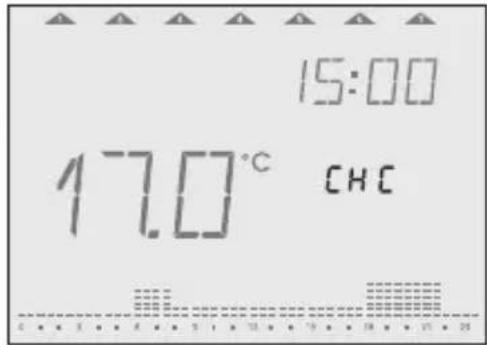

By pressing the lower +/– buttons you can go through the program to check it. For editing the program, use the upper +/– but- tons to increase/decrease temperature in each segment by 0.5°C. Use the lower +/– buttons to go forward/backward and copy the selected temperature value.66 Operating modes Set operating modes Follow the sequence for selecting the desired operating mode. The operating modes in the device appear in the same order as described here. Press and hold the ESC-button for 3 seconds to return to Auto mode. Example:67

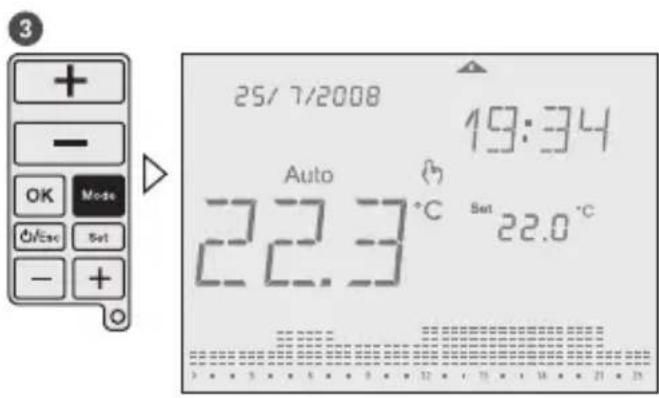

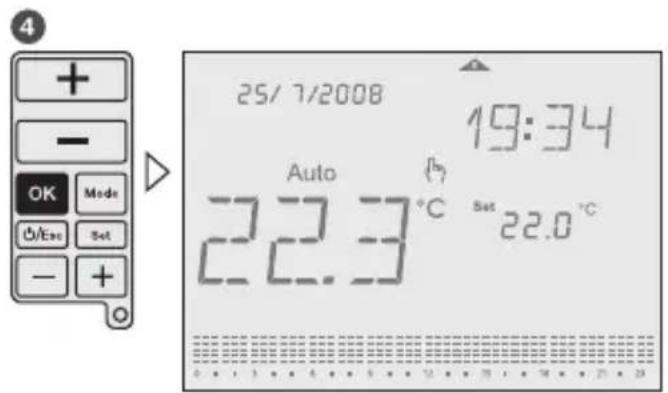

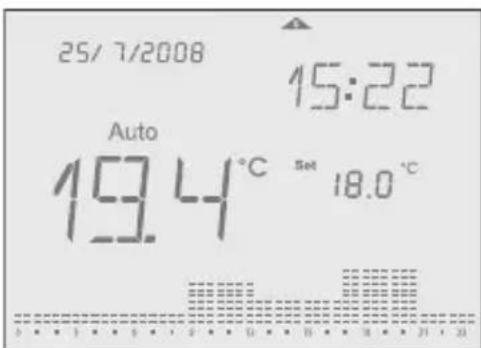

Auto Symbol: After each programming session, the device automatically returns to the Auto mode. The predened or user-dened program run here.68 Manual-ECO-Fix Symbol: Manual-ECO-Fix mode calculates an average temperature of the actual program. This temperature is is kept for the whole day until any user‘s intervention is made. To return to Auto mode, press OK. The average temperature is the starting point for increasing or decreasing the desired temperature, pressing upper +/– buttons. The new temperature set value is then, after 3 sec., set for all day long. Example: 4 different temperatures in the actual program (e.g. 17°C, 19°C, 20°C and 22°C). Average temperature is then 19,5°C.69

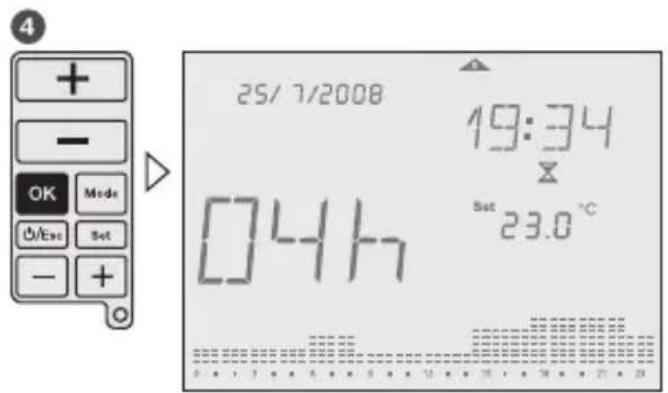

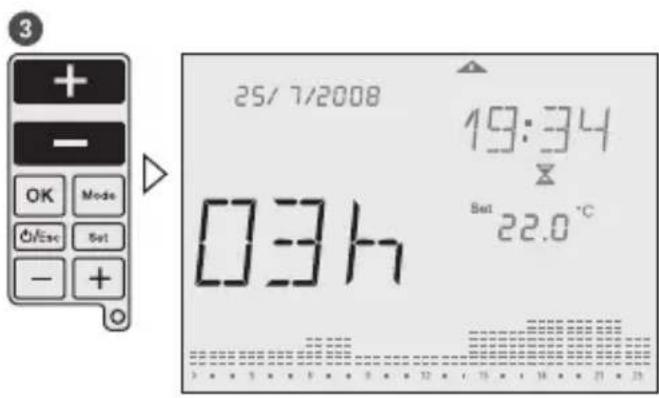

Cleaning mode Symbol: This mode sets the device into OFF mode for a preset time of 2 hours. During the cleaning time, remaining time is shown until running mode elapsed. After the Cleaning mode is elapsed, the device returns into Auto mode. To end Cleaning mode early, press ESC-button for more than 3 seconds. The anti-freeze protection is granted.70 Countdown mode Symbol: This function runs into a desired set temperature during certain period of time. Adjustable period of time is 1 – 23 hours. After the time is elapsed, the device returns into OFF mode (Anti-freeze tempera- ture is kept). During the Countdown mode, remaining countdown time is indicated. Example: The device shall be run into OFF mode after 4 hours. To end Countdown mode early, press ESC-button for more than 3 seconds.71

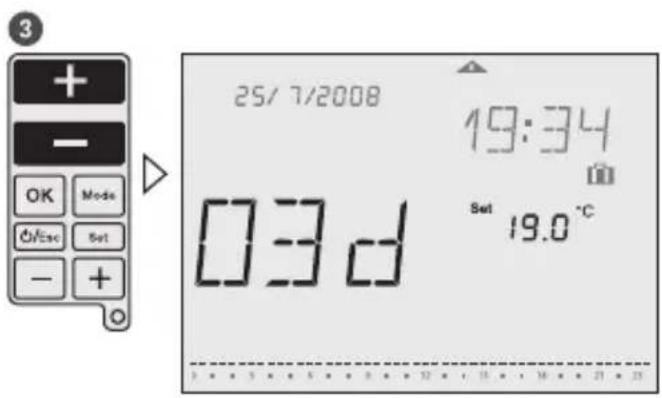

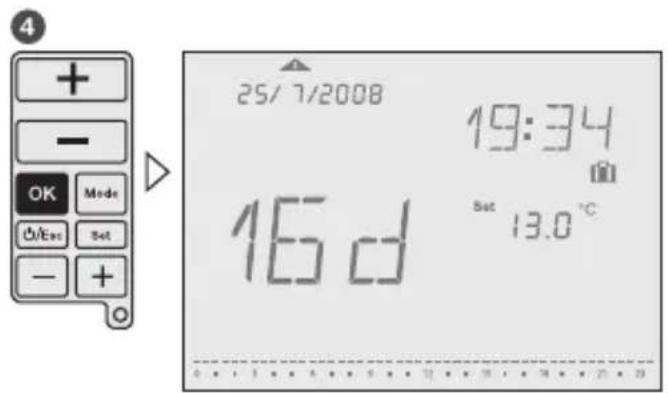

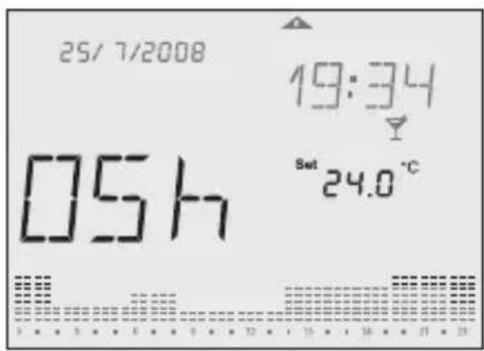

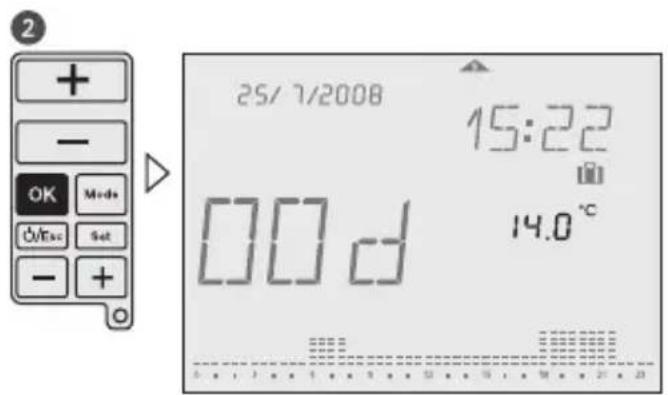

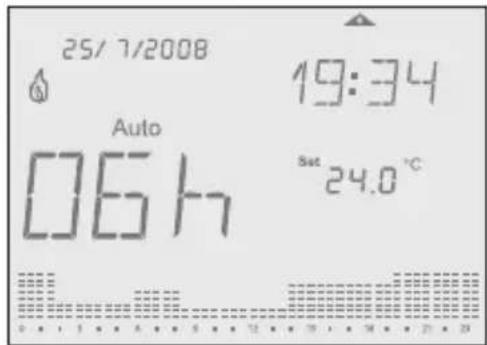

Party mode Symbol: This mode allows the user to set a desired temperature during dened period of time. Adjustable period of time is 1 – 23 hours. After the time is elapsed, the device returns into the mode before the Party mode was activated. During the Party mode, the rest of the time is indicated. Example: The temperature shall be set for 6 hours on 24°C. To end Party mode early, press ESC-button for more than 3 seconds.72 Holiday mode Symbol: This function runs into a desired set temperature during certain period of time. Adjustable period of time is 1 – 90 days. After the time is elapsed, the device returns into the mode before the Holiday mode was activated. During the Holiday mode, the rest of the days is indicated. Example: The temperature shall be set for 16 days on 13°C. To end Holiday mode early, press ESC-button for more than 3 seconds.73

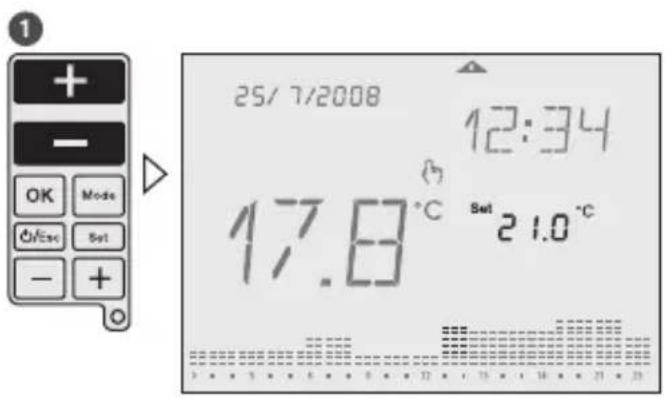

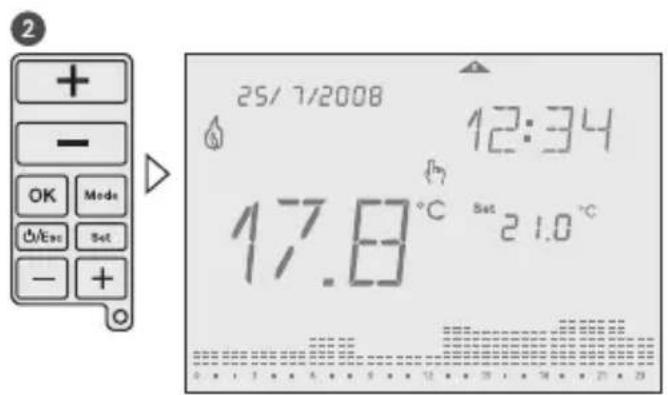

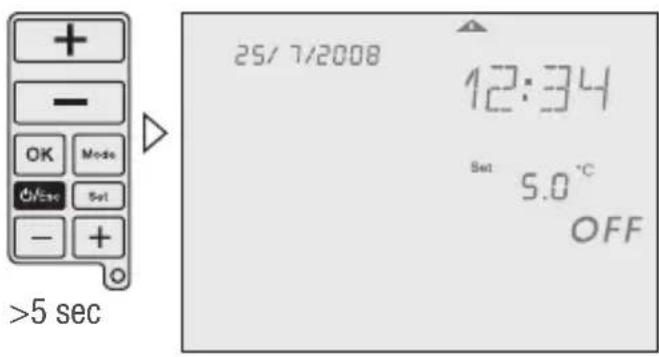

Operating status Manual override Symbol: While the sliding cover is closed, you can temporarily adjust the temperature in the current period with the upper +/– buttons. It is not necessary to conrm the setting with OK. The setting will remain as temperature set value until the next programmed change (time and temperature) appears. To return into Auto mode, press and hold upper +/– buttons for 3 seconds, or open the sliding cover and press OK-button.74 OFF mode Symbol: This mode switch off the device completely. To activate this mode press and hold ON/OFF/ESC-button for more than 5 seconds. To leave this mode press and hold the ON/OFF/ESC-button again for more than 5 seconds. The anti-freeze protection is granted. >5 sec75

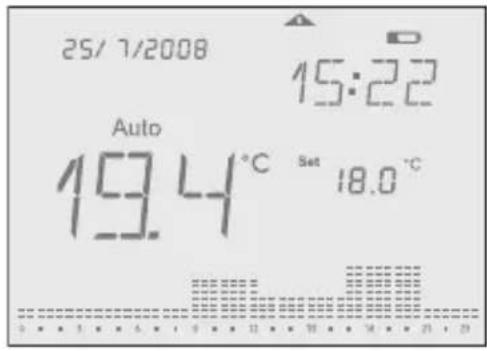

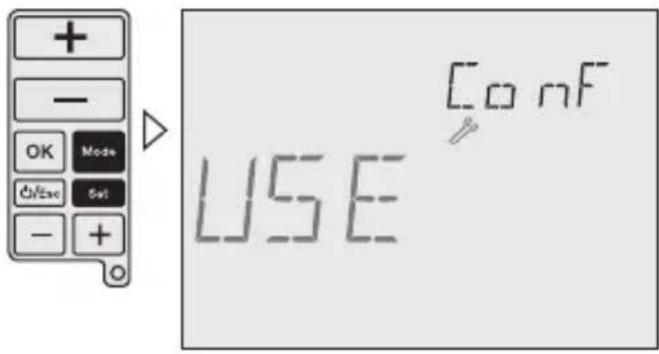

Low battery Symbol: A low battery level is indicated with the battery icon in the display. Please change the batteries. If batteries are not placed or are installed in the wrong polarity, <Bat> text will appears on display until they are placed or installed in the right polarity. If the battery goes completely empty, the programming is protected.76 User menu/Conguration Symbol: Press the MODE-button and SET-button at the same time until User menu is shown in the display. To go to previous menu press ESC-button. It is possible to adjust: RF commissioning (RFC): Enable/disable continuous radio signal Offset (OFS): Possibility to adjust/modify the measured temperature (-5°C...+5°C) Summer/Winter time (SWT): enable/disable automatic summer/winter time change Time Format (TMF): possibility to change time format into 24 hours or 12 hours (default: 24 hours) Restore Default (DFL): Restore values to factory default status. Use lower +/– buttons to navigate through menus. Use upper +/– buttons to change values and OK to conrm.77

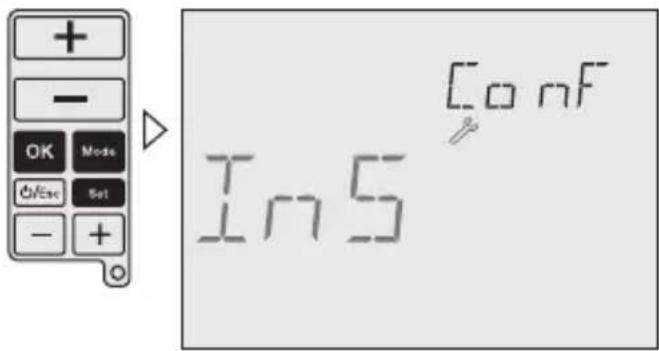

Installation menu Symbol: To access this Conguration menu, press the MODE-button, the OK-button and SET-button at the same time until Installer menu is shown in the display. Press ESC-button to go to previous Menu. The ajustments in this menu are only for experts. All possibilities for adjustment are shown with a self-explaining, oating real text in the display. Use lower +/– buttons to navigate through menus. Use upper +/– buttons to change values and OK to conrm.78 Following adjustments are possible: High Temp (HIT): set maximum temperature value for programming from low temperature value up to +32°C (default: +32°C) Low Temp (LOT): set minimum temperature value for programming from +7°C up to high temperature value (default: +15°C) Frost protection (FRT): set anti freeze minimum temperature value from +3°C to +7°C (default: 5°C) Regulation (REG): possibility to select between PID or 2 points regulation (default: PID) Differential (DIF): possibility to modify differential value from 0,1 K to 0,9 K (default: 0,4 K) Keypad Lock (LOK): enable keypad to protect against non authorized interventions To enable/disable the keypad lock press and hold MODE- and ESC-button for more than 3 seconds. Operating hours (OPT): this feature shows total operating running time (max. 99.999 hours) Battery Level (BAT): battery charge level is shown on display79

RF commissioning Installation of the receiver 230 V

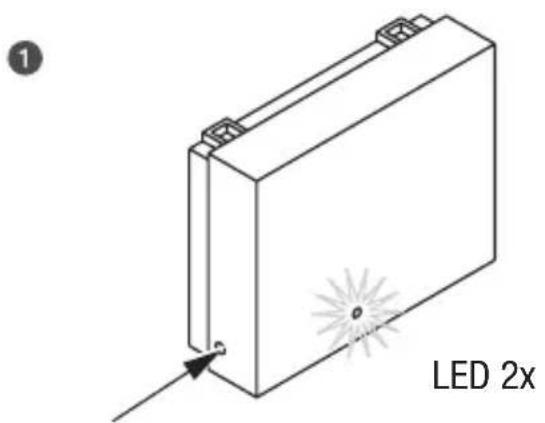

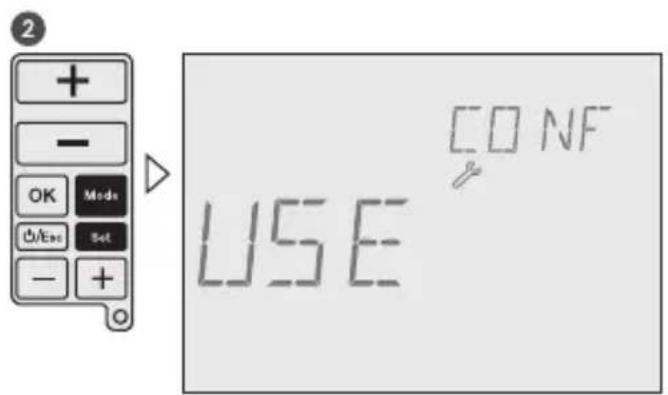

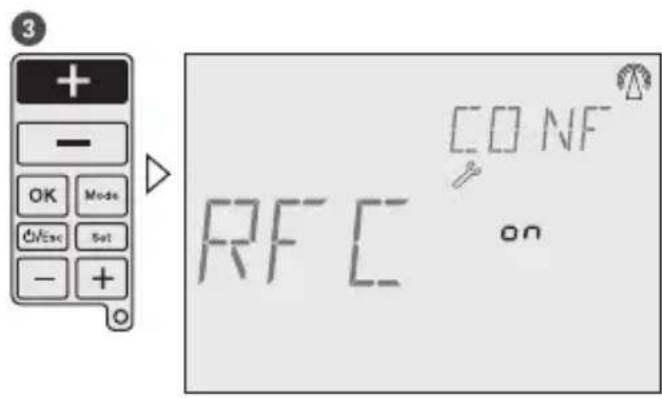

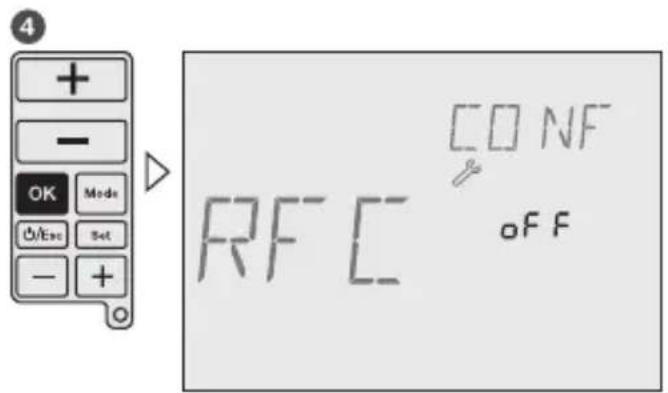

50 Hz80 Installation of the radio link The transmitter and receiver are pre-commissioned. If the radio link doesn‘t work correct, follow the sequence of commissioning. Press and hold the black button of the receiver until the LED light has ashed twice. Release the button and the LED light will remain illuminated. Press and hold MODE-button and SET-button of the transmitter at the same time for more than 3 seconds to enter into the User menu. Then press the OK-button until RF Comm is displayed. LED 2x81

Chauffe-eau/chauffage91
