USER MANUAL 10.8V Drill Driver SILVERLINE

Original Instructions WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool. Sound and vibration levels in the specification are determined according to EN60745 or similar international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time. General Safety WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.Save all warnings and instructions for future reference.The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Specification

High gear 0 – 1150min

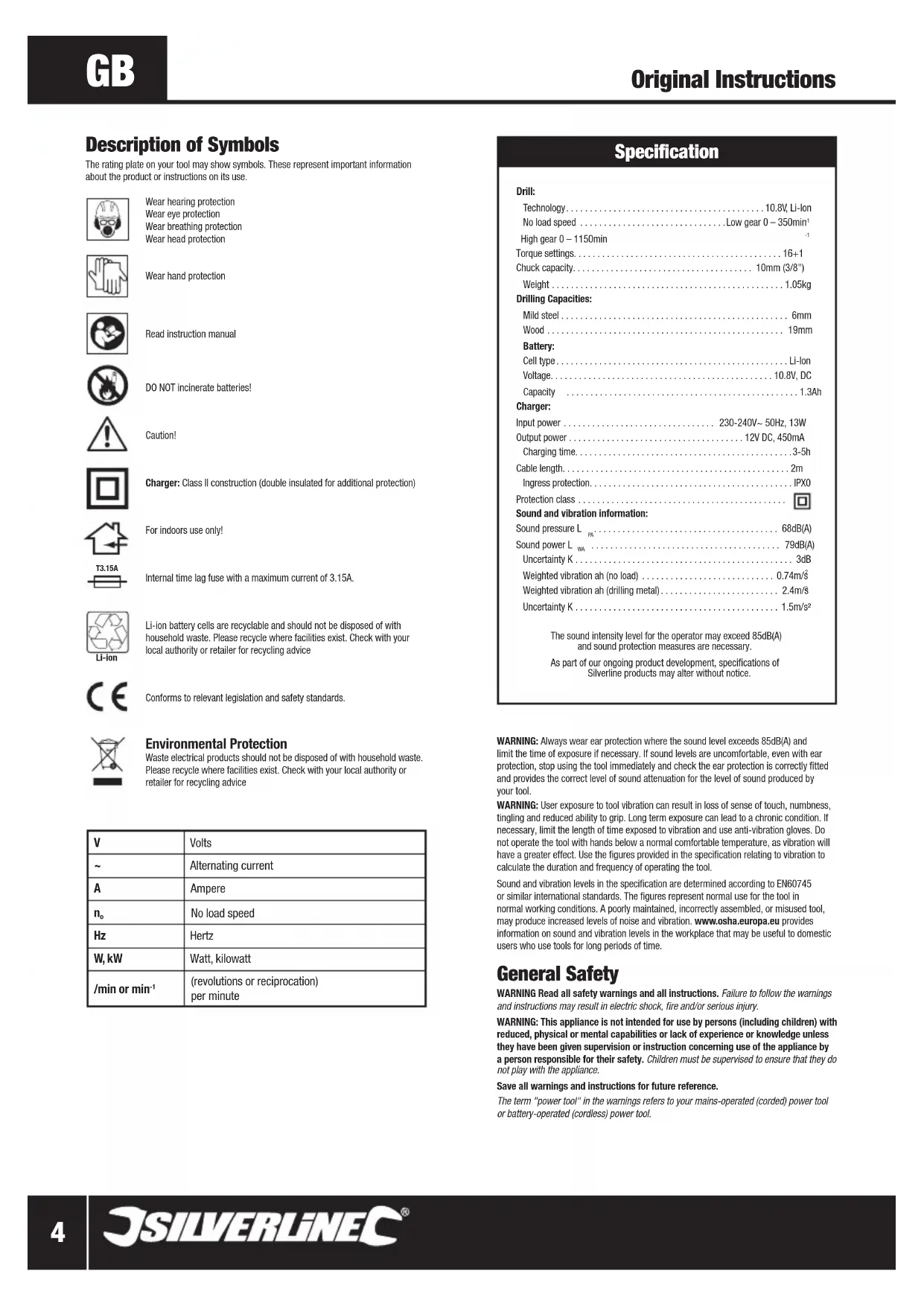

Uncertainty K ........................................... 1.5m/s² The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.As part of our ongoing product development, specifications of Silverline products may alter without notice. Description of Symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. Wear hearing protection Wear eye protectionWear breathing protectionWear head protectionWear hand protectionRead instruction manualDO NOT incinerate batteries!Caution!Charger: Class II construction (double insulated for additional protection)For indoors use only!Internal time lag fuse with a maximum current of 3.15A.Li-ion battery cells are recyclable and should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling adviceConforms to relevant legislation and safety standards.Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling adviceLi-ion T-130˚ T3.15A V Volts ~ Alternating current A Ampere

10.8V Drill Driver263040 Work Area Safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control Electrical Safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shockb) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shockd) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shocke) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock Personal Safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuriesc) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving partsg) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards Power Tool Use & Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repairedc) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentallyd) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained userse) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to controlg) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation

WARNING: When used in Australia or New Zealand, it is recommended that this tool

is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less. Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained Additional Safety for Battery-Operated Drills WARNING: Important: It is imperative to follow all national safety regulations concerning installation, operation and maintenance. a) DO NOT allow anyone under the age of 18 years to use this tool, and ensure that operators are qualified and familiar with the operating and safety instructions. b) Battery chargers are for indoors use only. Ensure that the power supply and charger are protected against moisture at all times. c) When using the drill, use safety equipment including safety glasses or shield, ear defenders, and protective clothing including safety gloves. Wear respiratory protection suitable for the work being undertaken. A minimum rating of FFP2 is recommended. If operating the tool causes discomfort in any way, stop immediately and review your method of use. d) Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.e) Ensure that the lighting is adequate. f) Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard. g) Ensure that the drill bit is not in contact with the workpiece prior to starting up the tool. h) Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.

i) DO NOT excert pressure on to the tool. To do so would shorten its service life.

j) Drill bits get hot during operation, allow to cool prior to handling them. k) NEVER use your hands to remove sawdust, chips or waste close by the bit. l) If you are interrupted when operating the drill, complete the process and switch off before looking up.m) Where possible, use clamps or a vice to hold your work. n) Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre. o) ALWAYS wait until the drill has come to a complete stop before putting it down. p) Periodically check all nuts, bolts and other fixings and tighten where necessary. Battery Charger Safety Use the battery charger correctly• Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.• DO NOT attempt to use the charger with any batteries other than those supplied. Keep your battery charger clean; foreign objects or dirt may cause a short or block air vents. Failure to follow these instructions may cause overheating or fire• If the supply cord is damaged, it must be replaced by the manufacturer, the service agent or similarly qualified persons in order to avoid a hazardWARNING: DO NOT attempt to recharge non-rechargeable batteries. Battery Safety WARNING: Li-Ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.• Keep the battery out of reach of children• ONLY charge Li-Ion batteries using the charger provided or designed specifically for your product• ONLY use Li-Ion batteries provided with a product or specifically designed to be compatible• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire• When not in use batteries should be stored at room temperature (approximately 20˚C)• Ensure that battery contacts cannot accidentally short in storage. Keep batteries clean; foreign objects or dirt may cause a short. Keep away from other metal objects, for example paperclips, coins, keys, nails and screws• Under abusive conditions, liquid may be ejected from the battery. This liquid may cause skin irritation or burns. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help • DO NOT open, disassemble, crush, heat above 60°C or incinerate. Do not dispose of in fire or similar263040_Z1MANPRO1.indd 5 18/07/2016 09:3266

Included accessories (not shown): Blow-moulded case Intended Use General-purpose cordless power drill for driving screws and for light drilling applications (excluding masonry). Unpacking Your Tool

• Carefully unpack and inspect your new sander. Familiarise yourself with all its features and functions• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool Before Use Removing a battery
• To remove the Battery (10) from the drill, press the Battery Release (11) on both sides of the tool, then pull the Battery out of the Hand Grip (8)WARNING: DO NOT try to remove the Battery without pressing the Battery Release button. The drill or Battery could be damaged. Fitting a battery

1. To fit a charged battery, slide it in to the Hand Grip (8) of the drill until it clicks and locks into position

Note: Make sure the Battery and drill are lined up correctly. If the Battery does not slide into the drill easily, don’t force it. Instead, slide the Battery out of the drill again, check the top of Battery and the drill battery slot are clean and undamaged and that the contacts are not bent. Setting up the battery charger

1. If fitted, remove any battery from the Battery Charger (12)2. Insert the Mains Plug (13) into a suitable mains socket

Note: The Green LED (14) on the Battery Charger will illuminate to indicate that the charger is ready to charge the battery.WARNING: ONLY use this charger to charge the supplied battery or additional purchased batteries that are specifically designed for this tool.WARNING: The charger is designed for indoor use only, and MUST NOT be used in damp or wet conditions. Charging the battery WARNING: Failure to follow the correct procedure when charging batteries will result in permanent damage.Note: Normal charging time is 3 hour for a recently discharged battery. However, if the Battery (10) has been left in a discharged state for some time, it may take up to 5 hours to charge.1. Slide a fully or partially discharged Battery into the Battery Charger (12)Note: Make sure the Battery and Battery Charger are lined up correctly. If the Battery does not slide into the Battery Charger easily, don’t force it. Instead, remove the Battery, check the top of Battery and the Battery Charger slot are clean and undamaged and that the contacts are not bent.2. Once charging commences, the Green and Red LEDs will illuminate 3. When the Battery is fully charged only the Green LED will be illuminated Notes about battery charging:

• The battery should be charged at ambient temperatures between 10 and 40°C (ideally around 20°C)• After charging, allow 15 minutes for the battery to cool before use• Ensure that the charger is disconnected from the mains supply after use, and is stored correctly• DO NOT leave batteries on charge for extended periods and NEVER store batteries on charge • The Battery Charger monitors battery temperature and voltage while charging. Remove the Battery once charging has been completed to maximise charge cycles of the battery and not waste power• Batteries can become faulty over time, individual cells in the battery can fail and the battery could short. The charger will not charge faulty batteries. Use another battery, if possible, to check correct functionality of the charger and purchase a replacement battery if a faulty battery is indicated• DO NOT store Lithium-Ion battery packs in a discharged state long term. This can damage the Lithium-Ion cells. For long-term storage, store batteries in a high charge state disconnected from the power tool• The capacity of batteries will reduce over time. After 100 charge cycles, the battery’s operation time and the maximum torque performance of the drill will slightly reduce. This decline will continue until the battery has minimal capacity after 500 charge cycles. This is normal and not a fault with the battery pack Fitting drill bits and accessories WARNING: ALWAYS remove the Battery from the drill before attaching, adjusting or removing accessories.WARNING: DO NOT attempt to tighten drill bits (or any other accessory) by gripping the front part of the chuck and switching the tool on. This can lead to personal injury and can cause damage to the chuck.WARNING: NEVER fit any accessory or bit with a maximum speed lower than the no load speed of the power tool.1. Open the Chuck Jaws (1) by holding the rear of the Chuck Collar (2) and rotating the front of the Chuck Collar anti-clockwise2. Place the drill bit or accessory centrally into the chuck 3. Tighten the Chuck Jaws by rotating the front of the Chuck Collar clockwise while holding the rear of the Chuck Collar

4. When the drill bit or accessory is securely fastened, carefully run the machine to test

that it is running centrally, smoothly and evenly. If the bit is 'wobbling' or not running centrally, release the chuck, check the accessory for damage, correct its position, retighten and test again Operation Direction control WARNING: NEVER change the direction of rotation while the tool is running. This may cause permanent damage to the tool.• The direction of rotation can be set using the Forward/Reverse Switch (6)• For anti-clockwise rotation, push the switch to the right• For clockwise rotation, push the switch to the leftNote: When the Forward/Reverse Switch is in the central position, the drill is locked and cannot be switched on. Use this setting as a safety feature to prevent the drill from being switched on accidentally. Torque control Note: This cordless drill is equipped with a torque control clutch allowing the machine to be set to the correct torque for the individual application.• The clutch settings are indicated by the symbols on the Torque Selector (3)• Rotate the Torque Selector to select the desired setting: the higher the number displayed on the torque ring, the higher the torque produced by the tool Gear selection

• Select gear 1 on the Gear Switch (4) for the higher torque. A lower speed gear is generally more suitable for driving screws and fasteners• Select gear 2 on the Gear Switch for the lower torque. A higher speed gear is for drilling and must not be used for driving screws and fastenersNote: ALWAYS read the documentation provided with drill bits and accessories for the recommended or maximum speed setting and use the most appropriate gear. See ‘Specification’ for the maximum no load speed of each gear. 1 Chuck Jaws 2 Chuck Collar 3 Torque Selector 4 Gear Switch 5 Motor Vents 6 Forward/Reverse Switch 7 Trigger Switch 8 Hand Grip 9 Work Light 10 Battery 11 Battery Release 12 Battery Charger 13 Mains Plug 14 Green LED 15 Red LED Product Familiarisation 263040_Z1MANPRO1.indd 6 18/07/2016 09:32www.silverlinetools.com

10.8V Drill Driver263040 Switching on/off WARNING: ALWAYS wear adequate personal protection equipment when setting up and operating this machine.1. To start the drill, squeeze the Trigger Switch (7)

2. The built-in Work Light (9) will illuminate when the Trigger Switch is squeezed

Note: If the Trigger Switch cannot be pressed down, check that the Forward/Reverse Switch (6) is not set to its middle position, which locks the device (see ‘Direction control’).

3. The speed of the drill is controlled by the movement of the trigger: the further the

Trigger Switch is pressed down, the faster the drill will run4. Release the Trigger Switch to stop the machine Screwdriver use Note: Always use a universal bit holder when working with screwdriver bits. Do not mount screwdriver bits directly into the chuck.• Select gear 1 using the Gear Switch (4)• When driving screws NEVER use the machine in drill mode• Always adjust the drill to the appropriate torque setting (see ‘Torque control’) Note: If in doubt which torque setting best suits the application, start with a low setting and increase, should more torque be required (e.g. if the screw is not being driven far enough into the workpiece). Drilling wood

• Select drilling mode with the Torque Selector (3)• Select the appropriate gear using the Gear Switch (4)• Ensure that drill bits are suitable for wood, and are within the maximum capacity of this machine (see ‘Specification’)WARNING: DO NOT inhale wood dust. Wear adequate breathing protection. Some wood dusts may be toxic. Drilling metal
• Select drilling mode with the Torque Selector (3)• Select the appropriate gear using the Gear Switch (4)
• Ensure that drill bits are suitable for the grade of metal being drilled, and are within the maximum capacity of the machine (see ‘Specification’)• To ensure accuracy, mark the intended hole position using a hammer and centre punchWARNING: The drill bit and the workpiece will become very hot when drilling metal. DO NOT touch the bit and never allow it to come into contact with combustible materials when hot. Always use a suitable lubricant or cutting fluid, and drill at appropriate speeds.• ONLY apply moderate pressure to the drill bit, ensuring efficient cutting and prolonged drill bit life• Use a countersink bit to remove sharp burrs from the hole, preventing cuts and other kinds of injuryWARNING: If the power tool gets excessively hot in use, stop using the tool immediately and allow to cool before continuing work. The cooling period can be reduced by operating the drill at maximum speed with no load. Always make sure the Motor Vents (5) are not blocked and do not allow dust to enter the body of the tool through the Motor Vents; dust, especially metallic dust, may damage or destroy the tool. Accessories
• A full range of accessories including various types of drill and screwdriver bits is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com. Maintenance WARNING: ALWAYS disconnect from the mains power supply, before carrying out any maintenance/cleaning of the charger. Remove the battery before carrying out any maintenance/cleaning of the drill.Note: Both the drill and the charger contain no user-serviceable parts. If the device does not perform as outlined in this manual, return it to an authorised Silverline service centre for repair. General inspection
• Regularly check that all the fixing screws are tight• Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine’s service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents• Never use caustic agents to clean plastic parts Lubrication
• Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant Storage
• Store this tool carefully in a secure, dry place out of the reach of children Disposal Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste• Contact your local waste disposal authority for information on the correct way to dispose of power tools263040_Z1MANPRO1.indd 7 18/07/2016 09:3288

Problem Possible cause Solution Red and green LEDs do not illuminate to indicate the battery is correctly chargingBattery not correctly connected to chargerClean battery socket of charger and battery contacts and fully slide on to charger so it clicks in a locked positionCharger not powered Recheck mains connectionBattery pack has low capacityBattery not being fully charged Do not remove battery until a full charge is indicatedBattery pack has been charged over 100 times and capacity has started to reduceThis is normal for battery packs. Contact your Silverline dealer to purchase a replacement battery packDrill cannot be switched on (Trigger Switch (7) does not move)The Forward/Reverse Switch may be in the middle (‘locked’) positionSlide the Forward/Reverse Switch either to the left or rightDrill does not start when Trigger Switch is depressedBattery completely discharged Recharge battery or replace with a fully charged batteryDefective battery Replace batteryTool defective Contact your Silverline dealer or authorised service centreScrews do not reach deep enough into the workpieceNot enough torque; torque clutch setting too low Choose a higher torque settingLow battery voltage Recharge battery or replace with a fully charged batteryScrews are driven too deep into the workpiece surfaceToo much torque; torque clutch setting too high Choose a lower torque setting Troubleshooting 263040_Z1MANPRO1.indd 8 18/07/2016 09:32www.silverlinetools.com

• EN 55014-1:2006+A1+A2• EN 55014-2:1997+A1+A2• EN 60335-1:2012+A11:2014• EN 60335-2-29:2004+A2• EN 62233:2008Notified body: TÜV Rheinland The technical documentation is kept by: SilverlineDate: 25/05/2016Signed: Darrell Morris Managing DirectorName and address of the manufacturer: Powerbox International Limited, Company No. 06897059. Registered address: Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom. Terms & Conditions Silverline Tools Guarantee This Silverline product comes with a 3 year guarantee Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt. Registering your purchase Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-• Your personal details• Details of the product and purchase information Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase. Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.If this product develops a fault after the 30 day period, return it to:Silverline Tools Service Centre PO Box 2988 Yeovil BA21 1WU, UKThe guarantee claim must be submitted during the guarantee period.You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.You must provide precise details of the fault requiring correction.Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.All work will be carried out by Silverline Tools or its authorized repair agents.The repair or replacement of the product will not extend the period of guaranteeDefects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools. The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer. What is covered: The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.Use of this product in the EU. What is not covered: Silverline Tools does not guarantee repairs required as a result of:Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.Use of the product for anything other than normal domestic purposes.Change or modification of the product in any way.Use of parts and accessories which are not genuine Silverline Tools components.Faulty installation (except installed by Silverline Tools).Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee. Battery Guarantee Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse. CE Declaration of Conformity The undersigned: Mr Darrell Morrisas authorised by: SilverlineDeclares that:This declaration has been issued under the sole responsibility of the manufacturer. The object of the declaration is in conformity with the relevant Union harmonisation Legislation.Identification code: 263040Description: 10.8V Drill DriverConforms to the following directives and standards: • Machinery Directive 2006/42/EC• Low Voltage Directive 2014/35/EU• EMC Directive 2014/30/EU• RoHS Directive 2011/65/EU • EN 60745-1:2009+A11• EN 60745-2-1:2010• EN 60745-2-2:2010263040_Z1MANPRO1.indd 9 18/07/2016 09:3210

Trilling ah (boren in metaal):................................ 2,4m/s
