USER MANUAL WX23AG.1 WORX
- Not all the accessories illustrated or described are included in standard delivery.

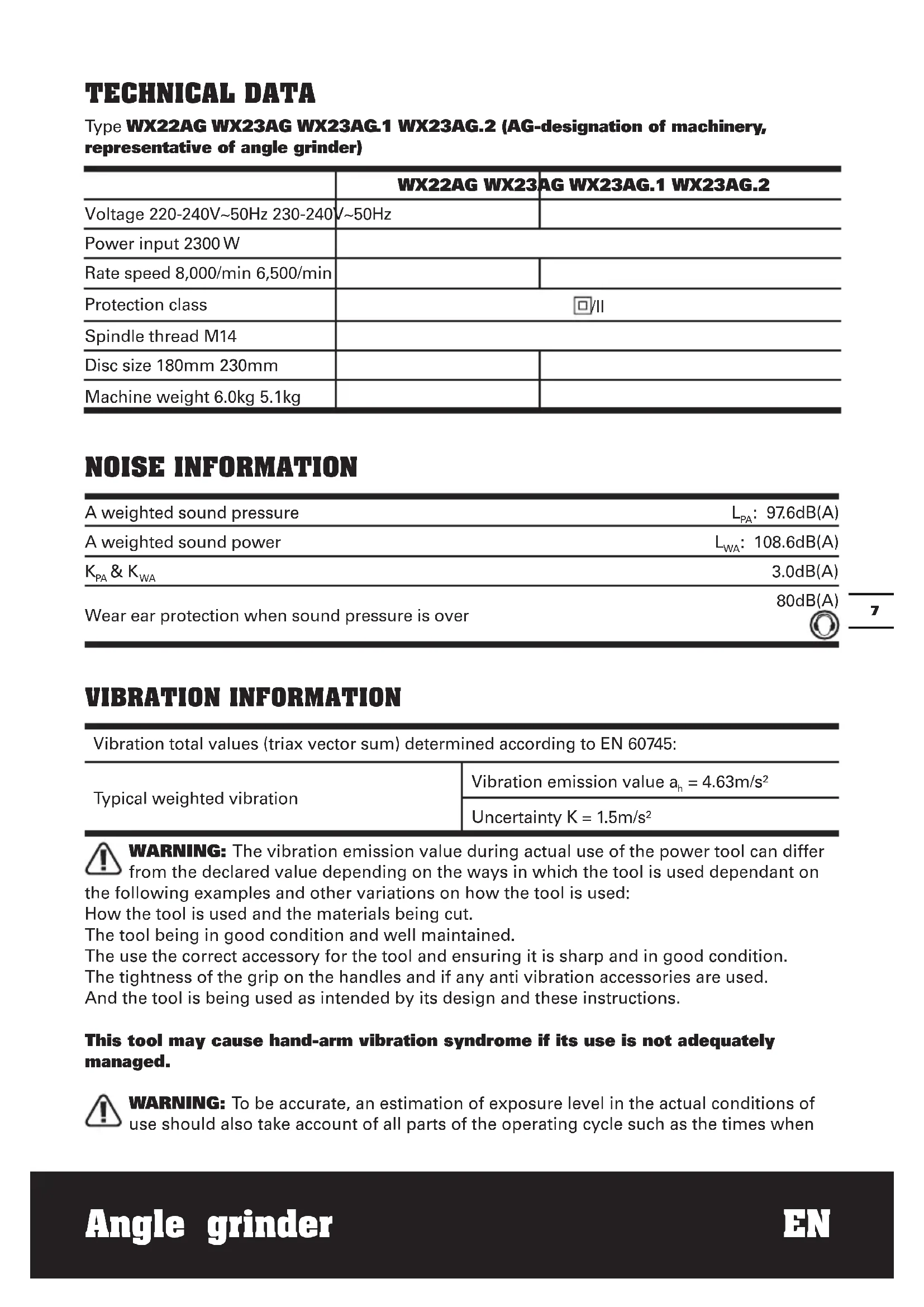

TECHNICAL DATA
Type WX22AG WX23AG WX23AG.1 WX23AG.2 (AG-designation of machinery, representative of angle grinder)
| WX22AG WX23 | AG WX23AG.1 WX23AG.2 | |
| Voltage 220-240V~50Hz 230-240 | V~50Hz | |
| Power input 2300 W | ||
| Rate speed 8,000/min 6,500/min | ||
| Protection class | ☐/II | |
| Spindle thread M14 | ||
| Disc size 180mm 230mm | ||
| Machine weight 6.0kg 5.1kg | ||
NOISE INFORMATION
| A weighted sound pressure | LPA: 97.6dB(A) |
| A weighted sound power | LWA: 108.6dB(A) |
| KPA & KWA | 3.0dB(A) |
| Wear ear protection when sound pressure is over | 80dB(A) |
VIBRATION INFORMATION
| Vibration total values (triax vector sum) determined according to EN 60745: | |
| Typical weighted vibration | Vibration emission value ah = 4.63m/s2 |
| Uncertainty K = 1.5m/s2 | |
WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when
the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10^ or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSIONS
Spanner 1
Anti-vibration auxiliary handle 1
Metal grinding disc (WX22AG WX23AG WX23AG.1) 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
SAFETY INSTRUCTIONS FOR ALL OPERATIONS:
SafetyWarnings Common for Grinding or Abrasive Cutting-Off Operations:
a) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Operations such as sanding, wire brushing, polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks backing pad for cracks, tear or excess wear,
wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.
Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
q) Your hand must hold on the handle when you are working. Always use the auxiliary handles supplied with the tool. Loss of control can cause personal injury.
FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS Kickback and RelatedWarnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.
ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDING AND CUTTING-OFF OPERATIONS
SafetyWarnings Specific for Grinding and Abrasive Cutting-Off Operations:
a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing
the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.
ADDITIONAL SAFETY INSTRUCTIONS FOR CUTTING-OFF OPERATIONS Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:
a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Warning
Double insulation
Wear eye protection
Wear ear protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE
The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting (accessory) must be used.
1. LOCK-OFF & LOCK-ON SWITCH (See Fig. A)
Your switch is locked off to prevent accidental starting. To switch on your tool, push the safety switch lever (B) forward and depress on/off switch (A) fully. Now your tool is switch on. To switch off your tool, just release the On/Off switch.
If you wish to use the tool continuously, push the safety switch lever (B) forward and depress on/off switch (A) fully, then push the safety switch lever (B) forward again and release the On/Off switch. Now your switch has been locked on for continuously use.
To switch off your tool, simply depress On/Off switch fully, the safety On/Off switch will automatically release.
Restarting protection
The restarting protection feature prevents uncontrolled restarting of the machine after an interruption in the power supply.
To restart the operation, switch the On/Off switch (A) to the Off position and start the machine again.
2. HAND GRIP AREAS
Always hold your angle grinder firmly with both hands when operating (See Fig. B).
3. ANTI-VIBRATION AUXILIARY HANDLE
This front handle incorporates a flexible vibration absorbing mounting between the bolt and handle grip to reduce vibration and increase comfort.
NOTE: the handle fixing to the gear case is flexible and not a rigid clamp. You have the option of three working positions to provide the safest and most comfortable control of your angle grinder (See Fig. C). Side position
for grinding and top position for cutting. The handle is screwed clockwise into the gear case hole (See Fig. B). Always use the auxiliary handle.
4. SPINDLE LOCK BUTTON
Must only be used when changing a disc. Never press when the disc is rotating!
5. DISC FITTING
The inner flange (5) is located over the spindle (6) and on the two spindle flats. Locate the disc onto the inner flange and then the outer flange (7) is screwed onto the spindle. Press the spindle lock button (4) and rotate the spindle until it locks, then firmly tighten the outer flange using your pin spanner to clamp the disc (See Fig.D). The pins on your pin spanner locate in the holes on the outer flange. Check the disc rotates freely and is securely clamped. Make a no load test run for 30 seconds to check disc vibration and disc run out. To remove a disc, reverse these instructions.
6. ADJUSTABLE OUTER FLANGE CLAMPING
The outer flange (7) should be adjusted to suit different disc thickness. For thinner cutting or diamond discs the raised part of the outer flange is fitted facing away from the disc (See Fig. E.2). For thicker grinding discs the raised part of the outer flange is fitted facing towards the disc to provide improved support for the disc hole (See Fig. E.1). Always ensure your disc is securely clamped.
7. GUARD ADJUSTMENT (See Fig. F) Before any work on the machine itself, pull the mains plug.
For work with grinding or cutting discs, the wheel guard must be mounted. Wheel Guard for Grinding
The coded projection on the wheel guard (14) ensures that only a guard that fits the machine type can be mounted.
Open the clamping lever (8). Place the wheel guard (14) with coded projection into the coded groove on the spindle of the machine head and rotate to the required position
(working position).
To fasten the wheel guard (14), close the clamping lever (8).
The closed side of the wheel guard (14) must always point to the operator.
NOTE: with the clamping lever (8) open the clamp adjusting nut (9) can be adjusted to ensure the guard is securely clamped after the clamping lever (8) is finally closed.
Wheel Guard for Cutting
WARNING! For cutting metal, always work with the wheel guard for cutting.
The wheel guard for cutting (15) is mounted in the same manner as the wheel guard for grinding.
8. REMOVING THE GUARD
Never remove your guard for any other working conditions. To remove, first take off the disc and both flanges. Then open the clamping lever (8) and rotate the guard to align the projections with the gear case cut outs, then remove the guard. To re-fit the guard, repeat this process in reverse. Keep all parts in a safe place.
9. SOFT START
Internal electronic components allow the motor speed to increase slowly, which reduces the "twisting" effect on your wrists due to the high power motor.
10. ROTATING THE GEAR CASE
For special working situations, the gear case can be rotated 90o to improve working comfort and safety. First, disconnect from the mains supply then remove the disc and guard. Remove the 4× screws from the gear case (See Fig.G). Carefully rotate the gear case in your desired direction but do NOT pull the gear case out of the housing. If the gear case comes out of the housing the motor carbon brushes will need replacing.
11. TO USE THE GRINDER
ATTENTION: Do not switch the grinder on whilst the disc is in contact with the workpiece. Allow the disc to reach full speed before starting grind.
Hold your angle grinder with one hand on the
main handle and other hand firmly around the auxiliary handle.
Always position the guard so that as much of the exposed disc as possible is pointing away from you.
Be prepared for a stream of sparks when the disc touches the metal.
For best tool control, material removal and minimum overloading, maintain an angle between the disc and work surface of approximately 15^ - 30^ when grinding.
Use caution when working into corners as contact with the intersecting surface may cause the grinder to jump or twist.
When grinding is complete allow the workpiece to cool. Do not touch the hot surface.
12. CUTTING
WARNING! For cutting metal, always work with the wheel guard for cutting.
When cutting, do not press, tilt or oscillate the machine. Work with moderate feed, adapted to the material being cut.
Do not reduce the speed of running down cutting discs by applying sideward pressure.
The direction in which the cutting is performed is important.
The machine must always work in an upgrinding motion. Therefore, never move the machine in the other direction! Otherwise, the danger exists of it being pushed uncontrolled out of the cut.
13. BRUSH WEAR INDICATOR (WX22AG WX23AG WX23AG.2) (See Fig. H)
Your angle grinder is fitted with an automatic brush wear indicator. A green led indicates that the brush condition is normal. A red led indicates that the brush is coming to the end of its useful life and should be replaced as soon as possible.
14. AUTO-STOP CARBON BRUSH (ONLY FOR WX23AG.1) (See Fig. 11)
When the resin insulating tip (17) inside the carbon brush (18) is exposed to contact the commutator (16), it will automatically shut off the motor. When this occurs, both carbon brushes should be replaced. Keep the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.
15. TO REPLACE THE BRUSHES (See Fig.I2)
Remove the screw securing the motor brush cover. Remove the cover, gently lift out, and pull the spade connector free. Hold back the coil spring and slide the worn brush out of the housing, carefully release the spring. Locate the replacement brush, (in the same orientation) whilst again holding back the coil spring. Ensure the brush is located and free to move, release the spring, it should now sit within the groove on the brush. Re-attach the spade connector to the terminal, replace the cover and secure.
WORKING HINTS FOR YOUR ANGLE GRINDER
- Always start at no load to achieve maximum speed then start working.
- Do not force the disc to work faster, reducing the Disc's moving speed means longer working time.
- Always work with a 15-30 angle between disc and workpiece. Larger angles will cut ridges into the workpiece and affect the surface finish. Move the angle grinder across and back and forth over the workpiece.
- When using a cutting disc never change the cutting angle otherwise you will stall the disc and angle grinder motor or break the disc. When cutting, only cut in the opposite direction to the disc rotation. If you cut in the same direction as the disc rotation the disc may push itself out of the cut slot.
- When cutting very hard material best results can be achieved with a diamond disc.
- When using a diamond disc it will become very hot. If this happens you will see a full ring of sparks around the rotating disc. Stop cutting and allow to cool at no load speed for 2-3 minutes.
- Always ensure the workpiece is firmly held or clamped to prevent movement.
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
TROUBLESHOOTING
Although your new angle grinder is really very simple to operate, if you do experience problems, please check the following:
- If your grinder will not operate check the power at the main plug.
- If your grinder wheel wobbles or vibrates, check that outer flange is tight, check that the wheel is correctly located on the flange plate.
- If there is any evidence that the wheel is damaged do not use as the damaged wheel may disintegrate, remove it and replace with a new wheel. Dispose of old wheels sensibly.
- If working on aluminum or a similar soft alloy, the wheel will soon become clogged and will not grind effectively.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
PLUG REPLACEMENT (UK & IRELAND ONLY)

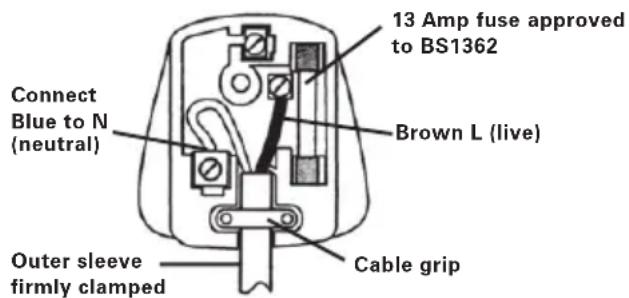

If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
BLUE =NEUTRAL
Brown = Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.
WARNING: Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved 13A BS1363/A plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Declare that the product,
Description
WORX Angle grinder
Type
WX22AG WX23AG WX23AG.1
WX23AG.2 (AG-designation of
machinery, representative of angle grinder)
Function Peripheral and lateral grinding
Complies with the following Directives, Machinery Directive
2006/42/EC
Electromagnetic Compatibility Directive
2004/108/EC
RoHS Directive 2011/65/EU
Standards conform to:
EN 55014-1
EN 55014-2
EN 60745-1
EN 60745-2-3
EN 61000-3-2
EN 61000-3-3
The person authorized to compile the technical file,
Name: Russell Nicholson
Address: Positec Power Tools (Europe)
Ltd, PO Box 152,Leeds,LS10 9DS,UK
Yiu Tang
2014/09/12
Yujin Tang
POSITEC Quality Manager
Anti-vibrationshandgriff 1
Metall-Trennscheiben (WX22AG WX23AG WX23AG.1) 1
Name: Russell Nicholson
Anschrift: Positec Power Tools (Europe)
Ltd, PO Box 152,Leeds,LS10 9DS,UK
Yiu Tang
C E
2014/09/12
Yujin Tang
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVE AUX VIBRATIONS
14. BROSSES AU CARBONE ARRET AUTO (WX23AG.1) (Fig I1)
WX22AG WX23AG WX23AG.1
Ltd, PO Box 152, Leeds,LS10 9DS,UK
YiuTang
CE
2014/09/12
Yujin Tang
Responsible qualite POSITEC
- TASTO DI BLOCCO DI ACCENSIONE
- ZONE DI PRESA MANUALE
- IMPUGNATURA SUPPLEMENTARE ANTIVIBRAZIONI
- PULSANTE DI BLOCCO PERNO
- FLANGIA INTERNA
- PERNO
- FLANGIA ESTERNAL
- LEVA DI SERRAGGIO DEL COPRI DISCO
- DADO DI REGOLAZIONE MORSETTO
- CHIAVE
- COPERTURE SPAZZOLE MOTORE
- INDICATORE CONSUMO SPAZZOLE (WX22AG WX23AG WX23AG.2)
- DISCO ABRASIVO
- CUFFIA DI PROTEZIONE PER LEVIGATURA
- CUFFIA DI PROTEZIONE PER LA TRONCATURA*
Mola per metallo (WX22AG WX23AG WX23AG.1) 1
WX22AG WX23AG WX23AG.1
Ltd, PO Box 152, Leeds,LS10 9DS,UK
Yiu Tang
CE
2014/09/12
Yujin Tang
WX22AG WX23AG WX23AG.1
WX23AG.2 (AG-denominaciones
de maquinaria,representantes de
Amoladora angular)
Ltd, PO Box 152, Leeds,LS10 9DS,UK
Yiu Tang
CE
2014/09/12
Yujin Tang
Tipo WX22AG WX23AG WX23AG.1
Ltd, PO Box 152, Leeds,LS10 9DS,UK
2014/09/12
Yujin Tang
Gestor de Qualidade POSITEC
| 1. AAN/UITSCHAKELAAR |
| 2. HANDGREEPGEBIEDEN |
| 3. TRILLINGSVRIJ HANDVAT |
| 4. ASSTOPVERGLENDELING |
| 5. BINNENSTE FLENS |
| 6. AS |
| 7. BUITENSTE FLENS |
| 8. BESCHERMING VAN KLEMHENDEL |
| 9. MOER OM KLEM IN TE STellen |
| 10. STELSLEUTEL |
| 11. KAP VAN MOTORBORSTELS |
| 12. INDICATOR VOOR BORSTELSLIJTAGE (WX22AG WX23AG WX23AG.2) |
| 13. SLIJPSCHIJF |
| 14. WIELKAP VOOR HET SLIJPEN |
| 15. BESCHERMKAP VOOR DOORSLIJPEN* |
Trillingsvrije extra handgrep 1
Type WX22AG WX23AG WX23AG.1
Type WX22AG WX23AG WX23AG.1 WX23AG.2 (AG-udpegning af maskiner, representant for Vinkelsliber)
PO Box 152, Leeds, LS10 9DS, UK
YiuTang
2014/09/12
Yujin Tang
Hjulvern for slipping
Kodeplugg pa vernedeksel (14) sgrger for at det kun kan monteres et vernaldeksel som passer til donne maskintypen.
Adress: Positec Power Tools (Europe)Ltd,
PO Box 152, Leeds, LS10 9DS, UK
Yiu Tang
C E
2014/09/12
Yujin Tang
POSITEC Kvalitetsdirektor
- GÜVENLİ AÇMA/KAPAMA ANAHTARI
- ELLE TUTMA BÖLÜMÜ
- TITREŞIM ÖNLEYİCI KOL
- MIL KILITLEME DÜGMESI
- IC FLANS
- MIL
- DISFLANS
- KORUYUCU SIKISTIRMA KOLU
- KELEPÇE AYARLAMA SOMUNU
- SOMUN ANAHTARI
- MOTOR FIRCA KAPAKLARI
- FIRCA YIPRANMA GÖSTERGESI (WX22AG WX23AG WX23AG.2)
- TAŞLAMA DISKI
- ZIMPARALAMA TAŞ KORUYUCU
-
KESME TAŞ KORUYUCU*
-
Tasvir edilen veya açıklanan aksesuarlying hepsi standard paketlemelerde dahildehydigildir.
TEKNIK VERILER
Metal taşlama diski (WX22AG WX23AG WX23AG.1) 1
13. FIRCA YIPRANMA GÖSTERGESI (WX22AG WX23AG WX23AG.2) (Bakiniz H)
WX22AG WX23AG WX23AG.1
WX23AG.2 (AG-makine aciklamasi, kose ögutucu gosterimi)
Ltd, PO Box 152, Leeds,LS10 9DS,UK
Yiu Tang
CE
2014/09/12
Yujin Tang
IIAHPOΦOPIEΣ KPAΔAΣMΩN
To nAektpiKO oac epyaaleio dev xpeiazetai Extpa
Ainavon n ouvtnpn. UIapxouv ETIIOKEuaZoEv aepn aTov XpnoT OTO nEKTPIKOaC epyaLio. Note mV XpoIoOTIOIEVEpO hXnmuKaBapiotikia yia va kaopioTe To nEKTPIKOaC epyaLio. KaapioTe To eva oTEyvo upaoua. NaVtva aTIOthNkEUte To nEKTPIKOaC epyaLio 0E 5npo Mepoc. Kpatate Tc TpuTec Egaepiou Kaapec. Kpatate Ola Ta Oneia TOnu ELeyyouv Tnv Epyaoia kaopa aTIO kOvN. Av dite KAITIOEc OTiOe C Ma OTA ONeia Egaepiou, iivai quoiKai Dv Tha BLaawou To epyaLio aac. Av Exei Kataotpaei To kalwio TpoopoDooia, 0a TTpeTTe Va avTKataoTa0ei aTTOv KATAOKEAaON, TO TPOoWNIKO tOU ePbics n EGOUODOTNeevouc TExVKouc YIA VA aTOpeuxOuv oi Kivduvoi.
ANTIMETΩΠIeH ΠPOBAHMATΩN
Av kai o voc ywiaokoc troxiotnc ocivai
Tpaymuikac eiaipetikac aTlaoC otn aeitoupyia, 0e
TepiTTwn Tou avtietomegaTe PpOaata
EevTe ta akoloutheta:
MaKcImaJIbHO DOnyCTHMOE 3BykoBOe DaJIbHeHne 6e3 NcNoJIb3OBAHnra CpeIcTB 3aunTbI 80D6(A).
XAPAKTEPNCN BnBpaCNI
BbIBeCTn 3NeKtpOHHCTpyMeHT N3NoD KOHTPOJI.
- He BKJIIOUaIte 3JIeKTPoHHCTpyMeHT BO BpeMa erO nepeHockn c60ky. CnyauHoe copnKocHOBeHne c BpaUaIOuEiCs HacaIKO MoKeT npNBecTn K 3axBaTy OJExDbI N TpaBMam.
- Perynnapno ouhuaTe BeHTnlaUHOHHbIe OTBepCTNa 3JIeKTPoHHCTpyMeHTa. BeHTnlaTOp Dniratela6ydtET B7rINBaTb Nblb BHyTpB KOpnyca, Nn36bIToOHoe HAKONJIeHne MetaJIInueCKO nblm MOKeT npNBecTN K ONaCHOCTn IopaxeHna 3JIeKTPuueCKIM TOKOM.
- He eknnyatnpyte 3JIeKTPoHnCTpyMeHT pIOM C JERKOBOcPJaMeHryOuMmNcR MaTePnaJAmn. MoKeT npOn3oITn BO3rOpaHHe 3Tnx MaTePnaNoB OT NcKp.
- He ИспοльзунTe HacaДкn, Tpe6уошne JxndKnx OxJaNTeNei. IcnoIb3OBAHne BOdbl NdpyInx JxndKnx OxJaNTeJIe MoKet npNBecTn K nopaxKeHIO 3JIeKTPnueCKIM TOKOM.
- He otnyckaite pykoTky HHCTpymteBaBpeMa pa6oTbI C Hm. Bcerda nCnoJb3yIte dONOHnTeJIbHyIO pyKy, noCTaBnaEmyIO c ycTpoiCTbOM. IOpTeRa ynpaBnaEmocTn PpIBOHT K TeJIeChbIM NOBpeXdeHnM.
ДОПОЛНТЕЛьнBLEИ NHCTPYKЦN NO TEXHnke 6E3OПАСHOCTN ДЯ BCEX ONEPAUн
06paTHbI yIap n COOTBeTCTByIOUne npedynpeKdEHHa
O6paTHbI ydap - 3TO HeoXnDaHnapeaCnna
Pn 3axaTnn nnn 3axBaTe BpaAauOeROc Kpyra,
NoDKNaDKn, uetkn nn npHaadJeKHOCTN.
3axaTne nn 3axBaT Bbl3bIBaET bICTpyIO
OCTaHOBky BpaAauOeIcR HacAdKn, YTO, B
CB0IO OuepeDb, Bbl3bIBaET o6paTHbI ydap
HeynpablREMOr 3NEKTPOINHCTpymeHTa B
MeCTe 3axaTnB CTOPOHy, pOTNBONIOJXHyIO
BpaUeHIO.
Hanpimep,ecnI uinfoBaIbHbI Kpyr 3aKaT nn 3axBaueh 3arOTOBKo,3actpBwnkpaKpyra MoKeT Bpe3aTbCBA NOBepxHOCTbMaTePnAJa N Bbl3BaTb Bbl6poc Kpyra HapyKy nII
6paTbIyap.Kpyr MoKet 6bITb BbIbpoWeH no HnPaBHeNIO K ONEpAToPу NIN OT ONePaTopa B 3aBNCIMOCTN OT HnPaBHeNIA DmXeHn Kpyra B MeCTe 3axaTna, a TAKKe npTaknx 06cToTeJIbCTBax UInΦoBaIbHbIe Kpyr MOrTy pa3pyuTaBc.
O6paTHbIyIapYBJIeTcpe3yJbTaTOM HeIpaBnIbHOro NcNoJIb3OBaHnI (IIIN) HApUWeHnI npAByI INI yCNOBNI KcNJIyatauIN, I erO MoXHO pPeIDOTBpATNTb, BblONHЯ npIBeDEHHbIE HIXKe MEpbI ppeIOCTOpOXHOCTN.
- Kpenko depxknte 3JIeKtpoHnCTpymEnT n pacnoIaraiTe cBoe TeNo n pyky TaK, yTo6bI BbIepXaTb o6paTHbI ydap.Bcerda nCnoNb3yIte BCnOMoratelbHyIO pyKoTky npn ee HaIIuHn dJa MaKcMmaIbHoro KOHTpOJa o6paTHoro ydapa Hn peAKTNBHO r KpyTJUero MOMENTa BO BpeMa NycKa. Pn co6JIouDeHn COOTBETCTByUOxN Mep IpeOCTOpOXHOCTHn OIepaTOP MOKeT KOHTpOJIuPoBaTb CnIy peAKTNBHO r KpyTJUeRO MOMENTa IIN o6paTHOrO ydapa.
- HnkOrda He ČepKnte pyky pIaOM c BpaauouecHacadko. PnObpaTHOM ydape MOKeT npON30uTN 3axBaT pyKn Hacaikoi.
3.He cTaHOBntEcB 3OHe BO3MOxHOro nepemeueHnna 3NeKtpOnHCTpyMeHTa npn o6paTHOM ydape; o6paTHbI ydap MOKeT OT6pocNTb INCTpyMeHT B HAnpaBneHn, IPOTNBOJIOXHOM DVBxKeHnIO Kpyra B MecTe 3aKaTn.
4.Пряьгайte oc6ую octopokhoctb npn obpa60tke yrnoB,octpbIX kpaEB n T-Д.,и3beraHTe cotpceHn n 3axkataHaCAdKn.Прn obpa60tke yrIOB,OCTpbix KpaEB n npn COTPcEHN BpaaHouzaJc HacaIka MoKeT 3aCTPbN n npnbectn Knotepe ynpabJeHn nIIN o6paTHOMy ydApy. - He hacaKbAte Ha nHcTpymeT CeMeHTbl cENHOI NJIbI NJIu Je3BnI dIpe3b6bl no depeBy. TaKeJe3BnI MOyT Bbl3bIBaTb Yactble OTCKOKN I npVBecTI K NOTepe ynpabJrEMOCTN.
ДОПОЛНТЕЛБHBIEИHCTPyKUIN NO TEXнIKE BE3OПАСHOCTN ДЯ OTEPAЦИ 3ATOUCHN И OTPE3AHNA Ipeуnpexкденя по 6e3onacHOCTN npBbINOJIHNeHn Oepaцишпфobань n a6pa3NBHoro OTpe3aHNA
- Испосьзуг Te Крун Толбко TAKOROTиna, KOTopbl pekomehdyetcДЯ Baшero 3ЛeКТponHCTpymehTa,N CneцmaIbHbI KOKyX,празнаЗнayeHHbI ДяИСпосьзуемо Крун.
HenpeHa3NaeHHbIe dIy 3TOrO 3NeKtpOnHCTpyMeHTa KpyrN HeBO3MOxHO orpaNTb, I OHN ABJIOTc H6e30nacHbIMN.
2.Шлфовальная NOBepxHOCtBu eHTpoBbIX BdaBJIeHHbIX KpyROBdoJXHa 6bITb yCTaHOBJIeHa HJKe nIPOCKOCTN 3aUHTHOrO KpaJ.
HenpaBnIbHO yCTaHOBJIeHHbIe KpyrN, KpaKOTOpbIX BbIXOJrT 3a NIOCKoCTb 3aUHTHOKpa, He MOrTy 6bITb B DoCTaTOuHOn Mepe 3aUINuHebl. - Koxyx Heo6xOIMo npoHOn 3aKpenTb Ha 3JIeKtpOHcTpymEnTe N yCTaHOBt b MaKcMmaIbHo 6e30nacHo, YTO6bl KaK MoXHo MeHb7a YAcTb Kpyra 6bla HanpaBJeHa Ha onepaTopa.
Koxyx nomoraet 3aunntb onepaTopa OT ppaMeHToB CJOMaHHoro Kpyra n CnyaHORO COpNIKOCHOBENR C Kpyrom. - KpyrN DoJxHbI nCNoJb3OBATbcra ToJbKO dJa peKOMeHDoBaHHbIX cNoocob npImeHnna. Hanpimep, 3aPpeuaetc nnΦoBaTb 6OKOBOn CTOpOHon Kpyra, npEdHa3NaueHHoro dJa abpa3HBoro OTpe3aHn. KpyrN dJa abpa3INBHO pe3aHn npEdHa3NaueHbI dJa pe3Kn nepupepepeeKe Kpyra; npInOKeHne 6OKOBbIX ycIIIN K TaKIM Kpyram MoKet Bbl3BaTb IN pa3pyWeHne.
5.ДЯнспоьзуемо кpyra Bcerda nCNoIb3yIte HENOBpeXeHHbIe ФlaHcbl Kpyra COOTBeTcTBYIOUcero pa3Mepa nФopMbI.CoOTBeTcTBYIOUne ФlaHcbl Kpyra NOIDepKINBAIoT Kpyr, yMeHbSIA BO3MOXHOCTb erO pa3pySeHnA.
Фланькру罗БдЯOTpe3aHЯ MoryT OTичatabсгOTфнцeвшпфobальх KpyroB.
- He nCnoJb3yIte n3HoWeHHbIe Kpyrnc 3JIeKtpoHnHcTpymeHTOB 6OJbWero pa3Mepa.
Kpyr, npedHa3HaueHHbI dIy
3neKTponHCTpymenta 6OJIbJbero pa3Mepa,
He IOxOINT dIy 6OJIee BbICOKoCkOpocTn
BpaUeHry INCTpyMeHTa MeHbJero pa3Mepa
mMOKeT IONHyTb.
ДОПОЛНТЕЛБHBIEИHCTPyKцIN ПОTEXнIKEБE3ОПАСHOCTNДЯ ОПЕАЦИ OTPE3AHNA
DOnonHnTeIbHbIe npedynpeXdEHH no 6e3oNaChocTH npn onepaunx a6pa3NBHO Otpe3aHH
- He BdaBnBaIte OTe3HO Knpy HHe npImeHnTe N36bIToUHOycnJIne. He nbTaIaTeCbdoCTN3JIuShen rJy6Inhbl Cpe3a.
I36bIToHoe HaprrxHeNe Kpyra yBEnuHbaeT Harpy3ky N BepoarTHOcTB nepeKaunBaHHaNn 3aeDaHHa Kpyra BCpe3e N BepoARHOCTb 6paTHOrO ydapa nn pa3pyuWeHHa Kpyra. - He cTaHOBntecb Ha oDHOJ IHHN C BpaauoumcKpyrom HnNo3aH Hero.Korda Kpyr B MeCTe BbINOJIHeHn Oepaunn DvXKeTcB HnPaBJeHn OT Bac, BO3MOxHbI O6paTHbI ydap MOxET OT6pocuTB BpaauoUncra Kpyr N 3JIeKTPOINHCTpyMeHT HEnOcpeIcTBeHNO Ha Bac.
3.ПрнзаehннКpyra nnn npnпpekpaeeHnОпаци nOte3aHnNo KaKo-лбо пчнHe BbIKIOUHTe 3JIeKTPoHnCTpymeNT n DePJKTe erO HeNODBnKHO Do noHOn octaHOBKn Kpyra. HnkOrda He nbIaTecb ydaNTb BpaauuNCsA OTe3HO KnKpy n3 cpe3a,Tak KaK 3TO MoKET Bbl3BaTb 6paTHbI ydap. OnpeJeNTe npuHy 3aedAHnKpyra n yctpaHnTe ee. - He Bo3o6HOBJIe OnepaunIO OTPe3aHnI npn HaxOxKeHnn Kpyra B 3arOTobke. NocNe Toro, KaK Kpyr Ha6epet nonHyIO cKOpocTb,
OCTOPOXHO NOBTOPHOBBEHNTeERO B Cpe3. Pn nycke 3neKTPoHnHCTpyMeHTa C KpyROM, HaxoJaIzMcB 3aROTObKe, Kpyr MOKeT 3acTpA, BbIITN 3Cpe3a IIN MOKeT npOn3OHTN O6paTHbI yap.
5.Подерхиьтпанели Круньie 3arotobknДЯСБЕDEHNA K MHHIMympckaЗжатяКpyra N 6bpathoro ydapa.Kpynhbie 3arotobkn MOryt NepekaunBaTcRЯ NOI CO6CTBHeHHbIM BECOM.PaOM cJINHneI pe3aHnI n PraDM C Kpaem 3arotobkn IIO O6eIM CTOpOHAM Kpyra IOI 3arotobky Heo6xOdIMO yCTaHOBITb ONOpbl.
6. C6bIouaTe oc6yUOCTOpOXHocTb npn BblnoJIHeHn He6oIbuxn npope3eB yJce cyuEcTByIOuXx CTeHax nJN dpyrnx Tlyxnx NOBepxHOcTAX. BbIctynaIOuN Kpyr MoKet nepepe3aTb ra3OBbIe nJN BOIoPBOoHbIe Tpy6bl, 3JIeKTPoPpOBoDky nJIN 3aJeTb dpYrne PpeDMeTb I N Bbl3BaTb 6paTHbI ydap.
UCIOBHBIE OBO3HAUHIN
8. CHYTHE 3AUHTHORO KOXYXA HNKoRda He cHMaIte 3auHTbI Koxyxpn HhIx ycNoBnx pa60tbl.
Сачала сншпгелулхугу, ДИСК И Опорнышь. OTOжмтepыаг 3aцHTHOrO KOKyxu и NOBepHnTe KOKyx, YTO 6blДВa ВьICTуна Ha KOKyxe COBnaIи C npope3ЯMu Na KOpnyce peDyKTopa, 3aTeM ChIMtE KOKyx. Дя установки КOKyxa DeiCTBynte B OБраTHOM Порадke. Coxpanite BCE DeTaN B HAnExHOM Мсichte.
9. ПЛАВьИй ПУСК
Бларя BCtroeHHOJ энКТPOHKe, CkopoCTb DBnraTeJI NOBbIaAeTcЯ NOCTeNEHHO, YTO yMeHbIaET cIpy pbIBKa pni CTapTe DBnraTeJI BBICOKO MOUHOCTHI.
10. BPAUHEHNE KOPOBK INPEDAU
IpepeBbINOJIHeHemKaKx-Jn6o pa60T Ha ⅢINΦOBaJIbHO MaUInHe OTcoEINHITe 3JIeKTPnueCKyIO WTeNCEJIbHyIO BnIKYOT PO3ETKN, a 3aTeM CHIMITE DNCK I KOJyX. Kopnyc peyKTopa MOXHO NOBOPaYNBaTb IO OTHOWeHIO K KopnyCy MaUINbI. TaKIM o6pa3OM, B OCO6bIX CnyaJx BblKnIOuAteJIb NITaHry MOXHO yCTaHOBNTB B yDObHoe dIЯ pa60tBI NOJoxHe. BbIEpHnTe 4 BNHTa n3 Kopnyca peyKTopa (Cm.Pnc.G). AkkypatHo NOBepHnTe Kopnyc peyKTopa B XeJaemoe NOJoxHe, HO He BbITACKnBaIte erO. Ecnn KOpnyc peyKTop BblIeT n3 NocAdKN, TO 5eTKN DBnIaTeJIa HxKHO 6yIeT 3AmEHnTb.
11.ИСПОЛьЗOBAHNE ШИФОВАЛьНОМАшINHы
BHHMAHNE! 3anpeucaetcBKNIOUaTb yrJIOByI
BaW yrnoBoI uHnФOBaIbHOm MaunHbI OCHaUeHbI aBTOMaTnueCKo HndNKaTOP n3HOca ⅢeTKN. 3eHbI uHdNKaTOP o3Haayet, YTO KNTb COCTOHNHe HopMaJIbHOe. KpacHbI INDkAToP NOKa3bIBaET, YTO KNTb NOxODNT K KOHcy CBOero Cpoka I DoJXHa 6bITb 3aMeHeHa KaK MoXHo cKOpee.
14. улесорны сетки ABTOCTONA (WX23AG.1) (CM. PNC. I1)
Korda n30JauHbI HaKoHeuHk n3
noJImepa (17) BHyTpI rpaΦHTOBoi 8eTKn (18)
cOpnKacaETcC KOJIeKTopOM (16), DBIrTaTeIb
aBTOMaTNUeCKN OCTaHaBJIbNAeTcR. B 3tOM
cLyuae Heo6xOJIMO 3aMeHHTb OBe rpaΦHTOBbie
IeTKn. CNeIte 3a YNCTOIOTOn ΜeTOK nIX
CBO6OdHBiM CKoJIbXeHNEM B DePkaTeJIax. O6e
rpaΦHTOBbie ΜeTKn Heo6xOJIMO 3aMeHArTb
ODHObpemeHHO. IcNoJIb3yIte TOJIbKO
ODINHaKOBbie rpaΦHTOBbie ΜeTKn.
15.3AMEHA ⅢETOK (CM.PNC.I2)
BbIePNTe BnHT KpbIuKn 6JIeHHeHHoro
DOCTyNa K 7eTKam.CHIMNte KpbIuKy.
AkkypaTHO OTcoEINHtE KJIeMMy 7eTKn.
YdePKNBaIO npJxHHy, BbITaUHTe N3HOWeHHyIO
7eTKy, AKKypaTHO OTNyCTNTe npJxHHy.
YCTAHOBInTe HOByIO 7eTKy (B TAKOM JKe
NoJIOXeHN), YdePKNBaI npJxHHy. Y6eINBUncB,
YTO 7eTKa IpaBnIbHO yCTaHOBJIeHa n
CBO6oDnHO nepemeMaTcR, OTNyCTNTe npJxHHy.
PiOnCoEINHtE KJIeMMy 7eTKn. 3aKpOInTe
KpbIuKy N 3aKpyTInTe BnHT.
PEKOMEHDAUINIO NCNoJIb3OBAHNU YrIIOBOI ⅢNΦMAuHHbl
- Bcerda 3anyckaTe HNCTpyMeHT 6e3 Harpy3KN Do DOCTnKeHn MAKcMaJIbHOI CKOpOCTn, 3aTe mnpctynaiTe K pa6oTe.
- He neperpykaite kpyr, yto6bI pa6oTaTb 6bictpee.CnHexeHne cKopoctn nepemueHna Kpyra o3Haayet 6oJee npdoJXHTbeHoe BpeMpa6oTbI.
- Прп рабоTe CшифоваьныIMКруамn Bcerda ВыдерхиВаITEугл 15-30 мжду куROMиOBpa6aTBiBaEMbIMи3deHnEM.Прп рабоTe NOДбOLьшIMугLOМВи3deHnIN NOBRTc8ВblCTyNbl,чTO NOBnIeT Ha OTdEJIky NOBepxHocTи.ПерemeuaIte WlnФmauHyВпepeДиHa3aДno Opba6aTBiBaemomyИЗdeHIO.
4.ПиИСПОЛБ3OBAHINOTpe3HOrO Kpyra HIKORda He n3MeHnTe yroI pe3KN,B npOTNBOM cIyae Kpyr N DBuRatJIb 3aKlnHNT IIN pOn3OJDeT NOLOMa Kpyra. Ppi pe3Ke,peKbTe TOLbKO B HAnpaBLeHnn, npOTBONoJIOXHom HAnpaBLeHnIO BpaSeHnKpyra.Ppi pe3Ke B TOM JKe HAnpaBNeHn, YTO IN BpaUeHne Kpyra,Kpyr MoXeT BbITaIKBaTbcr N3 npope3N. - Пи рeзke оунь Тьердьх MaTeрnaJIOB HanIyuInx pe3yIbTaTOB MOxHо DoCTnCb C aIMa3HbIM KpyROM.
- Пи И спльзовани щимаз Horo кура OH сильно Нагреветс.Еспг Это пponcxODNT, Bbl yBnДITE KOьцю ИСКР ВОКpyг Врашалоцeroя кура. OctahOBInTe pe3ky
I OXnAInTe Kpyr pa6Toi 6e3 Harpy3Kn B TeueHne 2-3 MInHyT.
7. Bcerda obecneuBaTe npouHoe kpeIeHne 6pa6aTbIbAemOro n3deJIINy IIN erO 3axIM dI pyedOTbPaUeHnY CMeueHnY
TEXHNUECKOE OBCJNUXKINBAHNE
До ВьINОЛнHeHЯ ЛIO6bIX pa6OТ no PerylnpOBKe,обслуЖиBaHnIO n yXoY cJIeDyeT BblHyTb BNJKy 3JIeKTPoNITaHЯ n3 po3eTKI.
B INHCTpyMeHTe OTCyTCTByIOT DeTaII,
NoJIeKaUne O6cLyXuBaHNIO NOJIb3OBaTeJIeM.
HkoIgDa He IcNOJb3yIte BODy IIN
XIMnueckne YnCTaUne CpeDCTBa IINr YnCTKn
3JeKtpOnHCTpyMeHTa. IpOtnpaIte erO cyXoI
TKaHbIO. Bcerda XpaHIne 3JeKtpOnHCTpyMeHT B CYXOM MeCTe. CoepKIne B YnCTOTE
BeHTnJIaUNOHbIE OTBepCTNr DBnraTeJIa.
OuNJaTe OT NbIJN BCE pa6Ovne opraHbI
YnpabNeHnA. He3NaHTeJIbHOe NCKpeHne,
3aMeTHOE CKBO3b BeHTnJIaUNOHbIE OTBepCTNra,
RAJIeTcH HopMaJIbHbIM N He HaHOCIT BpeD 3JeK
TPOnHCTpyMeHTy.
EcIn cTeBOH uHyp noBpeXdeH, To, BOn36eKaHHe ONaCHOCTn NOPaKeHnA TOKOM, OH DoJIKeH 6bITb 3aMeHeH n3rOToBHTeJem, eRo cepBnCHbIM aReHtOM IIN yN0NJHMOueHHbIM KBaJIuΦnUncPOBaHHbIe JNUcOM.
ПОИСК И YYSTPAHEHNE HENСПAPABHOCTECH
BaSha HOBA yrJIOBaa 7nIΦOBAJIbHa MaUHa OueHb npocTa B 3KcIpyatau, Ondako, ecn y Bac BO3HNKHyT npo6JIeMbI, npOBepbTe nepeuNCJIeHHbIe HIXe npn3HaKn.
- Ecnn wlnfoBaJIbHa MaunHa He pa6oTaET, npOBepbTe HaJInuYe nITaHnB B 3JIeKTPnueckO p03eTke.
2.ПиКолбанянИиВибрациNабра3NBHOrO nCKa npOBepbTe,3aTЯHyT JIn HapyXhBIn ΦlaHeu N npaBnIbHO JI npacNoIoxeH a6pa3NBbIДnCKHaФlaHcEBoNПlaCTnHe. - Ecnn ectb kaKne-No6o npn3NaKn noBpeKdEHHa 6pa3NBHO DnCKa, He
NcNoJIb3yIteero,TaK KaK NOBpeJDeHHbIM DnCK MoKeT NOHOCbIO pa3pyuHTbcr; CHMNTe eO IN 3aMeHInTe HOBbIM a6pa3INBHbIM dNcKOM. YTuIN3npYInTe CTap a6pa3INBHbIE dNcK, Co6JIIOJa npaBnla yTuIN3aCnn.
- Пи обработke aJIOMHnIиДpyrOrO MЯrkoro cIIaBa, abpa3nBHyI nDcK 6bICTpo 3acopReTcI N 3ΦΦeKTnBHOCTb IJINΦOBAHn CHNXKaETcI.
3AHTA OKPXXAOUeN CPeIbI
OTXoIbI 3JIeKTpOExHnueCKo IpoDyKuIN He CJIeJyET yTUNI3nPoBaT bCbITOBbIMN OTXoIaMNI. OHI DOnJXHbI 6bITb
DIOCTaBHeBIB MeCTHbI CEHTP yTUN3aCIN Dnna HAdJexaSei nepepa6oTKn.
DEKJIAPAUHCOOTBETCTBNA
Mbl,
POSITEC Germany GmbH
Mapk WORX YrnoBa JnncobaBna MaunHa
Mоделей Wx22AG Wx23AG Wx23AG.1
WX23AG.2 (AG-06o3naueHne HnctpymEnTa, YrnoBaJ uNΦoBaJIbHaMaunHa)
Ha3nayehne PepnΦepnHoe n nonepueHoe wJnΦobAHne
CoOTBeTCTByeT NOLOXKeHnM DInpeKtNB,
ДиpeKtNbAДЯMaшINH
2006/42/EC
InpeKtBaNo 3JIeKTpMaHHTHOI
COBMECTUMOCTN 2004/108/EC
you've got the power
Copyright © 2014, Positec. All Rights Reserved.
2PGA15CPK11012A4
