USER MANUAL WX152.3 WORX

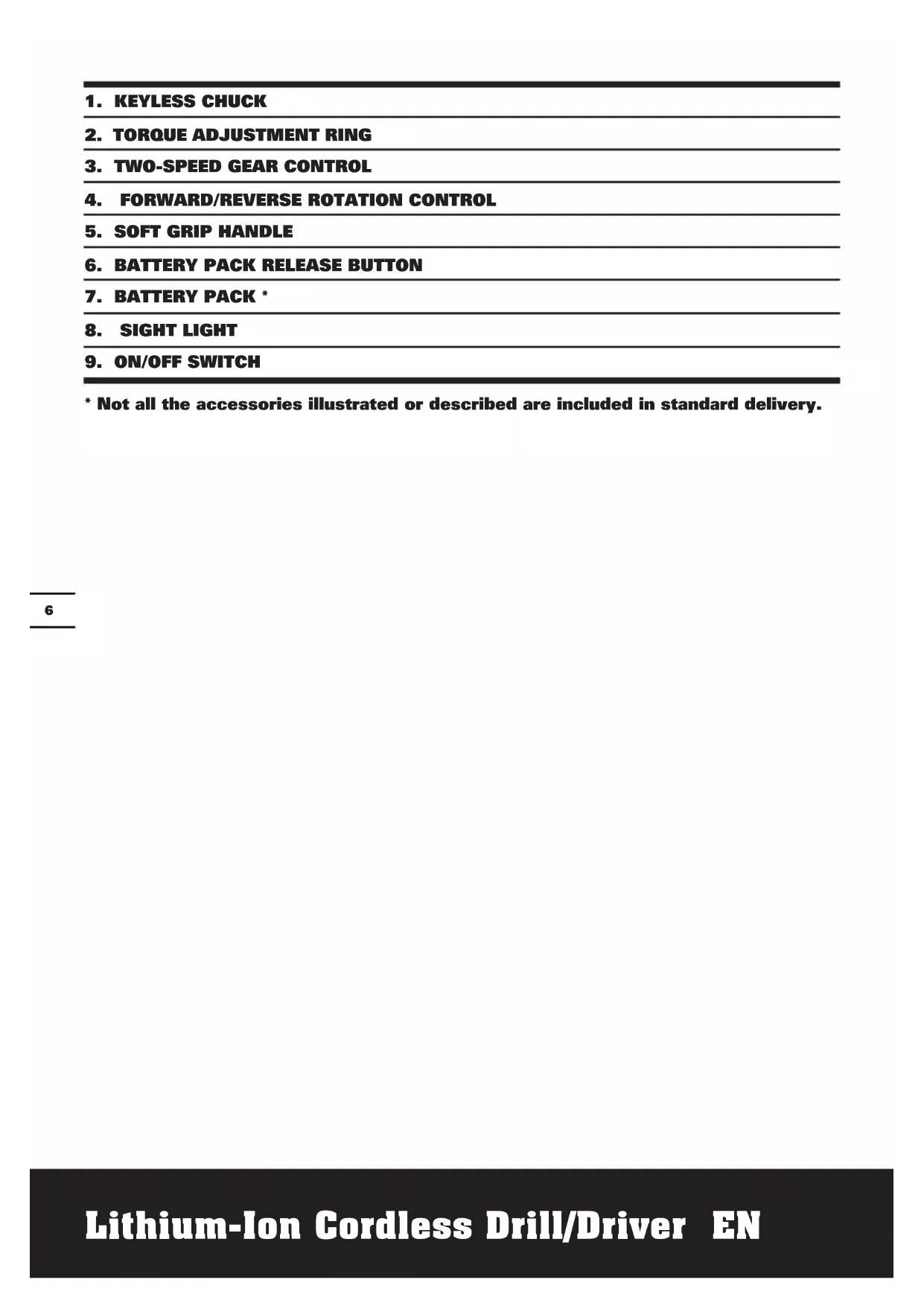

• Not all the accessories illustrated or described are included in standard delivery.7 Lithium-Ion Cordless Drill/Driver EN TECHNICAL DATA Type WX152.2 WX152.3 WX152.1 WX152 WX152.4 (1-designation of machinery, representative of Cordless Drill) Voltage 16V Max* No load speed 0-350/0-1350/min Number of clutch positions 15+1 Max torque 30N.m Chuck capacity 10mm Max. drilling capacity Steel 10mm Wood 25mm Machine weight 1.24kg

• Voltage measured without workload. Initial battery voltage reaches Maximum of 16 volts. Nominal voltage is 14.4 volts. NOISE INFORMATION A weighted sound pressure L

3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Drilling into metal Vibration emission value a h,D < 2.5m/s

Uncertainty K = 1.5m/s² Screw driving without impact Vibration emission value a

Uncertainty K = 1.5m/s² The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:8 Lithium-Ion Cordless Drill/Driver EN How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of

use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10

C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES WX152.2 WX152.3 WX152.1 WX152 WX152.4 Li-Ion battery pack(1.3 Ah) 2 2 / / 1 Li-Ion battery pack(2.0 Ah) / / 2 1 / 60min Charger 1 1 1 1 1 Double ended bits / 1 1 1 1 158pc Accessories 1 / / / / We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.9 Lithium-Ion Cordless Drill/Driver EN

with the tool. Loss of control can cause personal injury.

2. Hold power tool by insulated

gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short- circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) Battery pack needs to be charged before

use. Always refer to this instruction and use the correct charging procedure. j) Do not maintain battery pack on charge when not in use. k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. l) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly.10 Lithium-Ion Cordless Drill/Driver EN SYMBOLS Wood Metal Brick Wear protective gloves High speed Low speed WARNING–To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water. Do not burn Li-I on Li-Ion Do not dispose of batteries, Re- turn exhausted batteries to your local collection or recycling point. Drilling Screwdriving Hammer drilling11 Lithium-Ion Cordless Drill/Driver EN OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

WARNING: Always lock off trigger

switch and disconnect tool from power source when changing accessories. Always ensure the bit is secure before starting the tool. Damage to the Chuck or a loose bit may cause possible personal injury. --Removing the bits See Fig. B2 --Inserting the bits See Fig. B1 OPERATION Forward/reverse rotation control

change the direction of rotation when the chuck is rotating, wait until it has stopped! See Fig. C1, C2, C3 TWO-SPEED GEAR CONTROL See Fig. D TORQUE ADJUSTMENT DRILLING,SCREWDRIVING, HAMMER DRILLING See Fig. E Operating the on/off switch

operate for long periods at low speed because excess heat will be produced internally. See Fig. F LED Light Indicator Before operation, the LED light will be activated when the On/Off switch is slightly depressed, and will automatically turn off 20 seconds after the On/Off switch is released. The tool and battery are equipped with a protection system. When the LED Light is quickly flashing 3 seconds and turn off, the system will automatically cut off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the Trigger Switch on the tool and stop the application that caused the tool to become overloaded. Then pull the Trigger Switch again to restart.

• Overheated: Under the condition above, if the tool does not start, the Tool and Battery are overheated. In this situation, let the Tool and Battery cool before pulling the Trigger Switch again.

• Low battery voltage: The remaining Battery capacity is too low and the tool will not operate. In this situation, remove and recharge the Battery.

WARNING: To turn on the light, press

the On/Off switch and make sure the Forward/Reverse Rotation Control is on right/left position.12 Lithium-Ion Cordless Drill/Driver EN PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON

WHEN YOU PRESS THE SWITCH? The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. Push the trigger and the drill will start to rotate.

2. THE DRILL STOPS BEFORE THE SCREW

IS COMPLETELY TIGHTENED. WHY? Verify the torque position of the torque adjusting ring, you can find the torque-adjusting ring between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 15 is the highest torque (screw driving force). Position is for drill operation. Regulate the torque adjusting ring to a higher position to reach the best result.

Charging time problems, as above, and having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0°C and above 45°C as this will affect performance. MAINTENANCE Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.13 Lithium-Ion Cordless Drill/Driver EN DECLARATION OF CONFORMITY We, POSITEC Germany GmbH Konrad-Adenauer-Ufer 37 50668 Köln Declare that the product, Description WORX Lithium-Ion Cordless Drill/Driver Type WX152.2 WX152.3 WX152.1 WX152 WX152.4 (1-designation of machinery, representative of Cordless Drill) Function Drilling Complies with the following Directives, 2006/42/EC 2004/108/EC 2011/65/EU Standards conform to EN 55014-1 EN 55014-2 EN 60745-1 EN 60745-2-1 EN 60745-2-2 Name Russell Nicholson Address Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Suzhou 2014/12/18 Allen Ding Deputy Chief Engineer,Testing & Certification14 Schnurloser Lithium-Ionen-Bohrer/ Schraubendreher
