USER MANUAL WX914L WORX

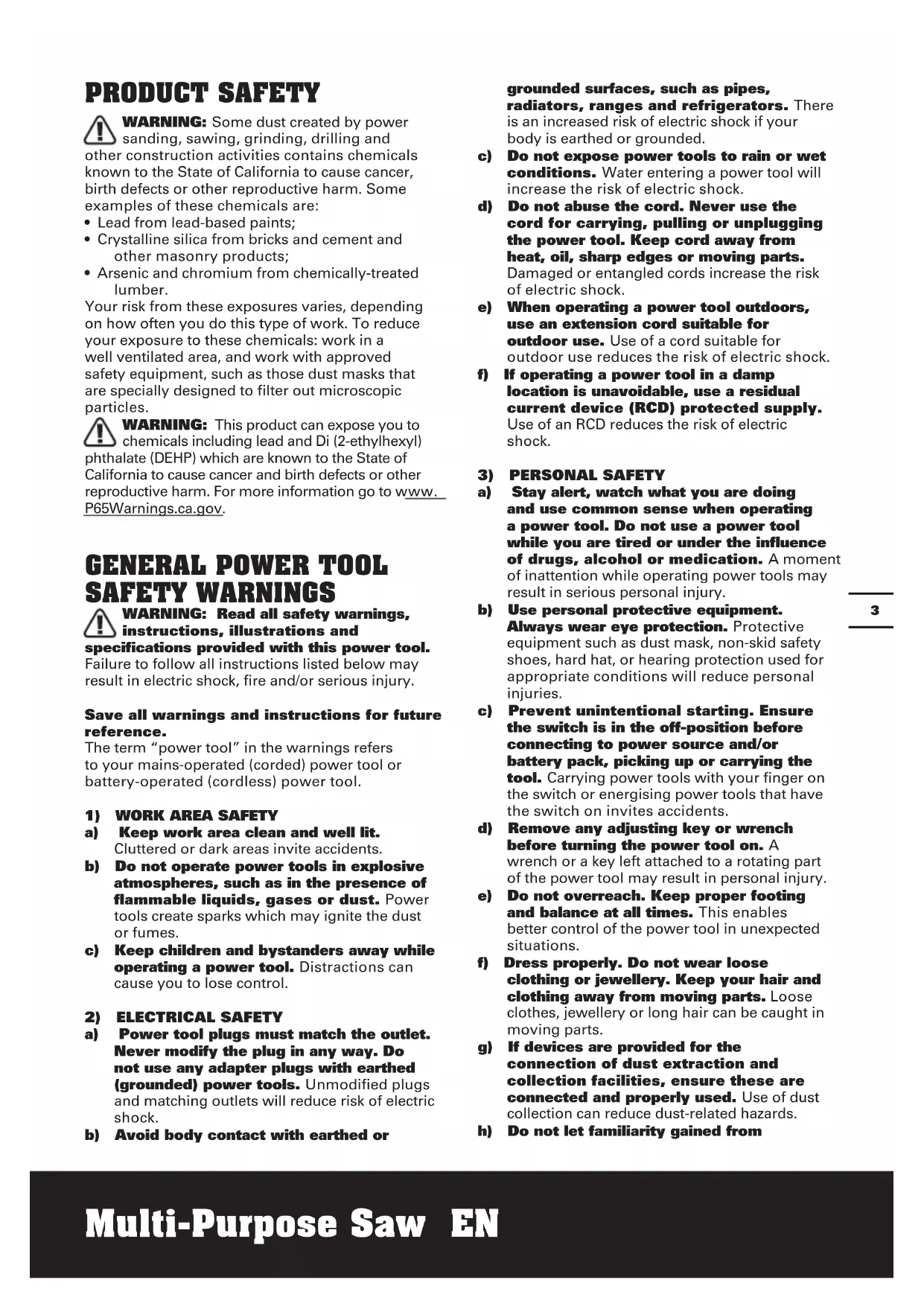

WARNING: Some dust created by power

sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;

• Crystalline silica from bricks and cement and other masonry products;

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

WARNING: This product can expose you to

chemicals including lead and Di (2-ethylhexyl) phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov.

WARNING: Read all safety warnings,

instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained fromMulti-Purpose Saw EN

frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. RECIPROCATING SAW SAFETY WARNINGS

1. Hold reciprocating saw by insulated

gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

2. Use clamps or another practical way to

secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.Multi-Purpose Saw EN

BATTERY PACK a) Do not dismantle, open or shred battery pack. b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire. d) Do not remove battery pack from its original packaging until required for use. e) Do not subject battery pack to mechanical shock. f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. g) Observe the plus (+) and minus (–) marks on the battery back and equipment and ensure correct use. h) Do not use any battery pack which is not designed for use with the equipment.

i) Keep battery pack out of the reach of children.

j) Seek medical advice immediately if a cell or battery has been swallowed. k) Always purchase the battery pack recommended by the device manufacturer for the equipment. l) Keep battery pack clean and dry. m) Wipe the battery pack terminals with a clean dry cloth if they become dirty. n) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. o) Do not leave battery pack on prolonged charge when not in use. p) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. q) Battery pack gives its best performance when it is operated at normal room temperature (68 °F ± 9 °F). r) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. s) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. t) Retain the original product literature for future reference. u) Use only the battery pack in the application for which it was intended.

v) Remove the battery pack from the equipment

when not in use. w) Dispose of properly. SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Li-I on Li-Ion battery, battery must be recycled. Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Make sure the battery is removed prior to changing accessoriesMulti-Purpose Saw EN

Wear protective gloves Wood Metal Aluminium Plastic Incorrect Correct Lock Unlock Pinch points Saw with moderate pressure in order to achieve optimal and precise cutting results POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’ life cycle is ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery.Multi-Purpose Saw EN

*Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type WX550L WX550L.X (5-designation of machinery, representative of Saw) WX550L WX550L.X** Rated voltage 20V Max*** Charger voltage 120V~60Hz No load speed 0-3000/min Stroke length 3/4 inch Cutting capacity Jigsaw mode Wood 2 inch PVC pipe 2 inch Steel plate 5/32 inch Rep saw mode Wood 4 inch PVC pipe 5 inch Steel pipe 3 inch Machine weight (Bare tool) 3.3lbs ** X may be followed by one or two characters. All models are the same except model number and trademark.The suffix in models may be number from “1” to “999” or English letter “A” to “Z” or “M1” to” M9” which means different package or the various of accessories packed in the package. ***Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. Category Model Capacity 20V Battery WA3520 1.5Ah WA3525 2.0Ah WA3575 2.0Ah WA3578 4.0Ah 20V Charger WA3742 0.4A WA3875 2.0A WA3881 2.0A Only use the appropriate accessories intended for this tool. Accessory information can be found on the product packaging, at a WORX dealer or on our website at www.worx.com. We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

G3Multi-Purpose Saw EN

G3Multi-Purpose Saw EN

G3Multi-Purpose Saw EN

OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully.

ASSEMBLY AND OPERATION

ACTION FIGURE BEFORE OPERATION Removing the battery pack See Fig. A1 Charging the battery pack See Fig. A2 Installing the battery pack See Fig. A3 Working mode adjustment Position I worked as a jigsaw. Position II worked as a reciprocating saw. NOTE: Select the blade best suitable for the working mode for better cutting performance (special reciprocating saw blade not included). WARNING!

• To avoid being pinched, keep hands away from the hinge when changing positions.

• To avoid tool being turned on accidentally, make sure keep your hands away from the lock-off button.

• Before operation, make sure the pivot release button is locked into position. See Fig. B1 - C3 ASSEMBLY Replacing the saw blade When using jig saw mode, the blade teeth face outward as shown in Fig. D1; while in rep saw mode, the blade teeth should face as shown in Fig. D3. CAUTION: Keep your hands away from the lock-off button to prevent switch actuation before making any adjustments or removing or installing attachments or accessories. See Fig. D1 - D3 OPERATION WARNING! Burn hazard. Do not touch the blade immediately after use. Contact with the blade may result in personal injury. Switching On and Off NOTE: For safety reasons the On/ Off switch of the machine cannot be locked; it must remain pressed during the entire operation. See Fig. E Pendulum Function See Fig. F1, F2 Cutting WARNING!

• Never hold the pivot head when operating the tool.

• Never hold the motor cover when operating the tool. Always use a blade suited to the material and material thickness to be cut. Before cutting any type of material, be sure it is firmly anchored or clamped to prevent slipping. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• Whenever possible, the saw foot plate must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and minimize blade breakage. See Fig. G1-G3 LED Work Light See Fig. H

WORKING HINTS FOR YOUR

MULTI-PURPOSED SAW If your power tool becomes too hot, run no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Any movement of the material may affect the quality of the cut. The blade cuts on the upward stroke and may chip the uppermost surface. Ensure your uppermost surface is a non-visible surface when your work is finished. MAINTENANCE Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.Multi-Purpose Saw EN

TROUBLESHOOTING Symptom Possible Causes Possible Solution The tool suddenly stops during operation. Over load Battery temperature too high Low battery capacity Relieve the load on the machine immediately and allow cooling for approx. 30 seconds by running the machine on no-load. Charge the battery pack.

The ambient temperature range for the use and storage of tool and battery is 0–45 ºC.. The recommended ambient temperature range for the charging system during charging is 0–40 ºC.1514 Scie polyvalente F
