USER MANUAL DLite WX125.1 WORX

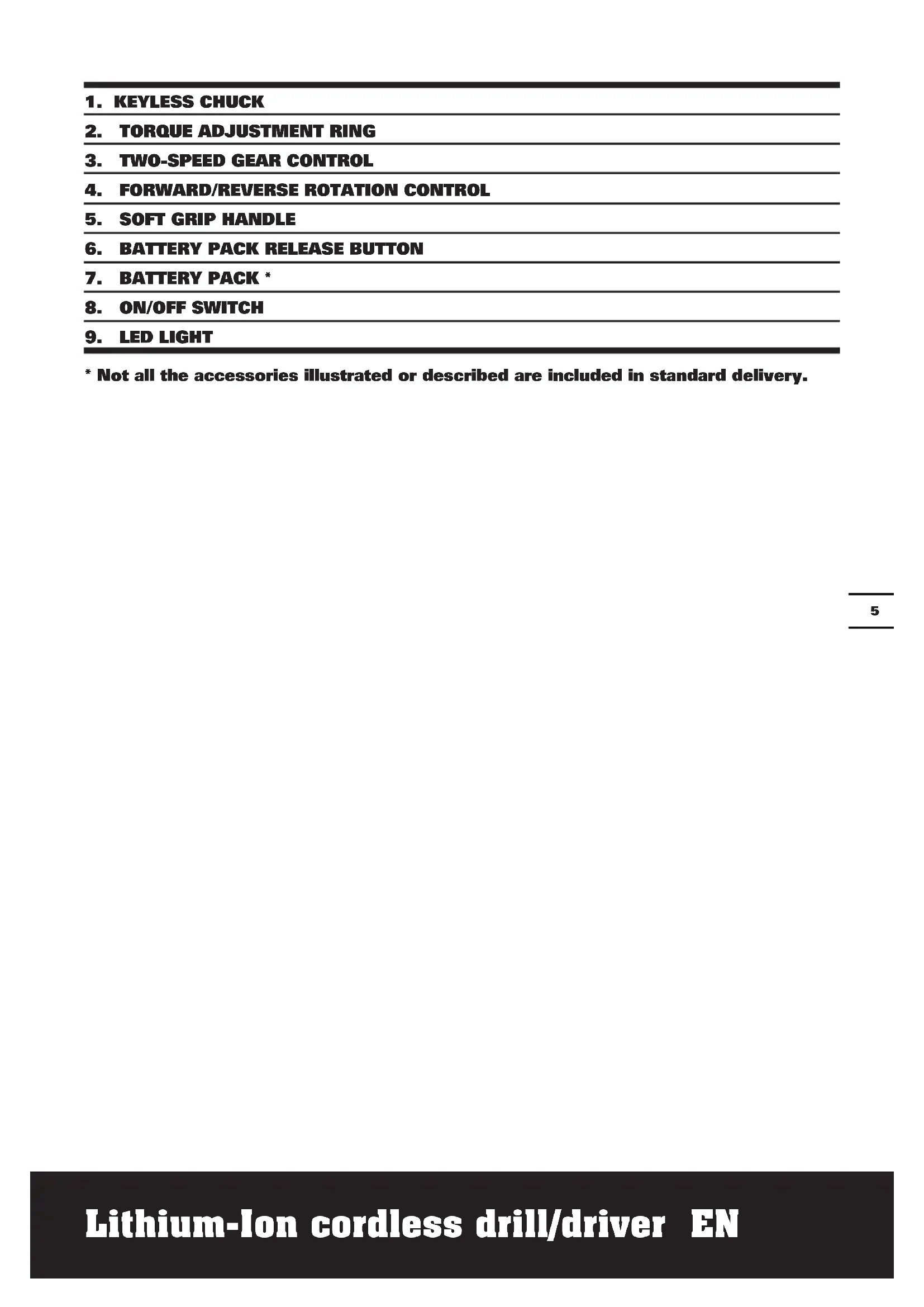

• Not all the accessories illustrated or described are included in standard delivery.Lithium-Ion cordless drill/driver EN

TECHNICAL DATA Type WX125 WX125.1 WX125.3 WX125.4 WX125.5 WX125.6 WX125.7 WX125.9 (1-designation of machinery, representative of battery-powered drill) Voltage 12V No load speed 0-330 / 0-1200/min Number of clutch positions 15+1 Max torque (soft/hard) 14/24N.m Chuck capacity 10mm Max. drilling capacity Steel 10mm Wood 20mm Machine weight 1.0kg NOISE INFORMATION A weighted sound pressure L

:73dB(A) A weighted sound power L

3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Drilling into metal Vibration emission value a

Screwdriving without impact Vibration emission value a

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.Lithium-Ion cordless drill/driver EN

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10

C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES wX125 wX125.1 wX125.3 wX125.4 Battery pack (1.3Ah) 1 2 1 2 Charger 3hr 3hr 30min 30min Double ended bit 1 1 1 1 40pc accessory kit / / / / wX125.5 wX125.6 wX125.7 wX125.9 Battery pack (1.3Ah) 1 2 1 / Charger 3hr 1hr 1hr / Double ended bit / 1 1 1 40pc accessory kit 1 / / / We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.Lithium-Ion cordless drill/driver EN

with the tool. Loss of control can cause personal injury.

2. Hold power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short- circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) Battery pack needs to be charged

before use. Always refer to this instruction and use the correct charging procedure. j) Do not maintain battery pack on charge when not in use. k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. l) Battery pack gives its best performance when it is operated at normal room temperature (20°C ± 5°C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly.Lithium-Ion cordless drill/driver EN

NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

The battery charger supplied is matched to the Li-Ion battery installed in the machine. Do not use another battery charger. The Li-Ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool holder no longer rotates. In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging. When the battery pack is charged for the first time and after prolonged storage, the battery pack will accept a 100% charge after several charge and discharge cycles.

B) TO REMOVE OR INSTALL BATTERY

PACK (See Fig. A) Depress the battery pack release button to release and slide the battery pack out from your tool. After recharge, slide it back into your tool. A simple push and slight pressure will be sufficient. OPERATION

1. ON / OFF SWITCH (See Fig. B)

Depress the On/Off switch to start and release it to stop your drill. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.

WARNING: Do not operate for

long periods at low speed because excess heat will be produced internally. To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask Indoor use only Do not expose to rain or water Do not burn Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point LiLithium-Ion cordless drill/driver EN

The switch trigger can be locked in the OFF position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the rotation control in the center position.

3. REVERSIBLE (See Fig. B)

For drilling and screw driving use forward rotation marked “ ” (lever is moved to the left). Only use reverse rotation marked “ ” (lever is moved to the right) to remove screws or release a jammed drill bit.

WARNING: Never change the

direction of rotation when the chuck is rotating, wait until it has stopped!

4. TWO-SPEED GEAR CONTROL (See Fig. C)

The drill has a two-speed gear control designed for drilling or driving at LO (mark is

1) or HI (mark is 2) speeds. A slide switch is

located on top of the drill to select either LO or HI speed. When using the drill in the LO speed range, the speed will decrease and the drill will have greater power and torque. When using the drill in the HI speed range, the speed will increase and the drill will have less power and torque. Gear I Low speed range: for screwdriving or working with large drilling diameter Gear II High speed range: for working with small drilling diameter

WARNING: To prevent gear damage,

always allow the chuck to come to a complete stop before changing the direction of rotation or the two-speed gear control.

5. CHUCK ADJUSTMENT (See Fig. D)

To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction. Ensure the drill bit is in the center of the chuck jaws. Finally, firmly rotate the front chuck section in the opposite directions. Your drill bit is now clamped in the chuck.

6. TORQUE ADJUSTMENT (See Fig. E)

(Screw driving force of your drill driver) The torque is adjusted by rotating the torque adjustment ring. The torque is greater when the torque adjustment ring is set on a higher setting. The torque is less when the torque adjustment ring is set on a lower setting. Make the setting as follows:

1 - 4 for driving small screws

for driving screws into soft material

for driving screws into soft and hard material for heavy drilling

7. AUTOMATIC SPINDLE LOCK (See Fig. F)

The automatic spindle lock allows you to use it as a regular screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very tight screw or continue working when the battery energy has expired. For manual screwdriver purposes, the chuck is automatically locked when the tool is off.

8. USING THE LED LIGHT

To turn on the light simply press the on/off switch. When you release the on/off switch, the light will be off. LED lighting increases visibility-great for dark or enclosed area. LED is also a battery capacity indicator. It will flash when power gets low.

When drilling into a hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the bit at the point to be drilled. Depress the switch trigger to start the tool. Move the drill bit into the workpiece, applying only enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole. Tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. AlwaysLithium-Ion cordless drill/driver EN

use a magnetic bit holder (not included) when using short screwdriver bits. When screw-driving, apply a small quantity of liquid soap or similar to the screw threads to ease insertion.

To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components.

11. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed.

12. TEMPERATURE DEPENDENT

OVERLOAD PROTECTION When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 75°C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

13. PROTECTION AGAINST DEEP

DISCHARGING The Li-ion battery is protected against deep discharging by the “Discharging Protection System”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates. PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON

WHEN YOU PRESS THE SWITCH? The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. Push the trigger and the drill will start to rotate.

2. THE DRILL STOPS BEFORE THE

SCREW IS COMPLETELY TIGHTENED. WHY? Verify the torque position of the torque adjusting ring, you can find the torque- adjusting ring between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 15 is the highest torque (screw driving force). Position“ ”is for drill operation. Regulate the torque adjusting ring to a higher position to reach the best result.

Charging time problems, as above, and having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0

C as this will affect performance. MAINTENANCE Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.1312 Lithium-Ion cordless drill/driver EN

ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, POSITEC Germany GmbH Konrad-Adenauer-Ufer 37 50668 Köln Declare that the product, Description WORX Lithium-Ion cordless drill/driver Type WX125 WX125.1 WX125.3 WX125.4 WX125.5 WX125.6 WX125.7 WX125.9 (1-designation of machinery, representative of battery-powered drill) Function Drilling Complies with the following Directives, 2006/42/EC 2004/108/EC 2011/65/EU Standards conform to EN 55014-1 EN 55014-2 EN 60745-1 EN 60745-2-1 EN 60745-2-2 The person authorized to compile the technical file, Name: Russell Nicholson Address: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK 2013/12/17 Leo Yue POSITEC Quality Manager1312 Schnurloser Lithium-Ionen-Bohrer/ Schraubendreher
