USER MANUAL WX478 WORX
*Not all the accessories illustrated or described are included in standard delivery.

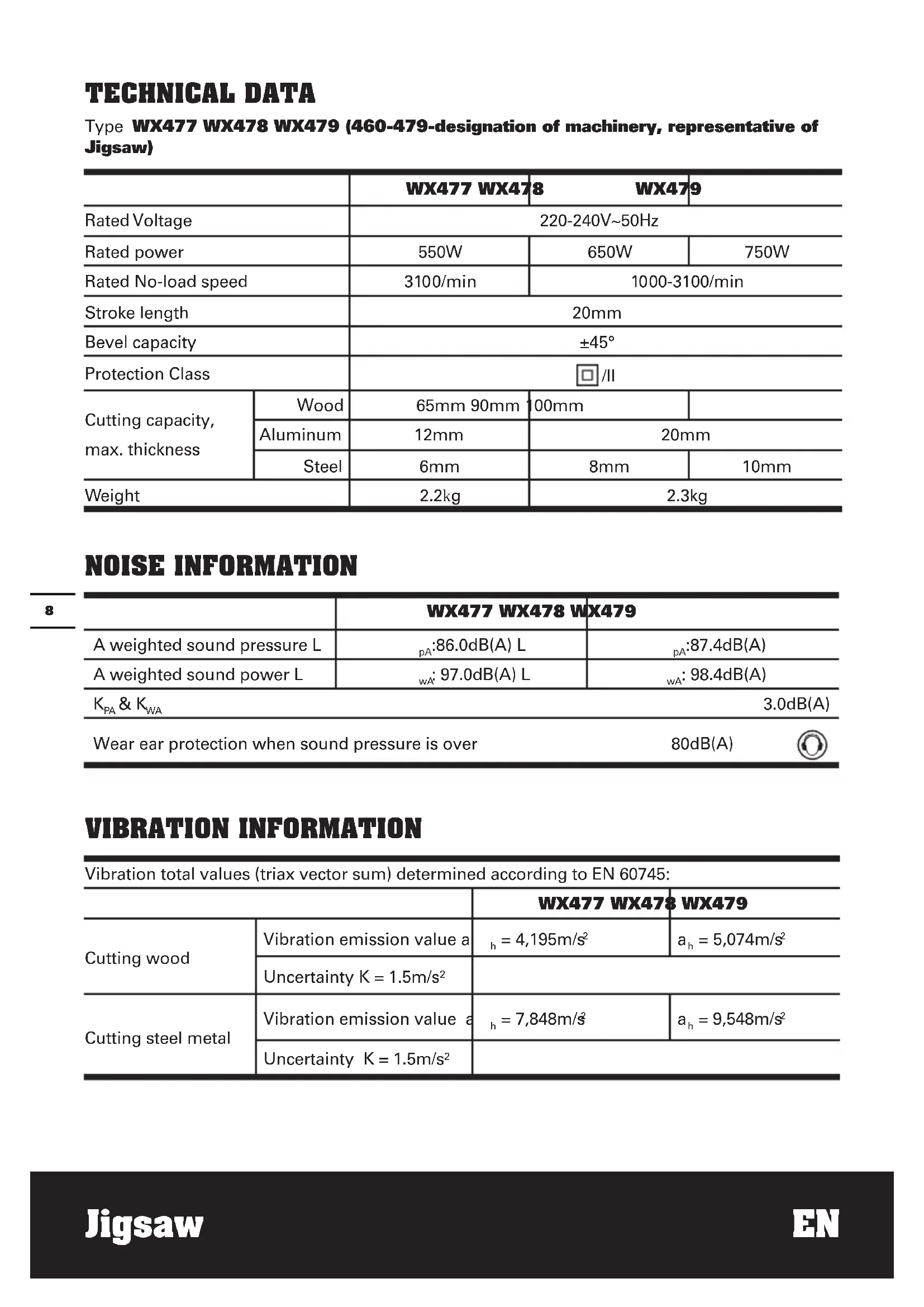

TECHNICAL DATA
Type WX477 WX478 WX479 (460-479-designation of machinery, representative of Jigsaw)
| WX477 WX478 | WX479 | |||
| Rated Voltage | 220-240V~50Hz | |||
| Rated power | 550W | 650W | 750W | |
| Rated No-load speed | 3100/min | 1000-3100/min | ||
| Stroke length | 20mm | |||
| Bevel capacity | ±45° | |||
| Protection Class | ☐/II | |||
| Cutting capacity, max. thickness | Wood | 65mm 90mm | 100mm | |
| Aluminum | 12mm | 20mm | ||
| Steel | 6mm | 8mm | 10mm | |
| Weight | 2.2kg | 2.3kg | ||
NOISE INFORMATION
8
| WX477 WX478 WX479 | ||
| A weighted sound pressure L | pA:86.0dB(A) L | pA:87.4dB(A) |
| A weighted sound power L | wA: 97.0dB(A) L | wA: 98.4dB(A) |
| KPA & KWA | 3.0dB(A) | |
| Wear ear protection when sound pressure is over | 80dB(A) | |
VIBRATION INFORMATION
| Vibration total values (triax vector sum) determined according to EN 60745: | |||
| WX477 WX478 | WX479 | ||
| Cutting wood | Vibration emission value a | h=4,195m/s2 | ah=5,074m/s2 |
| Uncertainty K = 1.5m/s2 | |||
| Cutting steel metal | Vibration emission value a | h=7,848m/s | ah=9,548m/s2 |
| Uncertainty K = 1.5m/s2 | |||
The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool is tched off and when it is running idle but not actually doing the job. This may significantly increase the exposure level over the total working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10^ or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSIONS
| WX477 WX478 WX479 | |||
| Hex key 1 1 1 | |||
| Metal cutting blade 1 1 1 | |||
| Wood cutting blade 1 1 1 | |||
| Aluminum cutting blade 1 1 1 | |||
| Parallel guide / 1 1 | |||
| Vacuum adaptor / 1 1 | |||
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
JIGSAW SAFETY WARNINGS
-
Hold jigsaw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
-
Always wear a dust mask.
SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
| Before any work on the machine itself, pull the mains plug from the socket outlet. | |
| Wear protective gloves | |
| Wood | |
| Aluminium | |
| Metal | |
| Plastic | |
| Lock | |
| Unlock |
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
ALWAYS WEAR A DUST MASK
INTENDED USE
The machine is intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts with litre angles to 45^ . The saw blade recommendations are to be observed.
ASSEMBLY AND OPERATION
| Action Figure | |
| Blade Installation | See Fig. A1 |
| Blade Removing See Fig. A2 | |
| Variable Speed Control (Only for WX478 WX479) | See Fig. B |
| Pendulum Function See Fig. C | |
| ON/OFF Switch See Fig. D | |
| Lock-On Button See Fig. D | |
| Straight Cut and Curve Cut | See Fig. E1,E2 |
| Bevel Cut See Fig. F,G | |
| Plunge Cut See Fig. H | |
| Parallel Guide (Only for WX478 WX479) | See Fig. I1,I2 |
| Blade Storage (Only for WX478/ WX479) | See Fig. J |
| Vacuum Adaptor (Only for WX478/ WX479) | See Fig. K |
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
TROUBLESHOOTING
| Symptom Possible Causes Possible Solution | ||
| Tool will not start when power on | •Power cord is not plugged. | •Check to make sure power cord is connected well into a working outlet. |
| Poor cut quality | •Blade is worn out. •Blade is assembled incorrectly •Pushing rate is too fast. | •Make sure the blade is sharp and not broken. •Make sure the blade is installed properly. Push the machine slowly. |
| Work efficiency is low. | •Blade is worn out •Incorrect speed setting •Incorrect Pendulum function setting | •Change to a new blade. •Adjust the variable speed control according to the material •Adjust the pendulum function control according to the material |
| Blade is not clamped tightly by the Blade Holder. | •Blade is not inserted into place fully. | Dismantle the blade and reinstall it correctly. |

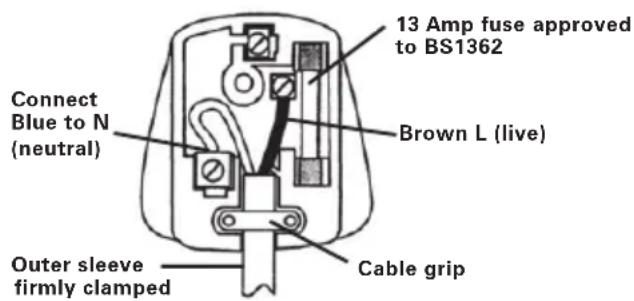

PLUG REPLACEMENT (UK & IRELAND ONLY)
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
BLUE =NEUTRAL
BROWN = LIVE
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.
WARNING! Never connect live or
neutral wires to the earth terminal of the
plug. Only fit an approved 13ABS1363/A plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Declare that the product,
Description WORX Jigsaw
Type WX477 WX478 WX479
(460-479-designation of machinery,
representative of Jigsaw)
Function Sawing various materials
Complies with the following directives,
2006/42/EC
2004/108/EC
2011/65/EU
Standards conform to:
EN 55014-1
EN 61000-3-3
EN 55014-2
EN 60745-1
EN 61000-3-2
EN 60745-2-11
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe)
Ltd, PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/30
Allen Ding
Deputy Chief Engineer, Testing &
Certification
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVES AUX VIBRATIONS
Tipus WX477 WX478 WX479 (460-479-a
SOLUTIONI LA PROBLEM
Nume Russell Nicholson
Adresă Positec Power Tools (Europe)
Ltd, PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/30
Allen Ding
Adjunct Inginer Şef, Testare si certificare
| 1. OVLÁDÁNÍ OTÁČEK MOTORU (POUZE U MODELU WX478/WX479) |
| 2. VYPÍNAČ |
| 3. ARETAČNÍ TLACÍTKO ZAPNUTÍ |
| 4. DRžADLO S MěKKYM ÚCHOPEM |
| 5. IMBUSOVÍ KLÍČ |
| 6. UHLOVÁ DESKA |
| 7. ZÁKLADNÍ DESKA |
| 8. VODÍCÍ KLADKA |
| 9. ÚCHYTY PRO ROVNOBÉZNÍ DORAZ |
| 10. CHRÁNIC PRSTU |
| 11. OVLÁDÁNÍ KMITAVÉHO POHYBU |
| 12. PARALELNÍ DORAZ (POUZE U MODELU WX478/WX479) * |
Typ WX477 WX478 WX479
(460-479- označeni stroje, zastupce pila)
Typ WX477 WX478 WX479
(460-479- označenie zariadenia, zastupca pily)
Tipo WX477 WX478 WX479 (460-479-
Cumpre as següntes Directivas:
2006/42/EC
2004/108/EC
2011/65/EU
