Brand	Tefal
Model	FG441800
Product type	Filter coffee maker
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W (estimation)
Carafe capacity	1.25 L (estimation)
Number of cups	Up to 12 cups
Filter	Paper filter No. 2 or 4 or permanent filter (depending on model)
Anti-drip	Yes, allows you to pour a cup before the cycle ends
Aroma selector	Yes (on some models)
Keep warm	Glass carafe: 30 minutes after cycle; Thermal carafe: 4 hours
Automatic shut-off	Yes, after 30 minutes (glass carafe) or a few minutes (thermal carafe)
Carafe type	Glass carafe or thermal carafe (depending on model)
Water tank	With maximum water level
Maintenance	Clean with a damp cloth; removable filter holder dishwasher safe
Descaling	Every 40 cycles (white vinegar or descaling agent)
Safety	Hot surfaces, do not immerse, damaged cable must be replaced
Included accessories	Glass carafe or thermal carafe, permanent filter (depending on version)
Usage	Household use only, indoor, altitude < 2000 m
Warranty	Warranty void in case of incorrect connection or failure to descale

Frequently Asked Questions - FG441800 TEFAL

How to use the anti-drip?

The anti-drip allows you to pour a cup of coffee before the cycle ends. Simply remove the carafe to stop the flow automatically. Replace the carafe quickly to avoid any overflow.

How to descale the coffee maker?

Descale every 40 cycles. Use a sachet of descaling agent diluted in 2 large cups of water or 2 large cups of white vinegar. Pour into the tank, run the cycle until one cup is obtained, then stop and let it sit for 1 hour. Finish the cycle and rinse with 2 to 3 carafes of fresh water.

Why does my coffee maker turn off automatically?

The coffee maker is equipped with an automatic shut-off to save energy. For models with a glass carafe, it turns off about 30 minutes after the cycle ends. For models with a thermal carafe, it turns off a few minutes after the cycle ends.

Can I put the carafe in the microwave?

Do not put the glass carafe in the microwave if it has a metal part (e.g., steel rim). Likewise, the thermal carafe should never be placed in the microwave.

How to clean the thermal carafe?

Do not use abrasive cleaners. Fill the carafe with water and dish soap, then rinse thoroughly. For stubborn stains, add a dishwasher tablet to warm water and let it soak before rinsing.

What type of filter to use?

Use a paper filter No. 2 or 4 or the permanent filter provided depending on the model. Do not exceed the maximum water level indicated on the tank.

What if the coffee takes too long to brew?

A longer or noisier cycle indicates that descaling is needed. Descale every 40 cycles to maintain performance.

How to adjust coffee strength?

The aroma selector (on some models) allows you to adjust the strength. Turn it towards the black cup or the largest coffee bean* for a stronger coffee.

Can I use the coffee maker without a filter?

No, you must always use a paper filter or the permanent filter. Without a filter, grounds would go into the coffee and could clog the machine.

How to rinse the coffee maker before first use?

Before first use, run the coffee maker without coffee with the equivalent of one carafe of water to rinse it.

USER MANUAL FG441800 TEFAL

a b c d e** g* f*

a Couvercle - Lid - Deksel - Deckel - Coperchio - Tapa - Tampa - Kapa'ki - Kapak - Låg - Lokk - Lock - Kansi - درب غ platinum Крышка - Кришка - Какпағы

b Réservoir - Tank - Reservoir - Wassertank - Serbatoio dell'acqua - Depósito - Depósito - Дохείο - Hazne - Vandtank - Tank - Behållare - Vesisäiliö - مخزن Резервуар - Резервуар - Су құтын ыдысы

c Niveau d'eau - Water level - Waterpeil - Wasserstandanzeige - Livello dell'acqua - Nivel de agua - Nivel de água - Στάθμη νερού - Su seviyesi - Vandniveau - Vannivå - Vattennivå - Vedentason näyttö - سطح آب - مستوى الماء - Уровень воды - Рівень води - Су деңгейі

d Porte-filtre - Filter holder - Filterhouder - Filterträger - Alloggio del filtro - Portafiltros - Portafiltro - Θήκη φίλτρου - Filtre desteği - Filterholder - Filterholder - Filterhållare - Suodatinkotelo - نگهدار فيلتر - حاملة الفلتر

e Plaque-chauffante** - Warming plate** - Opwarmplaat** - Heizplatte** - Piastra riscaldante** - Placa calefactora** - Placa de aquecimento** - Θερμαινόμενη πλάκα** - Isinan levha** - Varmeplade** - Varmeplate** - Värmeplatta** - Lämpölevy**** loحة التسخين ** - ظرف گرم کردن * - Нагревающая пластина** - Пластина, що нагрівається ** - Ыстық табаны**

f Verseuse* - Jug* - Koffiekan* - Kanne* - Caraffa* - Jarra* - Jarra* - Kaváta* - Sūrahi* - Kande* - Kanne* - Kanna* - Kannu* - * كوزه * - ابريق Koфейник с прямой ручкой* - Кофейник з прямою ручкою* - К¥ман*

9 Cuillère doseuse - Dosing spoon - Maatlepel - Dosierlöffel - Cucchiaio dosatore - Cuchara dosificadora - Colher doseadora - Μεζούρα - Ölçme kaşığı - Måleske - Doseringsskje - Kaffemätt - Mittalusikka - قاشق به ميزان دوز - ملعقة قياس - Ложка-дозатор - Ложка-дозатор - łyżka dozująca - Өлшейtin қасық

* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب المودئيل * - بسته به هدّل - В зависимости от модели - В залежності від модели- Улгіге байланысты

** Pour le modèle verseuse verre - For the glass jug model - Voor de glazen koffiekan - Beim Modell mit Glaskanne - Per il modello con caraffa in vetro - Para el modelo con jarra de cristal- Para o modelo com jarra de vidro - Για το μοντέλο με γυάλινη κανάτα - Cam sürahi modeli için - Til modellen med glaskande - For modellen med glasskanne - För modellen med glaskanna - Lasikannulliselle mallille براى مدل تنک شيشه-لَموديل الإبrieق الزجَاجي для модели со стеклянным кофейником- для модели з скляним кофейником Κُманы шыны үлгілер үшін

1

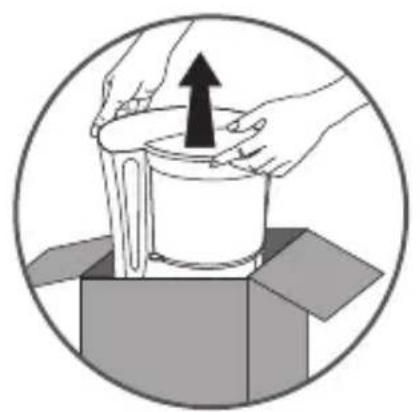

Illustration of hands holding a cup and an open box with an upward arrow, enclosed in a circle (no text or symbols)

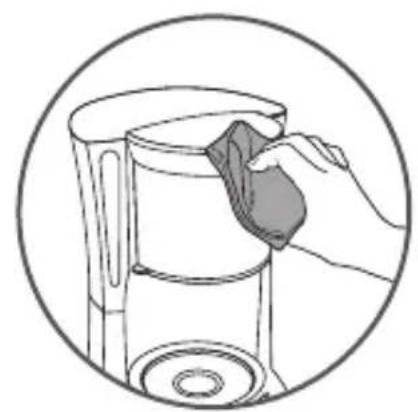

Illustration of a hand cleaning a cylindrical container with a cloth (no text or symbols)

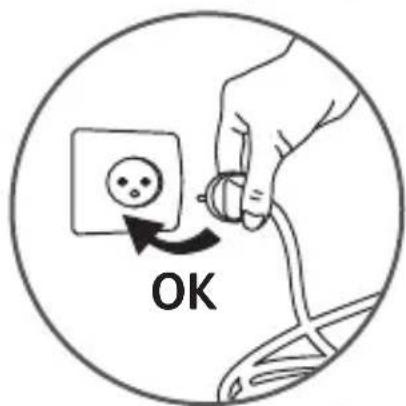

OK

fig.1
2

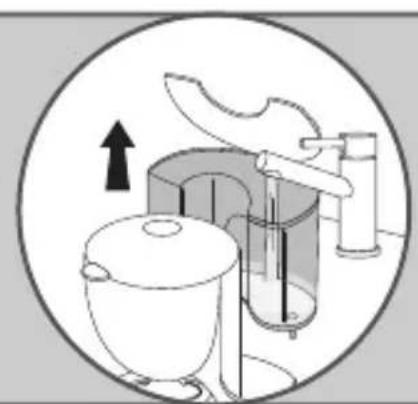

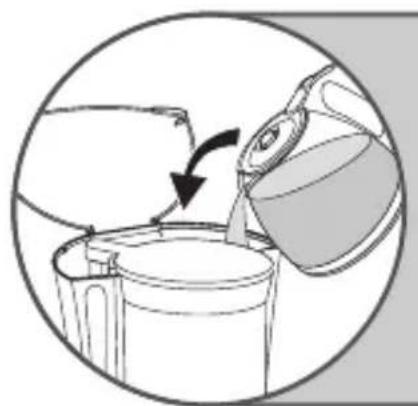

Illustration of a hand pouring liquid from a container into a bottle, enclosed in a circular frame (no text or symbols)

Diagram of a toilet and water dispenser with an upward arrow indicating flow or movement (no text or symbols)

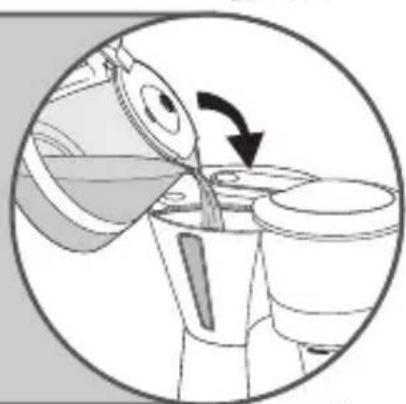

Illustration of a hand pouring liquid into a container with a curved arrow indicating flow direction (no text or symbols)

fig.2
3

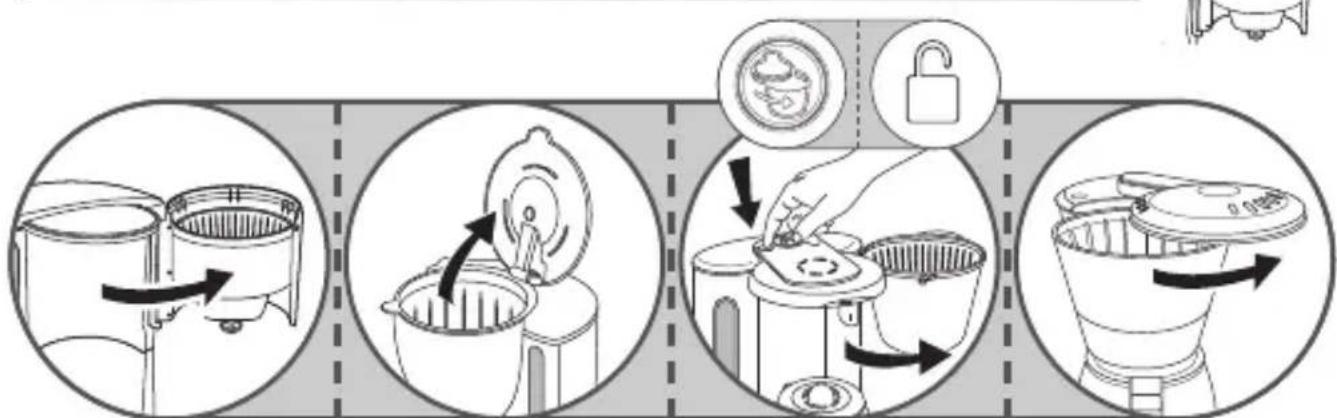


fig.3
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - بسته به عدّل - حسب البحويت В зависимости от модели - В залежности від моделі-Улгіге байланысты

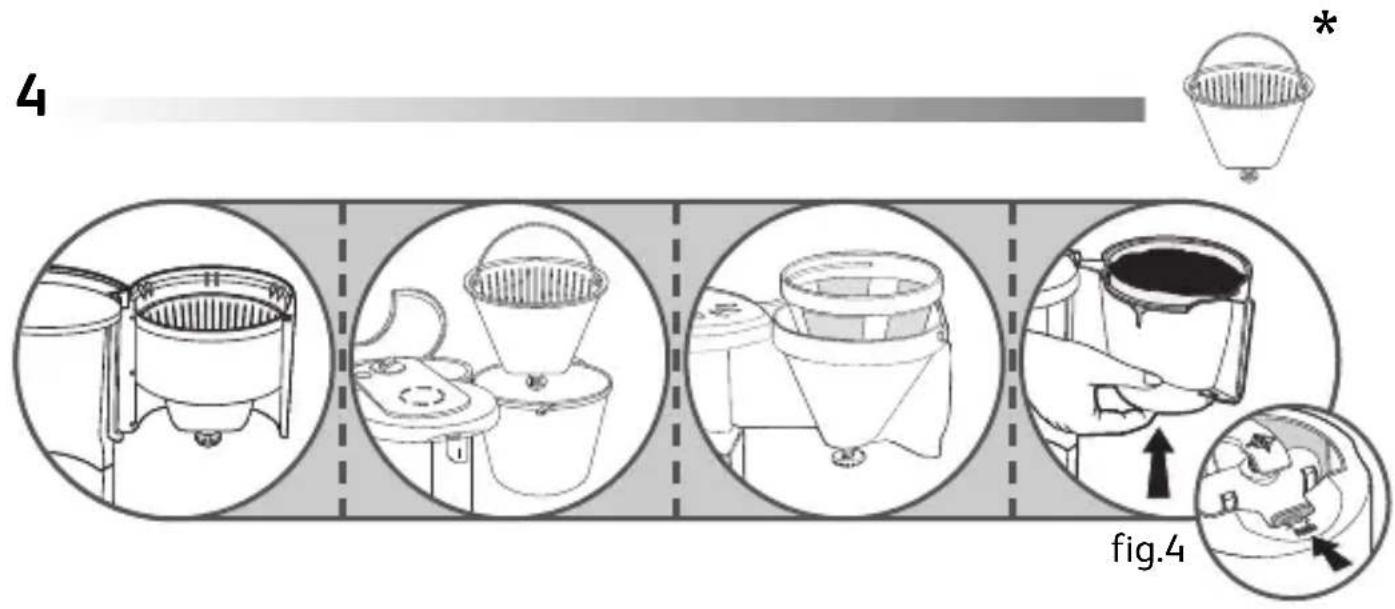


5 N°4N°2 fig.5

6

fig.6
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallis. بسته به عدّل - حسب المؤ牌یا - В зависимости от модели - В залежності від моделі-Улгіге байланысты

7

fig.7
8

*

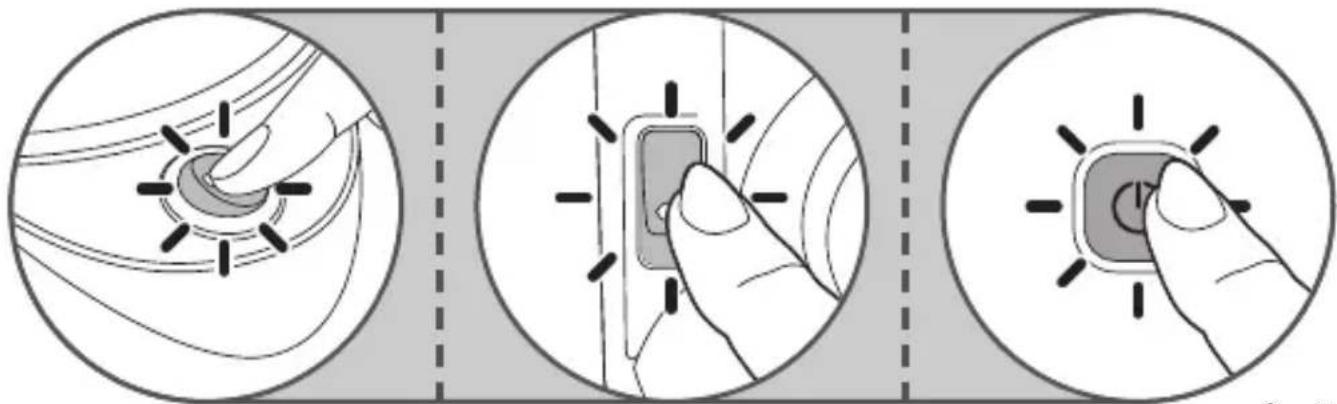

Three-step diagram showing hand pressing a button on a device, with no text or symbols present.

fig.8
9

Illustration of a hand pouring liquid into a dark container with a teapot (no text or symbols)

Illustration of a person using a tool to lift a cup, showing two different states of the cup movement (no text or symbols present)

fig.9
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - بسته به عدل - حسب البحويت В зависимости от модели - В залежности від моделі-Улгіге байланысты

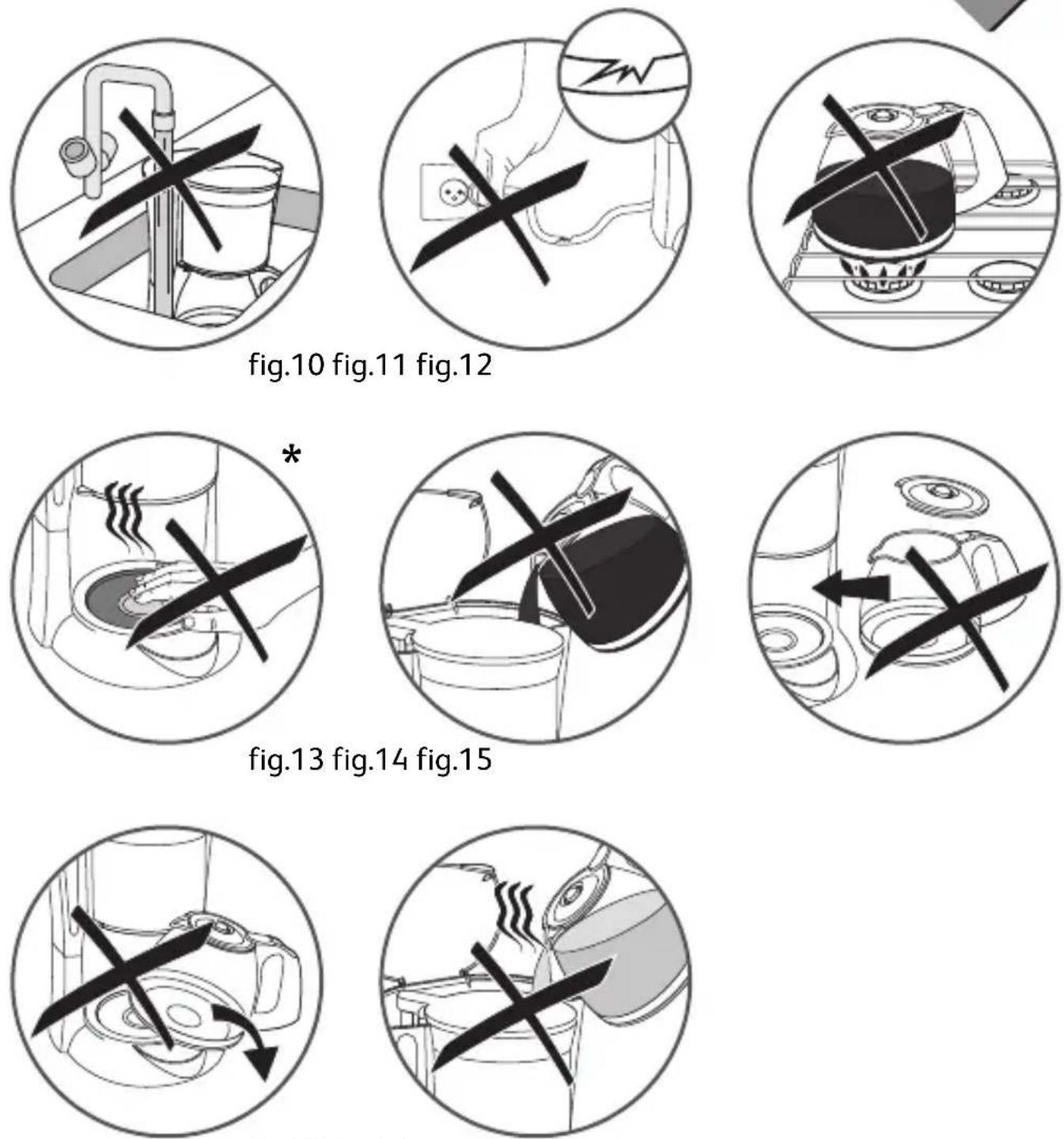

fig.16 fig.17

* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallis. بسته به عدّل - حسب المؤ牌یا - В зависимости от модели - В залежності від моделі-Улгіге байланысты

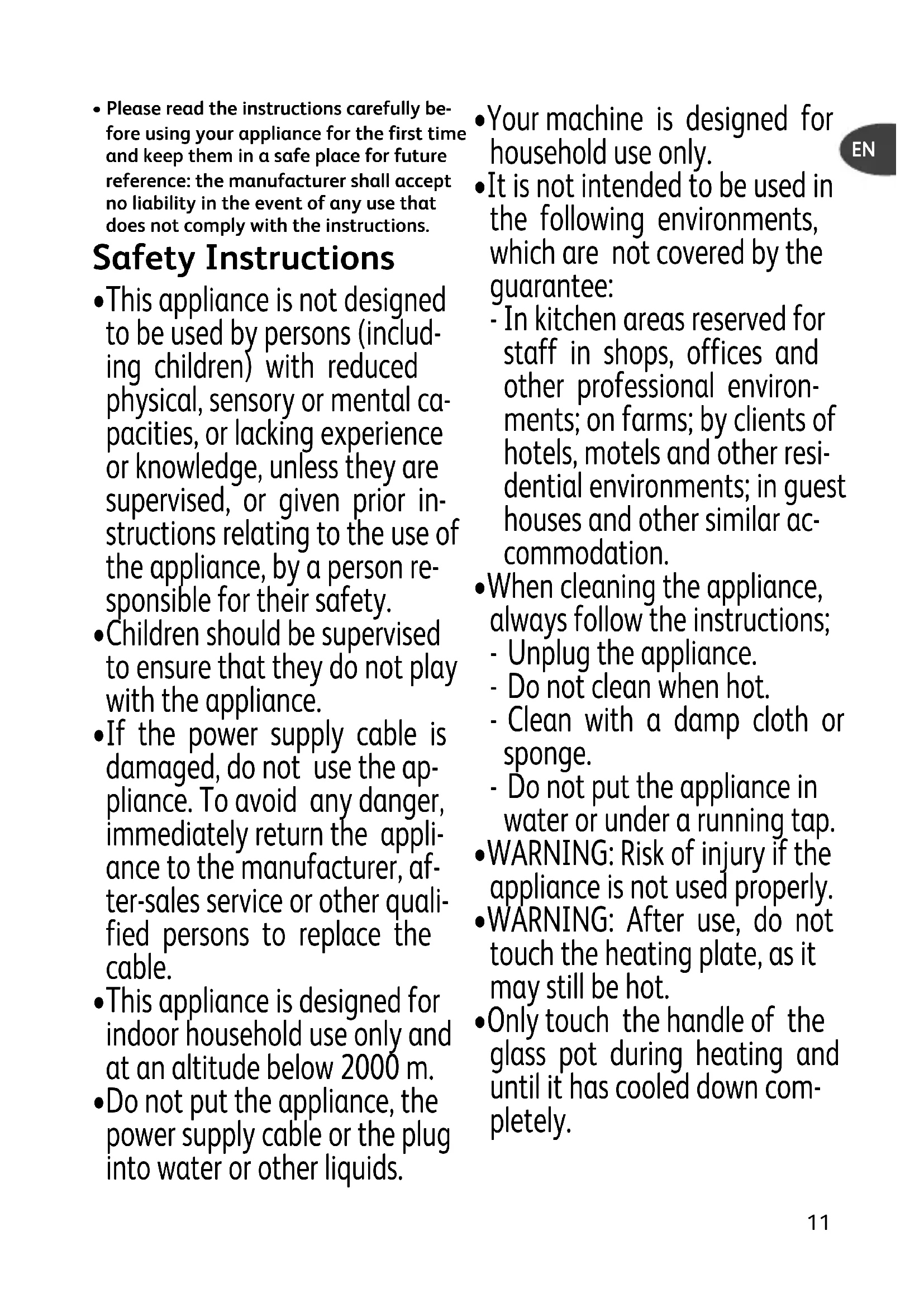

- Please read the instructions carefully before using your appliance for the first time and keep them in a safe place for future reference: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions.

Safety Instructions

- This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities, or lacking experience or knowledge, unless they are supervised, or given prior instructions relating to the use of the appliance, by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

- If the power supply cable is damaged, do not use the appliance. To avoid any danger, immediately return the appliance to the manufacturer, after-sales service or other qualified persons to replace the cable.

- This appliance is designed for indoor household use only and at an altitude below 2000 m.

- Do not put the appliance, the power supply cable or the plug into water or other liquids.

- Your machine is designed for household use only. - It is not intended to be used in the following environments, which are not covered by the guarantee:

- In kitchen areas reserved for staff in shops, offices and other professional environments; on farms; by clients of hotels, motels and other residential environments; in guest houses and other similar accommodation.

- When cleaning the appliance, always follow the instructions; - Unplug the appliance. - Do not clean when hot. - Clean with a damp cloth or sponge. - Do not put the appliance in water or under a running tap.

- WARNING: Risk of injury if the appliance is not used properly.

- WARNING: After use, do not touch the heating plate, as it may still be hot.

- Only touch the handle of the glass pot during heating and until it has cooled down completely.

• This appliance can be used by children over 8 years old, provided that they are properly supervised or as long as they have been given instructions on how to use the appliance safely and are full aware of the dangers involved. The appliance should not be cleaned and maintained by children, unless they are over 8 years of age and supervised by an adult.
• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instructions to use the appliance safely and understand the dangers.

• Children must not use the appliance as a toy.
  • *The temperature of the accessible surfaces may be high when the appliance is in operation. Do not touch the hot surfaces of the appliance.

• Before plugging in the appliance, ensure that the power supply corresponds to that of the appliance. Also check that the current includes an earthed socket.

• The guarantee will not apply in the event of faulty connection to a power supply.
• When using the appliance, always place it on a flat, stable, heat resistant work surface away from water splashes and any sources of heat.
• Unplug the appliance if you do not intend to use it for a prolonged period and during cleaning.
• Do not use the appliance if it is not working correctly or if it is damaged. In this case, contact an approved service centre.
• Do not leave the appliance unattended whilst in operation.
• Cleaning and standard maintenance may be carried out by the customer; any other servicing must be carried out by an approved service centre.
• The power cable must never be in proximity to or in close contact with the heated elements of your appliance, close to a source of heat or a sharp edge.
• For your safety, only use accessories and spare parts designed for your appliance.
• Do not remove the plug from the socket by pulling on the cord.
• Do not use the pot in a microwave oven, on a flame or on electric cooking plates.
• Do not fill the appliance with water if it is still hot.
• All appliances are subject to strict quality controls. Practical performance tests are conducted on appliances picked out by chance, which explains any possible signs of use.
• When the coffee machine is in use, always close the lid.
• Do not use the coffee pot without the lid.
• Do not pour hot water into the tank.

Using the machine for the first time

Before making coffee you should use the coffee maker once with water only (without coffee).

Preparing the coffee

(Follow figures 1 to 9)

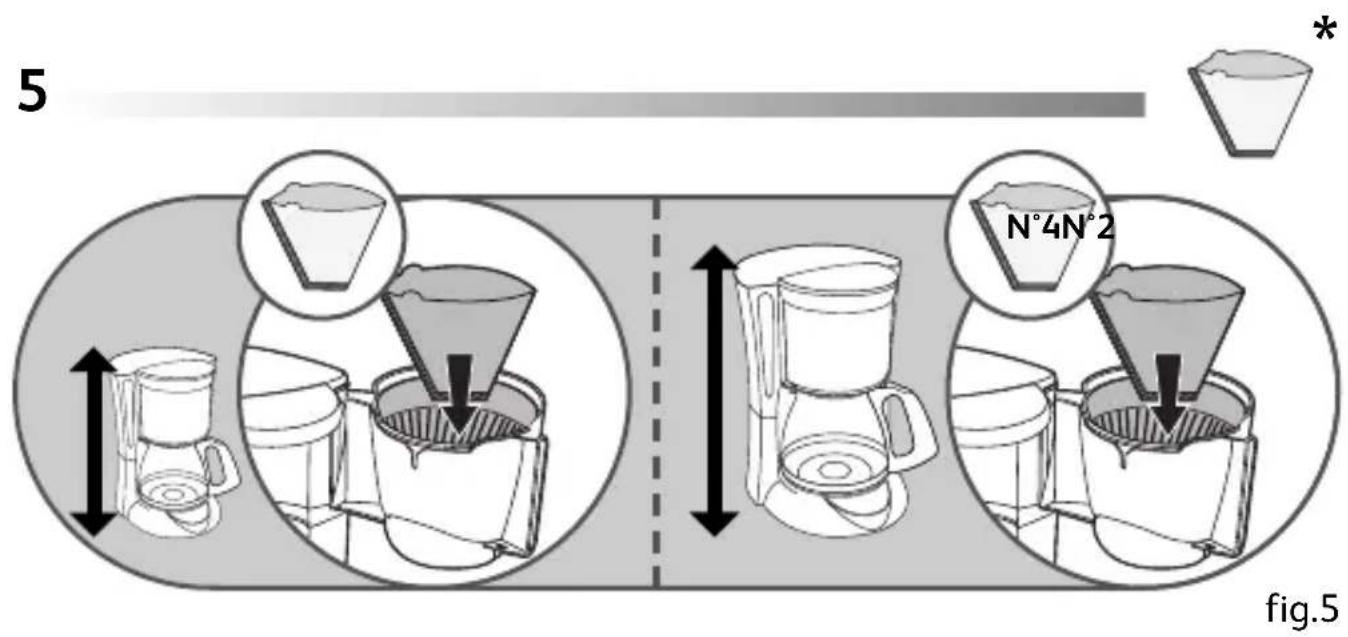

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.

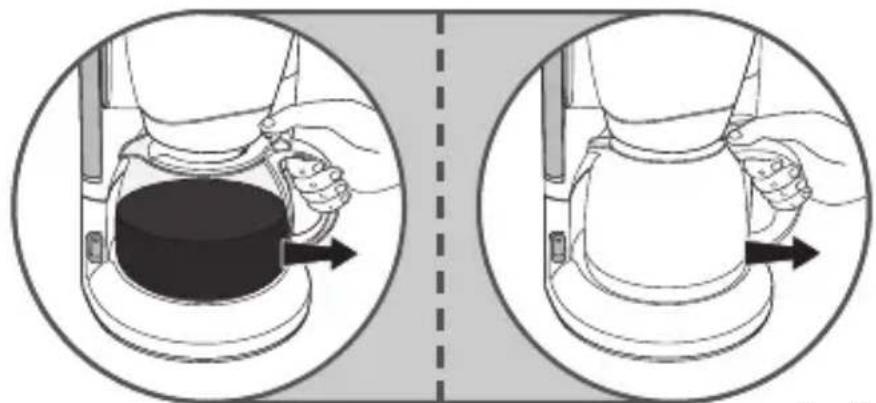

• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.

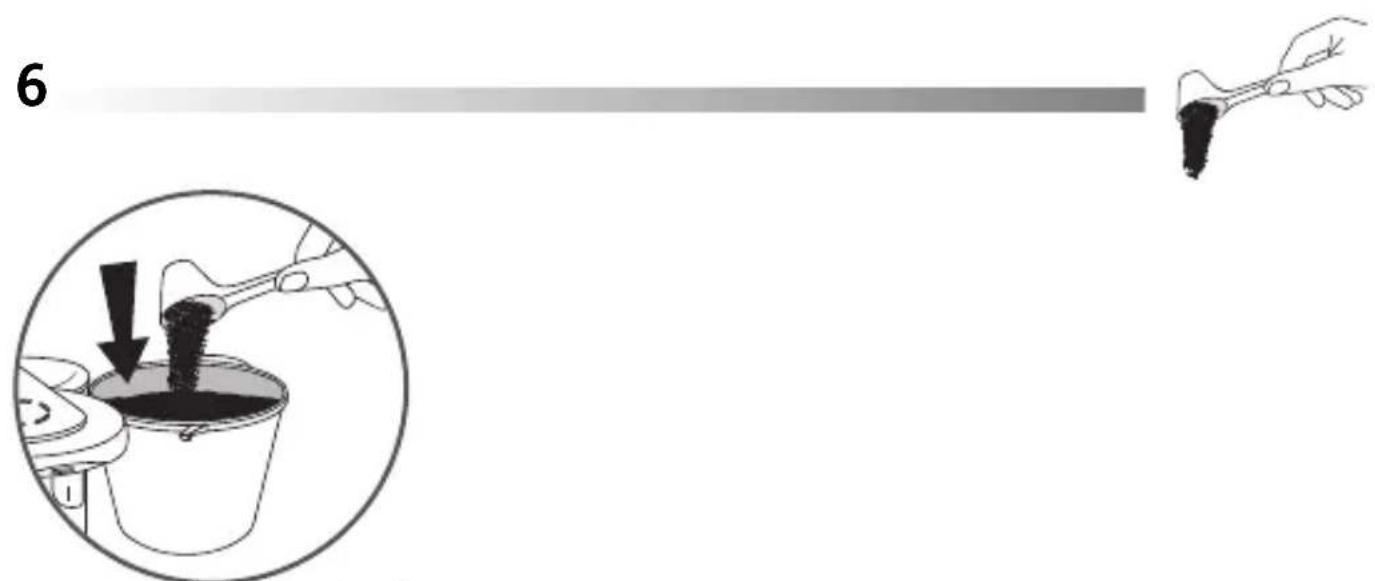

• Ground Coffee: Use one measuring spoon of ground coffee per large cup.
• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot\*

• Do not use the thermal pot without its lid.
• The lid of the isothermal pot must be closed properly when preparing coffee and to keep it warm.
• To serve coffee, press the lever on the lid of the isothermal pot downwards or unscrew the lid half way*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better and do not put it back inside the coffee maker after you have prepared the coffee.
• The thermal pot keeps your coffee warm for a maximum of four hours.

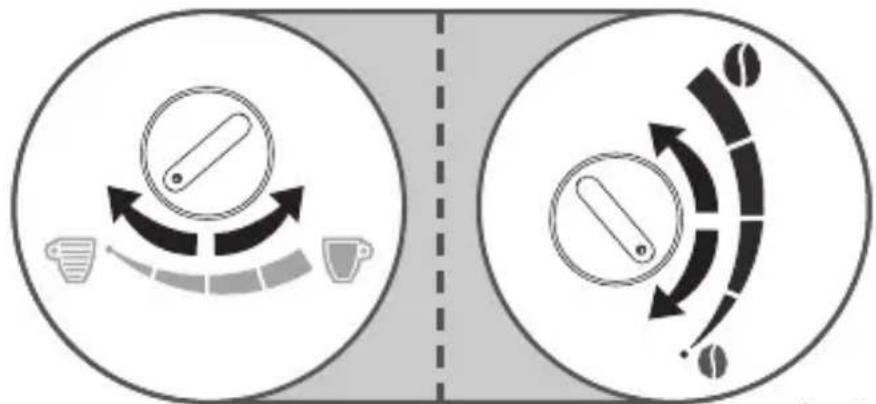

Aroma selector\* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger cup of coffee, turn the aroma setting either towards the black cup or the large coffee grain*.

Automatic stop

- In order to save energy, your coffee machine will turn off automatically.

• Models with glass pot:
  About 30 minutes after the end of the coffee brewing cycle (i.e. about 30 minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.
  During these 30 minutes, your coffee will be kept warm at a suitable temperature.
• Models with thermo pot:

A few minutes after the end of the brewing cycle (i.e. a few minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

EN

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug the appliance from the wall socket outlet, and allow the coffee maker to completely cool down.
• Clean with a cloth or damp sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug\*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.
• In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses.

You can use:

• a sachet of descaling agent diluted in two large cups of water;
• or two large cups of commercially available white vinegar.

- Pour into the tank (b) and turn on the coffee maker (without coffee).

- Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop your coffee maker (you will have to turn off the coffee maker on some automatic models).

• Allow to act for one hour.
• Restart the coffee maker to stop the flow.
• Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

N.B.: as soon as the coffee brewing cycle takes longer or becomes noisier, de-scale your machine.

Accessories\*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

①Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.

- European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), stipulates that used household appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately to optimise the sorting and recycling of their parts and to reduce the impact on human health and the environment.
