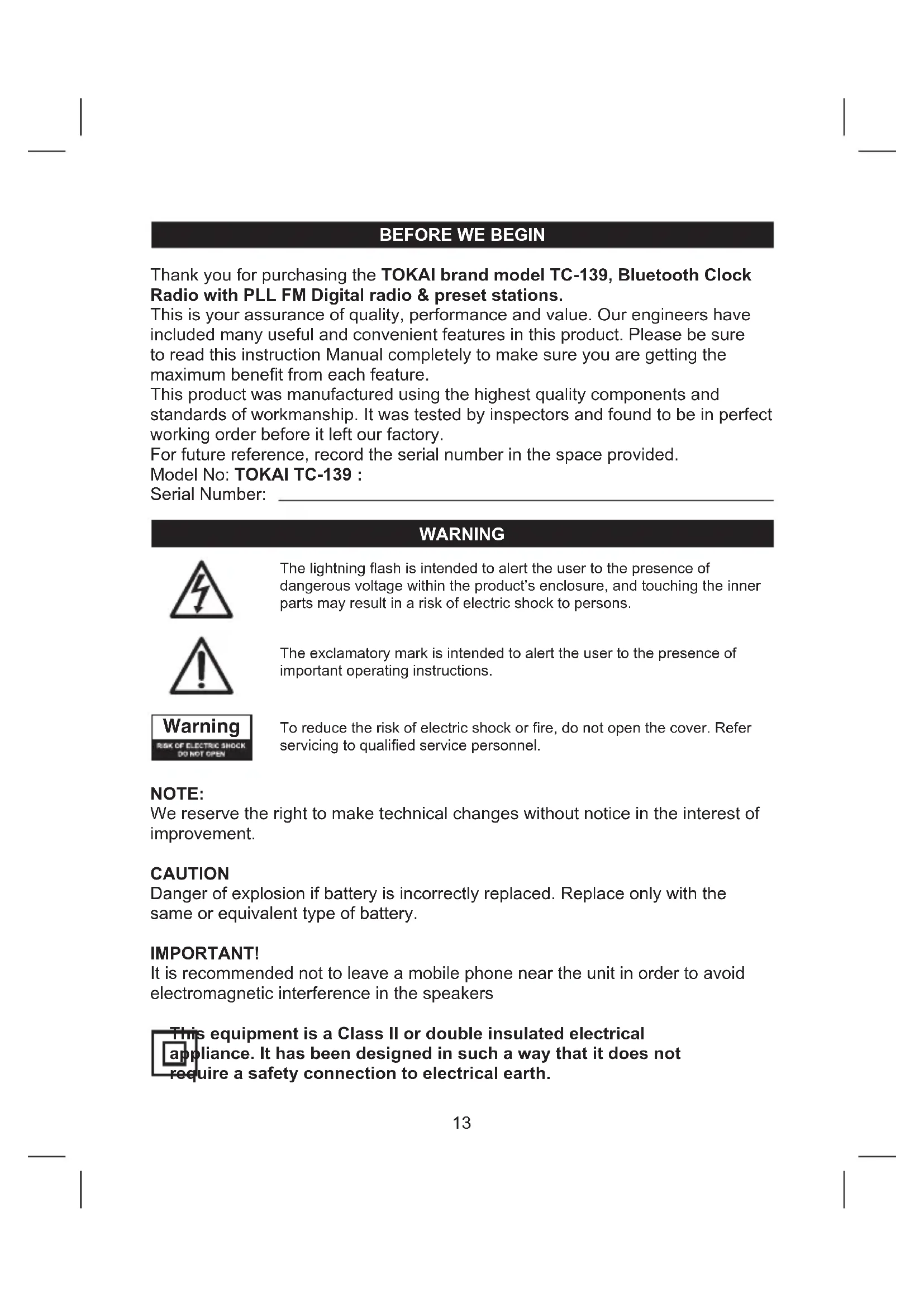

Thank you for purchasing the TOKAI brand model TC-139, Bluetooth Clock Radio with PLL FM Digital radio & preset stations. This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this instruction Manual completely to make sure you are getting the maximum benet from each feature. This product was manufactured using the highest quality components and standards of workmanship. It was tested by inspectors and found to be in perfect working order before it left our factory. For future reference, record the serial number in the space provided. Model No: TOKAI TC-139 : Serial Number: WARNING NOTE: We reserve the right to make technical changes without notice in the interest of improvement. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type of battery. IMPORTANT! It is recommended not to leave a mobile phone near the unit in order to avoid electromagnetic interference in the speakers This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

The lightning ash is intended to alert the user to the presence of dangerous voltage within the product’s enclosure, and touching the inner parts may result in a risk of electric shock to persons. The exclamatory mark is intended to alert the user to the presence of important operating instructions. To reduce the risk of electric shock or re, do not open the cover. Refer servicing to qualied service personnel. Warning14

1. No naked ame sources, such as lighted candles, should be placed on the

2. Do not place the product in closed bookcases or racks without proper

3. Where the mains plug is used as the disconnect device, the disconnect

device shall remain readily operable.

4. The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc.

5. It shall not be exposed to dripping or splashing and that no objects lled with

liquids, such as vases, shall be placed on the apparatus.

6. Do not connect FM antenna to outside antenna.

7. The unit should not be exposed to direct sunlight, very high or low

temperature, moisture, vibrations or placed in dusty environment.

8. Do not use abrasive, benzene, thinner or other solvents to clean the surface

of the unit. To clean, wipe it with mild non-abrasive detergent solution and clean soft cloth.

9. Never attempt to insert wires, pins or other such objects into the vents or

opening of the unit.

10. Disconnect device warning : Mains plug is used as the connection, so it

should always remain ready operate.

11. Batteries shall not be exposed to excessive heat such as sunshine, re or

12. Class 1 LED product.

AC-DC adaptor connection: The clock radio unit can be powered by an external AC-DC adaptor, required the output DC 5V 1.5A (included). POWER CONNECTION Plug the AC-DC adaptor to a household outlet AC source, connect the adaptor’s DC output plug to the DC IN Jack of the clock unit. BATTERY BACK-UP

• This unit is equipped with a battery back-up system, it requires a 3V at lithium battery CR2032 (not included).

• Open the battery compartment by unscrewing the lid with a small screwdriver.

• Insert the battery in the battery compartment, making certain that15 the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment.

• Screw the lid of the battery compartment to close. Note : If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again. BATTERY CARE

1. Use only the size and type of batteries specied.

2. If the unit is not to be used for an extended period of time, remove the

battery. Old or leaking batteries can cause damage to the unit.

3. Do not try to recharge batteries not intended to be recharged; they can

overheat and rupture (Follow battery manufacturer’s directions).

4. Do not dispose of batteries in re, batteries may leak or explode.16

LED DISPLAY & INDICATORS

Time manual setting With the radio OFF mode, press and hold the SET / MEMORY button (8); “24 Hr” will blink. Press the SKIP FORWARD (5) or SKIP BACK (4) button to set the unit to the 12 hour (12 Hr) mode or 24 Hour (24 Hr) mode. Press the SET / MEMORY button (8) to conrm and the hours will blink. Press the SKIP FORWARD (5) or SKIP BACK (4) button to set the current hour, then press the SET / MEMORY (8) button again to conrm the hour; then the minute digits will blink. Press the SKIP FORWARD (5) or SKIP BACK (4) button to set the current minutes. When done, press SET / MEMORY (8) button once again to indicate the current time is set. Setting Alarm Time To preview the alarm time : press the ALARM button (6/7) once. While the display is showing the alarm time and you hold the ALARM button (AL.1 / AL.2) for 3 seconds and the hours will blink. Press the SKIP FORWARD (5) or SKIP BACK (4) button to set the alarm hour. Press the ALARM button (AL.1 / AL.2) again; the minute digits will blink. Press the SKIP FORWARD (5) or SKIP BACK (4) button to set the alarm minutes. Press the ALARM button (AL.1 / AL.2) and you can change the sound mode (Buzzer or Radio) for the alarm. Enable / Disable / Stop the alarm Press and hold the ALARM button “AL.1” (6) / “AL. 2” (7) to enable (or disable) the alarm. Once the alarm is activated, the small dot on the display will light on next to the bell symbol of AL1 and AL2. To stop the alarm from coming on the following day, hold the ALARM button (AL.1 / AL.2) to turn it OFF. The alarm icon will disappear to indicate the alarm is disarmed. To stop the alarm, press ALARM OFF (9) button. TIME Indicator PM Indicator AUX Indicator ALARM 1 Indicator BLUETOOTH Indicator FM Indicator ALARM 2 Indicator18 Wake up to radio or buzzer with mood-lights Have a great start to each day with your choice of wake up call. Have a buzzer or radio station to rouse you from slumber. Mood-lights will also come on when your alarm sounds, making mornings ever so pleasant. Mood-lights Press and hold the MOOD LIGHT ON-OFF button (9) for 3 seconds to turn the mood- lights ON-OFF. Even though Mood-lights is OFF in standby mode, the Mood Light will light ON when Alarm sounds (together with Buzzer or Radio). Snooze function When Alarm rings, press Snooze button (1) to suspend the alarm & to activate the snooze function, the alarm will stop. It will come on again 9 minutes later and the alarm will ring again. You may repeat this cycle several times during the alarm cycle and until the next alarm rings. Note: The interval time of the Snooze function is 9 minutes. - If you want to disable the SNOOZE function and stop alarm completely, press ALARM OFF button (9). RADIO OPERATIONS Listening to Radio Note : Ensure that the FM antenna is completely unrolled and extended for best FM reception.

radio station. If you press and hold the TUNING UP (5) or TUNING DOWN (4) button for one second, then release, the unit will automatically scan to the next broadcasting station.

3. Press the POWER ON-OFF button (9) to turn the radio OFF.

To set / recall the radio presets

3. Press the SET/MEM. button; “P01” will blink in the display.

4. Press the SET / MEM. button again to set the preset.19

5. Repeat steps 2 through 4 to set more presets.

6. The unit can preset 10 stations totally for FM.

7. When “P01-P10” is blinking, press the Tune+ or Tune- button to select the

the preset number in cycle. Sleep operation When listening to radio, press Sleep button (1) to enter sleep mode. You can just adjust the sleep timer from 120 mins to 10 mins by pressing the Sleep button (1). The unit will automatically turn off after the selected time. BLUETOOTH SETUP Bluetooth connectivity performance may vary with brand and model of the connected device. For best performance, please connect newer Bluetooth devices incorporating Bluetooth 2.1 and using the latest rmware update available from the device vendor. Compatibility with all devices and media types is not guaranteed. Bluetooth performance considerations ensure all Bluetooth devices within 30 feet have Bluetooth transmission disabled. The presence of other functioning Bluetooth devices during connection may lead to operational difculties. Bluetooth is a short-range radio communication standard. The Bluetooth transmitter and receiver hardware in this unit has an approximate operational range of 30 feet in open space. Generally Bluetooth devices can communicate with each other clearly within a regular sized room or ofce. Operation between different rooms will depend on the construction of the room. It is important to recognize the fact that Bluetooth communication range may be substantially reduced if the signal passes through a solid object. Human bodies, brick and concrete walls, and heavy furniture or bookcases will reduce the operational range of your Bluetooth devices. Glass, dry-wall or wood paneled walls and ofce partitions may have a less severe but noticeable effect. You should position your Bluetooth devices closer to each other if you observe communication difculties. Stereo music connection to your smart phones (such as Android® smarphones, Iphone®, Windowsphone® etc…) connection or PC tablet, multi-media player etc… all devices having Bluetooth function, you will need some familiarity with the Bluetooth functions of your Bluetooth device. As each device operates slightly differently, please familiarize yourself with the Bluetooth capabilities of your device before connecting.Pairing your Bluetooth device

1. Ensure that the Bluetooth on your Bluetooth device is powered ON. You

might need to refer to the external device user manual for details.

2. Place the clock-radio and the external device where they are no more than 3

3. Power ON the unit by pressing the POWER button (9).

4. Press the Source (2) button to switch to Bluetooth mode.

Bluetooth mode is indicated by “BT” on the display. The pair indicator will ash quickly.

5. Using the native controls on your Bluetooth device, select the “TC-139” in

your Bluetooth settings to pair. If your device requests a password, enter the default password “ 0 0 0 0 ”. Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth devices.

6. Select and conrm the pairing on your external device, the connection will

be completed in a few seconds and the radio will produce a conrmation tone, when successfully paired and connected, the pair indicator will ash slowly on the clock radio. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device and you can now start your Bluetooth music streaming operation. Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected Bluetooth Device to select a track.

3. To play or pause the selected track, use the native controls on the connected

Bluetooth Device or press the Play/Pause button (3).

4. Audio played through the connected Bluetooth device will now be heard

through the speakers of the clock radio. Changing the Bluetooth connection to a new mobile phone (or other Bluetooth device)

• You can pair the unit with only 1 external Bluetooth device. If you want to change the Bluetooth external device already connected with your clock-radio, please proceed as follows : Power ON the Bluetooth function of yr external device. Press and hold the Pair button (3) for 3 seconds. The pair indicator will ash quickly and the clock-radio will produce a conrmation tone. Select and conrm the pairing on your new mobile phone or Bluetooth external device. 20Note: Some mobile phones may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit. OTHER FUNCTIONS DIMMER control In standby mode, press the DIMMER (1) button allows you to set the brightness of the LED display to high or low levels. AUX IN Requires a 3.5mm audio cable (no included).

1. Connect the 3.5mm audio cable to the Line In on the unit and an audio

output on an MP3 player or other audio source.

2. Press the Source button to switch to Aux In mode.

3. Use the native controls on the connected MP3 player or other audio source

to play and control audio played through the clock radio speaker.

The USB charging socket (12) of DC 5 V. at the back of the unit allows you to charge an external device via USB cable (not supplied). You can charge with a DC 5 V. device max. For example : your mobile phone (Android ® or Iphone ® are in 5 V. max) and external device with USB socket of max. The connector or the USB charging cable are not supplied. RESETTING If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait for at least 3 minutes and then setup the unit again as if it is a brand new unit. 21TECHNICAL SPECIFICATIONS Power Adaptor: • Input AC 100-240V / 50- 60 Hz

• Output DC 5V 1500mA Power consumption • 5W Standby power consumption • <1W Battery backup • 3V (CR2032 Flat Lithium battery x 1) not included Radio Frequency Coverage • FM: 87.5MHz - 108 MHz USB Charging Socket • 1000 mA / DC 5V MAX Aux. In • 3.5 mm Jack Audio output power • 2W RMS Temperature range for Indoor • 0 to + 50°C or 32 to 122 °F Net Weight • 0.31kgs Dimensions • 106 x 125 x 116 mm IMPORTANT: Due to continual revision and improvement on our products design, specications are subject to change without further notice. EXCLUSIVE IMPORTER This product was imported by the Company : LEMA S.A.S. For any questions concerning the conformity of the product, thank you to send your request to : LEMA S.A.S. 28, Boulevard Zéphirin Camélinat 92230 GENNEVILLIERS FRANCE
