USER MANUAL TC132 TOKAI

The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the inner parts may result in a risk of electric shock to persons.

The exclamatory mark is intended to alert the user to the presence of important operating instructions.

DAURONice the risk of electric shock or fire, do not open the cover. Refer servicing RISK OF ELECTRIC SHCK CO NOT OPENed service personnel.

NOTE:

We reserve the right to make technical changes without notice in the interest of improvement.

PRECAUTIONS FOR USE

1. No naked flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

10. Disconnect device warning: Mains plug is used as the connection, so it should always remain ready operate.

11. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
12. Class 1 LED product.

IMPORTANT!

It is recommended not to leave a mobile phone near the unit in order to avoid electromagnetic interference in the speakers.

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery backup system, it requires a 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

Description of the product & locations of controls

FUNCTION AND CONTROLS

1. SNOOZE / SLEEP
2. VOLUME DOWN / ALARM 1 ON / OFF SET
3. VOLUME UP / ALARM 2 ON / OFF SET
4. << / TUNE -
5. SPEAKER
6. AC POWER CORD
7. FM ANTENNA

8. / TUNE +

9. SET.MEM/MEMORY+
10. ON/OFF
11. DISPLAY
12. BATTERY COMPARTMENT (REAR OF UNIT)
13. RATING LABEL (REAR OF UNIT)

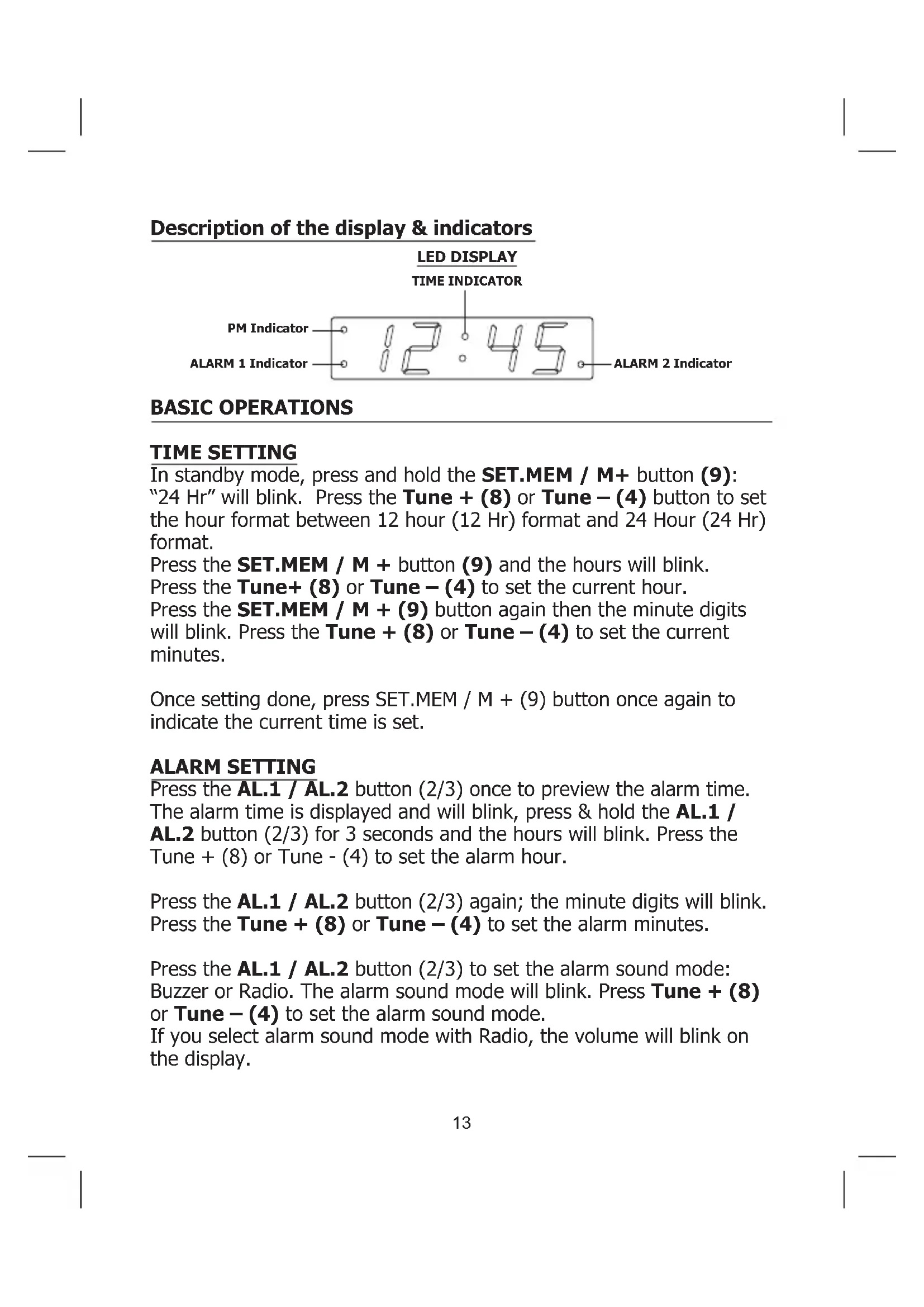

Description of the display & indicators

BASIC OPERATIONS

TIME SETTING

In standby mode, press and hold the SET.MEM / M+ button (9): "24 Hr" will blink. Press the Tune + (8) or Tune - (4) button to set the hour format between 12 hour (12 Hr) format and 24 Hour (24 Hr) format.

Press the SET.MEM / M + button (9) and the hours will blink. Press the Tune+ (8) or Tune - (4) to set the current hour. Press the SET.MEM / M + (9) button again then the minute digits will blink. Press the Tune + (8) or Tune - (4) to set the current minutes.

Once setting done, press SET.MEM / M + (9) button once again to indicate the current time is set.

ALARM SETTING

Press the AL.1 / AL.2 button (2/3) once to preview the alarm time. The alarm time is displayed and will blink, press & hold the AL.1 / AL.2 button (2/3) for 3 seconds and the hours will blink. Press the Tune + (8) or Tune - (4) to set the alarm hour.

Press the AL.1 / AL.2 button (2/3) again; the minute digits will blink. Press the Tune + (8) or Tune - (4) to set the alarm minutes.

Press the AL.1 / AL.2 button (2/3) to set the alarm sound mode: Buzzer or Radio. The alarm sound mode will blink. Press Tune + (8) or Tune - (4) to set the alarm sound mode.

If you select alarm sound mode with Radio, the volume will blink on the display.

Press Tune + (8) or Tune - (4) to set the alarm radio maximum volume. Then press the AL.1 / AL.2 button (2/3) when setting is done.

Note: when the alarm rings, the volume of the alarm will gradually increase.

When the alarm 1 or 2 rings, to turn it OFF press on the AL.1 / AL.2 button (2/3). Alarm 1 / 2 will ring again at the same time the next days.

To stop completely Alarm 1 / 2 the following days, press & hold AL.1 / AL.2 button (2/3) for 3 seconds in standby mode, the alarm 1 / 2 icon will disappear and Alarm 1 / 2 will be disabled for the next days. To resume Alarm 1 / 2, press & hold AL.1 / AL.2 button (2/3) again for 3 seconds in standby mode.

SNOOZE FUNCTION

• When the alarm rings, press Snooze button (1) to suspend the alarm & to activate the snooze function, Alarm will stop & will ring again 9 minutes later. Press SNOOZE key again, alarm will be suspended again, another 9 minutes later the alarm will ring again and so on until the next alarm rings.

Note: The Snooze interval time is 9 minutes.

• To turn the Snooze function off, press once on AL.1 / AL.2 button (2/3).
• Press and hold the AL.1 / AL.2 button (2/3). The alarm icon will disappear to indicate the alarm is disabled.

SLEEP OPERATION

When you listen to the radio, press the 'SNOOZE/SLEEP (1) button to enter into the sleep mode. You can adjust the sleep timer from 90 minutes, 80, 70 etc...10 minutes to OFF by pressing repeatedly the

'SNOOZE/SLEEP' (1) button. When sleep timer is selected, the unit will automatically turn off once time is up.

RADIO MODE

Note: Ensure that the FM antenna is completely unrolled and extended to have the best FM reception.

Press the ON/OFF button (10) to turn the unit on.

Use the Tune + (8) or Tune - (4) button to select the desired FM radio station. If you press and hold the Tune + or Tune - button for 3 seconds, then release, the unit will automatically scan to the next broadcasting station.

Press the ON/OFF button (10) to turn the radio OFF.

To preset radio station

Press the ON/OFF button (10) to turn the unit ON.

Use the 'Tune + (8) or 'Tune- ·^ (4) button to select the desired radio station.

Press the 'SET MEM/M+'(9) button; "P02" will blink in the display. Press the 'SET MEM/M+" (9) button again to set the preset.

Repeat steps 2 through 4 to set more presets. The unit can preset 10 stations totally for FM.

When "P01-P10" blinks, press 'Tune+' (8) or 'Tune-' (4) button to select the preset number.

To recall the radio preset

To recall a preset station, press 'SET MEM/M+'(9) button to select the desired preset number.

RESET

If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait at least 3 minutes and then setup the unit again by following the manual.

TECHNICAL SPECIFICATIONS

Model Number TC-132

Power Supply AC 230 50~Hz

Power consumption 5W

Standby power consumption 1W

Battery backup 3V (CR2032 Flat Lithium battery x 1) not included

Radio Frequency Coverage FM: 87.5MHz - 108 MHz

Audio output power 150MW

Net Weight 0.320g

Dimensions 126× 120× 50mm

IMPORTANT: Due to continual revision and improvement on our products design, specifications are subject to change without further notice.

EXCLUSIVE IMPORTER

This product was imported by the Company : LEMA S.A. For any questions concerning the conformity of the product, thank you to send your request to :

LEMA S.A.

End of Life Disposal

Warning! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE). This symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If you're used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
• By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

This unit complies with European Council Directive 2006 / 95 CE Electromagnetic Compatibility & Low Voltage Directives)

WAARSCHUWING

Voeding 230 50 Hz wisselstroom

Stroomverbruik 5W

Stroomverbruik in stand-by 1W

Back-up batterij 3V (CR2032 platte lithiumbatterij × 1 ) Niet meegeleverd

Bereik radiofrequentie FM: 87.5 MHz - 108 MHz
