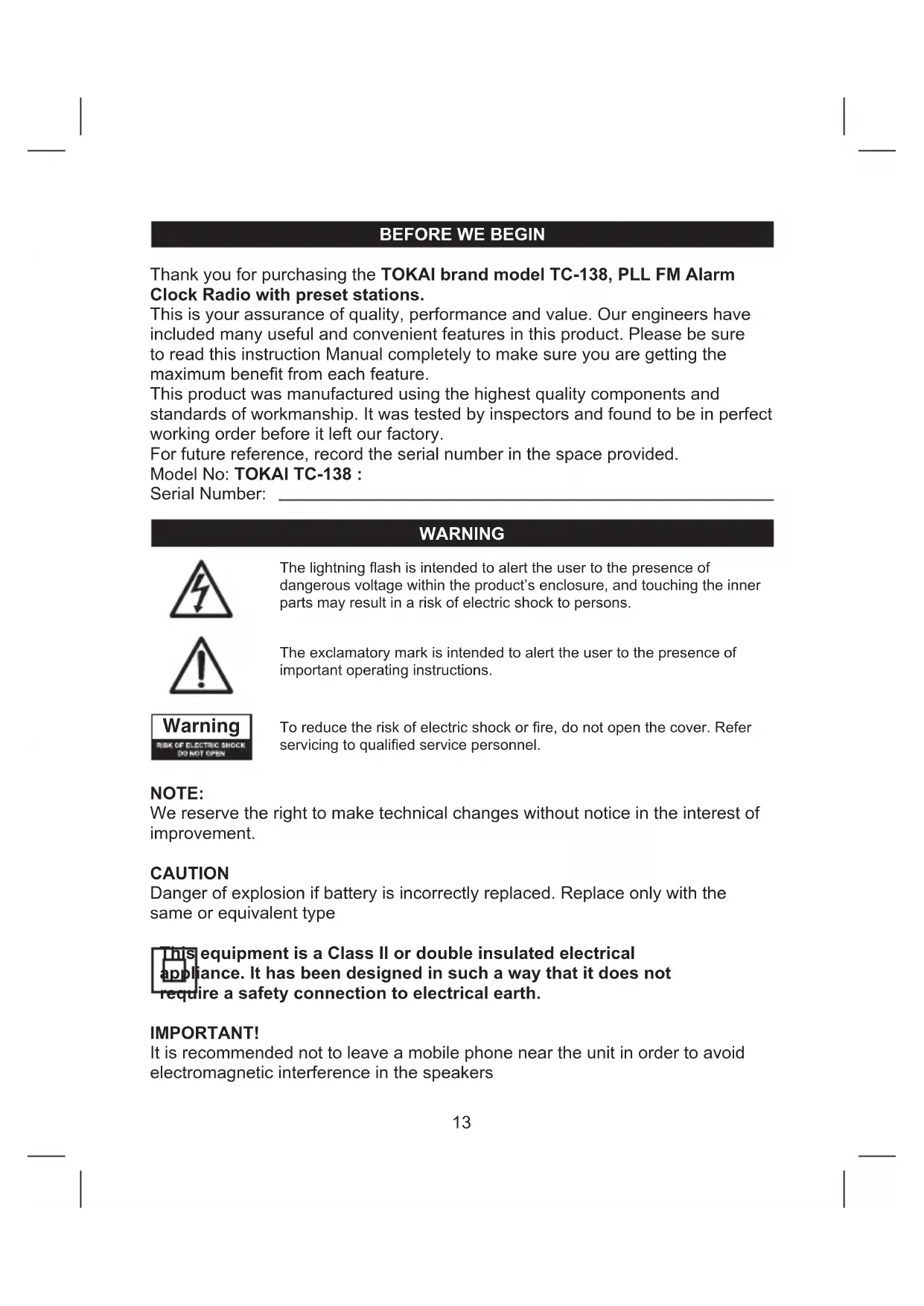

Thank you for purchasing the TOKAI brand model TC-138, PLL FM Alarm Clock Radio with preset stations. This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this instruction Manual completely to make sure you are getting the maximum benet from each feature. This product was manufactured using the highest quality components and standards of workmanship. It was tested by inspectors and found to be in perfect working order before it left our factory. For future reference, record the serial number in the space provided. Model No: TOKAI TC-138 : Serial Number: WARNING NOTE: We reserve the right to make technical changes without notice in the interest of improvement. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. IMPORTANT! It is recommended not to leave a mobile phone near the unit in order to avoid electromagnetic interference in the speakers

The lightning ash is intended to alert the user to the presence of dangerous voltage within the product’s enclosure, and touching the inner parts may result in a risk of electric shock to persons. The exclamatory mark is intended to alert the user to the presence of important operating instructions. To reduce the risk of electric shock or re, do not open the cover. Refer servicing to qualied service personnel. Warning14

1. No naked ame sources, such as lighted candles, should be placed on the

2. Do not place the product in closed bookcases or racks without proper

3. Where the mains plug is used as the disconnect device, the disconnect

device shall remain readily operable.

4. The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc.

5. It shall not be exposed to dripping or splashing and that no objects lled with

liquids, such as vases, shall be placed on the apparatus.

6. Do not connect FM antenna to outside antenna.

7. The unit should not be exposed to direct sunlight, very high or low

temperature, moisture, vibrations or placed in dusty environment.

8. Do not use abrasive, benzene, thinner or other solvents to clean the surface

of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

9. Never attempt to insert wires, pins or other such objects into the vents or

opening of the unit.

10. Disconnect device warning: Mains plug is used as the connection, so it

should always remain ready operate.

11. Batteries shall not be exposed to excessive heat such as sunshine, re or

• Plug the AC power cord to a household outlet AC source. BATTERY BACK-UP

• This unit is equipped with a battery back-up system, it requires a 3V CR2032 at lithium battery (not included).

• Open the battery compartment by unscrewing the lid with a small screwdriver.

• Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment.

• Screw the lid of the battery compartment to close. Note : If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.15 BATTERY CARE

1. Use only the size and type of batteries specied.

2. If the unit is not to be used for an extended period of time, remove the

battery. Old or leaking batteries can cause damage to the unit.

3. Do not try to recharge batteries not intended to be recharged; they can

overheat and rupture (Follow battery manufacturer’s directions).

4. Do not dispose of batteries in re, batteries may leak or explode.16

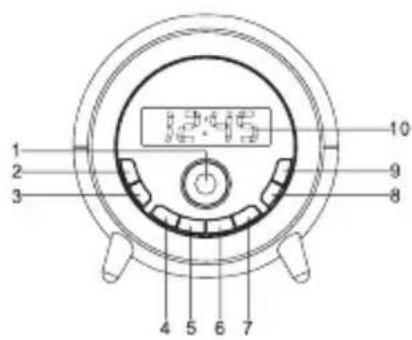

6. VOLUME DOWN/ ALARM 1 ON-OFF SET

7. VOLUME UP/ ALARM 2 ON-OFF SET

LED DISPLAY & INDICATORS

Press SET button (8) in standby mode and keep depress over 3 seconds to enter time set mode, after enter the setting mode, press SET button (8) to change the mode cycle as follows Normal → Year → Month → Day → 12/24 H → Real time Hour → Real time Min

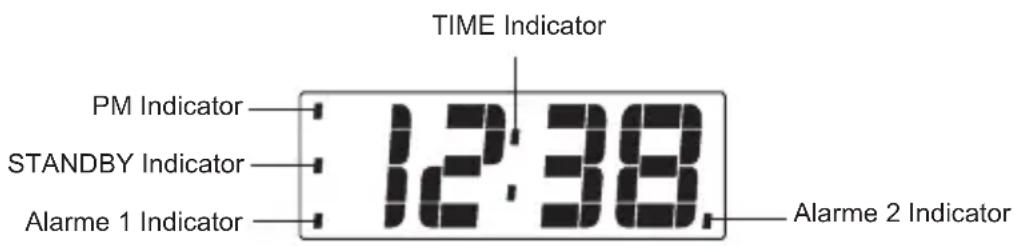

Press the alarm set button (6/7) during normal mode to show the alarm time. Afterwards keep depress the alarm set button (6/7) over 2 seconds to enter the alarm set mode. After enter the setting mode, press the alarm set button (6/7) to change the mode cycle as follows : Normal → AL 1 Hour → AL 1 Min → AL 1 weekday Alarm → AL 1 wake beep → AL 1 wake radio → AL 1 wake radio volume → Normal. Normal → AL 2 Hour → AL 2 Min → AL 2 weekday Alarm → AL 2 wake beep → AL 2 wake radio → AL 2 wake radio volume → Normal. Note : select alarm weekday mode as follows 1-5 : Monday to Friday 1-7 : Whole week 6-7 : Saturday & Sunday 1-1 : One day of week TIME Indicator PM Indicator STANDBY Indicator Alarme 1 Indicator Alarme 2 Indicator18 Action (during data adjustment) : - Press << / Tune - button (4) to adjust data backward. - Press >> / Tune + button (5) to adjust data forward. - Keep depress << or >> button for 2 seconds to enable auto forward.

ENABLE / DISABLE THE ALARM

Press and hold the “ALARM 1” (6) / “ALARM 2” (7) button to enable or disable the alarm. Once the alarm is activated, the bell symbol will be appeared on the display. ALARM DURATION Beep alarm or radio alarm will ring for 30 minutes if no key is pressed, then it will stop automatically and wait for same alarm time on next day. BASIC OPERATIONS SNOOZE FUNCTION When Alarm rings, press Snooze button (1) to suspend the alarm & to activate the snooze function, Beep or Radio alarm will stop. 9 minutes later the alarm will ring again. Press SNOOZE key again, alarm will be suspended again, another 9 minutes later the alarm will ring again and so on until the next alarm rings. Note: The interval time of the Snooze function is 9 minutes. - If you want to disable the SNOOZE function and stop alarm completely, press ON/OFF button (9). If you don’t press any button, the alarm will ring during 30 minutes & stop automatically. DISPLAY LIGHT ON/OFF FUNCTION: - Press & hold the display auto ON/OFF button (5) for 3 seconds, the LED display Indicator will light on, the LED display will turn off after 15 seconds automatically, Press any button to maintain the LED display for 15 seconds. - Press & hold the display auto ON/OFF button (5) for 3 seconds, the LED display Indicator will light off to cancel this function. AUTO CHANGE DISPLAY CONTENT: In radio off mode, press & hold the DISPLAY AUTO CHANGE ON/OFF button (4) for 3 seconds to enter time display auto change mode. to display the Year and press again to display Month/Day, the display returns to time display after 5 seconds.19 RADIO OPERATIONS Note: Ensure that the FM antenna is completely unrolled and extended for best FM reception.

1. Press the ON/OFF button (9) to turn the unit on.

2. Use the Tune + or Tune - button to select the desired radio station. If you

press and hold the Tune + or Tune – button for one second, the release, the unit will automatically scan to the next broadcasting station.

3. Press the ON/OFF button (9) to turn the radio OFF.

2. Use the Tune + or Tune - button to select the desired radio station.

3. Press and hold the M+/MEMORY button; “P01” will blink in the display.

4. Use the Tune+ or Tune- button to select the desired preset station (P01-P10)

5. Press the M+/MEMORY button again to set the preset.

6. Repeat steps 2 through 5 to set more presets.

7. The unit can preset 10 stations totally for FM.

8. When “P01-P10” is blinking, press the Tune+ or Tune- button to select the

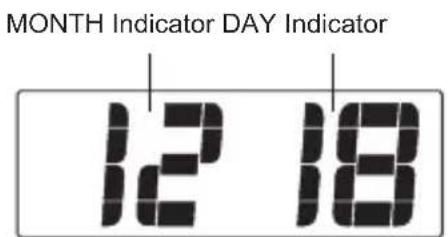

To recall a preset station, press M+/MEMORY (8) button or M- (3) button to select the desired preset number. SLEEP OPERATION When listening to radio, press SLEEP button (1) to enter sleep mode. You can just adjust the sleep timer from 90 mins to 15 mins by pressing the SLEEP button (1). When sleep timer is selected, the unit will automatically turn off once time is up. YEAR Indicator MONTH Indicator DAY IndicatorOTHER OPERATIONS DIMMER CONTROL In standby mode, press the DIMMER (1) button allows you to set the brightness of the LED display to high, medium ,low 3 levels. NAP FUNCTION (count down timer) In radio off mode, press the NAP button (2), to enter into the NAP mode, the NAP time 90 will be displayed during 5 seconds. In the meantime, press repeatedly NAP button (2) button to set the duration time from 90 min to 10 min. Once time is up, the alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (9). Press the NAP button (2) button has no effect during alarm operation. Press ON/OFF button (9) to cancel the NAP function.

DAYLIGHT SAVING TIME (DST) MODE

For countries with daylight saving time (DST) (one hour of difference between summer time and winter time), this clock radio offers you DST option to adjust summer time. In standby mode press and hold for 3 seconds the DST button (1). The clock advances by one hour. To exit DST mode, repeat the above operation RESETTING If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait for at least 3 minutes and then setup the unit again as if it is a brand new unit. 20TECHNICAL SPECIFICATIONS Power Supply • AC 230 - 50 Hz Power consumption • 5W Standby power consumption • <1W Battery backup • 3V (CR2032 Flat Lithium battery x 1) not included Radio Frequency Coverage • FM: 87.5MHz - 108 MHz Audio output power • 200mW RMS Net Weight • 0.37kgs Dimensions • 106 x 125 x 116 mm Temperature range for Indoor • 0 to + 50°C or 32 to 122 °F IMPORTANT: Due to continual revision and improvement on our products design, specications are subject to change without further notice. EXCLUSIVE IMPORTER This product was imported by the Company : LEMA S.A.S. For any questions concerning the conformity of the product, thank you to send your request to : LEMA S.A.S. 28, Boulevard Zéphirin Camélinat 92230 GENNEVILLIERS FRANCE
