AVANT DE COMMENCER

RISQUE D'ÉLECTROCUTION NE PAS COUVRIR

ATTENTION:POUR REDURE LE RISQUE D' ELECTROCUTION, NE PAS RETIRER LE COUVERCLE L'INTERIEUR DE L'APPEARIL NE COMPORTE AUCUNE PIECE UTILE A L'UTILISATEUR CONFIEZ-EN L'ENTRETIEN A DU PERSONNEL QUALIFIE

DANGER:POUR EVITER TOUT RISQUE D'INCENDIE OU D'ELECTROCUTION,NE PAS EXPOSER L'APPAREIL A LA PLUIE OU L'HUMIDITE.

Consommation electrode: 5W

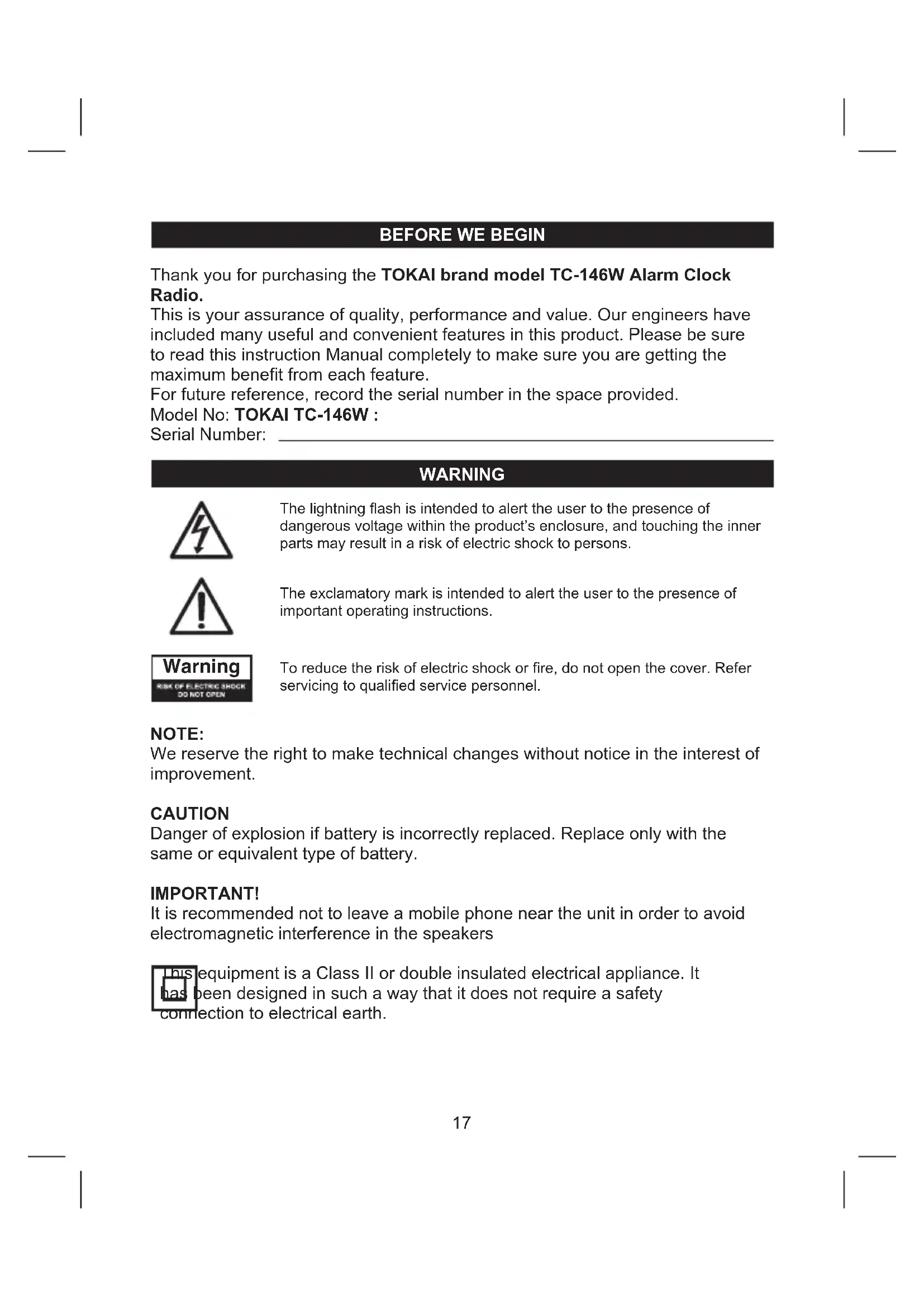

Thank you for purchasing the TOKAI brand model TC-146W Alarm Clock Radio.

This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this instruction Manual completely to make sure you are getting the maximum benefit from each feature.

For future reference, record the serial number in the space provided.

Model No: TOKAI TC-146W :

Serial Number:

WARNING

The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the inner parts may result in a risk of electric shock to persons.

The exclamatory mark is intended to alert the user to the presence of important operating instructions.

To reduce the risk of electric shock or fire, do not open the cover. Refer servicing to qualified service personnel.

NOTE:

We reserve the right to make technical changes without notice in the interest of improvement.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type of battery.

IMPORTANT!

It is recommended not to leave a mobile phone near the unit in order to avoid electromagnetic interference in the speakers

equipment is a Class II or double insulated electrical appliance. It been designed in such a way that it does not require a safety section to electrical earth.

PRECAUTIONS FOR USE

1. No naked flame sources, such as lighted candles, should be placed on the apparatus.
2. Do not place the product in closed bookcases or racks without proper ventilation.
3. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.
9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
10. Disconnect device warning: Mains plug is used as the connection, so it should always remain ready operate.
11. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
12. Attention should be drawn to the environmental aspects of battery disposal.
13. Do not dispose this product into usual household garbage at the end of its lifecycle; hand it over to a collection center for recycling the electrical and electronic appliances. By recycling, some of the materials can be reused. You are making an important contribution to protect our environment. Please inquire your community administration for the authorized disposal center.

AC-DC adaptor connection: The clock radio unit can be powered by an external AC-DC adaptor, required the output DC 5V 600mA (included).

POWER CONNECTION

Plug the AC-DC adaptor to a household outlet AC source. This unit is equipped with a battery backup system; it requires a 3V flat lithium battery "CR2032" (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+and-) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power

failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

BATTERY BACK-UP

• This unit is equipped with a battery back-up system, it requires a 3V CR2032 flat lithium battery (not included).
• Open the battery compartment by unscrewing the lid with a small screwdriver.
• Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment.
• Screw the lid of the battery compartment to close.

Note : If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

BATTERY CARE

1. Use only the size and type of batteries specified.
2. If the unit is not to be used for an extended period of time, remove the battery. Old or leaking batteries can cause damage to the unit.
3. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (Follow battery manufacturer's directions).
4. Do not dispose of batteries in fire, batteries may leak or explode.

DESCRIPTION OF THE PRODUCT & LOCATIONS OF CONTROLS

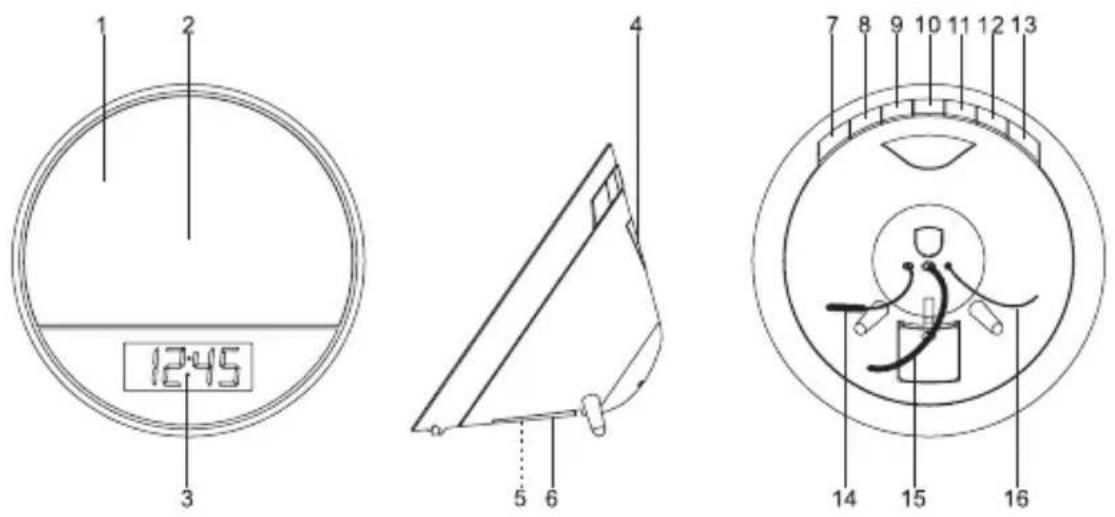

FUNCTION AND CONTROLS

1. SPEAKER CLOTH
2. SPEAKER
3. DISPLAY
4. INFRARED SENSOR
5. RATING LABEL (BACK OF UNIT)
6. BATTERY COMPARTMENT (BACK OF UNIT)
7. ON-OFF
8. ALARM 2 ON - OFF SET / VOLUME UP
9. ALARM 1 ON - OFF SET / VOLUME DOWN
10. SNOOZE / SLEEP / DIMMER / POWER SAVING

11. / TUNE + / NAP / DST

12. << / TUNE - / YEAR/MONTH-DAY / TEMPERATURE / C-F / TOGGLE BETWEEN DISPLAY CONTENTS ON-OFF
13. TIME SET / MEMORY / MEMORY+
14. TEMPERATURE SENSOR (IN DOOR)
15. AC/DC ADAPTOR
16. FM ANTENNA

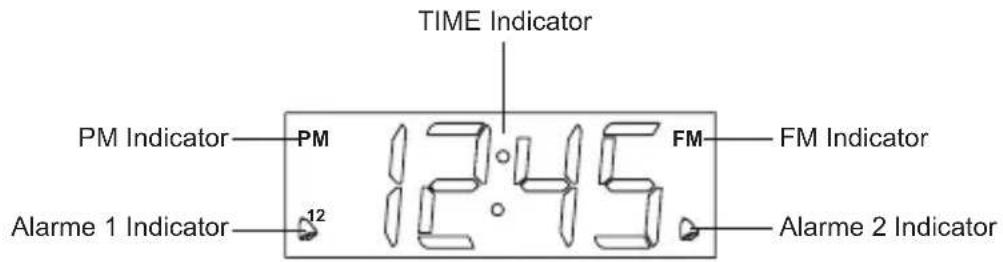

DESCRIPTION OF DISPLAY INDICATORS

TIME &CALENDAR SETTING

SETTING TIME AND CALENDAR

Press Time set button (13) in normal mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press Time set button (13) to change the mode cycle as follows:

Normal Year Month Day 12/24 H Real time Hour Real time Min Normal

ACTION (DURING DATA ADJUSTMENT)

• Press << / Tune - button (12) to adjust data backward.
• Press >> / Tune + button (11) to adjust data forward.
• Keep depress << or >> button for 2 seconds to enable auto forward.
• Use Time set button (13) to confirm each setting.

ALARM SETTING

SETTING THE ALARMS

Press the alarm set button (9/8) during normal mode to show the alarm time. Afterwards keep depress the alarm set button (9/8) over 2 seconds to enter the alarm set mode. After enter the setting mode, press the alarm set button (9/8) to change the mode cycle as follows:

Normal AL 1 Hour AL 1 Min AL 1 weekday Alarm AL 1 wake beep AL 1 wake radio AL 1 wake radio volume Normal.

Normal AL 2 Hour AL 2 Min AL 2 weekday Alarm AL 2 wake beep AL 2 wake radio AL 2 wake radio volume Normal.

SELECT ALARM WEEKDAY MODE AS FOLLOWS

1-5:Monday to Friday
1-7:Wholeweek
6-7: Saturday & Sunday
1-1:One day of week

ACTION (DURING DATA ADJUSTMENT)

• Press << / Tune - button (12) to adjust data backward.
• Press >> / Tune + button (11) to adjust data forward.
• Keep depress << or >> button for 2 seconds to enable auto forward.

ALARM DURATION

Beep alarm or radio alarm will continue output for 30 minutes if no key press, then it will stop automatically and wait for same alarm time on next day.

ENABLE / DISABLE THE ALARM

Press and hold the "ALARM 1" (9) / "ALARM 2" (8) button to enable or disable the alarm. Once the alarm is activated, the bell symbol will be appeared on the display.

SNOOZE FUNCTION

When the alarm rings, press Snooze button (10) to activate the snooze function, Beep alarm or Radio alarm will stop.

Note : The interval time of the snooze is 9 minute (not include second offset) Snooze will continue unless press ON/OFF button (7) to alarm off of Buzzer alarm or Radio Alarm stop automatically after 30 minutes.

RADIO OPERATION

LISTENING TO RADIO

1. Press the ON/OFF button (7) to turn the unit on.
2. Use the Tune + or Tune - button to select the desired radio station. If you press and hold the Tune + or Tune - button for one second, the release, the unit will automatically scan to the next broadcasting station.
3. Press and hold the ON/OFF button (7) for 3 second to turn the radio OFF.

NOTE

Ensure that the FM antenna is completely unrolled and extended for best FM reception.

TO SET / RECALL THE RADIO PRESETS

1. Press the ON/OFF button (7) to turn the unit ON.
2. Use the Tune + or Tune - button to select the desired radio station.
3. Press and hold the memory / memory + button; "P01" will blink in the display.
4. Use the Tune+ or Tune- button to select the desired preset station (P01-P10)
5. Press the memory / memory + button again to set the preset.
6. Repeat steps 2 through 5 to set more presets.
7. The unit can preset 10 stations totally for radio station.
8. When "P01-P10" is blinking, press the Tune+ or Tune- button to select the preset number.
9. To recall a preset station, press memory / memory + button to select the preset number.

SLEEP OPERATION

When listening to radio, press Snooze / Sleep button (10) to enter sleep mode. You can just adjust the sleep timer from 90 mins to 15 mins by pressing the Snooze / Sleep button (10). The unit will automatically turn off after the selected time.

NAP TIMER FUNCTION (COUNT DOWN TIMER)

In radio off mode, press NAP button (11) to turn on NAP mode, the NAP time will keep by 5 seconds, within 5 seconds and press NAP button (11) button can change the duration from 90min - 10min .

The alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (7).

Press the NAP button (11) has no effect during alarm operation. Press ON/OFF button (7) to cancel NAP function.

DISPLAY FUNCTIONS

POWER SAVING ON-OFF FUNCTION:

In radio off mode, press and hold POWER SAVING button (10) for 3 seconds. "ON" appears on the display (3). The LED display will turn dimmer low after 15 seconds automatically, Press any button to maintain the LED display for 15 seconds.

To deactivate this function, in radio off mode, press and hold POWER SAVING button (10) for 3 seconds. "OFF" appears on the display (3) to cancel this function.

AUTO TOGGLEBETWEEN DISPLAY CONTENTS

In radio off mode, press and hold DISPLAY button (12) for 2 seconds. "ON" appears on the display (3). Then the display (3) automatically shows below contents in 5-10 second intervals.

Current time > Month, Day > Temperature

To deactivate this function, press and hold DISPLAY button (12) for 3 seconds. "OFF" appears on the display (3). Then the display switches back to the clock mode.

CHANGE DISPLAY CONTENT

Press << / Tune - / YEAR/MONTH/DAY button (12) during normal can switch to display Year / Month-Day / Temperature, after 5 seconds timeout and return back to display time.

TEMPERATURE IndicatorMONTH Indicator DAY Indicator

DIMMER CONTROL

In radio off mode, press the DIMMER (10) button allows you to set the brightness of the LED display to high, medium, low 3 levels.

1. The clock display with dimmer low is the default setting.
2. It will consume more power if you set the clock display with dimmer higher.

DAYLIGHT SAVING TIME (DST) MODE

For countries with daylight saving time (DST) (one hour of difference between summer time and winter time), this clock radio offers you DST option to adjust summer time.

In standby mode, press and hold for 2 seconds the DST button (11).

The clock advances by one hour. To exit DST mode, repeat the above operation.

INDOOR TEMPERATURE

• Indoor temperature sensor is at the back of the unit. The unit detects the current environment temperature.
• In order to display the indoor temperature in ^ C or ^ F , press the << / Tune - / YEAR/MONTH/DAY button (12) to show the temperature, when temperature is displayed, press and hold << / Tune - / YEAR/MONTH/DAY button (12) to toggle between temperature in ^ C or ^ F .
• The detection range of indoor temperature is between 0^ & 50^ or 32^ & 122^ .

INFRARED SENSOR FUNCTIONS

IMPORTANT

There is a sensor located on top of the unit that picks up any movement or objects near the top or back of the unit. Please be sure to place the radio on a surface with a no obstructions 9-12 inches above or 3-6 inches behind the unit. This will help maximize the area for recognizing the motion of your hand and also reduce the chances of the unit false triggering. If the unit begins beeping and the display functions erratically, it may be either too close to an object above or behind the unit. If this happens, please make sure there are 9-12 inches of clearance above and 3-6 inches behind the unit to avoid the false triggering.

INFRARED SENSOR FUNCTION

1. In radio off mode, to display indoor temperature and alarm time settings:

Wave your hand over the IR SENSOR (4) once to show the indoor temperature.

Wave your hand over the IR SENSOR (4) again within 1 second to show the ALARM 1 time.

Wave your hand over the IR SENSOR (4) again within 1 second to show the ALARM 2 time.

1. In radio on mode, to turn sleep function on:

Wave your hand over the IR SENSOR (4) for about 2 seconds to turn on the sleep function, the "90" minutes icon will in the LED display. Sleep time can only be set for a maximum 90 minutes.

Press the SLEEP BUTTON (10) to change the sleep time as described before.

Press the ON/OFF BUTTON (7) to cancel the sleep function.

1. While the alarm is sounding, to turn snooze function on:

Wave your hand over the IR SENSOR (4) once to activate the snooze for 9 minutes.

1. In radio on mode, to display the radio frequency / in door temperature and alarm time settings:

Wave your hand over the IR SENSOR (4) again within 1 second to show the radio frequency.

Wave your hand over the IR SENSOR (4) to show the indoor temperature.

Wave your hand over the IR SENSOR (4) again within 1 second to show the ALARM 1 time.

Wave your hand over the IR SENSOR (4) again within 1 second to show the ALARM 2 time.

1. In radio off mode, Press & hold the POWER SAVING button (10) for 2 seconds, "ON" appears on the display (3), the LED display will turn to dimmer low mode after 15 seconds automatically

Wave your hand over the IR SENSOR (4) to turn the display on. Press any key button to turn display on.

RESETTING

NOTE

If you replace the battery, DO NOT disconnect AC plug from AC outlet. Otherwise, current time and alarm will be initialized.

RESETTING

If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait for at least 3 minutes and then setup the unit again as if it is a brand new unit.

TECHNICAL SPECIFICATIONS

Frequency range: FM 87.5 - 108 MHz

Power Adaptor: Input AC 100-240V, 50-60 Hz

Output DC 5V 600mA

Battery backup : 3V (CR2032 Flat Lithium battery x 1)

Power consumption: 5W

Standby power consumption: <0.7W

Audio output power : 1W RMS

Net Weight: 280 g

Dimensions: 138 × 138 × 66 ~mm

Temperature Sensor Range: 32^ F to 122^ F ( 0^ C to +50^ C )

Adaptor Manufacturer's name: Zhongshan Fuduo Transformer Manufacturing

Co., Ltd.

Adaptor Model number: DK8-050-0600EU

Use only the power supply adaptor listed in the user instructions.

IMPORTANT:

Due to continual revision and improvement on our products design, specifications are subject to change without further notice.

EXCLUSIVE IMPORTER

This product was imported by the Company : LEMA S.A.S.

For any questions concerning the conformity of the product, thank you to send

your request to :

LEMA S.A.S.

END OF LIFE DISPOSAL

Warning! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE). This symbol means that used electrical electronic products should not be mixed with general household waste. There is a separate collection system for these products. If you want to dispose of this equipment, please do not use the ordinary dust bin!

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If you're used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
• By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

This unit complies with European Council Directive 2006 / 95 CE (Electromagnetic Compatibility & Low Voltage Directives)
