USER MANUAL TCP124 TOKAI

Black and white electronic alarm clock with digital display showing 12:45 (no text or symbols on face)

Lire attentivement la notice avant d'utiliser l'appareil Before operating this product, please read user manual completely Lees de handleiding door voordat u deze eenheid gebruikt Lea atentamente el manual del usuario antes de utilizar el aparato lea atentamente o manual de instruções antes de utilizar ol aparelho lesen Sie die Bedienungsanleitung bevor Sie das Gerät gebrauchen

AVERTISSEMENT

ATTENTION RISQUE D'ÉLECTROCUTION NE PAS OUVRIR ATTENTION: POUR RÉDURE LE RISQUE D'ÉLECTROCUTION, NE PAS RETIRER LE COUVERCLE L'INTÉRIEUR DE L'APPAREIL NE COMPORTE AUCUNE PIÈCE UTILE À L'UTILISATEUR CONFIEZ-EN L'ENTRETIEN A DU PERSONNEL QUALIFIE

The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the inner parts may result in a risk of electric shock to persons.

The exclamatory mark is intended to alert the user to the presence of important operating instructions.

CAUTONICE the risk of electric shock or fire, do not open the cover. Refer servicing the risk of electric shock DO NOT OPEN ed service personnel.

NOTE:

We reserve the right to make technical changes without notice in the interest of improvement.

1. No naked flame sources, such as lighted candles, should be placed on the apparatus.

2. Do not place the product in closed bookcases or racks without proper ventilation.

3. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

4. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

5. It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

6. Do not connect FM antenna to outside antenna.

7. The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.

8. Do not use abrasive, benzene, thinner or other solvents to clean the surface of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

10. Disconnect device warning: Mains plug is used as the connection, so it should always remain ready operate.

11. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

12. Class 1 LED product.

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery backup system, it requires a 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

1 2 3 4 5 6 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 12:38

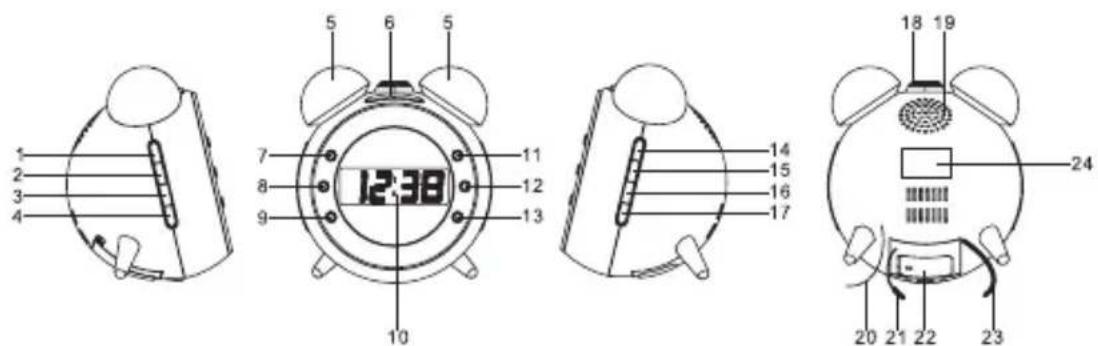

FUNCTION AND CONTROLS

1. TO SET THE LIGHT INTENSITY HIGH of the Lamp Shade
2. TO SET THE LIGHT INTENSITY LOW of the Lamp Shade
3. LIGHT ON/OFF
4. MEM.SET/M+/NAP/AUTO OFF DISPLAY
5. LAMP SHADE
6. SNOOZE / SLEEP / DIMMER
7. SET/ TEMPERATURE
8. << / TUNE - / YEAR/MONTH/DAY
9. (AL1) ALARM 1 ON / OFF SET
10. DISPLAY
11. ON / OFF

12. / TUNE + / DST/C-F

13. (AL2) ALARM 2 ON / OFF SET
14. VOLUME UP / DISPLAY AUTO CHANGE ON/OFF
15. VOLUME DOWN
16. PROJECTION TIME 180° FLIP/TIME-TEMPERATURE
17. PROJECTION ON/OFF
18. FOCUS ADJUSTMENT FOR PROJECTION UNIT
19. SPEAKER
20. FM ANTENNA
21. TEMPERATURE SENSOR (IN DOOR)
22. BATTERY COMPARTMENT
23. AC POWER CORD
24. RATING LABEL

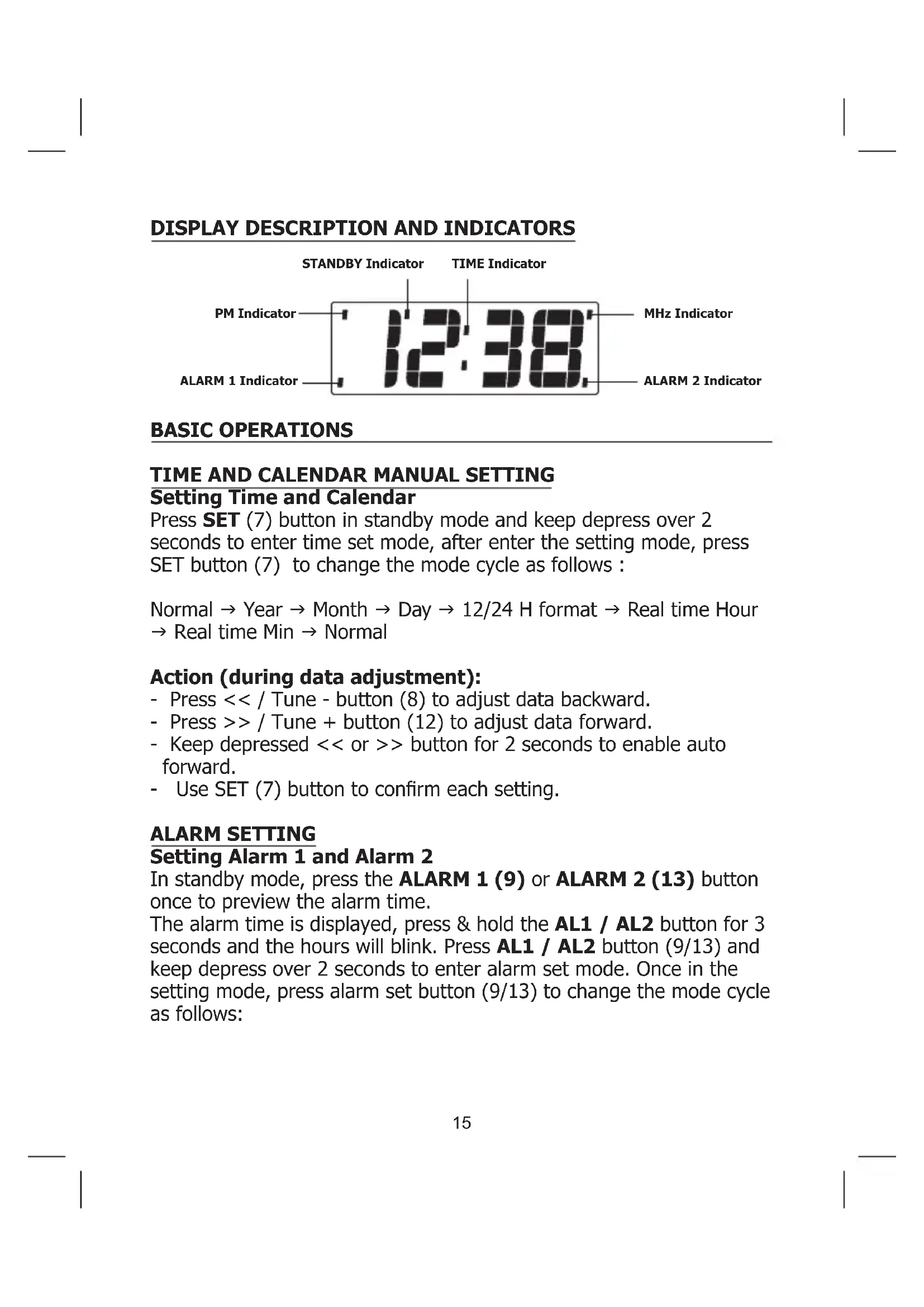

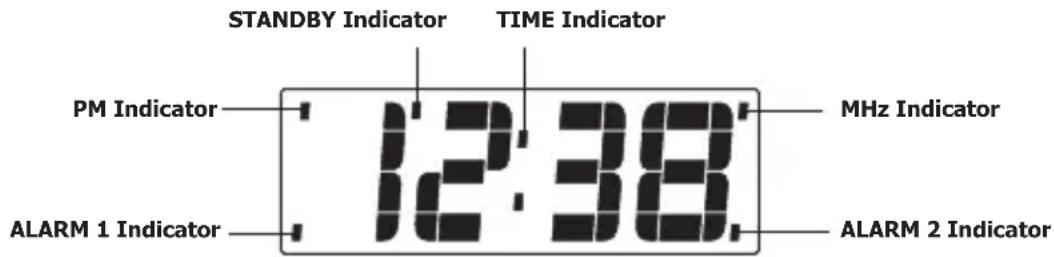

DISPLAY DESCRIPTION AND INDICATORS

STANDBY Indicator TIME Indicator PM Indicator 12:38 MHz Indicator ALARM 1 Indicator ALARM 2 Indicator

BASIC OPERATIONS

TIME AND CALENDAR MANUAL SETTING

Setting Time and Calendar

Press SET (7) button in standby mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press SET button (7) to change the mode cycle as follows :

Normal → Year → Month → Day → 12/24 H format → Real time Hour → Real time Min → Normal

Action (during data adjustment):

• Press << / Tune - button (8) to adjust data backward.
• Press >> / Tune + button (12) to adjust data forward.
• Keep depressed << or >> button for 2 seconds to enable auto forward.
• Use SET (7) button to confirm each setting.

ALARM SETTING

Setting Alarm 1 and Alarm 2

In standby mode, press the ALARM 1 (9) or ALARM 2 (13) button once to preview the alarm time.

The alarm time is displayed, press & hold the AL1 / AL2 button for 3 seconds and the hours will blink. Press AL1 / AL2 button (9/13) and keep depress over 2 seconds to enter alarm set mode. Once in the setting mode, press alarm set button (9/13) to change the mode cycle as follows:

Normal → AL 1 Hour → AL 1 Min → AL 1 weekday Alarm → AL 1 wake beep → AL 1 wake radio → AL 1 wake radio volume → Light → Light intensity → Normal.

Normal → AL 2 Hour → AL 2 Min → AL 2 weekday Alarm → AL 2 wake beep → AL 2 wake radio → AL 2 wake radio volume → Light → Light intensity → Normal.

Select alarm weekday mode as follows:

1-5: Monday to Friday

1-7: Whole week

6-7: Saturday & Sunday

1-1: One day of week

Action (during data adjustment):

• Press << / Tune - (8) button to adjust data backward.
• Press >> / Tune + (12) button to adjust data forward.
• Keep depressed << or >> button for 2 seconds to enable auto forward.
• Use AL1 / AL2 set button to confirm each setting.

Wake-up with Alarm light

The light will come on 5 minutes before the set alarm time. The light will start out at a low level and increase gradually to the set max level.

ALARM DURATION

Beep alarm or radio alarm will ring for 30 minutes if no key is pressed, then it will stop automatically and wait for same alarm time on next day.

SNOOZE FUNCTION

- When Alarm rings, press Snooze button (6) to suspend the alarm & to activate the snooze function, Beep or Radio alarm will stop. 9 minutes later the alarm will ring again. Press SNOOZE key again, alarm will be suspended again, another 9 minutes later the alarm will ring again and so on until the next alarm rings.

Note: The interval time of the Snooze function is 9 minutes.

- If you want to disable the SNOOZE function and stop alarm

completely, press ON/OFF button (11). If you don't press any button, the alarm will ring during 30 minutes & stop automatically.

- Icon of AL1 and AL2 will blink as long as Snooze function is still operating. Once Snooze is turned off icon of AL1 / AL2 stop blinking and lights on the display.

DISPLAY LIGHT ON/OFF FUNCTION

- Press MEM. Set / M+ / display light auto on-off /NAP button (4) for 3 seconds, the LED display indicator will light on, the LED display will turn off after 15 seconds automatically. Press any button to maintain the LED display for 15 seconds.

- Press MEM. Set / M+ / display light auto on-off /NAP (4) button for 3 seconds, the LED display indicator will light off to cancel this function.

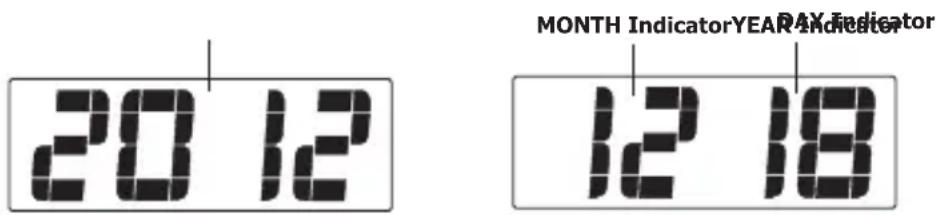

AUTO CHANGE DISPLAY CONTENT

In radio off mode, press the VOLUME UP / DISPLAY AUTO CHANGE ON/OFF (14) button and keep depressed over 2 seconds to enter time AUTO CHANGE DISPLAY mode (“ON” will appear on the display).

the Year will be displayed and press again to display Month/Day/Temperature, the display returns to time display after 5 seconds, and will display again the same info in cycle.

Press and keep depressed over 2 seconds again to turn off AUTO CHANGE DISPLAY mode (« OFF » will appear on the display).

20 12 MONTH Indicator YEAR 12 18 DAY Indicator

RADIO MODE

Note: Ensure that the FM antenna is completely unrolled and extended to have the best FM reception.

Press the ON/OFF button (11) to turn the unit on.

Use the Tune - (8) or Tune + (12) button to select the desired radio station. If you press and hold the Tune - (8) or Tune + (12) button for one second, then release, the unit will automatically scan to the next broadcasting station.

Press the ON/OFF button (11) to turn the radio OFF.

To preset radio station

Press the ON/OFF button (11) to turn the unit ON.

Use the Tune - (8) or Tune + (12) button to select the desired radio station.

Press the MEM.SET/M+ (4) button; "P02" will blink in the display.

Press the MEM.SET/M+ (4) button again to set the preset.

Repeat steps 2 through 4 to set more presets.

The unit can preset 10 stations totally for FM.

When "P01-P10" blinks, press Tune - (8) or Tune + (12) button to select the preset number.

To recall the radio preset

To recall a preset station, press MEM.SET/M+/NAP (4) button to select the desired preset number.

SLEEP OPERATION

When you listen to the radio, press the SNOOZE/SLEEP/DIMMER (6) button to enter into the sleep mode. You can adjust the sleep timer from 90 minutes to (60, 30 to 15 minutes) to OFF, by pressing repeatedly the SNOOZE/SLEEP/DIMMER button (6). When sleep timer is selected, the unit will automatically turn off once time is up.

NAP FUNCTION (count down timer)

In radio off mode, press MEM.SET/M+/NAP (4) button to enter into the NAP mode, the NAP time 90 will be displayed during 5 seconds. In the meantime, press repeatedly MEM.SET/M+/NAP (4) button to set the duration time from 90 min to 10 min.

Once time is up, the alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (11).

Press the MEM.SET/M+/NAP (4) button has no effect during alarm operation.

Press ON/OFF button (11) to cancel the NAP function.

Note: When using the NAP alarm the wake up light function is inactive.

INDOOR TEMPERATURE

• Indoor temperature sensor is at the back of the unit. The unit detects the current environment temperature.
• In order to display the indoor temperature in °C or °F, first turn ON the "AUTO CHANGE DISPLAY CONTENT" (refer to the corresponding paragraph above).
• During Auto Change display content mode, when temperature is displayed, press on >> (12) key to toggle between temperature in Celsius to Fahrenheit.
• The detection range of indoor temperature is between 0°C & 50°C or 32°F & 122°F.

PROJECTION UNIT

Note: project time image on the ceiling or wall of a darkened room. The maximum projection distance is 0,90 M \~ 2,70 M.

Focus setting:

• Adjust the brightness & focus of the projected clock by turning the adjustable focus wheel (18) until the projected time is clearly shown on the ceiling or wall.
• Adjust projected direction thanks to the angle adjustment.
• Flip the projected image by 180° by pressing 180° FLIP (16) button.
• To switch from the time projection to the temperature projection, keep depressed over 2 seconds PROJECTION TIME 180° FLIP/TIME-TEMPERATURE (16) button.

DIMMER CONTROL

The dimmer switch (6) allows you to set the brightness of the LED display to high, medium and low 3 levels.

SET THE LIGHT INTENSITY OF THE LAMP SHADE

Press the Light Intensity High button (1) to increase the intensity of the light.

Press the Light Intensity Low (2) button to decrease the intensity of the light.

DAYLIGHT SAVING TIME (DST) MODE

For countries with daylight saving time (DST) (one hour of difference between summer time and winter time), this clock radio offers you DST option to adjust summer time.

In standby mode press and hold for 2 seconds the >>/TUNE+/DST button (12).

The clock advances by one hour. To exit DST mode, repeat the above operation.

RESET

If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait at least 3 minutes and then setup the unit again by following the manual.

TECHNICAL SPECIFICATIONS

Model Number • TCP-124

Power Supply • AC 230 \~ 50 Hz

Power consumption • 5W

Standby power consumption • 1 W

Battery backup • 3V (CR2032 Flat Lithium battery x 1) not included

Radio Frequency Coverage • FM: 87.5MHz - 108 MHz

Audio output power • 120MW

Net Weight • 0.430 g

Dimensions • 126×100×140 mm

Temperature range for Indoor • 0 to + 50°C or 32 to 122 °F

IMPORTANT:

Due to continual revision and improvement on our products design, specifications are subject to change without further notice.

End of Life Disposal

Warning! This logo set on the product means that the recycling of apparatus comes within the framework of the Directive 2002/96/ January 27, 2003 concerning the Waste of Electrical and Etc Equipment (WEEE).

■ Symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If you're used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
• By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

Unit complies with European Council Directive 2006 / 95 (electromagnetic Compatibility & Low Voltage Directives)

WAARSCHUWING

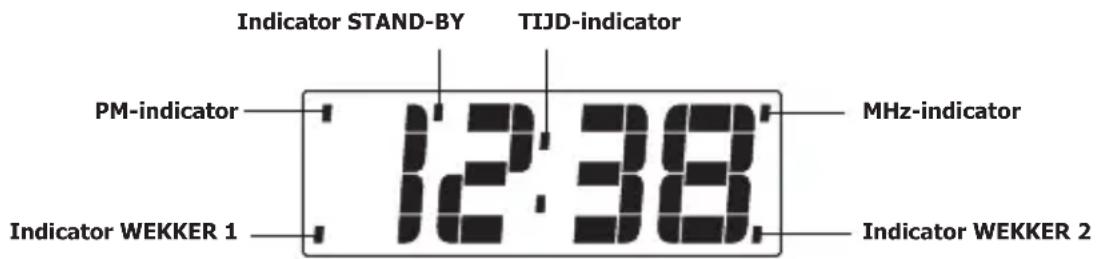

DISPLAY: BESCHRIJVING EN INDICATOREN

Indicator STAND-BY TIJD-indicator PM-indicator 12:38 MHz-indicator Indicator WEKKER 1 Indicator WEKKER 2

BASISBEDIENING

ALARM EINSCHALTDAUER

Abmessungen • 126 x100x140 mm
