Product Type	Built-in Gas Hob
Brand	Ardo
Model	SL6V4GTX
Cut-out Dimensions (W x D)	560 x 480 mm
Number of Burners	5
Burner Types and Power	Rapid 3000 W, Semi-rapid 1750 W, Auxiliary 1000 W, Triple crown 3800 W, Double crown 3500 W
Gas Supply	G30/G31 (28-30/37 mbar) or G20 (20 mbar)
Electrical Supply	230 V ~ 50 Hz
Ignition	Automatic (with or without safety valve depending on burner)
Safety Valve	Present on some burners
Efficiency Classes	Class 3 (EEC 2009/142/EC)
Standards	EEC 2004/108/EC, EEC 2006/95/EC, EEC 89/109
Table Material	Enameled glass
Grates and Burners	Removable for cleaning
Cleaning of Enameled Parts	Sponge and soapy water, mild detergent - avoid abrasives
Cleaning of Stainless Steel Parts	Soapy water, dry with soft cloth
Safety Instructions	Supervise children, do not use sprays, extinguish in case of accidental flame
Installation	By qualified personnel, comply with current standards
Spare Parts	Nozzles, injectors, taps - use original parts
Repairability	Authorized technical assistance center

Frequently Asked Questions - SL6V4GTX Ardo

How to light a burner?

Turn the knob counterclockwise to the maximum position (large flame) and press the knob. For burners with safety valve, hold pressed for about 10 seconds after ignition.

What to do if the flame goes out accidentally?

The safety valve cuts off the gas supply after a few seconds. To relight, turn the knob back to maximum position and press again.

What pot diameters to use for each burner?

For the auxiliary burner (1000 W): 10-14 cm, semi-rapid (1750 W): 16-18 cm, rapid (3000 W): 20-22 cm, triple crown (3800 W): 24-26 cm, double crown (3500 W): 24-26 cm.

How to clean the burners and grates?

Remove the burners and grates. Clean them with a sponge and soapy water or mild detergent. Rinse, dry and put them back correctly, checking that the flame channels are not obstructed.

Can I use a steam cleaner for cleaning?

No, never use steam or high-pressure devices to clean the hob due to electrical risks.

How to adjust the minimum flow of a burner?

Light the burner and set it to minimum position. Remove the knob, insert a flat-blade screwdriver into the tap hole and turn the bypass screw until a stable flame is obtained.

Can the appliance be used with another type of gas?

Yes, but the nozzles must be replaced with those corresponding to the new gas. Refer to the technical data table and call a qualified installer.

What are the safety distances for installation?

Maintain a distance of at least 50 mm between the edge of the appliance and adjacent walls. If a wall cabinet is above, allow at least 760 mm between it and the worktop.

How to connect the hob electrically?

Connection must be made by a professional. Use a cable H05VV-F or H05RR-F of section 3x0.75 mm². The phase (L) is brown, neutral (N) blue, earth green-yellow. Earthing is mandatory.

Where to find the serial number of the appliance?

The label with the serial number is located under the hob.

USER MANUAL SL6V4GTX Ardo

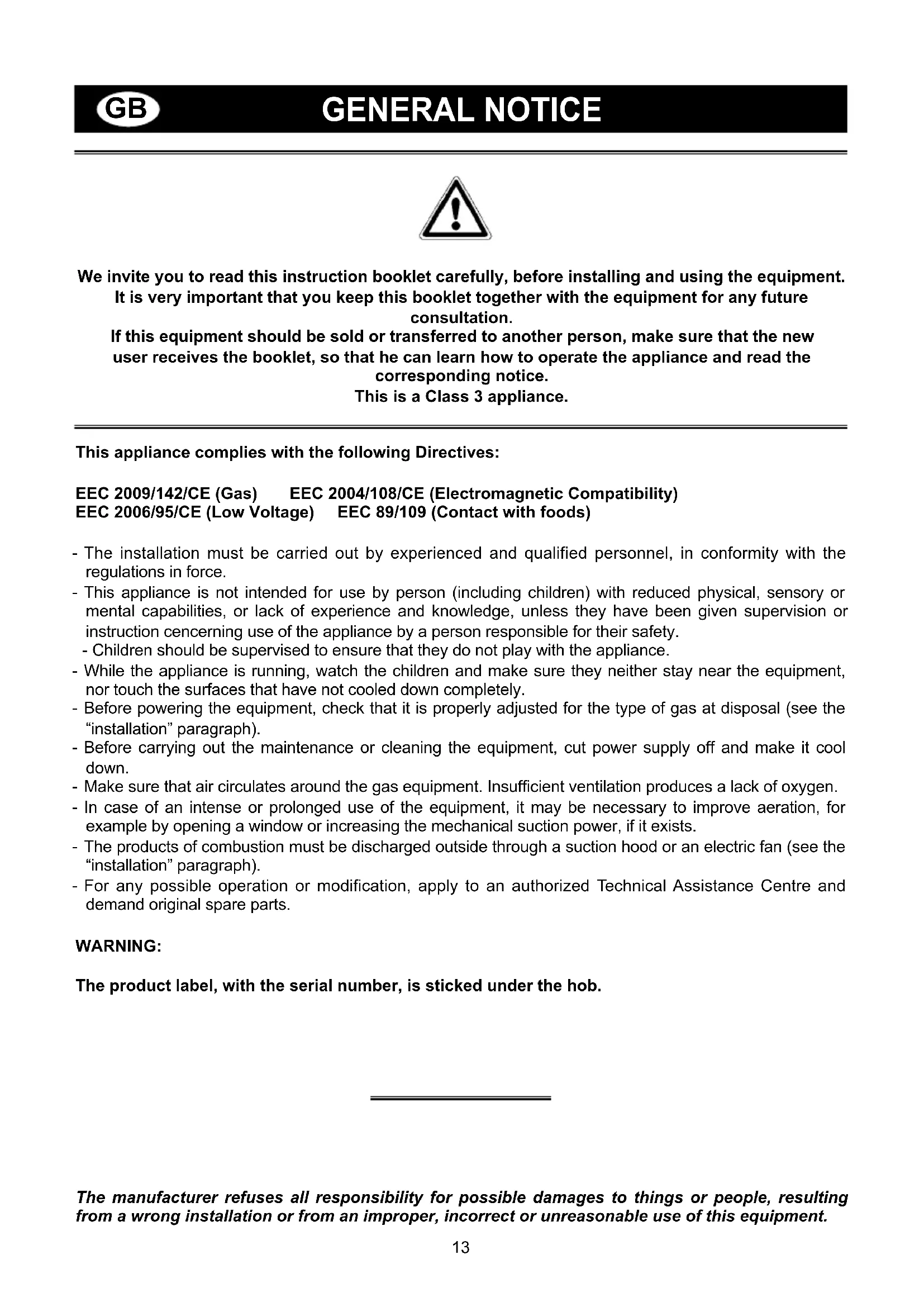

Appareil conforme aux directives:

We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation.

If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice.

This is a Class 3 appliance.

This appliance complies with the following Directives:

EEC 2009/142/CE (Gas) EEC 2004/108/CE (Electromagnetic Compatibility)

EEC 2006/95/CE (Low Voltage) EEC 89/109 (Contact with foods)

• The installation must be carried out by experienced and qualified personnel, in conformity with the regulations in force.
• This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• While the appliance is running, watch the children and make sure they neither stay near the equipment, nor touch the surfaces that have not cooled down completely.
• Before powering the equipment, check that it is properly adjusted for the type of gas at disposal (see the "installation" paragraph).
• Before carrying out the maintenance or cleaning the equipment, cut power supply off and make it cool down.
• Make sure that air circulates around the gas equipment. Insufficient ventilation produces a lack of oxygen.
• In case of an intense or prolonged use of the equipment, it may be necessary to improve aeration, for example by opening a window or increasing the mechanical suction power, if it exists.
• The products of combustion must be discharged outside through a suction hood or an electric fan (see the "installation" paragraph).
• For any possible operation or modification, apply to an authorized Technical Assistance Centre and demand original spare parts.

WARNING:

The product label, with the serial number, is sticked under the hob.

The manufacturer refuses all responsibility for possible damages to things or people, resulting from a wrong installation or from an improper, incorrect or unreasonable use of this equipment.

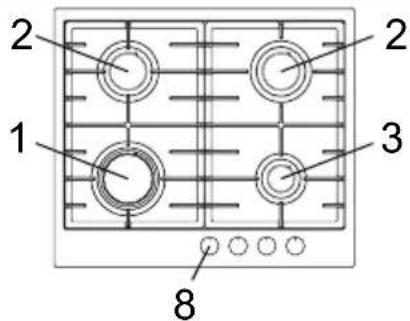

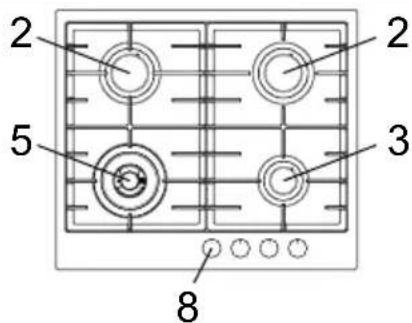

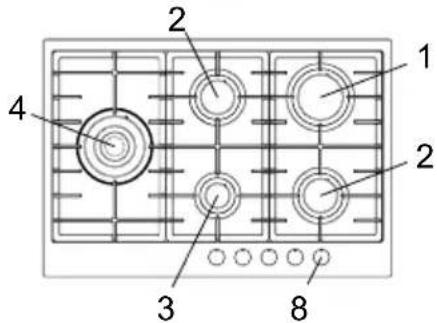

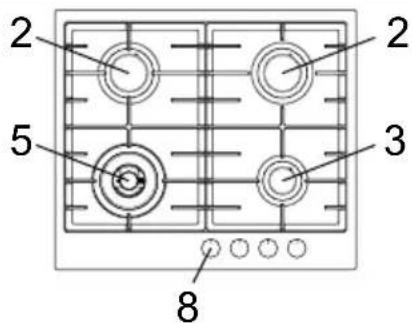

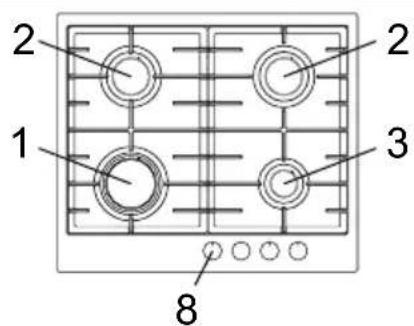

1 Rapid burner 3000 W
2 Semi-rapid burner 1750 W
3 Auxiliary burner 1000 W

4 Triple ring burner 3800 W
5 Double ring burner 3500 W
8 Control knob for burner

TECHNICAL CHARACTERISTIC TABLES

BURNERS		GAS	NORMAL PRESSUREmbar g/h	NORMALRATE		INJECTORDIAMETER1/100 mm Max. Min.	TAPE BYPASSDIAMETERMin.	NOMINAL HEATINPUT (W)
\( N^o \)	DESCRIPTIONS			-/h 1/10	00 mm
1 RAPID		G30 / G3128-30 / 37 218 -G20	85 42-	286		3000 950115Y	Reg.	3000	950
2	SEMI-RAPID	G30 / G3128-30 / 37 127 -G20	65 31-	167		1750 60097Z	Reg.	1750	600
3	AUXILIARY	G30 / G3128-30 / 37 73 -5G20	20 27-	95		1000 45072X	Reg.	1000	450
4	TRIPLE RING	G30 / G3128-30 / 37 277 -G20	98 60-	362		3800 2100135K	Reg.	3800	2100
5	DOUBLE RING	G30 / G3128-30 / 37G20	255-	334		93135	Reg.	35003500	21002100

This product complies with EU Directive 2002/96/EC.

The crossed-out dustbin symbol reported on the appliance indicates that the appliance must be disposed of separately from other domestic refuse at the end of its useful life. It must therefore be delivered to a waste recycling centre specifically for electric and electronic equipment or returned to the retailer at the moment of purchase of a new equivalent appliance.

The user is responsible for delivering the appliance to the appropriate collection centre at the end of its useful life, Failure to do so may result in a fine, as provided for by laws governing waste disposal. Differential collection of waste products for eventual recycling, treatment and environmentally friendly disposal helps reduce possible negative effects on the environment and health, and also enables the materials making up the product to be recycled. For more detailed information on the available refuse collection systems, refer to the local Municipal Solid Waste disposal centre or the shop where the product was purchased. Producers and importers are responsible for fulfilling their obligations as regards recycling, treatment and environmentally friendly disposal by directly or indirectly participating in the collection system.

INSTRUCTIONS FOR THE USER

It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force.

The specific instructions are described in the booklet section intended for the installer.

USING THE BURNERS

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner.

Start-up without valves

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press.

Automatic start-up with valves

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig. 1) and press the knob. Once the burner has been started up, keep the knob pressed for about 6 seconds.

Using the burners

In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame goes out of the pot bottom (fig. 2).

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

The gas supply can be interrupted by turning the knob clockwise up to the closing position.

If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1).

BURNERS POWER OF POTS
Auxiliary 1000	10 - 14 cm
Semi-rapid 1750	16 - 18 cm
Rapid 3000 20	22 cm
Triple crown 380	00 24 - 26 cm
Double crown 3500	24 - 26 cm

Notice

• When the equipment is not working, always check that the knobs are in the closing position (see fig.1).
• If the flame should blow out accidentally, the safety

valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig. 1) and press.

• While cooking with fat or oil, pay the utmost attention as these substances can catch fire when overheated.
• Do not use sprays near the appliance in operation.
• Do not place unstable or deformed pots on the burner, so as to prevent them from overturning or overflowing.
• Make sure that pot handles are placed properly.
• When the burner is started up, check that the flame is regular and, before taking pots away, always lowerthe flame or put it out.

CLEANING

Before any operation, disconnect the appliance from the electric grid.

Don't use a steam cleaner for the cleaning the hob.

It is advisable to clean the appliance when it is cold.

Enamelled parts

The enamelled parts must be washed with a sponge and soapy water or with a light detergent.

Do not use abrasive or corrosive products.

Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time.

Stainless steel parts

Stainless steel can be stained if it remains in contact with highly calcareous water or aggressive detergents for an extended period of time.

The stainless steel parts should also be cleaned with soapy water and then dried with a soft cloth.

Burners and racks

These parts can be removed to make cleaning easier.

The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly. Make sure that the flame-dividing ducts are not clogged.

Check that the feeler of the safety valve and the start-up electrode are always perfectly cleaned, so as to ensure an optimum operation.

Gas taps

The possible lubrication of the taps must be carried out by specialized personnel, exclusively.

In case of hardening or malfunctions in the gas taps, apply to the Customer Service.

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE:

THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE.

THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS.

INSTALLATION

Installing the top

The appliance is designed to be embedded into heat-resistant pieces of furniture.

The walls of the pieces of furniture must resist a temperature of 75^ besides the room one.

The equipment must not be installed near inflammable materials, such as curtains,cloths,etc. Make a hole in the top of the piece of furniture, with the dimensions indicated in fig. 3, at a distance of at least 50~mm from the appliance border to the adjacent walls.

MODEL L (mm)	P (mm)
60 - 75 560 480

Any possible wall unit over the cook-top must be placed at a distance of at least 760~mm from the top.

It is advisable to isolate the appliance from the piece of furniture below with a separator, leaving a depression space of at least 10mm (fig. 4).

If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven.

Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200cm^2 and the higher air exiting with a cross section of at least 60cm^2 .

Fastening the top

Every cook-top is equipped with a special washer. A set of hooks is also supplied for mounting the cook-top.

For the installation proceed as follows:

• Remove the racks and burners from the top.
• Turn the appliance upside down and lay the washer S along the external border (fig. 5).
• Introduce and place the cook-top in the hole made in the piece of furniture, then block it with the V screws of the fastening hooks G (fig.6).

Installation room

This appliance is not provided with a device for exhausting the products of combustion.

Regarding room ventilation rules where appliance is installed make reference to the legislation, in conformity with the local regulations.

FOR THE U.K. ONLY

The room containing this hotplate should have an air supply in accordance with BS 5440: Part 2: 1989.

• All rooms require an openable window, or equivalent and some rooms will require a permanent vent a well.
• For room volumes up to 5m^3 an air vent of 100cm^2 is required.
• For room volumes between 5m^3 and 10m^3 an air vent of 50~cm^2 is required.
• If the room is greater than 5 m³ and has a door that opens directly to the outside, then no air vent is required.

If there are other fuel burning appliances in the same room BS 5440: Part 2:1989 should be consulted to determine the air vent requirements.

INSTRUCTIONS FOR THE INSTALLER

Gas connection

Make sure that the appliance is adjusted for the gas type available (see the label under the appliance). Follow the instructions indicated in the chapter "gas transformations and adjustments" for the possible adaptation to different gases.

The appliance must be connected to the gas system by means of stiff metal pipes or flexible steel pipes having continuous walls, in compliance with the regulations in force.

Some models are equipped with both cylindrical A and conical B connectors for gas supply (fig. 7).

Please select the type which is correct for the supply concerned.

The connection must not stress the gas ramp.

Once the installation is over, check the connection seal with a soapy solution.

Electric connection

The connection to the electric grid must be carried out by qualified personnel and in conformity with the regulations in force.

The voltage of the electric system must correspond to the value indicated in the label under the appliance. Make sure that the electric system is provided with an effective ground connection in compliance with the regulations and provisions of the law. Grounding is compulsory.

GAS TRANSFORMATIONS AND ADJUSTMENTS

Replacing the nozzles

If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner nozzles.

The choice of the nozzles to replace must be made according to the table of the "technical characteristics" as enclosed.

Act as follows:

• Remove the racks and burners.
• By means of a straight spanner L, unscrew the nozzle U (fig.8) and substitute it with the corresponding one.
• Tighten the nozzle strongly.

Adjusting the burners

The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position.

If this is not so, it is necessary to adjust the lowest flame point as follows:

• start the burner up;
• turn the tap up to the minimum position (small flame);
• remove the knob from the tap rod;
• introduce a flat-tip screwdriver in the hole F of the tap (fig.9) and turn the by-pass screw up to a proper adjustment of the lowest flame point.

As regards G30 gas burners, the by-pass screw must be tightened completely.

MAINTENANCE

Replacing the power supply cable

If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 × 0.75 ~mm^2 , type H05VV-F or H05RR-F, complying with the regulations in force.

The connection to the terminal board must be effected as shown in fig. 10 - 10/A:

brown cable L (phase)

blue cable N (neutral)

green-yellowcable (ground)

cable N azul (neutro)

cable verde-amarillo (tierra)

Antes de introduzir as grelhas naquina, retiring as borrachas anti-choque, e(before tornar a montar as masmas.

Torneiras de gás

3MaJInpoBaHHbIe DeTaJIH

PekomeHdyetcMbItb3MaJInpoBaHHbIe DeTaJI NTeJIbIM MbJbHbIM pACTBOPOM HNI MRAKIM MOIOUIM CpeCTBOM. He nCnoJIb3yIte a6pa3NBHbIe HNI KoppO3nHbIE cpeCTBa.He donyckaTe, YTO6bI Takne BeuecTBA kAK IImMOHbIKoK, NOMIDOpbl, CoNEHaB ODa,YKCyc, KOFe I MoNOKo NOdONry OCTaBaANCb Ha 3MaJInpoBaHHOI NOBepxHocTu.

TeaJn n3 HepKaBeOoSei cTaJI

Ha Detanax n3 Hepxabetoe cTann Moryt noBttcbn Tnha,ecnn OH B TeueHne dntteIbHoro BpeMeHN 6ydyTKoHTaKtnpoBaTb C XeCTKO BODOn IIN C arpeccNBbIMM MOUUMn CpeDCTBAMn. PeKomeHdyetc MblN xMbllhBlm pactBopom H acyxo BbltpaTb MrgkO TpRnkO.

Бleck coxpaHITc, ecn peryIpyHO nCnoJIb3OBaTb COOTBeTCTByIOUne cpeDCTBa no yXOy.

KoHΦopKn npeweTkn

YTo6bl 6blno IerYe MbItb peWetkn N KpbIuKn paccekaTeJe, INX MOxHO CHrTb. KpbIuKn paccekaTeJe MoXHO MbITb r6KOi, CMOueHHoB MblbHO BOe INN B pactBOpe MfRKOro MOUSeIero cpeCTBa. Nocne MoKn INx CNeDyET HAcxyo BbltepeTB u AkkypaTHO yCTaHOBtB Ha MeCTO. PpOBepbTe, YTo6bl OTBepCTna paccekaTeJe He 6blIN 3akynopeHbl. NocTOnHNO npOBepaNTe YnCTOTy 3OHda KlananaHa 6e3onacHOCTn (ra3-KoHTpON) n CBeyn 3JIeKTPop03JNra. 3To oBeCneHT IN X ONTMaJIbHOe cyHKUHOHPOBaHne.

Cma3ky BeHTnIe, ecn B03HnKHeT TaKaJ Heo6XoDnMocTb, DOnJKeH BblNoJIHrT bToIbKO KBaIINΦnIupOBaHHb CneuaJIInCT.

Korda cTaHET Tpydno nobopauNbBaTb pyky, cneDyEt npurnaaTaB MaCTepa n3 cepBnCHoro ueHTpa.

HCTPYKUNI YCTAHOBUNKA

BAXHOE INPEDUNPEKDEHNE:

OnncsbIaembIe HnXe Onpaun DoJXhbl npOn3BODHTbcra KBaJIuΦnUcPOBaHHbIM nepcoHaIOM B COOTBeTCTBnC DeJeCTByUOUMn HopMaMn n paBnAmn.

Ipon3BoDnteJIb He Hecet OTBeTCTBeHHocTH 3a yuep6, Bo3HnKwB BCJeDCTBHe HenpaBnBHOy cTaHOBKn np6opa, HapyuHenna npNBedeHHbI npaBnI.

YCTAHOBKA

MOHTAX BapouHoi NOBepxHoctn

Pnp6op npedHa3NaueH dJa BCTpaunBaHnB Me6eIb, yToOnuByIO K Bo3dEInCTBnIO BbICOKnx TemnepaTyp.

CTeHKn Me6eJn DoJXHbI BbldepKuBaTb TemnepaTyPe He MeHee 75^ nlloc TemnepaTypa OkpykaHouSei CpeDbI B COOTBeTCTBUN C eBponeckmH HopMaMn.

Pn6op OTHOCHTc K Tnny Y》，TO eCTb MoKeT yCTaHaBJIbBaTbcra，TOIbKO ecNI Cnpaba NII CNeBa OT HrO HAXoNTcra TOIbKO OdHa 6OKOBa CTeHa.

CneyuETn36eraTb yctaHOBKn npnbopa B6n3N BocnnaMeHauuXcra MATEpnaNoB BpoJe 3aHaBeCOK n T. n.

B CTOJeuHnue CneJyET NOIROTOBNTb OTBepCTne IJI BCTpanBaHHa B COOTBeTCTBUN C pa3MepaMn, Yka3aHHbIMn Ha pnc. 3, npn 3tOM CneJyET npedymotpeTB, yTO6bl pacctOJHne MeJdy Kpaem npnbopa n 6bnKaiWei CTeHoi 6blno He MeHee 50 MM.

Мо德尔	ШирINA (MM), L Гль	убина (MM), P
60 - 75 56	0 480

Ecnn Haid BapouHoi NOBepxHocTbIO npedycMOtpeH MOHTaX BbITaKKn, OHa DoJHKHa HAXOHTbcr OT Hee Ha pacCToHHn He MeHee 760 MM.

PekomeHnyetcnaOJnpoBaTbBapouHyIO nobepxHOCTbOT Me6eN，B KOTOpyO OHa BCTpaNBaETc，pa3dEnIteNbHOI NaHeJIbIO, OCTaIBMEXdy Hei I npu6Opom pacCToAHne He MeHee 10 MM (pnc.4).

Ecnn Bapouhna NOBepxHocTb yCTaHaBnBaetc BMeCTe C dYXOBKoN, cNeDyET npHnAeMb MepbI npedocTopoxHOCTu oBeCneuHTb co6IooHe Hnpabn 6e3OanacHocTn. Oco6oe BnMaHne cNeDyET yDeNTb TOMy, YTo6bl uHyp nITaHnra3OBa Tpy6a He copnkacannc b c ropnymN Detanamn Kopnyca dYXOBKn. Kpome toro, npn

yCTaHOBKe BapOuHoi NOBepXHocTn HaI dYxOBKOJ 6e3 npHyDnteIbHOJ oxJaKaIooJIe BEHTINJauCn CNe dyET npeducMOTeB BHN3y OTBepCTnJ DJI npITOKa BO3dyxa c CeueHHe MeHee 200 cm, a BBepxY BblOxDHie OTBepCTnJ C CeueHHe MeHee 60 cm².

KpenJIeHne BapOuHNo NOBepxHocTn

B komnleke K BapouhoN NOBepxHocTN npnilaraetc CneuaJIbHaJ npoknaKa n Ha6Op KPOHtEINHOB dIg KpeIIeHnI.

JyctahOBKn BapoHOn nobepxHoctn BbINOHTe cJeDyUOune onepaun:

• CnHmnte peWetkn KpbIuKn pacceKaTeNei.
  -Перевернite пибори зakpenite no erо краяп рокладу S (pnc. 5).
• BCTaBbTe BapOHyIO NOBepXHOCTb B OTBepCTne ДЯ BCTpaUNBaHnI N 3aKpeNITe BuHTaMn V, BCTaBJIeHHbIMN B KPOHJTeHbI KpeNJIeHnI G (pnc.6).

PomeuHne yCTaHOBKn

3TOT npnbop He coeDInHe C obOpydoBaanem IJy ydaIeHn npOdyKTOB ropeHn. B nomEueHn, rDe ycTaHaBnBaetc BapOchna NOBepxHocTB, DOJXHa 6bITb npedycmotpeHa cnCTema ydaIeHn npOdyKTOB cTopaHn. 3TO MOKeT 6bITb N60 BbITJkKa, N6o BeHTnIaTOp Ha OKhe nNBEHTnJIaCIOHHom OTBepCTHn, BKIOUaIOUneCe npINcNoJIb3OBaHn np6oba.

B nomeueHH, rde yctaHabnBaetc npnbop,doJxeh 6bITb npedymOTpeh eCTeTbeHHbI npitOK BO3dyxa dIra HopMaIbHoro ropeHna ra3a I dIy BeHTnlaucn. O6bem BO3dyxa doJxeh coCTaBJIaTb He MeHe 20 m³.

EcTeCTBeHHbI npITOK BO3dyXa DOJXeH npOxCODHTb HApPMyIO uepe3 BeHTnJIaCIOHOHBie OTBepCTnB CTeHe, NIOo NocpeDCTBOM BO3dyxOBOda. Pa3peSaaTcA TAKKe npImeHHeH HenpPmOB BeHTnJIaCIN NocpeDCTBOM BbITJkKN

BO3dyxa n3 NOMeHn, npIneraUxK KyXHe, npN yCIOBn CO6IouDeHn DeiCTByOuNX HOpM. MnHmAlbHoe ceueHne BeHTnJraUHOHOro OTBepTna DOJXHO CoCTaBnTb 200 cm².

IPODCOEDINHEHNEKΓA3OBON CETN

Ipeed Tem kak npnctyntb K noDcoeHHeHIO npnbopa, cneayet npOBepntb COOTBcTCTBne daHHbx, yka3aHHbx Ha MapKnpoBOUHO TaBnueKe C HxKHe CTOpOHbI Ha ynaKOBke, XapaKTepnCTnKa r3OBoC eTn.ДЯ npoBeHnA daHHoJ Oepaun DOnuSeHHbIK pa6oTaM yCTaHOBUnk DoJxeh CJeDoBaTb yka3aHnA M, npuVeDeHHbIM B pa3dene «IpeHaJaKa noD pa3NHyIe TINbI ra3a».

IodKnHueHne ra3a DoJxHo npOn3BOuNTbcn npn NOMOUs JecTKoM MeTaJIHueCKoT py6bl nIN npN NOMOUs r6KO CTaJIbHO Tpy6bC Hepa3pe3HOCTeHO, XapaKTePNCtIKK KOToPbIX COOTBeTCTBYOT DeNCTByUcIM HOpMaM.

B KOMnJIeKTe K HeKOTOpbIM MoJeIaM NoCTaBnJIoTcra Dba NepexoDnHka: OOnH cUInnHdpnueckn I OOnn PAcTppy6hbl (Pnc.7). B 3aBnCmOcTn OT Hopm, npnHrTaBIX B CtpaHe, rDe yCTaHaBnBaetc np6op, cNeyET Bbl6paTb COOTBeTCTByuOuN IpeXoDnHk.

Pn PNOCDoeHNHeHn K Ra3OBoCetn He CJIeDyET OKa3bIBaTb BO3DeIcTBnE Ha Ra3OBbIKOHTyp.

Iocne 3aBepWeHnnoDcoeHNHeHn CJeNyET npOBepntb repMeTNUHOCTb npN NOMOuMblbHoro pactbopa. HeIb3ra nCNOJb3OBaTb dJa 3Txx ceJeN OTKpbItoe pAmr.

3JIeKTPnueCKOE NODKJIIOUcHHe

3JneKtpnueeckoe noDKJIuOyeHne doJXHo npOn3BOAnTbcra KBaIINΦnUPOBaHHbIMn CneuaJIInCTaMn B COOTBETCTBmC DeIcTBYIOUMN HOpMaMn.

Hanpajxehne B cetn DOJXHO COOTBeTCTBOBaTb Hapjxehno, yka3aHHOMy B MapKnpoBOOHo Tabniue Ha dHnue npnbopa.

IpoBepbTe, yTo6bI aJeKtpoO6OpyDoBaHne nomeuEHHaNo HaDeXHo 3a3EmHeo B COOTBETCTBnC DeNCTByUOUMN HOpMaMn.

Pn6opdoJxKeH 6bItb 06a3aTeIbHo 3a3emJeH.

Ecn np6op He ochaue H BnKoJ, K Shhpy nItaHn cJeDyET NOcOeHNHTb COOTBeTCTByIOU O DeIcTBYIOUM HOpMaM BnKy.

3JIeKTPnueckoe NOdkIIOUeHHe MOxHO npOn3BecTu HEnocpeIcTBeHHo K 3JIeKTPnueckoi CETn,ДЯуero MeJdy npnbopom n cetbIO cJeMyET

yCTaHOBntb MHOrONOJIOCHbI BbIKNoUaTeNb C MUNHMaJIbHbIM pa3MbIkaHEm KOHTAKTOB 3 MM.

IPEHJIAKAIPOJPA3HbIE TINbI RA3A 3aMeHaΦopcyHOK

Ecnn n3rotobntelem npnbop hanajeknДЯ nCNoIb3OBaHnO ODHO Tnna ra3a,a nCNoIb3yeTcA npyro, cneDyET 3aMeHnTB φOpCyHKn KOHΦOpOK.

ΦopcyHKn CJeDyeT Bbl6paTb B COOTBeTCTBnC npNBedeHHoB HnHCTpyKcun TaBnueiTexHnuecknx XapaKTePncTnK.

ДяЗаменblфорсуHOKcneDyET BbINOJIHHTb cneDyuUne onepaun:

• Charypeewetkn n Kpbiluapanpaccakeane.
  -При пошп Торцевог Клоча Ha L OTВернтб Форсунку U (pnc.8)и 3amehntb Форсунков COOTBETCTByUоше TUNy ICNoIb3yEmoro ra3a.
• Kpenko npnKpyTntb opcyHky.

PerynpoBka KOHΦopok

MnHmym DoJxeh 6bIt B CeIa npabNtHo OtperynpoBaH, a PnAmr He DoJXHO rachyTb DaKe npn pe3kOM nepeKlOueHn n3 NOJoxeHn MaKcIMyB NoJoxeHne MNHmym.

Ecnn 3toro He npoicxoadnt, Heo6xoJnMo OtperynilpoBaTb MNHmym, BblnoJIHNB CneJeIouune onepaun:

-3axeuch KOHoppky;
-yctahOBntbpykyBnoJoxeHne «MnHmym》 (MaJIeHbKoe nIamr);
-CHrTbpyuKyBeHTnIJIa;
- BCTaBnTb ⅢIuIeByIO OTBePTKy B OTBepCTne F BeHTnJIa (pnc.9) n IOBepHyTb BNHT 6aIIaca Do npabINbHO rnoIOXeHr MmHmMyMa.

Ecnn nncnonb3yetcra3 G30,BnHT 6aunaca doJxhen 6bItb 3akpyeh nonHocTbIO.

TEKUJIEE OBCJYXINBAHNE

3aMeHa shHypa nHTaHn

B cnyuae Heo6xOdmocTn 3aMeHbI shhypa nntaan CneJeYET NcNoJb3OBaTb COOTBeTCTByIOuN DeiCTByIOUm HOpMaM uHyp TaH05VV-F nn H05RR-F CEUEHENEM 3 X 0,75 MM2.
IopcoeHHeHne K KneMMHoK opo6Ke cneyet npoun3BOuNTb, KaK nokaHa Ha pnc. 10 n 10/A:
IpoBOD L KOpNHeBbI (pa3a)
PpOBoN N cHnH (HOJIb)
PpOBoDKeITo-3eIeHbI (3eMna)

Papmo yBaxno npoHTaTu ci ihctpkui neped yctahOBKOTo eKcnnyataucieo nnTn. Baxnbo: 36epiraTe iHctpkciIO dny 6ydb-koI noaIbwoi KOHCyIbTaou. Jkso BaW npnilad nepeJeDo IHsoro Bnachnka, He 3abvBaTe nepedatmy i cei nocibnk, 06b HOBN KOpNCTyBaU TAKOZ 3ABXdn Mir npabnlbHO ekcnnyatYBaTn po6oy noBepxHIO . Ue npnilad BiHocntbcra Do 3-ro knacy i Ioro 6byNo cnpoeKTOBaHo dny DomaunHbOro BxNTKy, a He dna npopecioHaIbHOi ekcnnyatauii, 3 6oky npnbathnx oc6 y npmimiueHHx.

PnnaCnpoeKToBaHO Ta BnroTOBneHo 3iDHO HAcTynHx DInpeKTNB:

EEC 2009\142\CE-ra3

EEC 2006\95\CE-Hn3bKa Hanpyra

EEC 2004\108\CE - eNeKtpomarHiTha cymichictb

EEC 89\109 - KOHTaKTn 3 npOdyKTamn XapCyBaHHA

• YcTaHOBka NOBHHa BnKOHyBaTncb KBaJIiΦiKOBaHM i KOMNeTeHTHM nepcoHaJOM 3riIHO DiOuHX HopMaTnBiB.
• Lcien npnilad He npn3haeNo dny ekcnnyatauoi oc6amn (BKNIOUaOuy n diTei) 3 o6mexeHmN i3H N M I Ta PO3yMOBIMN 3i6HOCTaMn, a6o 6e3 BiIOBIDHO DOCBiPy Ta 3HaHHB, B KpaHbOMy BInapdky tInbKn NiD HargJDOM OC6n, BiIOBIDAJIbHOI 3a IXHIO 6e3neKy.
  -CjndkyTe,06 dItn He rpanncs 3 npnilaDom.
• Cπiδκynte, Σο6 πιτη He 3haxoδnllncb nopuy πιδ qac poδotn ππιτη Ta He TOpkaIINCb II Harpitnx YactnH.
• Ppei nnKluHnM do ra3OpBOy nepecbiUHTncb, 0o nIuta npaBnIbHO BiDperyIbOBAHa Dnra 3y, kIM Bn KOpNCyTeCb (INB. po3dn "YcTaHOBka").
  -Перет Texo6cIyROByBaHHaM abO ChCTKOIO BiIckJIHOHTN NOBepxHIO 3 МepeXi eJIeKTPoXnBHeHn Ta 3aueKaTn, DOKN BOHa OXONOHe.
• IpeceBiiDHTncb, 0e eo do6pa cnpkylaizia nobitprn HABKOIO ra3oBOi noBepxhi, 0o6 6yno DOCTaTHbO KNUCHIO.
• Y BnnaIky iHTeHcNBHOi a6o Tpnbanoi ekcnnyatauio MoKe BnHKHyTn Notpe6a B DoDAKOBiB EHTnlaqii, HapnKnad: BiDkpntu BIKHO a6o 36ilbunr nOTyKHiCTb MexaHicHo BVITJKK (KaIO e).
  -Пюдуктюрінгь_NOВиHи BИВОДиTиСь Ha3OBHi Yepe3 BnTЯЖу a6o eJNeKТpoBeHTiŋЯTOp (ДИВ. po3diЛ "YctaHOBka").
  -ДяВірідніх ремогів abo BИДОЗМИЗВЕРТаTEСьdo ynoBHOBAJKeHIX cepBICHIX ueHTpiB Ta BNTIMaraTe, 万多 3aŋчactuHn 6yIIn opurihalbHmN.

ybara:

EtkeKa Bnpo6y i3 cepiHm Homepom HaKneHa Ha HxHIO qactnHy.

Bupobuk He bIDnoiada 3a moKnuei 36umku, buKnukahi HenpaunbHOo ycmaHOKO u eknnnyamaicio npunady.

He BnKOpncToBvBaTn a6pa3nBHi Ta Kopo3iHi

HHBaoc6n.

YHnKaITe, 06 TaKi cy6tAnuJIK: JIMMOHN TAte TOMaTHN CIK, COJHO BODa, OcET, Kaba i MOJOKO 3aJIbuaJIncb Ha eMaJIbOBaHI NOBepXHi TpINBaJIH 3a Yac.

HEPKABIIOVACTAJIB

YactuHn3 HepXabiooCTaI MoKyTb BkPbATncr PnMaMn, kUO TpNbAun Yac nepe6yBaTMyTb B KOHTAKTI 3 BaHraHO BOHO aBO arpeCINBHMn MIOUChm 3aco6amn.

Papmo MNTn ix po3HOM MNbHOI BOIN Ta npotnpatn BOJIOO raHicpKOIO.

ДяпдгимангьбИСКУ НЕХАБИОЧI NOВЕХHI nepioДИЧИ ВИКОПИСТОВИТЕ BIDNOДHI XIMIчHI 3acOБи, loEв TOpROБИ МЕРEXI.

NAJbHnKn TA PEwITKn

LJI KOMNoHEHTN MOXHa 3HrTn, 0o6 noJeruHTN YNCTKy.

PnIbHnKn nOtpi6Ho MNTu ry6koTO Ta MNlbHOBOdoHO a6o JERKIM MNUOUM 3acobom,do6peBnTeptNa BCTaHOBHTN Ha Micce. NepeBipNTN,IO6KaHaNN BiDnBaivB NOyM"6yNn He 3aKynopehi.

IpeecBIDHTncb, 30H TePmonapn 6e3neKn i eNEKtpo3anaIIOBaHHraBXDNdo6pe BUNHHei; ue rapaHTyoc ONTImaJIbHe cyHKioHyBaHHra.

ΓA3OBI KPAHIN

Biporidhe 3MaUyBaHHKpaHIB NOBHHO BNUKHOBAtncb BKNHouHo KBaIicIKOBAHmN CneiaJIiCTAmN.

Kpo pyx KpaHIB ytpdHIOeTbcra 6o e iHwi
fynkioHaBHi aHOMaII, cnID BnKlnKaTu
npedctabHnka cepBichoro ueHTpy.

BAXJIIBE NONEPEDJXEHHA:

Hactyni onepaui NobHHI BnKohyBaTncb BnKIOUHO KbaniΦikOBaHm nepcoHaON 3riIDNo diOuHX HopMaTHBIB. Bnpo6HnK He BiNobidae 3a BiporidHi 36ntKn, BnKlnKaHI HeDoTPmuHHaM Zboro noloxehn.

YcTaHOBJIeHHJ

YcTaHOBKa NOBepXHi

Ppnilad BnroTOBNeHO DnA B6yDyBaHHa TepmoctiKi Me6ni.

CtiHKn Me6NIB NOBHHI BHTpIMyBaTn T=75°C
Plloc HABKOINHЯ Tempepatya 3riHNO
EBPonecBkx HOpMaTnBIB.

Po6oHi nobepxhi BiHocraTbcra Do Tnny Y,OTKe i MoXHa BCTaHOBJIIOBaTN TiNbKn 3 ODiHeIO 6OKOBOIO CTiHKoIO cnpaba a6o 3niBa BiD npnady.

YHnKaIe yCTaHOBJIeHHЯ npuJaTy no6Jn3y JERko3aIMnCTnx MaTepiJIIB, TaKx Ja 3aBICKN, NopTbePn TToIO.

Bukohatn OTbip y Me6JIeBi nOBepxHi 3 po3mipamn Bka3aHMM Ha MaI. 3, doTpmyOuHcB npHaMHi 50MM BiKpaIO pINTo npIMKaIOUHX CTiHOK.

Пдкluуehн He NOBUNHNO npOBOKyBaTN HaBaHTaXeHH Ha ra3OBy paMny.

Nicna niknoueHHnepeBipHTn repMeTNHicTh 3"EdHaHb 3 DOonomoroIO MmIbHoro po3uHy.

EneKtpnue nidKnIOueHHa

IiKlueyHn do eNeKtpomepexi NOBHHO 6yTN BKNoHO KBaJIiΦIKOBaHm CneuiaJicTOM 3IiHO IIOUHX HOpMaTINBIB.

Hanpyra Mepexi eJektpoxnBHeHHa NOBUNHb BiNobiDatni, 0 Bka3aHa Ha etNKeTci Bnpo6y.

IpeBipu, Mu Mae BaWae JNeKtpomepexa eKeTNBHe 3a3EmnHn 3rIOHO IIOUHX HopMaTHBIB Ta npabn 3 6e3neKn. 3a3emnHnE c 06OB"ra3KObM.

Kuio nnta noctabnrebc8e3 BNlki, npneHaTniDxOJy BuNky Do shHypa KNBHeHH.

IpyrmoPiKIOeHHoMepeXi cIpe6aHTn yCTAHOBLeHH npCtPOU, 3a6e3neuHb BiKIOeHHB iD MepeXi, 3 TaKM BiKpTTAM KOHTaKTIB, kE rapaHTye NOBHe BiKIOeHHB yMOBX nepeHaBaHTaxeHHA III KaTERopi 3rIDHO HopMaTINBiB 3 yCTAHOBLeHH.

TpaHcΦopMaui Ta peryIHOBaHHa 3amHaΦopcyHok

iKaHIO npnnaB iDperynbObaHO dny iHoro Tnny ra3y, HIX y BaWOMy ra3OpnoBoDi, noTpioHo 3amIHHT qOpcyHKn naJbHNIkIB.

Bn6ip φopcyHok dπa 3amHn cπiδ 3pObntu 3riDHO ta6nui "TexHiUx xapaKtepnctnKn".

Bukohatn HacTyHni II:

-3Hrtn pewiTkn i naJbHnKn
-3 donomoroio Kluoya Tnny “L” BiikpyTNTn φopcyHky “U” (pnc.8) i 3amihntn II Ha niDxodya
-3aφikcyBaTn eHepriHo φopcyHKy

PerylIOBaHH naIbHnKiB

PeryIIOBaHnIg "MihIMy" 3aBXdN Mae 6ytN npabINbHM, NOyM' He NOBHHO rachyTN HabITb npi3KOMy nepexoDi 3 no3uii "MaKcIMyM" Do no3uii "MinIMyM". JaKuo cboRo He BiD6yBaCTbcra, cnid BiDperYIOBAtn "MinIMy" HAcTyNHm YHOM:

-3anaJIHTI NaIbHnK;
- NOBepHyTn KpaH Do No3Ncii "MiHIMyM" (MaJIeHbKe NOpYM"r);
-3Hrtn pyuKy 3i wTaHn KpaHa;
-3 DOnOMOrOTo BnKpyTKn Tnny y OTBopi "F" KpaHa (pnc.9) BiDpeRyIIOBaTn TBnHT "by-pass" Do "MiHiMMy".
Дя палнків, до пацють на G 30 , ГИТ "by-pass" noTpioHo 3akpyTHTNoBHiCTIO.

3aMiHa shHypa XnBLeHHA

Y BnnaKy 3amHn Hypa KnBHeHHn oTpiHo BnKOpNCTOByBaTN Hyp TnIy

H05VV-F a6o H05RR-F 3 nepepi3om 3x0,75 MM2 BnKoHaTu NiDKNIOUeHHa Do KneMHOI Kopo6Kn JaK noka3aHo Ha pnc.10 ta 10/A:

• npoBid KOpuHneBn L 0a3a
• npoBiD rony6n N HeITpaJIbHn
• npoBID 3eJHeO-KOBtN 3a3EmJIeHHA

ΦipMa-Bnpo6HnK He BiIDNoBIdaε 3a MoKJNBI HeTOUHOCTi YI NOMJIKN DpyKy a6o nepeDpyKyBaHH, ξO MicTЯTbCn B ζiŋ iHcTpkyu. TaKoX cπiδ 3ayBaxHTn, ξO eCTeTNUhe 306paXeHHa HabeDeHNx MaIIHOKIB E DoCTaTHbO yMOBHNM. Okpim TOrO, ΦipMa 36epiraε 3a co6oI npaBO b IHTepecax KOpNCtYBaA hBocNTn 6yDb-äKi 3mHi y BlaChi Bnp6n, 3aIINaIOUH He3MiHHMN OCHOBHI φyHKciOHaJIbHi xapaKTePncTnKn Ta NaIIHicTb y po60ti.

INSTRUKCJA I WSKAZÓWKI DO INSTALLACJI, OBSŁUGI I KONSERWACJI PŁYT KUCHENNYCH DO ZABUDOWY

Szanowski Państwo,
