DVD Player with USB/Card Reader DVD 4520 HDMI

Instruction Manual

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightening flash with arrowhead symbol, within an equilateral triangle, is intended the alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

Laser product symbol: located on the rear panel of the unit, indicate this player is a class laser product, only use weak laser and no hazardous radiation outside of the unit.

1.Read through this instruction manual before installation and use.
2.Do not touch the power plug with wet hand.
3. Switch off the main power when the unit is not in use. (Disconnect the power plug from the power outlet when you do not intend to use the unit for a prolonged period of time.) Before moving the unit, remove the disc from the unit/ tray first.
4.Do not open the cover or touch any of the components exposed out of the unit, only for qualified technicians.
5.Do not expose the unit under direct sunlight or nearby objects that radiate heat to avoid damage the unit.
6.Do not place the unit in moist and humid conditions, which effect the pick-up of the unit lead to out of work.
7. Place the unit on a flat surface and ventilative condition. Please ensure the ventilation holes are not covered to avoid overheating and malfunction.

8.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or sprays.
9. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus
10. unplug the apparatus when not using for a long time oriented to disconnect from the Mains power

Macrovision:

This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Contents

1. Precautions 5
2. Front Panel and Rear Panel Illustration 6
3. Remote Control 8
4. Connections 10
5. Function Operation 13
6. CD/MP3/WMA/DivX Playing 18
7. Picture CD Playback 19
8. USB/Card Reader Operation 19
9. System Setup 20
10. Troubleshooting 27
11. Technical Specification 29
12. Guarantee/Recycling- 30

1. PRECAUTIONS

Before using this unit, be sure to read the applicable items of the operating instructions and these safety suggestions carefully.

Afterwards keep them handy for future reference.

Take special care to follow the warnings indicated on the unit itself as well as in the operating instructions.

Safety

Power Source-The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit.

Environment

1. Water and moisture do not use this unit near water.

For example, near a bathtub, wash bowl, swimming pool, or the like, Damp basements should also be avoided.

1. Condensation-moisture may form on the lens in the following conditions.

Immediately after a heater has been turned on.

In a steamy or very humid room.

When the unit is suddenly moved from a cold environment to a warm one, if moisture forms inside this unit, it may not operate properly, to correct this problem wait about one hour for the moisture to evaporate.

1. Heat never use or place this unit near a heat source.

Do not leave it in an automobile exposed to direct sun light for a long time with the doors and windows closed as this may deform the cabinet.

2. FRONT PANEL AND REAR PANEL ILLUSTRATION

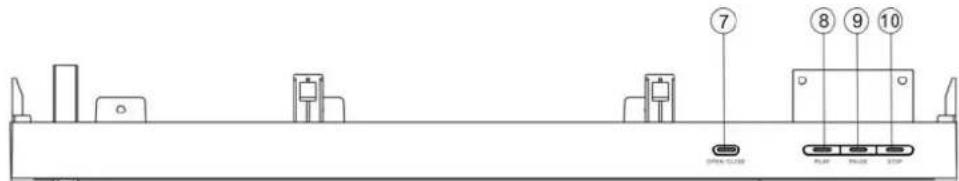

Front panel

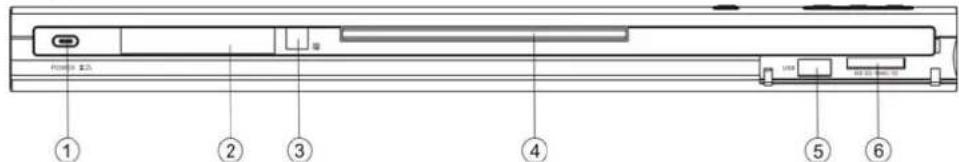

① Power ON/OFF ② LED Screen ③ Sensor ④ Disc Tray ⑤ USB Card Reader
⑥ 4 in 1 Card Reader ⑦ Open/Close ⑧ Play ⑨ Pause ⑩ STOP

Rear panel

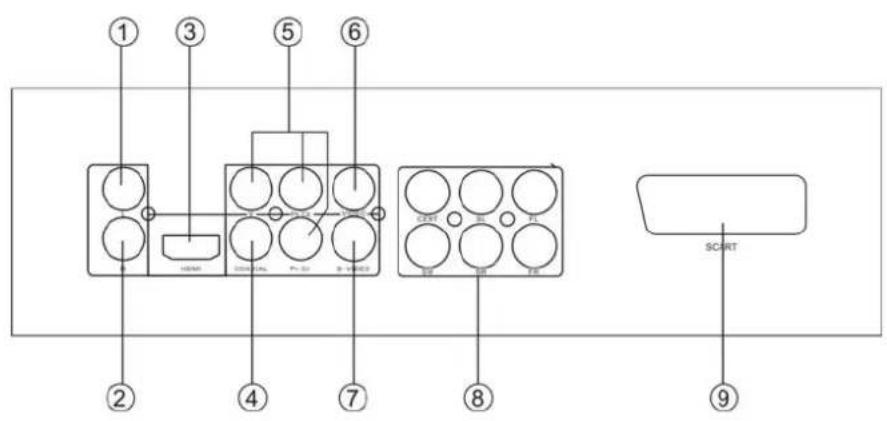

① Downmix Left ② Downmix Right ③ HDMI Output ④ Coaxial Output
⑤ Component Video Output ⑥ Composite Video Output ⑦ S-video Output
5.1 Channel Audio Output ⑨Scart Output

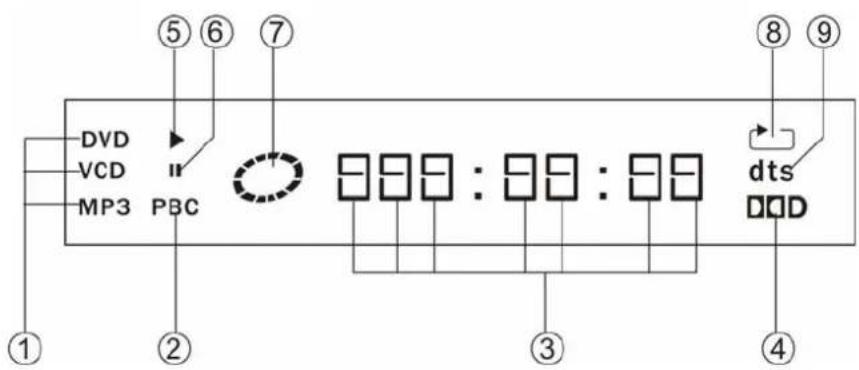

LED Illustration

① DVD/VCD/MP3 disc indication
② PBC indication
③ Chapter-Time indication
④ Dolby indication
⑤ Play indication
⑥ Pause indication
⑦ Disc reading indication
Repeat indication
DTS indication.

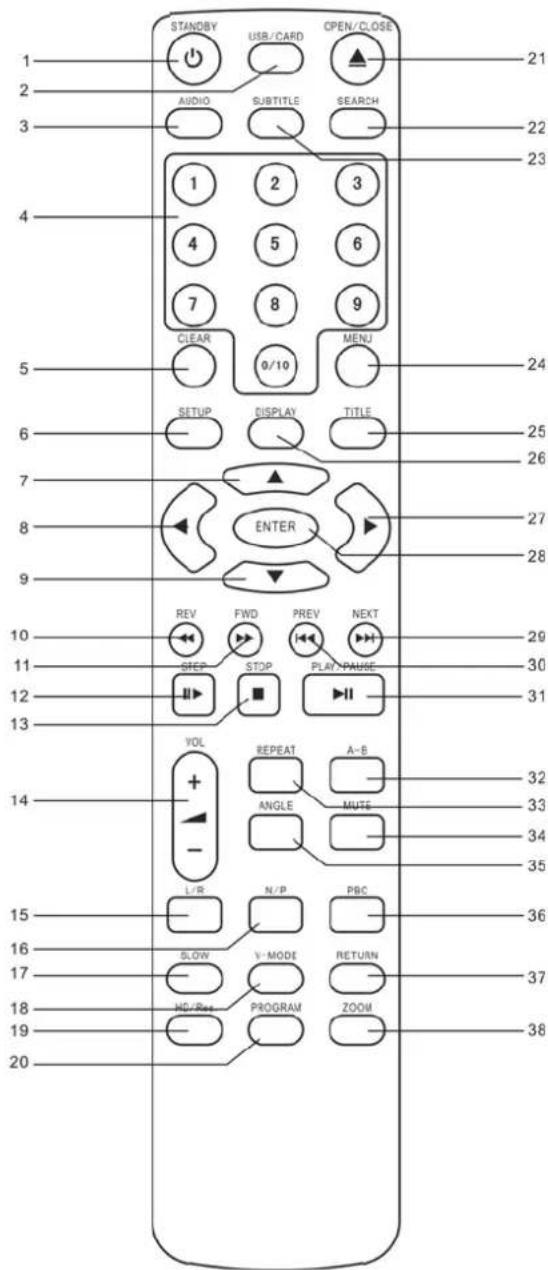

3. REMOTE CONTROL

1. STANDBY
2. USB/CARD
   3.AUDIO
3. Numeric button
   5.CLEAR
4. SETUP
5. UP button
6. LEFT button
7. DOWN button
8. REV
   11.FWD
9. STEP
10. STOP
11. VOLUME +/-
12. L/R
13. N/P
14. SLOW
    18.V-MODE
15. HD/R (HD-MODE)
    20.PROGRAM
16. OPEN/CLOSE
    22.SEARCH
17. SUBTITLE
18. MENU
19. TITLE
20. DISPLAY
21. RIGHT button
22. ENTER button
23. NEXT
24. PREV
25. PLAY/PAUSE
    32.A-B
26. REPEAT
27. MUTE
    35.ANGLE
    36.PBC
28. RETURN
    38.ZOOM

GB-8

Using the Remote Control

Unless stated other wise, the remote control can operate all the features of the DVD Player. Always point the remote control directly at the remote sensor on the front of the DVD Player, not the TV.

Battery Installation

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off.

Place two AAA batteries inside the battery compartment with their + and ends aligned as indicated.

Do not mix old and new batteries or different types of batteries

Replace the battery compartment lid. Slide the lid until you hear it click into place.

Note:

Batteries should not be disposed of in the domestic waste. Please return used batteries to the appropriate collection points or the dealer where you bought them.

Batteries must never be thrown into a fire.

4.CONNECTIONS

• Turn off the power before connection.
• Turn on the power after finishing connection.

Wires must be firmly connected; especially the plug shall be fully inserted.

DVD+TV

Notes :

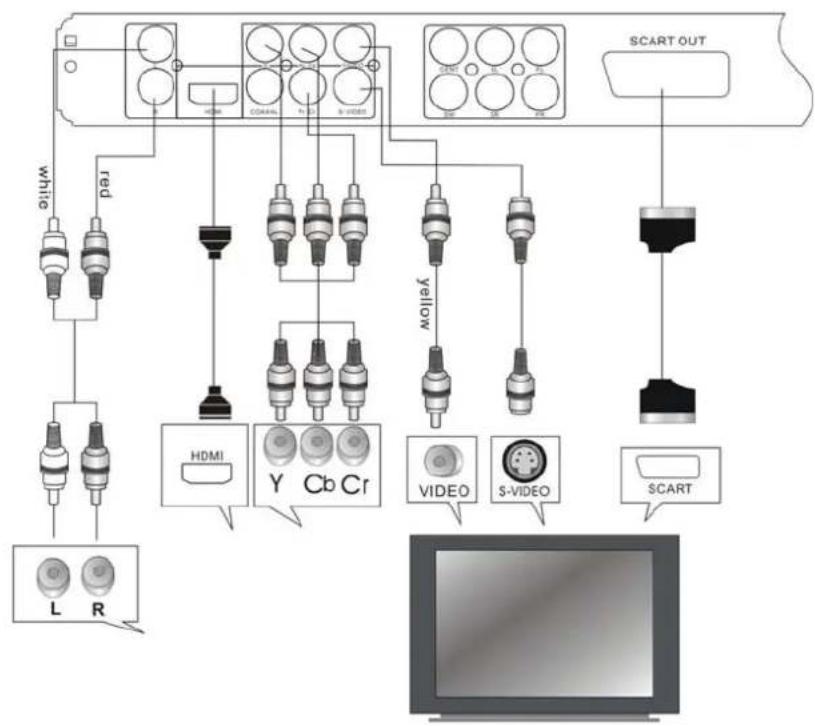

There are the following ways of connecting the player AV output to the TV set:

S-video cable and left/right audio cable (set the video type to component)
Composite video cable and left/right audio cable
- Component video cable and left/right audio cable (set the video type to component, if you connecting a progressive scan TV set, please set the video type to P-Scan)
- Scart cable (press V-MODE button to switch the video mode to RGB and set the video type to RGB)
- HDMI cable (press V-MODE button to switch the video mode to HD and set the video type to HD)

TV with progressively scan jack

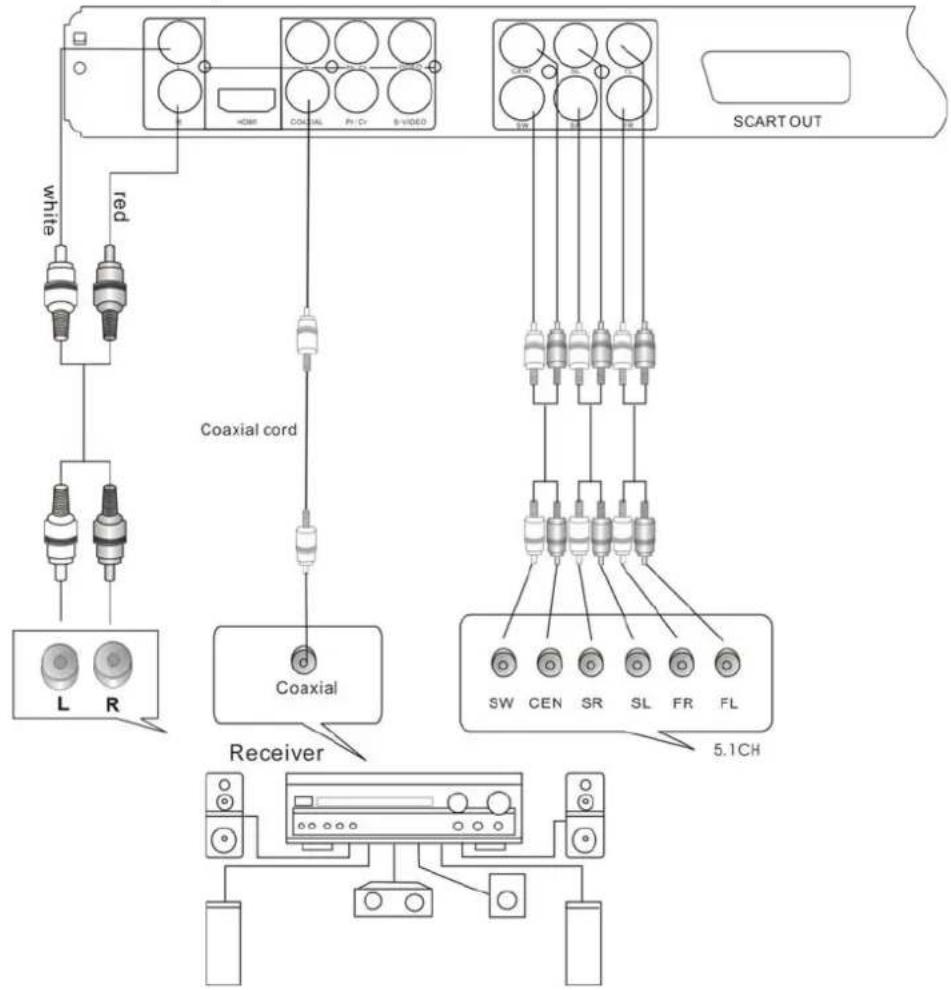

DVD+ AV Amplifier:

Notes :

There are the following ways of connecting the player with amplifier:

left/right audio output
5.1 channel audio output
coaxial audio output

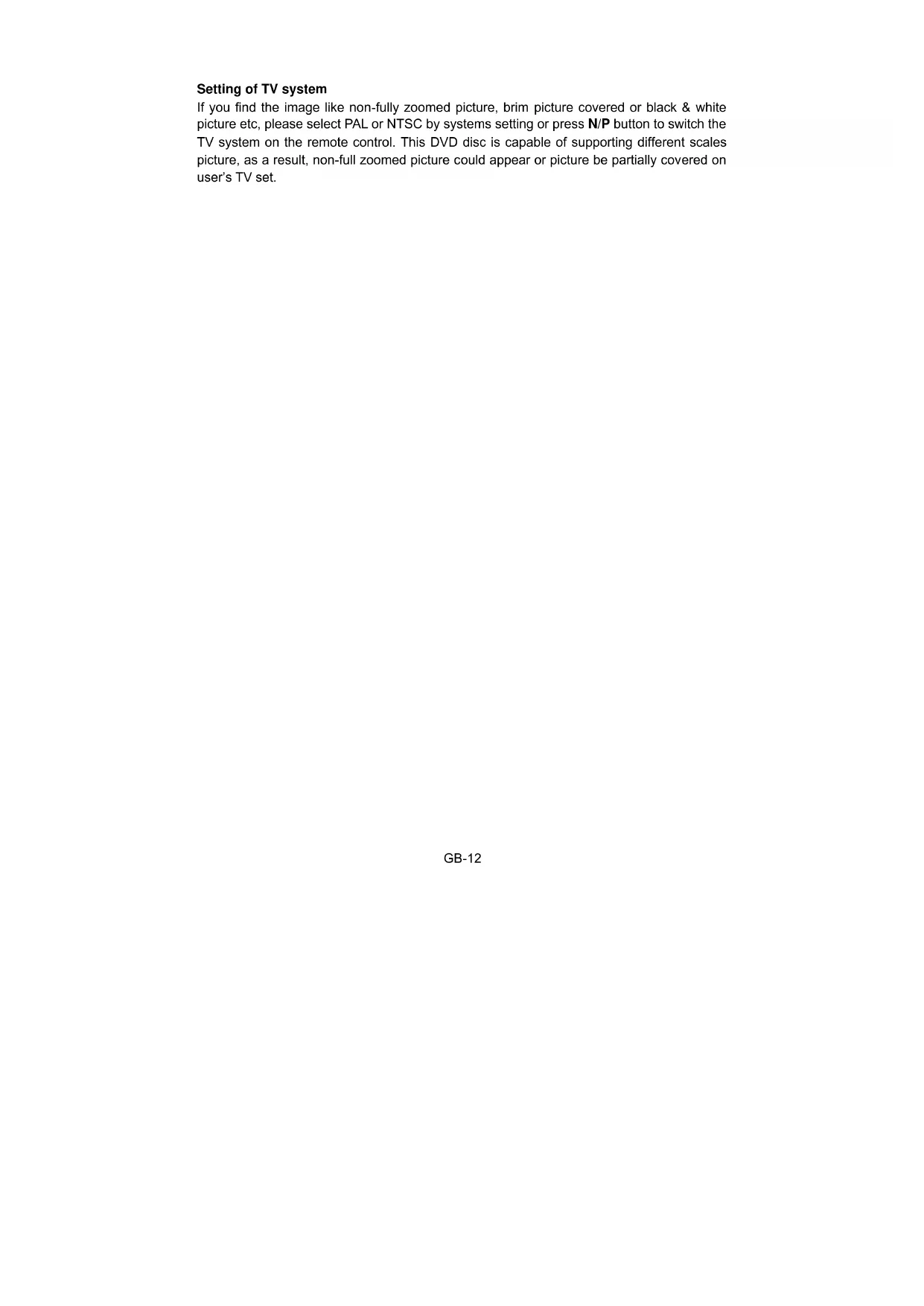

Setting of TV system

If you find the image like non-fullly zoomed picture, brim picture covered or black & white picture etc, please select PAL or NTSC by systems setting or press N/P button to switch the TV system on the remote control. This DVD disc is capable of supporting different scales picture, as a result, non-full zoomed picture could appear or picture be partially covered on user's TV set.

GB-12

5.1 Function Buttons On the Front Panel

These button's function is the same as the corresponding buttons on the remote control. For the detail information, please see the following texts.

5.2 Function Buttons On the Remote Control

STANDBY

Press the button once and the player will go into standby state. Press the button again and the player will restart.

USB/ CARD

Press the button to choose USB, Disk or Card memory source input.

Note: The button is available while the player is in stop or no disc state.

OPEN/CLOSE

To open the disc tray, press OPEN/CLOSE; To close the disc tray, press OPEN/CLOSE again.

AUDIO

Press the button to choose different dubbing languages. (Requires disc support)

SUBTITLE

Press the button to display different captions (Requires support from disc)

SEARCH

For DVD discs, press the button to choose the desired title and chapter and search the desired title time and chapter time.

For Super VCD, VCD, CD discs, press this button to search the desired disc time and track time and choose the desired track

0-9 keys

These keys are used to input the time, as well as title, chapter and track numbers. When a numeric item is displayed on the screen, press the 0-9 keys to select the des entry, and press ENTER to confirm.

When a CD or VCD is playing (with PBC off), press the 0-9 keys to select a track directly, then press ENTER to confirm.

CLEAR

Press CLEAR to delete numbers you have entered.

MENU

During DVD playback, press MENU to display the disc menu of the current title.

Note: This function is subject to the disc

SETUP

Press the button to enter the system setting menu. press the button again to exit the menu.

DISPLAY

Press the button to show the information of the current playing disc.

TITLE

Press the button to enter the appointed title. (Requires disc support)

Direction key (UP/DOWN/RIGHT/LEFT)

Press the keys to move the highlighted bar or cursor on any menu to your selection.

ENTER

Press the button to confirm your choice on screen.

REV

During DVD, CD or VCD playback, press REV to scan in reverse.

The player will review the disc at different times speed. Press PLAY to resume normal playback.

FWD

During DVD, CD or VCD playback, press FWD to scan forward.

The player will cue the disc at different speed. Press PLAY to resume normal playback.

PREV

During DVD, CD or VCD playback, press PREV to play the previous chapter, title or track.

NEXT

During DVD, CD or VCD playback, press NEXT to play the next chapter, title or track.

STEP

Press the key, You can play the disc step by step, in this way, you can catch any picture on the disc (not for mp3, CD). Press Play button to play normally.

STOP

Press the button once and the player will be in memory stop state. Continuously press this button twice and the player will be in complete stop state.

Play/Pause

In play state, press the button for the first time and the player will be in pause state. To resume normal playback press the button again, In pause state or stop state, press the button, the player will be in playing state.

VOLUME +/-

Press VOL+ to increase volume and press VOL- to decrease volume.

Note: So you only change the volume output of the DVD player.

REPEAT

Each press of the REPEAT button will change the repeat mode.

During VCD, CD playback, there are three modes: repeat Single, repeat All and Off.

During DVD, playback, there are three modes: Repeat Chapter, Repeat Title and Off.

Note: During VCD playback, the PBC mode must be set to Off

A-B

During playback, press A-B to select point A, press it again to select point B. The player will repeat the section from A to B automatically. Press A-B a third time to cancel A-B repeat and clear points A and B.

Note: During CD/VCD/SVCD playback, points A and B must be within the same track.

During DVD playback, points A and B can be selected from different chapters.

ANGLE

Press the button to view scenes shot from ANGLE difference angles. (Disc support is required)

MUTE

Press MUTE to turn off the audio, press MUTE again to resume normal sound.

L/R

During VCD/SVCD playback, press L/R repeatedly to select the channel of audio-output: Left/Right/Mix/Stereo.

N/P

When stop state/no disc, press the button on the remote control and choose Auto NTSC PAL for the TV system.

PBC

During VCD/SVCD playback, Press PBC to select the mode of PBC On or PBC Off.

SLOW

During DVD, VCD or SVCD playback, press SLOW for slow motion playback.

Once you press SLOW, the disc will play at different speed. Press PLAY to resume normal

playback.

V-MODE

When stop state/no disc, Press V-MODE key, you can select different video output mode (Componet, RGB, etc.)

RETURN

When SVCD/VCD disc playing, press RETURN button to the main menu (PBC ON only).

HD/Res

Press the button to switch HD video output resolution

Note: 1. Under HD mode, this button is used to adjust output resolution.

1. Some TV set may be unable to support some resolution fixed in the software of this DVD Player, if so TV screen will become black. In that case, please repeatedly press "HD/R" Button to go to the resolution which can be well supported by TV set.

PROGRAM (DVD/VCD Mode)

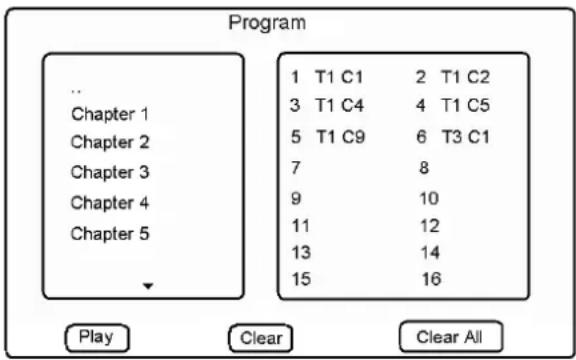

Press PROGRAM button enter the Play Mode menu (see example).

Example:

1. Press the direction keys (UP or DOWN) to move the cursor in the left column to select the appropriate title (T), in which the chapters you want to program are.
2. Select the appropriate chapter by using the direction keys and confirm your selection with the ENTER button. The selected chapter (C) appears in the right column.
3. After you have selected all chapters, press the RIGHT direction key and highlight the "PLAY" panel by pressing the direction keys (left or right). Press the ENTER button to start the play-back.

Note:

• In order to delete the last chosen chapter, move the cursor with the direction keys to the "CLEAR" panel and confirm with ENTER.

• In order to delete all chapters, move the cursor with the direction keys to the "CLEAR ALL" panel and confirm with ENTER.

• In order to change the title, highlight the "..." panel in the left column and confirm with the ENTER button.

ZOOM

As you press the button you view the different ZOOM magnifications of the picture.

Note: This function may differ for different types of discs

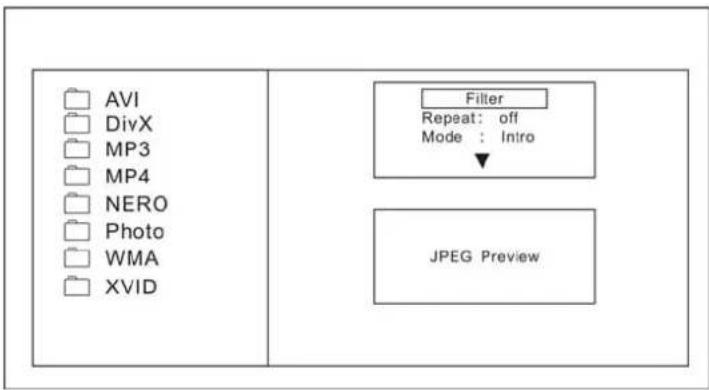

The CD/MP3/WMA/DivX disc has such a directory structure as shown in the picture. Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key keys to choose the desired track and then press ENTER or PLAY to enjoy the music or movie. If you want to return to the upper menu, press Direction key to choose (...) icon and press ENTER button.

Filter: Allows selecting the categories of files displayed in the browser list. This selection is done among the 3 categories: Audio, Photo and Video.

Repeat: To switch different repeat playing mode

Mode: Select different playing mode

Normal: Shuffle mode is cancelled

Shuffle: Shuffle mode enabled. When playback reaches the end of the current chapter/track, playback jumps to a random chapter/track.

As the end of each chapter/track is reached, another random chapter/track will be played until all tracks/chapters have been played or the Shuffle mode is cancelled by toggling to a different "Mode" option.

Intro: In this mode, the media will play 10 seconds then skip to next media

Edit Mode: To enable programmed playback mode. When you select the mode, press LEFT Direction key to directory and press ENTER to choose the desired track and press Add to program to start program playback.

Program view: Display program track

Brower view: Display track directory.

Add to program: Choice the track (ENTER) In complete stop state, press Add to program to add the track of the program play directory.

Clear program :Choice the track (ENTER) In complete stop state, press Clear program to delete the track of the program play directory

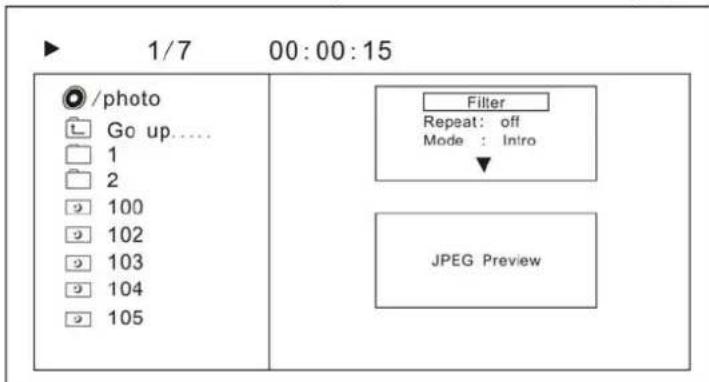

7.PICTURE CD PLAYBACK

The PICTURE CD disc has such a directory structure as shown in the right picture.

Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired picture and then press

ENTER or PLAY to enjoy the picture. If you want to return to the upper menu, press Direction key to choose (...) icon and press ENTER button.

Image rotation

In picture play state, press Direction key to rotation the picture, press ANGLE button to change the picture scan mode.

Power on your DVD player.

Insert your USB disk or card memory, press USB/CARD button to choice the USB disk or Card memory source device input, Press Direction key to move, Press ENTER button to confirm your choice. When you choose the file from the USB disk or Card memory device, the DVD player will automatically play the media file.

Note: The button is valid in complete stop or NO DISC status.

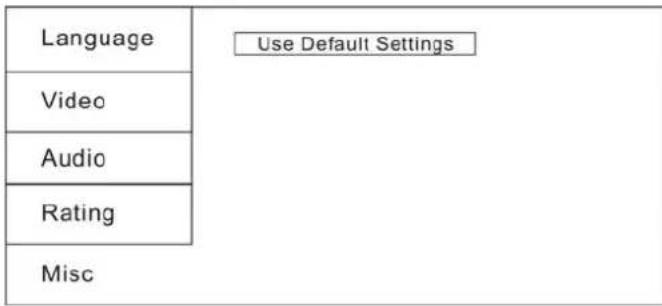

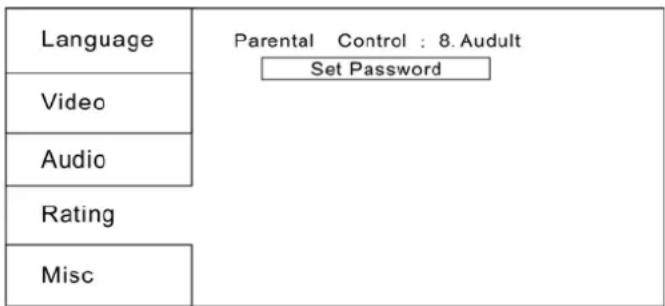

9.SYTSTEMSETUP

DVD menu setup

Press the SETUP button on the remote control, the SETUP MENU (main) will be displayed. After accessing the setup menu, press the direction buttons for up and down movement to select an item desired, then press the ENTER button to confirm. Press LEFT direction button to return to the menu of upper level.

To exit the setup, press the SETUP button again. In the SETUP MENU, you may choose any of the following options as you like.

9.1 LANGUAGE SETUP

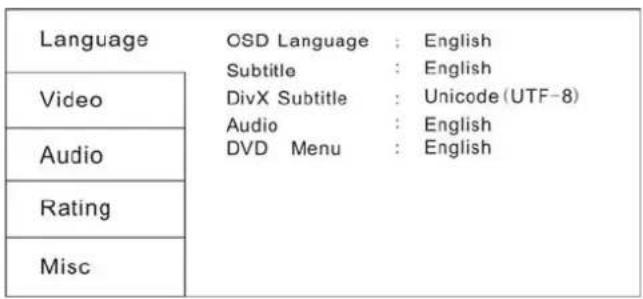

Select Language in the setup menu, and display the Language submenu:

9.1.1 OSD Language

Use this item to select the language of the setup menu and screen display.

9.1.2 Subtitle

This option provides the preset subtitle language.

Follow the operating instructions stated in "DVD MENU SETUP" in combination with the desired option.

9.1.3 DivX Subtitle

DivX Subtitle setting is used for choosing the language domain, (only for DivX). After select one language domain (alphabet), when playback a DivX with external subtitle, the subtitle display will use this language alphabet. If you find the displaying subtitle "words" aren't correctly, please ensure the external subtitle language and select the correct language.

9.1.4 Audio

This option provides the built-in disc dubbing language options.

9.1.5 DVD Menu

This option provides the film's menu language options.

GB-20

9.2VIDEOSETUP

Select Video in the setup menu, and display the Video submenu:

Language	Aspect Ratio : 4:3 View Mode : Auto Fit TV System : NTSC Video Out : RGB HD Resolution : Auto HD Jpeg Mode : Off
Video
Audio
Rating
Misc

9.2.1 Aspect Ratio

4:3 : Choosing this setting if your DVD player is connected to a normal ratio TV. You can fill the movie to the entire screen of your TV. This might mean that parts of the picture (the left and right edges) won't be seen.

16:9 : Choose this setting if your DVD player is connected to a wide screen TV. If you choose this setting and you don't have a wide screen TV, the images on the screen may appear distorted due to vertical compression.

Notes:

The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have.

9.2.2 View Mode

With this option you can select the different video vision mode on the screen.

9.2.3 TV System

This product supports output of various system, including AUTO, NTSC, PAL.

If your TV set has only NTSC or PAL system, the screen will blink and become colorless when a wrong system is selected. In this case, press the N/P button on the Remote Control to switch the TV TYPE.

Note: For more information of output format, refer to the instructions or your TV set.

9.2.4 Video Output

Selecting the Video Output setting to switch between different video outputs

Component :Set the video output to interlacing component output.

RGB: Set the video output to SCART output. If you select SCART connection, you should set up the play mode as RGB state, then it will output normally.

P-Scan: Set the video output to progressive component output

HD: Set the video output to high definition output

Note1: When the player is connected to a TV set of progressive scanning though YPbP select P-SCAN. When it is connected to a common TV set, select Component. If TV screen has no output after selecting P-SCAN, you can press V-MODE button switch the state, it will output normally. If you select SCART connection, you should set up the play mode as RGB state, then it will output normally. If you select HDMI connection, you should set up the play mode as HD state, the will output normally.

Note2: Set video output type to "Component", "RGB" or "P-Scan".

. HD resolution menu should be disabled.
HDMI should stop working
. HD JPEG mode menu should be disabled.

Note3:Set video output type to HD.

. HD resolution menu should be enabled and set to "Auto" responding to this action.
. "HD/es." key is valid to switch HD resolution only at this case.
HDM1 module can work only at this case.
No CVBS at HD resolution
No OSD and sub-picture at HD-JPEG mode

9.2.5 HD Resolution

Used to set the resolution of HDMI image output. In this option, you can select different HDMI image resolution.

Note: If TV screen has no output after selecting HD Resolution, you can press SETUP once then press V-MODE button or restart the player and press V-MODE button to switch the state, it will output normally.

9.2.6 HDJpegMode

Select ON or OFF to switch HD JPEG play mode

Note 1:HDMI is plugged out when HD-JPEG is being played.

Note2:HDMI is plugged out when DVD is being played.

9.3 Audio setup

Select Audio in the setup menu, and display the Audio submenu.

Language	Bass Management : Off Front Speakers : Large Center Speaker : None Surround Speakers : None Subwoofer : None Test Tones : Off Center Delay : No Delay Surr. Delay : No Delay Digital Output : PCM
Video
Audio
Rating
Misc

9.3.1 Bass Management

To enable or disable the Bass Management during operation of the player.

On = Enable the Bass Management.

Off = Disable the Bass Management.

9.3.2 Front Speakers

To adjust the front speakers output to work in harmony with the audio equipment (e.g. receiver, speakers) connected to the player.

When Bass Management is On, the following options are available:

Large: Support signal frequency lower than 200Hz

Small: Support signal frequency higher than 200Hz

If the connected speaker supports signal lower than 200Hz , it is best to select

Large If not, you shall select Small.

9.3.3 Center Speaker

Selection of Large or Small is same with that of front speaker. The speaker will have no signal output if set to None.

Notes:

If the Subwoofer is On, Center is set to None or Small, and bass from the center channel is redirected to the subwoofer. If the content contains a discrete subwoofer channel, it is also sent to the subwoofer. If the Subwoofer is Off, Center is set to None or Small, and bass from the center channel is redirected to the left and right channels. If the content contains a discrete subwoofer channel, it is discarded.

9.3.4 Surround Speakers

Selection of Large or Small is same with that of front speaker. The speaker will have no signal output if set to None.

Notes:

If the Subwoofer is on, Surround is set to None or Small, and bass from the surround channels is redirected to the subwoofer. If the content contains a discrete subwoofer channel, it is also sent to the subwoofer.

If the Subwoofer is Off, Surround is set to None or Small, and bass from the surround channels is redirected to the left and right channels. If the content contains a discrete subwoofer channel, it is discarded.

9.3.5 Subwoofer

Selecting to enable/disable the subwoofer output when 6 Channel analog output is used. The following options are available:

None Subwoofer is off. Bass from center and surround channels is redirected to the left and right channels. If the content contains a discrete subwoofer channel, it is discarded.

Present Subwoofer is on. Bass from center and surround channels is redirected to subwoofer.

If the content contains a discrete subwoofer channel, it is also sent to the subwoofer.

Note:

Bass Management is not available for MP3 or WMA bitstream ; therefore, it will be disabled during the playback of those streams.

9.3.6 Test Tones

Selecting the Test Tones setting allows the user to test the player's audio output on each speaker. When you select channel, a short burst of pink noise will be sent to corresponding channel

9.3.7 Center Delay

Selecting the Center Delay setting allows the user to enable/disable the center output delay.

9.3.8 Surr. Delay

Selecting the Surr. Delay setting allows the user to enable/disable the surround output delay.

9.3.9 Digital output

Selecting the Digital Output setting allows the user to adjust the audio output on S/PDIF ports to work in harmony with the audio equipment (e.g. receiver, speakers) connected to the player.

Off Digital audio output is disabled.

PCM Select this option when you are going to use stereo signals (2 channels). You should combine this option with the option "Lower sampling rate," which we explain further on

All If you select this option the player will use the DVD's original audio track. Use this option when you want to use the Dolby Digital AC3 signals through the optical or coaxial audio output.

9.3.10 Prologic

Off: Pro Logic decoding is off. Two-channel sources are output only on the left and right channels.

On: Enable Pro Logic decoding.

9.4 RATING SETUP

Select Rating in the setup menu, and display the Rating submenu:

Note: Not all DVDs support ratings.

9.4.1 Parental Control

Selecting a Rating allows the user to set the parental control feature of the player. Select Parental Control, and press ENTER to change the different mode.

Note: Unlock the password before setting Parental Control

9.4.2 Set Password

Use the 0-9 keys to input four digits (password), then press ENTER to confirm.

Note: If you forget your password, please use the universal password 8888 to unlock.

9.5 MISC SETUP

Select MISC in the setup menu, and display the submenu:

Use Default Settings

Reset setup data to factory default.

GB-26

10. Troubleshooting

Please read the user's manual carefully before using the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact the company or the technical service center authorized by us. For the sake of your safety, please do not open the cover and repair the player by yourself, if that, it may cause electric shock.

NO PICTURE, SOUND AND INDICATION

• Ensure that the power switch is on.
• Ensure that the wall inlet is ok.
• Ensure that the power cord is not damaged.
• Ensure that the power plug is connected to the inlet tightly.
  If NO image and sound after connecting TV and DVD Player with HDMI cable, please ensure you set both DVD Player and TV at HD mode.
• If NO image and sound after connecting TV and DVD player with AV/ Scart/ S-video/YUV cable, please repeatedly press V-mode button on remote control
• If connecting TV and DVD player with HDMI cable, and set both DVD player and TV at HD mode, but still NO image and sound, maybe it is because TV set unable to support some resolution fixed in the software of this DVD Player. In that case, please repeatedly press "HD/R" Button to go to the resolution, which can be well supported by TV set.

NO SOUND BUT HAVE PICTURE

• Ensure that the player s audio output has a good connection with TV s audio input.
• Check whether the audio connector is damaged.
• Check whether you have turned down the volume.
• Ensure that you have set the right AUDIO setup of the player.
• Ensure that you have turned your TV to the AV input channel connecting to your player.
• Ensure that the audio is not under mute.

NO PICTURE BUT HAVE SOUND

• Ensure that the player's video output has a good connection with TV's video input.
• Ensure that you have turned your TV to the AV input channel connecting to your player.
• Check whether the video connector is damaged.
• Ensure that you have set the right VIDEO settings of the player.

BLACK AND WHITE PICTURE OR SCREEN ROLLING

• Ensure that you have set the right TV SYSTEM (e.g. PAL, NTSC) setting.

FLAWS OF PICTURE OR SOUND

• Check whether the setting of AUDIO is right.
• Check whether the disc is scratched or stained.
• Check whether the AV connector and the output terminal is stained.

DISPLAY NO DISC

• Ensure that you have put the disc on the tray.
• Check whether the disc is put in the reverse side.
• Check whether the disc is distorted.
• Check whether the disc is stained or scratched badly.

DISPLAY BAD DISC

• Check whether the disc has had bad quality.
  Ensure that the disc is not stained or damaged badly.
• Ensure that the disc format is compatible to the player.
• Ensure that the disc is not deformed.

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK

• Check the batteries of remote control and make sure that they are to be powerful and good conductivity.
• Direct the remote control to the IR sensor of the player.
• Check whether there are some obstacles between the remote control and IR sensor.

ABNORMAL FUNCTION OPERATION

• Turn off the power, and then turn on again (pull out the plug from the electronic outlet).

• The disc can not be taken out of the tray when the player is reading, so you have to turn off the power and turn on again, and press OPEN/CLOSE key immediately to open the tray.

11. Technical specifications

Signal system PAL/AUTO/NTSC
Frequency Response 20HZ-20KHZ (at 1KHz 0 dB)
Signal-to-Noisy Ratio(Audio)	≥90 dB (at 1KHz 0 dB)
Audio Distortion + Noise ≤-6dB (at 1KHz0dB)
Audio Output (Analog audio)	2.0+0-1..0Vrms
Video Output Composite: 1.0±0.2Vp-pLoad impedance: 75Ω, imbalance, negative polarity
Max Resolution 720P/1080i
Power Supply	~220-230V 50Hz
Dimensions 430(mm) X 260(mm) X38(mm)
Supported Disc DVD/SVCD	VCD/CD/MP3/Kodak Picture/Photo CD
Accessories	RCA Audio/Video cables (composite video and L-R audio)Remote Control unitUser Manual

REFERENCE:

To protect your DVD player, the interval between two consecutive Power button operations must be above 30 seconds.

No using for a period of time, please pull out the plug from the electronic outlet.

The player should be operated only on condition that the type of power supply corresponds to the marking label. Otherwise, it doesn't work or even be damaged.

The player may not be compatible with some encrypted discs.

If the player stops playback by accident, please power it on again.

Appearance and function is subject to change without notice.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

12. Guarantee/Recycling

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the „Dustbin“ Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

AEG

OPEN/CLOSE (OUVERTURE/FERMETURE)

SETUP (CONFIGURATION)

FWD (RECHERCHE AVANT)

STEP (IMAGE PAR IMAGE)

REPEAT (Répartition)

PROGRAM (PROGRAMMATION)

Clear Program (Suppression)

9.3.4 Surround Speaker (Haut-parleur Surround)

9.3.8 Surr. Delay (Temporisation Surround)

9.5 MISC SETUP (DIVERS)

SON MAIS PAS D'IMAGE

Assurez-vous que :

IMAGE EN NOIR ET BLANC OU IMAGE FLOUE

Assurez-vous que :

you'vezselectionne lebon standard de television (PAL,NTSC,etc.).

DEFAUTS DE L'IMAGE OU DU SON

Vérifiez que :

1. OPEN/CLOSE (APERTURA/CHIUSURA)

22.SEARCH (RICERCA)

1. SUBTITLE (SOTTOTITOLI)

2. MENU

3. TITLE (TITOLO)

4. DISPLAY (VISUALIZAZIONE)

5. Tasto DESTRA

6. Tasto ENTER (INVIO)

7. NEXT (SUCCESSION)

8. PREV (PRECEDENTE)

9. PLAY/PAUSE (RIPRODUZIONE/PAUSA)

32.A-B

1. REPEAT (RIPETIZIONE)

2. MUTE (MUTO)

3. ANGLE

4. PBC (CONTROLLO RIPRODUZIONE)

5. RETURN (RITORNO)

38.ZOOM

Uso del telecomando

OPEN/CLOSE (APERTURA/CHIUSURA)

FWD (RICERCA AVANTI)

V-MODE (TIPO DI USCITA VIDEO)

9.3.4 Surround Speaker (Altoparlante Surround)

OPEN/CLOSE (APERTURA/CIERRE)

FWD (BUSQUEDA HACIA ADELANTE)

STEP (IMAGEN POR IMAGEN)

9.3.4 Surround Speaker (Altavoz Surround)
