Product Type	Portable DVD Player
Brand	AEG
Model	DVD 4516 TFT
Display Type	7-inch TFT LCD
Aspect Ratio	16:9 / 4:3 selectable
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG, Video CD
Video Output	Composite AV (RCA)
Audio Output	Stereo headphone jack, AV audio
Power Supply	AC 100-240V, 50/60Hz; DC 12V (car adapter); built-in rechargeable battery
Battery Type	Lithium-ion rechargeable
Battery Life	Approximately 2.5 hours
Charging Time	Approximately 3 hours
Dimensions (W x H x D)	200 x 160 x 40 mm
Weight	0.8 kg
Remote Control	Included
Region Code	2 (Europe) / multi-region capable
Languages	English, French, German, Spanish, Italian
Safety	Use only supplied adapter; avoid moisture; no user-serviceable parts
Maintenance	Clean with soft dry cloth; use lens cleaning disc for optical pickup
Operating Temperature	5°C to 35°C

Frequently Asked Questions - DVD 4516 TFT AEG

How do I connect the DVD player to my TV?

Use the included AV cable (yellow for video, white and red for audio). Connect to the corresponding AV input on your TV. Set your TV to the correct input source.

Why is the disc not playing?

Check if the disc is inserted correctly with the label facing up. Ensure the disc is not scratched or dirty. Verify the region code matches the player. Clean the lens with a lens cleaning disc if needed.

How do I adjust the screen settings?

Press the Menu button on the remote and navigate to Setup. You can adjust brightness, contrast, and aspect ratio from the display settings.

Can I play files from a USB flash drive?

This model does not have a USB port. Disc playback is the only media source. For USB playback, consider a different model.

How do I charge the battery?

Connect the AC adapter to the player and a power outlet. The battery will charge while the player is off or in standby. A full charge takes about 3 hours.

What types of discs are supported?

The player supports DVD, DVD±R/RW, CD, CD-R/RW, MP3, and JPEG discs. Also compatible with Video CD (VCD).

How to reset the player to factory settings?

Open the Setup menu, go to System or General, and select Factory Reset or Restore Defaults. Confirm the action.

Is the player compatible with international voltage?

Yes, the power supply accepts 100-240V AC (50/60Hz). Use the correct plug adapter for your country.

Can I use headphones with this player?

Yes, connect headphones to the headphone jack on the side of the player. The speakers will be muted automatically.

How to clean the DVD lens?

Purchase a dry lens cleaning disc designed for DVD players. Insert the disc and let it run for a few seconds. Do not use liquids or cotton swabs.

USER MANUAL DVD 4516 TFT AEG

D DVD-Player GB DVD-Player

DVD 4516 TFT

Fig. 4

Fig. 5

Fig. 6

Fig. 9

SD-Card Multi Media Card

1 On/Off switch (POWER ON/OFF)

2 TFT Display

3 CD/DVD tray

4 Open button

5 ▶ II PLAY/PAUSE button

6 "Forward" button (▶▶I SKIP)

7 ■ STOP button

8 "Reverse" button (I◀◀ SKIP)

9 ENTER button

10 ◀, ▶, ▼, ▲ Cursor buttons / VOL-/VOL+ Volume buttons

11 SETUP button

12 MODE button

13 Keylock on or off (HOLD ON/OFF)

14 DC IN 9 V socket

15 SD/MMC card reader connection

16 USB connection

17 PHONES Headphones connection

18 AV OUT socket

19 POWER indicator

20 REMOTE SENSOR for the remote control

Remote

1 TFT ON/OFF: Switches the TFT screen on and off.

2 REPEAT 1/ALL: To repeat title, chapters, etc.

3 VOLUME-: To reduce the volume.

4 VOLUME+: To increase the volume.

5 +10: For selecting the chapters/tracks above 9. Pressing again increases by a further 10.

6 DISPLAY: To display the play status on screen.

7 F.BWD: Fast reverse.

8 SLOW: Slow motion. Press the PLAY button to continue the film.

9 PREV: To return to the previous chapter or song.

10 ANGLE: To select the viewing angle.

11 PAUSE/STEP: To freeze the picture. Press again to show the next picture. Press the PLAY button to continue the film.

12 MENU: To display the main menu of the DVD/VCD.

13 TITEL: To show the title menu of the DVD.

14 Cursor buttons: Navigation in screen menu.

15 AUDIO: To change the Audio settings.

16 SUBTITLE: To show/hide subtitles.

17 Numerical buttons: For direct selection of chapter or song number.

18 SEARCH: For direct accessing of a section on the CD/DVD.

19 ZOOM: To zoom in or out.

20 PROGRAM: To add a title to the Playlist.

21 SHIFT: Changes between disc and file mode.

22 F.FWD: Fast forward.

23 NEXT: To jump to the next chapter or song.

24 STOP: Stop play.

25 SETUP: To start the setup menu.

26 SELECT: To confirm the input.

27 PLAY: To start the replay.

28 CLEAR: Deletes the play list or the selected track number.

Technical data

Type of equipment DVD-Player
Model DVD 4516 TFT
Voltage DC 9 V, 2 A
Output	15 W
Dimensions (W x H x D) 140 x 44 x 154 mm
Weight approx. 0,564 kg
Laser	Semiconductor laser
Signal format PAL/NTSC
Signal noise distance >= 65 dB
Video output 1,0 V (P-P) 75 Ω
Analogue Audio output 1,0 V (rms)
Operating environment -30°C bis 45°C, level base
Compatible media	DVD-Video (DVD Disc, DVD ±R/RW)Audio CD (from CD Disc, CD-R/RW)Video CD (from CD Disc, CD-R/RW)MP3 fi les (from CD/DVD Disc, DVD±R/RW, CD-R/RW)
Regional	2 (= Europe, Greenland, South Africa, Egypt and Middle East, Japan)

Table of Contents

Device parts....39

Remote control 39

Technical data....40

Safety instructions 44

Operating manual 44

Children 44

Power supply 44

Laser 45

Where to position the appliance 45

Operation 45

Intended use 45

Defect 46

Setting up and connecting 46

Unpacking....46

Starting up 47

Remote control battery installation 47

Switching on the player....48

Power supply 48

A. With the alternating current adapter....48

B. With the adapter for the cigarette lighter 48

C. With the rechargeable battery 48

Connection to Other Equipment ....50

Connection to a television set....50

Connection to another source ....50

Use of ear/headphones 51

About the DVD-Player ....51

Handling CD/DVD....52

Terminology 52

Playing media 52

Using the remote control....52

Loading a CD/DVD 52

Understanding the on-screen CD-menu 52

Understanding the on-screen DVD-menu....53

Starting the replay....53

Interrupting the replay....54

Changing Audio-Language/Audio-Mode....54

Showing subtitles....54

Showing still images 54

Stopping the replay....54

Selecting previous chapter/track....54

Selecting next chapter/track 54

Selecting chapter/track directly....54

Accessing a section via menu 55

Repeating DVD-title/chapter 55

Repeating track on CD 55

Repeating CD 55

Stopping repeat 55

Using the DVD menu....55

Using fast forward or reverse....56

Enlarging a screen section 56

Changing the viewing angle....56

Adjusting the volume 56

Creating a playlist 56

Deleting a playlist ....57

Working in file mode 57

Using CD/DVD 57

Using a memory card 57

Using a USB medium 57

Selecting file/directory and starting replay 58

Stopping the replay 59

Viewing pictures....59

Changing the default settings 60

Understanding the menu structure 60

Using the menu 61

Overview of the main menu 61

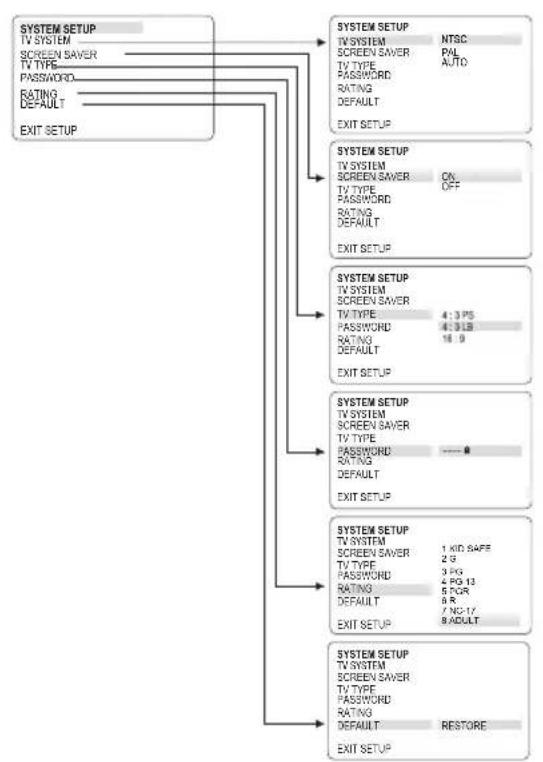

System settings 61

Language setup 63

Video setup 63

Speaker setup 64

Digital setup 64

Troubleshooting 65

Disposal 67

Rechargeable/Non-rechargeable batteries 67

Guarantee 68

After the expiry of the guarantee 68

Declaration of conformity 68

OSD Menu overview....69

AEG

Many thanks!

We are glad that you have made a decision in favour of the DVD-Player DVD 4516 TFT!

We would like to wish you much joy with your machine and thank you for your purchase!

Symbols in this operating manual

Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:

WARNING:

Warns against dangers to your health and indicates potential risks of injury.

ATTENTION:

Indicates potential hazards for the player or other objects.

i NOTE:

Highlights tips and information for you.

Manufacturer address

ETV

We reserve the right to make technical and design-related changes in the course of ongoing product improvements.

	Safety instructions
Operating manual	Read the complete operating manual before using the player.Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.Non-compliance with this manual can lead to severe injuries or damage to the machine.We assume no liability for damage caused as a result of non-compliance with this operating manual.The player may only be used in households for private use. It is not suitable for commercial use.
Children	Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.Packaging material must not be used to play with. There is a risk of suffocation.
Power supply	The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:Never touch the plug with wet hands.If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.Never place the machine on the power cable while it is being operated.Only use extension cables that are designed for the power consumption level of the machine.Keep the appliance away from rain and any moisture.Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.Do not stand vases etc. on the appliance. Water could seep into the appliance.Do not open the appliance.Pull out the mains plug if the appliance is not to be used over a longer period of time.Take care that nobody can trip over the power supply cable.

Laser

This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.

Laser beams can damage the eyes. Therefore observe the following:

Do not open the appliance. Do not attempt to dismantle the appliance. In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.

Where to position the appliance

Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:

• Protect the appliance against the influence of weather.
• Protect the appliance against moisture. Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc. Do not expose the appliance to direct sunlight. Place the appliance so that a sufficient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked.
• Protect the appliance against the mechanical vibrations. Stand the appliance on a solid base so that it cannot drop down.
• Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).

Operation

The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver → Page 61, „System settings“. Do not increase the volume when the player is just playing very quiet sections. Your hearing may be damaged if a very loud section of music suddenly begins. Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged. Switch the player off by the On/Off-switch if it is not going to be used for a longer period of time.

Intended use

The DVD-Player is solely intended for the following tasks:

Playing of Video DVD/Video CD. Playing of Audio-CD. Any other use is considered non-intended use and is prohibited.

Setting up and connecting

Defect

If the machine should become defective at some point:

If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards. Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.

Setting up and connecting

Unpacking

Unpack the appliance and all accessories and check that the contents are complete.

ATTENTION:

Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose. Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.

NOTE:

Get in touch with your dealer immediately if you notice damage caused by transport.

Setting up (on use of the external power pack)

1. Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.
2. Connect the machine to an earthed socket.

Starting up

Remote control battery installation

WARNING:

Leaking battery acid can damage your health. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked battery acid with a cloth. In case of skin contact, immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes, wash out the eyes and seek medical advice.

ATTENTION:

When disposing of old batteries, you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fire!

i NOTE:

The lifetime of the enclosed battery may be shortened because of storage.

Fig. 4

i NOTE:

The lithium cell in the battery compartment of the remote control has been secured for transport with a foil. Before initial use, please remove this foil so that the remote control is ready for operation.

Fig. 5

The battery of the remote control is a long-life lithium cell. If the range of the remote control is reduced during use, please proceed as follows:

Open the battery compartment on the back of the remote control.

- Replace the cell with a battery of the same type. Ensure correct polarity.

Then close the battery lid.

If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.

Warning: batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

Never throw batteries into the fire.

Fig. 6

i NOTE:

The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.

Effective range of the remote control

When using the remote control direct it towards the remote control sensor in the display at the left hand front side of the player. The distance between remote control and sensor should not exceed 5m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.

Power Supply

Switching on the player

Turn on the main switch of the DVD player by moving the „POWER ON/OFF“ switch on the left-hand side of the device to the „ON“ position.

Power Supply

A.

With the alternating current adapter

Fig. 7

The alternating current adapter works with alternating current of between 100 V and 240 V.

In Europe, the mains lead (supplied) may only be connected to an alternating current power source of 230-240 V. When connecting to an alternating current source outside Europe, a plug adapter must be used that conforms to the socket.

ATTENTION:

The supplied mains lead and alternating current adapter should only be used for this device. Do not use it with other equipment. If the device is not going to be used for a prolonged period, the mains lead must be removed from the power socket.

B.

With the adapter for the cigarette lighter

Fig. 8

The 9 V cigarette lighter adapter is used in vehicles that have a 12 V power supply with negative earth.

Precautionary Measures:

This device may only be used with the original vehicle adapter, as a different adapter can damage the device. The original vehicle adapter may only be used for this device. Do not use it for other equipment. While you are driving the vehicle, it is forbidden to adjust the device or watch videos and CDs. Please ensure that the device is firmly installed and cannot fall inside the vehicle in the case of an accident. If the cigarette lighter is dirty, poor conductivity will make the connection hot. Please ensure that the adapter is only inserted into a clean cigarette lighter connection. After use, the 9 V adapter should be removed from the device and from the cigarette lighter socket.

C.

With the rechargeable battery

Charge up the battery before initial use. The rechargeable battery is intended for portable use and for the viewing of DVDs out of doors.

Recharging the Battery

1. Remove the rechargeable battery from the device (if it is currently being used).
2. Insert the lead of the alternating current adapter into the DC IN 9V socket on the top of the battery.
3. Connect the mains lead of the alternating current adapter to a correctly installed shockproof socket. The charging indicator CHARGE lights up in red.

ATTENTION:

The supplied mains lead and alternating current adapter are only intended for use with this device. Do not use it with other equipment. If the device is not going to be used for a prolonged period, the mains lead must be removed from the power socket. Do not recharge the battery while the DVD player is being operated.

Recharging is finished when the charging indicator switches off. Remove the mains lead from the alternating current adapter and then the battery from the charging device.

Inserting the Rechargeable Battery

Connect in the appropriate position on the rear of the device.

Fig. 9

NOTE:

If the power of the rechargeable battery falls, playback stops. If the POWER indicator (Fig. 1/19) on the front of the device starts to flash during playback, the charge level of the battery is low. The battery has to be charged up. Do not short-circuit the terminals. Only the original adapter and the original charging device should be used to charge up the battery. Remove the battery. (Even if the device is switched off, it still uses a small amount of electricity. This may cause an overload of the battery and malfunctions). Charge up the battery shortly before the next time it is used. If the battery is not going to be used for a prolonged period, it must be discharged and stored in a cool, dry, and dark place. Never throw into a fire or water; do not heat. Do not open the charged battery. Repairs must be carried out by a qualified technician.

Connection to Other Equipment

Connection to Other Equipment

Connection to a television set

Fig. 10

If the television set has audio/video inputs.

If the television set has a Scart connection.

Fig. 11

Playback of a DVD on the Television Set

1. Turn on the DVD player by the POWER ON/OFF switch.
2. Turn on the television set and follow the instructions supplied with the television set.

This device can play back Dolby Digital Sound, but only on two channels. Playback of a DVD on the Television Set

Connection to another source

Fig. 12

Playback of a CD/MP3 CD through another Source

1. Turn on the DVD Player by the POWER ON/OFF switch.
2. Turn on the audio device and follow the instructions supplied with it.

i NOTE:

Please ensure that the correct audio/video cable is used, as the wrong cable will produce a weak signal. DVDs are copy-protected and cannot be copied. If a DVD is copied onto a video cassette, you will see a blurred picture with poor sound quality. This is NOT the fault of the device!

Use of ear/headphones

Fig. 13

1. Please use headphones with a 3.5 mm stereo jack plug; these should be inserted into the PHONES socket. The loudspeakers are then switched off.
2. With the VOL+/VOL- buttons on the device or the VOLUME +/- buttons on the remote control you can set the desired volume.

i NOTE:

In order to set the volume on the device, keep the VOL+/VOL- buttons pressed down for approx. 3 seconds.

WARNING:

Make sure that the volume of your headphones or earphones is not too high, as otherwise this may damage your ears and you may endanger yourself or others. In order not to disturb those around you, the volume should be set to a low level. If you suffer from tinnitus, you should turn the volume down low or refrain from using this device. Ear doctors recommend that earphones should not be used continuously over a prolonged period.

About the DVD-Player

With this DVD-Player you can play a vast variety of DVD-formats → Page 40, "Technical data".

However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.

i NOTE:

With your DVD-Player you can only play DVDs with regional code "2". There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.

Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems, check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter, please refer to the operating manual of your recorder.

Playing media

Handling CD/DVD

CDs and DVDs are highly sensitive media. Please observe the following points in order to avoid damage or contamination.

• Hold CDs or DVDs only by their edges. Do not expose CDs or DVDs to heat sources (e.g. direct sunlight).
• Keep CDs or DVDs always in their jewel cases. If necessary, clean CDs or DVDs with a soft cleaning cloth. Wipe from inside to outside. Do not use any detergents or solvents. If you want to write on DVDs: use only a suitable pen. Write only on the upper side!

Terminology

Track: "Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc. Title/Chapter: Video-DVDs are divided into "Title" and "Chapters". A "Title" may be e.g. a particular film, the "Chapters" may be subsections of this film.

Playing media

Using the remote control

You transmit commands to the DVD-Player via remote control. It is thus important to point the end of the remote control towards the DVD-Player.

Loading a CD/DVD

1. Press the OPEN-button (Fig. 1/4) on the device. The CD/DVD tray opens.
2. Place the CD/DVD on the tray.
3. Close the CD compartment (Fig. 1/3) again. After a short while the type of the loaded medium is displayed (e.g. "DVD").

Understanding the onscreen CD-menu

Fig. 14

When playing CDs the following status information is displayed on screen:

Media type (1), e.g. "CD". Current track/total number of tracks (2). Audio output (3). Repeat (4):

• "x": no repeat.
• "1": the current track is repeated.
• "A": all tracks are repeated.

Specify the repeat with the REPEAT-button ↩ Page 55, "Repeating track on CD".

Time (5): This provides information about the duration and the remaining play time. By standard the play time expired of the current track is displayed. The display is in hours, minutes and seconds. Press the DISPLAY-button (Fig. 2/6) once or several times to have further times displayed.

The following possibilities are available for selection

• time remaining to the end of the track,
• expired playing time of the track,
• time remaining to the end of the CD.

Understanding the onscreen DVD-menu

Fig. 15

When playing DVDs you can view the on-screen menu by pressing the DISPLAY-button (Fig. 2/6).

The DVD menu consists of 2 pages. Press the DISPLAY button a second time to view page two of the menu. The menu provides the following information:

DVD menu page 1

Media type (1), e.g. "DVD". Current title/total number of titles (2). Current chapter/total number of chapters (3). Time (4): This provides information about the duration and the remaining play time. By default, the play time elapsed of the current chapter is displayed. The display is in hours, minutes, and seconds. Press the DISPLAY button (Fig. 2/6) once or several times to have further times displayed.

The following possibilities are available for selection:

• time remaining to the end of the chapter,
• expired playing time of the chapter,
• time remaining to the end of the title.

Fig. 16

DVD menu page 2

Output language (1): The display shows how many languages are available and which language is used, → Page 54, "Changing Audio-Language/Audio-Mode". Type of Audio output (2): → Page 54, "Changing Audio-Language/Audio-Mode". Display of subtitles (3): The display shows in which languages subtitles are available → Page 54, "Showing subtitles". Viewing angle (4): If the DVD offers the possibility to choose from different viewing angles, the display will now show the number of possible viewing angles and the currently selected angle → Page 56, "Changing the viewing angle".

Starting the replay

1. Place the CD/DVD on the CD/DVD tray → Page 52, "Loading a CD/DVD".
2. Press the PLAY button (Fig. 2/27) on the remote control.

i NOTE:

If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD Player → Page 60, "Changing the default settings".

Playing media

Interrupting the replay	1. Press the PAUSE/STEP -button (Fig. 2/11) on the remote control. The replay is interrupted, the currently visible image is „frozen“.2. Press the PLAY-button (Fig. 2/27) on the remote control to restart the „normal“ replay.
Changing Audio-Language/Audio-Mode	Press the AUDIO-button (Fig. 2/15) to display the currently selected Audio language.Press the AUDIO-button several times to change the Audio language. The available audio languages depend on the DVD.
	NOTE:If the medium does not support this function (e.g. a CD), you can use this button to change the Audio mode and set it e.g. to „Mono“ or „Stereo“.
Showing subtitles	Press the SUBTITLE-button (Fig. 2/16) to display the current subtitle status. Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language. The available subtitle languages depend on the DVD.
Showing still images	1. Press the PAUSE/STEP-button (Fig. 2/11) on the remote control. The replay is interrupted, the currently visible image is “frozen”.2. Press the PAUSE/STEP-button (Fig. 2/11) again. The next image is displayed.3. Press the PLAY-button (Fig. 2/27) on the remote control to restart the “normal” replay.
Stopping the replay	Press the STOP-button (Fig. 2/24) during replay. The replay stops.Press the PLAY-button (Fig. 2/27) again, to continue the replay from the last position.Press the STOP-button (Fig. 2/24) twice to stop the replay completely. Press the PLAY-button (Fig. 2/27) again, to replay the CD/DVD from the beginning.
Selecting previous chapter/track	Press the PREV-button (Fig 2/9) to jump to the start of the previous chapter or track.
Selecting next chapter/track	Press the NEXT-button (Fig 2/23) to jump to the start of the next chapter or track.
Selecting chapter/track directly	Enter the number of the desired chapter/track with the numerical keys on the remote control (Fig. 2/17).Replay of the chapter/track starts after a short while.

Accessing a section via menu

Fig. 17

The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:

1. Press the SEARCH button (Fig. 2/18). The media specific menu is displayed → Page 53.
2. The menu shows an insertion mark (Fig. 17/1). Use the Cursor Buttons (Fig. 2/14) to move it to the desired subject (e.g. "Chapter").
3. Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons (Fig. 2/17).
4. Press the PLAY button (Fig. 2/27) to start the replay from this point.

Repeating DVD-title/chapter

Repeating track on CD

1. Choose the chapter or title to be repeated → Page 54, "Selecting chapter/track directly".
2. Press the REPEAT button (Fig. 2/2).
3. Press the REPEAT button again, until the message "REPEAT: [CHAPTER]", "REPEAT: [TITLE]" or "REPEAT: [ALL]" is displayed.
4. Select the track to be repeated → Page 54, "Selecting chapter/track directly".
5. Press the REPEAT button (Fig. 2/2). The message "REPEAT: [OFF]" appears on the screen.
6. Press the REPEAT button again to repeat the current track. The message "REPEAT: [1 REPEAT]" will appear on the screen.

NOTE:

For MP3 CDs, it is also possible to repeat a directory. The screen will then show the message "REPEAT: [REPEAT DIR]".

Repeating CD

Keep pressing the REPEAT button (Fig. 2/2) until the message "REPEAT: [ALL]" is displayed on the screen.

Stopping repeat

Keep pressing the REPEAT button (Fig. 2/2) until the message "REPEAT: [OFF]" is displayed on the screen.

Using the DVD menu

Normally, each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific to the DVD and cannot be explained in detail.

Press the MENU button (Fig. 2/12) to access the DVD menu. Use the cursor buttons (Fig. 2/14) to navigate in the menu. Press the PLAY button (Fig. 2/27) to confirm.

If you are in a menu area for direct chapter selection, you can enter the chapter number using the numerical buttons (Fig. 2/17) on the remote control.

Playing media

Using fast forward or reverse

The DVD player has fast forward and fast reverse features.

1. Press the F.FWD (Fig. 2/22) or F.BWD button (Fig. 2/7) to start fast forward or fast reverse. The current playback direction and speed, e.g., "Forward x [2]", will be displayed on the screen.
2. Press the F.FWD or F.BWD button several times to change the speed. The speed can be accelerated by a factor of 2, 4, 8, or 20.
3. Press the PLAY button (Fig. 2/27) to restart normal playback when the desired section is reached.

Enlarging a screen section

You can change the screen section when viewing DVDs, VCDs, or images.

Press the ZOOM button (Fig. 2/30) to change the screen section. Press the button several times to select the suitable zoom factor or to return to the original zoom factor.

Changing the viewing angle

Some DVDs offer the possibility to select the viewing angle.

Press the ANGLE button (Fig. 2/29) to change the viewing angle.

If changing the viewing angle is not possible, the message "Invalid Key" will be displayed.

Repeat pressing the button to choose a different viewing angle, or to return to the original viewing angle.

Adjusting the volume

Press the VOLUME + button (Fig. 2/4) to increase the volume.

Press the VOLUME - button (Fig. 2/3) to reduce the volume.

Please remember that this will only change the output volume of the DVD player. In order to adjust the volume to your requirements, you may also have to change the volume of the playback device.

Creating a playlist

You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function "Create Playlist" lets you create your own playing order.

To do this, proceed as follows:

PROG
1	01	5	[--]	9
2	[--]	6	[--]	10
3	[--]	7	[--]	11
4	[--]	8	[--]	12
PLAY CLEAR

Fig. 18

1. Press the PROGRAM button. A table is displayed (Fig. 18 for CDs, Fig. 19 for DVDs/MP3s). Here you can enter the desired order of tracks (for CDs) or chapters/titles (for DVDs) or the directories/tracks (for MP3 CDs).

However, your playlist will be lost when switching off the DVD player or when inserting a new CD/DVD.

1. Use the cursor buttons (Fig. 2/14) to navigate in the table.
2. At the corresponding table position, enter the desired track (for CDs) or the desired title and chapter (for DVDs) or the desired directory and track (for MP3 CDs). Use the numerical buttons (Fig. 2/17) for this purpose.

The highest possible input is "99". If you use an MP3 CD with more than 99 tracks, you should not include tracks with a higher track number in the playlist.

1. Use the cursor buttons (Fig. 2/14) to select the command "Play" at the bottom of the screen to save the input.
2. Press the SELECT button (Fig. 2/26) on the remote control to confirm this command.
3. Press the PROGRAM button. You will now see a table (Fig. 18 or Fig. 19).
4. Use the Cursor Buttons (Fig. 2/14) to navigate to the "Clear" command at the bottom of the table.
5. Press the PLAY button (Fig. 2/27) on the remote control to confirm this command.

Working in file mode

In addition to playing back "normal" films or music from CDs/DVDs, this DVD player can also play back video or audio files from CDs or DVDs that are stored in the file system. Such media are often available if you create CDs of digital photographs or MP3 music on your computer.

Deleting a Playlist

Using CD/DVD

Using a memory card

1. Place the CD or DVD on the tray => Page 52, "Loading a CD/DVD".
2. Select the desired file(s) and start playback => Page 58, "Selecting file/directory and starting playback".

The following memory cards can be used:

SD Card, Multi Media Card

1. Press the memory card into the card reader until it locks into place with a "click" (Fig. 1/15).
2. Press the SHIFT button (Fig. 2/21) on the remote control to switch the DVD player to file mode.
3. Select the desired file(s) and start playback => Page 58, "Selecting a file/directory and starting playback".
4. Press the SD/MMC card again to remove it.

Using a USB medium

By means of the USB connection you can connect numerous devices to the DVD Player. Examples of such devices are USB memory sticks or digital cameras.

1. Insert a USB storage medium into the corresponding connection of the DVD player (Fig. 1/16).
2. Press the SHIFT button (Fig. 2/21) on the remote control in order to switch the DVD player to the file mode.

Selecting file/directory and starting replay

In order to find out which files can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time. During this time you will see the words "READ USB" on the screen.

1. Select the desired file(s) and start playback → Page 58, "Selecting a file/directory and starting playback".

Media may contain a large number of data/files. You must therefore first determine the data to be played.

1. If this has not yet taken place: Insert the CD or DVD in the drive. The file selection dialogue appears (Fig. 20). This dialogue is structured as follows:
2. Directory overview (1)
3. File overview (2)
4. Currently selected directory and probably the selected file (3): The directory name appears in square brackets. Example: "[Directory1]Filename2.jpg".
5. Button "Selection Audio Files" (4): Music files are displayed.
6. Button "Selection Photo Files" (5): Photo files are displayed.
7. Button "Selection Video Files" (6): Film files are displayed.

i NOTE:

You can use the Cursor buttons (◀, ▶) of the remote control to navigate to the file overview and the selection buttons in this menu.

1. If the memory medium contains various file types (e.g. Audio and Video files), files of the wrong type may be displayed. Example: The file selection dialogue shows Audio files, but you would like to play Video files. In this case use one of the selection buttons (Fig. 20/4-6), e.g. "Selection of Audio Files", to select the desired file type. Use the Cursor Buttons (◀, ▶) (Fig. 2/14) on the remote control to select the selection buttons. Press the PLAY-button (Fig. 2/27) to confirm your input.

i NOTE:

Selection buttons are only available if corresponding files are present. If e.g. a medium does not contain any Video files, the button "Selection Video Files" (Fig. 20/6) cannot be activated.

1. Choose the directory you would like to play. Use the Cursor Buttons (◀, ▶) (Fig. 2/14) on the remote control to select the directory overview (Fig. 20/1). The currently selected directory is highlighted in orange. If necessary change the directory with the Cursor Buttons (▲, ▼).
2. Press the PLAY-button (Fig. 2/27) to start the replay. All files in the selected directory will now be played.

If you want to play only one file or if you want to start the replay from a certain file, please proceed as follows:

1. Select the file type and the directory which contains the desired file as described above. ⇒ Page 58, "Selecting file/directory and starting replay", item 1-3.
2. Use the Cursor Buttons (◀, ▶) (Fig. 2/14) on the remote control to change to the directory overview (Fig. 20/2).
3. Choose the desired file. The currently selected file is highlighted in orange. If necessary change the file with the Cursor Buttons (▲, ▼).

i NOTE:

If the selected file is a JPEG photo, you will now see a preview of this photo in the directory overview (Fig. 21). You can exit this preview with the Cursor button (◀).

1. Press the PLAY button (Fig. 2/27) to start the replay.

Stopping the replay

Viewing pictures

Press the STOP button (Fig. 2/24) on the remote control to stop the replay.

The DVD player is excellently suitable for viewing digital photographs. These photos may be stored on any medium (DVD, CD, etc.) supported by the DVD player.

i NOTE:

Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the replay device. For TVs this is normally 1024x576 pixels (TV aspect 16:9) or 768x576 (TV aspect 4:3).

Start the replay of photos by selecting the file from which the replay shall start → Page 58, "Selecting file/directory and starting replay".

Scrolling

■ Manual: Press the PREV (Fig. 2/9) or NEXT button (Fig. 2/23) on the remote control to scroll forward or back. Automatic: Press the PLAY button (Fig. 2/27). The screen shows the message "PLAY SEQ", the photos change automatically.

Rotating a photo

You can use the Cursor buttons to rotate a photo during replay:

Mirror vertically: Cursor Button "▼" Mirror horizontally: Cursor Button "▲" Rotate clockwise for 90°: Cursor Button "▶" Rotate counter-clockwise for 90°: Cursor Button "◀"

Changing the default settings

Image transition

You can select between various image transitions, i.e. methods by which one image is superimposed over the next.

You can change the type of image transition by pressing the PROGRAM-button (Fig. 2/20) on the remote control. The following options are available:

Fading in from above, below, left or right. Fading in diagonally from top left, top right, bottom left or bottom right. Fading in from the centre of the image, horizontally or vertically. Fading in from the edge of the image, horizontally or vertically. Fading in from the edge of the image, horizontally and vertically. Fading in by stripes, horizontally or vertically. Random, the image transition is chosen at random.

Changing the default settings

A large number of default settings can be comfortably changed via the screen menu.

Press the SETUP-button (Fig. 2/25) on the remote control to start the menu for changing the default settings.

i NOTE:

Many of these default settings can be changed via both the remote control and the menu. The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed. However, any changes made in the menu are permanent.

Understanding the menu structure

Fig. 22

The Setup menu has two menu levels:

■ Main menu: The main level is represented by graphical symbols. Sub-menu: The corresponding sub-menu options can be found under each of the main menu options.

Using the menu

Fig. 23

Navigation and selection

Use the Cursor Buttons (Fig. 2/14) (◀, ▶) on the remote control to browse through the main menu. In contrast to this, you must use the Cursor Buttons (▲, ▼) to move in the sub-menu. Select a menu option with the SELECT-button (Fig. 2/26). Use the SELECT-button also to select an option (e.g. "PAL" in the illustration on the left). The selected option (in the example "NTSC") is now highlighted (Fig. 23).

In many menus you will find slide controls to adjust e.g. the volume or the brightness of the screen. The slide control is used as follows:

1. Select with the SELECT-button.
2. Move the control with the Cursor Buttons (▲, ▼).
3. Confirm the entry with the SELECT-button.

Overview of the main menu Fig. 25

System settings (1) Language settings (2) Video settings (3) Speaker settings (4) Digital settings (5)

System settings

Fig. 23

TV-System

Match the output of the DVD-Player to the colour transfer system of your replay device. The following options are available:

NTSC: A system primarily used in North America. PAL: A system commonly used in Europe. AUTO: Select this setting if your replay device is a multi-system unit.

Fig. 26

Screen saver

The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver. The following options are available:

ON: The screen saver is activated (default setting). OFF: The screen saver is deactivated.

Changing the default settings

Fig. 27

TV Type

Here you can adapt the output of the DVD-Player to the TV-aspect.

Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature films have an aspect of 16:9, the image is therefore too wide for the TV-screen.

Here you can specify how the replay of the film is to be adapted to the replay device:

4:3 PS: You will only see the middle section of the film. The borders will be cut off ("Pan-Scan"). 4:3 LB: You will see the complete width of the film. The film is thus reduced in size, whereby black bars appear below and above the film ("Letter-Box"). 16:9: Select this option if you use a wide screen TV for replay. Please note that films, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this film will not require the complete wide screen area of the television.

Fig. 28

Password

If you want to operate the DVD-Player with a child protection system, you must first enter a password. This password safeguards the settings for the child protection system, so that it can only be changed by yourself.

In order to change the password, you must first enter the current password. The master password is "0000".

i NOTE:

If you forgot your password, you can deactivate the child protection system with this password.

Fig. 29

Proceed as follows to change the password:

1. Enter the current password with the Numerical Buttons (Fig. 2/17) on the remote control. To prevent the password from being read by unauthorized persons only the characters "XXXX" will appear on the screen (Fig. 29).
2. Press the SELECT-button (Fig. 2/26) to confirm your input.
3. Now enter your new password with the Numerical Buttons (Fig. 2/17) of the remote control.
4. Press the SELECT-button (Fig. 2/26) to confirm your input.

Fig. 30

Child protection

Some DVD contain information concerning the target group. This method is comparable with the rating of cinema films ("Suitable only for persons of 12 years and over" e.g.).

If you have the child protection option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.

The following child protection options are available:

KID SAF: Suitable for children. G: Suitable for all age groups. PG: The presence of parents is recommended. Some scenes may be unsuitable for children. PG 13: The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13. PGR: The presence of parents is strictly necessary. R: Young persons under the age of 17 may only view this film in the presence of an adult. NC17: Children and juveniles under the age of 17 are not allowed to watch this film. ADULT: The film must only be watched by adults.

Fig. 31

Default settings

Select the command "Default/Restore" if you want to reset the player to the factory implemented default settings.

Any settings you have made will be lost.

Language setup

Fig. 32

Here you can make various language settings.

• OSD language: The language in the on-screen displays. Audio language: The language of the Audio output. Subtitle language: The language of film related subtitles. ■ Menu language: The language of the DVD-menus.

Video setup

Here you can make various settings to adapt the video signal.

All settings can be made with a slide control (Fig. 24).

Brightness Contrast Hue Saturation

Changing the default settings

Speaker setup

Fig. 33

Downmix

Change the characteristics of the speaker output:

LT/RT: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces an almost real 2-channel replay effect. Stereo: Choose this setting if you want to play a DVD that has been produced in the 5.1-Audio format as 2-channel stereo sound. VSS: You may probably not have a 5.1-Audio system. In this case you can use the "VSS" setting to simulate a similar sound effect.

Bass-mode

Here you can define the loudspeaker size.

LARGE SPEAKERS: frequency band 20 Hz - 20 kHz SMALL SPEAKERS: frequency band 200 Hz - 20 kHz MIXED SPEAKERS: Choose this setting if, for example, the centre has a frequency band of 20 Hz - 20 kHz and the other loudspeakers a frequency band of 200 Hz - 20 kHz.

Fig. 34

Night mode

Night mode activates a special audio characteristic with which the sound is felt less disturbing.

Digital setup

Fig. 35

Dynamic Range

The term "Dynamic Range" describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.

Fig. 36

This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud. In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.

FULL -2/8: The dynamic range is compressed slightly (2/8) to full (FULL). OFF: The dynamic range is not compressed at all (default).

Dual Mono

The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.

Stereo: The Audio output is in Stereo (default). Mono L: The Audio output is in Mono. The sound from the "left-hand" stereo channel is output. Mono R: The Audio output is in Mono. The sound from the "right-hand" stereo channel is output. Mix Mono: The Audio output is in Mono. The sound of "both" stereo channels is output.

Fig. 37

Troubleshooting

Before sending the machine to the Customer Services, use the following table to check whether you can rectify the fault yourself.

Fault	Possible cause	Solution
The power supply light does not light	No power supply	⚠ WARNING:Before searching for the fault, please turn the device off.■ During battery operation:check whether the battery has clicked into place.■ During mains adapter operation:Put the mains plug in correctly, if necessary, check the socket is working with another appliance.
	no power supply/ mains switch switched off	Switch the player on by the mains switch (Fig. 1/1).
No image displayed on screen	During operation with a television set:Video cable not correctly connected	⚠ WARNING:Before searching for the fault, please turn the device off.Check the correct fi t of the Video cable ↦ Page 50, „Connection to Other Equipment“. Make sure that the jacks are tightly in the sockets.
	TFT screen is switched off Press the TFT ON/OFF (Fig. 2/1) button on the remote control.
	no DVD/CD inserted Insert a CD/DVD.
	DVD/CD not compatible	Use only compatible media (see ↦ Page 40, „Technical data“).
	DVD/CD incorrectly placed in CD/DVD-tray	Turn the CD/DVD around.
	CD/DVD is dirty Clean the CD/DVD around ↦ Page 52, „Handling CD/DVD“.
	CD/DVD is damaged Use a different CD/DVD.
	Incorrect settings Check the settings of your DVD-Player.
	The child protection system is activated	Deactivate the child protection ↦ Page 62, „Child protection“.
No response when pressing button	Power supply problem or static charging of appliance	Switch off the main switch and pull out the mains plug. Insert the mains plug into the socket and switch the player on again.

Troubleshooting

Fault	Possible cause	Solution
No sound During operation with a television set:Audio cable not connected	⚠ WARNING:Before searching for the fault, please turn the device off.Check the correct fi t of the Audio cable ⇒ Page 50, „Connection to Other Equipment“. Make sure that the jacks are tightly in the sockets.
	Amplifi er switched off If you use an amplifi er for Audio output: check whether the amplifi er is switched on.
	Volume turned to low	Press the VOLUME + button on the remote control or keep the VOL+ button on the device pressed down for approximately 3 seconds.
	Headphones not correctly inserted	Check that the headphones are correctly positioned ⇒ Page 51, „Use of ear/headphones“.
	Incorrect settings Check the settings of your DVD-Player.
The remote control does not work	wrong direction The remote control is not pointed towards the DVD-Player.
	too far away Make sure that the remote control is not further than 5 m away from the player.
	Batterie empty	Replace the batteries in the remote control ⇒ Page 47, „Remote control battery installation“.
Titles are played in wrong order	Playlist is used	Delete the playlist ⇒ Page 57, „Deleting a Playlist“.
DVD cannot be played	DVD has not been fi nalized Use a fi nalized DVD.

Disposal

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

Rechargeable/Non-rechargeable batteries

Notes on Handling Batteries/Akku:

• Keep batteries away from children. They are not a toy! Never throw batteries into a fire or immerse in water. When inserting a battery, ensure the correct polarity. Do not open the batteries/akku by force. Avoid contact with metallic objects. (Rings, nails, screws et cetera.) There is a danger of short-circuiting! As a result of a short-circuit batteries may heat up considerably or even catch fire. This may result in burns. If a battery/akku leaks do not rub the liquid into your eyes or mucous membranes. If hands come into contact with the liquid they should be washed thoroughly and eyes rinsed out with clear water; if symptoms persist please consult a doctor. Used batteries should not be disposed of in the normal domestic waste. Please return old batteries to an appropriate connection point.

The following symbols are to be found on (rechargeable) batteries/akku containing harmful substances:

Pb = contains lead

Cd = contains cadmium

Hg = contains mercury

Li = contains lithium

Guarantee

Guarantee

The device supplied by our Company is covered by a 24-month guarantee starting on the date of purchase (receipt).

During the life of the guarantee, any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase, no free replacement or repair will be carried out. If you wish to make a claim under the guarantee, please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing, as well as cleaning, maintenance, or the replacement of said parts, are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee, repairs can be carried out by the competent dealer or repair service against the payment of the ensuing costs.

Declaration of conformity

ETV - Elektro-Technische Vertriebsgesellschaft mbH hereby declares that the device DVD 4516 TFT is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (89/336/EWG) and the low voltage guideline (93/68/EWG).

OSD Menu Overview

GARANTIE-KARTE
