Technical Features	Magnetic resistance, 8 levels of adjustment
Dimensions	Length: 120 cm, Width: 60 cm, Height: 130 cm
Maximum User Weight	120 kg
Display	LCD screen, displays distance, time, calories, and speed
Usage	Suitable for home use, ideal for cardio and muscle strengthening
Maintenance	Regularly check screws and bolts, clean the frame with a damp cloth
Safety	Use on a flat surface, do not exceed maximum weight, follow usage instructions
General Information	2-year warranty, assembly required, accessories included: pedals, user manual

Frequently Asked Questions - XL 1 Christopeit

How do I adjust the saddle height on the Christopeit XL?

To adjust the saddle height, unlock the adjustment lever located under the saddle, set the desired height, then lock the lever in place.

My display screen does not turn on, what should I do?

Check that the display batteries are correctly installed and in good condition. If the display still does not turn on, try unplugging the device and plugging it back in.

How do I adjust the resistance on the exercise bike?

To adjust the resistance, turn the adjustment knob located at the front of the bike clockwise to increase resistance and counterclockwise to decrease it.

Is there a warranty for the Christopeit XL?

Yes, the Christopeit XL is generally covered by a 2-year warranty for parts and frame. Please refer to the user manual for more details.

How do I clean the exercise bike?

Use a damp cloth to wipe the frame and plastic parts. Avoid using harsh chemicals that could damage the surfaces.

The bike makes noise when I pedal, what should I do?

Check if bolts and screws are properly tightened. If the noise persists, it may be necessary to lubricate the chain or bearings.

Can I use the Christopeit XL for intensive training?

Yes, the Christopeit XL is designed for regular home use and can support intensive training sessions, but it is recommended to respect the weight limits indicated in the manual.

How do I assemble the Christopeit XL?

Please consult the instruction manual included in the package for a step-by-step assembly guide. Make sure you have all necessary tools before starting.

What should I do if the bike is not working properly?

Check all electrical connections and ensure the batteries are charged. If the problem persists, contact customer service for assistance.

How do I store the Christopeit XL when not in use?

For optimal storage, place the bike in a dry and cool place. You can also fold it if the model allows to save space.

USER MANUAL XL 1 Christopeit

Heimsport-Trainingsgerät XL 1 Assembly and exercise instructions for Order No. 9810

Important Recommendations and Safety Instructions Our products are all tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specifi c parts of the machine contained in the parts list. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the parts list in the installation and operating instructions.

2. Check the fi rm seating off all screws, nuts and other connections before

using the machine for the fi rst time and at regular intervals to ensure that the trainer is in a safe condition.3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the fl oor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.5. Before beginning training, remove all objects within a radius of 2 metres from the machine.6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after fi nishing training.7. Your health can be impaired by incorrect or excessive training. Consult a doctor before beginning a planned training programme. He can defi ne the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. Observe that this machine is not suitable for therapeutic purposes.8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs.9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time.

11. Wear training clothes and shoes which are suitable for fi tness training

with the machine. Your clothes must be such that they cannot catch dur-ing training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet fi rmly and must have non-slip soles. 12. If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.13. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons. 14. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision.15. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.16. At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may fi nd the symbol on the product, on the instructions or on the packing. The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.17. To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.18. This machine is a speed-dependant machine, i.e. the power increases with increasing speed, and the reverse.19. The machine is equipped with infi nitely adjustable resistance which al-lows the braking resistance and thereby the training exertion to be reduced or increased. Turning the adjusting knob for the resistance setting towards the minus sign reduces the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards the plus sign increases the braking resistance and thereby the training exertion.20. The maximum permissible load (=body weight) is specifi ed as 150 kg. English10 Please check after opening the packing that all the parts shown in the following parts lists are there. Once you are sure that this is the case, you can start assembly. Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future. Parts List – Spare Parts List XL 1 Order No. 9810 Technical data: Issue: 01. 03. 2008 Infi nitely adjustable calliper brake 19 kg centrifugal mass Horizontally and vertically adjustable racing saddle Vertically adjustable racing handlebars Easy to use computer with digital display of: time, speed, distance, approx. calorie consumption and scan. Space requirement approx. L 105, W 50, H 122 cm Illustration Designation Dimensions Quantity Attached to ET number No. mm illustration No. 1 Main frame 1 33-9810-01-SW 2 Front foot 1 1 33-9810-02-SW 3 Rear Foot 1 1 33-9810-03-SW 4 Carriage bolt M8 x 70 4 1+2+3 36-9810-01-BT 5 Head nut M8 4 2+3 36-9810-02-BT 6 Washer curved for M8 4 4 36-9810-03-BT 7L Pedal left 1 29 36-9810-04-BT 7R Pedal right 1 27 36-9810-05-BT 8 Rapid action catch 3 1+14 36-9810-06-BT 9 Handlebar post 1 1 33-9810-04-CR 10 Saddle slide 1 14 33-9810-05-CR 11 Saddle 1 10 36-9810-07-BT 12 Handlebar 1 9 33-9810-06-CR 13 Wrapping long Ø 25 x 360mm 2 12 36-9810-08-BT 14 Sadlle post 1 1 33-9810-07-CR 15 Screw M8 x 15 4 1+9 39-9888-CR 16 Wrapping short Ø 25 x 300mm 2 12 36-9810-09-BT 17 Washer for M8 4 15 39-10018-CR 18 Eccentic cap Ø 2 1/4“ 2 3 36-9810-10-BT 19 Foot cap Ø 2 1/4“ 2 2 36-9810-11-BT 20 Transport roller unit Ø 40mm 2 2 36-9810-12-BT 21 Flywheel 1 1 33-9810-08-CR 22 Plastic slide 30 x 60mm 3 1+14 36-9810-13-BT 23 Break lining 2 1 36-9810-14-BT 24 Emergency break 1 25 36-9810-15-BT 25 Resistance adjusting 1 1 36-9810-16-BT 26 Chain cover 1 1 33-9810-04-SW 27 Spur gear incl. Right pedal arm 52 Z 1 30 33-9810-05-SW 28 Chain tensioner M6 x 40 2 34 39-10172 29 Pedal arm left 1 30 33-9810-06-SW 30 Pedal axle 1 31 33-9810-07-SW 31 Bearing (pedal crank) 6203 Z 2 1+30 36-9810-17-BT 32 Chain 27 x 52 1 21+27 36-9810-18-BT 33 Bearing (Flywheel) 6000 Z 2 21 36-9810-19-BT 34 Flywheel axle 1 33 36-9810-20-BT 35 Bottle holder 1 1 33-9710-12-SW 36 Drink bottle 1 35 36-9710-31-BT 37 Computer holder 1 12 36-9810-24-BT 38 Sensor cable 1 21 36-9810-25-BT 39 Computer 1 37 36-9810-26-BT 40 Freewheel 16 Z 1 21 36-9810-27-BT 41 Carton 1 36-9810-21-BT 42 Assembly and exercise instructions 1 36-9810-22-BT 43 Tool Set 1 36-9810-23-BT Adresse: Top-Sports Gilles GmbH Friedrichstr. 55 42551 Velbert Telefon: +49 (0 ) 20 51) 6067-0 Telefax: +49 (0 ) 20 51) 6067-44 e-mail: [e-mail] www.christopeit-sport.com11 English Assembly Instructions Before beginning assembly, be sure to observe our recommendations and safety instructions. Some parts are pre assembled. Allen wrench and screw driver are included which can be used for assembly. Step 1: Take the front foot (2) and rear foot (3) with screw (4) washer (6) and head nut (5) and place them accessibly beside the front and rear parts of the main frame (1). Screw each foot at the main frame with screw (4), washer (6) and head nut (5). Step 3: Insert the saddle post (14) into the provided holder of the main frame (1) and secure at the desired position by screwing in the rapid action catch (8). (Note: to screw in the rapid action catch (8), the treaded hole in the main frame (1) and one of the holes in the saddle post (14) must be aligned. The setting of the saddle post can be adjusted as desired later. For this, the rapid action catch (8) must be loosened by only a few revolutions, the cap of the lock must be pulled away and the saddle adjusted. Then secure the new setting by tightening the rapid action catch. Step 2: The pedals are marked „R“ for right and „L“ for left. Screw the right pedal (7R) into the treaded hole on the right hand side of the pedal crank (27) and tighten fi rmly. (Note: Right and left are specifi ed as viewed seated on the machine during training. It must also observe that the treaded part of the right pedal must be screwed clockwise into the threaded hole of the pedal crank.) Screw the left pedal (7L) into the treaded hole on the left hand side of the pedal crank (29) and tighten fi rmly. (Note: The treaded part of the left pedal must be screwed anticlockwise into the treaded hole of the pedal crank.12 Step 4: Insert the saddle slide (10) into the provided holder of the saddle post (14) and secure at the desired position by screwing in and engaging the rapid action catch (8). (Note: The position and inclination of the saddle (11) to the saddle slide can be adjusted at any time by loosening the nuts of the clamp holder of the saddle.) Step 7: Push the computer (39) onto the computer holder (37), connect the sensor cable (38) with the computer (39) and insert the battery (pen cell 1,5V) into the battery holder. Put the bottle holder (35 )at the main frame (1), fi x it with two screws and insert the Drink bottle (36) into the bottle holder (35). Step 6: Place the handlebar (12) and the computer holder (37) against the provided holder of handlebar post (9) and tighten it fi rmly with screw (15) and washer (17). Step 5: Insert the handlebar post into the provided holder of the main frame (1) and secure at the desired position by screwing in the rapid action catch (8).13 English Computer Instructions The supplied training computer allows the most convenient training. Every value relevant to training is displayed in the two-part window. The speed, the distance covered during the current training session, the time required, the distance covered for all completed training units and including the current session, the approximate calorie consumption and the pulse rate are shown from the start of the training session. All values count upwards from zero. Switch the computer on by briefl y pressing the ‘F’ button or moving a pedal slightly. The speed is indicated on the upper display. All other values are indicated on the lower display. If you wish to see one value displayed constantly as well as the speed during training, select this with the „F“ key. If you wish to see these values in constant alternation, select the „SCAN“ function. The display then changes from one function to the next at intervals of approx. 6 seconds. Simply begin your training to start the computer. The computer begins to record and display all the values reached. Simply end your training to stop the computer. The computer stops all measurements and retains the last values that were measured. The most recently reached values in functions KM, TIME, KM-TOTAL and CALORIES are saved and are displayed again when training restarts. You can continue training on the basis of these values. If you wish to delete the most recently reached values, stop your training session and hold down the ‘F’ button for around 5 seconds. The values for all displays that can be modifi ed are reset to zero (Exeption: KM-TOTAL). The computers switches itself off automatically approx. 5 minutes after the end of training and deletes the most recent values. All the displays are reset to zero when the computer is restarted and count upwards (Exeption: KM-TOTAL).

Selecting this function causes the achieved values of the functions KM, TIME and CALORIES to be displayed alternately at intervals of approx. 6 seconds.

The current speed in kilometres per hour is displayed. The values most recently reached can not be saved in this function, as described above. (Max. display limit is 99.99 kmh)

This shows the number of kilometres covered. The values most recently reached can be saved in this function, as described above. (Max. display limit is 99.99 km)

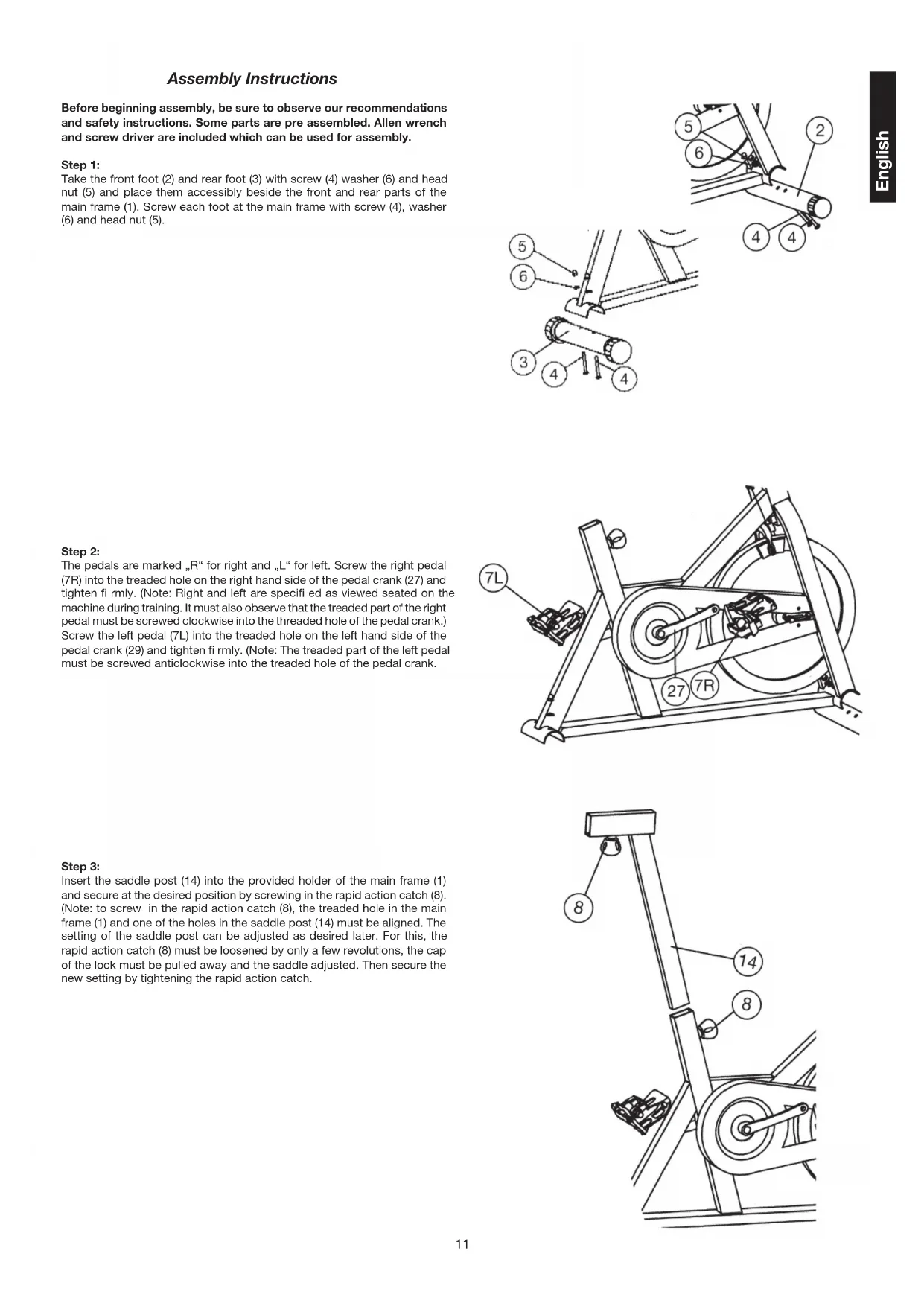

Step 8: Check the correct installation and function of all screwed and plug connections. Installation is thereby complete. When everything is in order, familiarise yourself with the machine at a low resistance setting and make your individual adjustments. Only exercise sitting on saddle with look at the Computer on the bike. Guarantee before starting the training that the bike is not loaded highter than with the maximum permissible weight of body. To stop the fl ywheel mass quickly, press the emergency break (24). This displays the time currently required in minutes and seconds. The values most recently reached can be saved in this function, as described above. (Max. display limit is 99.59 minutes)

5. ”CALORIES” display:

The approximate number of calories consumed up to that moment is dis- played. The values most recently reached can be saved in this function, as described above.(Max. display limit is 999.9 calories)14 Training instructions You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefi ts:

The level of physical exertion in training must exceed the level of normal exertion without reaching the point of breathlessness and / or exhaustion. A suitable gui- deline for effective training can be taken from the pulse rate. During training this should rise to the region of between 70% to 85% of the maximum pulse rate (see the table and formular for determination and calculation of this). During the fi rst weeks, the pulse rate should remain at the lower end of this region, at around 70% of the maximum pulse rate. In the course of the following weeks and months, the pulse rate should be slowly raised to the upper limit of 85% of the maximum pulse rate. The better the physical condition of the person doing the exercise, the more the level of training should be encreased to remain in the region of between 70% to 85% of the maximum pulse rate. This should be done by lengthening the time for the training and / or encreasing the level of diffi culty. If the pulse rate is not shown on the computer display or if for safety reasons you wish to check your pulse rate, which could have been displayed wrongly due to error in use, etc., you can do the following: a. Pulse rate measurement in the conventional way (feeling the pulse at the wrist, for example, and counting the number of beats in one minute). b. Pulse rate measurement with a suitable specialised device (available from dealers specialising in health-related equipment). 2.Frequency Most experts recommend a combination of health-conscious nutrition, which must be determined on the basis of your training goal, and physical training three times a week. A normal adult must train twice a week to maintain his current level of condition. At least three training sessions a week are required to improve one’s condition and reduce one’s weight. Of course the ideal frequency of training is fi ve sessions a week.

3. Planning the training

Each training session should consist of three phases: the warm-up phase, the training phase, and the cool-down phase. The body temperature and oxygen intake should be raised slowly in the warm-up phase. This can be done with gymnastic exercises lasting fi ve to ten minutes. Then the actual training (training phase) should begin. The training exertion should be relatively low for the fi rst few minutes and then raised over a period of 15 to 30 minutes such that the pulse rate reaches the region of between 70% to 85% of the maximum pulse rate. In order to support the circulation after the training phase and to prevent aching or strained muscles later, it is necessary to follow the training phase with a cool- down phase. This should be consist of stretching exercises and / or light gymnastic exercises for a period of fi ve to ten minutes.

The key to a successful program is regular training. You should set a fi xed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goal in view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit. Calculation formula: Maximum pulse rate = 220 - age (220 minus your age) 90% of the maximum pulse rate = (220 - age) x 0.9 85% of the maximum pulse rate = (220 - age) x 0.85 70% of the maximum pulse rate = (220 - age) x 0.715 Sommaire
