Rotak 39 - Lawn mower BOSCH - Free user manual and instructions

Product Type	Electric Lawn Mower
Brand	Bosch
Model	Rotak 39
Rated Power Input	1700 W
Cutting Width	40 cm
Cutting Height	20 – 70 mm (adjustable)
Grass Box Volume	50 L
Weight (according to EPTA 01/2003)	13.1 kg
Protection Class	II (double insulation)
Supply Voltage	230 V AC, 50 Hz
Sound Pressure Level (LpA)	80 dB(A)
Sound Power Level (LwA)	93 dB(A)
Vibration (total value)	< 2.5 m/s²
Main Functions	Mowing, leaf collection (height 70 mm), central height adjustment
Safety	Double insulation, overload protection, emergency stop by unplugging
Maintenance	Clean after use, check and replace blades, no lubrication required
Spare Parts	Blades, blade bolt, grass box, power cord (Bosch genuine parts)
Repairability	Bosch after-sales service, repairs by authorized workshops
Included Accessories	Grass box, handlebar, power cord

Frequently Asked Questions - Rotak 39 BOSCH

What is the power of the Bosch Rotak 39 lawn mower?

The rated power input is 1700 W.

What is the cutting width of the Rotak 39?

The cutting width is 40 cm.

How do I adjust the cutting height?

The height can be centrally adjusted from 20 to 70 mm using a lever.

Does the grass box have a fill indicator?

Yes, the 50 L grass box is transparent with a visual level indicator.

Can I use an extension cord?

Yes, use an extension cord type H05VV-F or H05RN-F with a minimum cross-section of 1.0 mm² for max length 40 m, or 1.5 mm² for 60 m.

How do I replace the blade?

Unplug the mower, wear gloves, unscrew the central nut (tightening torque 17 Nm), replace the blade, and retighten.

What if the mower vibrates abnormally?

Stop and unplug. Check that the blade is tightened properly (17 Nm) and not damaged. Replace if necessary.

Can the mower collect leaves?

Yes, set the cutting height to 70 mm and use it on the lawn for optimal collection of dead leaves.

What is the electrical protection class?

The mower is class II (double insulation), it does not require a ground connection.

Where can I find spare parts?

Order online at www.bosch-pt.fr or contact Bosch After-Sales Service at 0811 360122 (cost of a local call).

USER MANUAL Rotak 39 BOSCH

OBJ_DOKU-34239-005.lin Page 1 Tuesday, November 4, 2014 2:36 PM

Illustration of two lawn mower machines with wheels and blades (no text or symbols)

Robert Bosch GmbH

Power Tools Division

70764 Leinfelden-Echterdingen

GERMANY

www.bosch-garden.com

F 016 L81 153 (2014.11) O / 230 EURO

Rotak

33|34|34M|1300-34R|36|37|37M|1400-37R

39|40|40M|1700-40R|42|43|43M|1800-43R

BOSCH

Bosch Lawn and Garden Ltd., PT-LG/ENS23.

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montage und Betrieb

www.bosch-garden.com

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!

Explanation of symbols on the machine

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.

Not applicable.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entan-

gled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.

Wait until all machine components have completely stopped before touching them. The

blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not use the machine in the rain or leave it outdoors when it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting means.

Operation

▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.

English | 11

When not in use store the machine out of reach of children.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the machine.

▶ Never mow while people, especially children, or pets are nearby.

The operator or user is responsible for accidents or hazards occurring to other people or their property.

▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.

Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

▶ Mow only in daylight or in good artificial light.

▶ Avoid mowing in bad weather conditions especially when there is a risk of lightning.

- Avoid operating the machine in wet grass, where feasible.

Walk, never run.
▶ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
▶ Always wear ear protection.

▶ Working on banks can be dangerous.

• Do not mow on excessively steep slopes.
• Always be sure of your footing on slopes or wet grass.
• Mow across the face of slopes – never up and down.
• Exercise extreme caution when changing direction on slopes.

▶ Use extreme caution when stepping back or pulling the machine towards you.

▶ Never mow by pulling the mower towards you.

▶ Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.

Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.

12 | English

▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.
▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
▶ Regularly inspect the supply cable and any extension cables. Do not connect damaged cables to the supply or touch a damaged cable before it is disconnected from the supply. A damaged cable can lead to contact with live parts. Beware electric shock hazard.

Leaf Collect

The leaf collect blade has been designed to allow you to pick up autumn leaves from your lawn. In order for this functionality to work within optimal parameters, please note the following: - only collect leaves with the machine set at 70 mm cutting hight - collect leaves from your lawn only - before collecting leaves inspect the area where the machine is to be used and keep people, pets, glass structures and cars away from use

Remove the plug from the socket:

• Whenever you leave the machine.
  – Before clearing a blockage,

– Before checking, cleaning or working on the machine,
– After striking a foreign object. Inspect the machine for damage and make repairs as necessary,
- If the machine starts to vibrate abnormally (check immediately).

Power supply

The voltage indicated on the rating plate must correspond to the voltage of the power source.
We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types.
▶ Never touch the mains plug with wet hands.
▶ Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
Always wear gardening gloves when handling or working near the sharp blades.

Electrical Safety

▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
The blades continue to rotate for a few seconds after the machine is switched off.
▶ Caution – do not touch the rotating blade.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57).

If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

• 1.0 mm ^2 : max. length 40 m
• 1.5 mm ^2 : max. length 60 m
• 2.5 mm ^4 : max. length 100 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off the ground.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.

If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent.

The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only:

Use a residual current device (RCD) with a rated residual current of 30 mA or less.

14 | English

Maintenance

▶ Always wear gardening gloves when handling or working near the sharp blades.
▶ Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Check the grass catcher frequently for wear or deterioration.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement cutting means of the right type are used.
▶ Ensure replacement parts fitted are Bosch approved.
Before storage ensure machine is clean and free from debries, if necessary clean with a soft, dry brush.

Symbol Meaning

Movement direction

Reaction direction

Wear protective gloves

Weight

Switching On

Switching Off

Permitted action

Prohibited action

Accessories/Spare Parts

Intended Use

The garden product is intended for domestic lawnmowing.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Technical Data

Lawnmower Rotak 33/Rotak 34		Rotak 36/Rotak 37
		Rotak 34 M/Rotak 1300-34 R	Rotak 37 M/Rotak 1400-37 R
Article number	3 600 HA4 0.. 3 600 HA4 1..
Rated power input	W 1300 1400
Blade width	cm 34 37
Height of cut	mm 20 - 70 20 -70
Grassbox, capacity	l	4	0
Weight according to EPTA-Procedure 01/2003	kg 11.6 11.7
Protection class	☐/II /II		☐
Serial number	see type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

English | 15

Lawnmower Rotak 39/Rotak 40		Rotak 42/Rotak 43
		Rotak 40 M/Rotak 1700-40 R	Rotak 43 M/Rotak 1800-43 R
Article number	3 600 HA4 2.. 3 600 HA4 3..
Rated power input	W 1700 1800
Blade width	cm 40 43
Height of cut	mm 20 - 70 20 - 70
Grassbox, capacity	l	5	0
Weight according to EPTA-Procedure 01/2003	kg 13.1 13.2
Protection class	☐/II /II		☐
Serial number	see type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-77.	3 600 ...	HA4 0..	HA4 1..	HA4 2..	HA4 3..
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	79	80	80	80
Sound power level	dB(A)	93	94	93	94
Uncertainty K	dB	=1.0	=1.0	=1.2	=1.4
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60335:
Vibration emission value a_h	m/s^2	<2.5	<2.5	<2.5	<2.5
Uncertainty K	m/s^2	=1.5	=1.5	=1.5	=1.5

Declaration of Conformity C€

	3 600 ...	HA4 0..	HA4 1..	HA4 2..	HA4 3..
We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 60335-2-77.2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex VI.	dB(A) 93 94 94 95

Equipment category: 32

Notified body:

SRL, Sudbury, England, Nr. 1088

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Mounting and Operation

Action	Figure
Delivery Scope	1
Handle Assembly	2

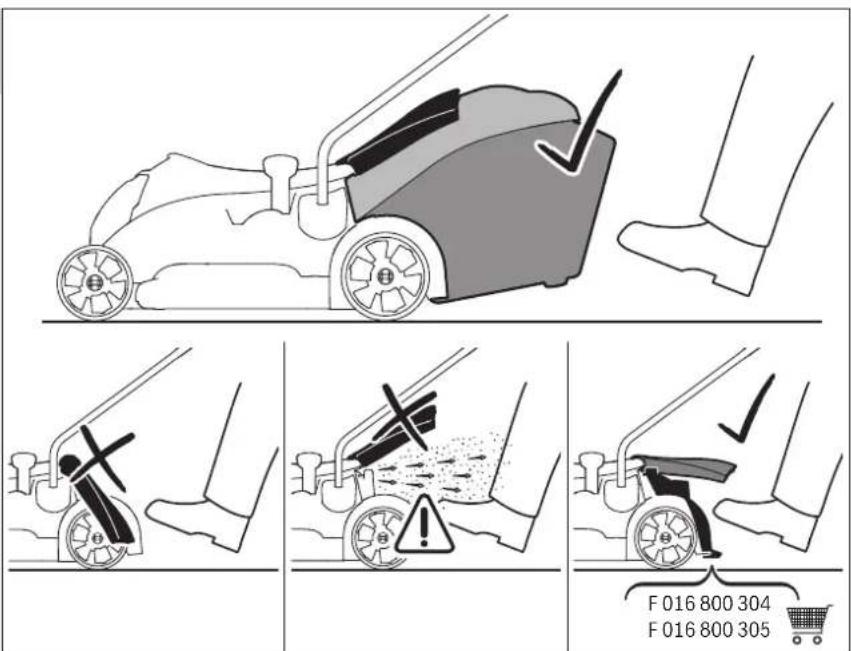

Snap together the Grassbox	3
Grassbox fitting/removing	3

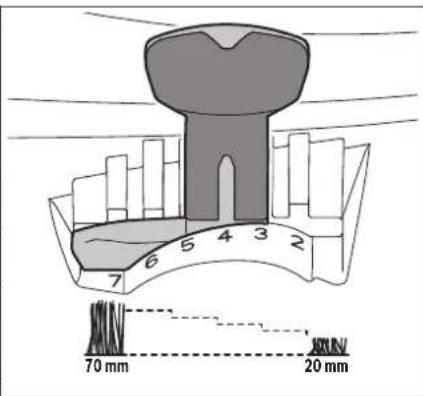

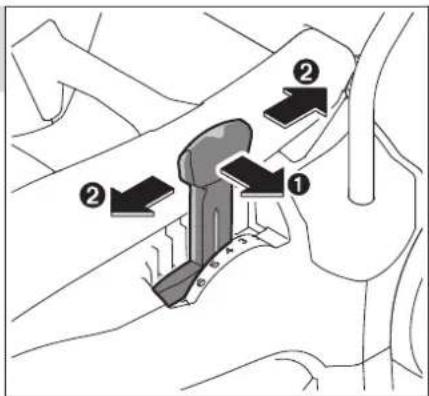

Adjusting the Cutting Height	4

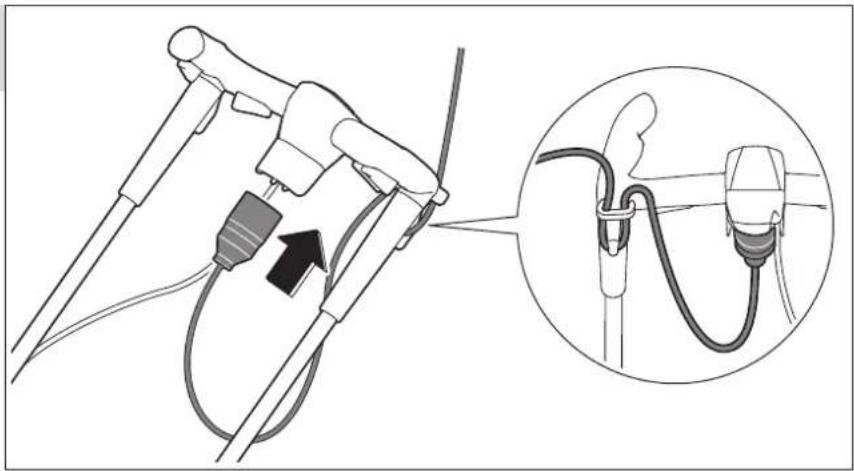

Connecting the Extension Lead	5

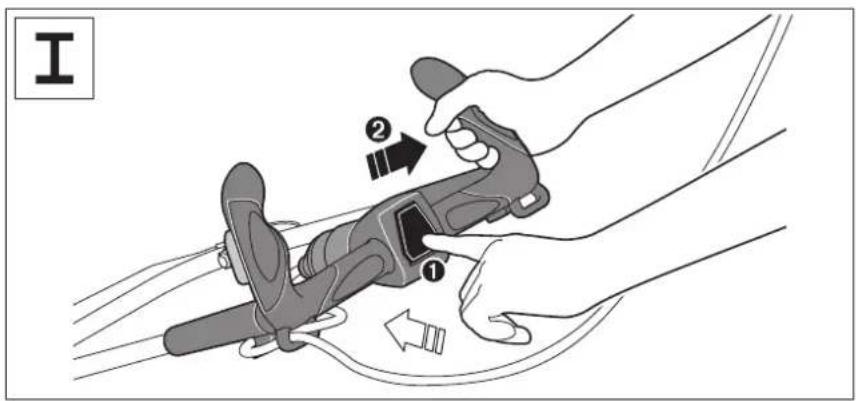

Starting	5
Working Advice	5

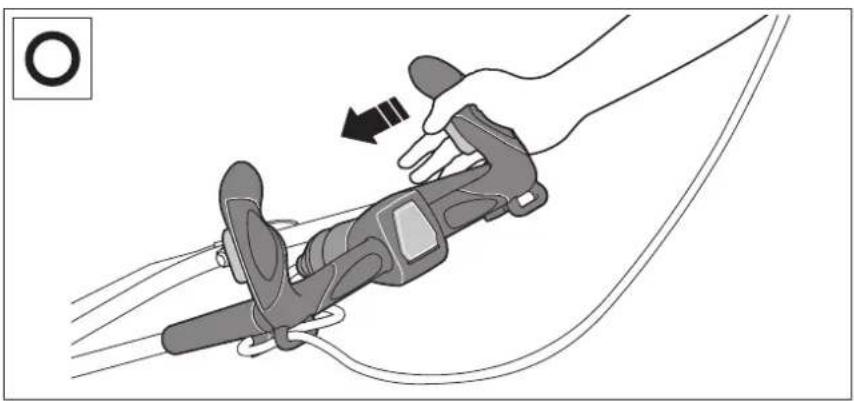

Stopping	5

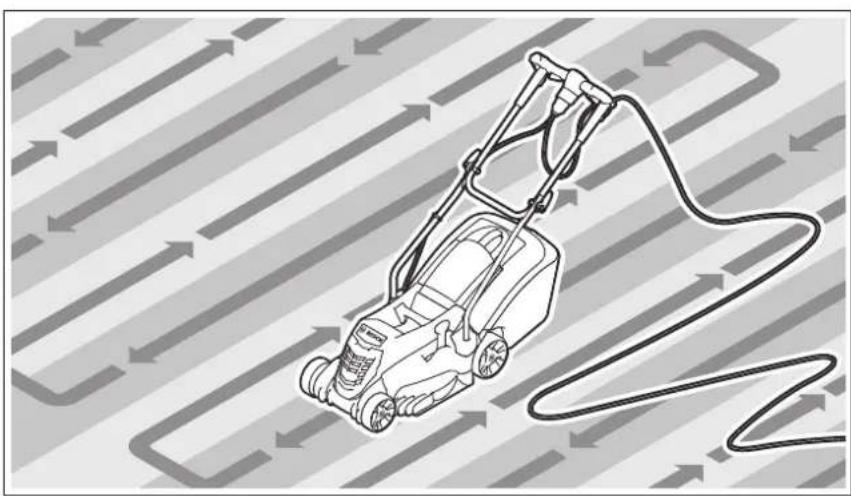

Working Advice	6

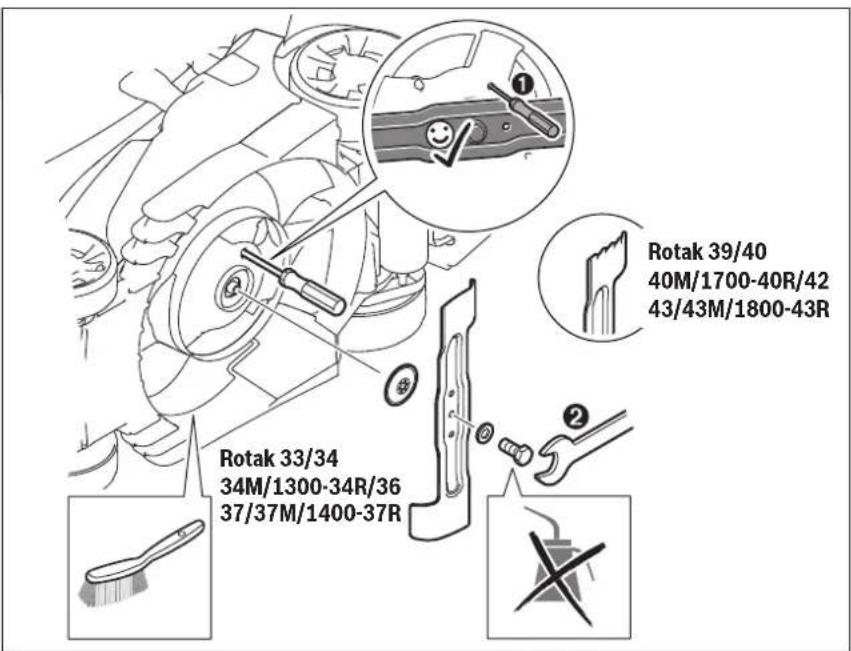

Blade Maintenance	7
Selecting Accessories	8

16 | English

Troubleshooting

Problem Possible Cause Corrective Action

Motor refuses to start Power turned off Turn power on
	Mains socket faulty Use another socket
	Extension cable damaged Inspect cable, replace if damaged
	Fuse faulty/blown Replace fuse
	Grass too long Increase height of cut and tilt garden product to reduce starting load
	Motor protector has activated Allow motor to cool and increase height of cut
Machine functions intermittently	Extension cable damaged Inspect cable, replace if damaged
	Internal wiring of machine damaged Contact Service Agent
	Motor protector has activated Allow motor to cool and increase height of cut
Machine leaves ragged finish and/or Motor labours	Height of cut too low Increase height of cut
	Cutting blade blunt Replace the blade
	Possible clogging Check underneath the garden product and clear out as necessary (always wear protective gloves)
	Blade fitted upside down	Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed	Switch off garden productClear obstruction (always wear protective gloves)
	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibra-tions/noise	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
	Cutting blade damaged	Replace the blade

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-garden.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Français | 17

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive

2012/19/EU for Waste Electrical and Electronic

Equipment and its implementation into national law, electrical and electronic equipment that are

no longer usable must be collected separately

and disposed of in an environmentally correct manner.

Subject to change without notice.

Français

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.V.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Robert Bosch (France) S.A.S.

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaje y operación

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaggio ed uso

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montage en gebruik

www.bosch-garden.com

Teknisk dossier (2006/42/EF, 2000/14/EF) ved:

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

A. W. B. O. i. V. H. M.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montering og drift

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montering och drift

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Bosch Lawn and Garden Ltd., PT-LG/ENS23.

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

jaw Bo i.v. h.w.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montering og drift

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Asennus ja käyttö

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaj ve işletim

www.bosch-garden.com

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ

Kizilay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaż i praca

www.bosch-garden.com

Robert Bosch Sp. z o.o.

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

We See i.v. h:m

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montáž a provoz

www.bosch-garden.com

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montáž a používanie

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Монтиране и работа

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Монтажа и користење

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

jaw Bo i.v. h:m

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaža i Rad

Cilj rukovanja Slika
Obim isporuke 1
Montaža rama za prihvat 2
Sastavljanje korpe za prihvatanje trave 3
Ubacivanje/vadjenje korpe za prihvatanje trave 3
Podešavanje visine sečenja 4
Postavljanje produžnog kabla 5
Uključivanje 5
Uputstva za rad 5
Isključivanje 5
Uputstva za rad 6
Održavanje noža	7
Biranje pribora	8

Srpski | 187

Traženje grešaka

www.bosch-garden.com

Bosch-ov tim savetnika će Vam pomoći kod pitanja u vezi kupovine, primene i podešavanja proizvoda i pribora. Molimo navedie kod svih pitanja i naručivanje rezervnih delova neizostavno broj predmeta sa 10 mesta prema tipskoj tablici baštenskog uredjaja.

Srpski

Bosch-Service

Dimitrija Tucovića 59

11000 Beograd

Tel.: [phone]

Fax: [phone]

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

if we see i.v. h=mc

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

Montaža i rad

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

17.06.2014

www.bosch-garden.com

4

5

Medical procedure diagram showing laparoscopic cable insertion and endoscopic view of laparoscopic cable assembly (no text or labels)

F016 L81 153 | (1.7.14) Bosch Power Tools

Illustration of a lawn mower with motion lines indicating flow or movement (no text or symbols)

Illustration of a robotic device being connected to a cable, with a hand adjusting the component (no text or symbols present)

228

6

7

8

Rotak 33/34/34M/1300-34R

F016800271

Rotak 36/37/37M/1400-37R

F016800272

Rotak 39/40/40M/1700-40R

F 016 800 367

Rotak 42/43/43M/1800-43R

F 016 800 368

Rotak 33/34/34M/1300-34R/36/37/37M/1400-37R

F 016 800 304

Rotak 39/40/40M/1700-40R/42/43/43M/1800-43R

F 016 800 305
