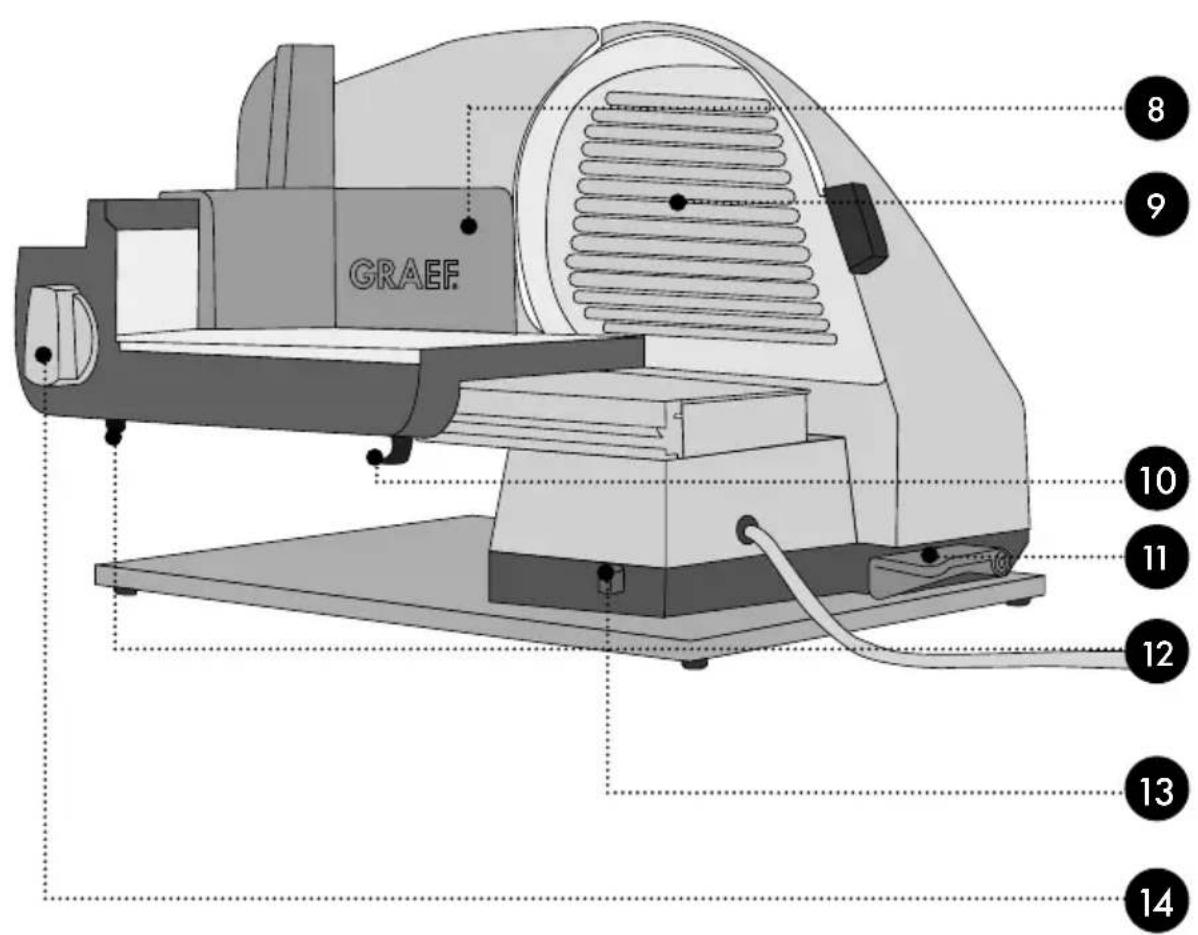

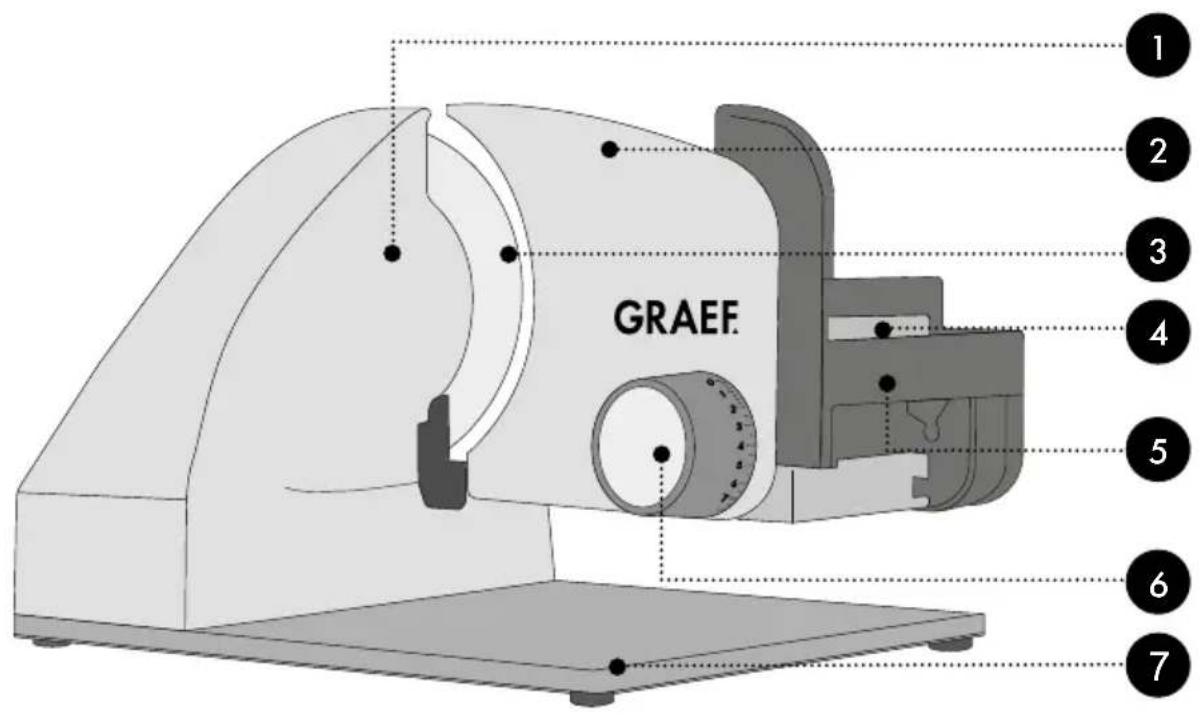

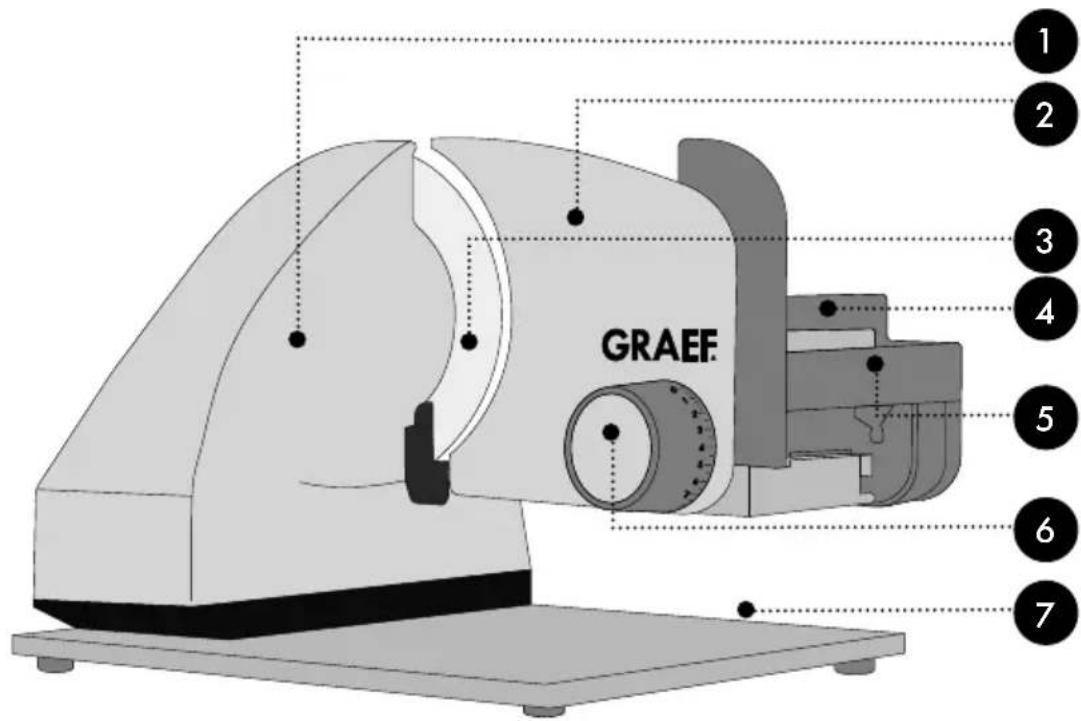

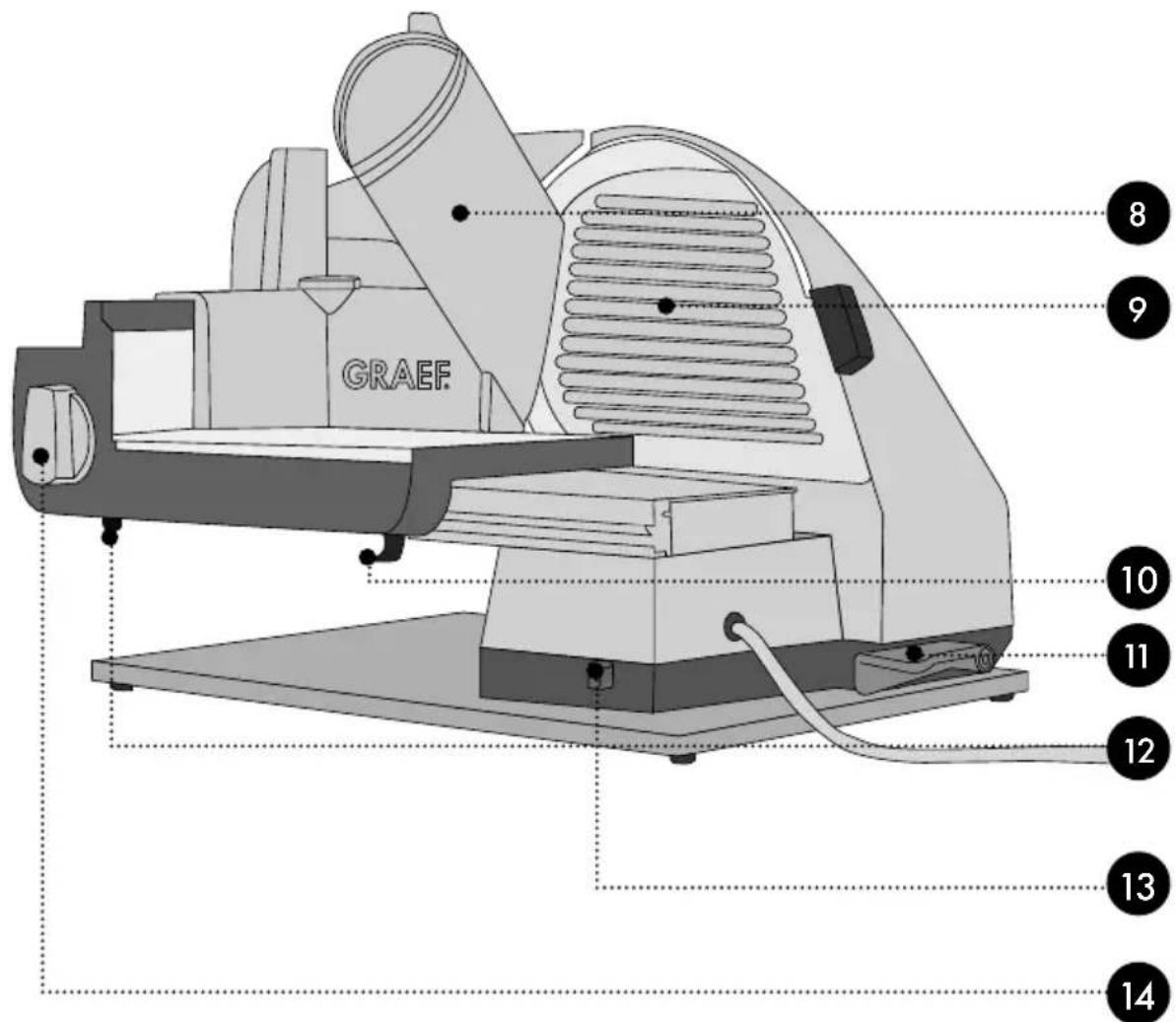

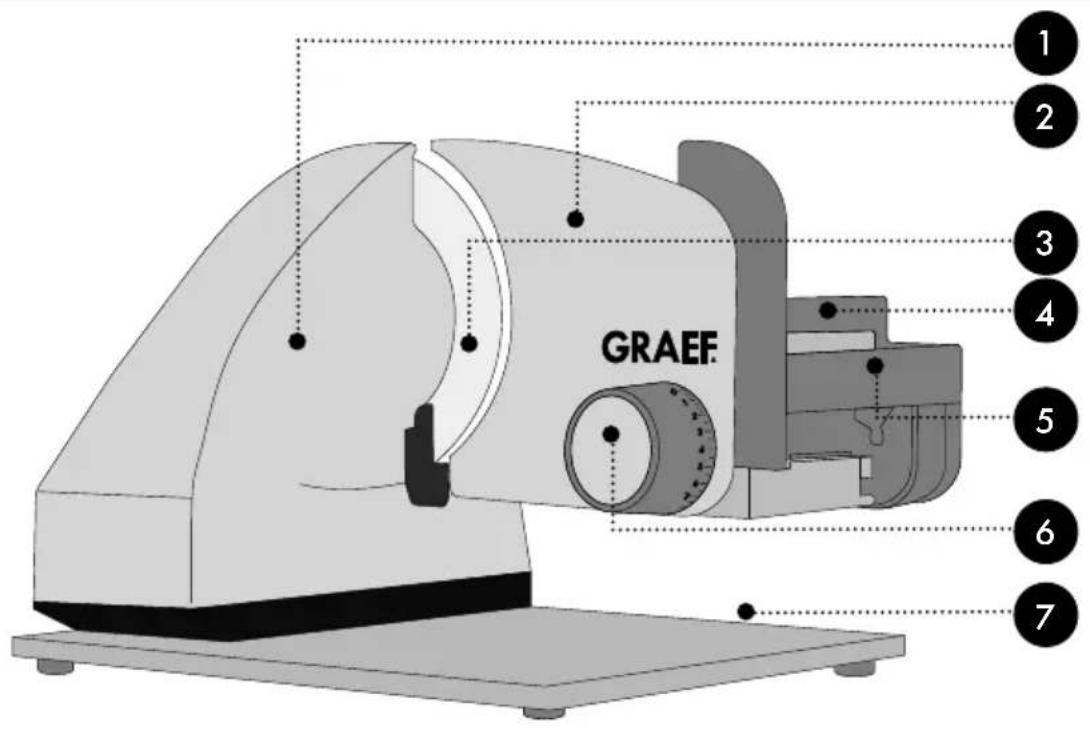

PRODUCT DESCRIPTION MASTER M188EU/ M95

Setting of cutting thickness

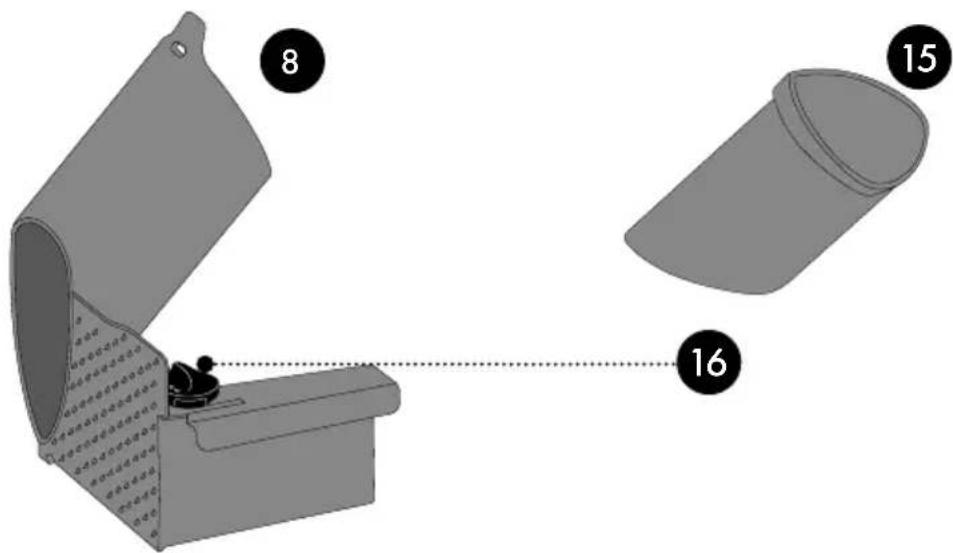

Combi-attachment Food holder & MiniSlice attachment in one

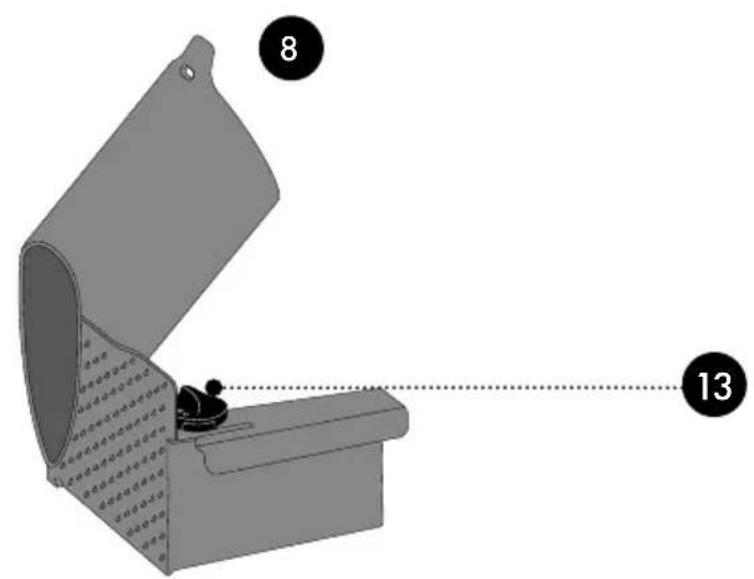

Insert for combination attachment “PRO” (only M95)

Setting of cutting thickness

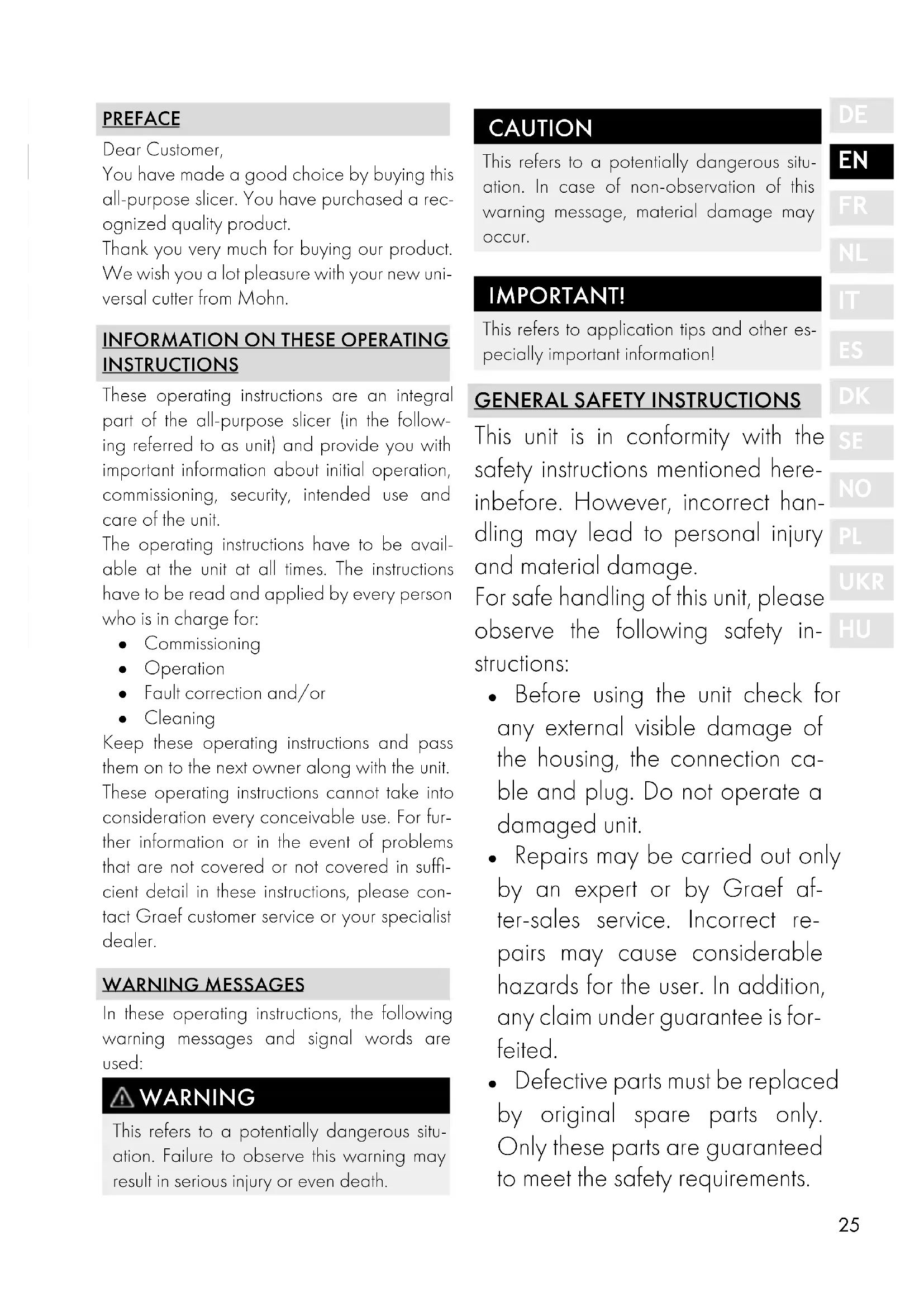

PREFACE Dear Customer, You have made a good choice by buying this all-purpose slicer. You have purchased a rec- ognized quality product. Thank you very much for buying our product. We wish you a lot pleasure with your new uni- versal cutter from Mohn.

INFORMATION ON THESE OPERATING

INSTRUCTIONS These operating instructions are an integral part of the all-purpose slicer (in the follow- ing referred to as unit) and provide you with important information about initial operation, commissioning, security, intended use and care of the unit. The operating instructions have to be avail- able at the unit at all times. The instructions have to be read and applied by every person who is in charge for: ● Commissioning ● Operation ● Fault correction and/or ● Cleaning Keep these operating instructions and pass them on to the next owner along with the unit. These operating instructions cannot take into consideration every conceivable use. For fur- ther information or in the event of problems that are not covered or not covered in suffi- cient detail in these instructions, please con- tact Graef customer service or your specialist dealer. WARNING MESSAGES In these operating instructions, the following warning messages and signal words are used: WARNING This refers to a potentially dangerous situ- ation. Failure to observe this warning may result in serious injury or even death. CAUTION This refers to a potentially dangerous situ- ation. In case of non-observation of this warning message, material damage may occur. IMPORTANT! This refers to application tips and other es- pecially important information!

GENERAL SAFETY INSTRUCTIONS

This unit is in conformity with the safety instructions mentioned here- inbefore. However, incorrect han- dling may lead to personal injury and material damage. For safe handling of this unit, please observe the following safety in- structions: ● Before using the unit check for any external visible damage of the housing, the connection ca- ble and plug. Do not operate a damaged unit. ● Repairs may be carried out only by an expert or by Graef af- ter-sales service. Incorrect re- pairs may cause considerable hazards for the user. In addition, any claim under guarantee is for- feited. ● Defective parts must be replaced by original spare parts only. Only these parts are guaranteed to meet the safety requirements.26 ● This unit can also be used by children from 8 years age as well as by persons with limited physical, sensory or mental abil- ity or with a lack of experience and/or knowledge if they are supervised or have been trained in using the unit and have under- stood the dangers which may result from it. Cleaning and user maintenance must not be carried out by children, unless they are 8 years or older and are super- vised during the process. ● The unit and its connecting cable have to be clear of children who are younger than 8 years. ● Children should be supervised in order to make sure that they do not play with this unit. ● The unit is not intended to be used with an external timer or a separate remote control. ● Always disconnect the connect- ing cable by using plug; do not pull the connecting cable. ● Do not use the unit if the connect- ing cable or plug are damaged. ● Prevent that liquids get on the plug. ● If the connection cable is dam- aged, it must be replaced by the manufacturer, the after-sales ser- vice or a similarly qualified per- son in order to prevent danger. ● Do not open the housing under any circumstances. When touch- ing live connections and chang- ing the electrical and mechani- cal structure, there is danger of electric shock. ● Never touch live parts. They may cause an electric shock or even may lead to death. ● Before connecting the unit, com- pare the connecting data (volt- age and frequency) on the type plate with those of your energy network. These details must cor- respond so that no damage oc- curs to the unit. ● Check to be sure that the con- necting cable has been safe- ly laid. If the cable gets caught somewhere, the unit may fall down from the work surface. ● Packaging materials must not be used for playing. There is danger of suffocation. ● Never use the unit in the vicinity of a heat source. ● Never use the unit outdoors, and always keep it in a dry place. ● Switch the unit off and pull the power cord from the electric socket before changing ac-27

cessories or touching any parts which are rotating during oper- ation of the unit. ● Immediately after use, clean all accessories coming into contact with foodstuffs. ● In the event of improper use of the unit and accessories, the unit might be damaged and there is danger of injury. ● In order to avoid power surges, never use the unit with wet hands or on a damp or wet surface. ● Do not immerse the unit, power cable and the plug in water or other liquids. ● When not in use, turn the adjust- ing knob clockwise past the zero position until it stops so that the stop plate covers the knife edge. ● Do not touch the cutting edge of the blade with your fingers. This is very sharp and can cause severe injuries. ● Before cleaning, make sure that the unit is switched off and is not connected to the power supply. ● Check whether the stop has been closed (the blade edge must be covered). ● The unit must neither be used without the slide nor the combi- attachment / food holder, unless the size and shape of the slicing material allow its use.

DANGER CAUSED BY ELECTRIC

CURRENT WARNING Mortal danger is caused by contact with live cables or components! Please observe the following safety instruc- tions in order to prevent exposure to electric current: ● Do not use the unit if the connecting ca- ble or plug are damaged. ● In this case, you should let the Graef Customer Service or an authorized spe- cialist install a new connecting cable be- fore re-using the unit. ● Do not open the housing under any cir- cumstances. When touching live con- nections and changing the electrical and mechanical structure, there is danger of electric shock. ● Never touch live parts. They may cause an electric shock or even may lead to death. INTENDED USE This unit is not intended for commercial use. The unit and the accessory parts are designed for the preparation of foodstuffs. Do not use them for other purposes. This appliance is intended for domestic and similar use, such as: ● Staff kitchens in shops and offices ● In agricultural estates ● By guests in hotels, motels and other living quarters ● In bed and breakfast boarding houses IMPORTANT! Use only in household-like areas! Another or any exceeding use shall not be considered intended.28 CAUTION The unit can cause dangers, if is not used as intended. ● Use the unit exclusively as intended. ● Observe the procedures described in these operating instructions. Claims of any kind caused by damage by un- intended use shall be excluded. The risk shall be borne sole by the user.

LIMITATION OF LIABILITY

All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowl- edge. No claims may be derived from the specifi- cations, illustrations and descriptions in these instructions. The manufacturer does not assume any liabili- ty for damage caused by: ● Non-observation of the instructions ● Unintended use ● Improper repairs ● Technical modifications ● Use of unapproved spare parts Translations are carried out to the best of knowledge. We do not assume any liability for translation mistakes. The original German text shall be binding only. AFTER-SALES SERVICE If your Graef unit is damaged, please contact your dealer or the Graef Customer Service at +49 (2932) 9703-677 or write an e-mail to service@graef.de. IMPORTANT! If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee. UNPACKING When unpacking the unit, proceed as follows: ● Remove the unit from the box. ● Remove the packaging parts. ● Remove any stickers on the unit. Do not re- move the type plate!

DISPOSAL OF THE PACKAGING

The packaging protects the unit against trans- port damage. The packaging materials are selected according to the environmental com- patibility and disposal-related aspects and can therefore be recycled. The return of packaging into the material cy- cle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the “Green Dot” recycling system (in Germany).

DISPOSAL OF THE UNIT

At the end of its service life, this product can- not be disposed of in normal domestic waste. The symbol on the product and in the operat- ing instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important con- tribution to the protection of our environment. Please ask your municipal administration for the disposal point.

REQUIREMENTS ON THE INSTALLA-

TION LOCATION For safe and faultless operation of the unit, the following requirements of the installation loca- tion have to be met: ● The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity. ● Make sure that the unit cannot topple over. ● Choose the location in such a way that children cannot reach the connecting ca- ble of the unit. ● Do not place the unit on hot surfaces, such29

as hotplates, or near them. ● Never use the unit outdoors, and always keep it in a dry place. ● The unit is not designed for installation in a wall or a built-in cupboard. ● Do not set up the unit in a hot, wet or moist environment. ● The socket has to be easily accessible so that the power cable can be removed eas- ily in case of emergency. ELECTRICAL CONNECTION For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection: ● Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit. In case of uncertainty, contact a qualified electri- cian. ● The socket has to be protected at least by a 10 amps circuit breaker. ● Make sure that the connecting cable is not damaged and not laid across hot surfaces or sharp edges. ● The connecting cable must not be stretched tightly. ● The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation be checked by a skilled electrician. The manufacturer does not as- sume responsibility for damage which has been caused by missing or interrupted pro- tective conductor.

CAUTION The very sharp blade can cut off body parts. Your fingers are especially at risk. For this rea- son never reach into the space between the stop plate and blade as long as the stop plate is not completely closed, i.e. set to below “0“. TRIGGER GUARD The unit has a trigger guard to prevent unau- thorised use. The trigger guard fitted below the slide is pressed backwards with the finger without pressing the safety switch button. The unit can only be switched on when the trigger guard is unlocked. SHORT-TIME SERVICE After a short-time operation of 10 minutes, let the motor cool down for an hour. SLICING MATERIAL The unit can be used to cut bread, ham, sau- sage, cheese, fruit, vegetables, et cetera. IMPORTANT! By no means cut hard matter, such as frozen food, bones, wood, sheet metal, or the like. COMMISSIONING ● Place the enclosed tray, a plate or similar under the unit. ● Select the requested cutting thickness. ● Place the slicing material on to the slide. ● Place the combi-attachment / food holder on the rear wall of the slide and place the combi-attachment against the slicing mate- rial. ● Either press the intermittent switch or turn the knob on the side of the slide to activate the continuous operation. IMPORTANT! The unit must not be used without the com- bi-attachment / food holder, unless the size and shape of the slicing material does not allow its use. As soon as the size and shape of the slicing material allow the use of the combi attachment / food holder, it must be used. ● Press the slicing material slightly against the30 stop plate with the combi-attachment and guide the slide evenly towards the blade. ● After completion of the cutting process, re- lease the intermittent switch or turn the knob on the side of the slide back to its original position in order to switch off the device. IMPORTANT! Soft slicing material (such as cheese or ham) can be cut best when chilled. Soft slic- ing material can be cut better when moved forward more slowly.

COMBI-ATTACHMENT AS MINISLICE

(M188EU/ M20 / M95 ONLY) ● Put the combi-attachment on the slide back wall. ● Turn the locking lever tightly. ● Put the slicing material, e.g. cucumber, car- rots, mushrooms, cocktail tomatoes into the filling shaft. ● ONLY WITH MASTER M95: If necessary, place the insert in the filling shaft. This slides down automatically. Do not press. ● Set the requested cutting thickness. ● Put a tablet, chopping board or plate un- der the blade. ● Either press the intermittent switch or turn the knob on the side of the slide to activate the continuous operation. ● Evenly move the slide towards the blade. ● Release the intermittent switch or turn the knob on the side of the slide back to its original position in order to switch off the device. ● After completion of the cutting process, loosen the locking of the combi-attach- ment. ● After use, clean the combi-attachment. IMPORTANT! Frequent cleaning in the dishwasher can lead to discolouration. Cleaning by hand under running water is recommended. 30° TILTING (ONLY M188 /M90/M95) The tilting function is particularly suitable for cutting bread, hard sausages and vegetables. The tilt function uses the natural gravity of the slicing material for feeding. In order to tilt the unit, proceed as follows: ● - Press the lock button. The unit is unlocked. ● Push the unit upwards so that it is tilted 30°. ● To fix the position, push the swivelling lever upwards. ● The unit is only secured when it audibly locks into place. ● Now you can continue as described un- der "Commissioning". ● After completion of the cutting process, press the swivelling lever down and swivel the unit back again. ● By pressing on the rear part of the profile, the locking bolt clicks into place. CLEANING Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy contamination. SLIDE In order to clean the slide better, it can be re- moved from the unit. ● Press the slide latch upwards with your fin- ger. ● Keep the slide latch pressed and pull the slide towards yourself. ● Use a moist cloth or running water to clean all parts. Once a month, please add some drops of resin-free oil or petroleum jelly to the slide guide. Use a soft cotton wool cloth to remove excessive oil / excessive petroleum jelly.31

IMPORTANT! Do not clean the slide in a dishwasher! BLADE REMOVABLE From time to time, unscrew the blade and clean the unit on the inside. Especially, when “juicy” slicing material (vegetables, fruit, roasts, et cetera) have been cut. Treat the blade with the upmost of care. ● Remove the slide. ● Use the black handle grip to turn the blade cover plate upwards until it is vertical over the motor body. During this action in the ini- tial position, the snap point has to be over- come first of all. ● Now you can remove it from the blade by pressing lightly. ● Undo the blade by using a coin to turn the blade screw clockwise. CAUTION The blade edge is very sharp. Danger of injury! Handle the blade with care. ● Clean the inside of the blade and the black ring using a damp cloth. ● Grease the inside of the blade (blade gear) and the black ring with petroleum jel- ly. Neither use cooking oil nor magarine/ butter, these will resinify over time. ● Inserting the blade takes place in reverse order.

ENSURE VALUE PRESERVATION OF THE

BLADE For long-lasting sharpness and value retention of your Graef blade, werecommend to clean it in regular intervals, especially after cutting up salted meat and/or ham. These foodstuffs contain salts, when they stay on the surface of the blade for a longer period of time, may even form a rust film (even on “stainless” steel). When cutting up slicing material which con- tains a lot of water, such as tomatoes or cu- cumbers, lacking or wrong (too “wet”) clean- ing may also lead to a rust film on the blade surface. For this reason we recommend to use a moist cloth, and if necessary some wash- ing-up liquid, to clean the blade directly after use. From time to time, unscrew the blade and clean the unit on the inside, especially, when “juicy” slicing material (vegetables, fruit, roasts, et cetera) have been cut. Treat the blade with the upmost of care. 10-YEAR GUARANTEE For this product we assume an additional guarantee on the motor of 120 months begin- ning with the date of sale. Your legal warranty claim in conformity with Section 439 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The guarantee does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport dam- age provided we are not responsible shall be excluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our represenations. In case of justi- fied complaints, we shall repair the defective product or replace it by a product without de- fects at our discretion.32
