Brand	Boretti
Model	PRO 100 IX
Product type	Wall-mounted range hood
Dimensions (W x H x D)	100 cm width, height adjustable (telescopic duct)
Weight	Approximately 15 kg
Power supply	220-240 V ~ 50 Hz / 220 V ~ 60 Hz, class I, HO5VVF 3x0.75 mm² cable with 10/16A earth plug
Suction power	3 speeds + intensive speed (10 min timed)
Noise level	Not specified, but quiet motor included
Lighting	Lamp (type not specified, do not exceed prescribed wattage)
Controls	Touch controls + remote control (LR03-AAA 1.5 V batteries)
Operating modes	External extraction (default) or recirculation (with charcoal filters and deflector)
Recommended installation height	650 to 700 mm above the cooking surface
Outlet diameter	Not specified, but soundproofing hose and non-return valve supplied
Metal filters	Washable by hand or in dishwasher (clean every 2 months)
Carbon filters	Replaceable (saturation indicator after 200 h)
Saturation indicator	Flashing LED F for metal filters (100 h), LED F+C for charcoal (200 h)
Special functions	10 min intensive timer, saturation indicator reset, extraction/recirculation switch
Safety	Minimum distance 650 mm, omnipolar disconnection 3 mm, do not flambé under the hood
Included accessories	Remote control, telescopic ducts, back panel, silent packs, valve, soundproofing hose, deflector (recirculation), metal filters
Spare parts	Filters, lamps, remote control, remote motor (optional)
Warranty	Contractual warranty (purchase receipt required), does not cover consumables (lamps, filters)
Standards	IEC 335, Low Voltage Directive 73/23 and EMC Directive 89/336, CE marking
Recycling	Compliant with WEEE, do not dispose of with household waste

Frequently Asked Questions - PRO 100 IX BORETTI

What is the recommended installation height for the Boretti PRO 100 IX hood?

The ideal height is between 650 mm and 700 mm above the cooking surface. It is forbidden to install the hood less than 650 mm to avoid any risk of filter ignition.

How to switch from extraction mode to recirculation mode?

With motor and lighting off, press the + button for 10 seconds. Two LED flashes confirm switching to recirculation. To return to extraction, repeat the operation: one LED flash confirms the return.

How to clean the metal filters?

Metal filters are cleaned by hand with a liquid detergent in warm water, or in the dishwasher. Cleaning every 2 months is recommended for normal use.

When should I replace the carbon filters?

Carbon filters must be replaced when LEDs F and C flash (after 200 hours of operation). Follow the recirculation procedure to install them.

How to reset the filter saturation indicator?

Turn off the light and motor, then press the + button for 3 to 4 seconds. LEDs F and C flash to confirm reset.

What type of batteries to use for the remote control?

The remote control uses standard alkaline batteries LR03-AAA, 1.5 V. Observe polarity and do not dispose of batteries in fire.

Can I install the hood above a gas hob?

Yes, but strictly respect the minimum distance of 650 mm and ensure sufficient ventilation to avoid a depression greater than 0.04 mbar. Never flambé under the hood.

What to do if the hood does not turn on?

Check the electrical connection: mains voltage (220-240 V), plug and omnipolar switch. If the problem persists, contact a qualified installer.

How to enable or disable the carbon filter saturation indicator?

With light and motor off, press the + button for 10 seconds. One flash of LEDs F and C means function disabled; two flashes means enabled.

Where to find the serial number of my hood?

The serial number is printed on the rating plate located inside the hood. It is necessary to order spare parts.

USER MANUAL PRO 100 IX BORETTI

INSTRUCTIONS FOR INSTALLATION AND DIRECTIONS FOR USE

FITTING THE APPLIANCE

OPERATION

USEFUL HINTS

MAINTENANCE

GUARANTEE AND AFTER-SALES-SERVICES

REMARKS

D INHALT10

NETZANSCHLUSS

MONTAGEHILFEN

MONTAGE DES GERÄTES

BETRIEB DES GERÄTES

NUTZUNG

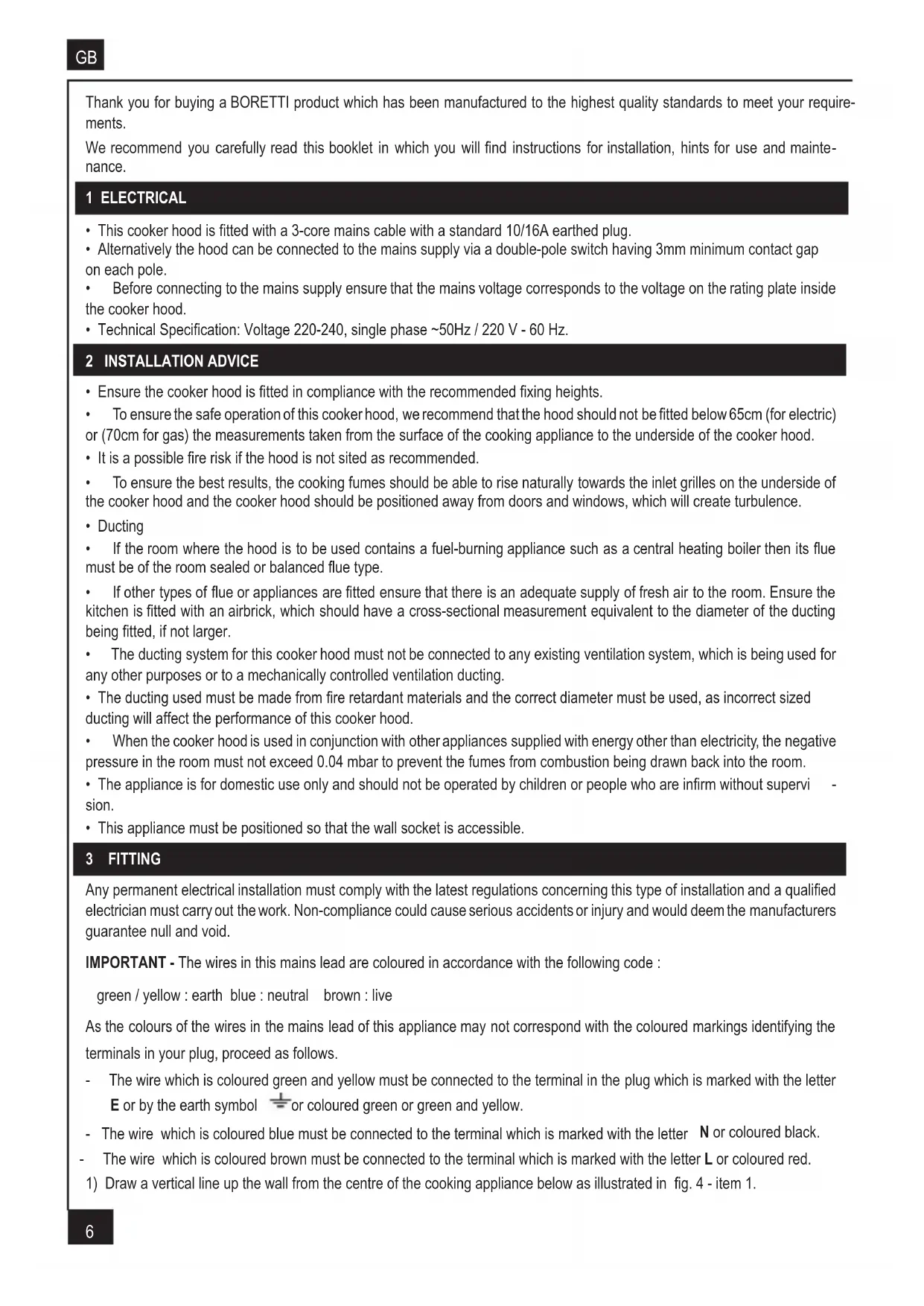

Thank you for buying a BORETTI product which has been manufactured to the highest quality standards to meet your requirements.

We recommend you carefully read this booklet in which you will find instructions for installation, hints for use and maintenance.

1 ELECTRICAL

• This cooker hood is fitted with a 3-core mains cable with a standard 10/16A earthed plug.
• Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm minimum contact gap on each pole.
• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.
• Technical Specification: Voltage 220-240, single phase 50Hz / 220V - 60Hz .

2 INSTALLATION ADVICE

• Ensure the cooker hood is fitted in compliance with the recommended fixing heights.
  To ensure the safe operation of this cooker hood, we recommend that the hood should not be fitted below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking appliance to the underside of the cooker hood.
• It is a possible fire risk if the hood is not sited as recommended.
  To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles on the underside of the cooker hood and the cooker hood should be positioned away from doors and windows, which will create turbulence.
  Ducting
  If the room where the hood is to be used contains a fuel-burning appliance such as a central heating boiler then its flue must be of the room sealed or balanced flue type.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of fresh air to the room. Ensure the kitchen is fitted with an airbrick, which should have a cross-sectional measurement equivalent to the diameter of the ducting being fitted, if not larger.
• The ducting system for this cooker hood must not be connected to any existing ventilation system, which is being used for any other purposes or to a mechanically controlled ventilation ducting.
• The ducting used must be made from fire retardant materials and the correct diameter must be used, as incorrect sized ducting will affect the performance of this cooker hood.
• When the cooker hood is used in conjunction with other appliances supplied with energy other than electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from combustion being drawn back into the room.
• The appliance is for domestic use only and should not be operated by children or people who are infirm without supervi sion.
• This appliance must be positioned so that the wall socket is accessible.

3 FITTING

Any permanent electrical installation must comply with the latest regulations concerning this type of installation and a qualified electrician must carry out the work. Non-compliance could cause serious accidents or injury and would deem the manufacturers guarantee null and void.

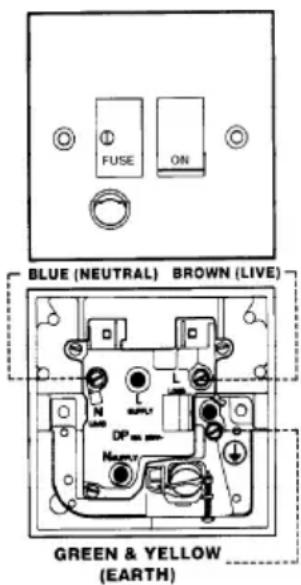

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

green / yellow : earth blue : neutral brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

• The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol 12 or coloured green or green and yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

1) Draw a vertical line up the wall from the centre of the cooking appliance below as illustrated in fig. 4 - item 1.

2) Mark a point on the vertical line which corresponds to the lower canopy position (The height H of the splashback item B is 450mm ) and draw a horizontal line parallel to the stove top at a distance of 580 - 18mm above this point.
3) Mark the 2 hole centres for the canopy fixing cup screws item T at a distance both left and right of the vertical line of 312mm as illustrated in fig. 4.
4) Place one of the brackets fig. 4, item 2 on the wall 2mm from the ceiling or from the upper limited of the chimney aligning the notches on the bracket centrally over the vertical line and mark the hole centres
5) Place the second of the brackets item 2 on the wall aligning the notches on the bracket centrally over the vertical line, at a distance X, which is equivalent to the height of the upper chimney section item S, mark the hole centres and then drill the holes using an 8 mm masonry drill and fix the cup screws and the 2 brackets using the plastic rawl plugs provided.
6) Hook the canopy item C onto the cup screws item T as illustrated fig. 2. The canopy should be secured to the wall using the two key hole slots, whose centres are located 61mm below cup screws. Unhook the canopy, drill the holes using a 6.5mm masonry bit and insert the rawl plug.
7) Draw a horizontal line through the vertical level with the back edge of the cooking surface. Place the splashback against the wall onto the top of the cooking appliance. It could be fix by rawl plugs and screws on the bottom.
8) Hook the canopy item C onto the cup screws item T as illustrated in fig. 2. The canopy can be adjusted horizontally and vertically ensuring the canopy aligns with the splashback and the cooking appliance, by turning the adjustment screw item V. The canopy can be adjusted so that it aligns with the wall by turning the adjustment screw item V2.
9) Secure the canopy to the wall using the security fixing screw as illustrated in fig. 3.
10) Place the noise-reduction tube item 4 over the round outlet on top of the canopy while pressing down until it snaps into position (Fig. 5), then the non-return backflow flaps item 3 over the noise-reduction tube and duct the canopy to the outside using ducting 150mm (6 ins) manufactured from fire retardant material, produced to BS.476 or DIN 4102-B1. Before fitting the chimney to the canopy make the electrical connection as described in the section titled "ELECTRICAL WIRING", see as well UK specifications. When the electrical connection has been made, test the lights and the fan motor. Fit the silent pack item 5 as illustrated in fig. 6, operation 1 and 2 by clamping the two plastic rings on either side of the motor diffuser and fitting together noise-reduction casings and plastic rings.

IN THE REMOTE INSTALLATION MODE :

a. Connect the ducting 200mm (8ins) onto the round outlets on the top of the canopy and onto the round inlet of the motors at a distance and secure the connections with appropriate clamping rings or adhesive tape.
b. Connect the earth connection onto the terminal marked with the earth symbol and clamp the connector onto the motor housing as illustrated Fig. 12.
11) The chimney stack consists of two sections. Fit the upper section item S first by expanding the chimney slightly to allow it to clamp around the brackets item 2. Secure the chimney stack to the brackets using the four self tapping screws provided. Fit the lower chimney section item I by expanding the chimney slightly to allow it to clamp around the upper chimney section item S, and the bracket on top of the canopy item C as illustrated in fig. 5. Secure the chimney stack to the bracket using the two self tapping screws provided.
12) Place the 3 metal grease filters as illustrated in fig. 11.

- RECIRCULATION

1) Fit the recirculation spigot item R over the round outlet on top of the canopy while pressing down on the spigot until it snaps into position as illustrated in fig. 7.
Note : The two recirculation ducts item G must be fitted onto the recirculation spigot R before fitting onto the canopy item C
2) Remove the metal grease filters and place one charcoal filter at a time over the grilles on either side of the motor housing and turn clockwise into position ( A ) as illsutrated in fig. 8.
3) Fit together noise-reduction casings and charcoal filters without the plastic rings on either side of the motor housing as illustrated in fig. 6, operation 2.

4 OPERATION

A - EXTRACTION OR RECYCLING

Your cooker hood is supplied in the extraction mode. To use the cooker hood in the recirculation mode re-programme the hood as follows:

Starting in the recirculation mode

Press the ^+ button for 10 seconds (while the motor and lights are switched OFF') and the two LED lights will flash twice to indicate confirmation that the cooker hood is in the recycling mode.

Reverting to the extraction mode

Press the +^ button for 10 seconds (while the motor and lights are switched 'OFF') and the two LED lights will flash once to indicate confirmation that the cooker hood is in the extraction mode.

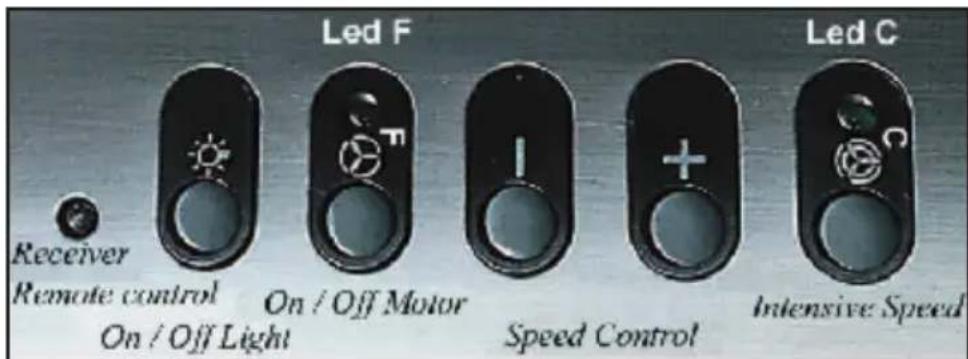

B-BASICINSTRUCTIONS

Lighting

Press Button 1 to switch 'ON' the lights.

Motor

Press LED button 2 to switch ON the fan motor, the LED F will illuminate to confirm the motor is switched ON, and adjust the speed of the fan motor by pressing the Button +' and -'. The fan speed will be increased if constant pressure is kept on the (+) button.

Press LED button 5 to obtain the boost position for maximum effect and the LED C will illuminate to confirm fan is switched ON'.

C - COMPLEMENTARY INSTRUCTIONS

Automatic pre-set stop for the boost speed after 10mn

To obtain the best performance it is advisable to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 10 minutes after finishing.

Press LED button 5 to switch 'OFF' the fan motor immediately.

Indication of saturation of the metal grease filters

After 100 hours use, one quick flash of the LED F will indicate that you must clean the metal grease filters. (See chapter on 'Maintenance').

This indication is not available when the fan motor is switched OFF.

Indication of saturation of the active charcoal filter

After 200 hours use, two quick flash of the LEDs F & C will indicate that you must replace the active charcoal filter and clean

the metal grease filters. (See chapter on 'Maintenance').

To reset the 200-hour timer the motor and lights must be switched 'OFF'.

Push the LED button ^+ for 10 seconds.

One flash of the LED lights F and C = function is switched 'OFF'.

Two flashes of the LED lights F and C = function is switched 'ON'.

To reset the 100 hours timer back to zero requires the motor and lights must be switched 'OFF'; then and proceed as follows:

Press the LED button ^+ for 3 to 4 seconds and the LED lights F and C will flash to confirm the programme has been reset to zero.

Instructions for replacing the active charcoal filter are given in the chapter on 'Recycling'.

Setup Process

Modification: How to adjust the internal microprocessor data to suit the type of motor fitted to this appliance and the supply frequency of 50 or 60Hz

1 - Disconnect the cooker hood from the mains supply.
2 - Push the button 0/1 MOTOR.
3 - Reconnect the mains supply while pushing the button 0/1 MOTOR for at least 2 seconds.
4 - Slacken the button 0/1 MOTOR (the LEDs flash for about 3 seconds : capacity's confirmation SETUP PROCESS).
5 - During the flashing time select the motor type used while pushing one of the 5 buttons according to the following board:

BUTTON 0/1 Light : Motor 8/28 & 8/50 220-240 V AC / 50 Hz.

BUTTON 0/1 Motor : Motor 8/28 & 8/50 220-240 V AC / 60 Hz.

BUTTON Speed (-) : Motor PRO 220-240 V AC / 50 Hz.

BUTTON Speed (+) : Motor PRO 220-240 V AC / 60 Hz.

BUTTON Intensive speed : Motor K40 & K50 220-240 V AC / 50 Hz.

REMOTE CONTROL HANDSET

Caution, the remote control must be fitted with standard LR03-AAA size 1.5V zinc-carbon alkaline batteries as illustrated Fig. 9. These batteries should give a long life and constant discharge throughout their life.

These batteries must be disposed of properly and could explode if damaged or exposed to heat. Do not dispose of on fire.

5 USEFUL HINTS

• To obtain the best performance it is advisable to switch 'ON' the cooker hood a few minutes (in the boost setting) before you start cooking and you should leave it running for approximately 15 minutes after finishing.
• IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD
• Do not leave frying pans unattended during use as over-heated fat and oil might catch fire.
• Do not leave naked flames under this cooker hood.
• Switch 'OFF' the electric and gas before removing pots and pans.
• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate and cooker hood simultaneously.

6 MAINTENANCE

Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean; a build up of fat or grease can be a fire hazard.

Casing

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing a mild detergent and wrung out.
• Never use excessive amounts of water when cleaning particularly around the control panel.
• Never use scouring pads or abrasive cleaners.
• Always wear protective gloves when cleaning the cooker hood.

Metal Grease Filters

The metal grease filters absorb grease and dust during cooking to help keep the cooker hood clean inside. The grease filters should be cleaned once a month or more frequently if the hood is used for more than 3 hours per day.

To remove and replace the metal grease filters

• Remove the metal grease filters one at a time by releasing the catches on the filters; the filters can now be removed.
• The metal grease filters should be washed, by hand, in mild soapy water or in a dishwasher.
• Allow to dry before replacing.

Active Charcoal Filter

The charcoal filter cannot be cleaned. The filter should be replaced at least every three months or more frequently if the hood is used for more than three hours per day.

To remove and replace the filter

• Remove the metal grease filters.
• Press against the two retaining clips, which hold the charcoal filter in place and this will allow the filter to drop down and be removed.
• Clean the surrounding area and metal grease filters as directed above.
• Insert the replacement filter and ensure the two retaining clips are correctly located.
• Replace the metal grease filters.

Extraction tube.

Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regulations with regard to the extraction of ventilated air.

Lighting.

If the lamp fails to function check to ensure it is fitted correctly into the holder. If lamp failure has occurred then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not fit a lamp with a higher rating.

7 GUARANTEE AND AFTER SALES SERVICE

• In the event of any malfunction or anomaly, notify your fitter who will have to check the appliance and its connection.
• In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who have the necessary tools and equipment to carry out any repairs properly. Repairs carried out by other persons will invalidate the guarantee.
  Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of your cooker hood.
• When ordering spare parts quote the model number and serial number written on the rating plate, which is found on the casing behind the grease filters inside the hood.
  Proof of purchase will be required when requesting service. Therefore, please have your receipt available when requesting service as this constitutes the date from which your guarantee commenced.

This Guarantee does not cover :

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or filters or removable parts of glass or plastic.

These items are considered to be consumable under the terms of this guarantee.

8 REMARKS

Your appliance comply with harmonised standards CEI 335 and the Europeans' directives (Low voltage) 73/23 and (Electromagnetic compatibility) 89/336.

3 INSTALLATIE VAN HET APPARAAT

MAJ (UPDATE) : 24/07/06

TECHNICAL INFORMATION (UK)

It is dangerous to alter the specifications or attempt to modify this product in any way.

ELECTRICAL SUPPLY

VOLTAGE: (50Hz)

230V

POWER CONSUMPTION:

410W

FAN MOTOR:

350W

LIGHT BULB:

3 × 20W

60W

PERFORMANCE SPEEDS Electronic

CAPACITY m³/h*

770-875

CAPACITY m^3/h^**

930-1050

PRESSURE PA 340

NOISE LEVEL dBA***68-39

*IEC 61591 method for cooker hoods in evacuation mode - ** IEC 61591 method with free delivery - *** IEC 60704-2-13 method This appliance conforms to BS.800:1988 and EEC Directive No. 78 308 regarding suppression of radio and television interference.

Note: CE Marking certifies that this appliance complies with the requirements laid down in EEC directive 89:336 (Electromagnetic compatibility) and subsequent modifications and Low Voltage directive 72/23/E.

ELECTRICAL CONNECTION

THIS APPLIANCE MUST BE EARTHED

ELECTRICAL REQUIREMENTS

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

ELECTRICAL CONNECTION

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

This appliance is fitted with two 3 core mains cable and must be permanently connected to the electricity supply via two double-pole switch having 3mm minimum contact gap on each pole. Two Switched Fuse connection units to BS.1363 Part 4, fitted with a 3 Amp. fuse are a recommended mains supply connection accessory to ensure compliance with the safety requirements applicable to fixed wiring infractions.

The wires in this mains lead are coloured in accordance with the following code:-

Green & Yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit, proceed as follows:-

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter 'E' or by the earth symbol or coloured green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red.

GB - Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic product.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

This appliance complies with European regulations on low voltages, EEC Directive 73/23 on electrical safety, and with the following European regulations: EEC Directive 89/336 on electromagnetic compatibility and EEC Directive 93/68 on EC marking.

E [e-mail]

www.boretti.com

BORETTI s.l.
