USER MANUAL RC 8 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/32

TEAM RC 8 230V~ 50Hz 300W I/B Version 100713 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

5. Lid with feeding tube

6. Pusher / measuring cup

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

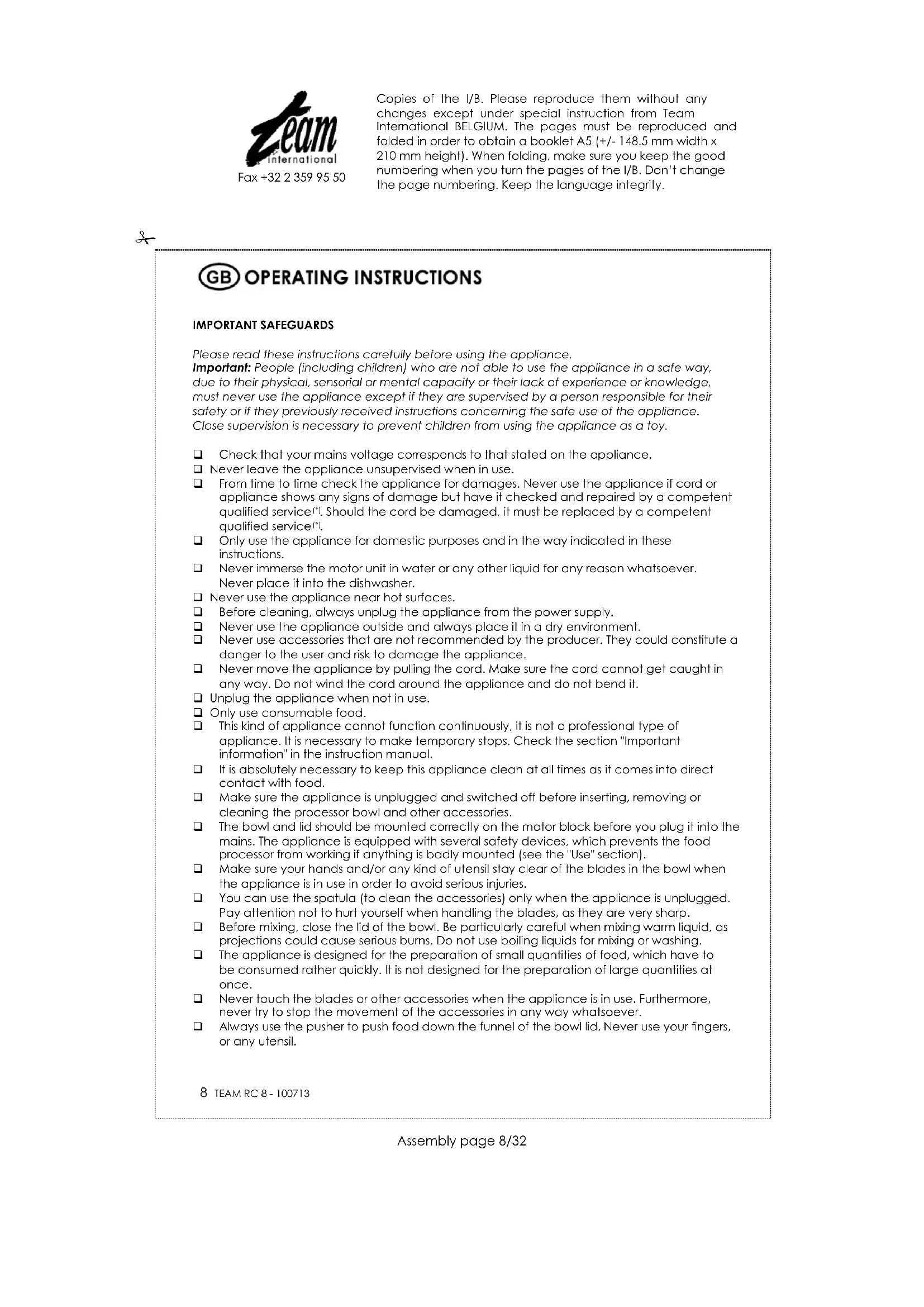

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service

Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the motor unit in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Unplug the appliance when not in use. Only use consumable food. This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Make sure the appliance is unplugged and switched off before inserting, removing or cleaning the processor bowl and other accessories. The bowl and lid should be mounted correctly on the motor block before you plug it into the mains. The appliance is equipped with several safety devices, which prevents the food processor from working if anything is badly mounted (see the "Use" section). Make sure your hands and/or any kind of utensil stay clear of the blades in the bowl when the appliance is in use in order to avoid serious injuries. You can use the spatula (to clean the accessories) only when the appliance is unplugged. Pay attention not to hurt yourself when handling the blades, as they are very sharp. Before mixing, close the lid of the bowl. Be particularly careful when mixing warm liquid, as projections could cause serious burns. Do not use boiling liquids for mixing or washing. The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once. Never touch the blades or other accessories when the appliance is in use. Furthermore, never try to stop the movement of the accessories in any way whatsoever. Always use the pusher to push food down the funnel of the bowl lid. Never use your fingers, or any utensil. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Never block the safety device of the appliance. The processor bowl can simply be washed under running water. Be careful not to hurt yourself when handling, removing, cleaning or emptying the bowl.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. IMPORTANT INFORMATION This appliance is not intended for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes. BE CAREFUL!

1) Your appliance is fitted with a security device on the pouring jug allowing the

functioning of the appliance only when the jug and its lid are correctly placed on the motor base. If those conditions are met and the appliance does not start, call your after sales service.

2) Your appliance is also fitted with a security device on the lid. If the lid is not fitted

correctly, the appliance won't start. USE Make sure the appliance is unplugged and the ON/OFF & speed switch is in position “0”. Place the processor bowl onto the shaft and make sure that the three lugs at the bottom of the bowl fit into the three small slots of the base and turn the bowl clockwise until it clicks into place. Make sure the bowl is well fitted, because otherwise the appliance will not work. Depending on the desired preparation, you will have to use various accessories. For more details, please check the instructions below. Place the lid with feeding tube on the bowl in such a way that the arrow on the lid is slightly to the right of the handle of the bowl and turn it clockwise until the arrow on the lid ends up right above the middle part of the handle of the bowl. Caution: as long as the lid is not locked properly, the appliance will not work. Plug in the appliance. Turn the ON/OFF & speed switch up to speed 1 or 2 depending on the preparation. If you wish to use the appliance punctually, turn the ON/OFF & speed switch to position “P” ("pulse") for one or two seconds. Do not use the pulse function for a longer time. When you let the switch go, it will switch back to “0” automatically. The pulse function is perfect for making milkshakes. FUNCTIONS a) Chopping Make sure that the appliance is unplugged and that the ON/OFF & speed switch is in "0" position. Place the processor bowl onto the shaft and make sure that the three lugs at the bottom of the bowl fit into the three small slots of the base and turn the bowl clockwise until it clicks into place. Place the blade support with the chopping blade onto the shaft. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Then put the ingredients into the bowl. We advise you to cut ingredients like meat or vegetables into pieces beforehand in order to get a homogeneous preparation. Place the lid with feeding tube onto the processor bowl as indicated in paragraph “Use” making sure the metal shaft of the lid gets into the hole in the middle of the blade support. Plug in the appliance. For chopping, select speed 1 or 2. CAUTION: Do not try to chop very hard food (such as ice, sugar or coffee grains…). When you use your appliance in an intensive way, it is necessary to make breaks of at least 1 minute between every operation to let the motor cool down. CAUTION: The metal chopping blade is very sharp. b) Grating / Slicing Make sure that the appliance is unplugged and that the ON/OFF & speed switch is in "0" position. Place the processor bowl onto the shaft and make sure that the three lugs at the bottom of the bowl fit into the three small slots of the base and turn the bowl clockwise until it clicks into place. Slide the accessory for grating/slicing onto the support with the grating blade upwards for grating or with the slicing blade upwards for slicing. Place the whole on the shaft. Place the lid with feeding tube onto the processor bowl as indicated in paragraph “Use” making sure the metal shaft of the lid gets into the hole in the middle of the blade support. Cut the potatoes, carrots, cucumbers etc. into pieces and place the ingredients into the funnel of the bowl lid. Use the pusher to push food down the funnel. Never use your fingers or any other utensil. Plug in the appliance and turn the ON/OFF & speed switch to “1” to start. Adjust the speed if necessary. Always turn the ON/OFF & speed switch to “0” and unplug the appliance before emptying the bowl and be careful when handling the blades, as they are very sharp. When you use your appliance in an intensive way, it is necessary to make breaks of at least 1 minute between every operation to let the motor cool down. CLEANING Unplug the appliance. Turn the lid with feeding tube anticlockwise to take it off. Remove the accessories and the bowl. Be careful not to hurt yourself with the blades. Rinse the processor bowl and the accessories out and let them dry. Use a sponge if necessary. Be careful not to hurt yourself with the blades. The motor unit can only be cleaned with a slightly damp cloth. IMPORTANT: ! Never put the motor unit under running water or into the dishwasher, but clean it with a slightly damp cloth. ! Handle the blades carefully when cleaning. They are extremely sharp.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
