USER MANUAL ST 1 ET TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

Front cover page (first page)

230V~1600Wnom/1800Wmax I/B Version 051110Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

4Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

3. Handle of the hose

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

8Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

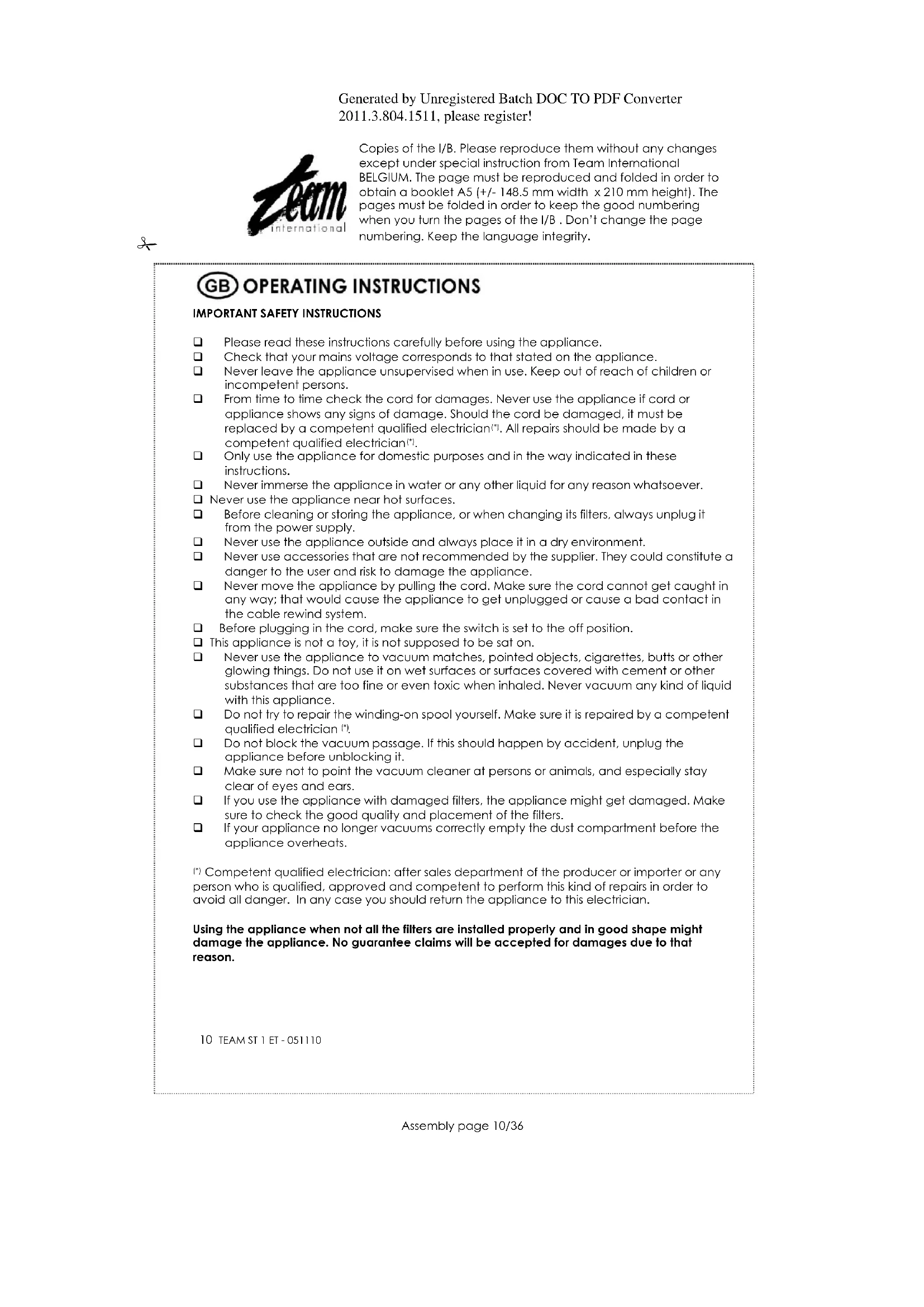

Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician

. All repairs should be made by a competent qualified electrician

Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never use the appliance near hot surfaces. Before cleaning or storing the appliance, or when changing its filters, always unplug it from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the supplier. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way; that would cause the appliance to get unplugged or cause a bad contact in the cable rewind system. Before plugging in the cord, make sure the switch is set to the off position. This appliance is not a toy, it is not supposed to be sat on. Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance. Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it. Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears. If you use the appliance with damaged filters, the appliance might get damaged. Make sure to check the good quality and placement of the filters. If your appliance no longer vacuums correctly empty the dust compartment before the appliance overheats.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

Remove all packaging material from the appliance and its accessories. Insert the hose (4) in the connection inlet of the appliance (10) by having the release button facing upward, and press until it clicks (Fig. 1). To remove the hose, press its release button and pull at it. Assemble the handle of the flexible hose (3) on the upper part of the tube (2) and then assemble the floor brush (1) on the other end of the tube, as indicated on figures 2 and 3. The length of the telescopic tube can be adjusted. To do so, slide the adjusting button and pull the desired tube length, then release the button (fig. 4) The floor brush (1) possesses 2 positions which allow you to clean all kinds of surfaces very easily, simply by changing the position adequately: Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.

OPERATION First of all, check if the filters are placed properly in the appliance, as vacuum cleaning without filter might damage the motor of the appliance irreparably. (see paragraph FILTERS for their use and installation). CAUTION: In order to avoid important electric disturbance when starting the appliance, it is fitted with a "soft start" feature. This feature prevents the motor from starting at its full power. As a result, there might be a short time-lag (1 or 2 seconds) between the moment you press the on/off switch and the moment the appliance really starts. This is normal. Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch (9). You can adjust the suction power manually with the wind force adjuster, or with the electronic power control switch (8). Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors. With the accessory supplied you can clean surfaces that are hard to reach, such as furniture (use the crevice tool) and delicate surfaces such as curtains (use the small brush). This accessory can be mounted on the handle or on the tube.

Stop the vacuum cleaner by depressing on the on/off switch. Disconnect plug from electrical outlet. Simply press lightly with your foot on cable rewind button on top of the cleaner. If the cord does not enter completely in the appliance, pull 50 cm of the power cord out of the appliance and try again. After use we advise you to empty the dust collector to avoid smells and mildew that could be caused by damp dust particles that could have been vacuumed, and also to guarantee an optimal efficiency during the next use. To do so, see below.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

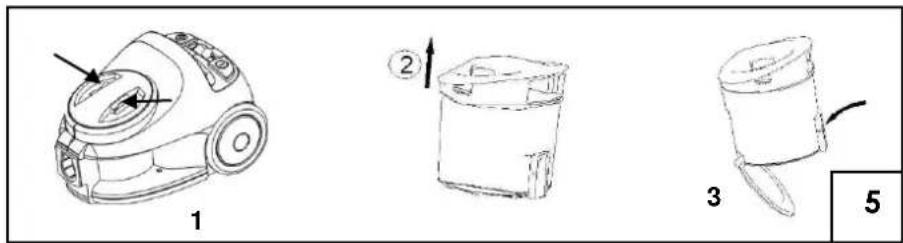

It is necessary to remove the hose from the connection inlet first. Press the release buttons (5) simulateneously and pull out the dust collector (fig. 5, step 1 and 2). Press the locking button of the dustcup's lower cover (fig. 5, step 3). Carry away the dust- glass cap and spill the rubbish. Close the collector and put it back in the appliance until it locks. FILTERS Your appliance consists of an accordion filter situated in the dust collector and of an air outlet filter situated in the back of the appliance. Cleaning the accordion filter If you notice that even after having emptied the dust collector, the suction power is reduced, clean the accordion filter. To do so: Take out the dust collector as described above. Rotate the dust collector's clapboard until it is unlocked (fig. 6, step 1). Take out the filter unit (fig. 6, step 2). Rotate the accordion filter from the dust collector's clapboard until it is unlocked (fig. 6, step 3). Rinse the bracket and accordion filter in water, necessary with help of a soft brush, and dry them completely (fig. 7). Never put them in the washing machine and never dry them with a hair dryer. To put the accordion filter back, proceed inversely. Cleaning the air outlet filter The air filter is situated in the air outlet grid in the back of the appliance and guarantees fresh air during cleaning. It should be cleaned approximately three times a year or when it becomes visibly solid. Unplug the appliance, open the air outlet grid and remove the filter (fig. 8). Shake it to remove the dust, put it back in the appliancet and close the grid. NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters. Cleaning the dust collector Clean the inside of the dust collector with a damp cloth or sponge, but make sure it is totally dry before using the appliance again. PRACTICAL HINTS When cleaning stairs, we advise you to keep the unit in a vertical orientation. In horizontal position, the appliance has a storage facility in the back of the appliance, that allows storing the floor brush, tube and flexible hose (for instance to move furniture).Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.

If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full dust collector or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label, your appliance should not be disposed of as unsorted municipal waste but should either be returned to the vendor, or disposed of in a separate collection point performing waste recovery by means of reuse, recycling or use for other applications.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B . Don‟t change the page numbering. Keep the language integrity.
