ST 21 E - Vacuum Cleaner TEAM - Free user manual and instructions

Product type	Bagged vacuum cleaner
Brand	TEAM
Model	ST 21 E
Power supply	Mains 220-240 V ~ 50 Hz
Bag type	Dust bag (disposable)
Bag full indicator	Yes, indicator light
Automatic cable winder	Yes, button-operated
Cable length	Approximately 5 m (estimated)
Usage	Domestic, indoors only
Included accessories	Flexible hose, crevice tool? (not specified)
Filter maintenance	Clean regularly as per manual
Bag replacement	When indicator lights up
Safety	Do not use outdoors, avoid contact with water
Repairability	Entrust to a qualified authorized service center
Automatic shut-off	Not mentioned

Frequently Asked Questions - ST 21 E TEAM

How to use the ST 21 E vacuum?

Insert the hose into the vacuum. Pull the power cord up to the red mark. Plug into a wall outlet and press the on/off button.

How to change the dust bag?

When the bag full indicator lights up, press the button under the handle to open the cover. Replace the bag, ensuring it is properly installed.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified service (manufacturer's after-sales service or importer).

Can I use the vacuum outdoors?

No, the vacuum is intended for indoor domestic use only. Do not use it outdoors and store it in a dry place.

How to clean the vacuum?

Always unplug the appliance before cleaning. Never immerse the vacuum in water or any liquid. Use a damp cloth for the exterior.

Why does the bag full indicator light up?

This means the dust bag is full or clogged. Replace it with a new one to maintain suction performance.

How to rewind the cable?

Press the cable winder button on the appliance. The cord retracts automatically. Do not pull on the cable.

Can I use non-recommended accessories?

No, using accessories not recommended by the manufacturer may be dangerous and damage the appliance.

Where to get my ST 21 E vacuum repaired?

Contact the manufacturer's customer service, the importer, or a qualified and authorized person to carry out repairs.

What to check before first use?

Check that the mains voltage matches the appliance voltage. Inspect the cord and appliance for any damage. Read the manual carefully.

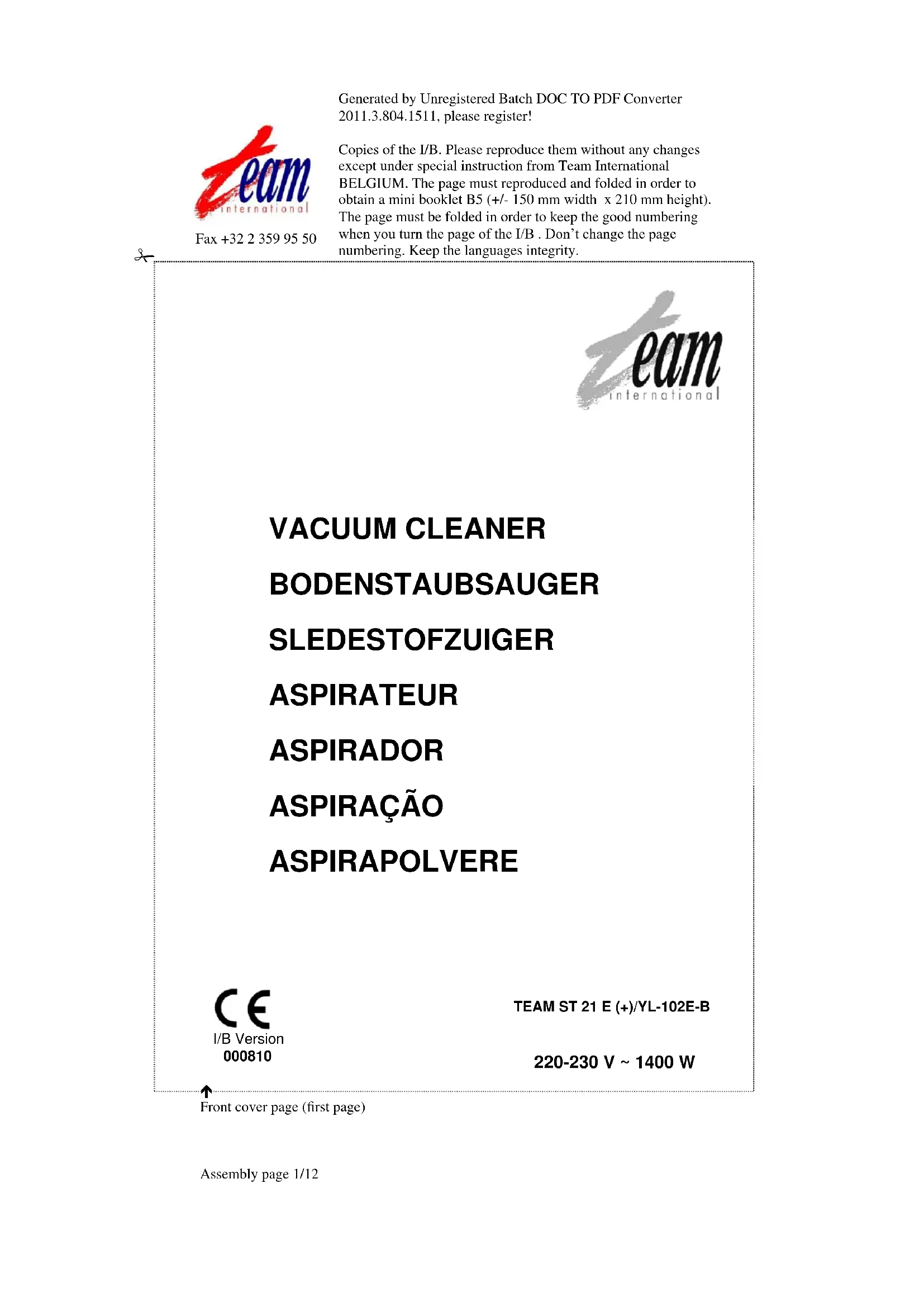

USER MANUAL ST 21 E TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRAUCHSANLEITUNG

SICHERHEITSHINWEISE

WECHSEL DES SAUGBEUTELS

Connect to alternating current only (see type plate on the appliance).
Pull the main plug before cleaning or changing the dust bag and filters.
Children do not recognize the dangers arising from handling electric appliances. Therefore never let them use electrical appliances unattended.
- Do not operate the appliance with a damaged cord or plug or once the appliance malfunctions, or has been damaged in any other manner.
- Do not try to open the winder and to replace the cord by yourself: the spring of the winder may cause injury.
Return the appliance to the place of purchase.
Special tools are required for service.
- Operating the appliance with a damaged dust bag, inlet or outlet filters, or without filters may cause serious damage to the motor.
Do not use appliances for other than intended household use.
Do not use the vacuum cleaner to vacuum glowing ash, cigarettes or matches, glass splinters or other objects with sharp edges, wet or water-covered surfaces and wet carpets (after cleaning with foam), nor surfaces covered with plastic, cement or stone dust.
Do not immerse the appliance in water or other liquids.
Do not use the appliance close to a heater or oven.

OPERATION

• Check before operation if the power supply voltage complies with the voltage rated on the rating plate.
• Insert the head of the hose into the slot of the vacuum cleaner.
• Pull out the power cord as long as you wish but do not pull it out anymore when you see the red mark which indicates the limited length of the wire. Insert the plug into the socket and push the ON/OFF button to start the vacuum cleaner.
• Push the cord rewind panel and the cord will rewind automatically.
• To remove the hose from the unit, just push the lock on the hose.

HOW TO REPLACE THE PAPER DUST BAG

To open the lid, press the lock on the front just under the handle.

Make sure the dust bag is positioned correctly before using.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]
