Product type	Canister vacuum cleaner
Brand	TEAM
Model	ST 25 EC
Power supply	220-240 V, 50/60 Hz (estimated)
Power	Variable with power control
Bag capacity	Paper bag, approx. 4 liters (estimated)
Filter type	Motor filter and exhaust air filter
Cable length	6 meters (estimated)
Cable rewinder	Yes, foot pedal rewind
Fill indicator	Bag fill indicator
Included accessories	2-position universal brush, round brush, crevice tool, tube, hose
Dimensions (L x W x H)	Approx. 40 x 30 x 30 cm (estimated)
Weight	Approx. 5.5 kg (estimated)
Filter maintenance	Every 3 months: clean motor filter, replace exhaust filter
Bag replacement	When the fill indicator lights up or suction decreases
Usage	Household use only
Safety	Do not use outdoors, do not vacuum liquids or hot objects

Frequently Asked Questions - ST 25 EC TEAM

How to change the dust bag?

Unplug the vacuum cleaner. Open the top cover. Remove the full bag from its holder without folding it. Insert a new paper bag into the holder. Close the cover by pressing lightly. Check that the hose is properly connected to the bag opening.

How to clean the motor filter?

Unplug the appliance. Lift the rear grille containing the filter. Remove the filter and clean it gently (do not use water). Replace it and close the grille. It is recommended to do this every 3 months.

How to use the power control?

On the appliance there is a power control knob. Turn it to adjust the suction power according to the surface (minimum for curtains, maximum for carpets). It is recommended to set it to minimum before plugging in.

What to do if the vacuum cleaner no longer sucks properly?

First check if the dust bag is full or if there is a blockage in the hose, tube, or brush. Change the bag if necessary. Clear the blockages. Also check the condition of the filter and clean it if needed.

How to rewind the cable correctly?

Hold the cable with one hand and press the rewind pedal with the other hand. Let the cable wind gently while guiding it to avoid knots. Never force the rewind.

What accessories are included and what are they used for?

The 2-position universal brush allows switching from smooth floors (brushes extended) to carpets (brushes retracted). The round brush is for mattresses and upholstered furniture. The crevice tool, very thin, is ideal for corners and baseboards.

Can the vacuum cleaner suck up liquids?

No, absolutely not. Never vacuum liquids with this appliance. This could damage the motor and cause a short circuit. Use it only for dry waste.

How to connect and disconnect the hose?

To connect: insert the swivel sleeve of the hose into the opening at the front of the vacuum cleaner and turn to the right. To disconnect: first unplug the power cord, then turn the sleeve to the left and pull firmly.

Where can I find spare parts (bag, filters)?

Dust bags and replacement filters are available from TEAM after-sales service or from authorized dealers. Use only accessories recommended by the manufacturer to avoid damaging the appliance.

What to do if the power cord is damaged?

Do not use the appliance. Unplug it immediately. The damaged cord must be replaced by a qualified service (manufacturer or importer customer service) to avoid any danger. Do not attempt to repair it yourself.

USER MANUAL ST 25 EC TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK

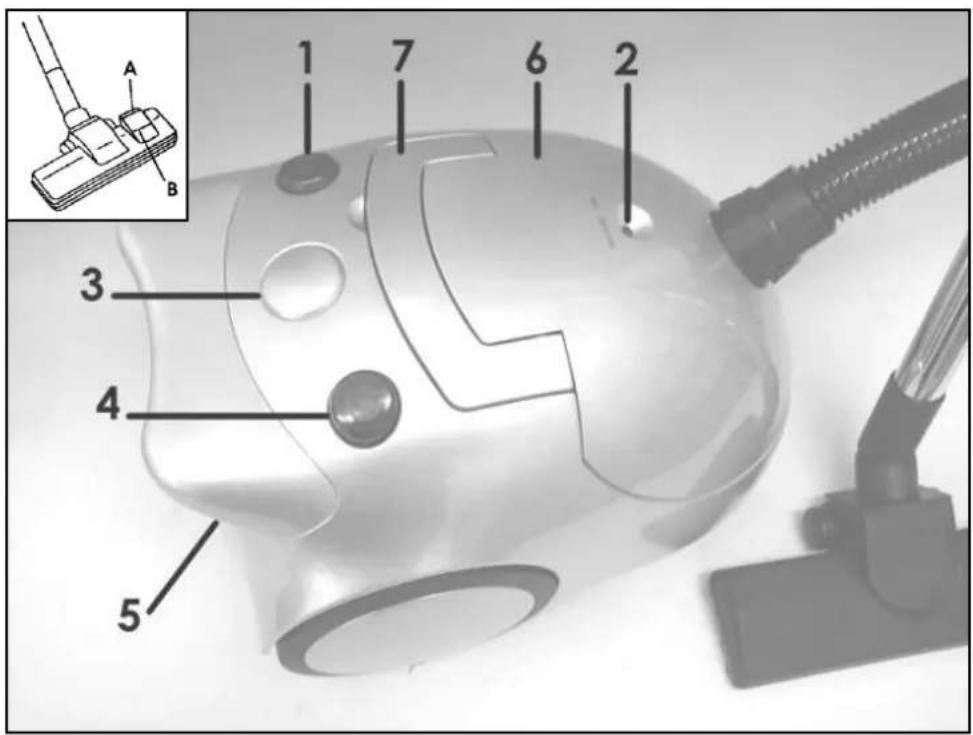

1. Cable rewind button
2. Dust bag indicator
3. Electrical power control switch
4. ON/OFF switch
5. Air outlet filter grid
6. Dust cover
7. Handle

F

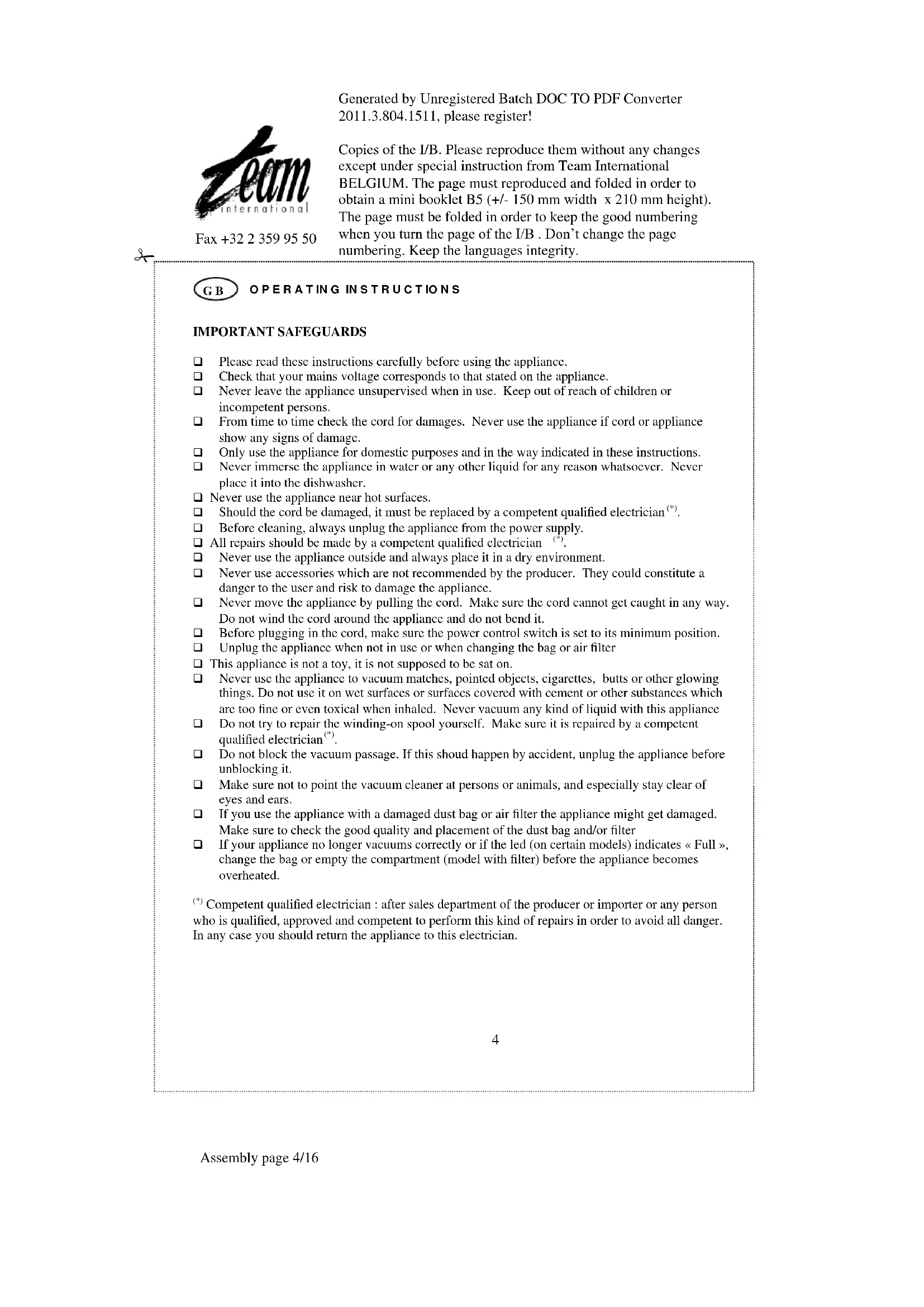

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (^)
Before cleaning, always unplug the appliance from the power supply.
□ All repairs should be made by a competent qualified electrician (s).
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the power control switch is set to its minimum position.
Unplug the appliance when not in use or when changing the bag or air filter
This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxical when inhaled. Never vacuum any kind of liquid with this appliance
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^() .
Do not block the vacuum passage. If this shoud happen by accident, unplug the appliance before unblocking it.
Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter
If your appliance no longer vacuums correctly or if the led (on certain models) indicates « Full », change the bag or empty the compartment (model with filter) before the appliance becomes overheated.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories.
Fitting the tube: insert the tube into the air intake duct at the front of the appliance and rotate to the right.
- Removing the tube: remove the plug from the power socket. To release the tube, rotate to the left and pull the tube firmly from the air intake duct.
- Fit the telescopic tube both to the handle and the floor brush.
- Removing telescopic tube and accessories: to remove the accessories, pull firmly apart.

OPERATION

Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.
- Press on the ON/OFF switch to switch the appliance on and off.
- To rewind the power cable, press the rewind button with one hand, and guide the cable with the other hand to ensure that it does not whip causing damage.
- It is advisable to set the electronic power regulator to MIN before switching the appliance on.

USING THE CLEANING ACCESSORIES

The large brush is intended for cleaning of floor coverings and hard floors.

• When used for the suction of bare floor surfaces, pull out the brush. This can be done by pushing the switch at the left-hand side of the brush forwards. In the opposite position, the brush is ready for cleaning floor coverings.

A. Lever for cleaning hard floors.
B. Lever for cleaning carpets.

The foot switching is easy and quick.
- Furniture brush is intended to clean curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

DUST BAG AND FILTERS

• Replacing the dust bag
• Always operate the cleaner with dust bag installed
• Disconnect from electrical outlet before changing dust bag.
• Lift dust cover catch and raise dust cover.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• Remove bag collar from bag holder and pull out dust bag.
• Put in new dust bag and close the dust cover.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Motor Filter

Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- Disconnect from electrical outlet, before cleaning filter.
- Pull filter supporter upward, then remove filter.
Rinse filter in lukewarm water.
- Do not use a washing machine for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Filtro protector del motor
