Product type	Double tank electric fryer
Brand	Team
Model	TKG FT 1005
Power supply	230 V ~ 50 Hz, total max power 4500 W (2 x 2250 W)
Oil capacity per tank	1.5 L (between min and max level)
Dimensions (L x W x H)	400 x 300 x 250 mm
Weight	4.5 kg
Material	Stainless steel (tanks), plastic (body)
Main features	Two independent tanks, adjustable thermostat, operating and temperature indicator lights, removable basket with handle, cord storage
Control panel	Thermostat, RESET button (per tank), indicator lights
Safety	Overheat protection system with automatic shut-off, RESET button, splash protection, transport lid
Cooking temperature	Adjustable from 160°C to 190°C
Included accessories	2 baskets, 2 lids, basket handles, cable storage
Maintenance and cleaning	Tanks, baskets and lids washable with soapy water by hand. Do not immerse the control panel. Wipe the exterior with a damp cloth.
Storage	Wait for complete cooling, oil can remain in the appliance, close the lids
Repairability	Contact a qualified service center for any repairs, especially cable replacement
Power consumption	Approximately 19.5 A (both tanks simultaneously)

Frequently Asked Questions - TKG FT 1005 TEAM

What oil to use in the TKG FT 1005 fryer?

Preferably use a special frying oil or blocks of fat cut into small pieces. Check the label on the bottle. Do not exceed the maximum level indicated in the tank.

How to clean the fryer?

Unplug the appliance and let it cool. Wash the tanks, baskets and lids with warm soapy water using a soft cloth. Never immerse the control panel in water. Dry all parts thoroughly.

What to do if the fryer stops during use?

This may be due to overheating. Set the thermostat to 'Min', unplug the appliance and wait about 15 minutes. Press the RESET button located inside the cable storage compartment at the back. Each tank has its own button.

Should I preheat the fryer?

Yes, a preheating of 10 to 15 minutes is recommended to get golden and crispy fries. The temperature indicator light turns on and then off once the temperature is reached.

Can I use the fryer with the lid closed?

No, never put the lid on during use, as this could cause a fire or damage the appliance. The lid is only for storage and transport after cooling.

How much food can I put in the basket?

Do not overfill the basket. For fries, do not exceed 500 g per tank. Make sure the food is dry to avoid oil splashes.

How to change the oil in the fryer?

Wait for the oil to cool completely. Remove the removable tank and pour out the used oil. Clean the tank before adding new oil. Replace the oil regularly for better cooking quality.

Can I plug both tanks into the same outlet?

It is strongly discouraged to plug both fryers into the same outlet because the total consumption is about 19.5 A. Use two different circuits to avoid overload.

What temperature to cook fries?

For fries, do a first cooking at 170°C for 8 minutes (core cooking) then a second cooking at 180°C for 3 minutes to make them crispy. Let drain on absorbent paper.

How to store the fryer after use?

Let it cool completely. The oil can remain in the appliance. Close the lids tightly to prevent dust. Store the cord in the compartment provided at the back.

USER MANUAL TKG FT 1005 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Labeled diagram of a microwave oven with numbered components for identification

2

TKG FT 1005 - 110331

D

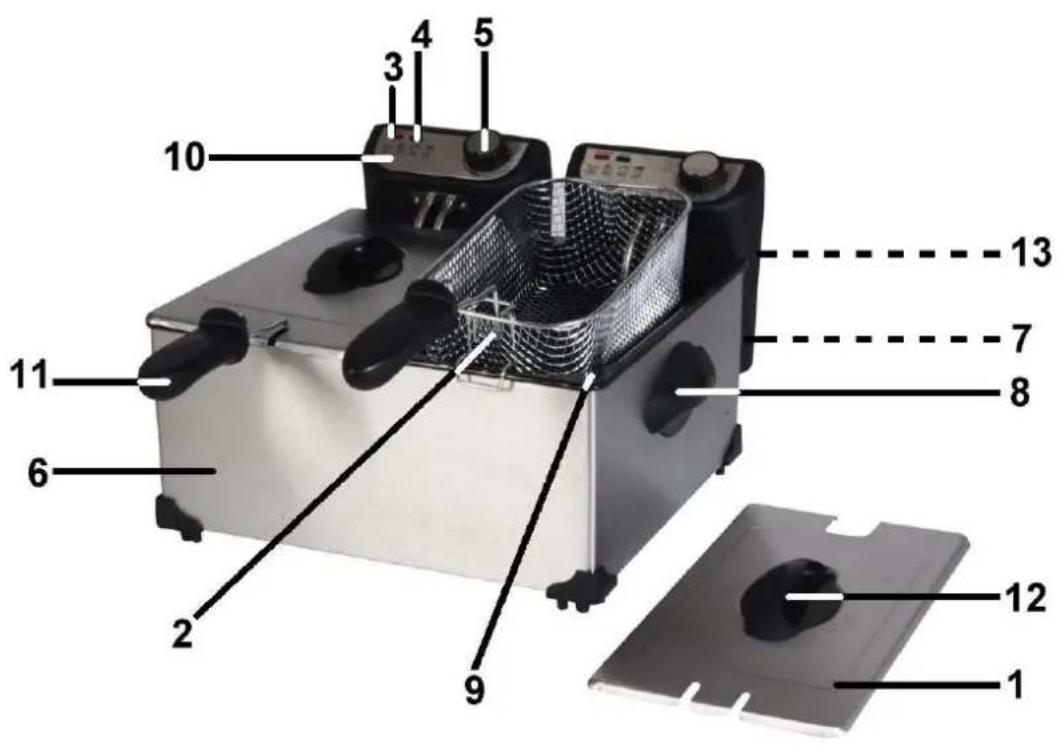

1. Lid
2. Basket
3. Power light
4. Pilot light
5. Thermostat
6. eousing
7. Cable storage (invisible on the picture)
8. eandle
9. Removable bowl
10. Control panel
11. çandle of the basket
12. eandle of the lid
13. RESET button (invisible on the picture)

F

Labeled diagram of a kitchen feedstock with numbered components for identification

1

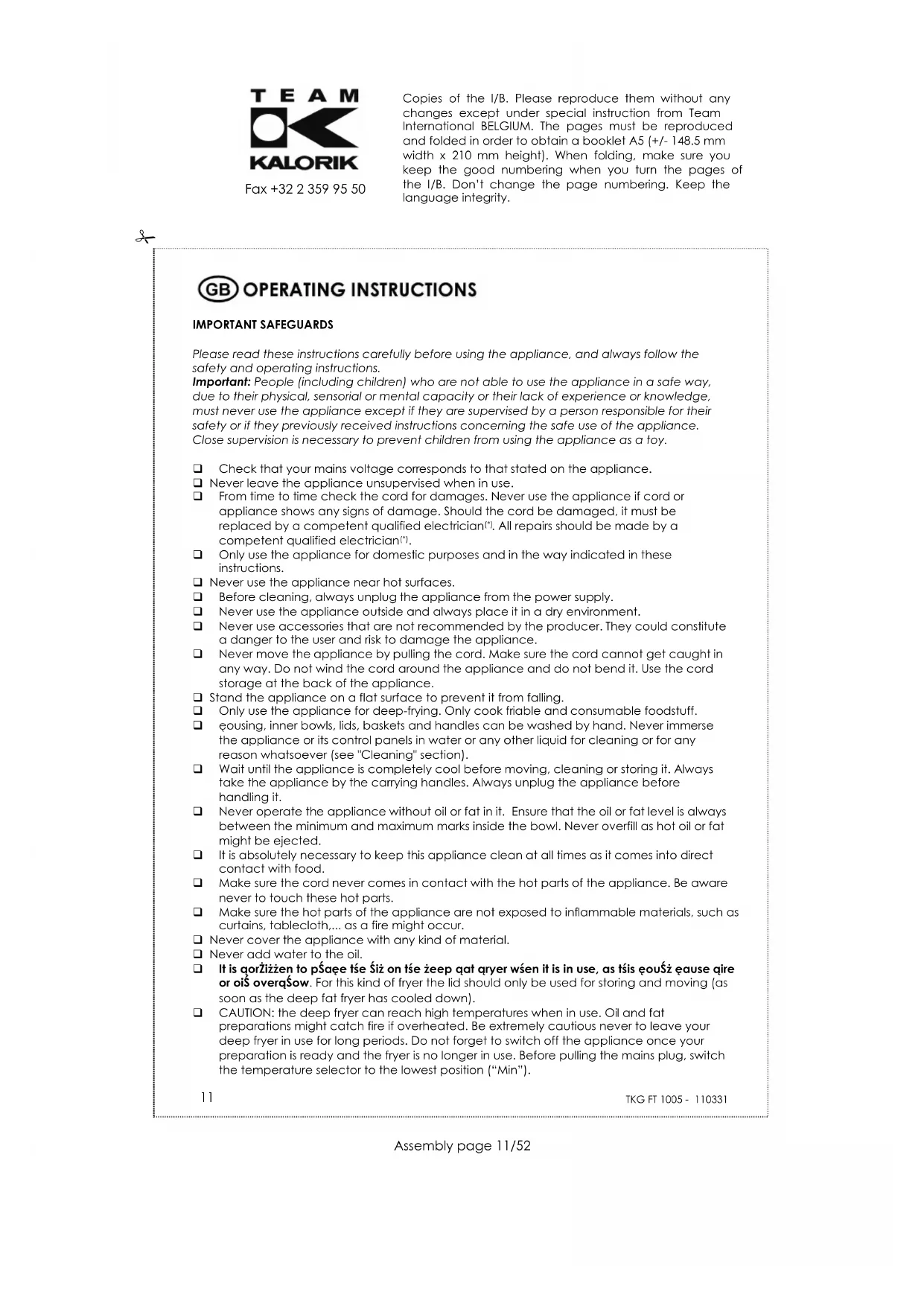

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician ^10 . All repairs should be made by a competent qualified electrician ^11 .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Use the cord storage at the back of the appliance.
☐ Stand the appliance on a flat surface to prevent it from falling.
☐ Only use the appliance for deep-frying. Only cook friable and consumable foodstuff.
☐ eousing, inner bowls, lids, baskets and handles can be washed by hand. Never immerse the appliance or its control panels in water or any other liquid for cleaning or for any reason whatsoever (see "Cleaning" section).
☐ Wait until the appliance is completely cool before moving, cleaning or storing it. Always take the appliance by the carrying handles. Always unplug the appliance before handling it.
☐ Never operate the appliance without oil or fat in it. Ensure that the oil or fat level is always between the minimum and maximum marks inside the bowl. Never overfill as hot oil or fat might be ejected.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Make sure the cord never comes in contact with the hot parts of the appliance. Be aware never to touch these hot parts.
☐ Make sure the hot parts of the appliance are not exposed to inflammable materials, such as curtains, tablecloth.... as a fire might occur.
☐ Never cover the appliance with any kind of material.
□ Never add water to the oil.
It is qorżiżzen to pśaęe tše Śiż on tše zeep qat qryer wśen it is in use, as tśis ęouŚz ęause qire or oiŚ overąŚow. For this kind of fryer the lid should only be used for storing and moving (as soon as the deep fat fryer has cooled down).
☐ CAUTION: the deep fryer can reach high temperatures when in use. Oil and fat preparations might catch fire if overheated. Be extremely cautious never to leave your deep fryer in use for long periods. Do not forget to switch off the appliance once your preparation is ready and the fryer is no longer in use. Before pulling the mains plug, switch the temperature selector to the lowest position ("Min").

☐ Provide proper ventilation when using the appliance.
Caution: When both deep fat fryers are connected to the power outlet, the consumption amounts to approximately 19.5 Amperes. As a consequence, we strongly advise you to connect each deep fat fryer to a different electric circuit. Before connecting the deep fat fryer to the power outlet, make sure the electric circuit can bear the consumption mentioned above. Never çonneet tse žeep qat qryer to any Žinz oq azapter.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

(1) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

BEFORE USE

• Remove all packaging from the unit.
• Remove the lids, baskets, handles and any accessory from the appliance.
• Before you use the deep fat fryer for the first time, we recommend that you clean the lids, bowls, baskets, handles and housing of the deep fat fryer with warm soapy water with a soft cloth.
• Remove the control panels from the appliance. To do this, gently pull the control panel upwards until it is released.
  • Take the interior bowl with your two hands and pull it up gently.
  • Proceed in the same way for the second bowl.

DISASSEMBLING THE DEEP FAT FRYER

ASSEMBLING THE DEEP FAT FRYER

• Stand the appliance on a dry horizontal surface.
• Place each bowl back in the housing and push it downwards.
• Replace the control panel and the accessories on both bowls. To replace the control panels, firmly slide them downward into the location grooves on the back of the housing until they are locked.
  NOTE: The appliance will only operate when the control panel you want to use is correctly fitted to the outer jacket.
  • Unfold the handle of the basket until it is locked to allow rising the basket easily.
• Put the remaining power cord length in the cord storage in the back of the appliance.

FIRST USE

• When using the appliance for the first time, pour the required amount of oil in the bowl, making sure that the level is between the MIN and MAX marks indicated inside the bowl.
  We recommend that you use a liquid oil that is suitable for deep fat frying. Check the label on the bottle. If you wish to use a solid fat, cut the fat in small pieces. Plug in the appliance, put the tsermostat on tse minimum position and add the pieces of fat slowly. When the fat has melted, set the thermostat to the desired temperature. WARNING: FAILURE TO OBSERVE THIS WILL DAMAGE YOUR DEEP FAT FRYER.

NOTE: tśe ŻowŚs operate inżepenżentŚy. Ią you want to use Żoś ŻowŚs simuŚtaneousŚy, you save to put Żoś pSuAs in a power soęŻet.

PREHEATING

When the appliance has been switched on, set the thermostat on the desired temperature. To reach a stable and correct temperature for use, it is necessary to wait 10 to 15 minutes. During this time, the temperature control light will go on and off several times. A good preheating will allow you to have browned and crispy fries.

USE

• Plug in the appliance and set the thermostat to the desired temperature. The power light and the pilot light will illuminate. As soon as the desired temperature is reached, the pilot light will go out. When the temperature falls, the thermostat will be activated again, and the pilot light will illuminate. It will go out again as soon as the temperature is reached.
• It is forbidden to place the lid on the deep fat fryer when it is in use. Only put the lid on the appliance when the appliance has cooled down to avoid dust getting into the oil.
• When the fryer has reached the desired temperature, raise the basket using the handle and attach it to the edge of the fryer.
• Place the food into the basket slowly to avoid splashes and lower the basket fully into the oil or fat.
• When the food is ready, raise the basket by lifting the handle and attach it to the edge of the fryer in order to let the food drain.
  • If necessary you can take the basket out of the appliance.
  • Ensure the food is thoroughly cooked inside and out.
• Your deep fat fryer does not have a separate ON/OFF switch. After use, turn the thermostat to its "Min" position and unplug the appliance. Never move the appliance as long as the oil or fat is still hot.

FOR BEST RESULTS

• Always dry food well before frying. Very 'wet' food can cause the oil to 'foam' and may overflow.
- Foodstuffs for frying should be roughly of the same size to ensure the food cooks evenly and thoroughly.
- Many types of food may need to be coated before frying - typical coatings are better or breadcrumbs.
• Always wait until the fryer has reached the desired temperature and the pilot light has gone out, before adding the food.
- Do not overfill the basket.

CAUTION: This fryer has a built-in safety cut-off switch that triggers if the unit accidentally overheats (e.g. temperature control fails to function). Should this happen, firstly turn the thermostat to "Min" and unplug the deep fat fryer. Wait until the element cools down (about 15 minutes). Then press the RESET button situated in the back of the appliance, in the cord storage. Each bowl has its own RESET button. This will reset the deep fat fryer. Your deep fat fryer is now ready to use. To make sure this does not happen again, please read the instruction manual thoroughly.

RECIPES

Fresís Csips

• Fresh chips are best fried in two stages.
• Use 'old' potatoes (no 'new' potatoes). Cut the potatoes into equal sizes. Rinse the chipped potatoes under running water to reduce the starch level. Dry thoroughly and separate the pieces.
• Do not exceed the recommended weight. When the temperature has reached 180°C, place the chips in the basket and slowly lower the basket into the oil.
  • For 500g of chips, fry for 6 minutes on 180°C then raise the basket.
• Wait until the temperature light goes out again, lower the basket and fry for a further 2 minutes.
• Raise the basket and let the chips drain.
• For best results, before serving gently dab the chips with absorbent paper to remove excess oil.
  • Frying times may vary slightly on the type of potatoes used and the thickness of the chips.

Onion RinAs

• Frying temperature - 175°C for 4 to 5 minutes.
- Peel the onions and slice. Separate the slices into rings.
• Dip the rings into a bowl of seasoned milk.
- Then dust the rings in plain flour.
- Place the rings separately in the frying basket and fry a few at a time.

Breażeż Musśrooms

• Frying temperature - 175°C for 4 to 5 minutes.
• Beat 1 egg and dip the mushrooms into the egg.
• Then coat the mushrooms with breadcrumbs.
• Place separately into the frying basket and fry a few at a time.

Goujons oq Soše

• Frying temperature - 160°C for 3-4 minutes.
• Cut the sole fillet into small strips. Coat the strips in some seasoned plain flour.
- Then dip the strips into beaten egg and coat with breadcrumbs.
- Place separately into the frying basket and fry a few at a time.

TEMPERATURE GUIDE FOR BEST RESULTS

FOOD TEMPERATURE (°C) MINUTES (approximateŚy)

Breaded Fillet of fish 170 6-7
Scampi 170 4-6
Chicken Breast 175 4-5
Breaded Chicken pieces 170 12-15
Onion Rings	180	4
Breaded Mushrooms	180 3-4
Broccoli Fritters	185 3-4
Courgette Fritters	185 3-4
Celery in batter	180 3-4
Chips First Stage	170	8
Chips Second Stage	180	3

TKG FT 1005 - 110331

CLEANING

• Caution: never immerse tše appŠianęe in water or any otšer Šiquiz.
• Unplug the deep fat fryer. Make sure both plugs have been removed from the power socket.
• Wait until the unit is completely cool before cleaning. Be careful when touching the heating element as it might stay hot for quite some time after you have unplugged the appliance. NEVER IMMERSE TeE CONTROL PANELS IN WATER OR ANY OTeER LIQUID FOR ANY REASON WeATSOEVER.
• Follow the section 'Disassembling the deep fat fryer'.
• Do not use strong detergents or abrasive cloths/liquid, as this will damage the deep fat fryer.
• Clean the fryer with warm soapy water. It may help to soak the parts for a short time.
  • Thoroughly dry all parts of the appliance.
• Change the oil regularly.
  • To assemble, follow the section 'Assembling the deep fat fryer'.

STORING

• Wait until the deep fat fryer is completely cool before storing.
• The unit can be stored with the oil inside. Ensure the lids are tightly closed to avoid dust getting into the oil.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
