TKG BG 1000 - Barbecue KALORIK - Free user manual and instructions
Find the device manual for free TKG BG 1000 KALORIK in PDF.
| Product type | Electric barbecue |
| Brand | Kalorik |
| Model | TKG BG 1000 |
| Power supply | Mains (check voltage on rating plate) |
| Cooking type | By electric heating element |
| Settings | Progressive thermostat with 3 grill heights |
| Indicator light | Yes, red: indicates heating up |
| Juice collection tray | Removable, collects cooking juices |
| Water tray | Integrated in the grill support for cooling |
| Usage | On legs (outdoor) or on table (with small rubber feet) |
| Legs | 4 removable legs + 4 small rubber feet for table use |
| Included accessories | Cooking grill, collection tray, support, heating element, legs, small feet |
| Cleaning | Grill and tray washable with water; heating element and thermostat cleaned with damp cloth |
| Safety | Do not immerse; use on earthed socket with RCD; do not leave unattended |
| Approximate weight | 4 kg |
| Approximate dimensions | 50 × 30 × 20 cm |
Frequently Asked Questions - TKG BG 1000 KALORIK
User questions about TKG BG 1000 KALORIK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Barbecue in PDF format for free! Find your manual TKG BG 1000 - KALORIK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TKG BG 1000 by KALORIK.
USER MANUAL TKG BG 1000 KALORIK
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
3 TKG BG 1000 100311
D
- Protection
- Handle
- Grill rack
- Heating element
- Pilot light
- Thermostat
- Collecting tray
- Grill casing
- Handle
- Foot
- Middle plate
F
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

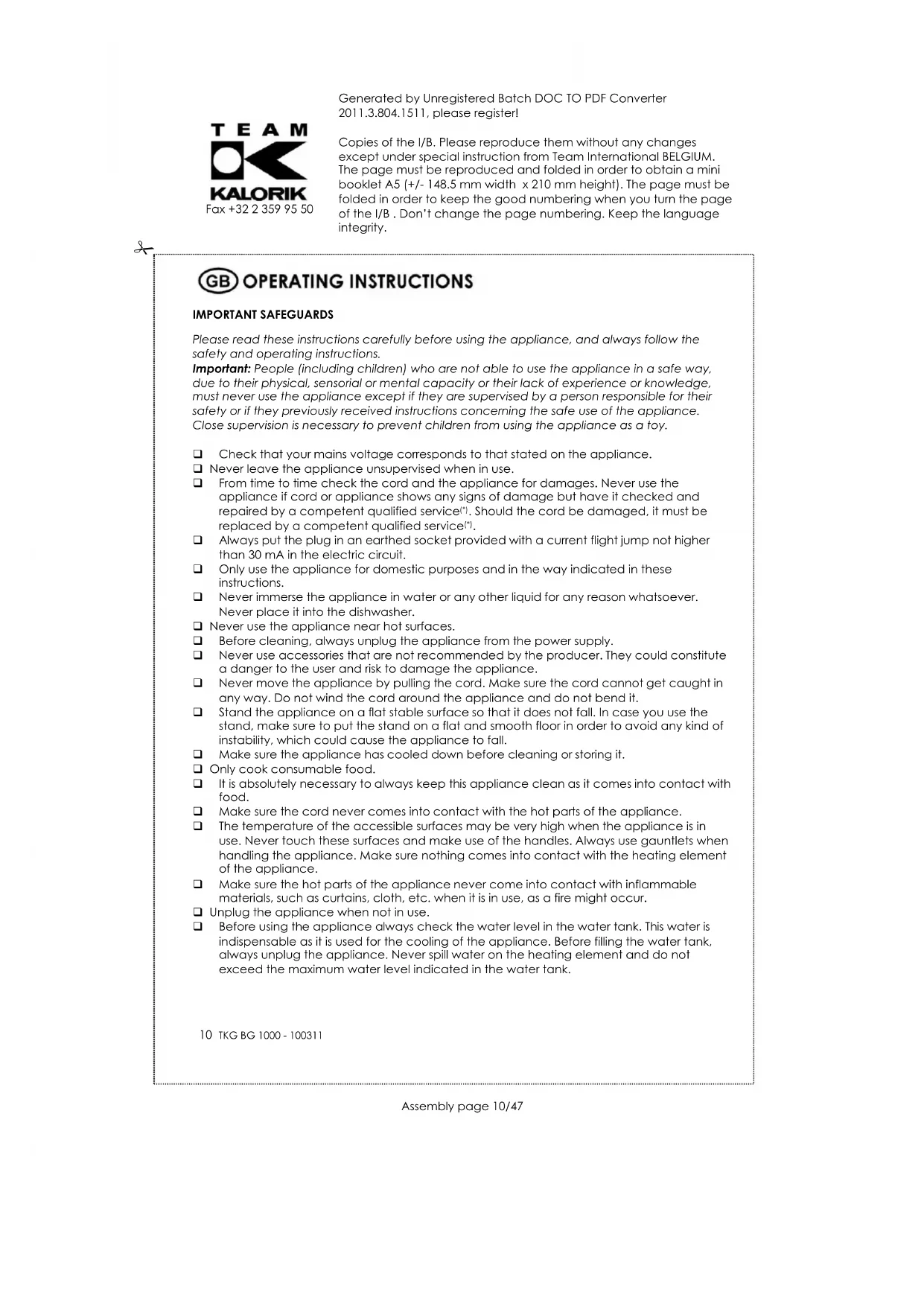

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.
Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord and the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^() . Should the cord be damaged, it must be replaced by a competent qualified service ^() .
□ Always put the plug in an earthed socket provided with a current flight jump not higher than 30 mA in the electric circuit.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Stand the appliance on a flat stable surface so that it does not fall. In case you use the stand, make sure to put the stand on a flat and smooth floor in order to avoid any kind of instability, which could cause the appliance to fall.
☐ Make sure the appliance has cooled down before cleaning or storing it.
☐ Only cook consumable food.
It is absolutely necessary to always keep this appliance clean as it comes into contact with food.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance.
☐ Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur.
☐ Unplug the appliance when not in use.
Before using the appliance always check the water level in the water tank. This water is indispensable as it is used for the cooling of the appliance. Before filling the water tank, always unplug the appliance. Never spill water on the heating element and do not exceed the maximum water level indicated in the water tank.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
☐ Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues... to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else.
☐ Do not cover the appliance with anything.
☐ Be extremely cautious as oil and fat preparations might catch fire if overheated.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.
^1) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

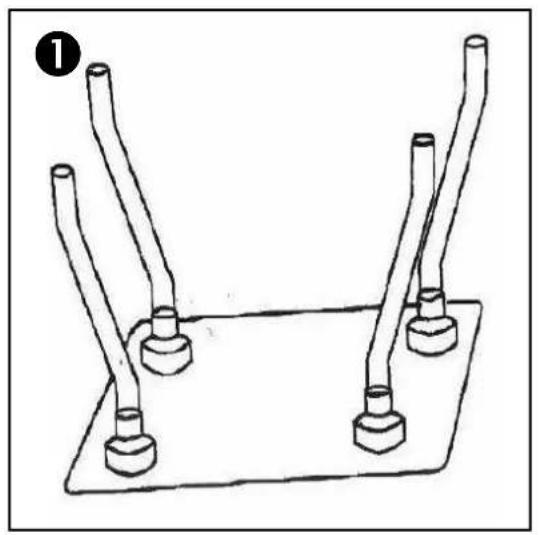

MOUNTING (SEE PAGE 2, PICTURE ①)
-
Turn the grill casing upside down and install the 4 feet into the tips (if necessary, remove the small rubber feet from the tips). The feet have to be directed as described on picture ①.
-
Install the middle plate using the screws supplied. Pay attention to position the nuts on the internal part of the feet.
-
Turn the appliance on its feet to check its stability.
You can also use the appliance without its stand. Then you have to put the foreseen small rubber feet on the plastic feet of the appliance. In this case, place the appliance directly on a stable surface so that it does not fall. It will thus just be on its non-slip rubber feet.
The grill features three possible heights for slow or fast cooking. When the grill is on the lowest level, your food will cook fast. On medium high or high level, the food will cook more slowly. To adapt the height, just insert the feet of the grill in the appropriate holes (see page 2, picture ②).
BEFORE THE FIRST USE
Clean the grill and the accessories (Cf. "Cleaning and care"). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the «new» smell.

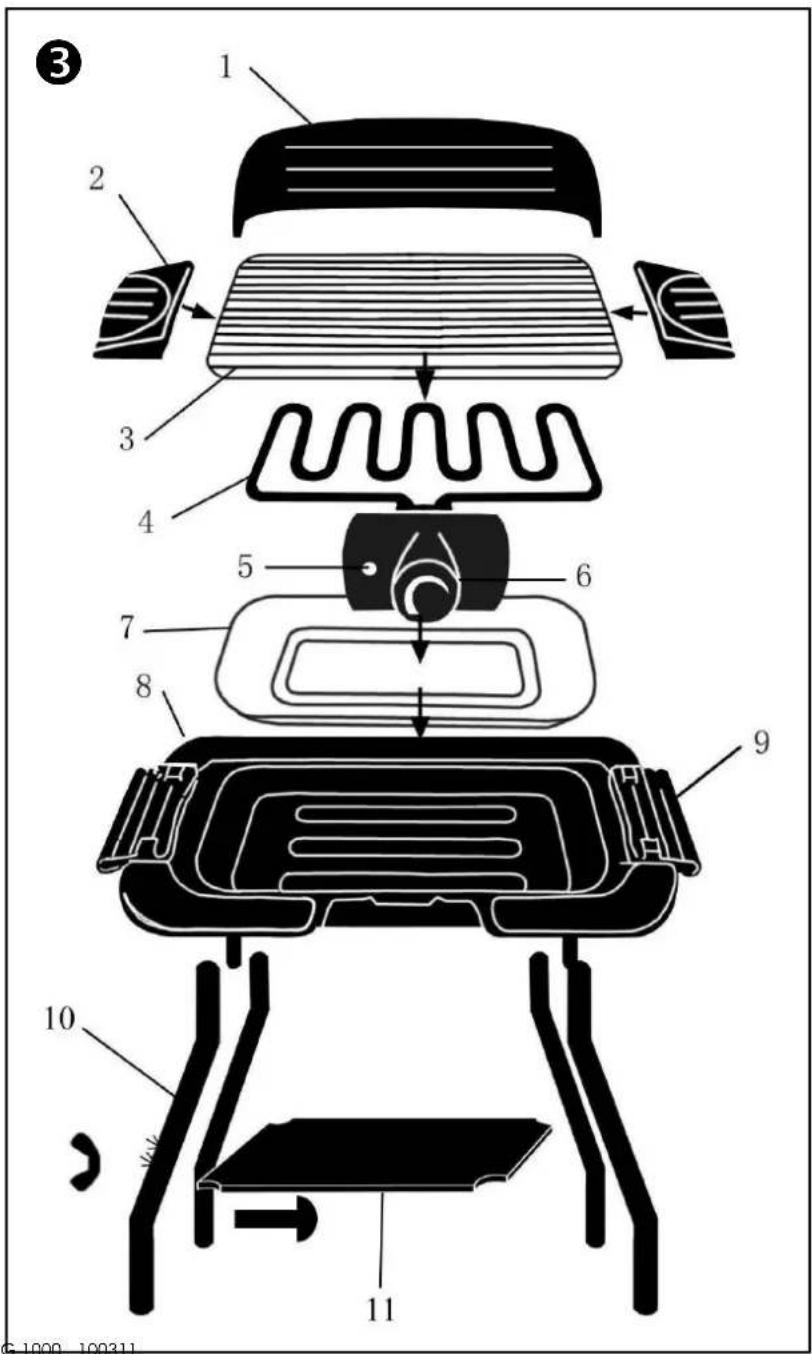

OPERATION (see page 3, picture ③) THIS APPLIANCE CAN BE USED WITH OR WITHOUT ITS STAND (parts 10 and 11).
Use on its stand (parts 10 and 11 assembled)
This type of use is especially suitable for outdoor use but of course the appliance can also be used on its stand inside the house.
When using the appliance with its stand, you have two possibilities:
Either you want to collect the gravy and you put the collecting tray in the grill casing without adding water in any of both containers.
- Or you do not want to collect the gravy but you want to reduce the emission of smoke and the temperature underneath the appliance by adding water directly into the grill casing, making sure to respect the min and max level indicated.
Note: it is also possible to use the appliance without water and without collecting tray, but for practical reasons, we advise you not to do so, as the emission of smoke will be important and cleaning the grill casing is not very easy (disassembling etc.).

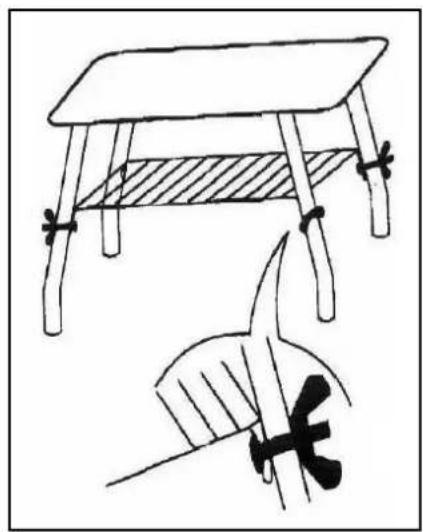

Use on a table (parts 10 and 11 disassembled)
Put the foreseen small rubber feet on the plastic feet of the appliance.
In this case, the appliance is positioned on the table (indoors or outdoors) and is just standing on its small rubber feet.
When using the appliance this way, it is absolutely necessary to put the collecting tray in the grill casing, and to fill it with water (minimum 0.5 l) and to make sure that this water level is maintained during use. This is necessary to limit the temperature underneath the appliance and to protect the table. In this case it is not necessary to pour water in the grill casing.
However, if you want to collect the gravy, it is also possible to use the appliance without water, but the collecting tray must stay in the grill casing during the whole grilling process in order to limit the temperature underneath the appliance.
USE
Once you have chosen the desired way of installing the appliance, follow the instructions below:
- Insert the heating element onto the grill casing as described on the picture ③ (the small horizontal slots on the sides of the thermostat must slide over the grill casing), and finally set the grill over it.
- Connect the appliance and switch it on using the thermostat knob. The red pilot light will come on to indicate that the appliance has been switched on.
- Then preheat the grill for about 5 minutes and select the cooking temperature using the thermostat knob.
- During cooking, the red pilot light will go off when the cooking temperature is reached. It will come on when the appliance is heating again.
- Now put the foodstuffs onto the grill rack.

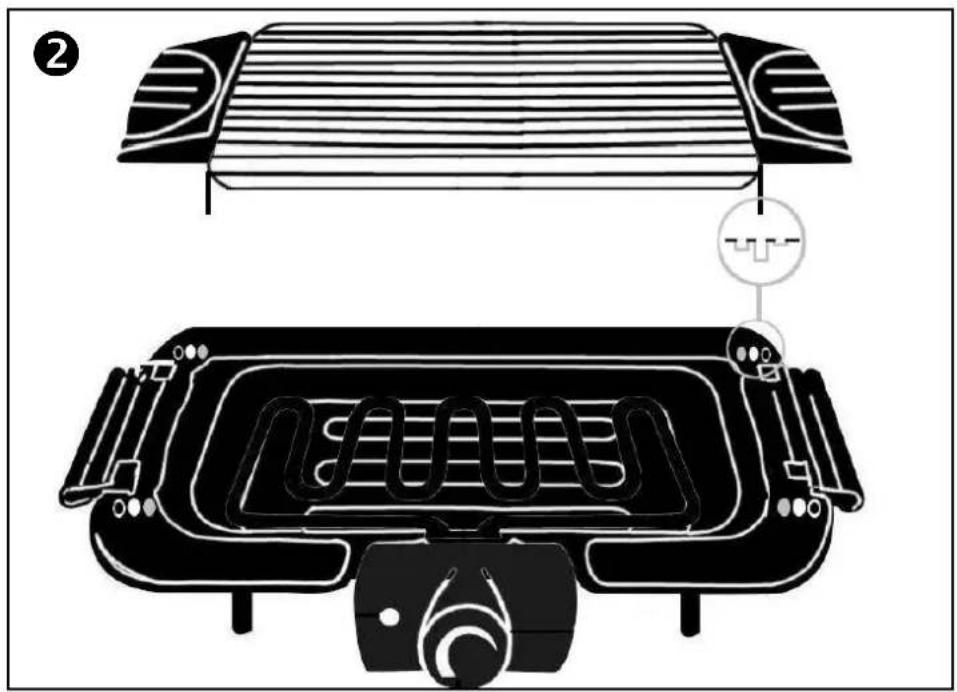

- There are 3 grill positions (page 2, picture ②), according to the desired cooking intensity.
- The grilling times vary according to the nature of the foodstuffs and to your personal taste
- When grilling is finished, switch off the thermostat (position "MIN") and disconnect the appliance.
PRACTICAL HINTS
- Frozen food should always be thawed before it is grilled.
- When grilling big quantities, it is recommended to occasionally carefully remove the accumulated fat from the tray.
CLEANING AND CARE
- Before cleaning any domestic electrical appliance, always make sure that the plug has been removed from the mains supply socket.
- Allow the grill to cool down thoroughly before cleaning.
- Dismount all the accessories.
- Never immerse the heating element, the thermostat and the plug in water or liquid! Wipe them with a damp cloth and dry afterwards.
- Clean the grill casing, the tray and the grill rack in warm soapy water and dry afterwards.
- Wipe the other surfaces of the grill with a damp cloth and dry afterwards.
- Do not use harsh abrasive cleaners.
PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
13 TKG BG 1000 - 100311
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
MODE D'EMPLOI
POUR VOTRE SECURITE
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Team International Romania Srl;
44 TKG BG 1000 - 100311
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
Str. Industriilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004
45 TKG BG 1000 - 100311
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.
46 TKG BG 1000 - 100311
TKG BG 1000
| Deutsch | 6 |
| English | 10 |
| Français | 13 |
| Nederlands | 17 |
| Español | 21 |
| Português | 25 |
| Italiano | 29 |
| Polska | 33 |
| Română | 37 |
TEAM
KALORIK
Back cover page (last page)
- D
- F
- MOUNTING (SEE PAGE 2, PICTURE ①)
- BEFORE THE FIRST USE
- OPERATION (see page 3, picture ③) THIS APPLIANCE CAN BE USED WITH OR WITHOUT ITS STAND (parts 10 and 11).
- Use on its stand (parts 10 and 11 assembled)
- Use on a table (parts 10 and 11 disassembled)
- USE
- PRACTICAL HINTS
- CLEANING AND CARE
- PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC
- MODE D'EMPLOI
- POUR VOTRE SECURITE
- TKG BG 1000
Brand : KALORIK
Model : TKG BG 1000
Category : Barbecue
