USER MANUAL KA BG 7 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/20

KA BG 7 230 V~ 1600 W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 2 KA BG 7 - 070327

Fax +32 2 359 95 50 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 3 KA BG 7 - 070327

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 4 KA BG 7 - 070327

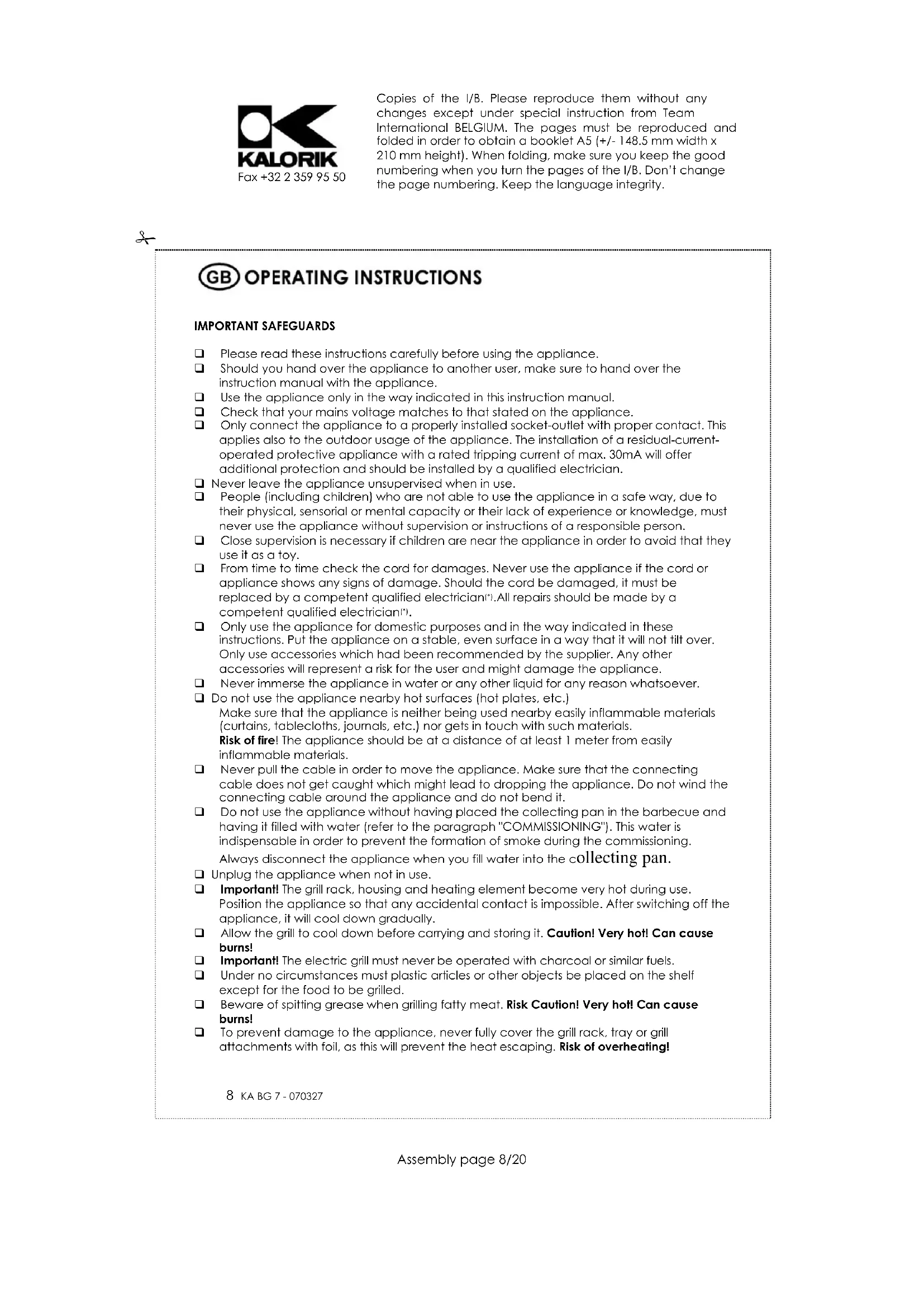

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Should you hand over the appliance to another user, make sure to hand over the instruction manual with the appliance. Use the appliance only in the way indicated in this instruction manual. Check that your mains voltage matches to that stated on the appliance. Only connect the appliance to a properly installed socket-outlet with proper contact. This applies also to the outdoor usage of the appliance. The installation of a residual-current- operated protective appliance with a rated tripping current of max. 30mA will offer additional protection and should be installed by a qualified electrician. Never leave the appliance unsupervised when in use. People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person. Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy. From time to time check the cord for damages. Never use the appliance if the cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician

.All repairs should be made by a competent qualified electrician

Only use the appliance for domestic purposes and in the way indicated in these instructions. Put the appliance on a stable, even surface in a way that it will not tilt over. Only use accessories which had been recommended by the supplier. Any other accessories will represent a risk for the user and might damage the appliance. Never immerse the appliance in water or any other liquid for any reason whatsoever. Do not use the appliance nearby hot surfaces (hot plates, etc.) Make sure that the appliance is neither being used nearby easily inflammable materials (curtains, tablecloths, journals, etc.) nor gets in touch with such materials. Risk of fire! The appliance should be at a distance of at least 1 meter from easily inflammable materials. Never pull the cable in order to move the appliance. Make sure that the connecting cable does not get caught which might lead to dropping the appliance. Do not wind the connecting cable around the appliance and do not bend it. Do not use the appliance without having placed the collecting pan in the barbecue and having it filled with water (refer to the paragraph "COMMISSIONING"). This water is indispensable in order to prevent the formation of smoke during the commissioning. Always disconnect the appliance when you fill water into the collecting pan. Unplug the appliance when not in use. Important! The grill rack, housing and heating element become very hot during use. Position the appliance so that any accidental contact is impossible. After switching off the appliance, it will cool down gradually. Allow the grill to cool down before carrying and storing it. Caution! Very hot! Can cause burns! Important! The electric grill must never be operated with charcoal or similar fuels. Under no circumstances must plastic articles or other objects be placed on the shelf except for the food to be grilled. Beware of spitting grease when grilling fatty meat. Risk Caution! Very hot! Can cause burns! To prevent damage to the appliance, never fully cover the grill rack, tray or grill attachments with foil, as this will prevent the heat escaping. Risk of overheating! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 9 KA BG 7 - 070327

Fax +32 2 359 95 50 Never pour water on the heating element! Do not use plastic cutlery to turn over or remove food. Do not store or use any flammable materials or sprays in the vicinity of the appliance when the appliance is in use. Fire hazard! Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or spray cans). Explosion and fire hazard! The appliance should not be placed under operating extractor hoods or hanging cupboards.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

PACKAGING After unpacking the appliance, check it for transport damages and check if the scope of delivery is complete! In case of damages or incomplete delivery, please contact your specialist shop or the customer service! Do not litter the original packing, use it for storing or when sending it back in order to avoid transport damages. Dispose of packaging material properly. Clean the barbecue and the accessory parts.

NOTES REGARDING THE PLACE AND THE POWER CABLE Your electric barbecue is appropriate to be used indoors and outdoors and anywhere where a power supply is available. If the appliance is not operated, always keep it in the house. The appliance must not be used in rooms with bathtubs, showers or swimming pools nor near by wash basins. Do not expose it neither to rain nor to other humidity. Do not put the barbecue directly on damageable surfaces such as e. g. polished table plates, parquet flooring or carpet floors! Make sure that none could stumble across the power cable and knock-over the appliance. Only use approved extension cables with 3 poles appropriate for the power consumption of the appliance. Power cords must not be in contact with hot parts of the appliance. Do not clamp the cable, do not drag the cable over sharp edges, do not put the cable on hot plates or open flames! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 10 KA BG 7 - 070327

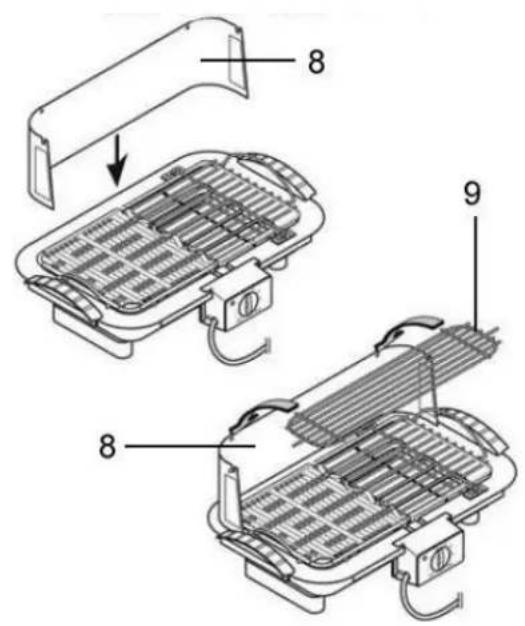

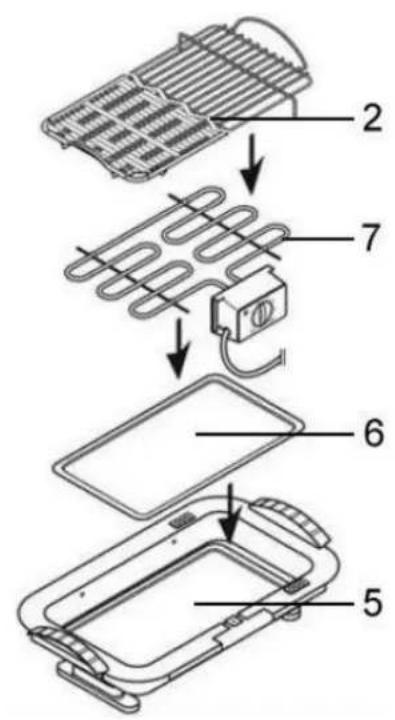

Fax +32 2 359 95 50 COMMISSIONING Lift the heating element and place it in the collecting pan at the bottom of the appliance. Make sure that you do not burn your fingers when lifting the heating element. Fill the collecting pan with water between the minimum and maximum marking. Make sure that there is always water in the pan. This will avoid smoke formation and avoid an overheating of the appliance. Refill it during operation in regular intervals. The appliance must never be operated without water (Risk of overheating!) Never pour water onto the heating element or on the operating element! Do not forget to pull off the plug from the socket when adding water. If necessary install the windbreak with the stopping grid (optional) by inserting its pins into the provided holes of the barbecue housing. Plug-in the plug into the socket. Switch on the appliance by turning the thermostat controller clockwise to the maximum position. Heat the barbecue filled with water before using it for the first time without food for about 5 minutes until the inherent smell of the appliance goes away (it is possible that there is little formation of smoke, therefore provide sufficient aeration). Before the barbecue you should oil the barbecue grill so that you can more easily take off the food to turn it over. Before putting the food on the grill, heat up the appliance for about 5-10 minutes at full power. The barbecue time is different and it depends on the kind and nature of the corresponding food. Always use the appliance with the included reflector pan. Thermostat: Due to the infinitely variable thermostat controller you can set the barbecue temperature from “min” to “max” and it will then be maintained automatically at a constant level. Control lamp: As soon as the appliance is connected to electric supply, the control lamp will be illuminated. After use switch off the appliance (turn the switch of the control thermostat anti clockwise to the position Minimum) and plug off the plug.

PRACTICAL NOTES Unfreeze frozen food before the barbecue. For large quantities of food we recommend to carefully remove the collected grease in the collection pan from time to time. Please proceed as follows: - Switch the ON/OFF switch to the position “min” and unplug the plug. - Remove the grill with the food. Lift the heating element and the control element carefully. - Remove the grease collected in the collection pan. - In order to reinstall the appliance, proceed vice versa. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 11 KA BG 7 - 070327

CLEANING AND MAINTENANCE

To clean the appliance, unplug the plug from the socket. When the appliance has cooled down, remove the grid grill, the windscreen with deposit grid (optional) and remove the control element together with the heating element. Remove the collecting pan and drain the remained water. You can clean the bottom of the appliance, the barbecue grill and the collecting pan as well as the windscreen and the deposit grid with hot water eventually using a light standard dish washing detergent. Then rinse with clean water. THE HEATING AND THE OPERATING ELEMENT MUST NOT GET INTO CONTACT WITH WATER. Clean the outside of the barbecue only with a moisten cloth and wipe it with a dry cloth.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the instructions. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 12 KA BG 7 - 070327
