USER MANUAL KA BG 5 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Front cover page (first page)

230 V ~ 2000 WGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

4Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

8. Foot of the grill casing

9. Foot of the appliance

3Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

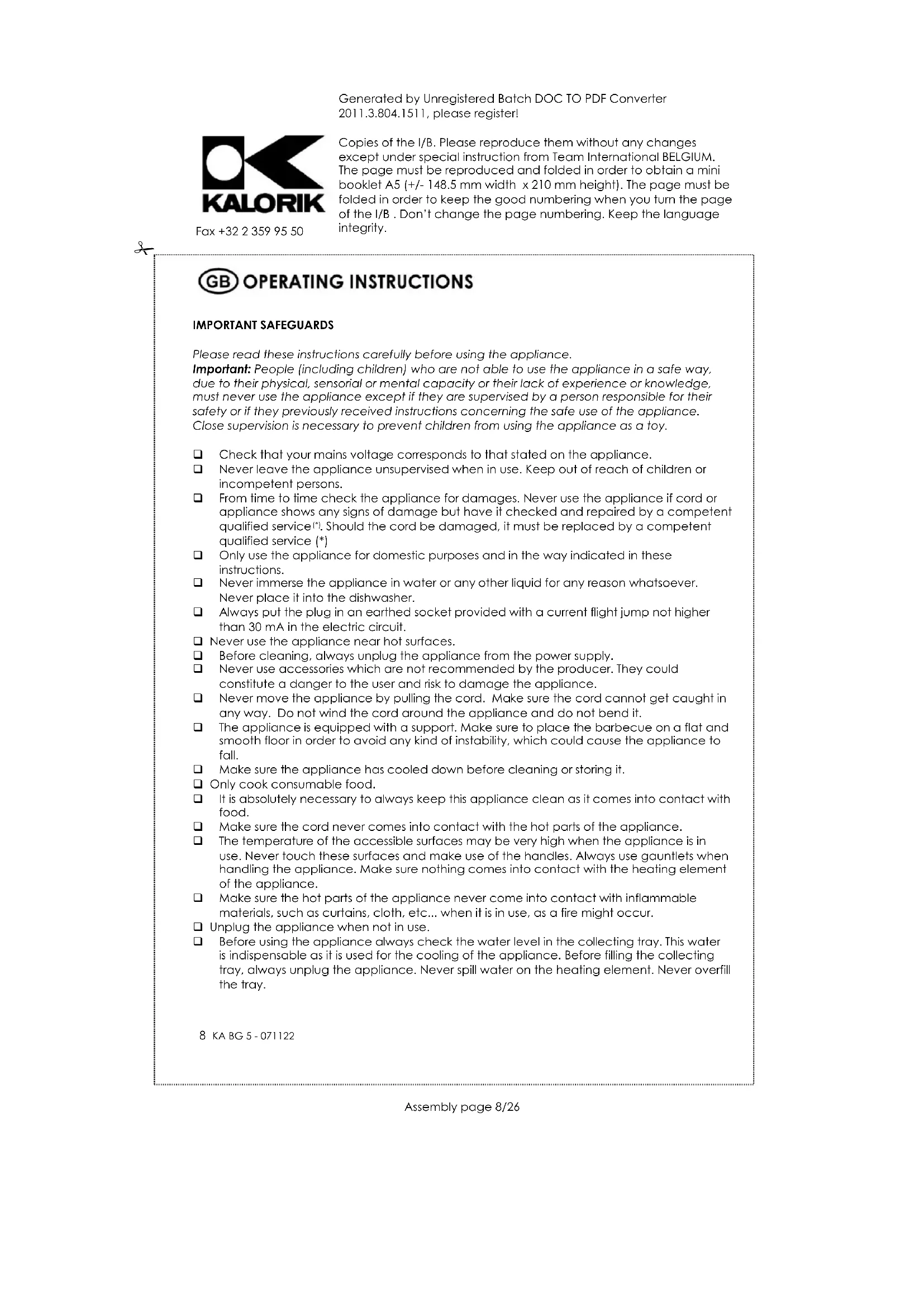

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Always put the plug in an earthed socket provided with a current flight jump not higher than 30 mA in the electric circuit. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. The appliance is equipped with a support. Make sure to place the barbecue on a flat and smooth floor in order to avoid any kind of instability, which could cause the appliance to fall. Make sure the appliance has cooled down before cleaning or storing it. Only cook consumable food. It is absolutely necessary to always keep this appliance clean as it comes into contact with food. Make sure the cord never comes into contact with the hot parts of the appliance. The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance. Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur. Unplug the appliance when not in use. Before using the appliance always check the water level in the collecting tray. This water is indispensable as it is used for the cooling of the appliance. Before filling the collecting tray, always unplug the appliance. Never spill water on the heating element. Never overfill the tray.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues, to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else. Do not cover the appliance with anything. Be extremely cautious as oil and fat preparations might catch fire if overheated. NEVER USE THE APPLIANCE WITHOUT ASSEMBLING THE FEET (8).

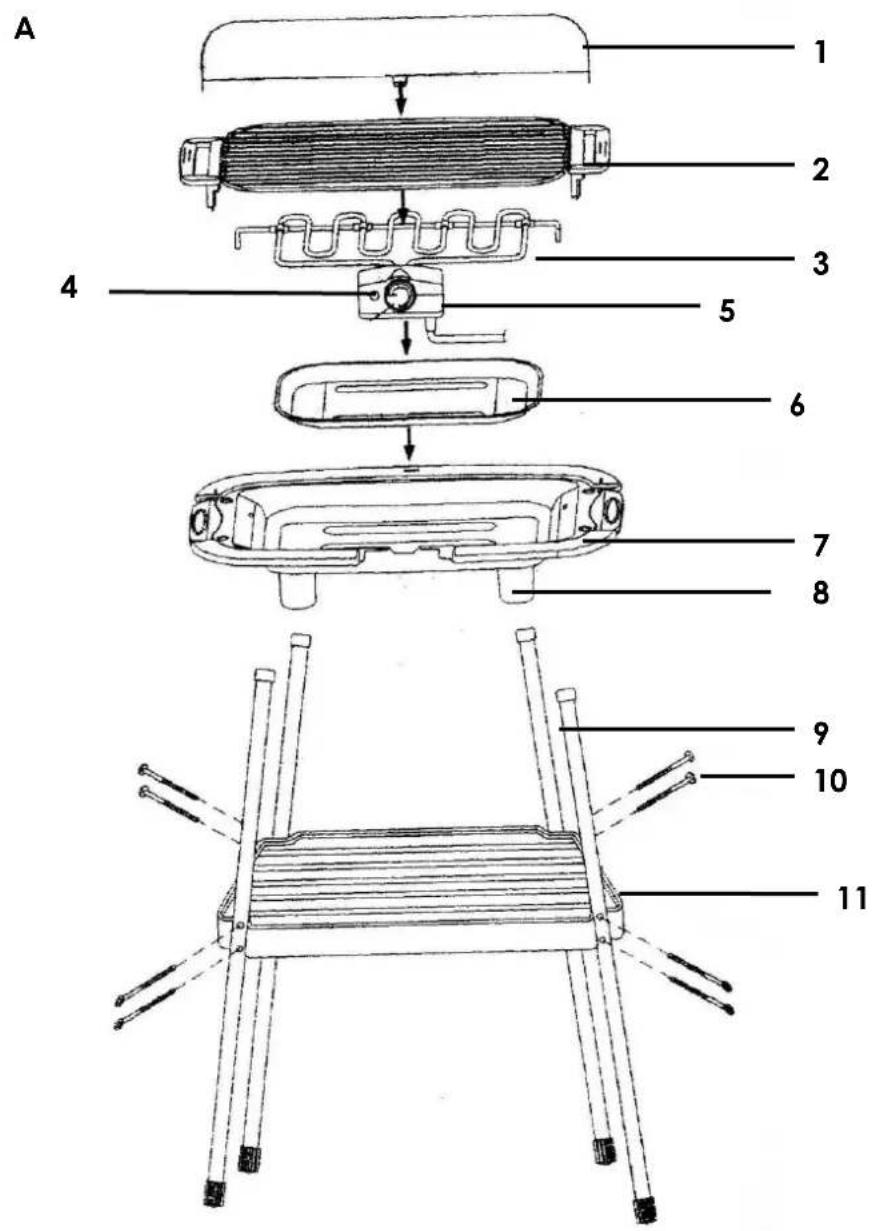

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. MOUNTING (SEE PAGE 2, PICTURE A)

1. Turn the grill casing (7) upside down and install the 4 feet (8). Therefore, put the feet on the

structures foreseen underneath the grill casing and turn them a quarter of a turn anticlockwise. Make sure they are fixed properly.

2. Attach the middle plate (11) to the appliance's feet (9) using the screws supplied (10). Pay

attention to position the nuts on the external part of the feet.

3. Put the grill casing (7) on the appliance's feet (9) in such way that the feet of the appliance

fit into the grill casing's feet (8). Note: this appliance can also be used without stand, but the feet of the grill casing (8) must always be assembled.

Clean the grill and the accessories (Cf. CLEANING AND CARE). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture. OPERATION (see page 3, picture B) CAUTION : NEVER USE THE APPLIANCE WITHOUT ASSEMBLING THE SMALL FEET (8). WHEN ASSEMBLED WITH THE FEET, STAND IT ON A FLAT AND LEVEL SURFACE. Place the aluminium collecting tray (6) into the grill casing(7). Fill the aluminium tray with water. Caution! The water in the tray will evaporate during use. It is therefore necessary to refill water from time to time. Do not spill water on the heating element, as this could be dangerous. Then insert the heating element (3) and thermostat (5) by sliding the notch of the thermostat along the front edge of the grill casing, and inserting the metal bars of the heating element in the openings of the grill casing foreseen to that effect. If necessary, install the windshield (1) by inserting its pins in the openings foreseen on the grill casing. Put the grill rack (2) on the grill casing. There are 3 grill positions (see page 3, picture B), according to the desired cooking intensity. Connect the appliance and turn the thermostat knob to the desired position. The pilot light (4) will come on, indicating that the appliance is heating. When the desired temperature is reached, the pilot light will go out. Put the foodstuffs onto the grill rack.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

The grilling time varies according to the nature of the foodstuffs and to your personal taste. When grilling is finished switch off the thermostat and disconnect the appliance.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

PRACTICAL HINTS Frozen food should always be thawed before it is grilled. When grilling big quantities, it is recommended to occasionally carefully remove the accumulated fat from the tray.

Always unplug the appliance and let it totally cool down before cleaning it. Allow the grill to cool down thoroughly before cleaning. Remove all accessories Never immerse the heating element, the thermostat and the plug in water or liquid! Wipe them with a damp cloth and dry afterwards. Clean the grill casing, the tray and the grill rack in warm soapy water and dry afterwards. Wipe the other surfaces of the grill with a damp cloth and dry afterwards. Do not use harsh abrasive cleaners.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Dopo l’uso, mettere il termostato sulla posizione minima e staccare la spina dalla presa di corrente.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.
