USER MANUAL TKG BG 9 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Front cover page (first page)

Fax +32 2 359 95 50 Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

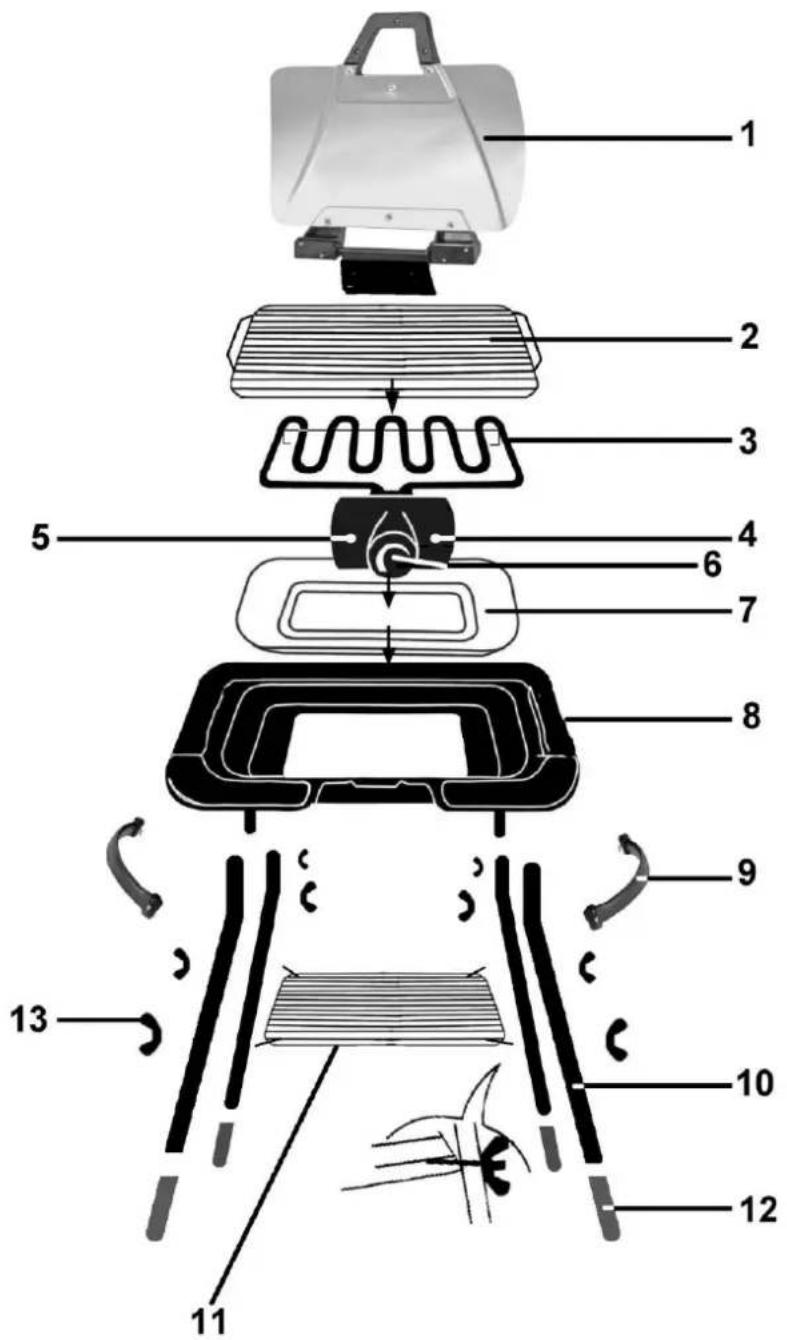

5. Heating control light

7. Grease collecting tray

8. Grill casing/Collecting container

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

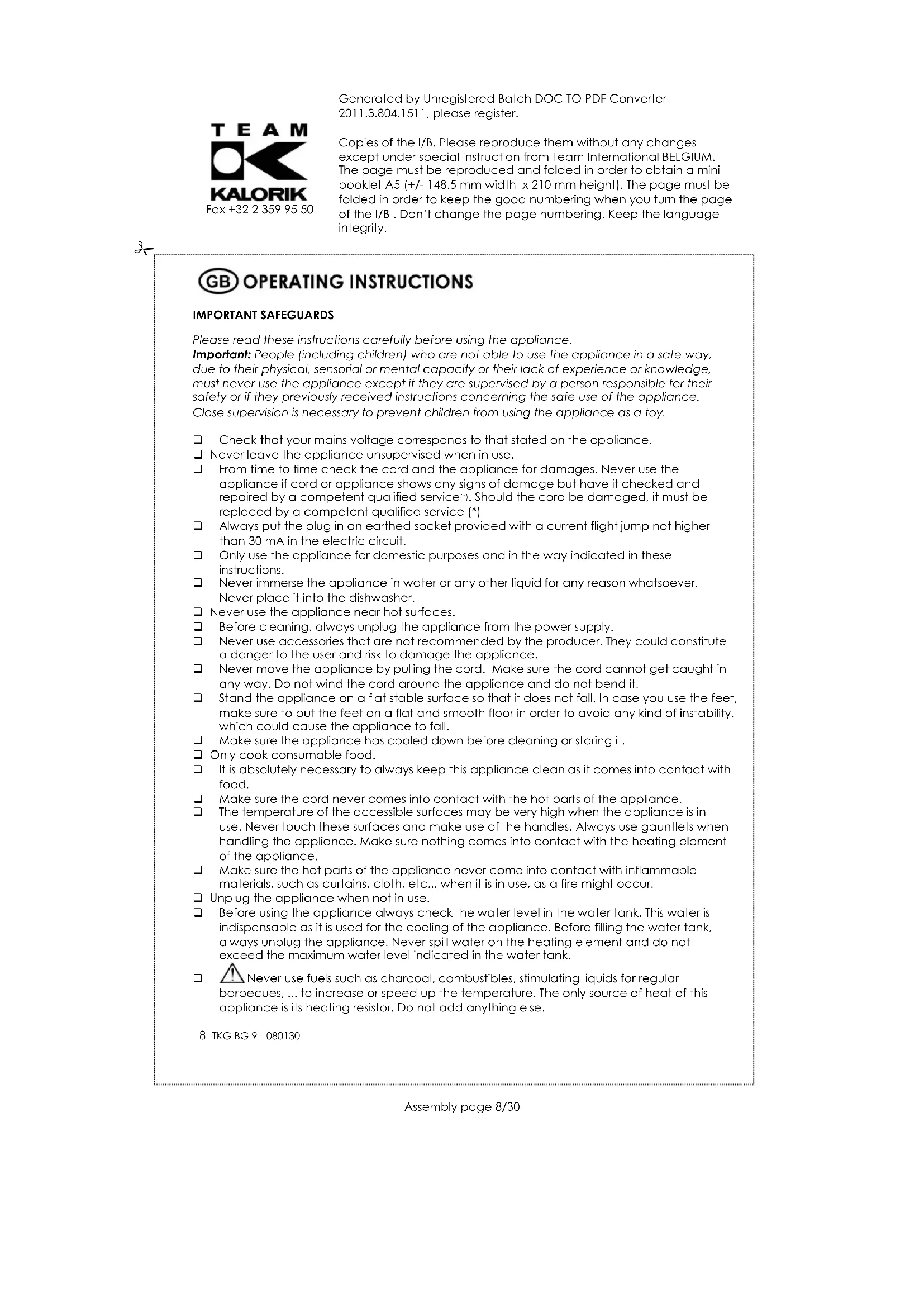

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the cord and the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Always put the plug in an earthed socket provided with a current flight jump not higher than 30 mA in the electric circuit. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a flat stable surface so that it does not fall. In case you use the feet, make sure to put the feet on a flat and smooth floor in order to avoid any kind of instability, which could cause the appliance to fall. Make sure the appliance has cooled down before cleaning or storing it. Only cook consumable food. It is absolutely necessary to always keep this appliance clean as it comes into contact with food. Make sure the cord never comes into contact with the hot parts of the appliance. The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance. Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur. Unplug the appliance when not in use. Before using the appliance always check the water level in the water tank. This water is indispensable as it is used for the cooling of the appliance. Before filling the water tank, always unplug the appliance. Never spill water on the heating element and do not exceed the maximum water level indicated in the water tank. Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues, ... to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Do not cover the appliance with anything. Be extremely cautious as oil and fat preparations might catch fire if overheated. Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. MOUNTING (see page 2)

1. Slide the foot protection parts over the lower part of the feet.

2. Put the holes in the middle part of the feet on the connector pins of the middle plate. Screw

the nuts on the connector pins. The feet have to be directed as indicated on page 2.

3. Slide one handle over the two feet on the left and the other one over the two feet on the

right. Make sure that the holes of the handles coincide with the holes in the upper part of the feet. Put the screws (which are supplied) in the holes and screw the nuts on the inner part of the feet. The stand is now ready.

4. Turn the grill casing upside down and install the 4 feet into the holes foreseen to that end.

5. Turn the appliance on its feet to check its stability. You can use the handles of the stand to

move the appliance. You can also use the appliance without its feet. In this case, place it directly on a stable surface so that it does not fall. It will thus just be on its non-slip rubber feet. The grill features three possible heights for slow or fast cooking. When the grill is on the lowest level, your food will cook fast. On medium high or high level, the food will cook more slowly. To adapt the height, just insert the feet of the grill in the appropriate holes.

BEFORE THE FIRST USE

Clean the grill and the accessories (Cf. Cleaning and care). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the «new» smell. OPERATION THIS APPLIANCE CAN BE USED WITH OR WITHOUT ITS STAND (parts 10 and 11). Use on its stand (parts 10 and 11 assembled) : This type of use is especially suitable for outdoor use but of course the appliance can also be used on its stand inside the house. Use on a table (parts 10 and 11 disassembled) : In this case, the appliance is positioned on the table (indoors or outdoors) and is just standing on its small rubber feet. IN BOTH CASES - WITH OR WITHOUT STAND - IT IS ABSOLUTELY NECESSARY TO FILL THE COLLECTING CONTAINER WITH WATER (MINIMUM 0.5 L, MAXIMUM 1.5L) AND TO MAKE SURE THAT THIS WATER LEVEL IS MAINTAINED DURING USE. THIS IS NECESSARY TO LIMIT THE TEMPERATURE UNDERNEATH THE APPLIANCE AND TO PROTECT THE TABLE.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

HEAT-REFLECTING LID The appliance has a heat-reflecting lid which helps cooking. If you put it in an upright position, it serves as a windshield and thus helps reaching the desired temperature. If you put it in a closed position, it serves as a heat reflector during the cooking process: it reflects the heat which comes from the heating element and thus helps reaching the desired temperature and decreasing the cooking time. CAUTION: Using the appliance with the lid closed will make the grilling faster, so it is necessary to carefully check the grilling process. After use, the appliance will cool down and you can close the lid to store the appliance safely. Note: You can also use the appliance without the heat-reflecting lid. Therefore, you just have to pull the lid carefully out of the appliance. CAUTION: The temperature of the accessible surfaces (handle of the lid, handle of the grill rack…) may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance. USE Once you have chosen the desired way of installing the appliance, follow the instructions below: Insert the heating element into the grill casing as described on page 2, and finally set the grill over it. Connect the appliance (the green pilot light will go on). Then preheat the grill for about 5 minutes and select the cooking temperature using the thermostat knob. During cooking, the red pilot light will go off when the cooking temperature is reached. It will come on when the appliance is heating. Now put the foodstuffs onto the grill rack. There are 3 grill positions, according to the desired cooking intensity. The grilling times vary according to the nature of the foodstuffs and according to your personal taste. When grilling is finished, switch off the thermostat and disconnect the appliance. PRACTICAL HINTS Frozen food should always be thawed before it is grilled. When grilling big quantities, it is recommended to occasionally remove the accumulated fat from the tray in a careful manner. On the front side of the appliance there is a drawer which is useful for storage purposes.

Before cleaning any domestic electrical appliance, always make sure that the plug has been removed from the mains supply socket. Allow the grill to cool down thoroughly before cleaning. Dismount all the accessories. Never immerse the heating element, the thermostat and the plug in water or liquid! Wipe them with a damp cloth and dry afterwards. Clean the grill casing, the tray and the grill rack in warm soapy water and dry afterwards. Wipe the other surfaces of the grill with a damp cloth and dry afterwards.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Do not use harsh abrasive cleaners.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.
