Product type	Battery charger
Brand	Velleman
Model	VL1237
Rechargeable battery types	NiMH (R6 / AA and R03 / AAA)
Number of batteries per cycle	2 or 4 (even number only)
Mains power supply	100-240 VAC, 50-60 Hz, 130 mA max.
12 V DC power supply	12-13.8 VDC, 550 mA max. (via cigarette lighter)
Max. power	4.48 VA
Functions	Fast charge, trickle charge, discharge, safety timer
LED indicator	Red (charging), green (fully charged), yellow (discharging)
Dimensions (without plug)	105 x 65 x 35 mm
Weight (with plugs)	Approx. 160 g
Included mains adapters	UK, EU, US/AF, SAA (Australia/New Zealand) plugs
Included cigarette lighter cable	Yes
Batteries included	No
Usage	Indoor use only
Safety	Do not charge alkaline batteries; shock and moisture protection
Maintenance	Clean with a dry, soft cloth
Operating temperature	0 °C to 40 °C (estimated)
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - VL1237 VELLEMAN

What types of batteries can I charge with the VL1237?

This charger is designed only for NiMH rechargeable batteries of type R6 (AA) and R03 (AAA). Do not charge alkaline, lithium, or other batteries.

How do I install batteries in the charger?

Place the batteries in the connectors respecting polarity (+/-). The charger can charge 2 or 4 batteries of the same type and identical capacity. Use the selector [D] to choose the number.

What do the LED colors mean?

Red: charging in progress. Green: batteries fully charged (charger switches to trickle charge mode). Yellow: discharge cycle in progress.

Can I charge batteries of different capacities?

No, it is essential to only charge batteries of the same type and identical capacity to avoid any risk of overheating or damage.

How do I use the discharge function?

Press the [B] button to start discharge. The LED turns yellow. Press again to stop; normal charging resumes. This function helps reduce the memory effect.

What is the charging time?

Refer to the table on page 3 of the manual. As a guide, 2000 mAh AA NiMH batteries charge in approximately 4 to 6 hours.

Can I use the charger in a car?

Yes, thanks to the included cigarette lighter plug. Plug it into a 12 V DC (max. 13.8 V) socket in your vehicle.

How do I choose the appropriate mains adapter?

Select the plug corresponding to your country: UK (United Kingdom, Africa, Hong Kong, Singapore), EU (Europe, Middle East), AF (Americas, Japan) or SAA (Australia, New Zealand, China). Slide it onto the charger.

Does the charger stop automatically?

Yes, the charger switches to trickle charge mode when the batteries are full, maintaining a minimum voltage. A safety timer prevents overcharging.

What should I do if the LED does not light up?

Check the mains or cigarette lighter connection, as well as the battery polarity. Make sure you have selected the correct number of batteries. If the problem persists, contact your dealer.

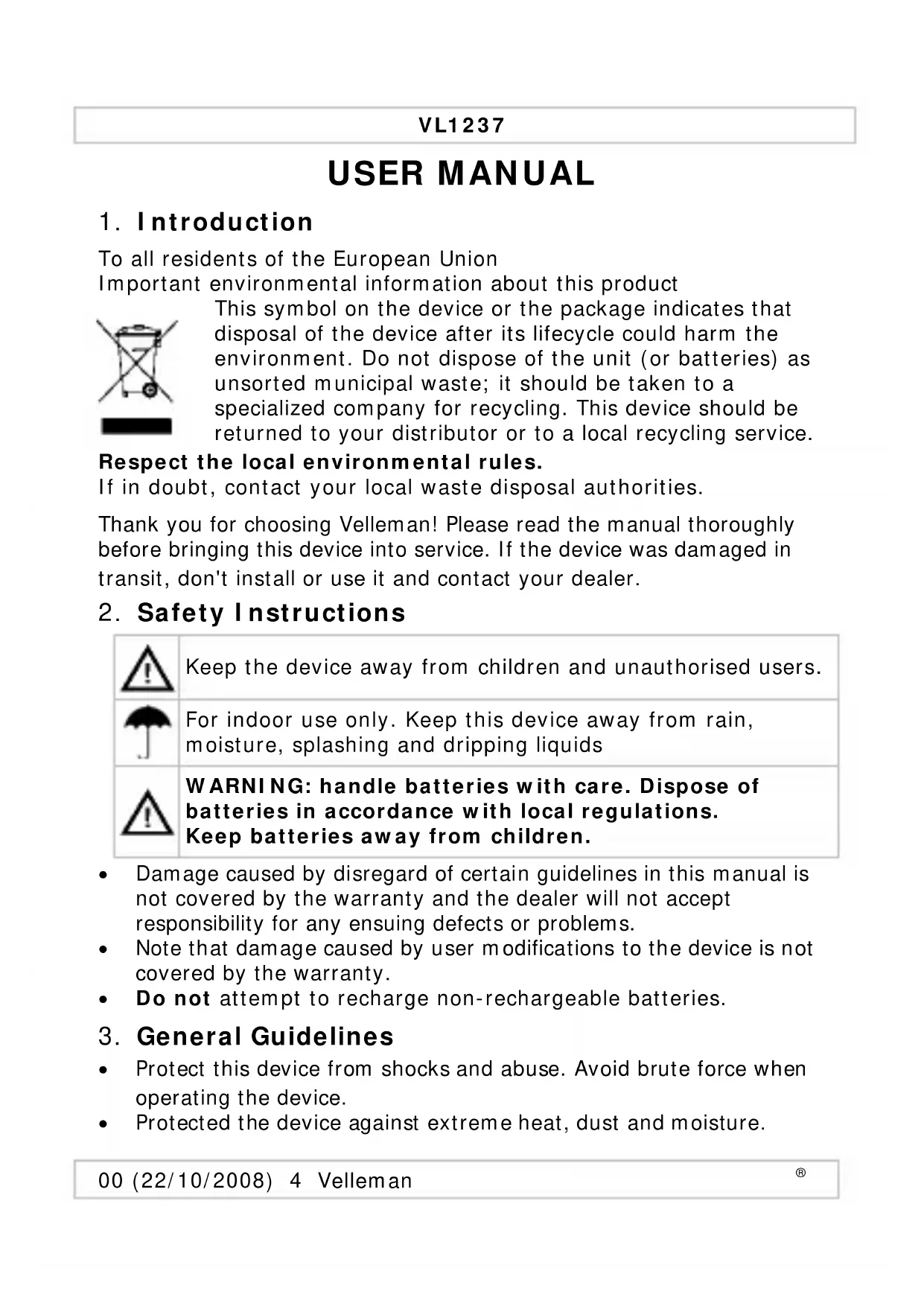

USER MANUAL VL1237 VELLEMAN

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep the device away from children and unauthorised users.

For indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids

WARNING: handle batteries with care. Dispose of batteries in accordance with local regulations. Keep batteries away from children.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  Note that damage caused by user modifications to the device is not covered by the warranty.
• Do not attempt to recharge non-rechargeable batteries.

3. General Guidelines

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protected the device against extreme heat, dust and moisture.

VL1237

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features

• charge 2 or 4 AA or AAA Ni-MH batteries simultaneously
• deals with fluctuating input voltages
• safety timer function
• discharge function
• 4 mains adapter plugs included

UK: Great Britain, Scotland, Ireland, England, parts of Africa, Hong Kong and Singapore
U: Europe, the Middle East, parts of Africa, Asia and the Caribbean
AF: North and South America, Caribbean and Japan
SAA: Australia, Fiji, New Zealand, China

• comes with car cigar lighter plug
• batteries not included

5. Overview

Refer to the illustration on page 2 of this manual.

A	status LED	D	2 or 4 batteries selector
B	discharge button	E	connectors for AAA
C	12VDC input connector	F	connectors for AA

6. Operation

• Choose the mains adapter plug, depending on the location of usage.
• Slide the adapter plug in the back of the charger until it snaps into place (refer to the picture on page 2 of this manual), or plug the connector of the included car cable in connector [C].
• Plug the charger in the mains or plug the cigar lighter plug in the car receptacle. The status LED [A] flashes once (red).
• Select the number of batteries to be charged with the selector [D].

VL1237

• Insert the batteries in the charger. When charging only 2 batteries, these batteries must be inserted in the 2 slots on the left.

Only charge 2 or 4 batteries simultaneously, the charger will not work with 1 or 3 batteries inserted.

Only charge batteries of the same type with the same capacity simultaneously.

Do not attempt to charge non-rechargeable batteries!

• After inserting the batteries, fast charging mode starts. An indication of the expected charging times is given in table 1 on page 3 of this manual.
  During charging, the status LED [A] will be red.
• When batteries are fully charged, the status LED [A] turns green.
• When batteries are full or the predetermined charging time (6h) expires, the charger goes in maintenance mode. A small current maintains the voltage level of the batteries (see table 2 on page 3).
• To discharge the batteries, press on the discharge button [B]. The status LED [A] turns yellow during discharge mode. Pressing again on the discharge button [B] will interrupt the discharge process and continue the normal charging of the batteries.
• When batteries are completely discharged, the status LED [A] will turn red and the fast charge process start.
• When batteries are full or the charger is not in use, disconnect the charger from the mains or car cigar plug. Remove the batteries from the charger.
• To remove the adapter plug, press on the lock-button on the back of the unit and slide the plug away from the adapter (refer to the picture on page 2).

7. Technical Specification

power input
	AC	voltage	100~240VAC- 50~60Hz
		current (max.) 130mA
	DC	voltage	12~13.8VDC
		current (max.) 550mA
power output (max.) 4.48VA
battery sizes AA & AAA
battery type NiMH
dimensions (w/o plug) 105 x			65 x 35mm
weight (plugs incl.) ±160g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For more info concerning this product, please visit our website www.velleman.eu.

The information in this manual is subject to change without prior notice.
