Product type	Electric grill
Brand	Clatronic
Model	TYG 3440
Power supply	230 V ~ 50 Hz
Power	1800 W
Net weight	2.4 kg
Cooking surface	Non-stick plate
Grease collection	Removable drip tray
Thermostat	Adjustable from keep warm to grill
Indicator light	Indicates when temperature is reached
Handles	Insulated handles
Cleaning	Plate washable with soapy water, thermostat dry wipe
Safety	Hot surface (caution burns), stop at min.
Included accessories	Thermostat, drip tray
Protection class	I
Use	Indoor only

Frequently Asked Questions - TYG 3440 CLATRONIC

How to connect the thermostat?

Make sure the temperature control is set to min. (off), then insert the thermostat into the appliance socket. Ensure the temperature sensor is in good contact.

What is the power of the grill?

The Clatronic TYG 3440 grill has a power of 1800 W under 230 V.

How to clean the plate?

Remove food residues while still warm with a damp cloth. Wash the plate with a soft sponge and soapy water, rinse and dry. Then apply a few drops of cooking oil.

Can I use the grill outdoors?

No, the appliance is designed for indoor use only.

What if the indicator light stays on?

The light turns on and off during use, this is normal. If it stays on permanently, check that the thermostat is fully inserted and that the temperature is not set to maximum.

How to change the thermostat?

Only remove the thermostat after complete cooling. Turn the control to min. and unplug the appliance. Pull on the plug, not the cable.

What safety distance should be maintained?

Keep a distance of at least 30 cm from flammable objects (furniture, curtains).

Can I use metal utensils?

No, use utensils made of wood or plastic to avoid damaging the non-stick coating.

How to avoid burns?

Only touch the handles and thermostat during use. The appliance becomes very hot, beware of hot surfaces.

What to do in case of overheating?

Immediately turn off the appliance by turning the control to min. and unplug it. Let it cool down before checking the thermostat.

USER MANUAL TYG 3440 CLATRONIC

Plated black grater with various vegetables and meat arranged on its surface (no text or symbols visible)

DEUTSCH

Inhalt

Location of Controls ...... page 3

User manual....page 20

Technical Specifications......page 22

Disposal page 22

JEZYK POLSKI

Spis treści

Labeled diagram of a portable electric heating device with numbered parts and a separate cable connection.

Bedienungsanleitung

WAARSCHUWING: Brandgevaar!

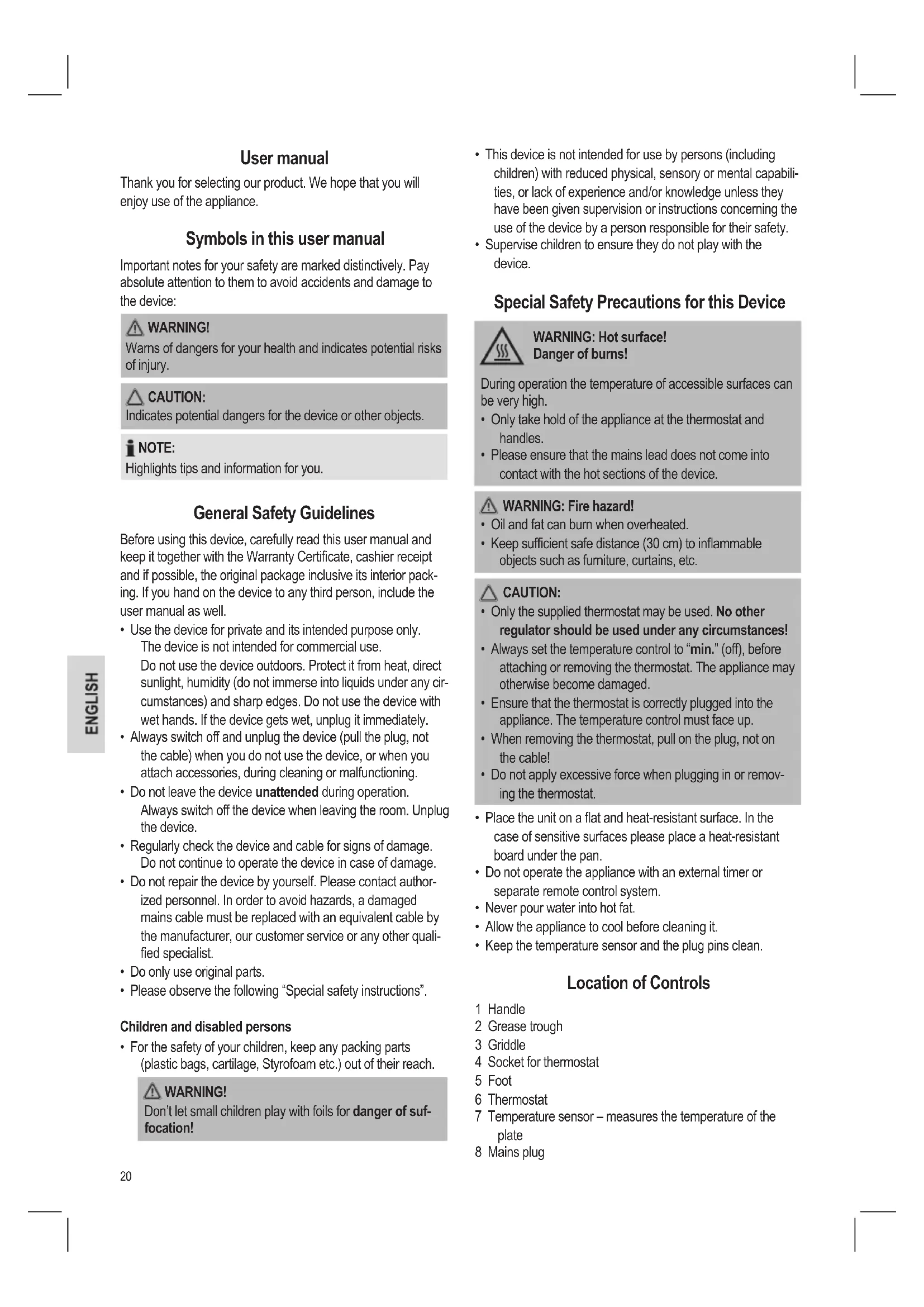

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

WARNING!

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE:

Highlights tips and information for you.

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• Use the device for private and its intended purpose only. The device is not intended for commercial use.
  Do not use the device outdoors. Protect it from heat, direct sunlight, humidity (do not immerse into liquids under any circumstances) and sharp edges. Do not use the device with wet hands. If the device gets wet, unplug it immediately.
• Always switch off and unplug the device (pull the plug, not the cable) when you do not use the device, or when you attach accessories, during cleaning or malfunctioning.
• Do not leave the device unattended during operation.
  Always switch off the device when leaving the room. Unplug the device.
• Regularly check the device and cable for signs of damage. Do not continue to operate the device in case of damage
• Do not repair the device by yourself. Please contact authorized personnel. In order to avoid hazards, a damaged mains cable must be replaced with an equivalent cable by the manufacturer, our customer service or any other qualified specialist.
• Do only use original parts.
• Please observe the following "Special safety instructions".

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.
• Supervise children to ensure they do not play with the device.

Special Safety Precautions for this Device

WARNING: Hot surface!

Danger of burns!

During operation the temperature of accessible surfaces can be very high.

• Only take hold of the appliance at the thermostat and handles.
• Please ensure that the mains lead does not come into contact with the hot sections of the device.

WARNING: Fire hazard!

• Oil and fat can burn when overheated.
• Keep sufficient safe distance (30 cm) to inflammable objects such as furniture, curtains, etc.

CAUTION:

• Only the supplied thermostat may be used. No other regulator should be used under any circumstances!
• Always set the temperature control to "min." (off), before attaching or removing the thermostat. The appliance may otherwise become damaged.
• Ensure that the thermostat is correctly plugged into the appliance. The temperature control must face up.
• When removing the thermostat, pull on the plug, not on the cable!

• Do not apply excessive force when plugging in or removing the thermostat.

• Place the unit on a flat and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the pan.

• Do not operate the appliance with an external timer or separate remote control system.
• Never pour water into hot fat.
• Allow the appliance to cool before cleaning it.
• Keep the temperature sensor and the plug pins clean.

Location of Controls

1 Handle
2 Grease trough
3 Griddle
4 Socket for thermostat
5 Foot
6 Thermostat
7 Temperature sensor – measures the temperature of the plate
8 Mains plug

9 Mains lead
10 Temperature control
11 Pilot lamp
12 Fat collecting pan

Electrical connection

Power Requirements

The appliance can consume a total of 1800 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

Connection

• Make sure that the appliance is switched off. The temperature control must be set to "min.".
• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 230 V\~, 50 Hz socket with earthing contact.

Before initial use

1. Take the device out of its packaging.
2. Remove all packaging materials, such as foils, filling materials, cable ties and cartons.
3. Check that all accessories are included in the box.
4. Operate the appliance for around 10 minutes on the highest setting (see "Initial Operation").

NOTE:

• This process normally produces a little smoke and some smells. Provide sufficient ventilation.
• Clean manufacturing residues and dust from the device as described under "Cleaning".

Initial Operation

1. Place the device on a heat-resistant surface.
2. Please ensure that the temperature regulator is turned to "min." (off) and insert it into the socket of the thermostat.

CAUTION:

If the thermostat is not inserted correctly, this may lead to abnormal heating, of which the consequence may be damage or accidents. You should therefore ensure that the thermostat is inserted correctly.

1. Connect the device to a properly installed 230 V\~, 50 Hz power socket.
2. Set the temperature control according to what you intend to do:

Range Use
A Keeping warm
B Cooking
C - D Simmering
E - G Stir-frying
H Grilling

NOTE:

• The device has reached the correct temperature when the control lamp on the thermostat goes off.
• During operation, the pilot lamp switches on and off. This is normal and indicates that the temperature is being thermostatically controlled and maintained.

Fat Collecting Pan

Excess fat collects in the drip tray.

• Slide the drip tray into the bracket under the griddle.
• When grilling you should check the contents regularly and empty the pan when necessary.

Using the unit

WARNING:

The appliance is hot during use!

• Preheat the appliance for around 7 minutes. When the pilot lamp goes out, the grill is ready to use.
• The cooking time depends on the type of food, the quantity, and how well cooked the food needs to be, and it must be determined according to your own preferences.
• When turning the food that is being cooked, please use wooden or Teflon utensils so as not to damage the non-stick layer.
• When the cooking process is complete, switch the temperature control to "A" to keep the food warm.

After Use

• To switch the device off, first turn the temperature regulator to "min." (off) and remove the plug from the socket.
• Do not remove the thermostat from the device until the device has cooled down, as the temperature sensor is still very hot after use.

Cleaning

WARNING: Risk of electric shock!

• Never immerse the appliance and the thermostat in water to clean it.
• Never clean the regulator with damp items.
• Never immerse the cable loom in water!
  • Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

Thermostat

- Please clean the thermostat with a soft paper towel or a soft try cloth.

Griddle

• Please remove any food residues while they are still warm with a damp cloth or paper towel.
• Wipe the griddle with a soft sponge and soapy water, rinse with clean water, and dry thoroughly with a soft cloth. After drying please apply a thin film of edible oil to the surface.

Fat Collecting Pan

• Pull out of the fat collecting pan.
- Discard the contents.
- Clean the tray in a bowl of soapy water.

Technical Specifications

Model: TYG 3440

Power supply: 230 V\~, 50 Hz

Power consumption: 1800 W

Protection class:

Net weight:....approx. 2.4 kg

Subject to change without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.
