Brand	Clatronic
Model	HD 2985
Product type	Fondue, raclette and wok appliance
Power supply	230 V, 50 Hz
Power	300 W
Protection class	I
Main functions	Rotating cooking with heating cartridges, grill, warming
Controls	On/off switch, timer
Operation indicator	Control light
Included accessories	Fat drip tray
Material	Metal chassis, heating cartridges with non-stick coating
Maintenance and cleaning	Washable cartridges with soft sponge and soapy water; removable fat tray; clean chassis with damp cloth; do not immerse in water
Safety	Keep a safety distance of 30 cm from flammable objects; use on heat-resistant surface; do not touch hot parts
Warranty	24 months from date of purchase (receipt)
Country of origin	Germany (brand)
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual

Frequently Asked Questions - HD 2985 CLATRONIC

What is the power of the Clatronic HD 2985 appliance?

The appliance has a power of 300 Watts and operates on 230 V, 50 Hz.

How to clean the heating cartridges?

Clean the cartridges with a soft sponge and soapy water, rinse with clean water and dry thoroughly. Then apply a thin film of cooking oil. Never use a metal brush or abrasive detergent.

What to do if the appliance does not heat up while the cartridges are rotating?

Check that the timer is correctly set to a cooking duration. The heating only activates via the timer. Also ensure the appliance is properly plugged in.

Can I use the appliance outdoors?

No, the appliance is not intended for outdoor use. It must be used indoors on a flat, heat-resistant surface.

How to maintain the fat drip tray?

Remove the tray, empty its contents and clean it in a simple rinse bath. Regularly check the fat level during cooking.

Is the appliance suitable for people with heart conditions?

The manual does not contain specific information on this point. Please consult a doctor if you have doubts.

What types of food can I cook with this appliance?

The appliance is designed to grill sausages, bread rolls and other foods that can be placed between the heating cartridges. It can also be used for fondue, raclette and wok according to the product category.

How to avoid fire hazards?

Place the appliance 30 cm away from any flammable objects (curtains, furniture). Never leave the appliance unattended during use.

Can I repair the appliance myself?

No, do not repair the appliance yourself. Contact a qualified technician or customer service. Replacement of a defective cable must be done by the manufacturer or a qualified person.

What to do if burnt food residues remain on the cartridges?

Remove deposits while the appliance is still hot using a damp cloth or paper towel. Then clean normally with a soft sponge.

USER MANUAL HD 2985 CLATRONIC

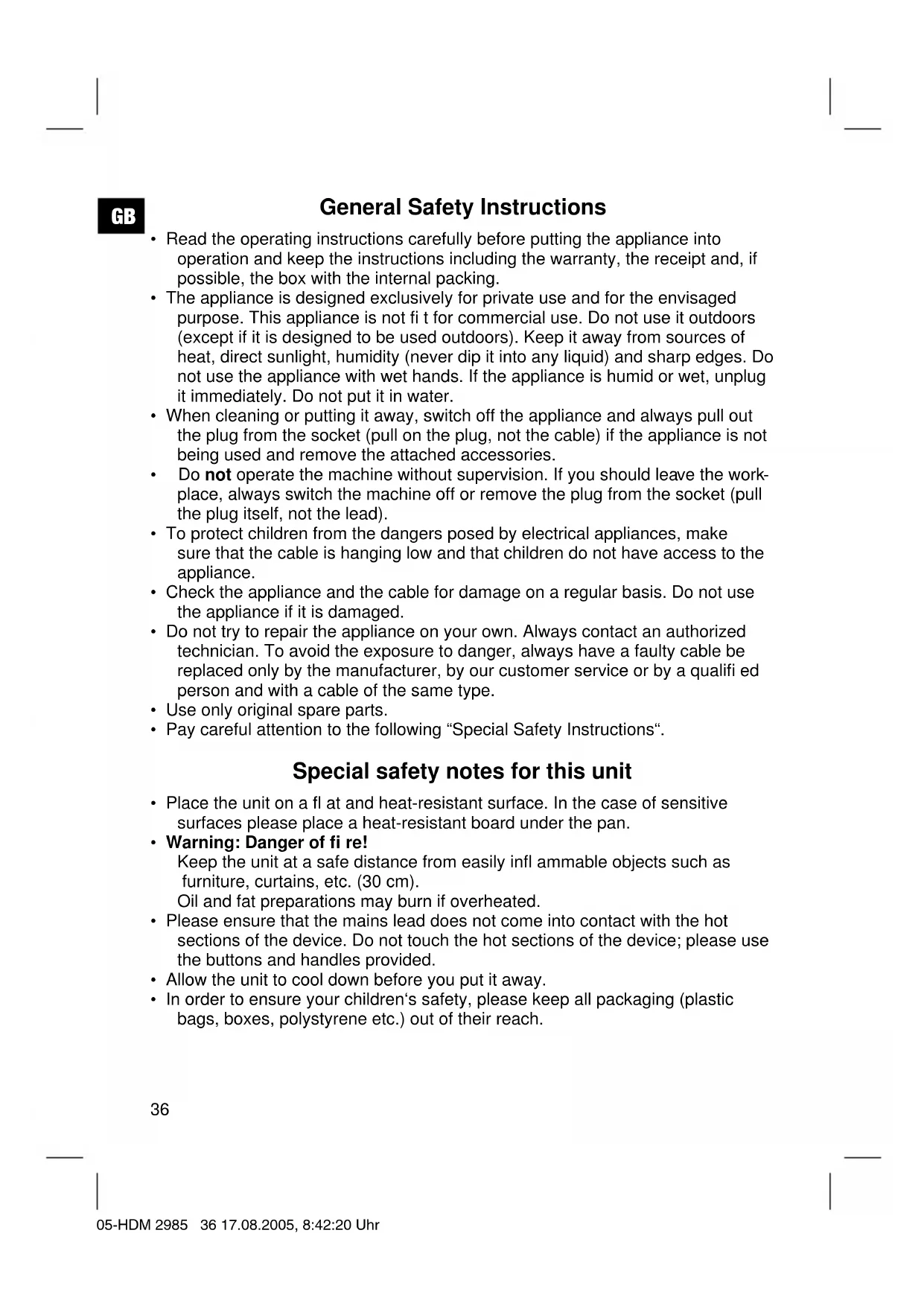

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety notes for this unit

• Place the unit on a fl at and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the pan.
• Warning: Danger of fire!

Keep the unit at a safe distance from easily infl ammable objects such as furniture, curtains, etc. (30 cm).

Oil and fat preparations may burn if overheated.

• Please ensure that the mains lead does not come into contact with the hot sections of the device. Do not touch the hot sections of the device; please use the buttons and handles provided.
• Allow the unit to cool down before you put it away.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Before Initial Use

• Remove the packaging.
• Operate the device empty for 5 minutes in order to remove the protective coating on the heating. This may result in the production of small quantities of smoke and odours which disappear when the device has been used a few times. Ensure sufficient ventilation.
  We recommend that you clean the device as described under „Cleaning".

Electrical Connection

• Place the device on a heat-resistant surface.
• Please ensure that the on/off switch and the timer switch are turned to 0 (off) or OFF.
• Connect the device to a properly installed 230V , 50 Hz power socket.

Using the unit

• Switching on: Turn the device on by the on/off switch. The control lampligheter and the heating rods begin to turn.
• Heating: Use the timer switch to turn on the heating. Select a cooking time on the timer. Preheat the device for approximately 3 minutes. During this time you can start to warm the rolls on the skewers.
• Once the device has been preheated, place sausages between the heating rods. The cooking time depends on the type of food to be cooked and the degree to which it should be cooked, and should be determined on the basis of experience.
• Please use wooden or Teflon on utensils to remove the cooked food in order not to damage the non-stick coating.

Fat Collecting Pan

Please note! The dish must be inserted under the heating rods. This is where excess fat collects. When grilling you should check the contents regularly and empty the pan when necessary.

Caution: The grill and the skewers are hot during use!

After Use

In order to switch the device off, turn the on/off switch and the timer switch to 0 (off) or OFF and then remove the plug from the socket.

GB

Troubleshooting

The heating rods are turning but the device is not heating up!

Note! The heating is only switched on by the timer switch. If the device does not heat up, please check the mains connection and that the timer has been correctly set.

Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Under no circumstances should the device be immersed in water for cleaning.

Heating Rods

• Please remove any food residues while they are still warm with a damp cloth or paper towel.
• Wash off the heating rods with a soft sponge and soapy water, then rinse with clear water and dry thoroughly with a soft cloth. After drying, apply a thin film of edible oil to the surface.

Fat Collecting Pan

Pull out of the fat collecting pan. Shake the contents out and clean the drawer in soapy water.

Housing

Clean the housing after use with a slightly damp cloth.

Technical Data

Model: HDM 2985

Power supply: 230 V, 50 Hz

Power consumption: 300 W

Protection class:

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on.

YdaJIeHHe HEnCnpaBHOCTeI

HarpeBaTeIbHbIe 3JeMeHTbI BpaUaIOTc, OHaKO He rpeHot!

Iohanyucta yUHTte! HarpeB BKIOuayetc TOnbKO NocJe B3BeDeHnAacOBOr MExAHN3Ma. EcnI rPnJIb BCE JHe HpeeT, IpOBepeTe NOdkIOueH JIn OH K CETn I npABINbHO JIn B3BeDeH YAcBOoMexAHN3M.

yxo3a yctpoiCTBOM

• Npeed uHcTKoB BceIa BbIHMaIe BNkU n3 PO3ETKn I KdIte Ioka np6Op OCTbIHET.
  He npimehnTe npoBOIoHbIe IeTKn HIn npeIMtBc a6pa3HBbIM NOKpbITHeM.
• He npimehaTe cInbHbIe nIN a6pa3nBbIe MOIOUne cpeCTBa.
• Hn B Koem cnyuae He norgykaite əneKtpo npnbop B BoNy.

HarpeBaTeNbHbIe 3JemeHTbl

• PnropeBwne K CTeHKam CKOBOpObl OCTaTKn NUsn Heo6xOdmo ydaJIb eue B TENlOM COCToHnn npn NOMoUn BlaXHoN TprnN nn 6ymaxHO nCaIΦeTkn.
• PpOMOte HArpeBaTeIbHbIe 3JIeMeHTbI B MblbHOM pAcTBOpE, N0JIb3yrcB MAnKoI r6KO, cNoLoCHnTe Ix YnCToB BOoI N TuaTeIbHO nPoTpIne HAcYxo MAnKoTprnKo. IocIe npocbixaHnaHaHeCnTe Ha Ix NoBepXHoCTb ToHKn CNoJ pAcTIteIbHOrO Macna.

NoaON

BbIaHnTe PoiDoH. CneIe erO coDeepKHMoe n npOMoIe B npocTOM MOUcem pactBope.

Kopnyc

No OKOHaHH pa6Otbl npotpnte Kopnyc cnerka BlaJxHoi TpaIKoN.

TexHnueckne daHHbIe

Moelb: HDM 2985

3JIeKtpoNTaHHe: 230B,50T

Iotpe6nemar MoHoctb: 300 BaTT

Klacc 3aunTbI:

58

3TO n3dJIeHHe npoJIO BCE Heo6xOaIMbIe n aKTyAJIbHbIe npOBepKn, npEaHcAHbIe dIpeKTHBOI CE, K npiM. Na 3JIeKTPOMaRHTHyIO COBMeCTHMOCt b N COOTBeTCTBnE Tpe6OBAHnM K Hn3KOBoJbTHOH TexHnke, OHO 6blNo TaKKe CKOHCTpyuPObaHO n IOCTpOeHO C yueTom NOcJeDHNX Tpe6OBAHn I NO TexHnke 6e3OnacHOCTn.

Mbl octabJIem 3a co6oI npaBO Ha texHnueckne n3MeHeHHr!

TapaHTnHoe 6aTeIbCTBO

TapaHTnHbI CpOK Ha TeppntOpnn PocChNcKo Φeepaun yCTaHaBnBaETcR NOHOMOHyIMN IpeDCTaBNTeJIaMn.

Kaccobbyuek yBnEeTcra paANTnHbIM TaHOHm. Be3 Hero HeBO3MOKeH 6ecnNaTHbI peMOHT nIN 3aMeHa N3dJIInr.

B clyuae BO3HKnHOBxHn npTeH3n NO rapaHTn, ppeIbABte n3dJIne B noJHOKOMNKeTauH, C opHnHaNbHO yNaKOBKO n KaCCOBbIM YeKOM ToproBOI TOUKe, npOdaBwe 3TO n3dJIne.

*）DepeKtI npHaJNeXHocTe He cnyKaT npuHOn Ia ABToMaTHueCKo 3aMeHb BCero n3dEINB. B 3OM clyuae No3BOHnTe Ham, noxaynCTa, no ropyey JInn! Pa36NtBe cTeKJIHHbIe N NOLOMaHbIe PIACTMaCCOBbIe DeTaJIb BO3MeUaOTc T0lbko 3a DOnONHHTeMbHyIO ONlAty!

DeΦeKtIи3HaunBaembIX npHnAldJeKHOCTe HnTpyuXcraTeTanei (Haepmep KOHTaKTbIe 5eTKMOTOPOB, CMeCnTeNbHbIe KpIOKn, PnpBOdHbIe peMHN, 3aNaChbIe NylbTbI ynpabLeHnH, 3aNaChbIe 3y6HbIe 5eTKn, NlNbHbIe nOToHa nT.i.), a TaKke YnCTKa, Texo6cnyKnBaHne Hn 3aMeHa TpyuXcraTeTanei He nonaAdIoT noD rapaHTnO, I NO3Tomy npoBOaTcra 3a OTdeJIbHyOnnAty!

TapaHTn TepaETc npBCKpbITn N3dJIIN NOCTOPOHHmN Iuamn.

Pocne rapaHTn

Iocne OKOHuaHnca poka rapaHTn, peMOHT n3denn npOn3BOoNTc 3a OnlaTy, COOTBETCTByUOuHMN MaCTepCKMn IIN NyHKtaMn CepBnCHOrO O6CnyKbAHn.

CATHRONIC

INTERNATIONAL GMBH

D-47906 Kempen/Germany · Industriering Ost 40

Telefon [phone]

Internet: http://www.clatronic.de·email: [e-mail]
