USER MANUAL Emperor Kenji PRESIDENT
1) MARCHE/ARRET - VOLUME
A Alpha
Bravo
C. Charlie
D. Delta
E Echo
5. Fyxtt
G Golf
H Hotel
1 India
Juliett
1 lima
M. Mike
NNovember
Oscar
P Papa
Q Quebec
R Romeo
S. Sierra
Tang
Uniform
Vic
Whiskey
YYankee
Z Zulu
LANGUAGE TECHNIQUE :
AM Amplitude Modulation (modulation d'amplitude)
BLU
BF
CB
CH
CQ
C.W.
DX
DW
EM
GMT
GP
HF
LSB
RX
SSB
SWR
SWL
SW
TOS
TX
centeur
LIHE
USB
VHF
LANGUAGE CB :
ALPHA LIMA
BAC
QRA
QBA Familial
QRA PRO
QBB
QRD
Station de base
Fine business (bon, excellent)
QRM: Parasites, brouillage
QRM DX: Parasites lointains
QRM 22:Police
QTH: Position dc station
QTR :Heure locale
CANAUX D'API
H Hotel
I India
J Juliett
L Lima
M Mike
NNovember
Oscar
P Papa
Quebec
R Romeo
Sierra
T Tango
U Uniform
V. Victor
W Whiskey
YYankee
Z Zulu
TERMINOS DEL ARGOT CBEISTA
A.L.
ARMONICOS
AVEMARIA
BARBAS
BARRAMOVIL
BASE
BIGOTADA
BREAK
BREAKER
CAJATONTA
CHICHARRA
CORTINERO
CRUCE DE ANTENAS
DOS METROS HORIZONTALES
ENCENDER FILAMENTOS
ESPIRAS
FOTOCOPIA
FRECUENCIA
KAS
LABORO
LADBILLO
LINEA DE BA,JA
O LINEA DE 500
MODULAR
O.K.
OKAPA
P.A.
PASTILLA
P.O.BOX
PRIMERISIMOS
PUNTITO

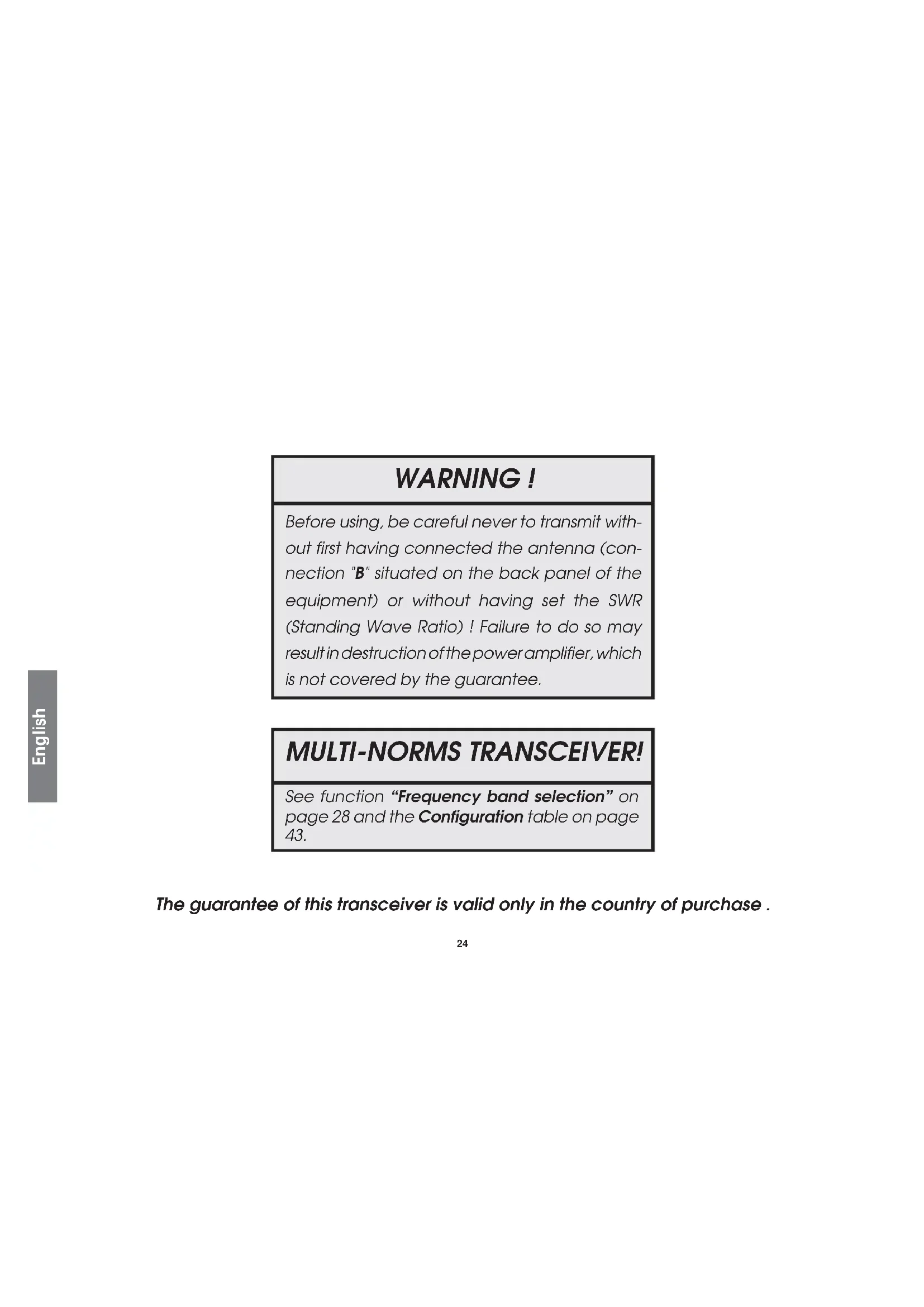

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.
MULTI-NORMS TRANSCEIVER!
See function "Frequency band selection" on page 28 and the Configuration table on page 43.
The guarantee of this transceiver is valid only in the country of purchase .
Welcome to the world of the new generation of CB radios. The new EMPEROR range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your EMPEROR KENJI is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your EMPEROR KENJI.
A) INSTALLATION
1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO
a) You should choose the most appropriate setting from a simple and practical point of view.

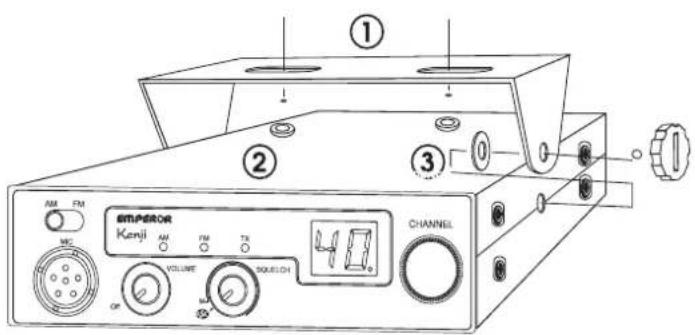

MOUNTING DIAGRAM

b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g., power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

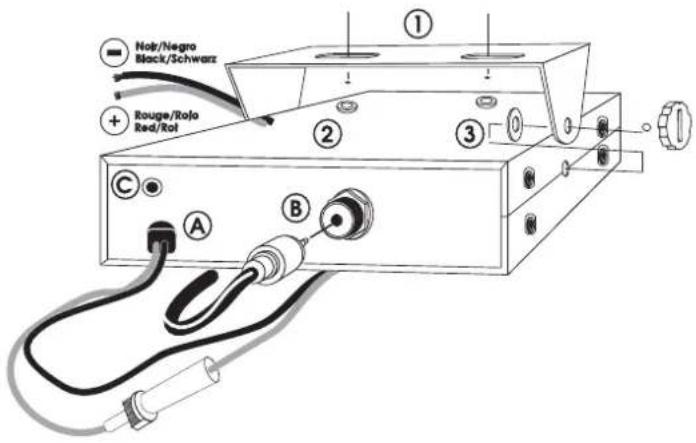

d) To install your equipment, use the cradle (1) and the self-tapping screws [2] provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.
2) ANTENNA INSTALLATION
a) Choosing your antenna:
- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.
b) Mobile antenna:
c) Fixed antenna:
- Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
- If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and
adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5, Adjustment of SWR). - For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
- Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short circuiting).
- Connect the antenna (B).
-A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

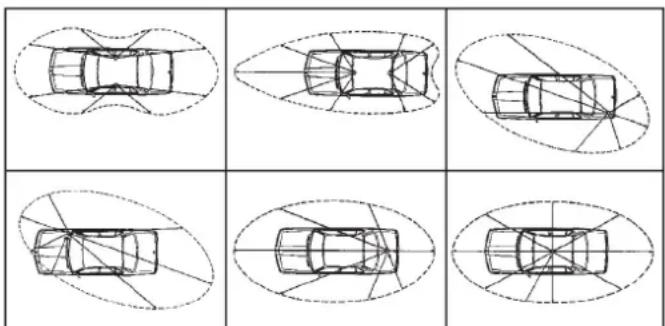

OUTPUT RADIUS PATTERNS
3) POWER CONNECTION
Your EMPEROR KENJI is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.
WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.
a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.
WARNING: Never replace the original fuse (2 A) by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the “push-to-talk” switch on the microphone)
a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the knob VOLUME (1) clockwise.
d) Turn the SQUELCH knob to minimum (anti-clockwise).
e) Adjust the volume to a comfortable level.
f) Go to Channel20 using the rotary knob on the front panelorUP/DOWNbutton on microphone (4).
5) ADJUSTMENT OF SWR (Standing wave ratio)
WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.
- Using an external SWR meter (e.g. SWR 1 or SWR 2):
a) To connect the SWR meter:
- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).
b) To adjust the SWR meter:
- Set the CB to channel 20.
- Put the switch on the SWR meter to position CAL ou FWD.
- Press the "push-to-talk" switch on the microphone to transmit.
Bring the index needle to by using the calibration key.
- Change the switch to position SWR (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
- It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.
WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m .
Your CB is now ready for use.
B)HOW TO USE YOUR CB
1) ON/OFF - VOLUME
a) To turn the set on, turn the knob (1) clockwise.
b) To increase the sound level, turn the same knob further clockwise.
2) ASC (Automatic Squelch Control)/SQUEELCH
Suppresses undesirable background noises when there are no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.
a) ASC: Automatic Squelch Control Worldwide patent, a PRESIDENT exclusivity
No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the switch (2) clockwise, in this case the manual squelch control becomes active again.
b) Turn the squelch knob clockwise to the exact point where all back-ground noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.
3) CHANNEL SELECTOR ROTARY KNOB
Turning this knob allows you to choose a channel (1-40) for transmitting and receiving.
4) DISPLAY

The display shows the working channel.
5) TRANSMISSION INDICATOR
is active when the PTT key on the mike (8) is pressed to transmit.
6) AM/FM INDICATORS
Displays the active mode, AM or FM.
7) AM/FM
Allows the selection of AM/FM mode.
8) PTT ON THE MIKE
Press to talk and release to receive a message.
A) Power supply (13,8 V)
The frequency band must be chosen according to the country where you are going to operate. Do not use another configuration. Some countries require user's licence.
Procedure :
- Switch off the transceiver
- Switch on the transceiver pressing the key on the mike simultaneously
- The code blinks, release the PTT key of the mike after 3 seconds; the code blinks more quickly
- Choose the code with the channel rotary selector, then press 2 seconds on the PTT key of the mike
- Switch off the transceiver, then switch on to confirm the chosen code
| Code Country | |
| 01 Italy 40 CH AM /FM 4 Watt | |
| 02 Italy 34 CH AM /FM 4 Watt | |
| 03 Germany 80 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 04 Germany 40 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 05 Europe 40 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 06 CEPT 40 CH FM 4 Watt | |
| 07 Spain 40 CH AM /FM 4 Watt | |
| 08 France 40 CH FM 4 Watt / 40 CH AM 1 Watt | |
| 09 Poland 40 CH AM /FM 4 Watt (-5KHz) | |
| 00 England 40 CH FM 4 Watt English frequencies / CEPT 40 CH FM 4 W |
Remark : Code 00
- in order to select the English channels, put the AM/FM switch on FM. The AM indicator lights up.
in order to select the FMCEPTfrequencies, put the AM/FM switch on AM. The FM indicator lights up.
C) TECHNICAL CHARACTERISTICS
1) GENERAL
-Channels
(according to the selected band): 40 channels
- Frequency range : 26,965 to 27,405 MHz
- Frequencies : PLL
-Operating Temperature Range: -10^ / +55^
-DC input voltage:13.2V DC ±15%
- Size : 140 (L) x 180 (H) x 35 (D) mm
-Weight:0.850kg
2) RECEIVER
- Receiving system : Dual Conversion Super hétérodyne
-Intermediate Frequency: 1^ IF:10.695 MHz, 2^ IF:455 MHz
Sensitivity: 0.5 V for 20 dB SINAD in FM - Audio Distortion : less than 8% @ 1 KHz
- Image rejection : 65 dB
- Adjacent Channel rejection : 65 dB
- Signal/Noise Ratio : 45 dB
-Current drain at Standby :325mA
3) TRANSMITTER
-Output power
- Modulation
Frequency response
- Output impedance
- Signal/Noise Ratio
-Current Drain
:4W@13.2VDC
:FM:1.8KHz±0.2KHz
: from 400 Hz to 2.5 KHz
:RF50Ohms
:40dBMIN
:1300mA
D) TROUBLESHOOTING
1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY
- Check that the antenna is correctly connected and that the SWR is properly adjusted.
- Check that the microphone is properly plugged in.
2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR
- Check that the squelch level is properly adjusted.
- Check that the volume is set to a comfortable listening level.
- Check that the microphone is properly plugged in.
- Check that the antenna is correctly connected and that the SWR is properly adjusted.
- Check that you are using the same modulation mode as your correspondent.
3) YOUR CB WILL NOT LIGHT UP
- Check the power supply.
- Check the connection wiring.
- Check the fuse.
E) HOW TO TRANSMIT OR RECEIVE AMESSAGE
Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).
Choose your channel (19, 27)
Choose your mode (AM/FM) which must be the same as that of your correspondent.
Press the "push-to-talk" switch and announce your message "Attention stations, transmission testing" which will allow you to check the cleanness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, "Strong and clear".
If you use a calling channel (19,27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.
F) GLOSSARY
Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.
INTERNATIONAL PHONETIC ALPHABET
A Alpha
Bravo
C Charlie
D Delta
E Echo
F Foxtrott
G Golf
H Hotel
India
J Juliett
L Lima
M Mike
N November
Oscar
P Papa
Q Quebec
R Rome
S Sierra
Tango
U Uniform
VVictor
W Whiskey
Y Yankee
Z Zulu
TECHNICAL VOCABULARY
DW : Dual Watch
FM
GMT
HF
IF
LSB
ESB RY
SSB
SWR
SWI
SWL SW
SV
1
UHP
USB
VHF
Dual Watch
High Frequency
Low Frequency
: Receiver
Short Wave
:CBTransceiver
Frequency Modulation
: Greenwich Meantime
Lower Side Band
Single Side Band
Standing Wave Ratio
Short Wave Listening
: Ultra High Frequency
Upper Side Band
: Very High Frequency
CB LANGUAGE
Advertising Flashing lights of police car
Backoff : Slowdown
Basement : Channel1
Base station A CB set in fixed location
Bear : Policeman
Bear bite Speeding fine
Bearcage :Police station
Bigslab :Motorway
Motorway
Big 10-4 Absolutely
Bleeding
Blocking the channel
Blue boys
Break
Breaker
Clean and green: Clear of police
Cleaner channel
Coming in loud and proud
Doughnut
Down and gone
Down one
Do you copy?
DX
Eighty eights
Eye ball
Good buddy
Hammer
Handle
Harvey wall banger
How am I hitting you?
Keying the mike
Kojac with a kodak
Land line
Lunch box
Man with a gun :
Mayday
Meatwagon
Midnight shopper
Modulation
Negative copy: No reply
Over your shoulder
Part your hair
Pull your hammer back :
Rat race
Rubberbander
Sail boat fuel
Smokey dozing: Parked police car
Smokey with a camera : Police radar
Spaghettibowl: Interchange
Stinger
Turkey
Up one
Wall to wall
What am I putting to you?
Absolutely
Signal from an adjacent channel
interfering with the transmission
Pressing the PTT switch without talking
Police
Used to ask permission to join a conversation
A CBer wishing to join a channel
of police
Channel with less interference
Good reception
Tyre
Turning CB off
Go to a lower channel
Understand?
Long dista
Love and kisses
CBers meeting together
Fellow CBer
Accelerator
CBer's nickname
Dangerous driver
How are you receiving me?
Pressing the PTT switch without talking
Police radar
Telephone
CB set
dar
SOS
Ambulance
Thief
Conversation
Right behind you
Behave yourself - police ahead
low down
Congested traffic
New CBer
Wind
olice car
Police radar
Antenna
Dumb CBer
Go up one channel
All over everywhere
Please give me an S-meter reading.
CERTBERCATEFOFACONFORMITYTE

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100-34540 Balaruc-FRANCE,
Declare, on our own responsibility that the CB radio-communication transceiver
Brand: EMPEROR
Model: KENJI
Manufactured in Thailand
is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:
EN 300 135-2:v1.1.1 (2000)
EN 300 433-2:v1.1.2 (2000)
EN 301 489-13 v 1.2.1 (2002)
EN 60215 (1996)
Balaruc, the 2006-05-02

Jean-Gilbert MULLER
General Manager
ACHTUNG!
WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.
| Code Land | |
| 01 Italy 40 CH AM /FM 4 Watt | |
| 02 Italy 34 CH AM /FM 4 Watt | |
| 03 Germany 80 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 04 Germany 40 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 05 Europe 40 CH FM 4 Watt/ 40 CH AM 1 Watt | |
| 06 CEPT 40 CH FM 4 Watt | |
| 07 Spain 40 CH AM /FM 4 Watt | |
| 08 France 40 CH FM 4 Watt / 40 CH AM 1 Watt | |
| 09 Poland 40 CH AM /FM 4 Watt (-5KHz) | |
| 00 England 40 CH FM 4 Watt english frequencies / CEPT 40 CH FM 4 W |
Bemerkung:Code 00
H Hotel
I India
J Juliett
L Lima
M Mike
N November
Oscar
P Papa
Q Quebec
R Romeo
Sierra
T Tango
U Uniform
V Victor
W Whiskey
Y Yankee
Z Zulu
R/S-Code:
QRA: Mein Stationsname ist...
FREQUENCY TABLE for 00 (ENG)
CB-KANÄLE UND IHRE FREQUENZEN fur 00 (ENG)
| \( {\mathrm{N}}^{ \circ } \) du canal Fre \( {\mathrm{N}}^{ \circ } \) Canal Freq Channel Freq Kanal Frequ | quences \( {\mathrm{N}}^{ \circ } \) du ca quencia \( {\mathrm{N}}^{ \circ } \) Canal Freq uency Channel Freu enzens Kanal Freq | hal Frequentes fecuencia quency quenzens | |
| 1 27,60125 | 21 27,80125 | ||
| 2 27,61125 | 22 27,81125 | ||
| 3 27,62125 | 23 27,82125 | ||
| 4 27,63125 | 24 27,83125 | ||
| 5 27,64125 | 25 27,84125 | ||
| 6 27,65125 | 26 27,85125 | ||
| 7 27,66125 | 27 27,86125 | ||
| 8 27,67125 | 28 27,87125 | ||
| 9 27,68125 | 29 27,88125 | ||
| 10 27,69125 | 30 27,89125 | ||
| 11 27,70125 | 31 27,90125 | ||
| 12 27,71125 | 32 27,91125 | ||
| 13 27,72125 | 33 27,92125 | ||
| 14 27,73125 | 34 27,93125 | ||
| 15 27,74125 | 35 27,94125 | ||
| 16 27,75125 | 36 27,95125 | ||
| 17 27,76125 | 37 27,96125 | ||
| 18 27,77125 | 38 27,97125 | ||
| 19 27,78125 | 39 27,98125 | ||
| 20 27,79125 | 40 27,99125 |
FREQUENCY TABLE for 03
CB-KANÄLE UND IHRE FREQUENZEN fur 03
| N° du canal Frequences N° du cauency N° Canal Frequency Channel Frequency KanaI Frequenzens Kanal Frequenzens | ||
| 1 26,965 | 21 27,215 | |
| 2 26,975 | 22 27,225 | |
| 3 26,985 | 23 27,255 | |
| 4 27,005 | 24 27,235 | |
| 5 27,015 | 25 27,245 | |
| 6 27,025 | 26 27,265 | |
| 7 27,035 | 27 27,275 | |
| 8 27,055 | 28 27,285 | |
| 9 27,065 | 29 27,295 | |
| 10 27,075 | 30 27,305 | |
| 11 27,085 | 31 27,315 | |
| 12 27,105 | 32 27,325 | |
| 13 27,115 | 33 27,335 | |
| 14 27,125 | 34 27,345 | |
| 15 27,135 | 35 27,355 | |
| 16 27,155 | 36 27,365 | |
| 17 27,165 | 37 27,375 | |
| 18 27,175 | 38 27,385 | |
| 19 27,185 | 39 27,395 | |
| 20 27,205 | 40 27,405 | |
| N° du canal Fre N° Canal Freq Channel Freq Kanal Freq | quences N° du ca uencia N° Canal Frequency Channel Freuenzens Kanal Freq | hal Fréquences fecuencia quencyuenzens | |
| 41 26,565 | 1 26,765 | ||
| 42 26,575 | 2 26,775 | ||
| 43 26,585 | 3 26,785 | ||
| 44 26,595 | 4 26,795 | ||
| 45 26,605 | 5 26,805 | ||
| 46 26,615 | 6 26,815 | ||
| 47 26,625 | 7 26,825 | ||
| 48 26,635 | 8 26,835 | ||
| 49 26,645 | 9 26,845 | ||
| 50 26,655 | 0 26,855 | ||
| 51 26,665 | 1 26,865 | ||
| 52 26,675 | 2 26,875 | ||
| 53 26,685 | 3 26,885 | ||
| 54 26,695 | 4 26,895 | ||
| 55 26,705 | 5 26,905 | ||
| 56 26,715 | 6 26,915 | ||
| 57 26,725 | 7 26,925 | ||
| 58 26,735 | 8 26,935 | ||
| 59 26,745 | 9 26,945 | ||
| 60 26,755 | 0 26,955 |
FREQUENCY TABLE for 09
CB-KANÄLE UND IHRE FREQUENZEN fur 09
| \( {\mathrm{N}}^{ \circ } \) du canal \( {\mathrm{N}}^{ \circ } \) Canal Channel Kanal | Fréquences Frecuencia Frequency Frequenzens | \( {\mathrm{N}}^{ \circ } \) du canal \( {\mathrm{N}}^{ \circ } \) Canal Channel Kanal | Fréquences Frecuencia Frequency Frequenzens |
| 1 26,960 | 21 27,2 | 10 | |
| 2 26,970 | 22 27,2 | 20 | |
| 3 26,980 | 23 27,2 | 50 | |
| 4 27,000 | 24 27,2 | 30 | |
| 5 27,010 | 25 27,2 | 40 | |
| 6 27,020 | 26 27,2 | 60 | |
| 7 27,030 | 27 27,2 | 70 | |
| 8 27,050 | 28 27,2 | 80 | |
| 9 27,060 | 29 27,2 | 90 | |
| 10 | 27,070 30 | 27,300 | |
| 11 | 27,080 31 | 27,310 | |
| 12 | 27,100 32 | 27,320 | |
| 13 | 27,110 33 | 27,330 | |
| 14 | 27,120 34 | 27,340 | |
| 15 | 27,130 35 | 27,350 | |
| 16 | 27,150 36 | 27,360 | |
| 17 | 27,160 37 | 27,370 | |
| 18 | 27,170 38 | 27,380 | |
| 19 | 27,180 39 | 27,390 | |
| 20 | 27,200 40 | 27,400 |
PRISE MICRO6 BROCHES
CONEXION DEL MICRO6 PINS
6-PIN MICROPHONE PLUG
Countries in which there are particular restrictions
Countries in which the national regulations authorize a transmission power superior to the limit fixed by the harmonised standard, notified in the 4th paragraph of the preface of the proper harmonised standard EN 300 433.
